Volkswagen Golf / Golf Plus. Manual - part 252





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

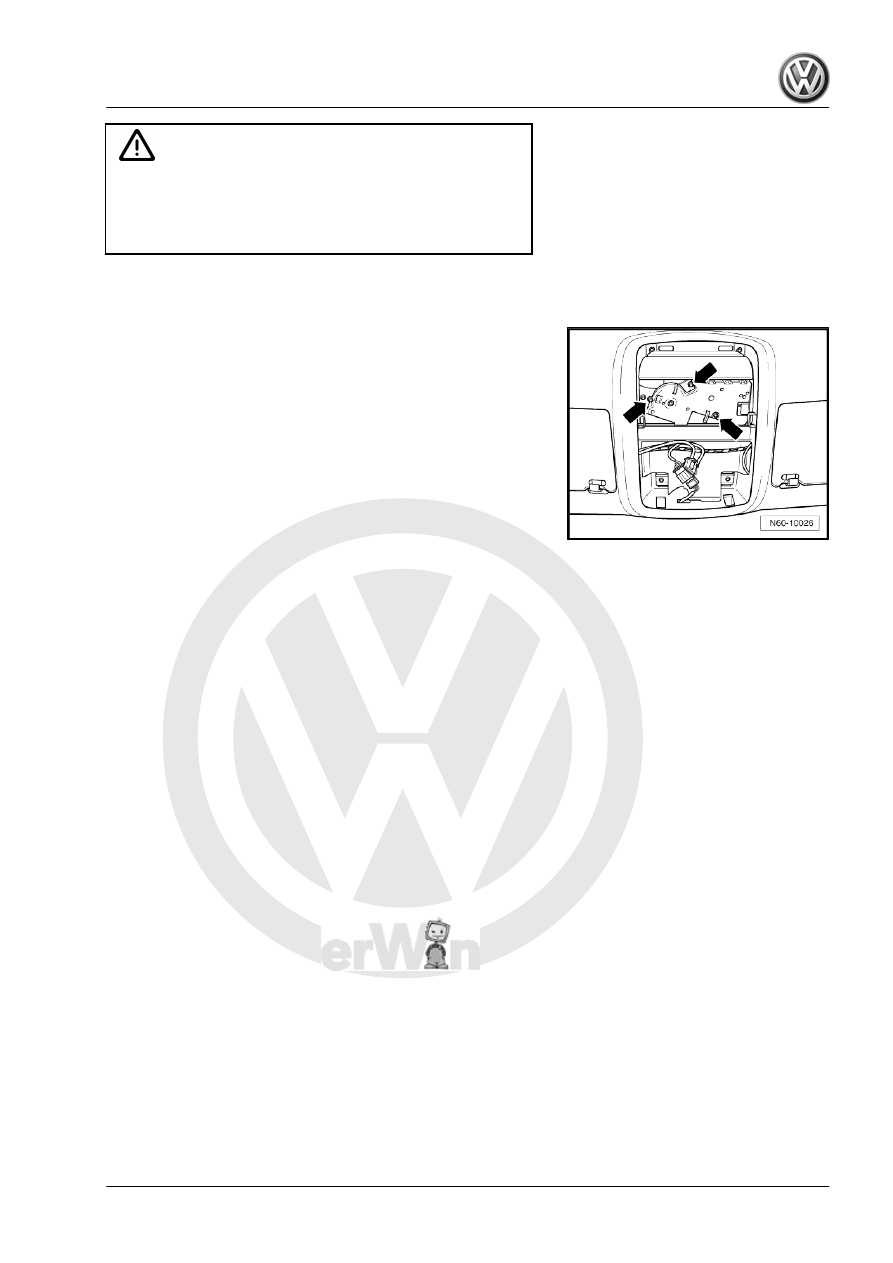

WARNING

Remove or install drive for tilting/sliding sunroof glass panel

only when sunroof is closed (0 position ).
The requirements for removing and installing drive are: Engine

not running and ignition off, key not in ignition and door open.

– Switch off engine and ignition, withdraw key and open door.
• This condition must remain until drive has been installed.
– Remove screws -arrows- and pull off sliding/tilting sunroof

drive.

– Separate connector for sliding/tilting sunroof drive.

1.12.2

Installing

• The screws for the sliding/tilting sunroof drive are microen‐

capsulated and must always be renewed (3.5 Nm).

Installation is carried out in reverse order of removal.
– After installation is complete the key can be placed in ignition

and starter switch again.

• Finally carry out a functional check.

1.13

Adjusting drive for sliding/tilting sunroof

glass panel (0 position)

There may be a requirement to adjust the 0 position if the drive

was removed when not in 0 position or the sliding/tilting sunroof

glass panel was opened or closed using the emergency key.
Drive removed but still connected electrically.
– Select “open sunroof” using preselection control rotary switch.
– Select “close sunroof” using preselection control rotary switch.
– Select “tilt sunroof” using preselection control rotary switch.
– Select “close sunroof” using preselection control rotary switch.
– Install drive in this position (0 position) with sliding/tilting sun‐

roof glass panel closed.

General body repairs, exterior - Edition 04.2008

1. Sliding/tilting sunroof with glass panel (Meritor)

129

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

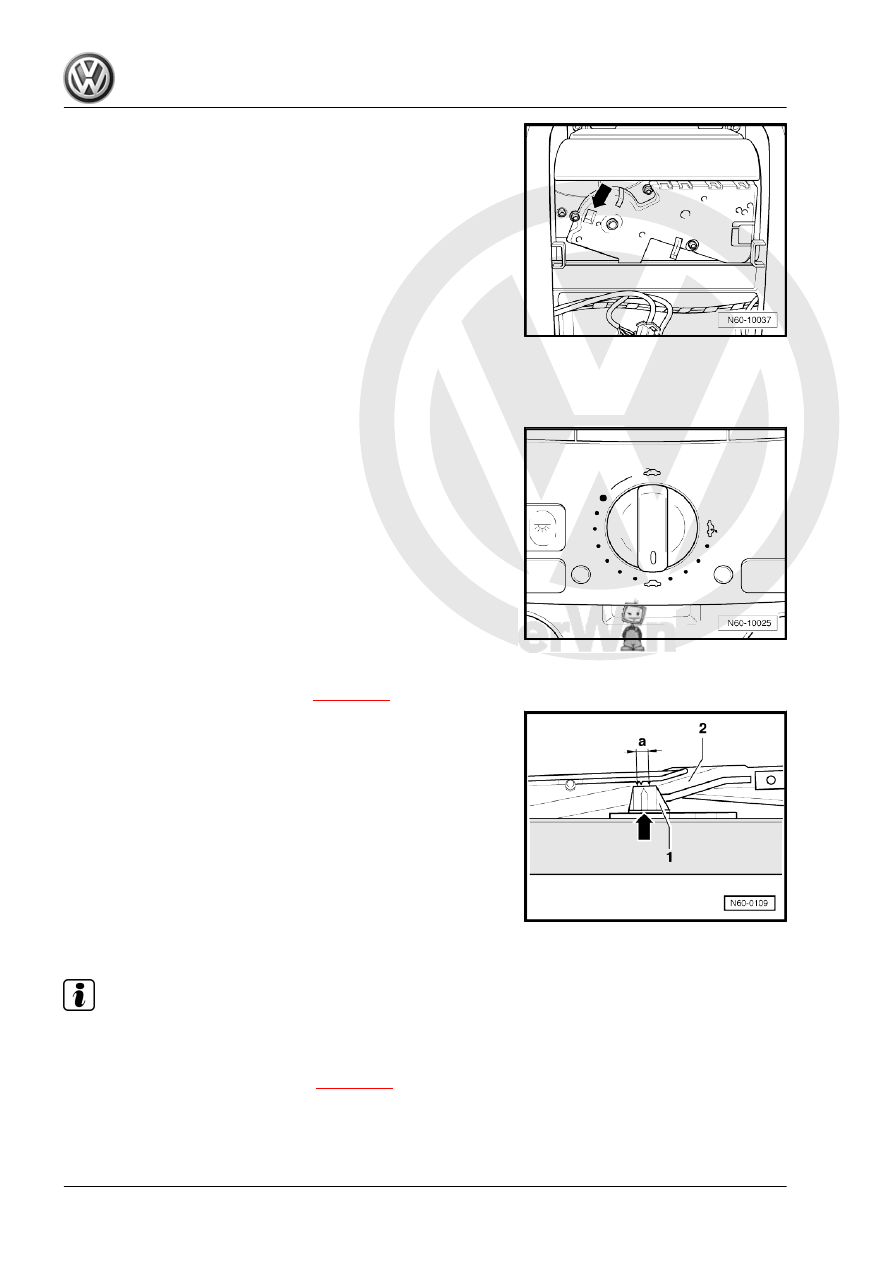

• The sliding/tilting sunroof glass panel drive is in 0 position, if

a white dot can be seen in the drive aperture -arrow-.

1.14

Removing and installing sliding/tilting

sunroof glass panel automatic preselec‐

tion switch

– Removing sliding/tilting sunroof glass panel automatic prese‐

lection switch ⇒  Electrical system; Rep. Gr.  96 ; Lights, bulbs,

switches - interior; Removing and installing sliding sunroof

switch

1.15

Checking parallel running

– Removing glass panel for sunroof

⇒ page 123

 .

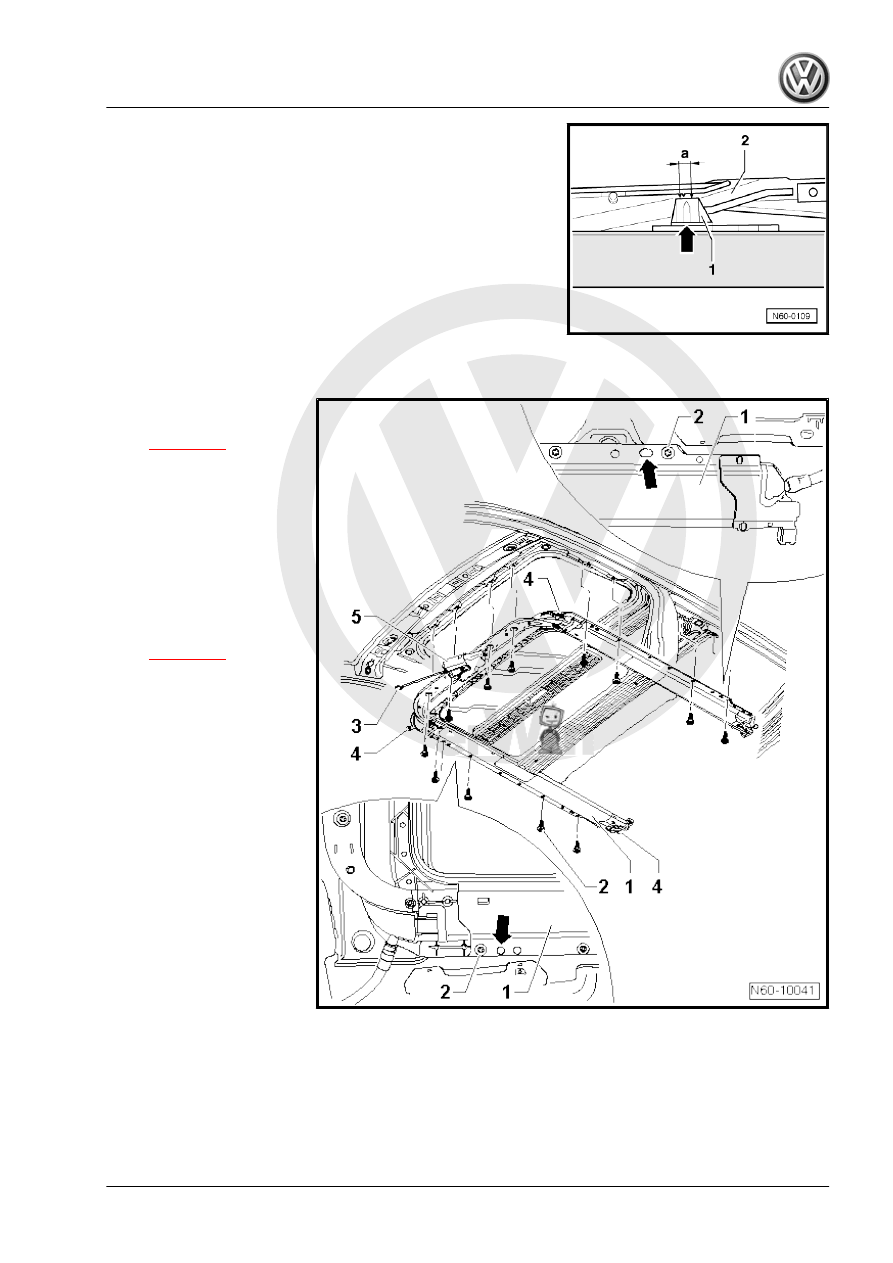

The mark -arrow- on the rear of the guide upper section -1- must,

on both sides, lie within the marks dimension -a- on the guide

plate -2-.
The guide plate -2- must be located in the guide rails (cannot be

moved by hand).

1.16

Adjusting parallel running

Note

The parallel running adjustment can only be made when the drive

and glass panel are removed ("0" position).

– Remove sunroof glass panel drive

⇒ page 128

General body repairs, exterior - Edition 04.2008

130

     Rep. Gr.60 - Sunroof

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

The mark -arrow- on the rear of the guide upper section -1- must,

on both sides, lie within the marks dimension -a- on the guide

plate -2-.
The guide plate -2- must be located in the guide rails (cannot be

moved by hand).
– Push guide upper part -1- both sides centrally between the

marks.

– Install drive (zero position) in this position.
• Then check zero position.

1.17

Assembly overview - carrier unit

1 - Carrier unit

❑ Removing and installing

⇒ page 132

2 - Bolt

❑ Qty. 12
❑ 8 Nm

3 - Connector
4 - Connections for water

drainage hoses
5 - Sliding/tilting sunroof glass

panel drive

❑ Removing and installing

⇒ page 128

General body repairs, exterior - Edition 04.2008

1. Sliding/tilting sunroof with glass panel (Meritor)

131

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

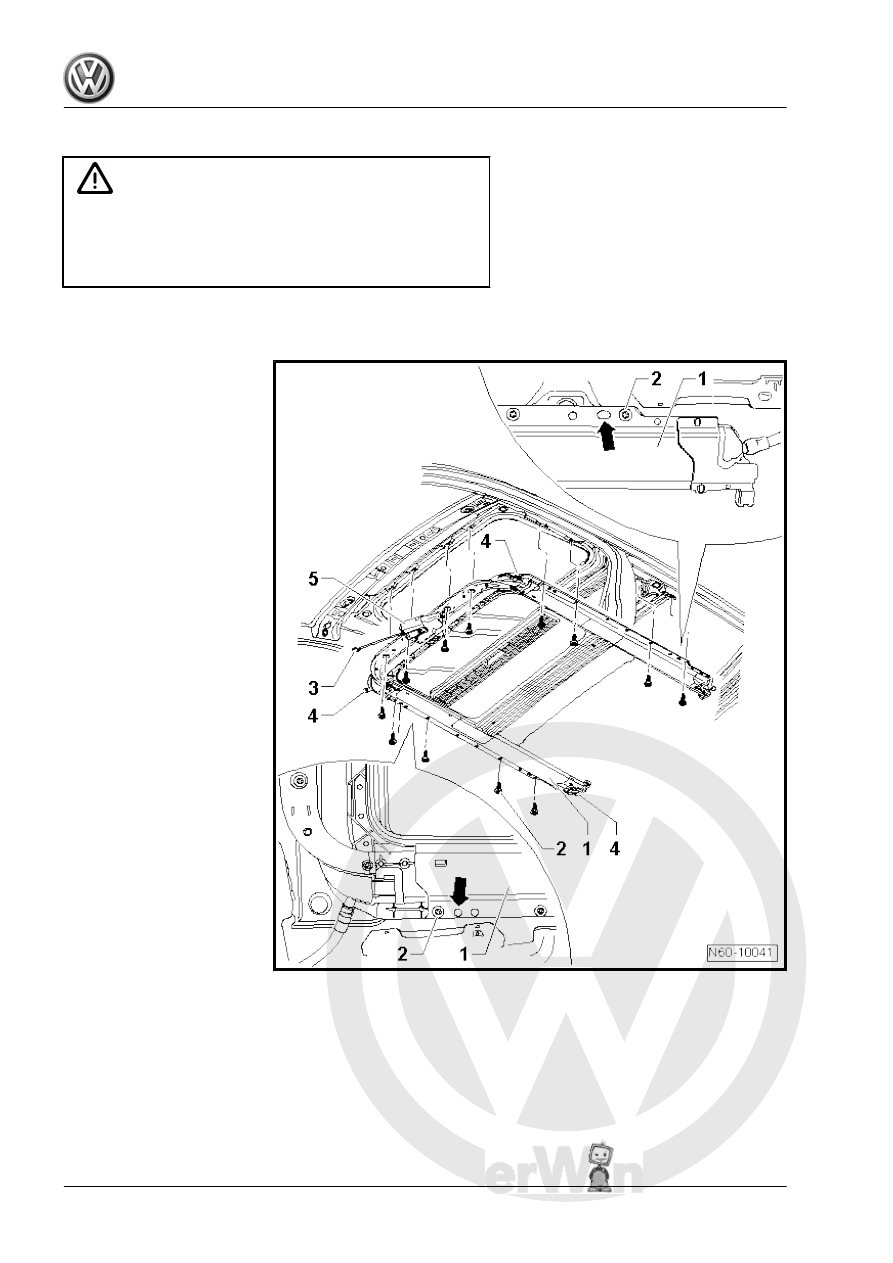

1.18

Removing and installing carrier unit

WARNING

Remove or install drive for tilting/sliding sunroof glass panel

only when sunroof is closed (0 position ).
The requirements for removing and installing drive are: Engine

not running and ignition off, key not in ignition and door open.

1.18.1

Removing

– Remove moulded headlining ⇒  General body repairs, interior;

Rep. Gr.  70 ; Trims, insulation; Roof trims; Removing and in‐

stalling moulded headlining .

– Pull off water drainage hoses -4- from carrier unit -1-.
– Separate connector -3- on sliding/tilting sunroof glass panel

drive -5-.

– Remove screws -2- and remove carrier unit -1- from vehicle

with the help of a second mechanic.

General body repairs, exterior - Edition 04.2008

132

     Rep. Gr.60 - Sunroof
