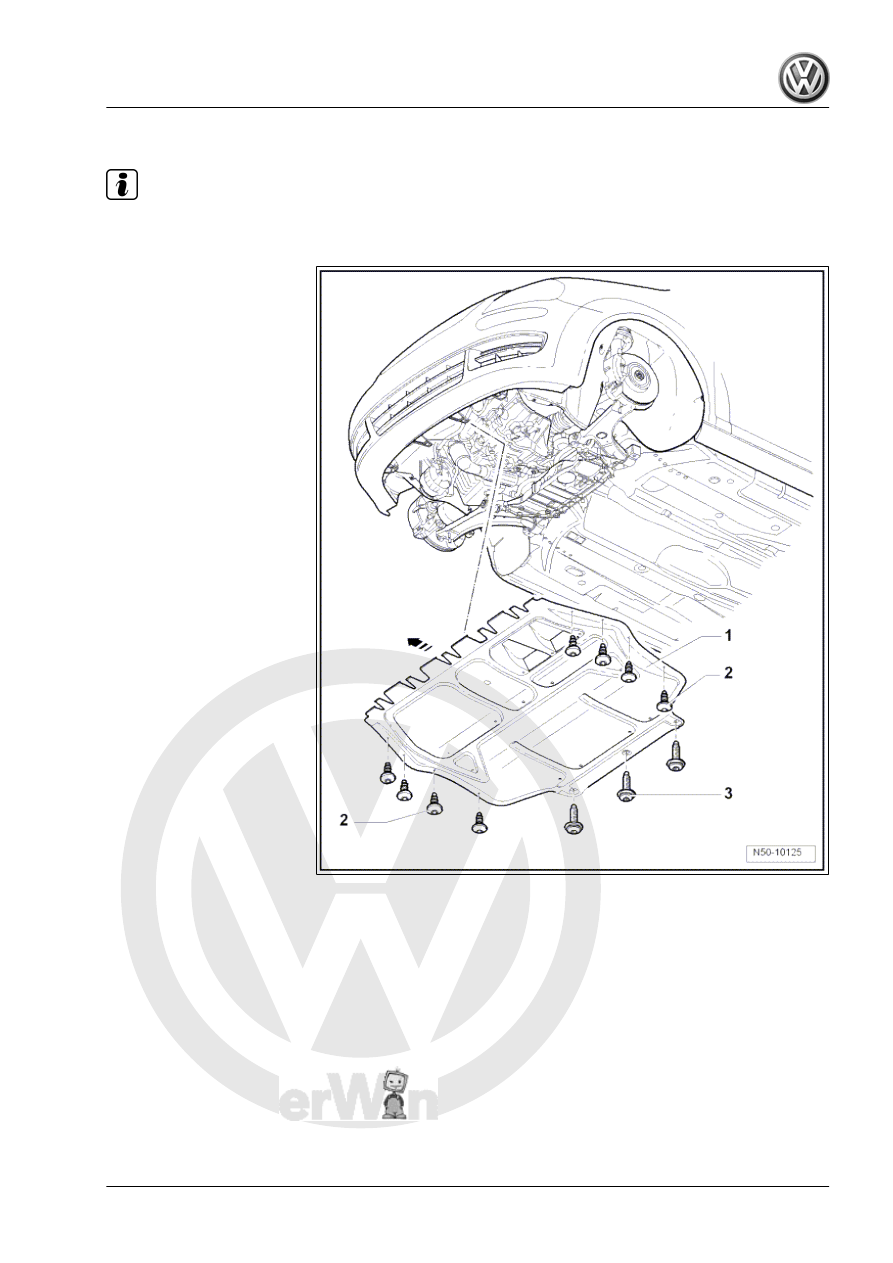

3.2

Assembly overview - noise insulation

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

1 - Noise insulation

❑ Arrow points forwards
❑ Removing:
– Remove bolts -2- and

-3-.

2 - Bolt

❑ Qty. 8
❑ 2 Nm

3 - Bolt

❑ Qty. 3
❑ 6 Nm

General body repairs, exterior - Edition 04.2008

3. Noise insulation

13

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4

Underbody cladding

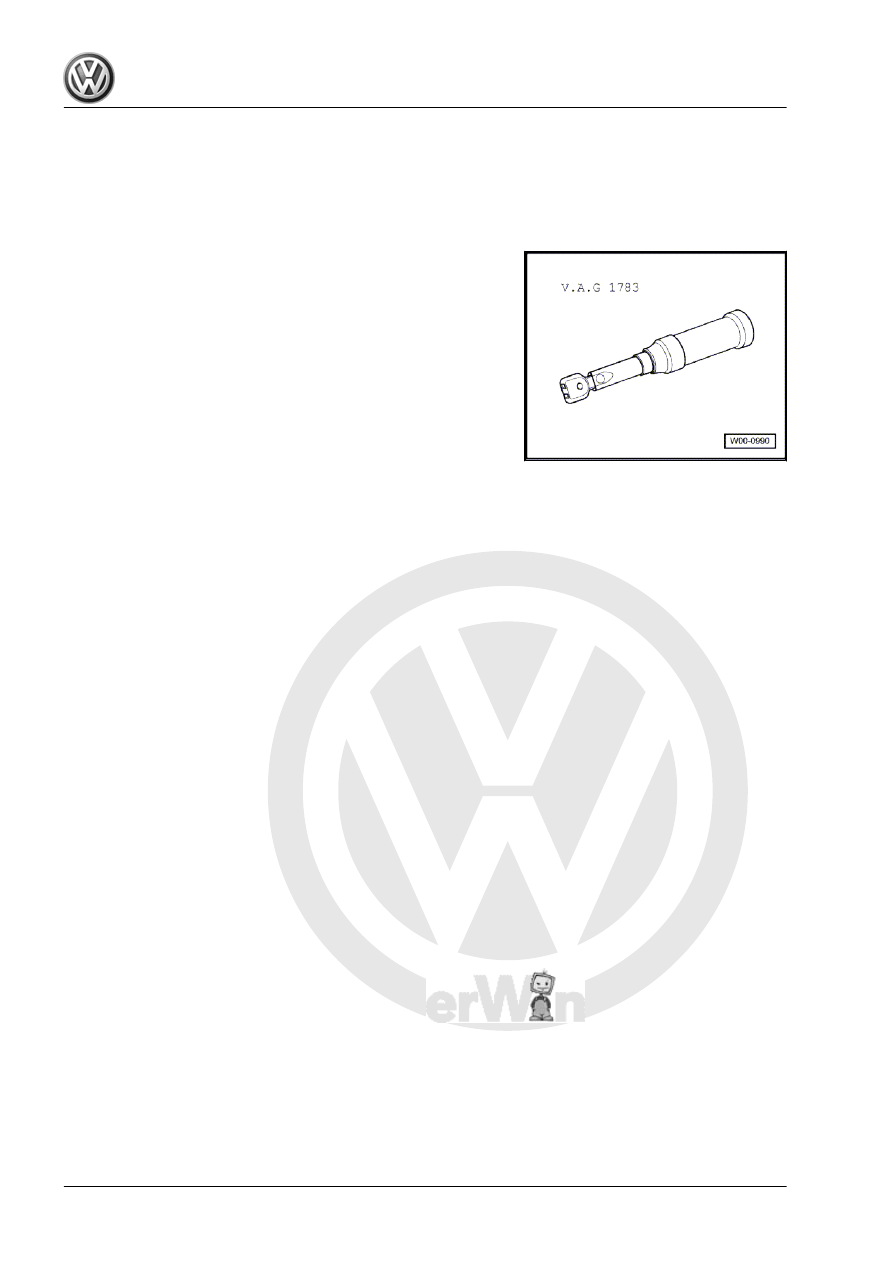

4.1

Tools

Special tools and workshop equipment required
♦ Torque wrench 2...10 Nm -V.A.G 1783-

General body repairs, exterior - Edition 04.2008

14

     Rep. Gr.50 - Body - front

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

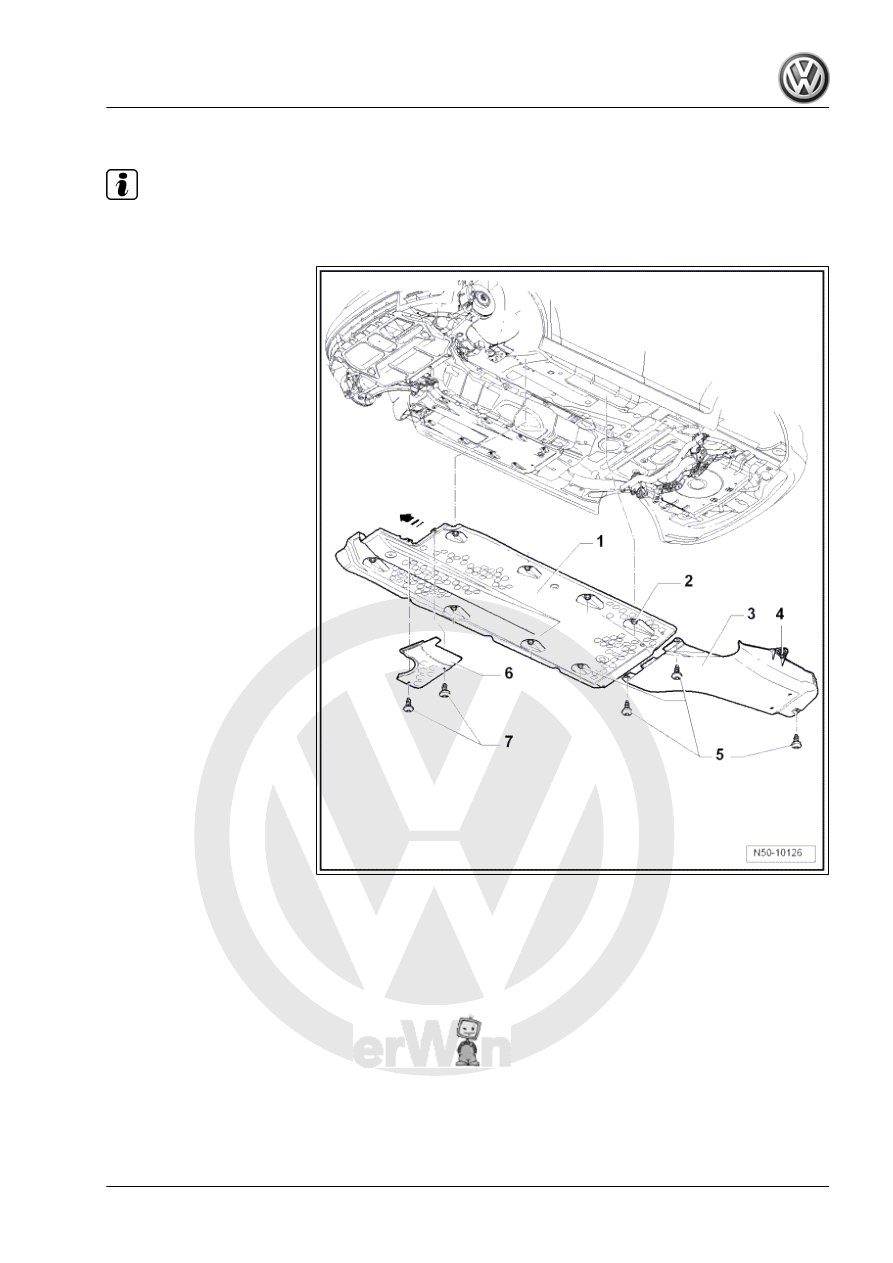

4.2

Assembly overview - underbody cladding

Note

Only the left side is shown. The right side is similar.

1 - Underbody cladding

❑ Arrow points forwards
❑ Removing:
– Remove hexagon nuts

-2-

2 - Hexagon nut

❑ Qty. 8
❑ 1.5 Nm

3 - Rear underbody cladding

❑ Installed only on left-

hand side.

❑ Removing:
– Remove hexagon nut

-4- and bolts -5-.

4 - Hexagon nut

❑ Qty. 1
❑ 1.5 Nm

5 - Bolt

❑ Qty. 3
❑ 2 Nm

6 - Cover

❑ Removing:
– Remove bolts -7-.

7 - Bolt

❑ Qty. 2
❑ 2 Nm

General body repairs, exterior - Edition 04.2008

4. Underbody cladding

15

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

5

Plenum chamber bulkhead

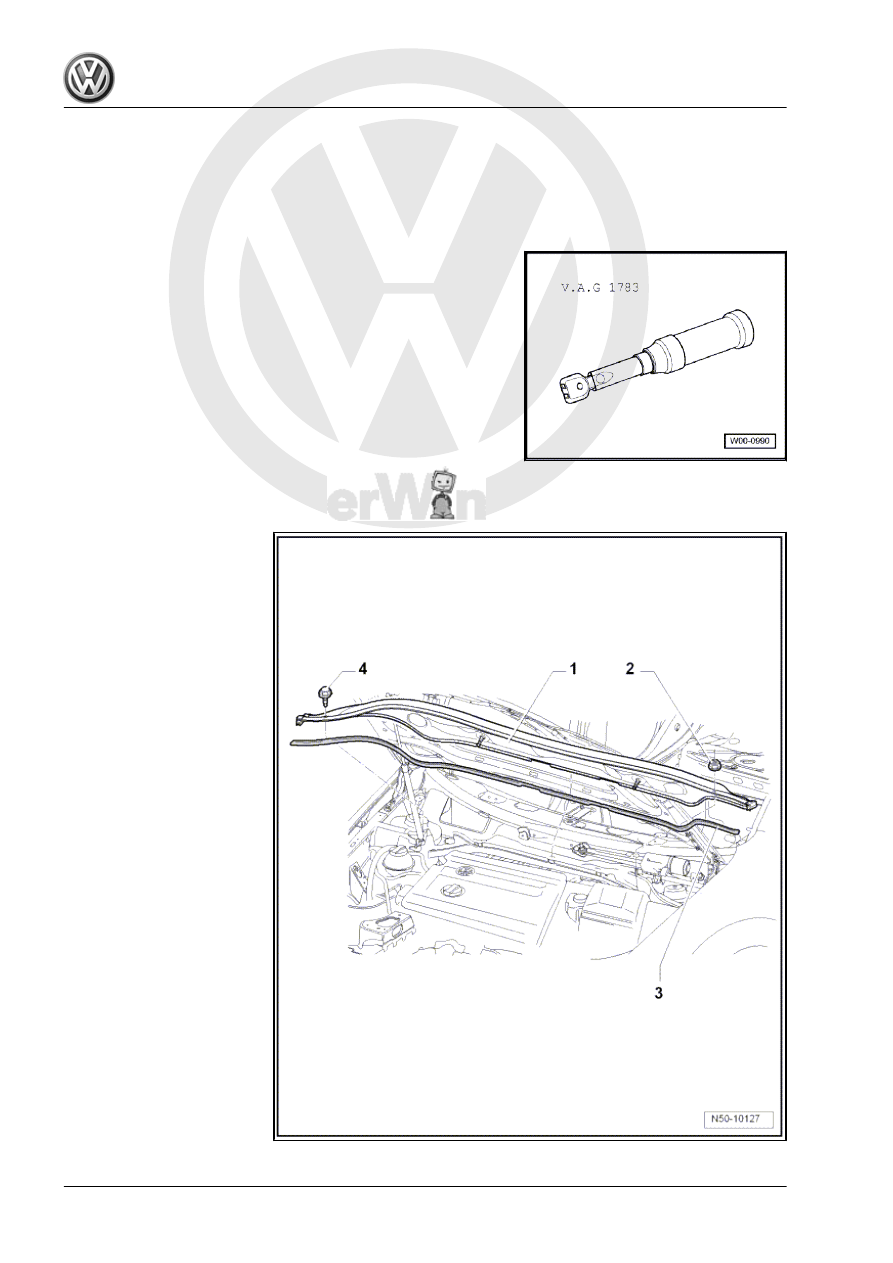

5.1

Tools

Special tools and workshop equipment required
♦ Torque wrench 2...10 Nm -V.A.G 1783-

5.2

Assembly overview - plenum chamber bulkhead

1 - Plenum chamber bulkhead
2 - Hexagon nut

❑ 8 Nm

3 - Plenum chamber bulkhead

seal

❑ When fitting bulkhead

ensure seal is correctly

fitted.

4 - Bolt

❑ 8 Nm

General body repairs, exterior - Edition 04.2008

16

     Rep. Gr.50 - Body - front
