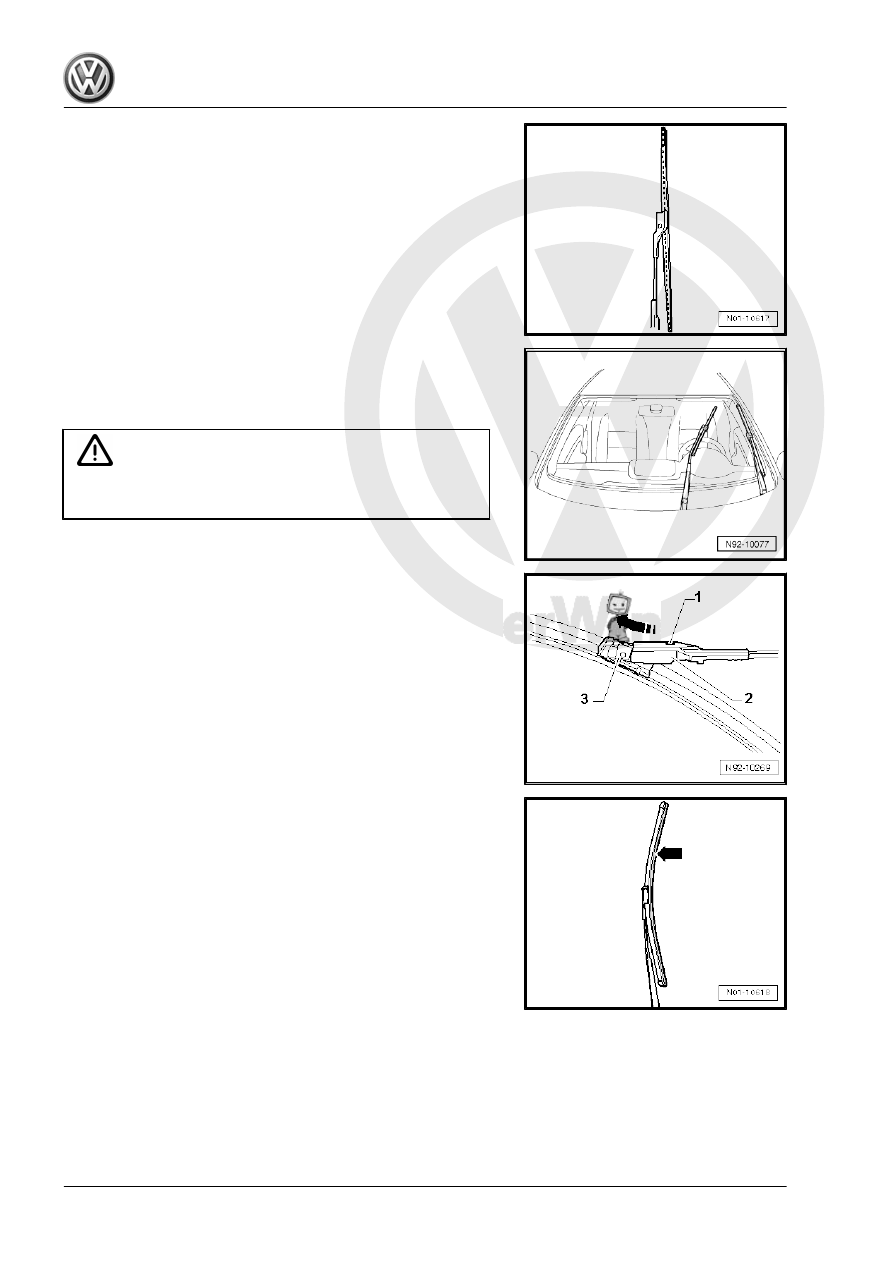

This transport wiper arm is fitted without wind deflector.
Perform the following procedure:

– Set wipers in service position. This can be done by switching

the ignition on and off once with bonnet closed. Then operate

wiper lever and the wipers will stop in service position.

– Take the right-hand wiper from windscreen and lift.

Caution

To prevent damage, ensure that the wiper is only touched at

the wiper joint and do not pull on the wiper blade.

– Depending on version, turn the wiper arm with lip upwards and

pull off, or release wiper arm at joint -3- by pushing locking

device -1- into mounting -2- and pull wiper arm out.

– Slide the new wiper arm into mounting and ensure that it au‐

dibly engages.

Perform the same procedure for the left-hand wiper.
– Carefully place wiper arm back onto windscreen.
– Switch ignition on and briefly operate the wiper lever to move

the wipers back to park position. Switch ignition off again.

Version 3

On this wiper arm the blade protector -arrow- is slid on the wiper

blade.
Perform the following procedure:

Maintenance - Edition 11.2009

138

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Set wipers in service position. This can be done by switching

the ignition on and off once with bonnet closed. Then operate

wiper lever and the wipers will stop in service position.

– Take the right-hand wiper from windscreen and lift.

Caution

To prevent damage, ensure that the wiper is only touched at

the wiper joint and do not pull on the wiper blade.

– Pull blade protector off wiper blade upwards.
Perform the same procedure for the left-hand wiper.
– Carefully place wiper arm back onto windscreen.
– Switch ignition on and briefly operate the wiper lever to move

the wipers back to park position. Switch ignition off again.

4.45

Wiper blades: Check park position

Windscreen wiper blades: Check park position, Golf 2004▸:

⇒ page 139

 .

Windscreen wiper blades: Check park position, Golf Plus 2005▸:

⇒ page 139

 .

4.45.1

Windscreen wiper blades: Check park

position, Golf 2004▸

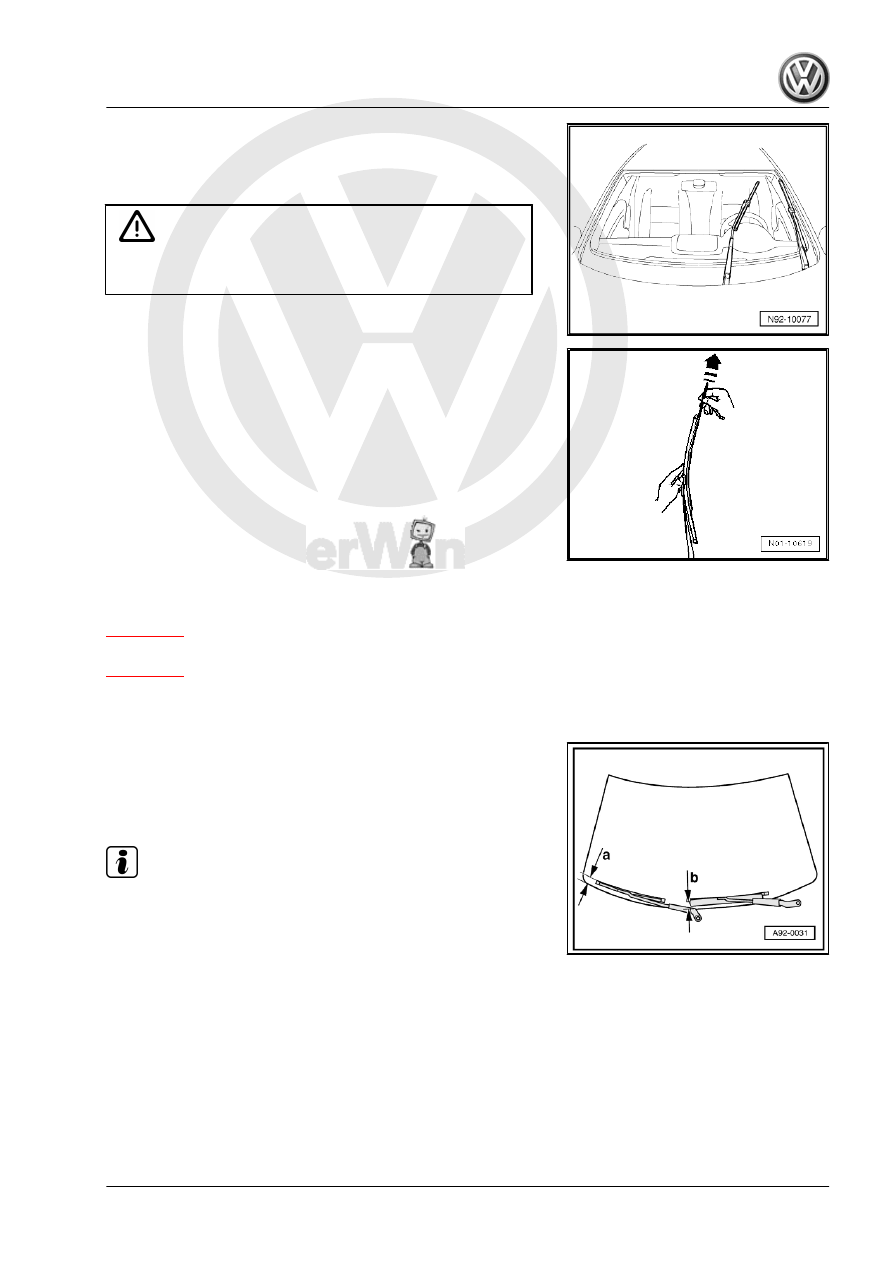

– Check that the distance of the wiper blade ends to plenum

chamber cover on lower edge of windscreen are as follows:

♦ Dimension -a- = 0...10 mm
♦ Dimension -b- = 0...10 mm

Note

For right-hand drive vehicles the placement is a mirror image!

– Adjust wiper arms if necessary:
Adjusting wiper blades “Electrical system” ⇒  Electrical system;

Rep. Gr.  92 ; Adjusting wiper blade park position “Windscreen

wiper system/Adjusting wiper blade park position”.

4.45.2

Windscreen wiper blades: Check park

position, Golf Plus 2005▸

Wiper blades: Check park position, adjust if necessary “Electrical

system” ⇒  Electrical system; Rep. Gr.  92 ; Adjusting wiper blade

park position “Windscreen wiper system/Adjusting wiper blade

park position”

Maintenance - Edition 11.2009

4. Descriptions of work

139

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.45.3

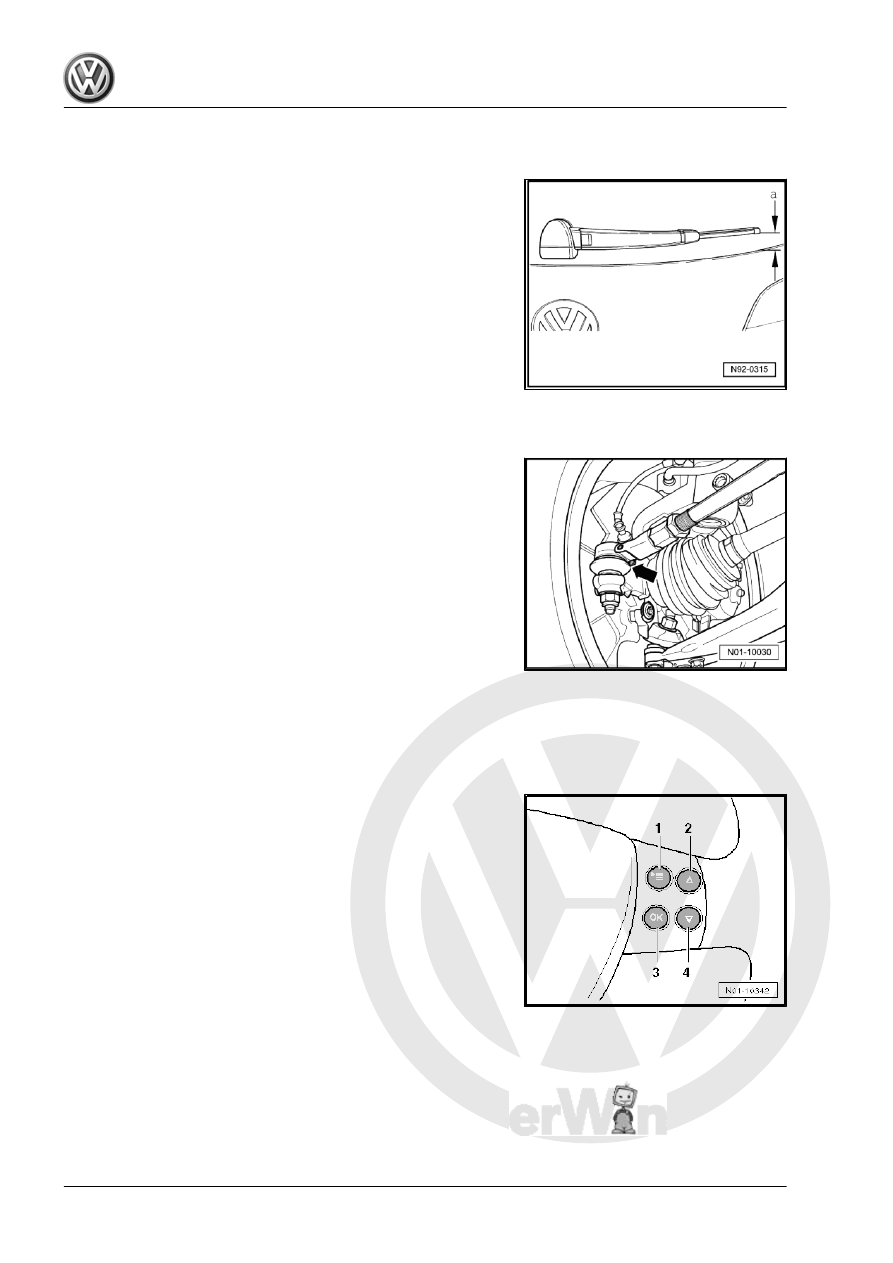

Rear window wiper blades: Check park

position

– Switch rear window wiper on and off and let it move into park

position.

– Check that the distance of wiper blade ends to the lower edge

of window is as follows.

♦ Dimension -a- = 15 + 5 mm
– Adjust wiper arm if necessary: “Electrical system” ⇒  Electrical

system; Rep. Gr.  92 ; Adjusting rear window wiper park posi‐

tion “Rear window wiper system/Adjusting rear window wiper

park position”.

4.46

Track rod ends: Check play, security

and boots

Carry out the following procedure:
– With vehicle raised (wheels hanging free), check play by mov‐

ing track rods and wheels.

Play: Zero play
– Check mountings.
– Check that boots -arrow- are not damaged and are seated

correctly.

4.47

Auxiliary heater: Set weekday in menu

of combi-instrument

As the weekday in the menu for the auxiliary heater is not part of

the time and date setting for the combi-instrument, it must be set

separately.
Setting weekday using buttons on multifunction steering wheel
– Press button -1- until the menu for auxiliary heater appears.
– Press button -4- until “Weekday” is shown and select using

button -3-.

– Now set weekday using buttons -4- and -2- and confirm with

button -3-.

– Exit menu using button -1-.

Maintenance - Edition 11.2009

140

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

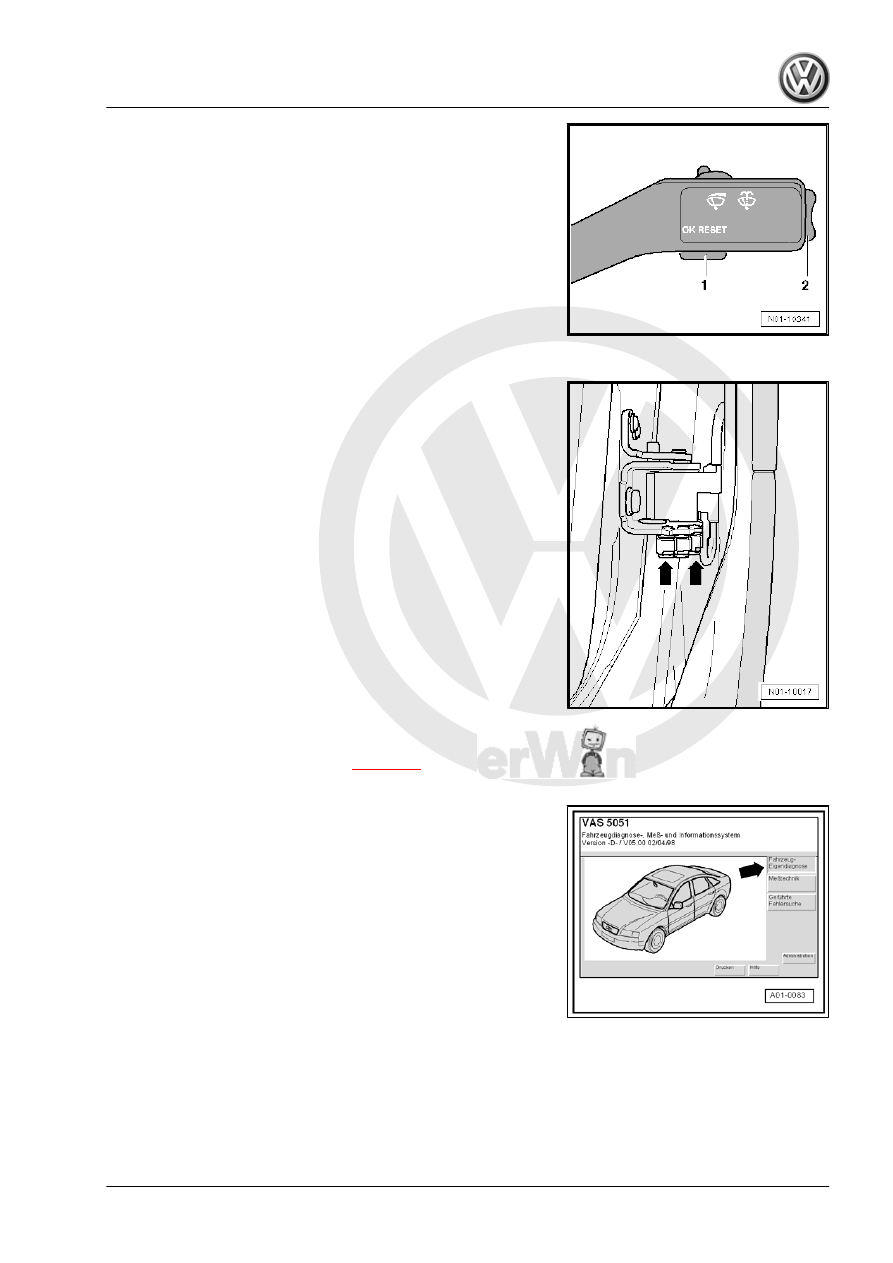

Setting weekday using buttons on windscreen wiper lever
– Setting in the menu is performed respectively with buttons on

the steering wheel.

4.48

Door arrester: Grease

Carry out the following procedure:
– Grease door arrester at points shown -arrows-.
Use grease -G 000 150- .

4.49

Transportation mode: Switch off

– Connect vehicle diagnostic tester

⇒ page 32

 .

– Switch on ignition.
Indicated on display:
Selecting operating mode
– Press button for “Vehicle self-diagnosis” on display.
If the display is not as shown in the procedure: see operating in‐

structions for vehicle diagnostic tester .

Maintenance - Edition 11.2009

4. Descriptions of work

141
