4.43.3

Headlight washer system: Check spray

jet settings, adjust if necessary, Golf

2004▸

Headlight washer system: Check spray jet settings, adjust if nec‐

essary, Golf Plus 2005▸

⇒ page 135

Note

If the spray field is uneven due to soiling in the spray jet, re‐

move spray jet “Electrical system” ⇒  Electrical system; Rep.

Gr.  92 ; Removing and installing spray jets for windscreen

washer system “Removing and installing spray jet retainer”

and rinse with water opposite to direction of spray.

Then it is permitted to blow out opposite to direction of spray

with compressed air.

Caution

♦ Never use items to clean the spray jets!
♦ Never use a needle or a similar object to adjust the spray

jets, otherwise the water passages in the spray jet will be

damaged!

Special tools and workshop equipment required
♦ Adjusting tool -T10167-

The jet adjustment dimensions are for the left-hand headlight

(right-hand headlight mirror image)
Checking jet setting
– Switch on dipped headlight.
– Operate windscreen washer system.
The headlights are washed if the windscreen wiper lever is hold

in “Wipe position” for at least 1.5 seconds.
The spray jet must spray to centre of headlights, see -B- and

-C-.
Adjusting jets
– Switch on dipped headlight.
– Operate windscreen washer system.
The headlights are washed if the windscreen wiper lever is hold

in “Wipe position” for at least 1.5 seconds.

Maintenance - Edition 11.2009

134

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

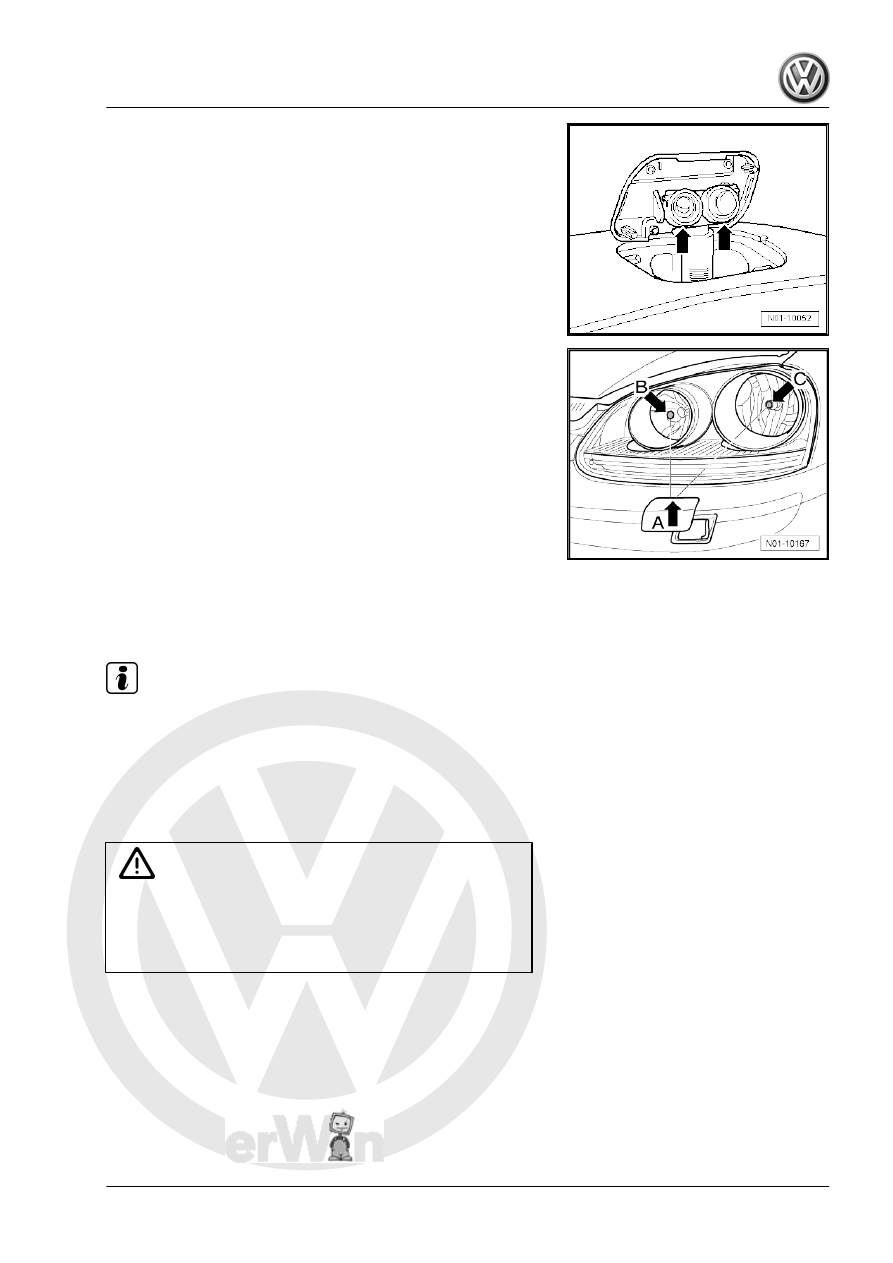

The spray jets -arrows- are extended.

– Carry out the following procedure:
– Align spray direction of respective jet to upper edge of head‐

light -item B- and -item C- using adjusting tool -T10167- .

4.43.4

Headlight washer system: Check spray

jet settings, adjust if necessary, Golf

Plus 2005▸

Note

If the spray field is uneven due to soiling in the spray jet, re‐

move spray jet “Electrical system” ⇒  Electrical system; Rep.

Gr.  92 ; Removing and installing spray jet retainer “Removing

and installing headlight washer system/spray jet retainer” and

rinse with water opposite to direction of spray.

Then it is permitted to blow out opposite to direction of spray

with compressed air.

Caution

♦ Never use items to clean the spray jets!
♦ Never use a needle or a similar object to adjust the spray

jets, otherwise the water passages in the spray jet will be

damaged!

Special tools and workshop equipment required

Maintenance - Edition 11.2009

4. Descriptions of work

135

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

♦ Adjusting tool -T10167-

The jet adjustment dimensions are for the left-hand headlight

(right-hand headlight mirror image)
Checking jet setting
– Switch on dipped headlight.
– Operate windscreen washer system.
The headlights are washed if the windscreen wiper lever is hold

in “Wipe position” for at least 1.5 seconds.

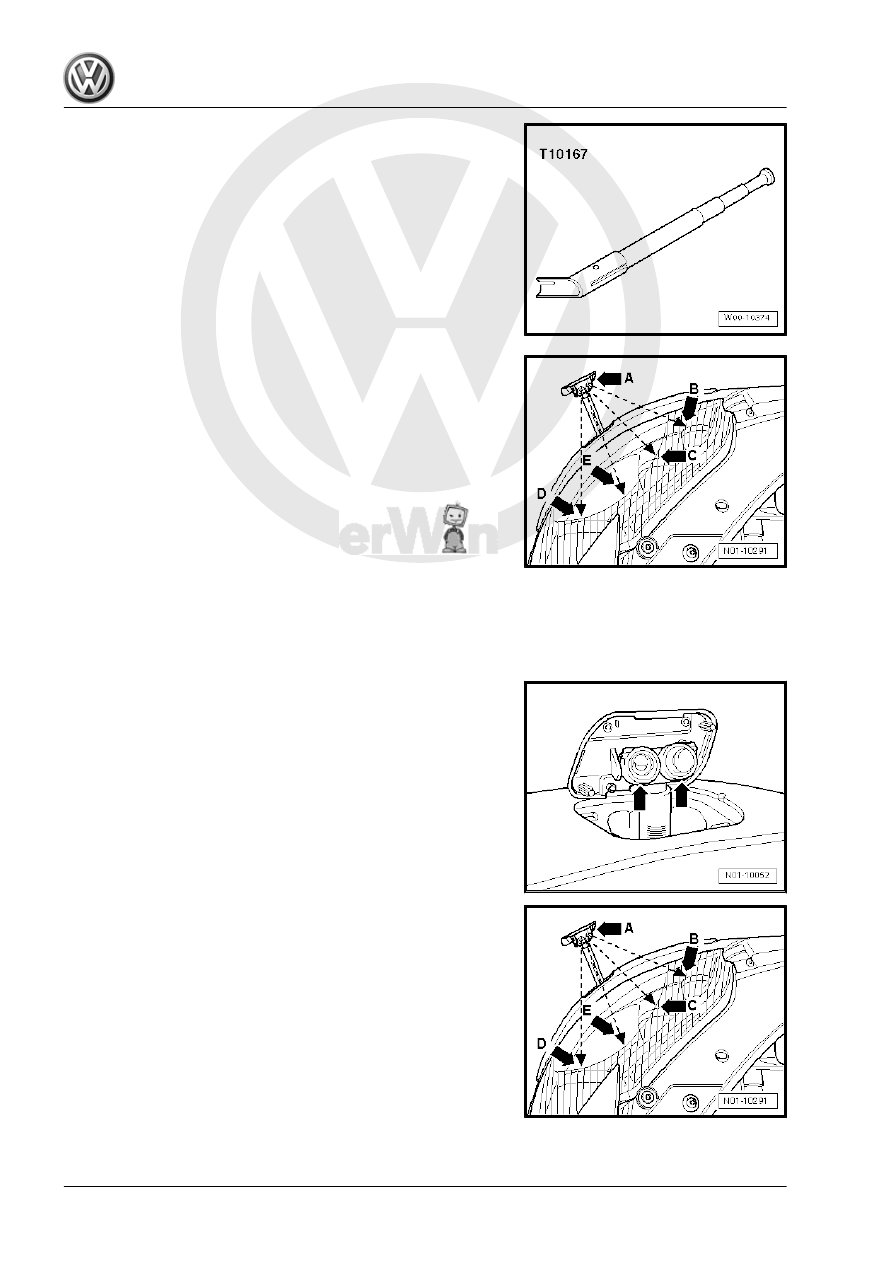

The spray jet of the headlight washer jets -A- should spray to

centre of headlights, see -B-, -C-, -D- and -E-.
Adjusting jets
– Switch on dipped headlight.
– Operate windscreen washer system.
The headlights are washed if the windscreen wiper lever is hold

in “Wipe position” for at least 1.5 seconds.

The spray jets -arrows- are extended.

– Carry out the following procedure:
– Align spray direction of respective jet to upper edge of head‐

light, see -B-, -C- -D- and -E- using adjusting tool -T10167- .

Maintenance - Edition 11.2009

136

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.44

Wiper blade protection: Remove

Currently there are three versions to separate the wiper blade

protection from the wiper blade or to exchange a transport wiper

arm.
Version 1

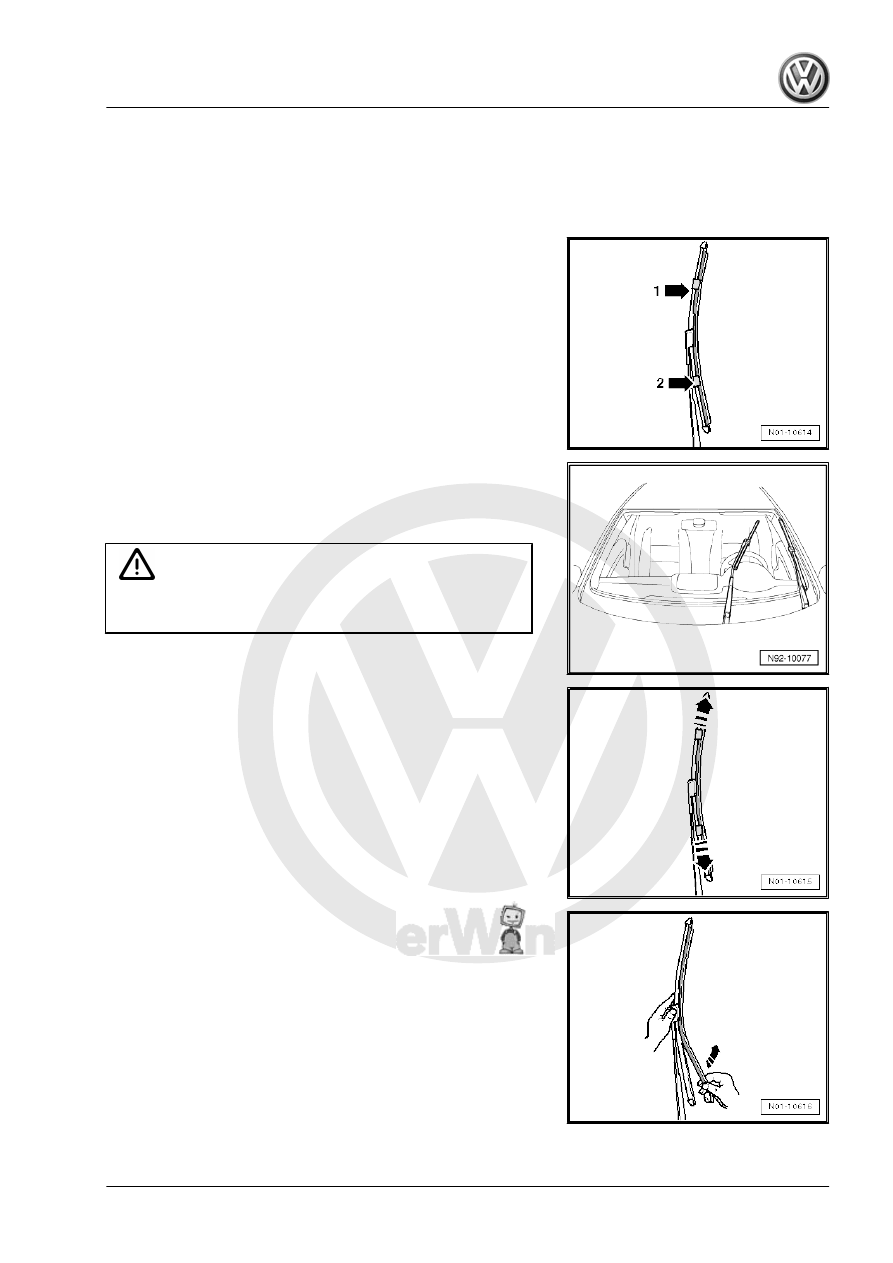

On this wiper arm the blade protector is secured on the blade with

two securing clips -arrows-.
Perform the following procedure:

– Set wipers in service position. This can be done by switching

the ignition on and off once with bonnet closed. Then operate

wiper lever and the wipers will stop in service position.

– Take the right-hand wiper from windscreen and lift.

Caution

To prevent damage, ensure that the wiper is only touched at

the wiper joint and do not pull on the wiper blade.

– Now remove upper securing clip upwards and lower securing

clip downwards -arrows-.

– Pull blade protector off wiper blade from bottom to top.
– Carefully place wiper arm back onto windscreen.
Perform the same procedure for the left-hand wiper.
– Switch ignition on and briefly operate the wiper lever to move

the wipers back to park position. Switch ignition off again.

Version 2
