Body Repairs - Edition 06.2010

9. Renewing inner side panel

237

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

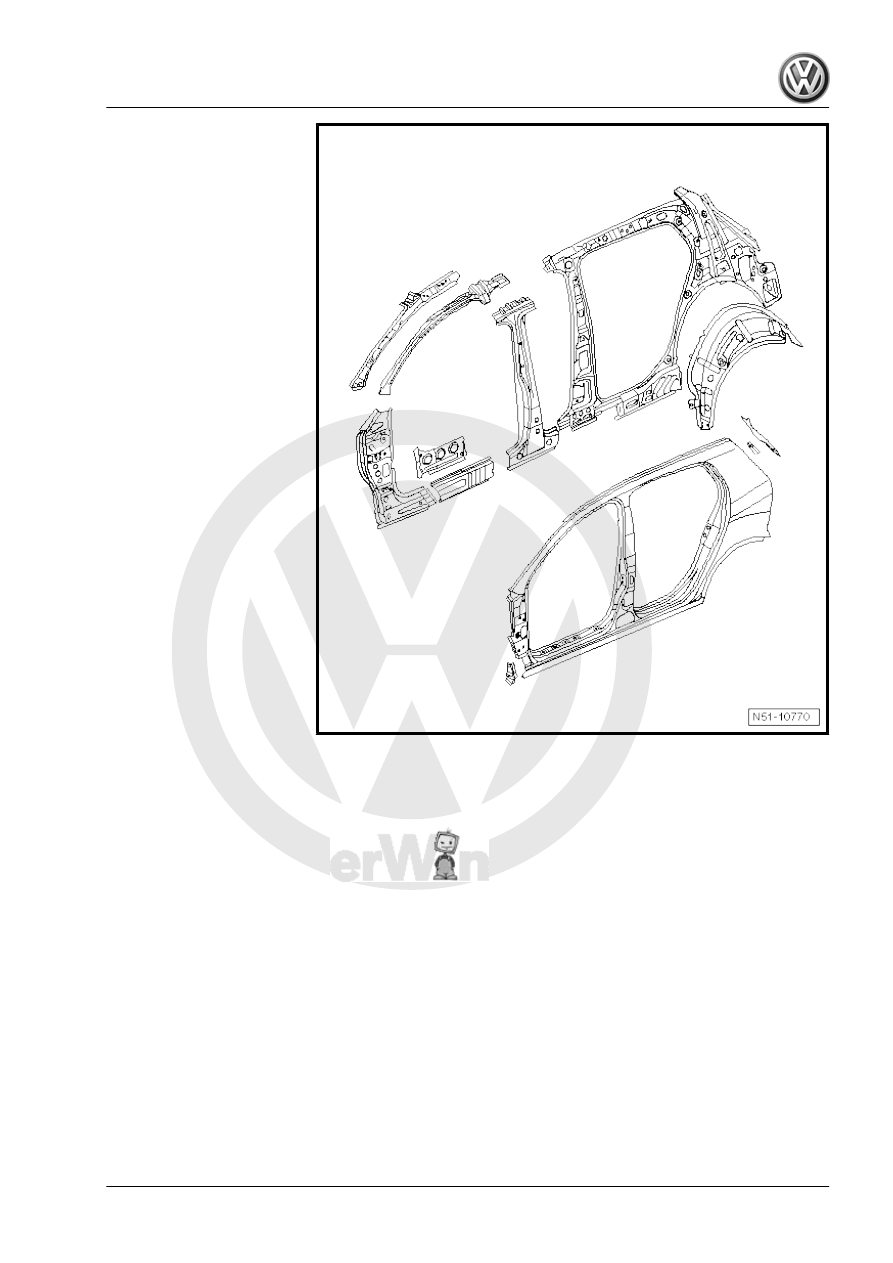

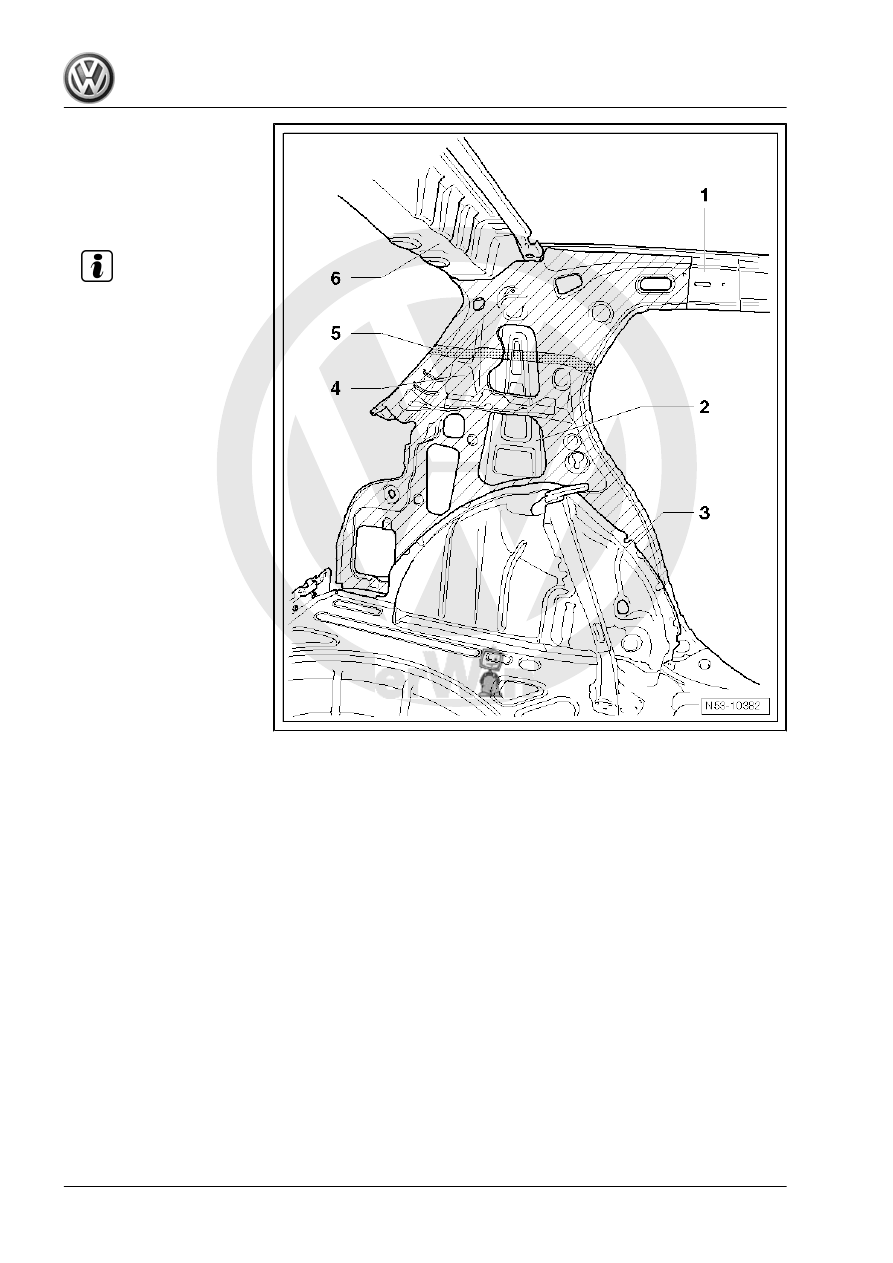

1 - Inner roof frame
2 - C-pillar reinforcement
3 - Rear wheel housing
4 - Inner side panel
5 - Moulded foam element

Note

6 - Rear roof cross member

9.1

Tools

Special tools and workshop equipment required
♦ Welding unit (inverter) -VAS 6237-
♦ Welding unit (inverter) -VAS 6237 L-
♦ Welding unit (inverter) -VAS 6238-
♦ Welding unit (inverter) accessory package -VAS 6238/1-
♦ Welding unit (inverter) -VAS 6239-
♦ Welding unit (inverter) -VAS 6249-

Body Repairs - Edition 06.2010

238

     Rep. gr.53 - Body - rear

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

9.2

Removing

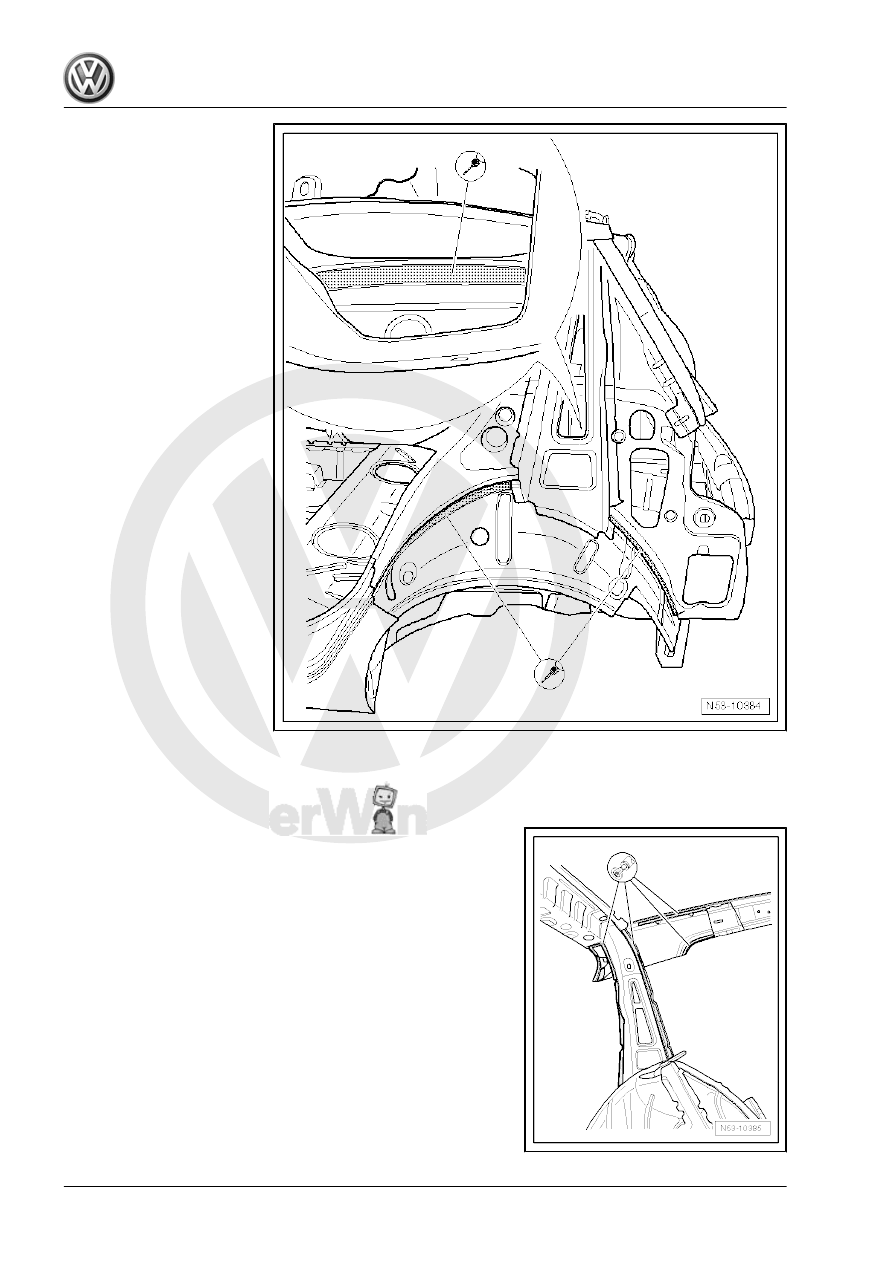

– Separate original joints to roof frame, to door aperture -1-, to

C-pillar reinforcement -3- and to rear roof cross member -4-,

from interior.

– Make parting cuts -2- as shown.

Body Repairs - Edition 06.2010

9. Renewing inner side panel

239

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

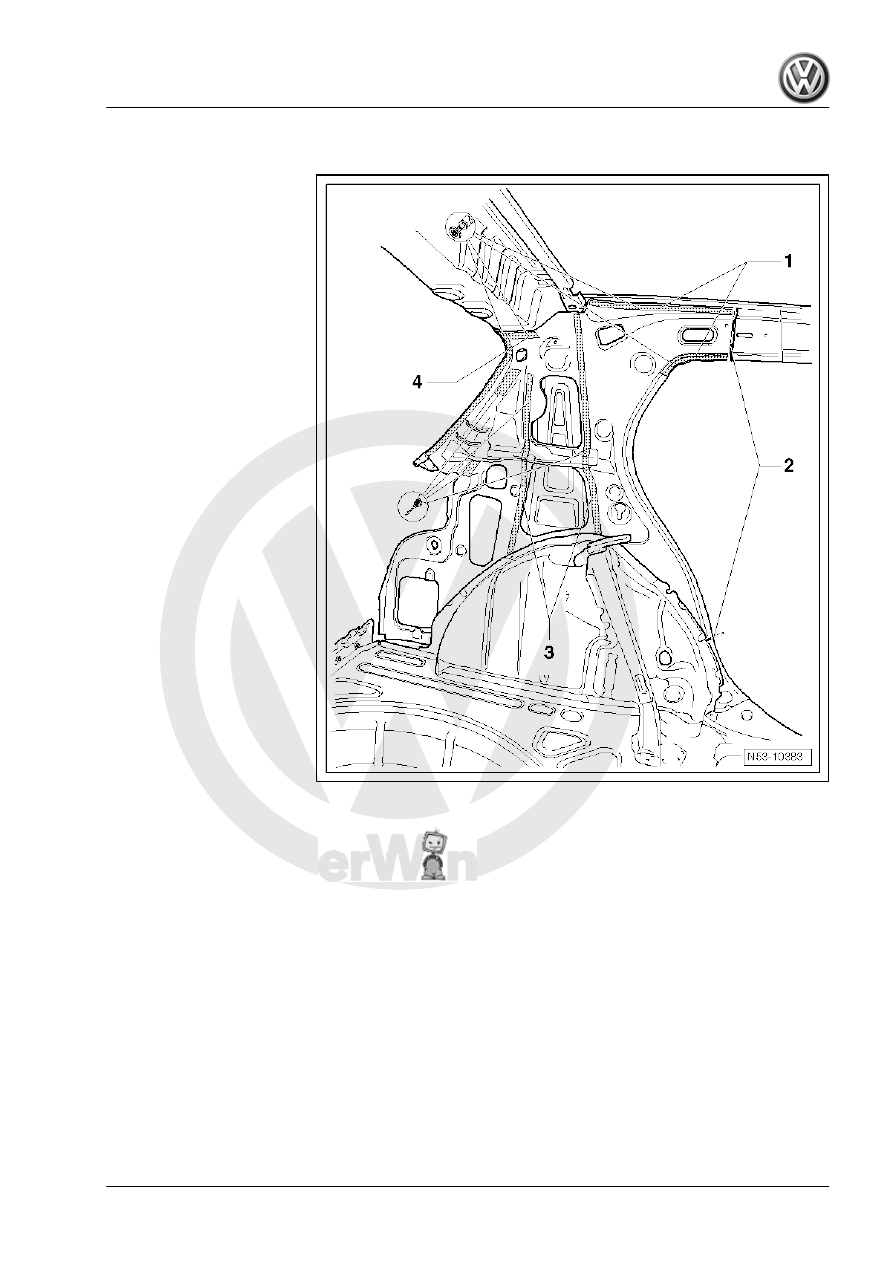

– Separate remaining joint to outer wheel housing liner.
– After separating inner side panel, remove joint remains in area

of C-pillar reinforcement -enlargement-.

– Remove material remains on inside.
