– Transfer parting cut to new part and cut out.

16.3.2

Welding in

– Adapt new part with vehicle standing on its wheels or on align‐

ment bracket set and fix in position.

– Check fit with adjacent parts.

Body Repairs - Edition 06.2010

16. Renewing rear side member reinforcement

189

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

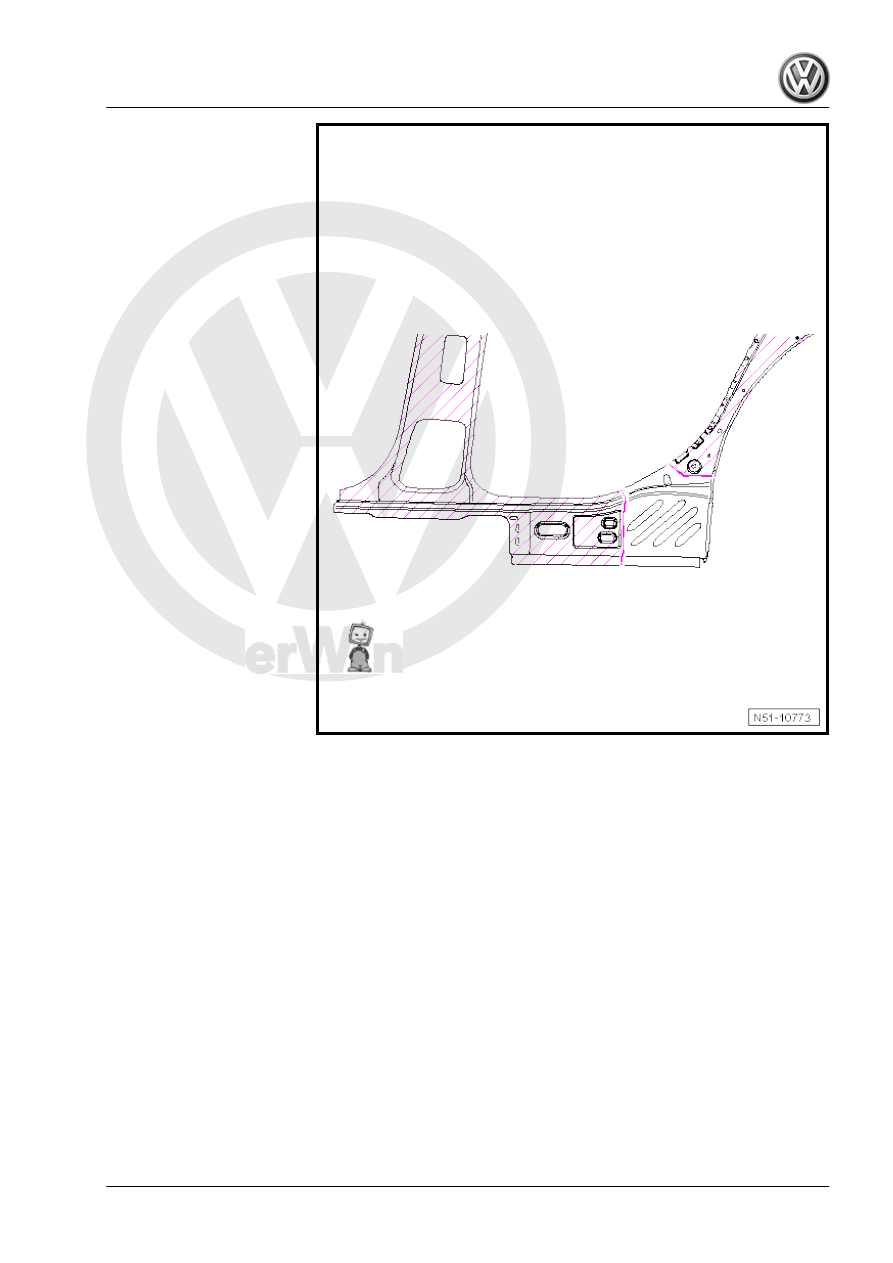

– Recreate original joint, RP spot weld seam.
– Weld in parting cut, SG continuous weld seam and staggered

SG continuous weld seam.

– Install side member

⇒ „11.3 Installing“, page 165

 .

Body Repairs - Edition 06.2010

190

     Rep. gr.51 - Body - centre

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

RO: 51 87 55 56

17

Renewing seat cross member

(middle)

WARNING

Observe safety notes!

⇒ General Information; Body Repairs, General Body Repairs ;

Safety instructions
• Rear seat cross member already removed

⇒ „12 Renewing seat cross member mounting plate“,

page 170

Body Repairs - Edition 06.2010

17. Renewing seat cross member

191

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

17.1

Removing

Note

When separating laser welded seams, ensure that the underlying

panels are not damaged.

– Separate original joint.
– Remove remaining material.

17.2

Installing

17.2.1

Preparing new part

Replacement part
♦ Seat cross member
– Drill 7 mm ∅ holes for SG plug weld seam.
– Adapt new part to fit and fix in position.

17.2.2

Welding in

– Weld in seat cross member, SG plug weld seam.
– Install outer cross member for seat

⇒ „12.2 Installing“, page 172

 .

Body Repairs - Edition 06.2010

192

     Rep. gr.51 - Body - centre
