Volkswagen Golf / Golf Plus. Manual - part 148





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

RO: 51 46 55 50

13

Renewing seat cross member

mounting plate

(on Tunnel)

WARNING

Observe safety notes!

⇒ General Information; Body Repairs, General Body Repairs ;

Safety instructions

Note

If a thread in the seat cross member mounting plate is damaged,

the component must be replaced.

• Rear seat cross member already removed

⇒ „12 Renewing seat cross member mounting plate“,

page 170

• Seat middle cross member already removed

⇒ „17 Renewing seat cross member“, page 191

Body Repairs - Edition 06.2010

13. Renewing seat cross member mounting plate

173

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

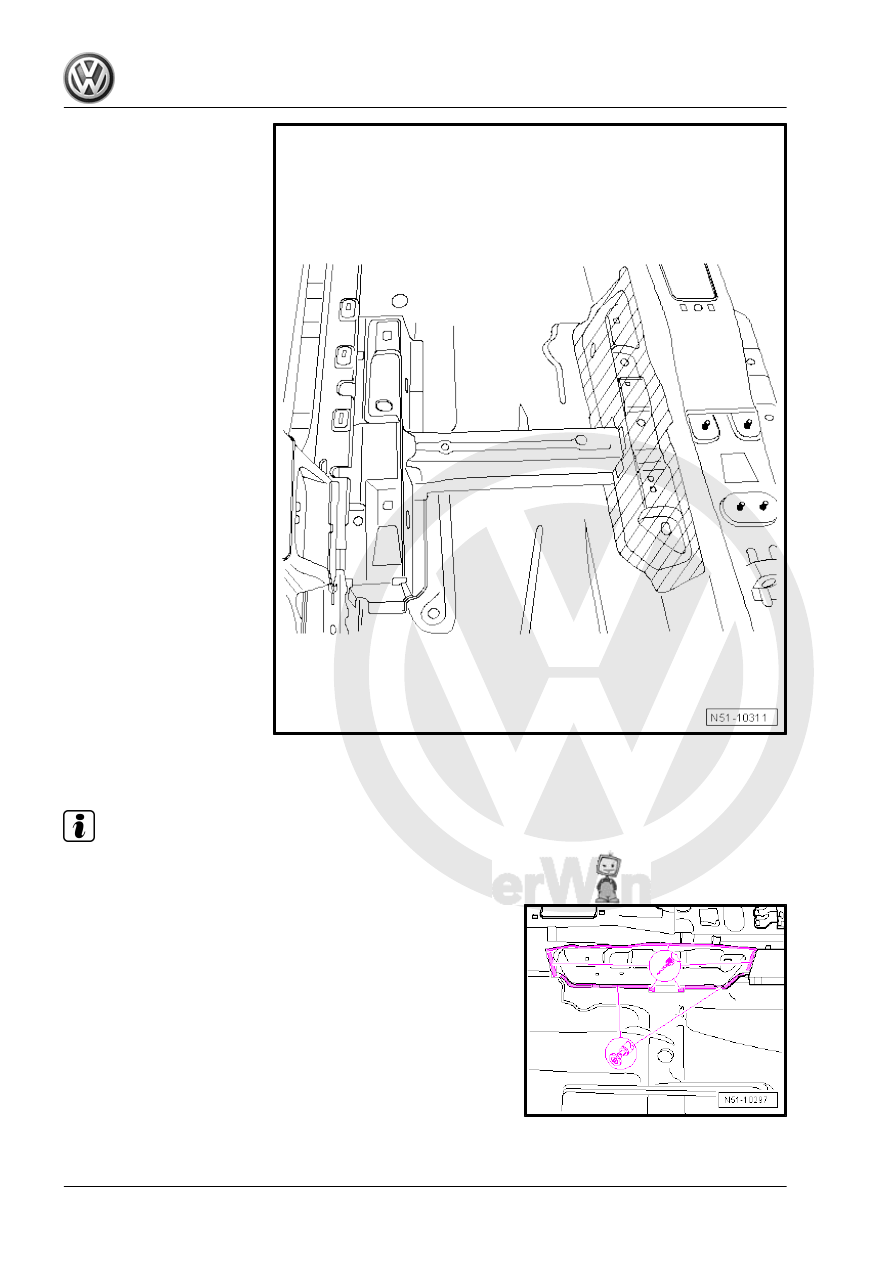

13.1

Removing

Note

When separating laser welded seams, ensure that the underlying

panels are not damaged.

– Separate original joint.
– Remove remaining material.

Body Repairs - Edition 06.2010

174

     Rep. gr.51 - Body - centre

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

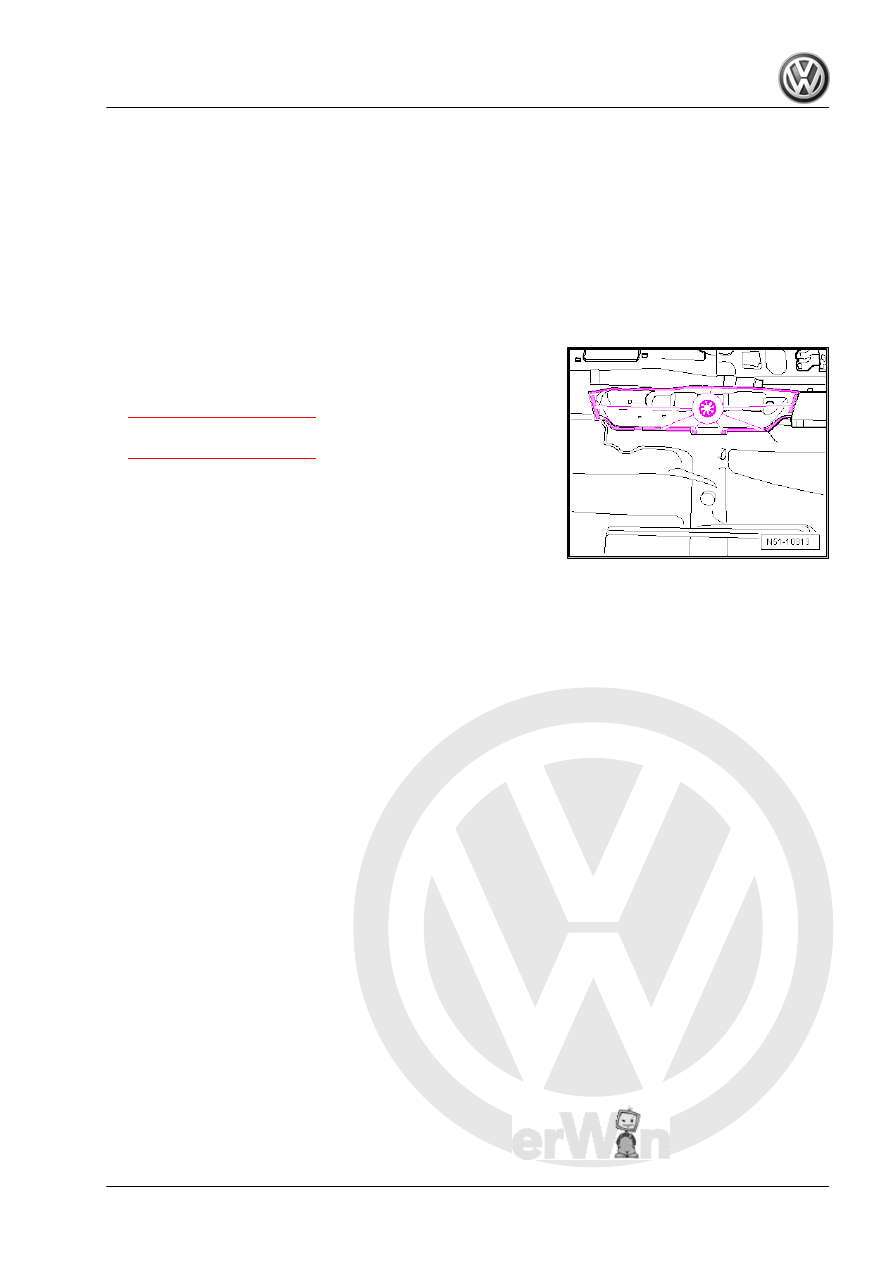

13.2

Installing

13.2.1

Preparing new part

Replacement part
♦ Seat cross member mounting
– Drill 7 mm ∅ holes for SG plug weld seam.
– Adapt new part to fit and fix in position.

13.2.2

Welding in

– Weld in seat cross member mounting plate, SG plug weld

seam.

– Install seat middle cross member

⇒ „17.2 Installing“, page 192

 .

– Install outer cross member for seat

⇒ „12.2 Installing“, page 172

 .

Body Repairs - Edition 06.2010

13. Renewing seat cross member mounting plate

175

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

RO: 51 49 55 52

14

Renewing front side member rein‐

forcement

WARNING

Observe safety notes!

⇒ General Information; Body Repairs, General Body Repairs ;

Safety instructions
• Side member already removed

⇒ „11 Renewing side member“, page 162

Body Repairs - Edition 06.2010

176

     Rep. gr.51 - Body - centre
