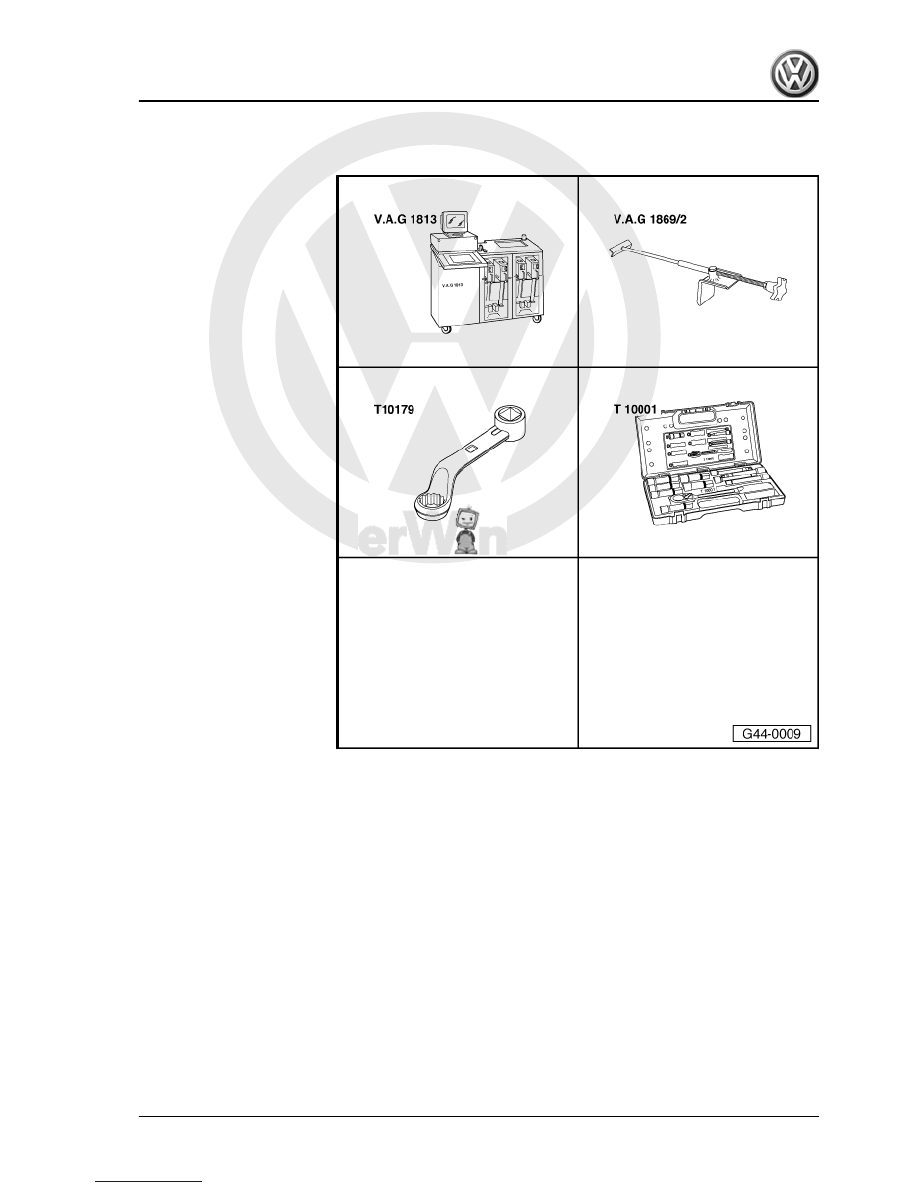

Special tools and workshop

equipment required
♦ Wheel alignment computer

-V.A.G 1813- or VW/Audi-

approved wheel alignment

computer

♦ Brake pedal actuator -

V.A.G 1869/2-

♦ Tool insert 18 mm -T10179-
♦ Shock absorber set -

T10001-

8.1

General

Wheel alignment must always be checked with VW/Audi-ap‐

proved wheel alignment equipment.
Whenever wheels are aligned, both the front and rear axles must

be measured.
Otherwise, the steering rack may not be centred!
– Perform all measurements with wheel alignment computer.
All the information required to perform alignment can be found in

the wheel alignment computer.
Current data “updates” are located on VW Service Net.
⇒  VW ServiceNet; Systems; Wheel alignment computer soft‐

ware; Wheel alignment; Beissbarth
⇒  VW ServiceNet; Systems; Wheel alignment computer soft‐

ware; Wheel alignment; Hunter
⇒  VW ServiceNet; Systems; Wheel alignment computer soft‐

ware; Wheel alignment; Corghi

8. Wheel alignment

305



Note

Wheel alignment should not be checked before the vehicle has

completed 1,000 to 2,000 km because the coil springs must

settle.

When making adjustments, adhere to the relevant specifica‐

tions as closely as possible.

Wheel alignment is necessary if:
♦ The vehicle does not handle properly.
♦ Vehicle has been involved in an accident and components

have been renewed.

♦ Axle components are removed or renewed.
♦ Tyres are worn unevenly.
Components have been renewed.

Front axle component re‐

newed

Alignment necessary

Rear axle component re‐

newed

Alignment necessary



Yes

No



Yes

No

Lower suspension link



X

Lower transverse link

X



Bonded rubber bush

for suspension link



1)

Upper transverse link

X



Wheel bearing housing

X



Track rod

X



Track rod/track rod ball joint

X



Wheel bearing housing

X



Steering box

X



Subframe

X



Subframe



X

Coil spring



X

Suspension strut



X

Shock absorber



X

Subframe bracket

X



Anti-roll bar



X

Anti-roll bar



1)

Trailing arm

X



1)

 Prerequisite: the positions of the subframe and brackets fixed

before they were removed

⇒ page 16

 .

Components removed and installed

Front axle component re‐

moved and reinstalled

Alignment necessary

Front axle component re‐

moved and reinstalled

Alignment necessary



Yes

No



Yes

No

Lower suspension link



1)

Lower transverse link

X



Wheel bearing housing



X

Upper transverse link

X



Track rod/track rod ball

joint

X



Track rod

X



Steering box

X



Wheel bearing housing

X



Subframe



1)

Subframe

X



Suspension strut



X

Coil spring



X

Subframe bracket



1)

Shock absorber



X

Anti-roll bar



1)

Anti-roll bar



X







Trailing arm

X



306

     Rep. Gr.44 - Wheels, tyres, vehicle geometry



before they were removed

⇒ page 16

 .

8.2

Test prerequisites

• Check suspension, wheel bearing, steering and steering link‐

age for excessive play and damage.

• Tread depth difference of no more than 2 mm on one axle.
• Tyres inflated to correct pressure.
• Vehicle unladen.
• Fuel tank must be full.
• Spare wheel and vehicle tools are stowed in correct locations.
• The fluid reservoir for the windscreen/headlight washer sys‐

tem must be full.

• When checking wheel alignment, ensure that sliding plates

and turn tables are not touching end stop.

Please note!
• The test equipment must be properly adjusted and attached

to the vehicle; observe device manufacturer's operating in‐

structions.

If necessary, contact the manufacturer for familiarisation with the

proper use of the wheel alignment equipment.
Wheel alignment platforms and wheel alignment units and com‐

puters can lose their calibration over a period of time.
Wheel alignment platforms and alignment units and computers

should be checked and adjusted as necessary during inspection

and maintenance at least once per year!
– Treat these highly sensitive units carefully and conscientious‐

ly!

8.3

Test preparations

Special tools and workshop equipment required

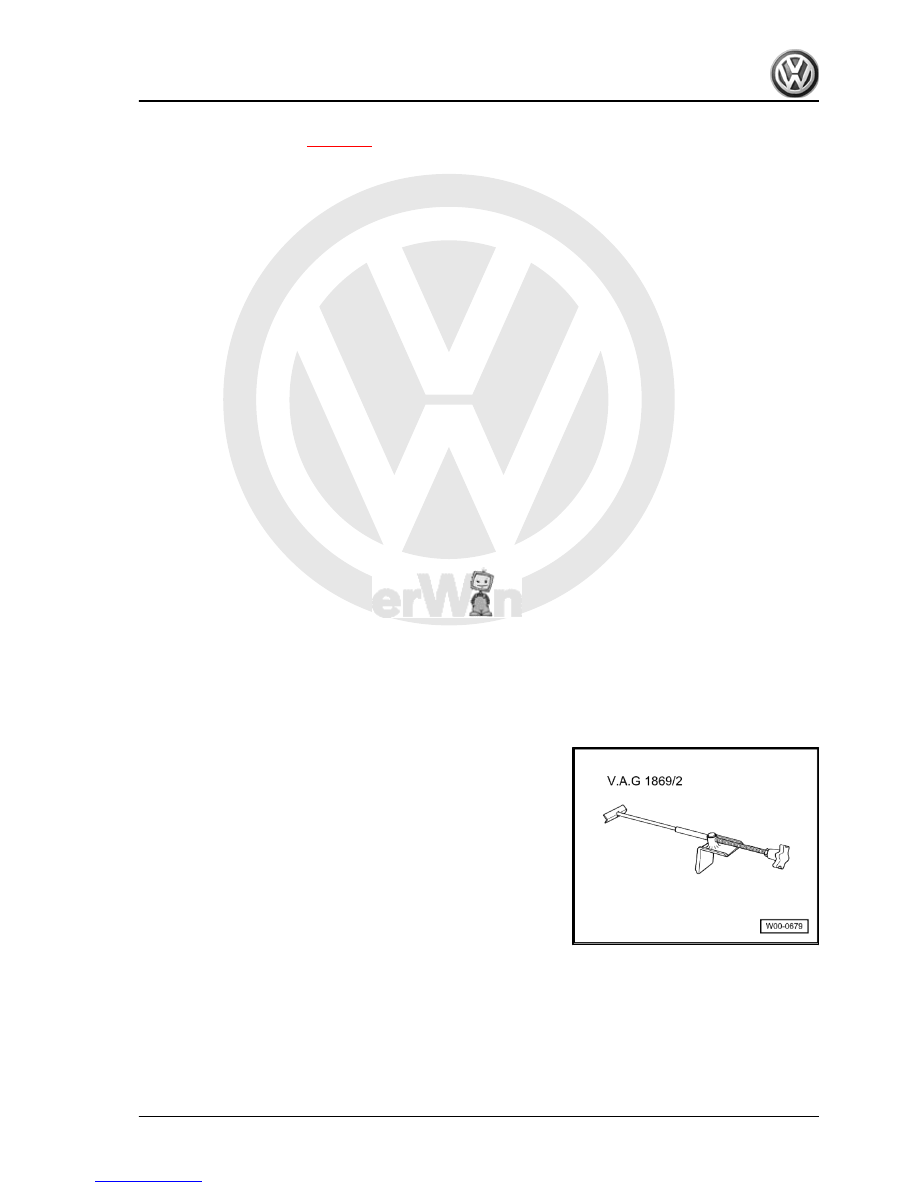

♦ Brake pedal actuator -V.A.G 1869/2-

The existing lateral runout of the wheel must be compensated for.

Otherwise, the result of the measurement will be incorrect.
If runout compensation is not performed, it is not possible to adjust

toe-in correctly!
Observe information provided by the manufacturer of the wheel

alignment unit.
– Carry out wheel run-out compensation.

8. Wheel alignment

307



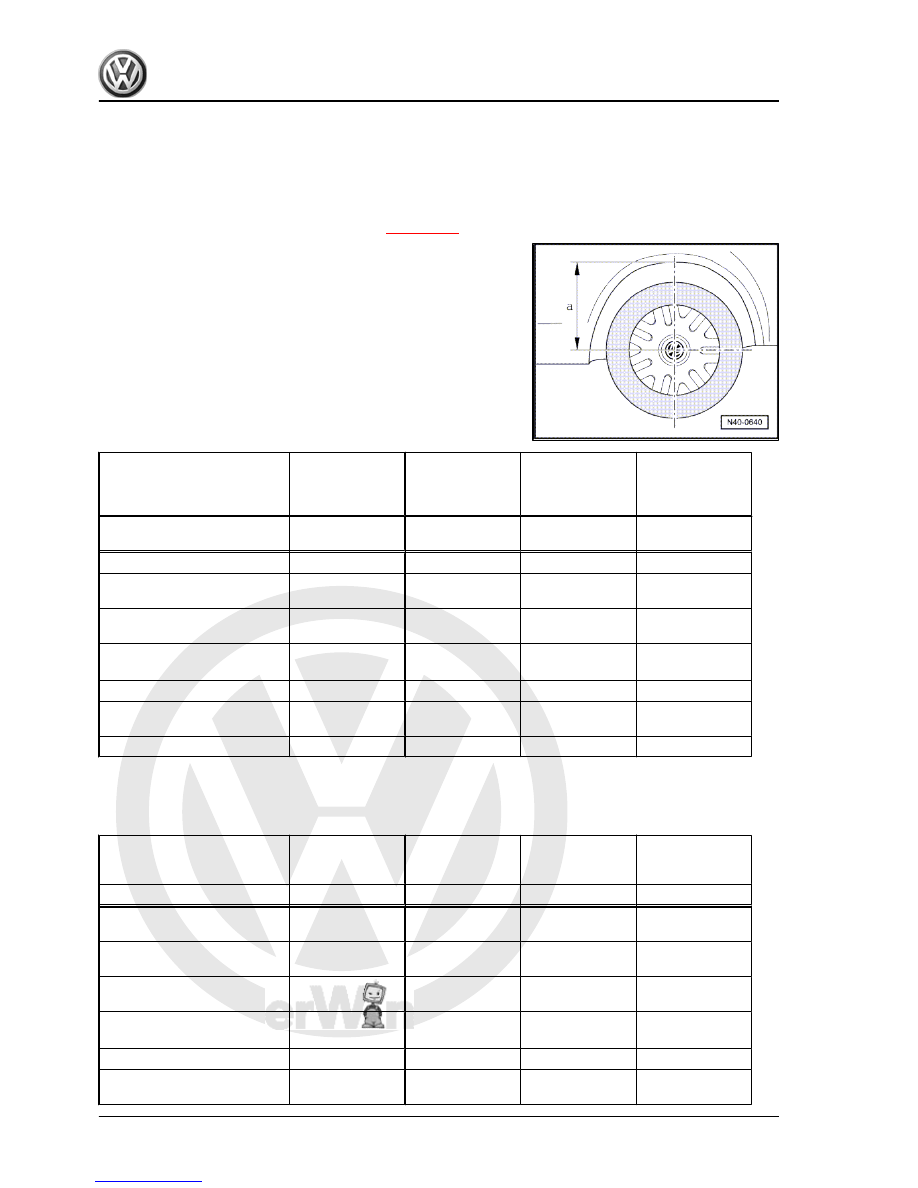

Wheel alignment specifications, Golf

These specifications apply to all engines.
♦ Explanation of PR Nos. can be found here

⇒ page 317

 .

The ride heights shown in the table refer to dimension -a-.

Front axle

Standard running

gear

Sports running

gear

except 18'

wheels

Sports running

gear

with 18' wheels

Heavy-duty run‐

ning gear

PR numbers

2UA

2UC

G02, G05, G07,

2UC

2UB

Total toe (without load)

10' ± 10′

10' ± 10′

10' ± 10′

10' ± 10′

Camber (in straight-ahead

position)

-30′ ± 30′

-41′ ± 30′

-41′ ± 30′

-14′ ± 30′

Maximum permissible differ‐

ence between sides

max. 30′

max. 30′

max. 30′

max. 30′

Toe-out on turns

1)

 at 20° left

and right lock

1°38′ ± 20′

1°40′ ± 20′

1°40′ ± 20′

1°38′ ± 20′

Caster

7° 34′ ± 30′

7° 47′ ± 30′

7° 47′ ± 30′

7° 17′ ± 30′

Maximum permissible differ‐

ence between sides

max. 30′

max. 30′

max. 30′

max. 30′

Ride height

382 ± 10 mm

367 ± 10 mm

367 ± 10 mm

402 ± 10 mm

1)

 Toe-out on turns can be displayed as a negative value on the

wheel alignment computer, depending on the manufacturer.

Front axle

Sports running

gear GTI

Sports running

gear GTI US ver‐

sion

Sports running

gear R32

BlueMotion

PR numbers

G08

G11

G09

G04/2UC

Total toe (wheels not press‐

ed)

10' ± 10′

10' ± 10′

10' ± 10′

10' ± 10′

Camber (in straight-ahead

position)

-44′ ± 30′

-30′ ± 30′

-43′ ± 30′

-41′ ± 30′

Maximum permissible differ‐

ence between sides

max. 30′

max. 30′

max. 30′

max. 30′

Toe-out on turns

1)

 at 20° left

and right lock

1°22′ ± 20′

1°38′ ± 20′

1°20′ ± 20′

1°40′ ± 20′

Caster

7° 47′ ± 30′

7° 34′ ± 30′

7° 47′ ± 30′

7° 47′ ± 30′

Maximum permissible differ‐

ence between sides

max. 30′

max. 30′

max. 30′

max. 30′

308

     Rep. Gr.44 - Wheels, tyres, vehicle geometry
