Volkswagen Golf / Golf Plus. Manual - part 76





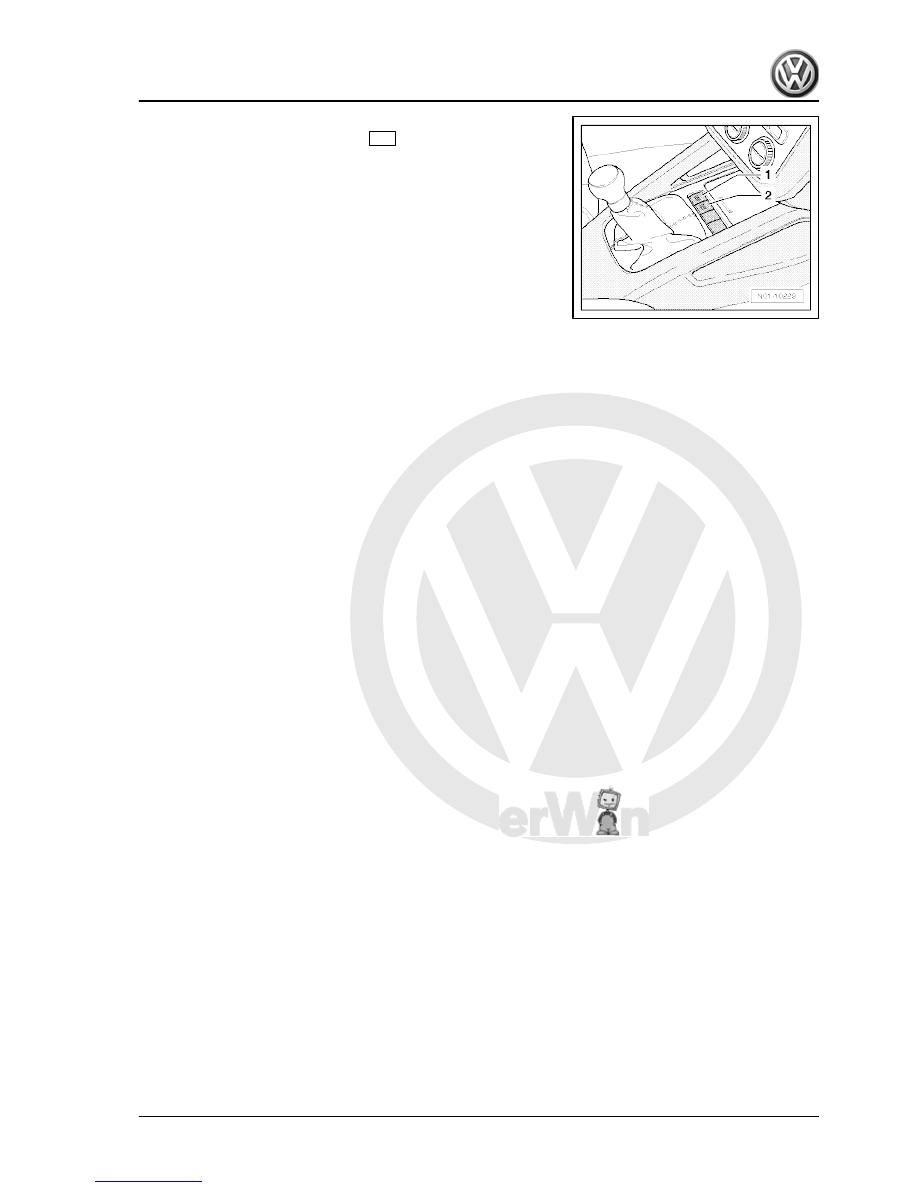

SET

 button -2- until an au‐

dible signal sounds. The audible signal confirms basic setting.

6. Tyre monitor display

301



For detailed information on the tyre pressure monitor (TPM), refer

to ⇒ Self-study programme  No.  347 ; Tyre Pressure Monitoring

Systems .
The tyre pressure monitor system includes wheel electronics

mounted on each wheel.
At regular intervals, the wheel electronics transmit data which the

central locking and anti-theft alarm system aerial receives and

forwards to the tyre pressure monitor control unit -J502- .
This control unit is integrated with its own diagnostic address into

the convenience system central control unit -J393- .
The tyre pressure specifications (monitoring air pressures) are set

in the control unit as factory defaults.
The pressures, noted on the tank flap sticker, are valid for a set

of wheels with the Volkswagen-approved tyres.
The nominal tyre pressures for this set of wheels are specified for

the partially and fully laden vehicle and must not be changed.

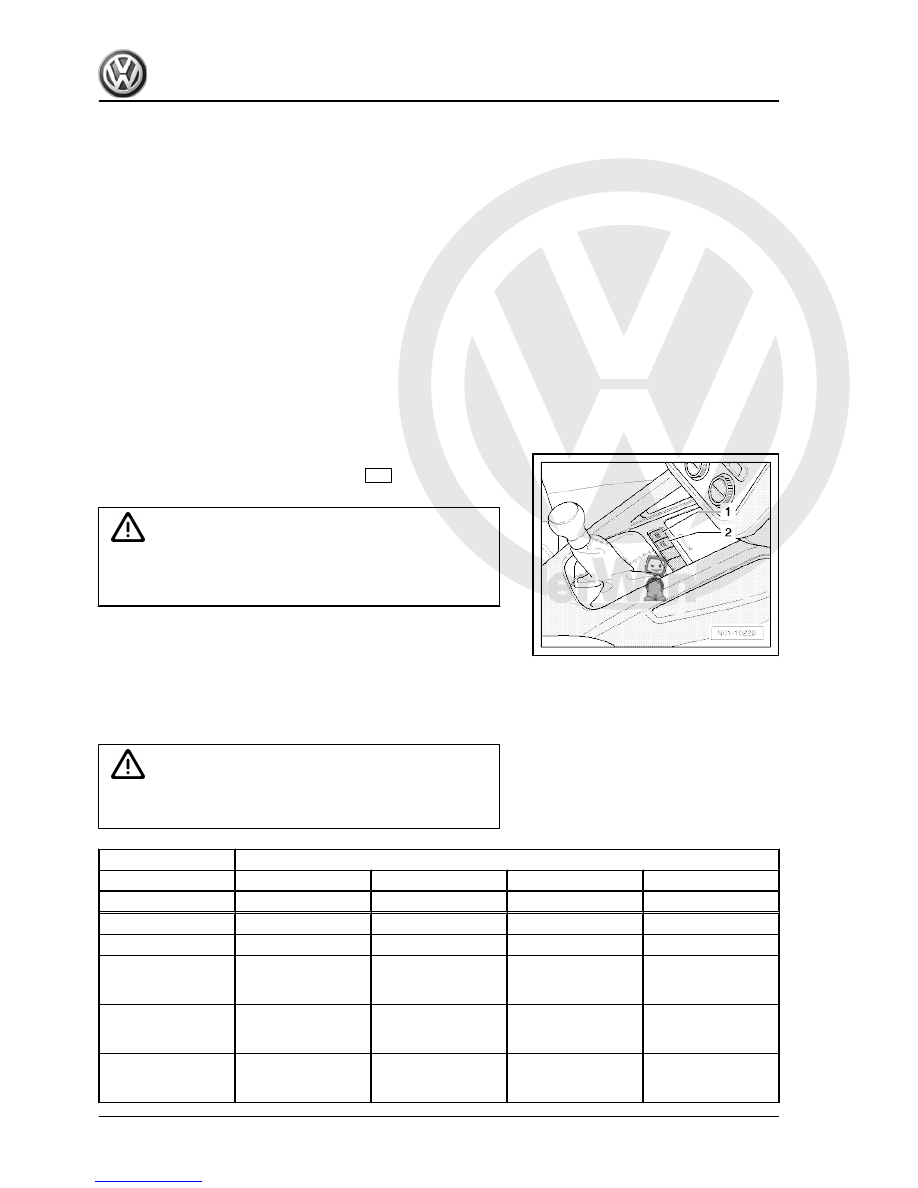

The driver can switch between partial and full load, poll the status

and switch the TPM system on or off via a

SET

 button -2- in the

centre console.

Caution

This  button  is  not  available  for  the  North  American  region

(NAR). Therefore, the function described above is omitted in

this region.

Messages and warnings are indicated via the lamp in the dash

panel insert and texts in the dash panel insert display.

7.1

Button behaviour

This table shows the button's behaviour in the case of various

states or actions under consideration of different functions.

Caution

This  button  is  not  available  for  the  North  American  region

(NAR).



Time for which the button is pressed



Up to 2 seconds

3-7 seconds

8-10 seconds

11-15 seconds

State or action

Actual state

Switch

Confirm

Deactivation



Messages:

Messages:

Messages:

Messages:

Desired functions:









Switch from full to

partial load

Full tyre load moni‐

tored

(gong)

Partial tyre load on! On release:

Confirmation of

switching via gong



Switch from partial to

full load

Partial tyre load

monitored

(gong)

Full tyre load on!

On release:

Confirmation of

switching via gong



Switching on

TPM off!

Partial tyre load on! On release:

Confirmation of

switching via gong



302

     Rep. Gr.44 - Wheels, tyres, vehicle geometry





Up to 2 seconds

3-7 seconds

8-10 seconds

11-15 seconds

State or action

Actual state

Switch

Confirm

Deactivation

Deactivation

Full tyre load moni‐

tored

or

Partial tyre load

monitored

(gong)

Partial tyre load on!

or

Full tyre load on!



TPM off!

(gong)

Status query

For example:

TPM off!

or

Partial tyre load

monitored

(gong)

After releasing:

Press longer to acti‐

vate!

or

Press longer to

switch or deactivate!





7.2

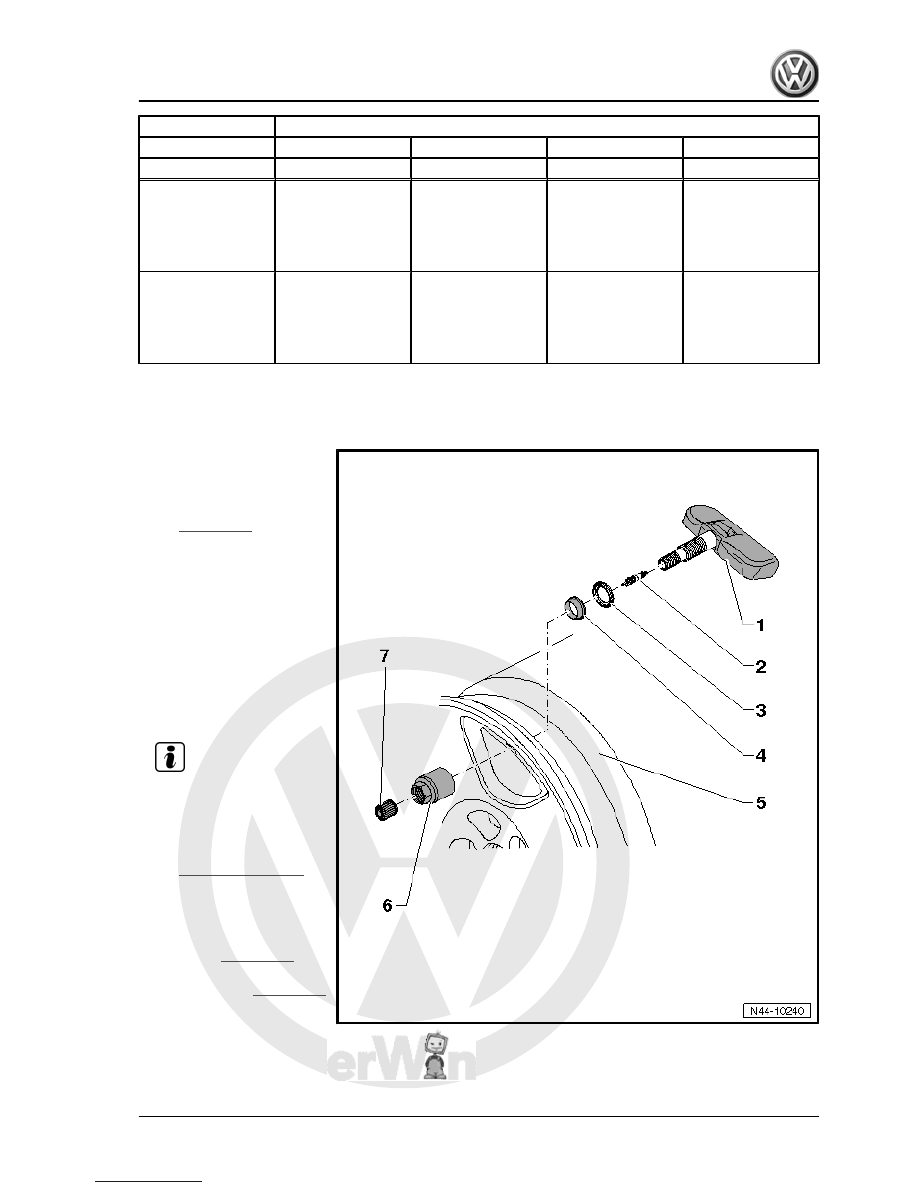

Assembly overview - tyre pressure sensor

1 - Tyre pressure sensor

❑ Supplied complete as

spare part.

❑ Removing and installing

⇒ page 304

❑ Replace complete tyre

pressure sensor when

battery is dead

❑ After using breakdown

set, wipe clean hole for

valve and opening for

pressure sensor

2 - Valve core

❑ Allocation ⇒  Electronic

parts catalogue “ETKA”

❑ Always renew when

changing tyre

Note

3 - Sealing washer
4 - Sealing ring

❑ Will be slightly deformed

when the union

⇒ Item 6 (page 303)

 nut

is tightened

5 - Wheel

❑ Fitting tyres of wheels

with tyre pressure mon‐

itoring

⇒ page 290

❑ Fitting tyres with run-flat

capabilities

⇒ page 294

6 - Union nut

❑ 8 Nm

7 - Valve cap

❑ Use only genuine valve caps from repair set ⇒  Electronic parts catalogue “ETKA” .

7. Tyre pressure monitor (TPM)

303



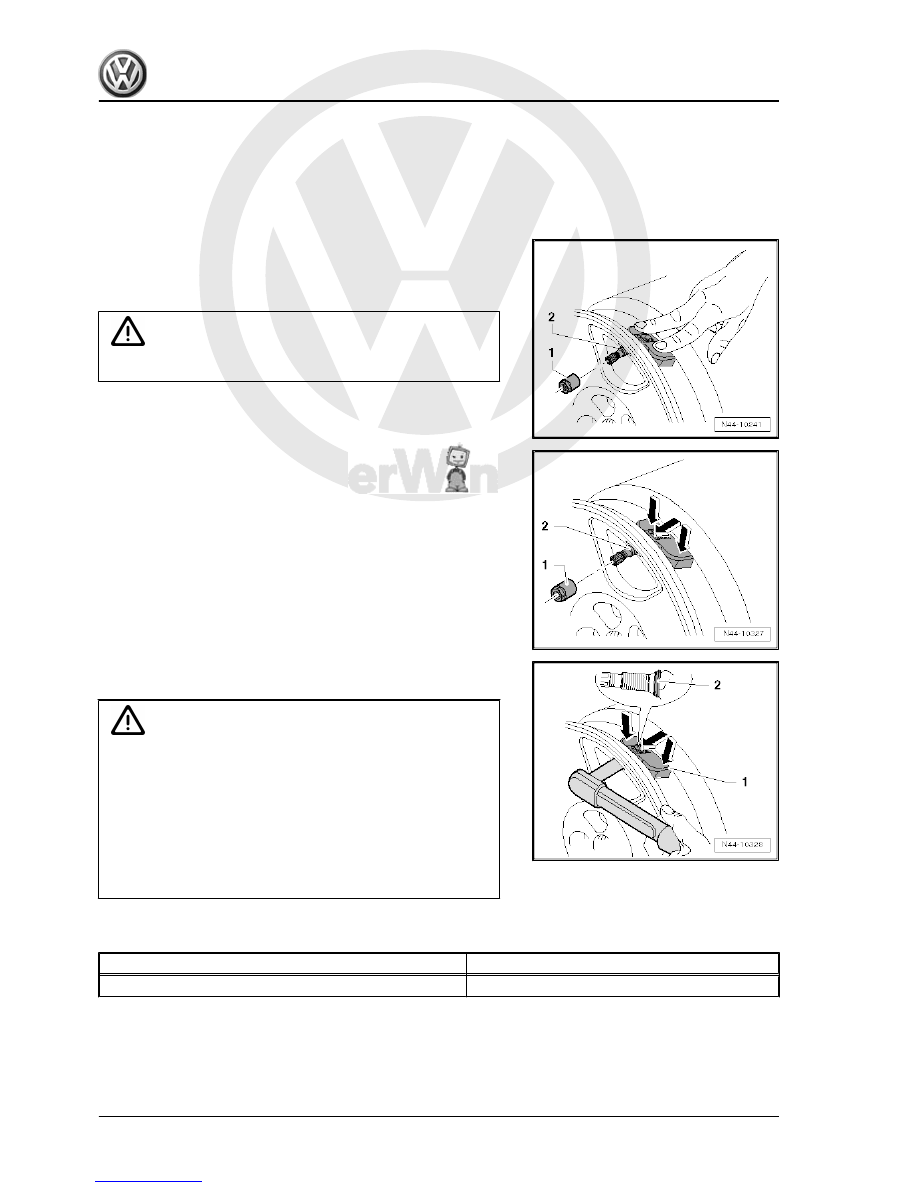

Removing and installing tyre pressure

sensor

Removing
– Unscrew union nut -1-.
– Remove tyre pressure sensor -2- from bed of wheel rim.
Installing

Caution

♦ Before installing tyre pressure sensor , clean valve hole.

– Install tyre pressure sensor -2- along with a new seal and

sealing washer and push it into wheel rim at the points marked

by -arrows-.

– Press tyre pressure sensor -2- into the wheel rim at the points

marked by -arrows-.

Screw union nut -1- onto tyre pressure sensor from outside.

– Press tyre pressure sensor -1- onto bed of rim at the points

marked by -arrows- and tighten union nut to 8 Nm.

Caution

♦ Tighten nut only to specified torque.
♦ The sealing washer -2- will be deformed slightly when

tightened.

♦ The sealing washer may be installed only once. Install a

new sealing washer with rubber seal every time the part

is fitted.

♦ Further tightening of the union nut is not permitted be‐

cause the seal may be damaged, leading to leaks.

Specified torque

Component

Specified torque

Union nut to tyre pressure sensor

8 Nm

304

     Rep. Gr.44 - Wheels, tyres, vehicle geometry
