6-4. Other interior features

469

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■ Closing the panoramic roof shade

●Check to make sure that all passengers do not have any part of their body

in a position where it could be caught when the panoramic roof shade is

being operated.

●Do not allow children to operate the panoramic roof shade.

Closing a panoramic roof shade on someone can cause death or serious

injury.

The driver is responsible for instructing children not to operate the pan-

oramic roof shade.

■ Jam protection function

●Never use any part of your body to intentionally activate the jam protection

function.

●The jam protection function may not work if something gets caught just

before the panoramic roof shade fully closes.

471

Maintenance and care

7-1. Maintenance and care

Cleaning and protecting

the vehicle exterior

472

Cleaning and protecting

the vehicle interior

476

7-2. Maintenance

Maintenance

requirements

479

7-3. Do-it-yourself

maintenance

Do-it-yourself service

precautions

482

Hood

485

Positioning a floor jack

487

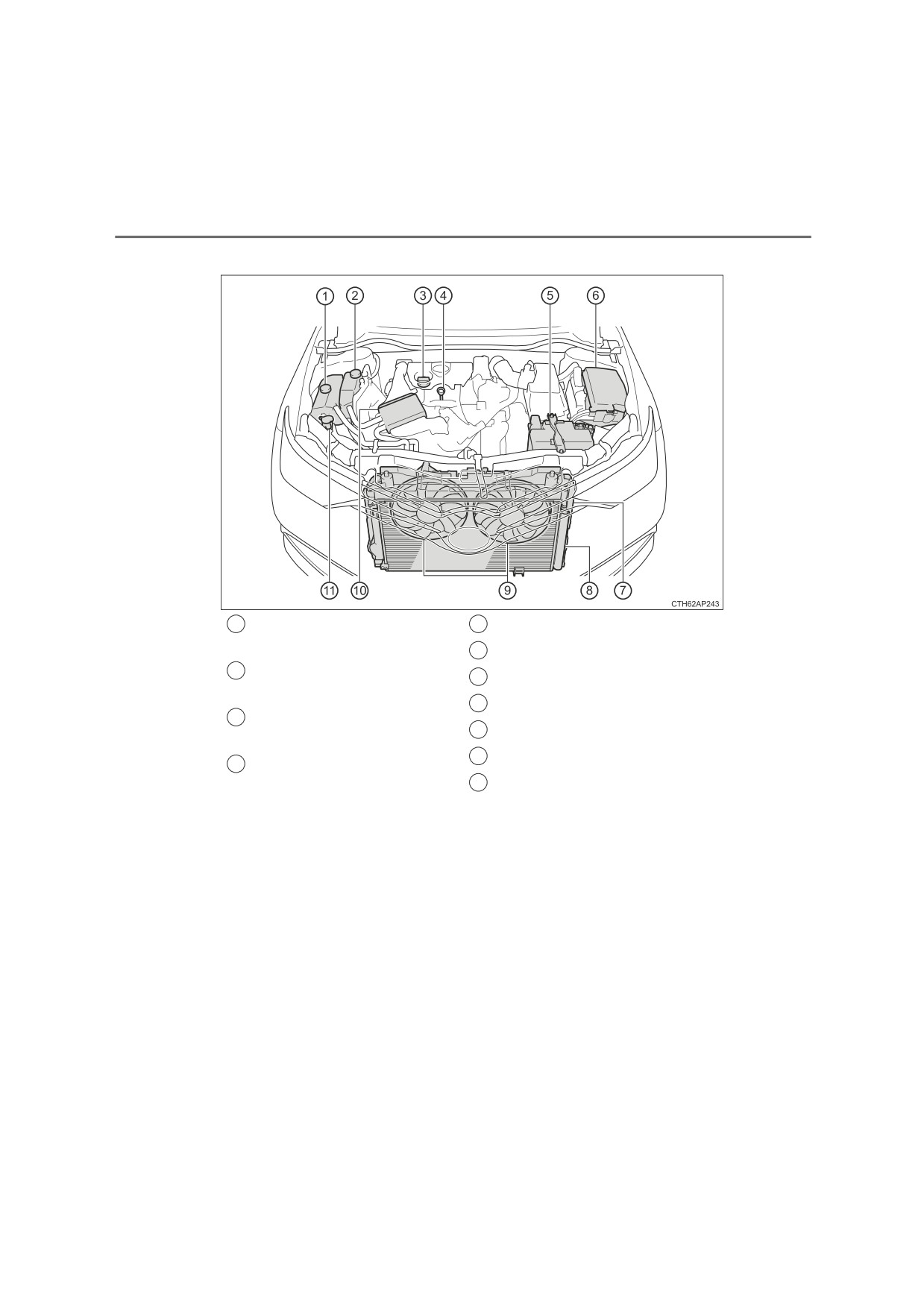

Engine compartment

488

Tires

509

Tire inflation pressure

527

Wheels

529

Air conditioning filter

532

Wireless remote control/

electronic key battery

534

Checking and replacing

fuses

537

Light bulbs

543

472

7-1. Maintenance and care

Cleaning and protecting the vehicle

exterior

Perform the following to protect the vehicle and maintain it in

prime condition:

● Working from top to bottom, liberally apply water to the vehicle

body, wheel wells and underside of the vehicle to remove any dirt

and dust.

● Wash the vehicle body using a sponge or soft cloth, such as a

chamois.

● For hard-to-remove marks, use car wash soap and rinse thoroughly

with water.

● Wipe away any water.

● Wax the vehicle when the waterproof coating deteriorates.

If water does not bead on a clean surface, apply wax when the vehicle

body is cool.

■ Automatic car washes

● Fold the mirrors before washing the vehicle. Start washing from the front of

the vehicle. Make sure to extend the mirrors before driving.

● Brushes used in automatic car washes may scratch the vehicle surface and

harm your vehicle’s paint.

■ High pressure car washes

●Do not allow the nozzles of the car wash to come within close proximity of

the windows.

● Before using the car wash, check that the fuel filler door on your vehicle is

closed properly.

7-1. Maintenance and care

473

■ When using a car wash (vehicles with a smart entry & start system)

If the door handle becomes wet while the electronic key is within the effective

range, the door may lock and unlock repeatedly. In that case, follow the fol-

lowing correction procedures to wash the vehicle:

●Place the key in a position 2 m (6 ft.) or more separate from the vehicle

while the vehicle is being washed. (Take care to ensure that the key is not

stolen.)

● Set the electronic key to battery-saving mode to disable the smart entry &

start system. (P. 160)

■ Aluminum wheels (if equipped)

●Remove any dirt immediately by using a neutral detergent.

● Wash detergent off with water immediately after use.

● To protect the paint from damage, make sure to observe the following pre-

cautions.

• Do not use acidic, alkaline or abrasive detergent

• Do not use hard brushes

• Do not use detergent on the wheels when they are hot, such as after driv-

ing or parking in hot weather

■ Bumpers

Do not scrub with abrasive cleaners.

WARNING

■ When washing the vehicle

Do not apply water to the inside of the engine compartment. Doing so may

cause the electrical components etc. to catch fire.

474

7-1. Maintenance and care

WARNING

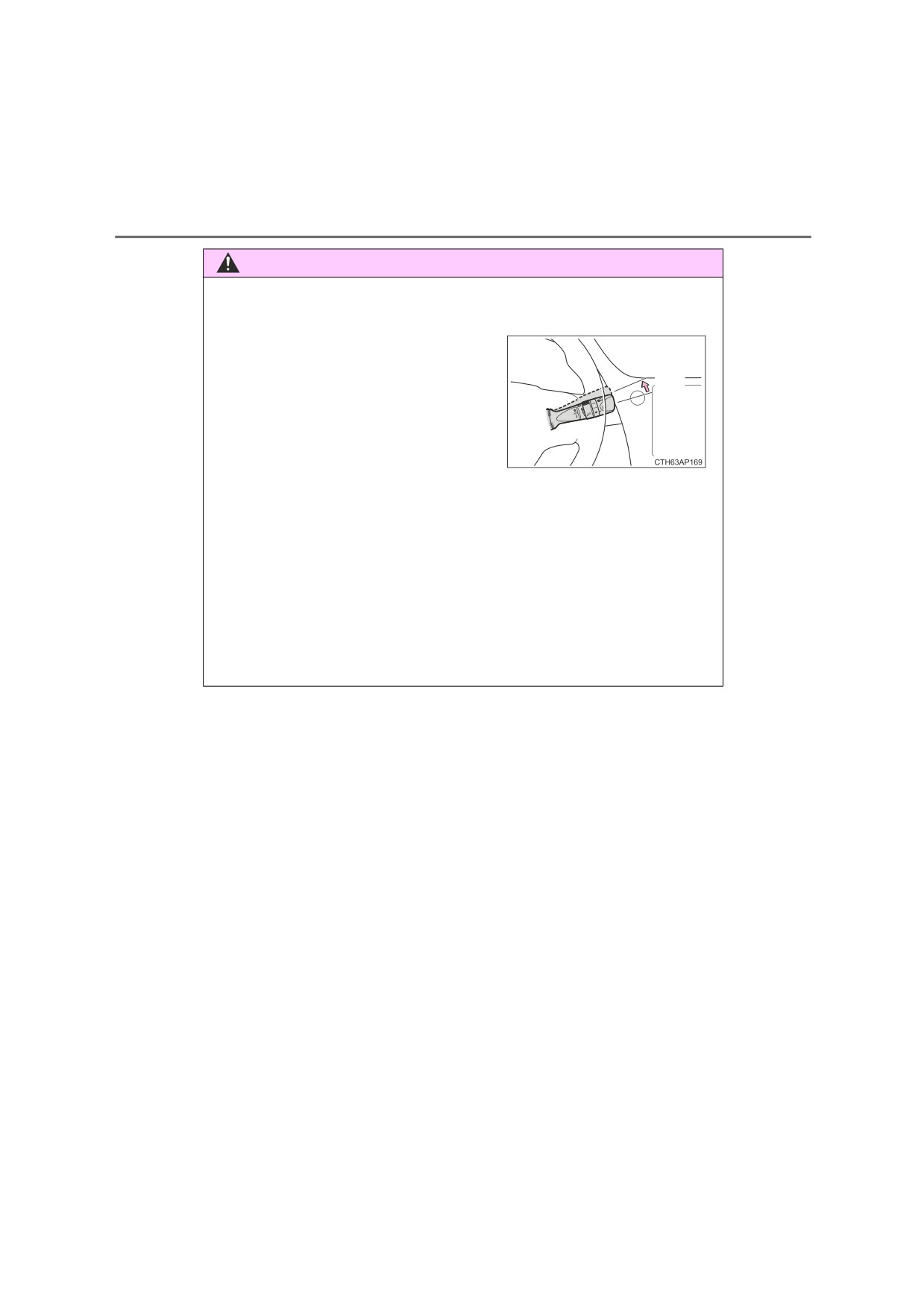

■ When cleaning the windshield (vehicles with rain-sensing windshield

wiper)

● Set the wiper switch to off.

If the wiper switch is in “AUTO”, the wip-

ers may operate unexpectedly in the fol-

Off

lowing situations, and

may

result in

hands being caught or

other serious

injuries and cause damage to the wiper

blades.

• When the upper part of the windshield where the raindrop sensor is

located is touched by hand

• When a wet rag or similar is held close to the raindrop sensor

• If something bumps against the windshield

• If you directly touch the raindrop sensor body or if something bumps

into the raindrop sensor

●Installation area of front sensor on windshield:P. 282

■ Precautions regarding the exhaust pipe

Exhaust gasses cause the exhaust pipe to become quite hot.

When washing the vehicle, be careful not to touch the exhaust pipe until it

has cooled sufficiently, as touching a hot exhaust pipe can cause burns.

7-1. Maintenance and care

475

NOTICE

■ To prevent paint deterioration and corrosion on the body and compo-

nents (aluminum wheels etc.)

● Wash the vehicle immediately in the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present on the paint surface

• If dead insects, insect droppings or bird droppings are present on the

paint surface

• After driving in an area contaminated with soot, oily smoke, mine dust,

iron powder or chemical substances

• If the vehicle becomes heavily soiled with dust or mud

• If liquids such as benzene and gasoline are spilled on the paint surface

●If the paint is chipped or scratched, have it repaired immediately.

● To prevent the wheels from corroding, remove any dirt and store in a place

with low humidity when storing the wheels.

■ Cleaning the exterior lights

● Wash carefully. Do not use organic substances or scrub with a hard brush.

This may damage the surfaces of the lights.

●Do not apply wax to the surfaces of the lights.

Wax may cause damage to the lenses.

■ To prevent damage to the windshield wiper arms

When lifting the wiper arms away from the windshield, pull the driver side

wiper arm upward first, and repeat for the passenger side. When returning

the wipers to their original position, do so from the passenger side first.

■ When using an automatic car wash (vehicles with rain-sensing wind-

shield wiper)

Set the wiper switch to the off position.

If the wiper switch is in “AUTO”, the wipers may operate and the wiper

blades may be damaged.

■ When using a high pressure car wash

Do not bring the nozzle tip close to boots (rubber or resin manufactured

cover), connectors or the following parts. The parts may be damaged if they

come into contact with high-pressure water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

476

7-1. Maintenance and care

Cleaning and protecting the vehicle

interior

The following procedures will help protect your vehicle’s interior

and keep it in top condition:

Protecting the vehicle interior

● Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces

with a cloth dampened with lukewarm water.

● If dirt cannot be removed, wipe it off with a soft cloth dampened with

neutral detergent diluted to approximately 1%.

Wring out any excess water from the cloth and thoroughly wipe off

remaining traces of detergent and water.

Cleaning the leather areas

● Remove dirt and dust using a vacuum cleaner.

● Wipe off any excess dirt and dust with a soft cloth dampened with

diluted detergent.

Use a diluted water solution of approximately 5% neutral wool detergent.

● Wring out any excess water from the cloth and thoroughly wipe off

all remaining traces of detergent.

● Wipe the surface with a dry, soft cloth to remove any remaining

moisture. Allow the leather to dry in a shaded and ventilated area.

Cleaning the synthetic leather areas

● Remove dirt and dust using a vacuum cleaner.

● Wipe it off with a soft cloth dampened with neutral detergent diluted

to approximately 1%.

● Wring out any excess water from the cloth and thoroughly wipe off

remaining traces of detergent and water.

7-1. Maintenance and care

477

■ Caring for leather areas

Toyota recommends cleaning the interior of the vehicle at least twice a year to

maintain the quality of the vehicle’s interior.

■ Shampooing the carpets

There are several commercial foaming-type cleaners available. Use a sponge

or brush to apply the foam. Rub in overlapping circles. Do not use water.

Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-

ing the carpet as dry as possible.

■ Seat belts

Clean with mild soap and lukewarm water using a cloth or sponge. Also

check the belts periodically for excessive wear, fraying or cuts.

WARNING

■ Water in the vehicle

●Do not splash or spill liquid in the vehicle.

Doing so may cause electrical components etc. to malfunction or catch

fire.

●Do not get any of the SRS components or wiring in the vehicle interior wet.

(P. 43)

An electrical malfunction may cause the airbags to deploy or not function

properly, resulting in death or serious injury.

■ Cleaning the interior (especially instrument panel)

Do not use polish wax or polish cleaner. The instrument panel may reflect

off the windshield, obstructing the driver’s view and leading to an accident,

resulting in death or serious injury.

478

7-1. Maintenance and care

NOTICE

■ Cleaning detergents

●Do not use the following types of detergent, as they may discolor the vehi-

cle interior or cause streaks or damage to painted surfaces:

• Non-seat portions: Organic substances such as benzene or gasoline,

alkaline or acidic solutions, dye, and bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

●Do not use polish wax or polish cleaner. The instrument panel’s or other

interior part’s painted surface may be damaged.

■ Preventing damage to leather surfaces

Observe the following precautions to avoid damage to and deterioration of

leather surfaces:

●Remove any dust or dirt from leather surfaces immediately.

●Do not expose the vehicle to direct sunlight for extended periods of time.

Park the vehicle in the shade, especially during summer.

●Do not place items made of vinyl, plastic, or containing wax on the uphol-

stery, as they may stick to the leather surface if the vehicle interior heats

up significantly.

■ Water on the floor

Do not wash the vehicle floor with water.

Vehicle systems such as the audio system may be damaged if water comes

into contact with electrical components such as the audio system above or

under the floor of the vehicle. Water may also cause the body to rust.

■ Cleaning the inside of the rear window

●Do not use glass cleaner to clean the rear window, as this may cause

damage to the rear window defogger heater wires. Use a cloth dampened

with lukewarm water to gently wipe the window clean. Wipe the window in

strokes running parallel to the heater wires.

● Be careful not to scratch or damage the heater wires.

7-2. Maintenance

479

Maintenance requirements

To ensure safe and economical driving, day-to-day care and reg-

ular maintenance is essential. Toyota recommends the following

maintenance:

■ Scheduled maintenance

Scheduled maintenance should be performed at specified intervals

according to the maintenance schedule.

For full details of your maintenance schedule, read the “Toyota Service

Booklet” or “Toyota Warranty Booklet”.

■ Do-it-yourself maintenance

What about do-it-yourself maintenance?

Many maintenance items are easy to do yourself if you have a little

mechanical ability and a few basic automotive tools.

Note, however, that some maintenance tasks require special tools and

skills. These are best performed by qualified technicians. Even if you’re

an experienced do-it-yourself mechanic, we recommend that repairs

and maintenance be conducted by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional. Any

authorized Toyota dealer or repairer will keep a record of maintenance,

which could be useful should you ever require Warranty Service. Should

you choose to select a qualified and equipped professional other than

an authorized Toyota repairer to service or maintain your vehicle, we

recommend that you request that a record of maintenance be kept.

480

7-2. Maintenance

■ Where to go for maintenance service?

In order to maintain your vehicle in the best possible condition, Toyota recom-

mends that maintenance service operations as well as other inspections and

repairs be carried out by authorized Toyota dealers or repairers or other duly

qualified and equipped professionals. For repairs and services covered by

your warranty, please visit an authorized Toyota dealer or repairer, who will

use genuine Toyota parts in repairing any difficulties you may encounter.

There can also be advantages in utilizing authorized Toyota dealers or repair-

ers for non-warranty repairs and services, as members of the Toyota network

will be able to expertly assist you with any difficulties you may encounter.

Your Toyota dealer or repairer, or another duly qualified and equipped profes-

sional will perform all of the scheduled maintenance on your vehicle reliably

and economically due to their experience with Toyota vehicles.

■ Does your vehicle need repair?

Be on the alert for changes in performance and sounds, and visual tip-offs

that indicate service is needed. Some important clues are:

●Engine missing, stumbling, or pinging

●Appreciable loss of power

●Strange engine noises

● A fluid leak under the vehicle (However, water dripping from the air condi-

tioning after use is normal.)

● Change in exhaust sound (This may indicate a dangerous carbon monoxide

leak. Drive with the windows open and have the exhaust system checked

immediately.)

●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear

● Vehicle pulls to one side when driving straight on a level road

● Strange noises related to suspension movement

● Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal

(vehicles with a manual transmission), pedal almost touches the floor, vehi-

cle pulls to one side when braking

● Engine coolant temperature continually higher than normal

If you notice any of these clues, take your vehicle to any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional, as

soon as possible. Your vehicle may need adjustment or repair.

482

7-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the

correct procedure as given in these sections.

Items

Parts and tools

Battery condition

•

Warm water

• Baking soda

• Grease

(P. 503)

•

Conventional wrench (for terminal clamp bolts)

•

“Toyota Super Long Life Coolant” or a similar high

quality ethylene glycol-based non-silicate, non-

amine, non-nitrite and non-borate coolant with long-

Engine coolant

life hybrid organic acid technology

level (P. 500)

“Toyota Super Long Life Coolant” is pre-mixed with

50% coolant and 50% deionized water.

•

Funnel (used only for adding coolant)

•

“Toyota Genuine Motor Oil” or equivalent

Engine oil level

•

Rag or paper towel

(P. 493)

•

Funnel (used only for adding engine oil)

Fuses (P. 537)

•

Fuse with same amperage rating as original

•

Bulb with same number and wattage rating as origi-

nal

Light bulbs

(P. 543)

•

Phillips-head screwdriver

•

Flathead screwdriver

• Wrench

Radiator,

con-

denser and inter-



cooler (P. 502)

Tire inflation pres-

•

Tire pressure gauge

sure (P. 527)

•

Compressed air source

•

Water or washer fluid containing antifreeze (for win-

Washer fluid

ter use)

(P. 506)

•

Funnel (used only for adding water or washer fluid)

7-3. Do-it-yourself maintenance

483

WARNING

The engine compartment contains many mechanisms and fluids that may

move suddenly, become hot, or become electrically energized. To avoid death

or serious injury, observe the following precautions.

■ When working on the engine compartment

●Keep hands, clothing and tools away from the moving fan and engine

drive belt.

●Be careful not to touch the engine, radiator, exhaust manifold, etc. right

after driving as they may be hot. Oil and other fluids may also be hot.

●Do not leave anything that may burn easily, such as paper and rags, in the

engine compartment.

●Do not smoke, cause sparks or expose an open flame to fuel or the bat-

tery. Fuel and battery fumes are flammable.

● Be extremely cautious when working on the battery. It contains poisonous

and corrosive sulfuric acid.

● Take care because brake fluid can harm your hands or eyes and damage

painted surfaces. If fluid gets on your hands or in your eyes, flush the

affected area with clean water immediately.

If you still experience discomfort, consult a doctor.

■ When working near the electric cooling fans or radiator grille

Vehicles without a smart entry & start system:

Be sure the engine switch is off.

With the engine switch in the “ON” position, the electric cooling fan may

automatically start to run if the air conditioning is on and/or the coolant tem-

perature is high. (P. 502)

Vehicles with a smart entry & start system:

Be sure the engine switch is off.

With the engine switch in IGNITION ON mode, the electric cooling fan may

automatically start to run if the air conditioning is on and/or the coolant tem-

perature is high. (P. 502)

■ Safety glasses

Wear safety glasses to prevent flying or falling material, fluid spray, etc.

from getting in your eyes.

486

7-3. Do-it-yourself maintenance

WARNING

■ Pre-driving check

Check that the hood is fully closed and locked.

If the hood is not locked properly, it may open while the vehicle is in motion

and cause an accident, which may result in death or serious injury.

■ After installing the support rod into the slot

Make sure the rod supports the hood securely preventing it from falling

down onto your head or body.

NOTICE

■ When closing the hood

Be sure to return the support rod to its clip before closing the hood. Closing

the hood with the support rod not clipped could cause the hood to bend.

498

7-3. Do-it-yourself maintenance

■Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following

situations, oil consumption may increase, and engine oil may need to be

refilled in between oil maintenance intervals.

● When the engine is new, for example directly after purchasing the vehicle or

after replacing the engine

●If low quality oil or oil of an inappropriate viscosity is used

● When driving at high engine speeds or with a heavy load, when towing, or

when driving while accelerating or decelerating frequently

● When leaving the engine idling for a long time, or when driving frequently

through heavy traffic

■ After changing the engine oil (8NR-FTS, 1ND-TV and 1WW engines only)

The engine oil maintenance data should be reset. Perform the following pro-

cedures:

 Vehicles with a 3-ring meter

Switch the display to the trip meter “A” when the engine is running.

(P. 114)

Turn the engine switch off.

Vehicles without a smart entry & start system:

While pressing the display change switch or the “DISP” switch (P. 114),

turn the engine switch to the “ON” position (do not start the engine because

reset mode will be canceled). Continue to press and hold the switch until

the trip meter displays “000000”.

Vehicles with a smart entry & start system:

While pressing the display change switch or the “DISP” switch (P. 114),

turn the engine switch to the IGNITION ON mode (do not start the engine

because otherwise the reset mode will be canceled). Continue to press and

hold the switch until the trip meter displays “000000”.

 Vehicles with a 2-ring meter

Switch the display to the trip meter “A” when the engine is running.

(P. 121)

Turn the engine switch off.

Vehicles without a smart entry & start system:

While pressing the “TRIP” switch (P. 121), turn the engine switch to the

“ON” position

(do not start the engine because reset mode will be

canceled). Continue to press and hold the switch until the trip meter dis-

plays “00000”.

Vehicles with a smart entry & start system:

While pressing the “TRIP” switch (P. 121), turn the engine switch to the

IGNITION ON mode (do not start the engine because otherwise the reset

mode will be canceled). Continue to press and hold the switch until the trip

meter displays “00000”.

7-3. Do-it-yourself maintenance

499

WARNING

■ Used engine oil

●Used engine oil contains potentially harmful contaminants which may

cause skin disorders such as inflammation and skin cancer, so care

should be taken to avoid prolonged and repeated contact. To remove used

engine oil from your skin, wash thoroughly with soap and water.

●Dispose of used oil and filters only in a safe and acceptable manner. Do

not dispose of used oil and filters in household trash, in sewers or onto the

ground.

Call any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional, service station or auto parts store for information

concerning recycling or disposal.

●Do not leave used engine oil within the reach of children.

NOTICE

■ To prevent serious engine damage

Check the oil level on a regular basis.

■ When replacing the engine oil

●Be careful not to spill engine oil on the vehicle components.

● Avoid overfilling, or the engine could be damaged.

●Check the oil level on the dipstick every time you refill the vehicle.

●Be sure the engine oil filler cap is properly tightened.

■ Engine oil (1ND-TV engine only)

Using an engine oil other than ACEA C2 may damage the catalytic con-

verter.

■ Engine oil (1WW engine only)

P. 651

500

7-3. Do-it-yourself maintenance

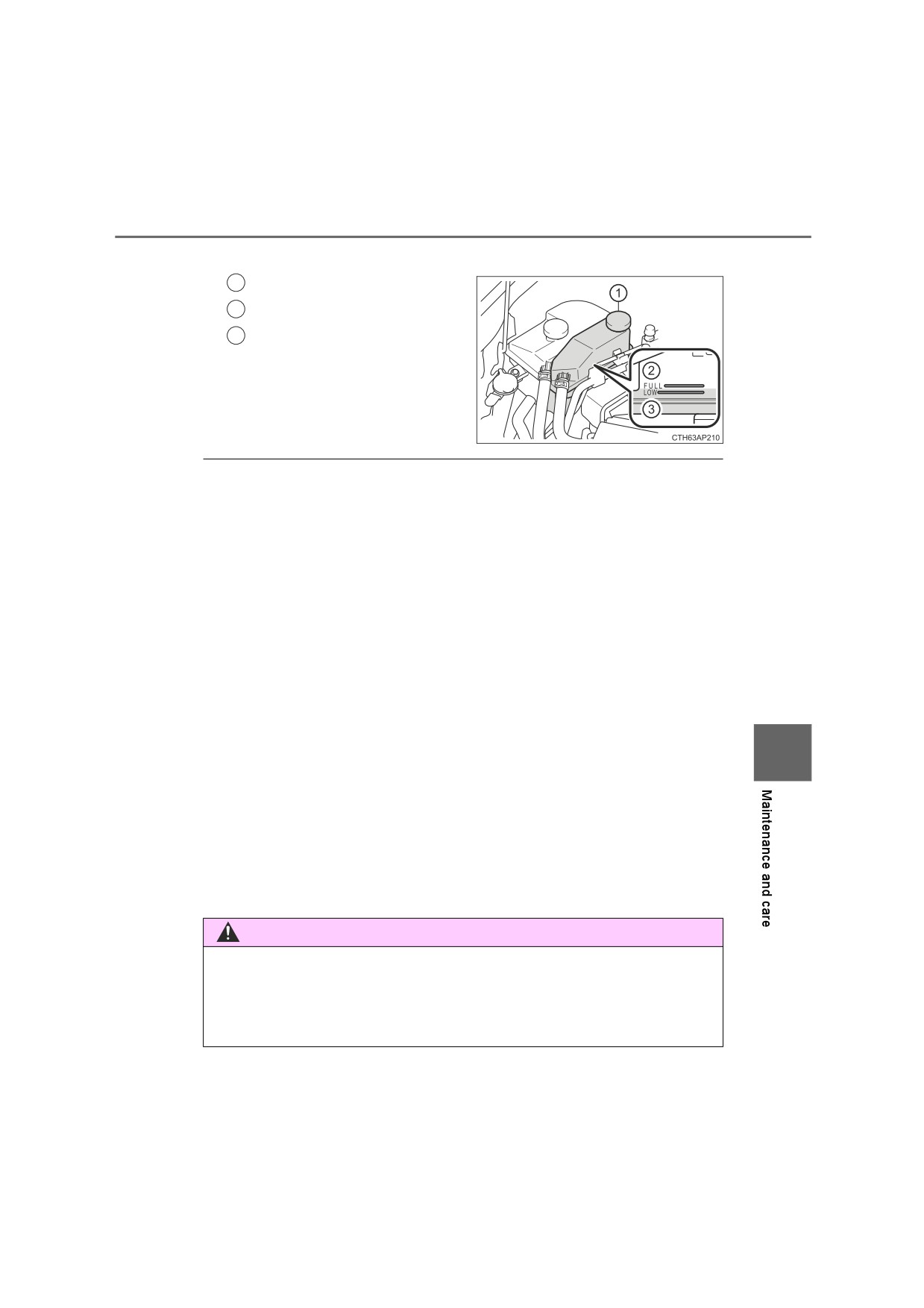

Coolant

The coolant level is satisfactory if it is between the “FULL” and “LOW”

lines on the reservoir when the engine is cold.

■ Engine coolant reservoir

 1NR-FE, 1ZR-FAE and 1ND-FTV engines

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the

“LOW” line, add coolant up to

the “FULL” line.

 8NR-FTS engine

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the

“LOW” line, add coolant up to

the “FULL” line.

 1WW engine

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the

“LOW” line, add coolant up to

the “FULL” line.

7-3. Do-it-yourself maintenance

501

■ Intercooler coolant reservoir (8NR-FTS engine only)

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the

“LOW” line, add coolant up to

the “FULL” line.

■ Coolant selection

Except 1WW engine

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene

glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with

long-life hybrid organic acid technology.

“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-

ized water. (Minimum temperature: -35C [-31F])

For more details about engine coolant, contact any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

1WW engine

Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-

alent.

“Toyota Genuine Premium Long Life Coolant 1WW/2WW” concentrated prod-

uct always needs to be mixed as 50% coolant and 50% deionized water.

(Minimum temperature: -35C [-31F])

For more details about engine coolant, contact any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

■ If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir caps, drain cock

and water pump.

If you cannot find a leak, have any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional, test the cap and check for

leaks in the cooling system.

WARNING

■ When the engine is hot

Do not remove the engine coolant reservoir cap.

The cooling system may be under pressure and may spray hot coolant if the

cap is removed, causing serious injuries, such as burns.

502

7-3. Do-it-yourself maintenance

NOTICE

■ When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of

water and antifreeze must be used to provide proper lubrication, corrosion

protection and cooling. Be sure to read the antifreeze or coolant label.

■ If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator, condenser and intercooler

Check the radiator, condenser and intercooler* and clear away any

foreign objects.

If any of the above parts are extremely dirty or you are not sure of

their condition, have your vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and equipped profes-

sional.

*: 1ND-TV and 1WW engines only

WARNING

■ When the engine is hot

Do not touch the radiator, condenser or intercooler as they may be hot and

cause serious injuries, such as burns.

504

7-3. Do-it-yourself maintenance

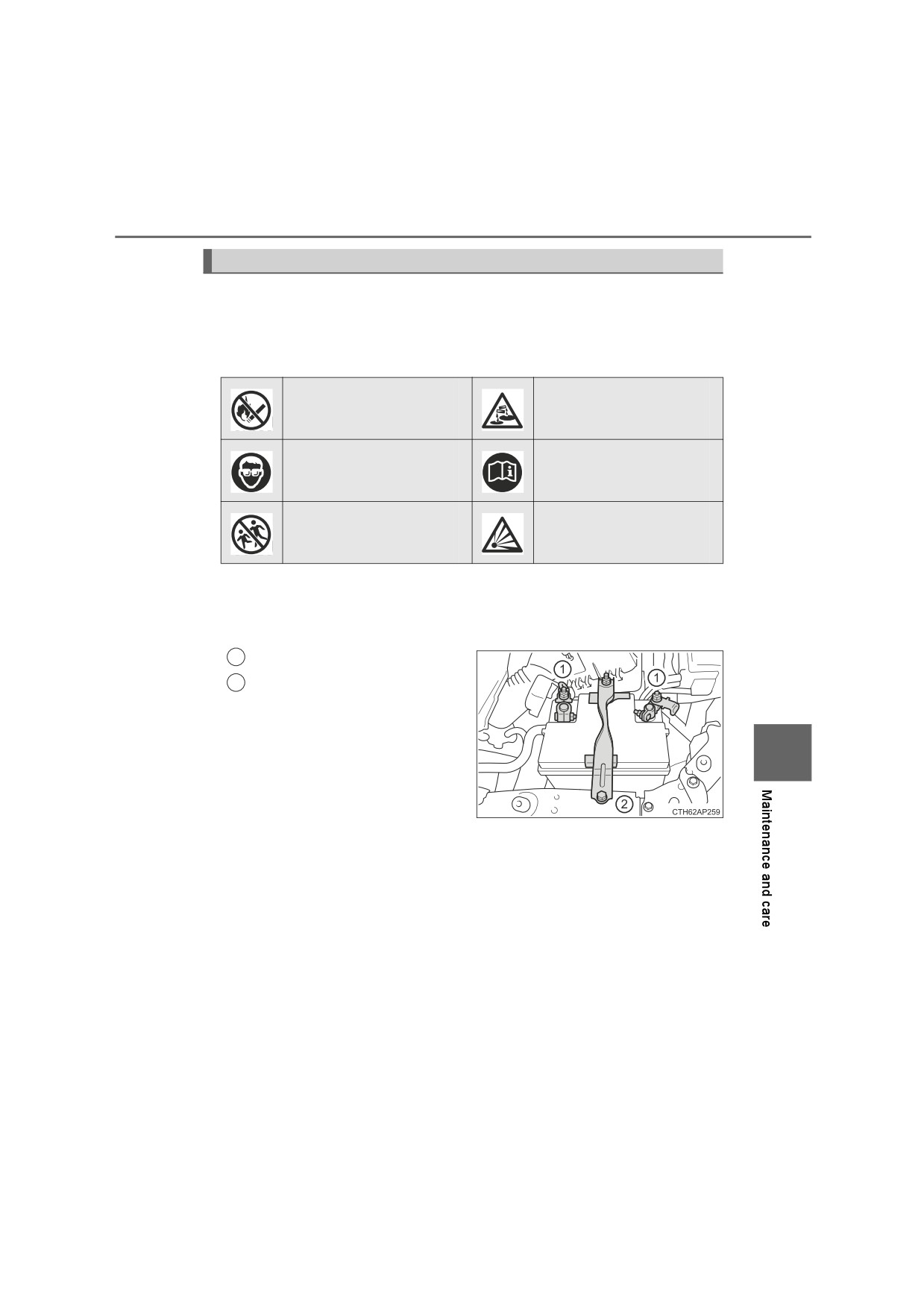

■ Before recharging

When recharging, the battery produces hydrogen gas which is flammable and

explosive. Therefore, observe the following before recharging:

●If recharging with the battery installed on the vehicle, be sure to disconnect

the ground cable.

● Make sure the power switch on the charger is off when connecting and dis-

connecting the charger cables to the battery.

■ After recharging/reconnecting the battery (vehicles with a smart entry &

start system)

● Unlocking the doors using the smart entry & start system may not be possi-

ble immediately after reconnecting the battery. If this happens, use the wire-

less remote control or the mechanical key to lock/unlock the doors.

●Start the engine with the engine switch in ACCESSORY mode. The engine

may not start with the engine switch turned off. However, the engine will

operate normally from the second attempt.

● The engine switch mode is recorded by the vehicle. If the battery is recon-

nected, the vehicle will return the engine switch mode to the status it was in

before the battery was disconnected. Make sure to turn off the engine

before disconnecting the battery. Take extra care when connecting the bat-

tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact any authorized

Toyota dealer or repairer, or another duly qualified and equipped professional.

WARNING

■ Chemicals in the battery

Batteries contain poisonous and corrosive sulfuric acid and may produce

hydrogen gas which is flammable and explosive. To reduce the risk of death

or serious injury, take the following precautions while working on or near the

battery:

●Do not cause sparks by touching the battery terminals with tools.

●Do not smoke or light a match near the battery.

● Avoid contact with eyes, skin and clothes.

●Never inhale or swallow electrolyte.

● Wear protective safety glasses when working near the battery.

● Keep children away from the battery.

7-3. Do-it-yourself maintenance

505

WARNING

■ Where to safely charge the battery

Always charge the battery in an open area. Do not charge the battery in a

garage or closed room where there is insufficient ventilation.

■ How to recharge the battery

Only perform a slow charge (5 A or less). The battery may explode if

charged at a quicker rate.

■ Emergency measures regarding electrolyte

●If electrolyte gets in your eyes

Flush your eyes with clean water for at least 15 minutes and get immedi-

ate medical attention. If possible, continue to apply water with a sponge or

cloth while traveling to the nearest medical facility.

●If electrolyte gets on your skin

Wash the affected area thoroughly. If you feel pain or burning, get medical

attention immediately.

●If electrolyte gets on your clothes

It can soak through clothing on to your skin. Immediately take off the cloth-

ing and follow the procedure above if necessary.

●If you accidentally swallow electrolyte

Drink a large quantity of water or milk. Get emergency medical attention

immediately.

NOTICE

■ When recharging the battery

Never recharge the battery while the engine is operating. Also, be sure all

accessories are turned off.

506

7-3. Do-it-yourself maintenance

Washer fluid

 Vehicles without headlight cleaner

If any washer does not work, the

washer tank may be empty. Add

washer fluid.

 Vehicles with headlight cleaner

If the fluid level is extremely low

add washer fluid.

Raise the cap keeping your finger

pressed down on the hole in the

center and check the fluid level in

the tube.

WARNING

■ When adding washer fluid

Do not add washer fluid when the engine is hot or running as washer fluid

contains alcohol and may catch fire if spilled on the engine etc.

NOTICE

■ Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.

Doing so may cause streaking on the vehicle’s painted surfaces, as well as

damaging the pump leading to problems of the washer fluid not spraying.

■ Diluting washer fluid

Dilute washer fluid with water as necessary.

Refer to the freezing temperatures listed on the label of the washer fluid bot-

tle.

7-3. Do-it-yourself maintenance

507

Fuel filter (1ND-TV engine only)

You may drain the fuel filter yourself. However, as the operation is dif-

ficult, we recommend having it drained by any authorized Toyota

dealer or repairer, or another duly qualified and equipped profes-

sional. Even if you decide to drain it yourself, contact any authorized

Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

 Vehicles with a 3-ring meter

Water in the fuel filter needs to be drained if the fuel filter warning light

comes on and a buzzer sounds.

 Vehicles with a 2-ring meter

Water in the fuel filter needs to be drained if the “Drain water from fuel

filter.” warning message is shown on the multi-information display and

a buzzer sounds.

Vehicles without a smart entry & start system: Turn the engine

switch to the “LOCK” position.

Vehicles with a smart entry & start system: Turn the engine switch

off.

Place a small tray under the drain plug to catch the water and any

fuel that comes out.

Turn

the

drain

plug

counterclockwise about 2 to 2

1/2 turns.

508

7-3. Do-it-yourself maintenance

Operate the priming pump until

fuel begins to run out.

After draining, tighten the drain plug by hand.

Fuel filter (1WW engine only)

It is necessary to drain water from the fuel filter in the following

situations:

Fuel filter type A*: Every 20000 km (12000 miles)

Fuel filter type B*: “Drain water from fuel filter.” is displayed on the

multi-information display and a buzzer sounds.

*: Contact any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional for identifying the fuel filter type.

Have the fuel filter drained by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

NOTICE

■ When there is water in the fuel filter

Do not drive continuously with water accumulated in the fuel filter. This will

cause damage to the fuel injection pump.

7-3. Do-it-yourself maintenance

509

Tires

Replace or rotate tires in accordance with maintenance sched-

ules and treadwear.

Checking tires

Check if the treadwear indicators are showing on the tires. Also check

the tires for uneven wear, such as excessive wear on one side of the

tread.

Check the spare tire condition and pressure if not rotated.

New tread

Worn tread

Treadwear

indicator

The location of

treadwear indicators

is shown by a “TWI” or “” mark, etc.,

molded into

the sidewall of each tire.

Replace the tires if

the treadwear indicators are showing

on a tire.

510

7-3. Do-it-yourself maintenance

Tire rotation (vehicles with a tire pressure warning system)

Rotate the tires in the order

shown.

To equalize tire wear and help

extend tire life, Toyota recom-

mends that tire rotation is carried

Front

out approximately every 10000 km

(6000 miles).

When rotating front and rear tires

which have different tire inflation

pressures, do not fail to initialize

the tire pressure warning system

after tire rotation.

Tire rotation (vehicles without a tire pressure warning system)

Rotate the tires in the order shown.

 Vehicles with a spare tire of a

 Vehicles with a spare tire of

different wheel type from the

the same wheel type as the

installed tires or an emergency

installed tires

tire puncture repair kit

Front

To equalize tire wear and help extend tire life, Toyota recommends

that tire rotation is carried out approximately every 10000 km (6000

miles).

7-3. Do-it-yourself maintenance

511

Tire pressure warning system (if equipped)

Your vehicle is equipped with a tire pressure warning system that uses

tire pressure warning valves and transmitters to detect low tire infla-

tion pressure before serious problems arise. (P. 574)

◆ Installing tire pressure warning valves and transmitters

When replacing tires or wheels, tire pressure warning valves and

transmitters must also be installed.

When new tire pressure warning valves and transmitters are

installed, new ID codes must be registered in the tire pressure

warning computer and the tire pressure warning system must be

initialized. Have tire pressure warning valves and transmitter ID

codes registered by any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional. (P. 513)

◆ Initializing the tire pressure warning system

■ The tire pressure warning system must be initialized in the fol-

lowing circumstances:

● When rotating front and rear tires which have different tire infla-

tion pressures.

● When changing the tire size.

● When the tire inflation pressure is changed such as when chang-

ing traveling speed or load weight.

When the tire pressure warning system is initialized, the current tire

inflation pressure is set as the benchmark pressure.

512

7-3. Do-it-yourself maintenance

■ How to initialize the tire pressure warning system

Park the vehicle in a safe place and turn the engine switch off.

Initialization cannot be performed while the vehicle is moving.

Adjust the tire inflation pressure to the specified cold tire inflation

pressure level. (P. 657)

Make sure to adjust the tire pressure to the specified cold tire inflation

pressure level. The tire pressure warning system will operate based on

this pressure level.

Vehicles with a smart entry & start system: Turn the engine

switch to IGNITION ON mode.

Vehicles without a smart entry & start system: Turn the engine

switch to the “ON” position.

Open the glove box. Press

and hold the tire pressure

warning reset switch until the

tire pressure warning light

blinks slowly 3 times.

Vehicles with a smart entry & start system: Wait for a few minutes

with the engine switch in IGNITION ON mode and then turn the

engine switch off.

Vehicles without a smart entry & start system: Wait for a few min-

utes with the engine switch in the “ON” position and then turn the

engine switch to the “ACC” or “LOCK” position.

7-3. Do-it-yourself maintenance

513

◆ Registering ID codes

The tire pressure warning valve and transmitter is equipped with a

unique ID code. When replacing a tire pressure warning valve and

transmitter, it is necessary to register the ID code. Have the ID code

registered by any authorized Toyota dealer or repairer, or another

duly qualified and equipped professional.

■ When to replace your vehicle’s tires

Tires should be replaced if:

● The treadwear indicators are showing on a tire.

● You have tire damage such as cuts, splits, cracks deep enough to expose

the fabric, and bulges indicating internal damage

● A tire goes flat repeatedly or cannot be properly repaired due to the size or

location of a cut or other damage

If you are not sure, consult with any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

■ Replacing tires and wheels (vehicles with a tire pressure warning sys-

tem)

If the ID code of the tire pressure warning valve and transmitter is not regis-

tered, the tire pressure warning system will not work properly. After driving for

about 20 minutes, the tire pressure warning light blinks for 1 minute and stays

on to indicate a system malfunction.

■ Tire life

Any tire over 6 years old must be checked by a qualified technician even if it

has seldom or never been used or damage is not obvious.

■ Routine tire inflation pressure checks (vehicles with a tire pressure

warning system)

The tire pressure warning system does not replace routine tire inflation pres-

sure checks. Make sure to check tire inflation pressure as part of your routine

of daily vehicle checks.

■ Low profile tires (17-inch tires)

Generally, low profile tires will wear more rapidly and tire grip performance

will be reduced on snowy and/or icy roads when compared to standard tires.

Be sure to use snow tires or tire chains* on snowy and/or icy roads and drive

carefully at a speed appropriate for road and weather conditions.

*: Tire chains cannot be mounted on 225/45R17 tires.

514

7-3. Do-it-yourself maintenance

■ If the tread on snow tires wears down below 4 mm (0.16 in.)

The effectiveness of the tires as snow tires is lost.

■ Situations in which the tire pressure warning system may not operate

properly (vehicles with a tire pressure warning system)

● In the following cases, the tire pressure warning system may not operate

properly.

• If non-genuine Toyota wheels are used.

• A tire has been replaced with a tire that is not an OE (Original Equipment)

tire.

• A tire has been replaced with a tire that is not of the specified size.

• Tire chains etc. are equipped.

• An auxiliary-supported run-flat tire is equipped.

• If a window tint that affects the radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is extremely higher than the specified level.

• If tires not equipped with tire pressure warning valves and transmitters

are used.

• If the ID code on the tire pressure warning valves and transmitters is not

registered in the tire pressure warning computer.

●Performance may be affected in the following situations.

• Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electri-

cal noise.

• When carrying a portable radio, cellular phone, cordless phone or other

wireless communication device.

● When the vehicle is parked, the time taken for the warning to start or go off

could be extended.

● When tire inflation pressure declines rapidly for example when a tire has

burst, the warning may not function.

7-3. Do-it-yourself maintenance

515

■ The initialization operation (vehicles with a tire pressure warning sys-

tem)

● Make sure to carry out initialization after adjusting the tire inflation pressure.

Also, make sure the tires are cold before carrying out initialization or tire

inflation pressure adjustment.

●If you have accidentally turned the engine switch off during initialization, it is

not necessary to press the reset switch again as initialization will restart

automatically when the engine switch has been turned to IGNITION ON

mode (vehicles with a smart entry & start system) or engine switch to the

“ON” position (vehicles without a smart entry & start system) for the next

time.

●If you accidentally press the reset switch when initialization is not necessary,

adjust the tire inflation pressure to the specified level when the tires are

cold, and conduct initialization again.

■ Warning performance of the tire pressure warning system (vehicles with

a tire pressure warning system)

The warning of the tire pressure warning system will change in accordance

with driving conditions. For this reason, the system may give a warning even

if the tire pressure does not reach a low enough level, or if the pressure is

higher than the pressure that was adjusted to when the system was initial-

ized.

■ When initialization of the tire pressure warning system has failed (vehi-

cles with a tire pressure warning system)

Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not operate

properly. If repeated attempts to record tire inflation pressure settings are

unsuccessful, have the vehicle inspected by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional as soon as pos-

sible.

● When operating the tire pressure warning reset switch, the tire pressure

warning light does not blink 3 times.

● After driving for a certain period of time since the initialization has been

completed, the warning light comes on after blinking for 1 minute.

■ Registering ID codes (vehicles with a tire pressure warning system)

The ID codes of the tire pressure warning valve and transmitters for two sets

of wheels can be registered.

It is not necessary to register the ID codes when replacing normal tires with

snow tires, if the ID codes for the wheels of both normal tires and snow tires

are registered beforehand.

For information about changing ID codes, ask any authorized Toyota dealer

or repairer, or another duly qualified and equipped professional.

7-3. Do-it-yourself maintenance

525

WARNING

■ When inspecting or replacing tires

Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drivetrain as well as dan-

gerous handling characteristics, which may lead to an accident resulting in

death or serious injury.

●Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

●Do not use tire sizes other than those recommended by Toyota.

●Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

●Do not mix summer, all season and snow tires.

●Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

● Vehicles with a compact spare tire: Do not tow if your vehicle has a com-

pact spare tire installed.

■ When initializing the tire pressure warning system (vehicles with a tire

pressure warning system)

Do not operate the tire pressure warning reset switch without first adjusting

the tire inflation pressure to the specified level. Otherwise, the tire pressure

warning light may not come on even if the tire inflation pressure is low, or it

may come on when the tire inflation pressure is actually normal.

526

7-3. Do-it-yourself maintenance

NOTICE

■ Repairing or replacing tires, wheels, tire pressure warning valves,

transmitters and tire valve caps (vehicles with a tire pressure warning

system)

●When removing or fitting the wheels, tires or the tire pressure warning

valves and transmitters, contact any authorized Toyota dealer or repairer,

or another duly qualified and equipped professional as the tire pressure

warning valves and transmitters may be damaged if not handled correctly.

●Make sure to install the tire valve caps. If the tire valve caps are not

installed, water could enter the tire pressure warning valves and the tire

pressure warning valves could be bound.

●When replacing tire valve caps, do not use tire valve caps other than those

specified. The cap may become stuck.

■ To avoid damage to the tire pressure warning valves and transmitters

(vehicles with a tire pressure warning system)

When a tire is repaired with liquid sealants, the tire pressure warning valve

and transmitter may not operate properly. If a liquid sealant is used, contact

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional or other qualified service shop as soon as possible.

After use of liquid sealant, make sure to replace the tire pressure warning

valve and transmitter when repairing or replacing the tire. (P. 511)

■ Driving on rough roads

Take particular care when driving on roads with loose surfaces or potholes.

These conditions may cause losses in tire inflation pressure, reducing the

cushioning ability of the tires. In addition, driving on rough roads may cause

damage to the tires themselves, as well as the vehicle’s wheels and body.

■ Low profile tires (17-inch tires)

Low profile tires may cause greater damage than usual to the tire wheel

when sustaining impact from the road surface. Therefore, pay attention to

the following:

● Be sure to use proper tire inflation pressure. If tires are under-inflated, they

may be damaged more severely.

● Avoid potholes, uneven pavement, curbs and other road hazards. Failure

to do so may lead to severe tire and wheel damage.

■ If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

7-3. Do-it-yourself maintenance

527

Tire inflation pressure

Make sure to maintain proper tire inflation pressure. Tire infla-

tion pressure should be checked at least once per month. How-

ever, Toyota recommends that tire inflation pressure be checked

once every two weeks. (P. 657)

Tire-loading information label

Tire inflation pressure is specified on the label on the driver’s side

door frame as shown.

 Left-hand drive vehicles

 Right-hand drive vehicles

■ Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

●Reduced fuel economy

● Reduced driving comfort and poor handling

●Reduced tire life due to wear

● Reduced safety

● Damage to the drivetrain

If a tire needs frequent inflating, have it checked by any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

528

7-3. Do-it-yourself maintenance

■ Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

● Check only when the tires are cold.

If your vehicle has been parked for at least 3 hours or has not been driven

for more than 1.5 km or 1 mile, you will get an accurate cold tire inflation

pressure reading.

● Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

●It is normal for the tire inflation pressure to be higher after driving as heat is

generated in the tire. Do not reduce tire inflation pressure after driving.

●Passengers and luggage weight should be placed so that the vehicle is bal-

anced.

WARNING

■ Proper inflation is critical to save tire performance

Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur

which could lead to an accident resulting in death or serious injury:

●Excessive wear

●Uneven wear

●Poor handling

● Possibility of blowouts resulting from overheated tires

● Air leaking from between tire and wheel

● Wheel deformation and/or tire damage

●Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges in the road, etc.)

NOTICE

■ When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and

cause an air leak, resulting in decreased tire inflation pressure.

7-3. Do-it-yourself maintenance

529

Wheels

If a wheel is bent, cracked or heavily corroded, it should be

replaced. Otherwise, the tire may separate from the wheel or

cause a loss of handling control.

Wheel selection

When replacing wheels, care should be taken to ensure that they are

equivalent to those removed in load capacity, diameter, rim width and

inset*.

Replacement wheels are available at any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

*: Conventionally referred to as “offset”.

Toyota does not recommend using the following:

● Wheels of different sizes or types

● Used wheels

● Bent wheels that have been straightened

Aluminum wheel precautions (if equipped)

● Use only Toyota wheel nuts and wrenches designed for use with

your aluminum wheels.

● When rotating, repairing or changing your tires, check that the

wheel nuts are still tight after driving 1600 km (1000 miles).

● Be careful not to damage the aluminum wheels when using tire

chains.

● Use only Toyota genuine balance weights or equivalent and a plas-

tic or rubber hammer when balancing your wheels.

■ When replacing wheels (vehicles with a tire pressure warning system)

The wheels of your vehicle (except spare tire) are equipped with tire pressure

warning valves and transmitters that allow the tire pressure warning system

to provide advance warning in the event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pressure warning valves and transmitters

must be installed. (P. 511)

530

7-3. Do-it-yourself maintenance

■ When removing the wheel ornament (vehicles with a wheel cap clip)

Remove the wheel ornament using the

wheel cap clip.

WARNING

■ When replacing wheels

●Do not use wheels that are a different size from those recommended in the

Owner’s Manual, as this may result in a loss of handling control.

●Never use an inner tube in a leaking wheel which is designed for a tube-

less tire. Doing so may result in an accident, causing death or serious

injury.

■ When installing the wheel nuts

●Be sure to install the wheel nuts with the

tapered ends facing inward. Installing

the nuts with the tapered ends facing

outward can cause the wheel to break

and eventually cause the wheel to come

Tapered

off while driving, which could lead to

portion

accident resulting in death or serious

injury.

●Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened,

leading to bolt or disc wheel damage. In addition, the oil or grease can

cause the wheel nuts to loosen and the wheel may fall off, causing an acci-

dent and resulting in death or serious injury. Remove any oil or grease

from the wheel bolts or wheel nuts.

■ Use of defective wheels prohibited (vehicles with aluminum wheels)

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air during driving, possibly causing an

accident.

7-3. Do-it-yourself maintenance

531

NOTICE

■ Replacing tire pressure warning valves and transmitters (vehicles with

a tire pressure warning system)

● Because tire repair or replacement may affect the tire pressure warning

valves and transmitters, make sure to have tires serviced by any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional or other qualified service shop. In addition, make sure to

purchase your tire pressure warning valves and transmitters at any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

● Ensure that only genuine Toyota wheels are used on your vehicle.

Tire pressure warning valves and transmitters may not work properly with

non-genuine wheels.

7-3. Do-it-yourself maintenance

533

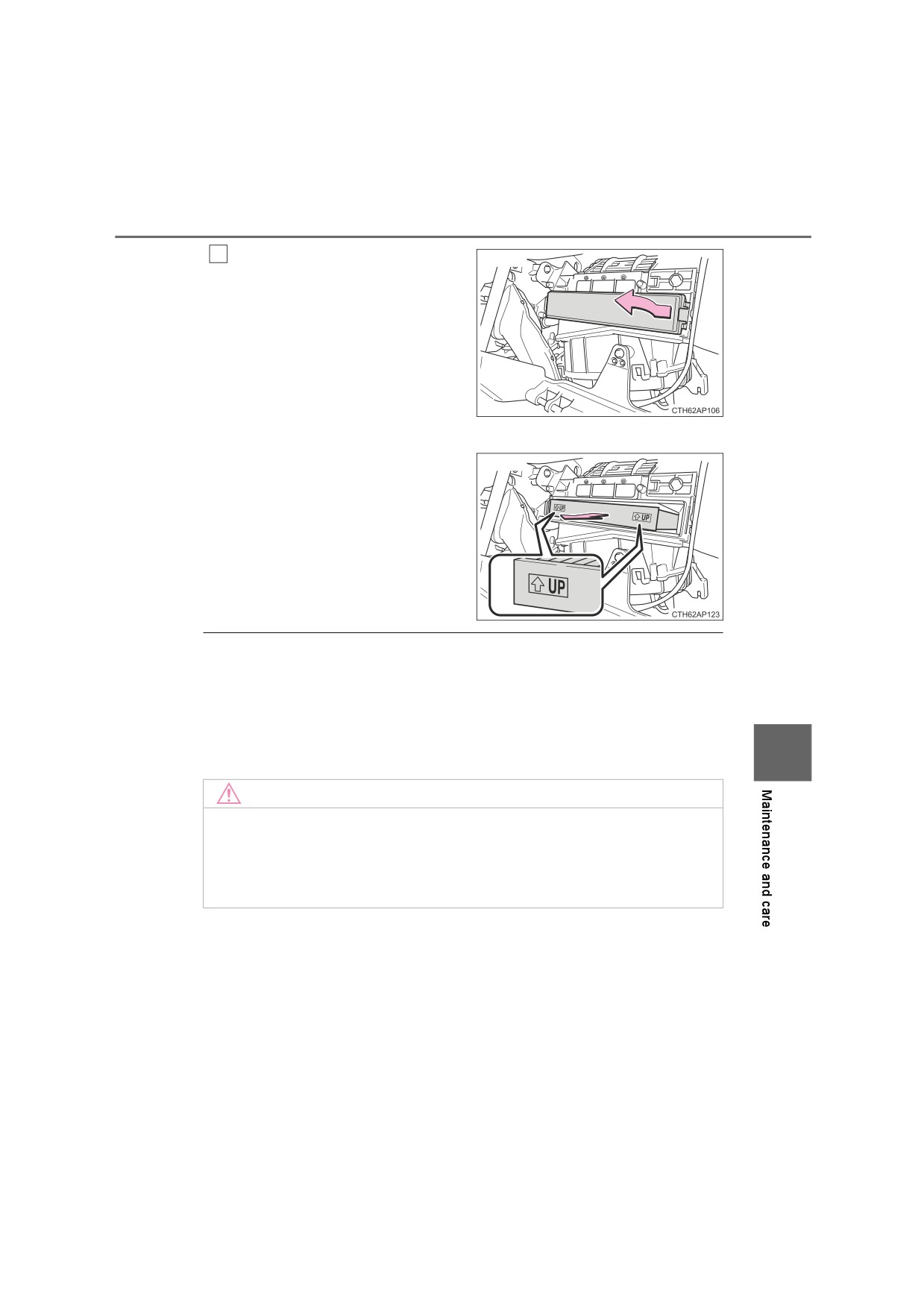

Remove the filter cover.

■ Replacement method

Remove the air conditioning fil-

ter and replace it with a new

one.

The “UP” marks shown on the

filter should be pointing up.

■ Checking interval

Inspect and replace the air conditioning filter according to the maintenance

schedule. In dusty areas or areas with heavy traffic flow, early replacement

may be required. (For scheduled maintenance information, please refer to the

“Toyota Service Booklet” or “Toyota Warranty Booklet”.)

■ If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE

■ When using the air conditioning system

Make sure that a filter is always installed.

Using the air conditioning system without a filter may cause damage to the

system.

534

7-3. Do-it-yourself maintenance

Wireless remote control/electronic key

battery

Replace the battery with a new one if it is depleted or “Key bat-

tery low.” is displayed on the multi-information display (vehicles

with a 2-ring meter only).

You will need the following items:

● Flathead screwdriver

● Small flathead screwdriver

● Lithium battery CR2016 (vehicles without a smart entry & start sys-

tem), or CR2032 (vehicles with a smart entry & start system)

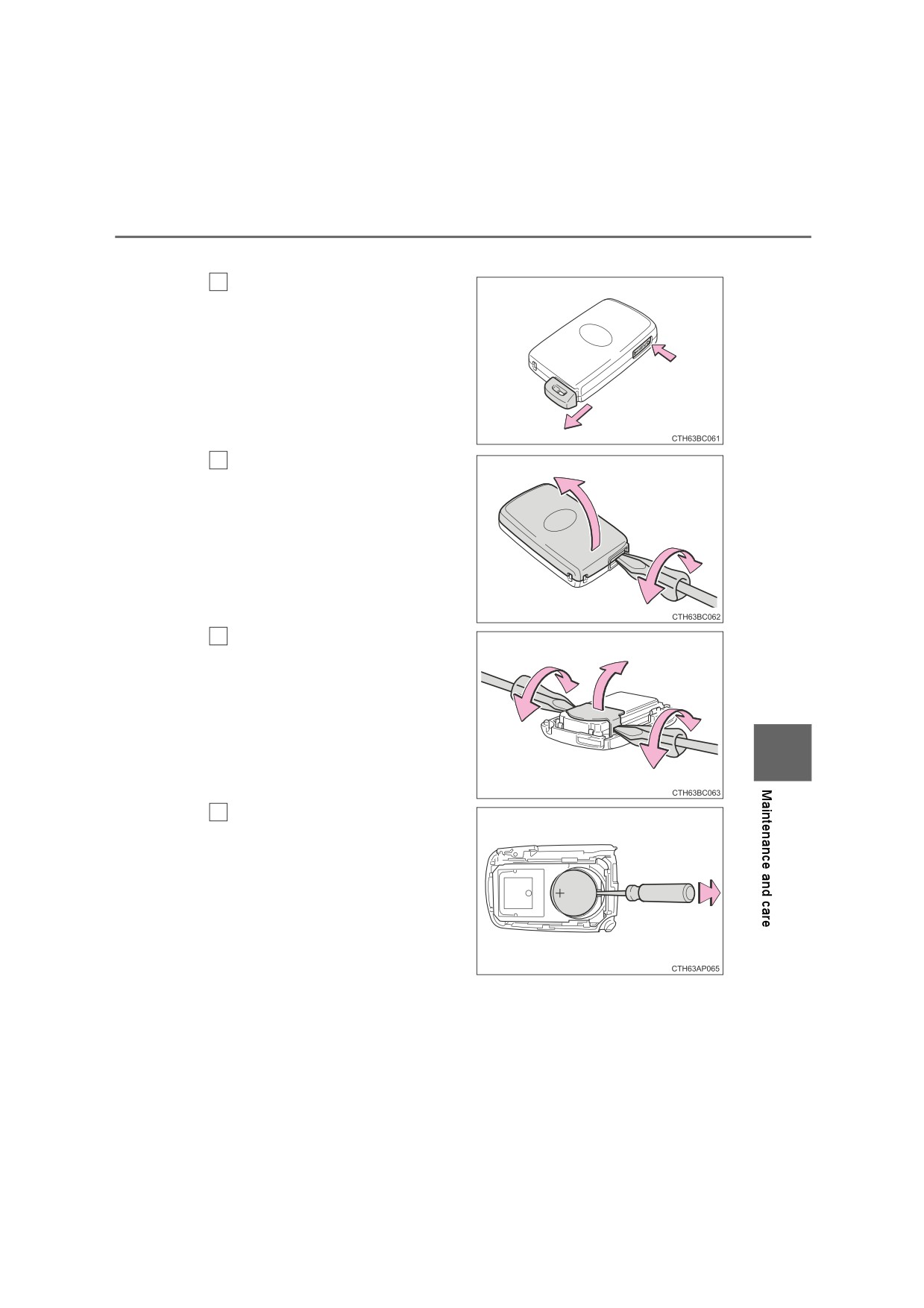

Replacing the battery

 Vehicles without a smart entry & start system

Remove the cover.

To prevent damage to the key,

cover the tip of the screwdriver with

a rag.

Remove the depleted battery.

Insert a new battery with the “+”

terminal facing up.

536

7-3. Do-it-yourself maintenance

■ Use a CR2016 (vehicles without a smart entry & start system) or CR2032

(vehicles with a smart entry & start system) lithium battery

● Batteries can be purchased at any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional, local electrical appliance

shops or camera stores.

● Replace only with the same or equivalent type recommended by the manu-

facturer.

●Dispose of used batteries according to local laws.

■ If the key battery is depleted

The following symptoms may occur:

● The smart entry & start system (if equipped), push button start (if equipped)

and wireless remote control will not function properly.

● The operational range will be reduced.

WARNING

■ Removed battery and other parts

These parts are small and if swallowed by a child, they can cause choking.

Keep away from children. Failure to do so could result in death or serious

injury.

■ Certification for the lithium battery

CAUTION:

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT

TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-

TIONS

NOTICE

■ For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

● Always work with dry hands.

Moisture may cause the battery to rust.

●Do not touch or move any other component inside the remote control.

●Do not bend either of the battery terminals.

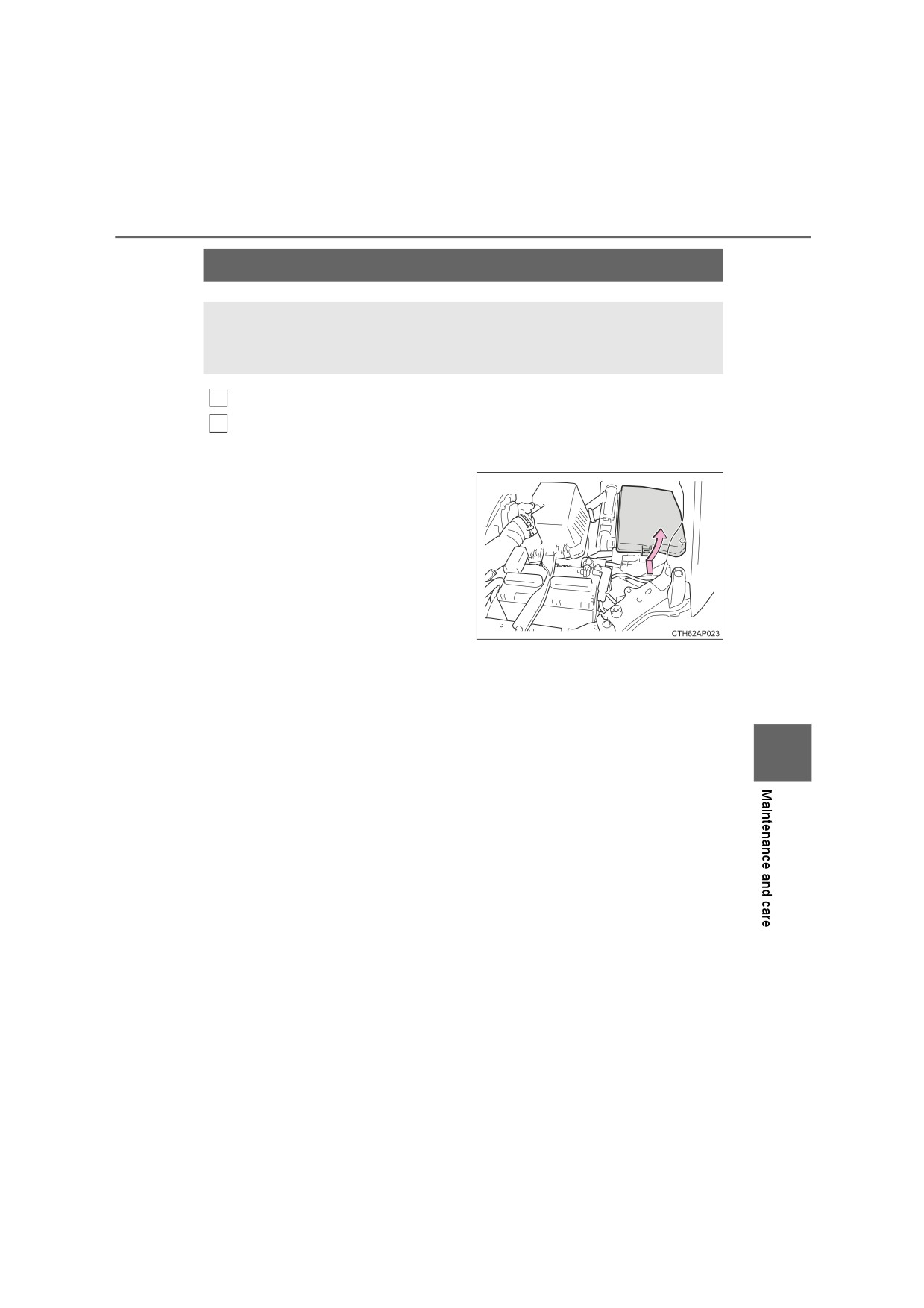

Toyota Auris (2018 year). Manual in english - page 8
