7-2. Steps to take in an emergency
487
Warning light
Warning light/Details/Actions
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system;
• The electronic engine control system;
(U.S.A.)
• The electronic throttle control system; or
• The electronic automatic transmission control sys-
tem
(Canada)
Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;
or
• The seat belt pretensioner system
Have the vehicle inspected by your Toyota dealer
immediately.
ABS warning light
Indicates a malfunction in:
(U.S.A.)
• The ABS; or
• The brake assist system
Have the vehicle inspected by your Toyota dealer
immediately.
(Canada)
Slip indicator
7
Indicates a malfunction in:
• The VSC system;
• Trailer Sway Control system;
• The TRAC system;
• The active traction control system;
• The AUTO LSD system;
• The downhill assist control system;
• The hill-start assist control system; or
• The Crawl Control system
Have the vehicle inspected by your Toyota dealer
immediately.
Rear differential lock indicator light (if equipped)
Indicates a malfunction in the rear differential lock sys-
tem
(Flashes rapidly)
Have the vehicle inspected by your Toyota dealer
immediately.
488
7-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions
Four-wheel drive indicator light (if equipped)
Indicates a malfunction in the four-wheel drive system
Have the vehicle inspected by your Toyota dealer
(Flashes rapidly)
immediately.
Low speed four-wheel drive indicator light
(if
equipped)
Indicates a malfunction in the four-wheel drive system
(Flashes rapidly)
Have the vehicle inspected by your Toyota dealer
immediately.
Center differential lock indicator light (if equipped)
Indicates a malfunction in the four-wheel drive system
Have the vehicle inspected by your Toyota dealer
(Flashes rapidly)
immediately.
Multi-terrain Select indicator light (if equipped)*4
Indicates a malfunction in the Multi-terrain Select sys-
tem
(Flashes contin-
Have the vehicle inspected by your Toyota dealer
uously)
immediately.
Power steering warning light
Indicates a malfunction in the power steering system
Have the vehicle inspected by your Toyota dealer
immediately.
Unengaged “Park” warning light (if equipped)
Indicates a malfunction in the transmission
“Park”
mechanism.
Have the vehicle inspected by your Toyota dealer
immediately.
KDSS warning light (if equipped)
Indicates a malfunction in KDSS
Have the vehicle inspected by your Toyota dealer
immediately.
Automatic running boards indicator light
(if
equipped)
Indicates a malfunction in Automatic running boards
(Flashes)
Have the vehicle inspected by your Toyota dealer
immediately.
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
Check that all the doors are closed.
7-2. Steps to take in an emergency
489
Warning light
Warning light/Details/Actions
Low fuel level warning light
Indicates remaining fuel is approximately 3.5 gal. (13.1
L, 2.9 Imp. gal.) or less
Refuel the vehicle.
Seat belt reminder light (warning buzzer)*3
Warns the driver and/or front passenger to fasten their
seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
Brake Override System/Drive-Start Control warning
light (warning buzzer)*4
When a buzzer sounds:
• Brake Override System is malfunctioning;
• Drive-Start Control is operating;
• Drive-Start Control is malfunctioning; or
Follow the instructions displayed on the multi-
information display.
When a buzzer does not sound:
Brake Override System is operating
Release the accelerator pedal and depress the
brake pedal.
(Flashes)
Parking brake indicator (warning buzzer)*1
7
(U.S.A.)
Indicates that the parking brake is engaged
Release the parking brake.
(Flashes)
(Canada)
490
7-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions
PCS warning light
When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-
Collision System).
Have the vehicle inspected by your Toyota dealer
immediately.
When a buzzer does not sound:
The PCS (Pre-Collision System) has become tempo-
(Flashes or
rarily unavailable, corrective action may be necessary.
illuminates)
Follow the instructions displayed on the multi-
information display. (P. 248, 497)
If the PCS (Pre-Collision System) or VSC (Vehicle Sta-
bility Control) system is disabled, the PCS warning
light will illuminate.
P. 259
LDA indicator*4
Indicates a malfunction in the LDA
When “LDA Unavailable” is displayed on the
multi-information display, turn the LDA system
off, wait for a little while, and then turn the LDA
(Amber)
system back on. (P. 263)
When a message other than above is displayed,
follow the instructions displayed in the message.
Master warning light
A buzzer sounds and warning light comes on flashes
to indicate that the master warning system has
detected a malfunction.
P. 497
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 493)
• Flat tire (P. 502)
Adjust the tire inflation pressure (including the
spare tire) to the specified level.
The light will turn off after a few minutes. In
case the light does not turn off even if the tire
inflation pressure is adjusted, have the system
checked by your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
(P. 494)
Have the system checked by your Toyota
dealer.
7-2. Steps to take in an emergency
491
Warning light
Warning light/Details/Actions
RCTA OFF indicator (warning buzzer) (if equipped)
Indicates a malfunction in the RCTA (Rear Cross Traf-
fic Alert) function
Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the rear bumper around the radar sen-
(Flashes)
sor is covered with dirt, etc. (P. 283)
Follow the instructions displayed on the multi-
information display. (P. 298)
BSM OFF indicator (warning buzzer) (if equipped)
Indicates a malfunction in the BSM (Blind Spot Moni-
tor) function
Have the vehicle inspected by your Toyota dealer
immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. (P. 283)
Follow the instructions displayed on the multi-
information display. (P. 282)
*1: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more.
*2: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*3: Driver’s seat belt buzzer:
7
The driver's seat belt warning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the engine switch is turned to ON, the
buzzer sounds. If the seat belt is still unfastened, the buzzer sounds inter-
mittently for a certain period of time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
*4: This light illuminates on the multi-information display.
492
7-2. Steps to take in an emergency
SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (rear), safing
sensor (rear), driver's seat belt buckle switch, front passenger occupant clas-
sification system (ECU and sensors), “AIR BAG ON” and “AIR BAG OFF”
indicator lights, front passenger's seat belt buckle switch, seat belt preten-
sioners, airbags, interconnecting wiring and power sources. (P. 37)
Key reminder buzzer (vehicles without a smart key system)
The buzzer indicates that the key has not been removed with the engine off
and the driver’s door opened.
Open moon roof reminder buzzer (if equipped)
The buzzer indicates that the moon roof is not fully closed with the engine off
and the driver’s door opened.
Front passenger detection sensor, passenger seat belt reminder and
warning buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
First check the following:
Is the fuel tank empty?
If it is, fill the fuel tank immediately.
Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
7-2. Steps to take in an emergency
493
When the tire pressure warning light comes on
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 502
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered
sufficiently.
Check the tire inflation pressure and adjust to the appropriate level.
If the warning light does not go out even after several minutes, check
that the tire inflation pressure is at the specified level and carry out ini-
tialization. (P. 437)
The warning light may come on again if the above operations are con-
ducted without first allowing the tire temperature to lower sufficiently.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such
as natural air leaks and tire inflation pressure changes caused by tem-
perature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).
When a tire is replaced with a spare tire
Vehicles without P245/60R20 tires
The spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off
even though the flat tire has been replaced with the spare tire. Replace
the spare tire with the repaired tire and adjust the tire inflation pressure.
The tire pressure warning light will go off after a few minutes.
Vehicles with P245/60R20 tires
The spare tire is also equipped with a tire pressure warning valve and
7
transmitter. The tire pressure warning light will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, the tire pressure warn-
ing light will not turn off even though the flat tire has been replaced with
the spare tire. Replace the spare tire with the repaired tire and adjust the
tire inflation pressure. The tire pressure warning light will go off after a few
minutes.
494
7-2. Steps to take in an emergency
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
If tires not equipped with tire pressure warning valves and transmitters
are used
If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
If electronic devices or facilities using similar radio wave frequencies are
nearby
If a radio set at a similar frequency is in use in the vehicle
If a window tint that affects the radio wave signals is installed
If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
If tire chains are used
Vehicles with P245/60R20 tires: If the spare tire is in a location subject
to poor radio wave signal reception
Vehicles with P245/60R20 tires: If a large metallic object which can
interfere with signal reception is put in the luggage compartment
If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the engine switch is turned on, have it checked by your
Toyota dealer.
Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 557) However, Toyota recommends that the seat
belt reminder buzzer be operational to alert the driver and front passenger
when seat belts are not fastened.
7-2. Steps to take in an emergency
495
WARNING
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with the spare tire and have the flat tire
repaired by the nearest Toyota dealer.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
7
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
496
7-2. Steps to take in an emergency
WARNING
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.
7-2. Steps to take in an emergency
497
If a warning message is displayed
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
Master warning light
1
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
2
Multi-information display
3
Handling method
Follow the instructions of the mes-
sage on the multi-information dis-
play.
If any of the warning messages are shown again after the following
actions have been performed, contact your Toyota dealer.
7
498
7-2. Steps to take in an emergency
Messages and warnings
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by your Toyota
dealer immediately.
System
Warning
warning
Warning
buzzer*
light
Indicates an important situation, such
Comes on
Comes on
Sounds
as when a system related to driving is
malfunctioning or that danger may
result if the correction procedure is not
Comes on
Sounds
performed
Indicates an important situation, such
Comes on
as when the systems shown on the
Sounds
or flashes
multi-information display may be mal-
functioning
Indicates a situation, such as when
Flashes
Sounds
damage to the vehicle or danger may
result
Indicates a condition, such as mal-
Does not
function of electrical components, their
Comes on
sound
condition, or indicates the need for
maintenance
Indicates a situation, such as when an
Does not
operation has been performed incor-
Flashes
sound
rectly, or indicates how to perform an
operation correctly
The operation of the warning lights and warning buzzers may differ
from those stated. in this case, perform the correction procedure
according to the displayed message.
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display.
7-2. Steps to take in an emergency
499
Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
or image shown on the multi-information display.
Malfunction in the ABS
The ABS warning light comes on. (P. 487)
Indicates that the PCS (Pre-Collision System) is not currently functional
The PCS warning light comes on or flashes. (P. 490)
Malfunction in the tire pressure warning system
The tire pressure warning light comes on. (P. 490)
If a message instructing to refer to the Owner’s Manual is displayed
If the following message is shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Toyota dealer.
Continuing to drive the vehicle may be dangerous.
“Braking Power Low Stop in a Safe Place See Owner’s Manual”
“Oil Pressure Low Stop in a Safe Place See Owner’s Manual”
If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
displayed, follow the instructions accordingly. (P. 527)
If “Front Camera Unavailable See Owner’s Manual” is displayed, follow the
instructions accordingly. (P. 248, 497)
If the following message is shown, there may be a malfunction.
Immediately have the vehicle inspected by your Toyota dealer.
“Smart Key System Malfunction See Owner’s Manual”
7
If “High transmission fluid temperature” is shown, it indicates that the
automatic transmission fluid temperature is too high.
Immediately stop the vehicle in a safe place, shift the shift lever to P and wait
until the warning message and light go off. If the warning message and light
go off, you may start the vehicle again. If the warning message and light do
not go off, contact your Toyota dealer.
500
7-2. Steps to take in an emergency
If “Auto power off to conserve battery” is shown
Power was turned off due to the automatic power off function.
Next time when starting the engine, increase the engine speed slightly and
maintain that level for approximately 5 minutes to recharge the battery.
When a message that indicates the need for the shift lever operation is
shown
To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may be
shown on the multi-information display. In that case, follow the instruction of
the message and shift the shift lever.
When “Headlight System Malfunction Visit Your Dealer” is displayed on
the multi-information display
The following system may be malfunctioning. Have the vehicle inspected by
your Toyota dealer.
Automatic High Beam
If a message that indicates the malfunction of front camera is displayed
The following systems may be suspended until the problem shown in the
message is resolved. (P. 248, 497)
PCS (Pre-Collision System)
LDA (Lane Departure Alert)
Dynamic radar cruise control
Automatic High Beam
If a message that indicates the malfunction of radar sensor is displayed
The following systems may be suspended until the problem shown in the
message is resolved. (P. 248, 497)
PCS (Pre-Collision System)
LDA (Lane Departure Alert)
Dynamic radar cruise control
If a following message is shown, take appropriate action and confirm
that the message has disappeared.*
“Crawl Not Available Select L4 and Shift to [D] or [R] Position”
“Crawl Not Available Check System Operation Conditions”
*: Refer to the “Off-road Driving Owner’s Manual”.
If “Oil Maintenance Required Soon” is displayed (U.S.A. only)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (P. 412)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
7-2. Steps to take in an emergency
501
If “Oil Maintenance Required” is displayed (U.S.A. only)
Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule*.
Comes on approximately 5000 miles (8000 km) after the message has been
reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the
maintenance is performed. (P. 412)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
If “Visit Your Dealer” is shown
The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer immediately.
Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.
NOTICE
While the engine oil level warning is displayed
Continued engine operation with low engine oil will damage the engine.
7
502
7-2. Steps to take in an emergency
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 435
WARNING
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
You will need the following item:
● Phillips screwdriver
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers. (P. 474)
7-2. Steps to take in an emergency
503
Location of the spare tire, jack and tools
1
Spare tire
2
Jack
3
Tool bag
7
504
7-2. Steps to take in an emergency
WARNING
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle while it is supported
by the jack.
Do not start or run the engine while your vehicle is supported by the
jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to
replace the tire.
Use a jack stand if it is necessary to get under the vehicle.
Vehicles with Automatic running boards
Observe the following precautions. Failure to do so may result in seri-
ous injury:
• When jacking up the vehicle, always turn the Automatic running
boards switch off.
• When jacking up the vehicle, do not use an Automatic running board
as a jack point. The Automatic running board may break, causing
injuries.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screw-
driver, to prevent the extension parts from coming apart unexpectedly.
7-2. Steps to take in an emergency
505

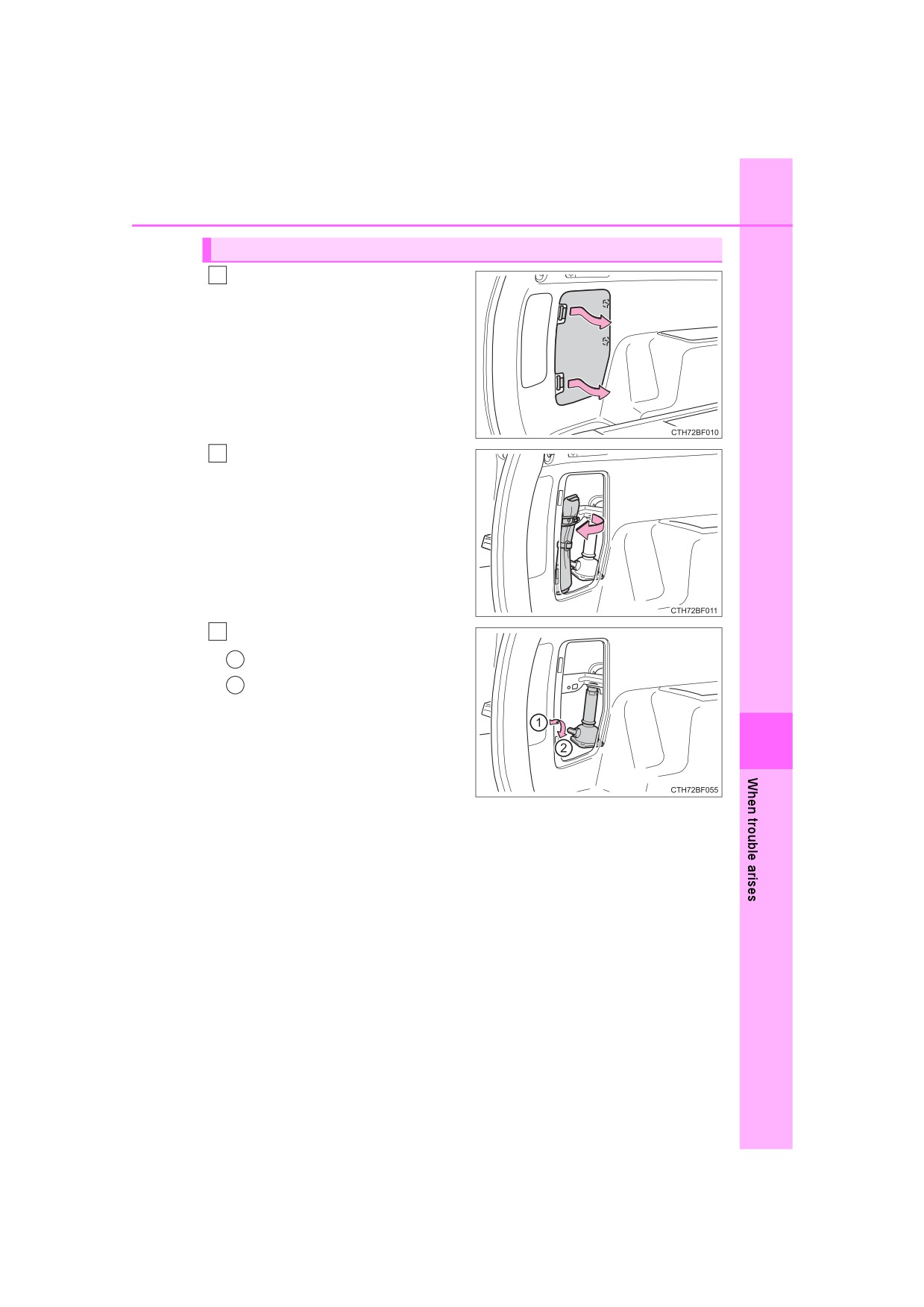

Taking out the jack and tool bag
1
Remove the cover.
2
Unhook and take out the tool
bag.
3
Take out the jack.
1
For loosening
2
For tightening
7
506
7-2. Steps to take in an emergency

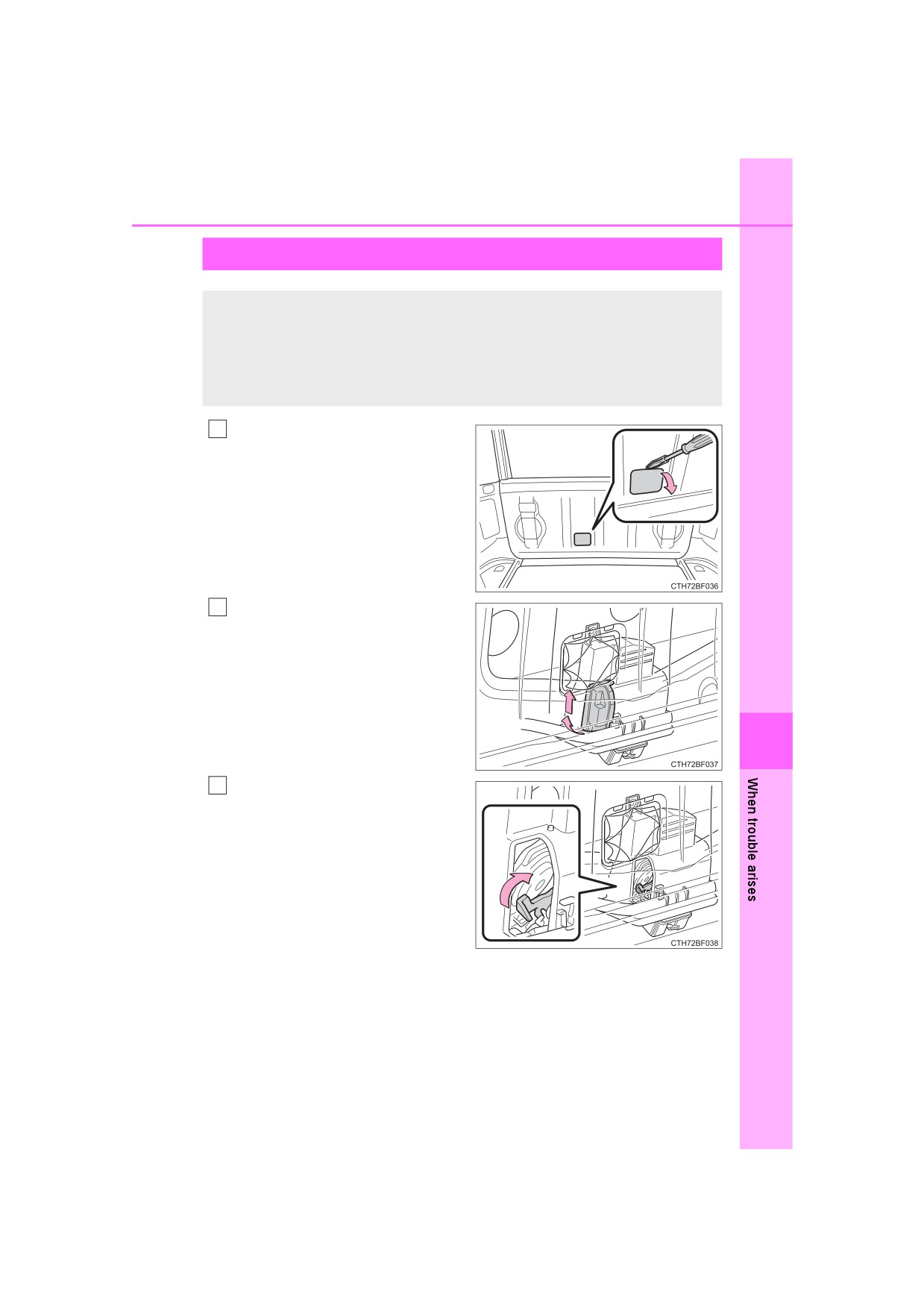

Taking out the spare tire
Assembling the jack handle.
1
Remove the jack handle and the jack handle extension bar from the
tool bag and assembly by following these steps.
Loosen the bolt and the
1
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
2
extension bars and tighten
the bolt.
Check that the bolt is firmly
tightened.
Assemble the jack handle
3
and the jack handle exten-
sion bar and tighten the
screw.
Check that the screw is firmly
tightened.
7-2. Steps
to take in an emergency
507
2
Insert the end of the jack han-
dle extension into the lowering
screw and turn it counterclock-
wise.
Lower the spare tire completely
to the ground.
Pull out the spare tire and
3
remove the holding bracket.
7
508
7-2. Steps to take in an emergency
Replacing a flat tire
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
Remove the wheel ornament
using the wheel ornament
remover.
To protect the wheel ornament,
place a rag between the wheel
ornament remover and the wheel
ornament, as shown in the illus-
tration.
3
Slightly loosen the wheel nuts
(one turn).
7-2. Steps to take in an emergency
509
4
Assembling the jack handle.
Remove the jack handle, jack handle extension bar and jack handle
bar from the tool bag and assemble by following these steps.
Loosen the bolts and the
1
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
2
extension bars and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
3
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
7
tightened.
510
7-2. Steps to take in an emergency
5

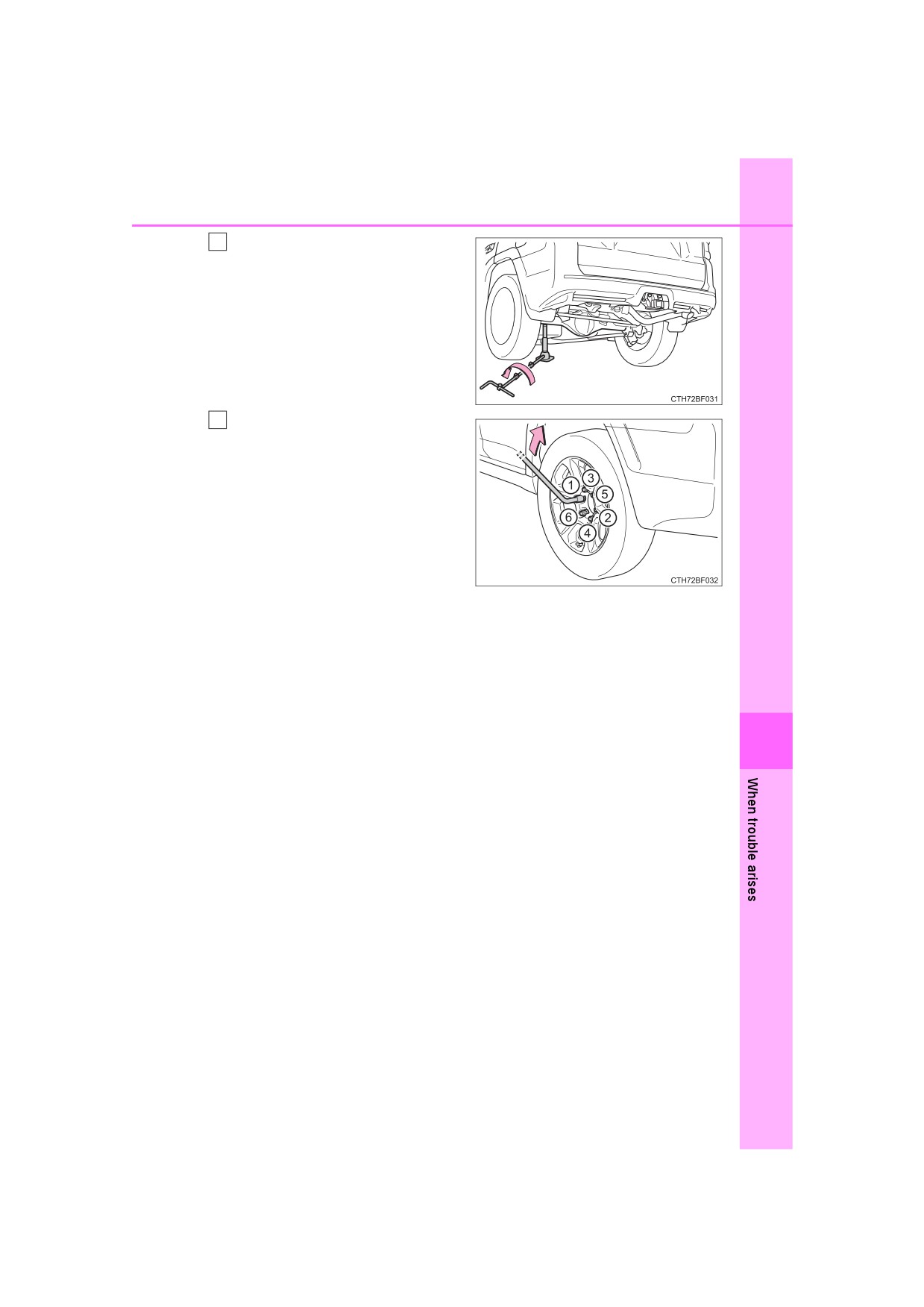

Position the jack at the jack
points as shown.
Front - Under the chassis frame
side rail
Rear
- Under the rear axle
housing
Raise the vehicle until the tire is
6
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make sure
the groove on the top of the jack
fits with the rear axle housing.
7
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
7-2. Steps to take in an emergency
511
WARNING
Replacing a flat tire
Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it
from under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extremely hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc. may result
in burns.
Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 83 ft•lbf (112
N•m, 11.4 kgf•m) steel wheels, 76 ft•lbf (103 N•m, 10.5 kgf•m) alumi-
num wheels, as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
7
tapered ends facing inward.
512
7-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
wheel with a steel wheel,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Tapered
portion
Disc wheel seat
When replacing an aluminum
wheel with an aluminum wheel,
tighten the wheel nuts until the
washers comes into contact
with the disc wheel.
Washer
Disc wheel
7-2. Steps to
take in an emergency
513
3
Lower the vehicle.
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque
Steel wheels:
83 ft•lbf (112 N•m, 11.4 kgf•m)
Aluminum wheels:
76 ft•lbf (103 N•m, 10.5 kgf•m)
7
514
7-2. Steps to take in an emergency
WARNING
Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage
to the spare tire carrier and lose of the tire, which could result in death or
serious injury.
Stowing the flat/spare tire, jack and tools

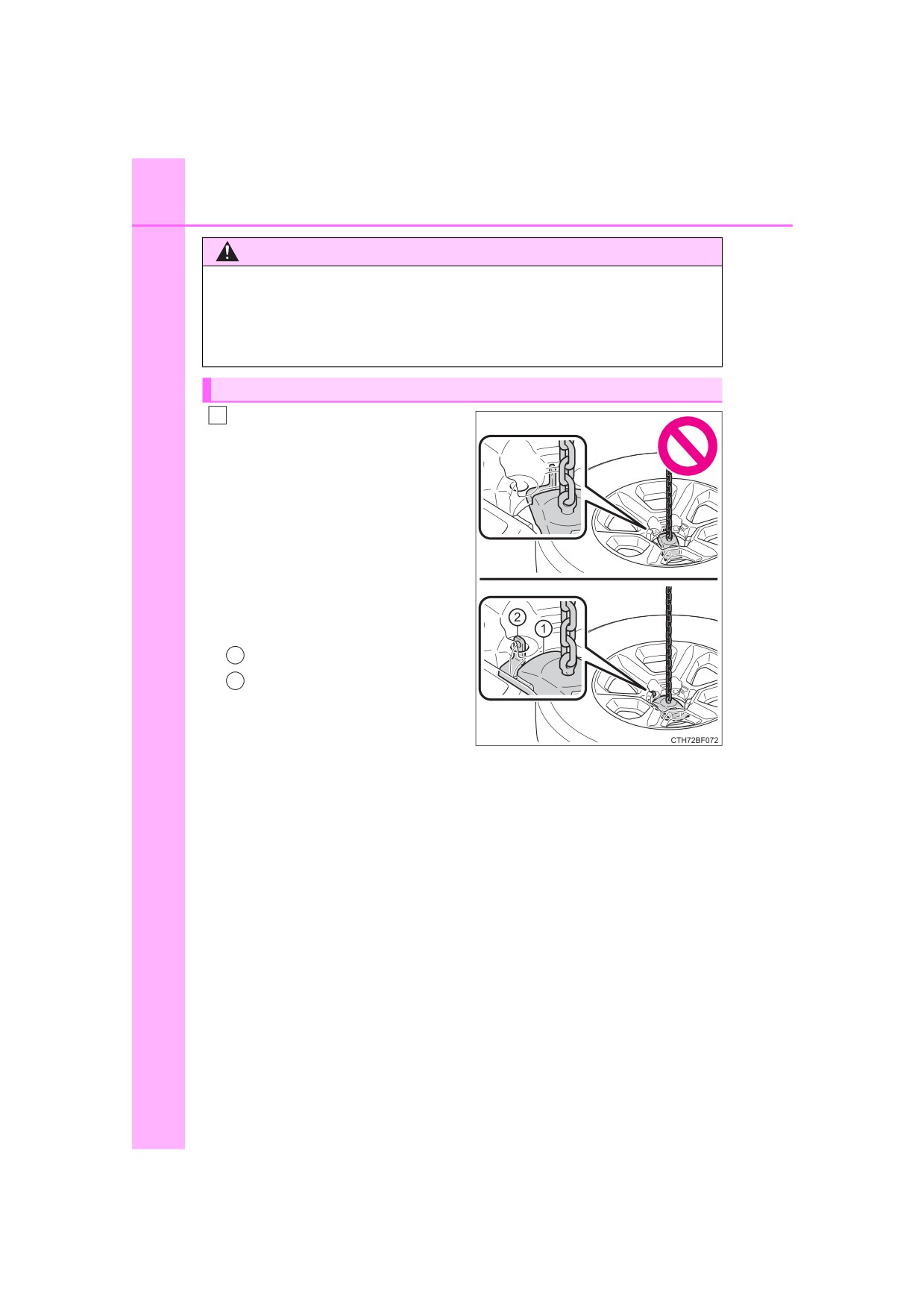

Lay down the tire with the outer
1
side facing up, and install the
holding bracket, inserting the
claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in
the chain.
Then, check to ensure the claw
is in the wheel lug nut hole and
the holding bracket is centered
in the wheel hub.
1
Holding bracket
2
Claw
Vehicles
without
kinetic
dynamic suspension: While
raising, secure the tire, taking
care that the tire goes straight
up without catching on any sur-
rounding part to prevent it from
flying forward during a collision
or sudden braking.
Vehicles with kinetic dynamic suspension: While raising, pull the
tire towards the rear of the vehicle, taking care that the tire goes up
without catching on any surrounding part to prevent it from flying
forward during a collision or sudden braking.
Tightening torque:
34.4 ftlbf (46.6 Nm, 4.8 kgfm)
7-2. Steps to take in an emergency
515
2
Confirm that the tire is not loose
after tightening:
1
Push and pull the tire
2
Try rotating
Vishually check to ensure the tire
is not hung on surrounding parts.
If
looseness or misassembly
exists, repeat step
1
and step
2
3
Repeat step
2
any time the tire is lowered or disturbed.
4
Stow the tools and jack securely.
After completing the tire change
The tire pressure warning system must be reset. (P. 438)
When using the spare tire (vehicles without P245/60R20 tires)
As the spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the spare tire after
the tire pressure warning light comes on, the light remains on.
7
516
7-2. Steps to take in an emergency
NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody.
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor-
rectly.
Replace the grommets for the tire pressure warning valves and trans-
mitters as well.
To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 438)
7-2. Steps to take in an emergency
517
If the engine will not start
If the engine will not start even though correct starting proce-
dures are being followed (P. 207, 210), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(P. 207, 210)
● There may be a malfunction in the engine immobilizer system.
(P. 78)
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
One of the following may be the cause of the problem:
● The battery may be discharged. (P. 523)
7
● The battery terminal connections may be loose or corroded.
The starter motor does not turn over
The engine starting system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However, an interim
measure is available to start the engine. (P. 518)
518
7-2. Steps to take in an emergency
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 523)
● There may be a malfunction in the steering lock system (vehicles
with a smart key system).
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
Emergency start function (vehicles with a smart key system)
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:
1
Set the parking brake.
2
Shift the shift lever to P.
3
Turn the engine switch to ACCESSORY mode.
4
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.
7-2. Steps to take in an emergency
519
If you cannot operate back door opener
If the back door opener does not operate, there may be a prob-
lem with the back door opener system. Have the vehicle
inspected by your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.
1
Remove the cover on the back
door trim.
2
Tear the plastic film. Remove
the cover.
7
3
Pull the lever.
520
7-2. Steps to take in an emergency
If the electronic key does not operate
properly (vehicles with a smart key system)
If communication between the electronic key and vehicle is
interrupted
(P. 123) or the electronic key cannot be used
because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the engine can be started by following the
procedure below.

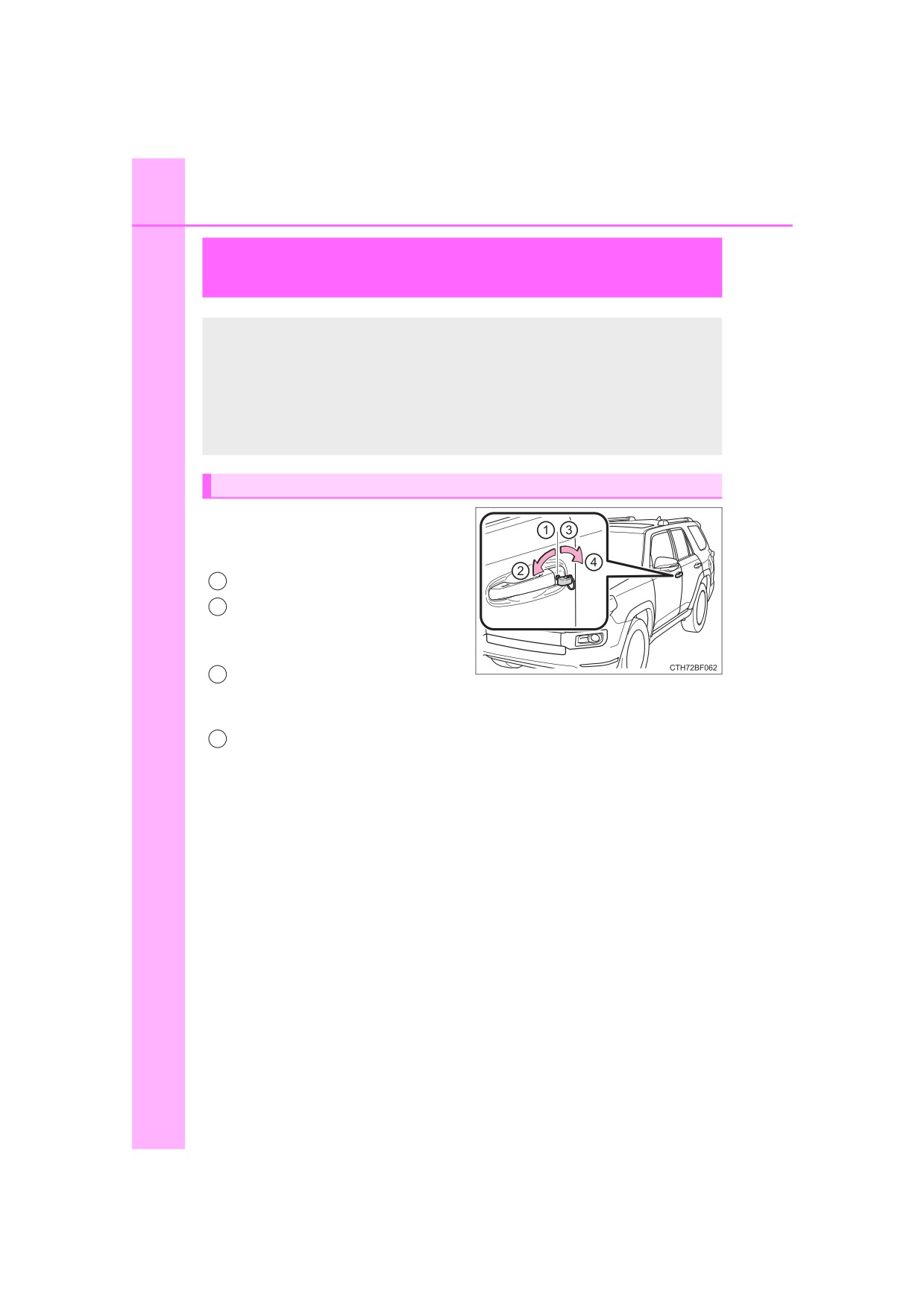

Locking and unlocking the doors
Use the mechanical key
(P. 106) in order to perform the
following operations:
1
Locks all the doors
2
Closes the windows and moon
roof (turn and hold)*
(P. 163, 171)
3
Unlocks all the doors
Turning the key rearward unlocks the driver’s door. Turning the key once
again unlocks the other doors.
4
Opens the windows and moon roof (turn and hold)*
(P. 163, 171)
*: This setting must be customized at your Toyota dealer.
7-2. Steps to take in an emergency
521

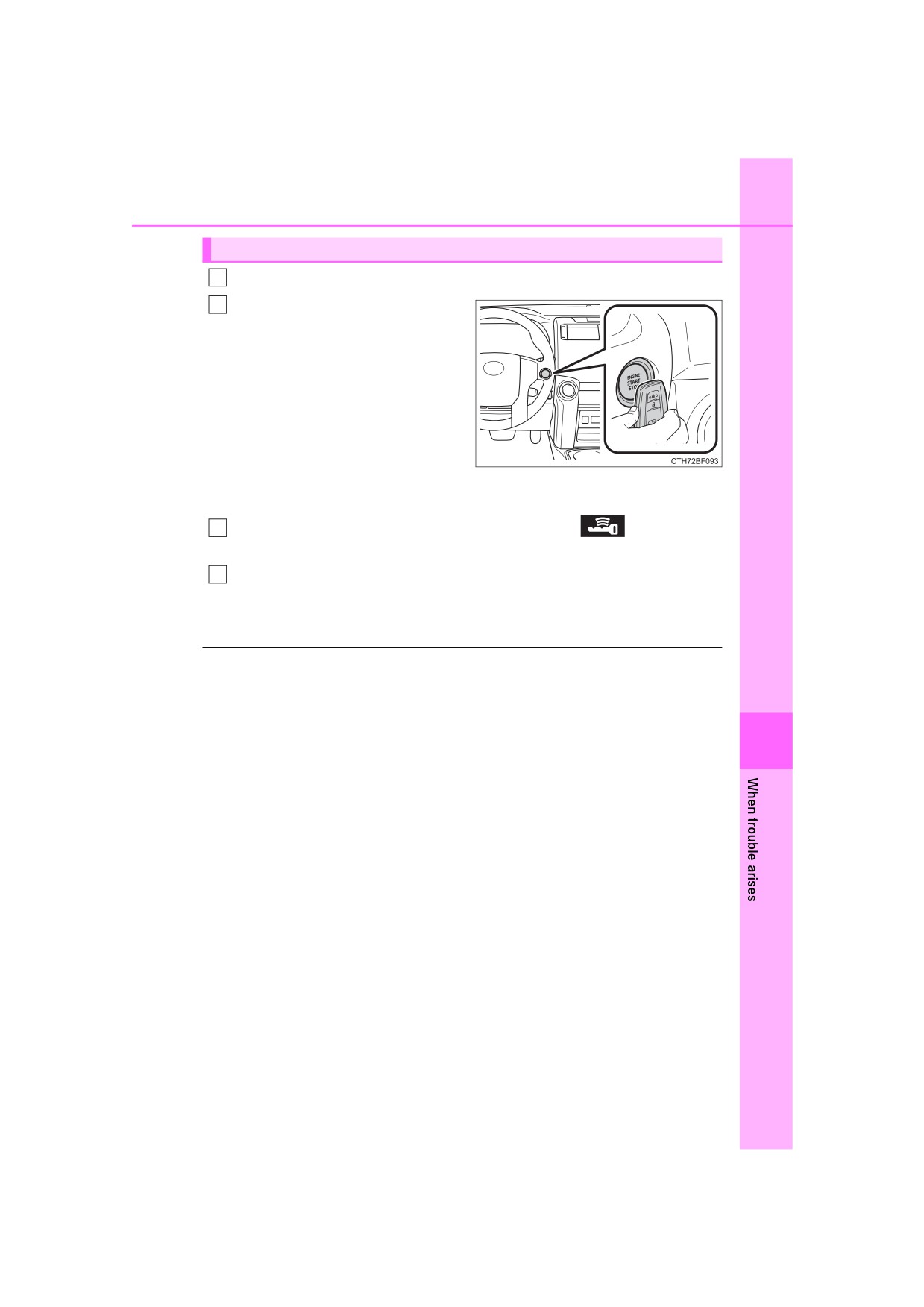

Starting the engine
1
Ensure that the shift lever is in P and depress the brake pedal.
2
Touch the Toyota emblem side
of the electronic key
to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.
3
Firmly depress the brake pedal and check that
is displayed
on the multi-information display.
Press the engine switch shortly and firmly.
4
In the event that the engine still cannot be started, contact your Toyota
dealer.
Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.
Replacing the key battery
7
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 456)
Changing engine switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press
the engine switch.
The engine does not start and modes will be changed each time the switch is
pressed.(P. 211)
When the electronic key does not work properly
Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features: P. 557)
Check if battery-saving mode is set. If it is set, cancel the function.
(P. 122)
522
7-2. Steps to take in an emergency
WARNING
When using the mechanical key and operating the power windows,
power back window or moon roof
Operate the power windows, power back window or moon roof after check-
ing to make sure that there is no possibility of any passenger having any of
their body parts caught in the window or moon roof.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power windows, power
back window or moon roof.
7-2. Steps to take in an emergency
523
If the vehicle battery is discharged
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
1
Confirm that the electronic key
is being carried.
When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (P. 81)
2
Open the hood (P. 420)
7
524
7-2. Steps to take in an emergency
3
Connect the jumper cables according to the following procedure:
1
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
2
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
3
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
4
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
4
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
Vehicles with a smart key system only: Open and close any of the
5
doors of your vehicle with the engine switch off.
Maintain the engine speed of the second vehicle and start the
6
engine of your vehicle by turning the engine switch to the “ON”
position (vehicles without a smart key system) or turning the engine
switch to IGNITION ON mode (vehicles with a smart key system).
Once the vehicle’s engine has started, remove the jumper cables in
7
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.
7-2. Steps to take in an emergency
525
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
To prevent battery discharge
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
When recharging or replacing the battery
Vehicles with a smart key system: In some cases, it may not be possible to
unlock the doors using the smart key system when the battery is dis-
charged. Use the wireless remote control or the mechanical key to lock or
unlock the doors.
The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
Vehicles with a smart key system: The engine switch mode is memorized by
the vehicle. When the battery is reconnected, the system will return to the
mode it was in before the battery was discharged. Before disconnecting the
battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
Make sure that the key is not inside the vehicle when recharging or replac-
7
ing the battery. The key may be locked in the vehicle if the alarm is acti-
vated. (P. 81)
526
7-2. Steps to take in an emergency
WARNING
Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
Do not lean over the battery.
In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
Do not allow children near the battery.
NOTICE
When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fans or engine drive belt.















Content      ..     11      12      13      14     ..
