Toyota 4Runner (2020 year). Instruction - part 29

456

6-3. Do-it-yourself maintenance

4RUNNER (U)

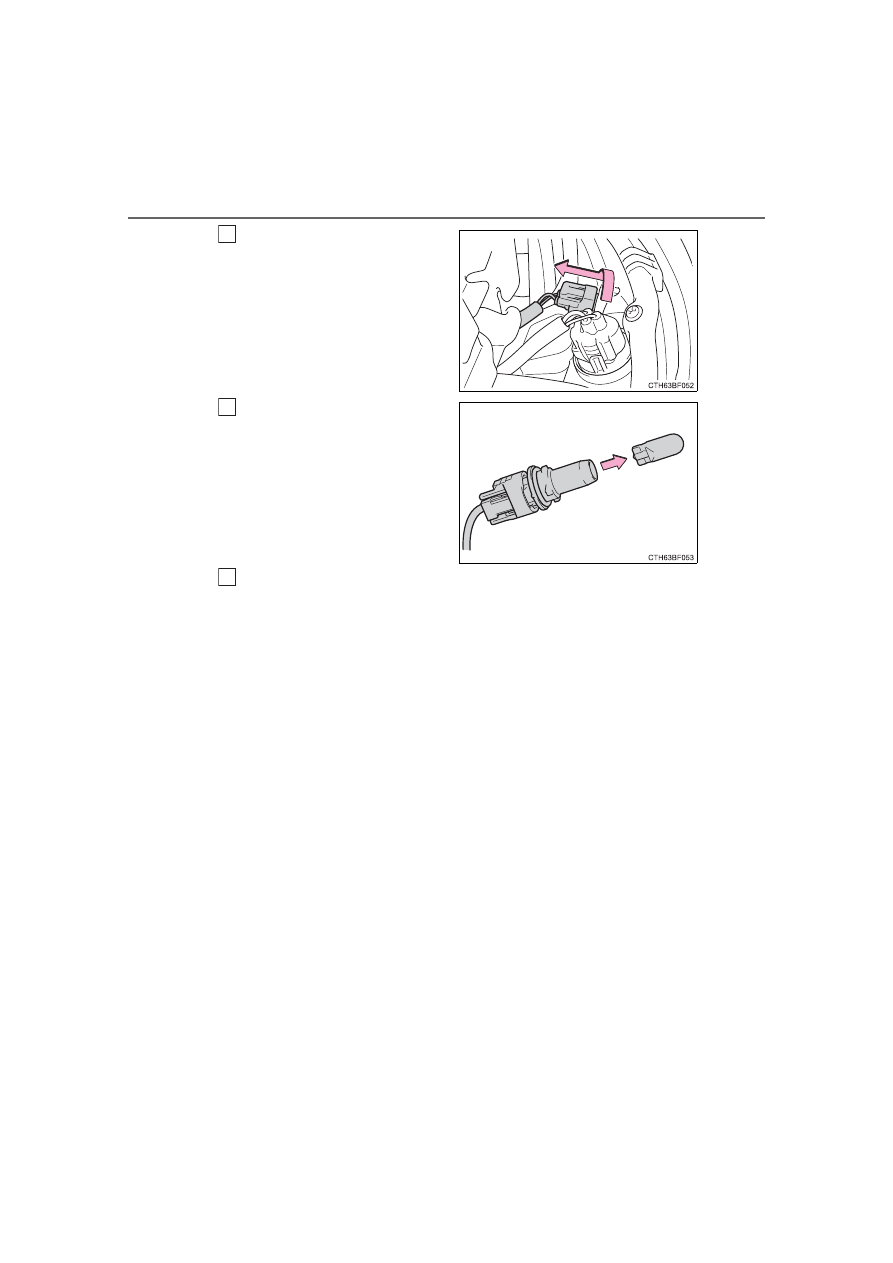

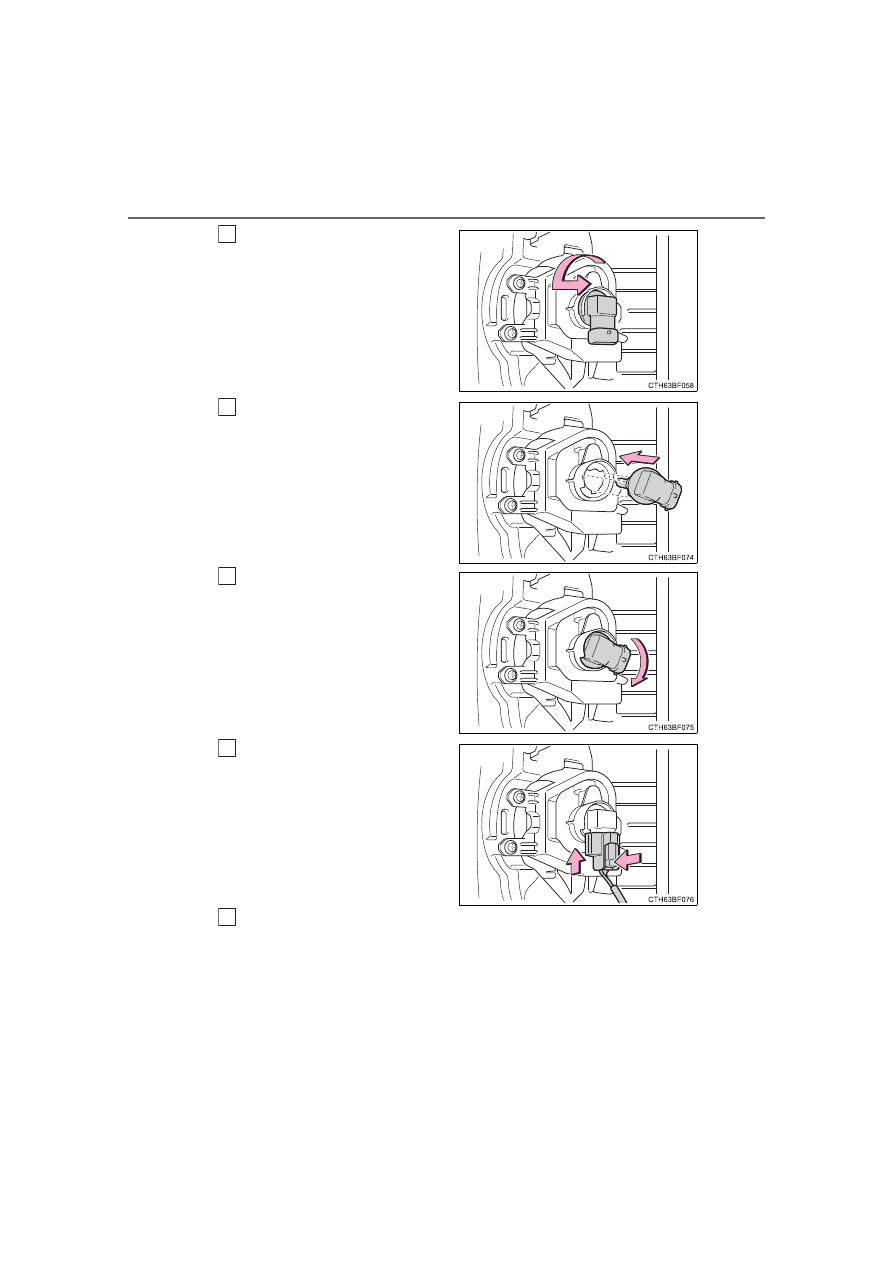

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

4

5

6

457

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

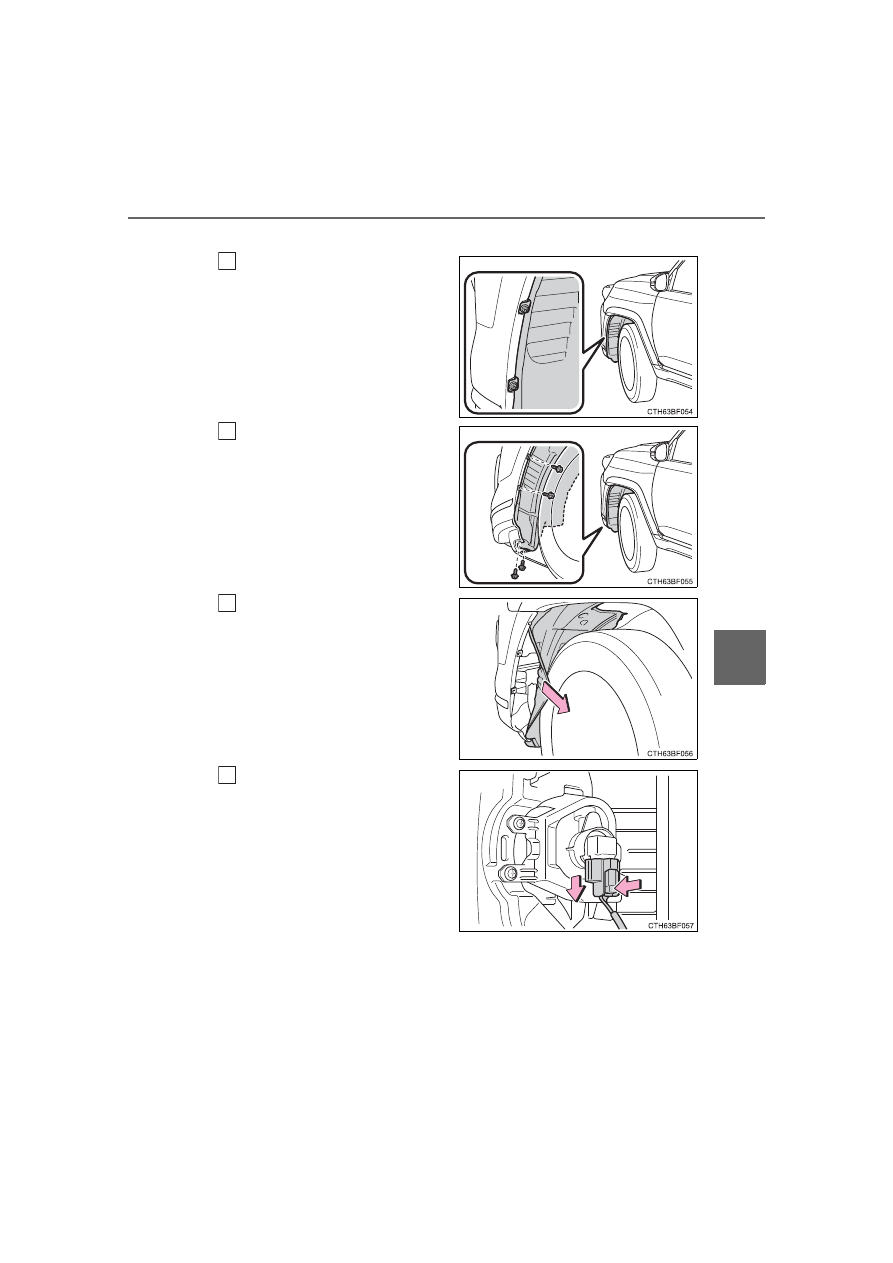

Fog light (left side)

Turn  the  steering  wheel  in
the  opposite  direction  of  the
fog  light  that  you  wish  to
replace.

For  example,  if  you  wish  to
replace  the  fog  light  on  the  left
side,  turn  the  steering  wheel  to
the right.

Remove  the  fender  liner
screws.

Partly  remove  the  fender
liner.

Unplug  the  connector  while
depressing the lock release.

1

2

3

4

458

6-3. Do-it-yourself maintenance

4RUNNER (U)

Turn  the  bulb  base  counter-
clockwise.

Install a new light bulb.

Align the 3 tabs on the light bulb
with the mounting and insert.

Turn  clockwise  and  secure
the bulb base.

Install the connector.

Shake  the  connector  gently  to
check  that  it  is  not  loose,  turn
the front fog lights on once and
visually  confirm  that  no  light  is
leaking through the mounting.

When installing the fender liner, install by conducting and with the
directions reversed.

5

6

7

8

9

459

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

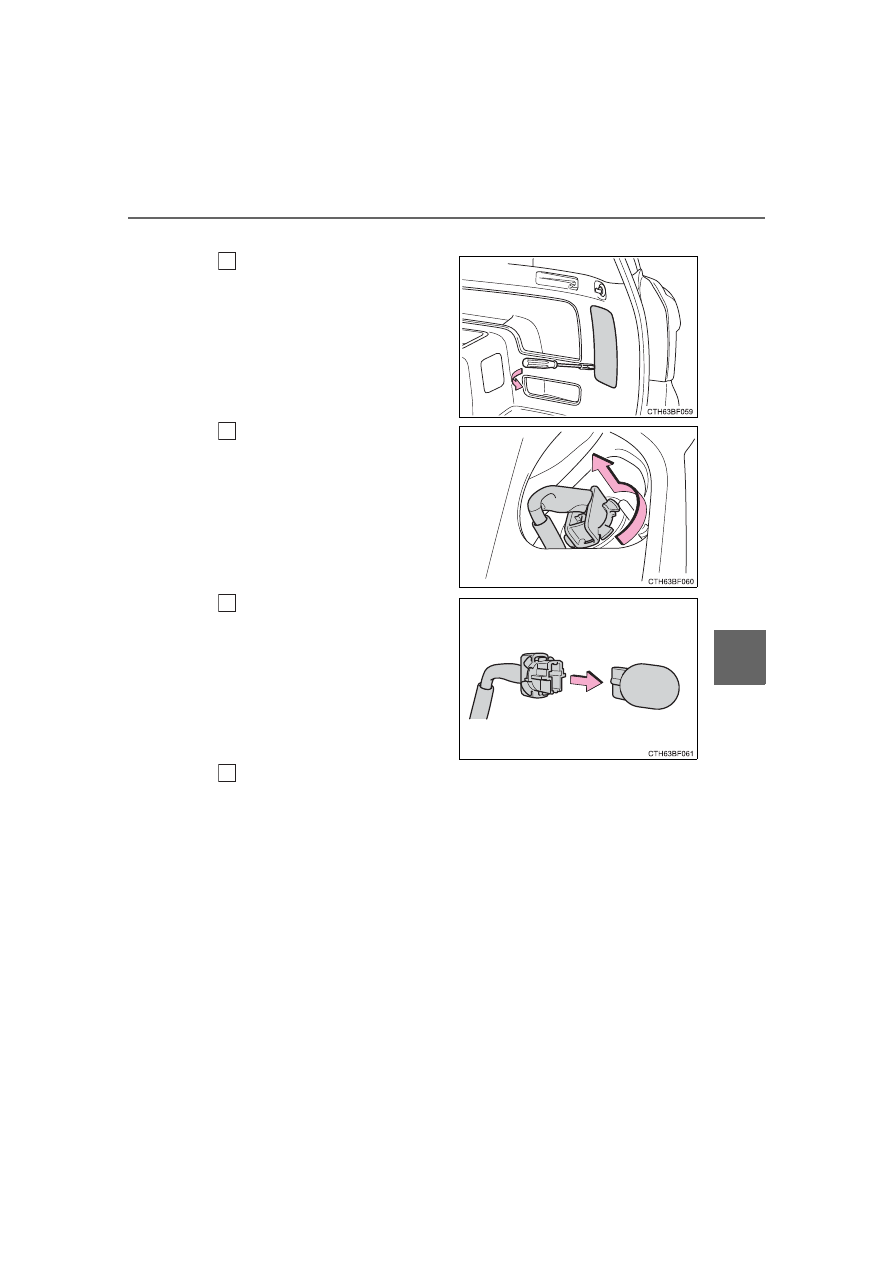

Rear turn signal lights

Open  the  back  door  and
remove the cover.

To  prevent  damage  to  the vehi-
cle,  cover  the  tip  of  the  screw-
driver with a rag.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

460

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

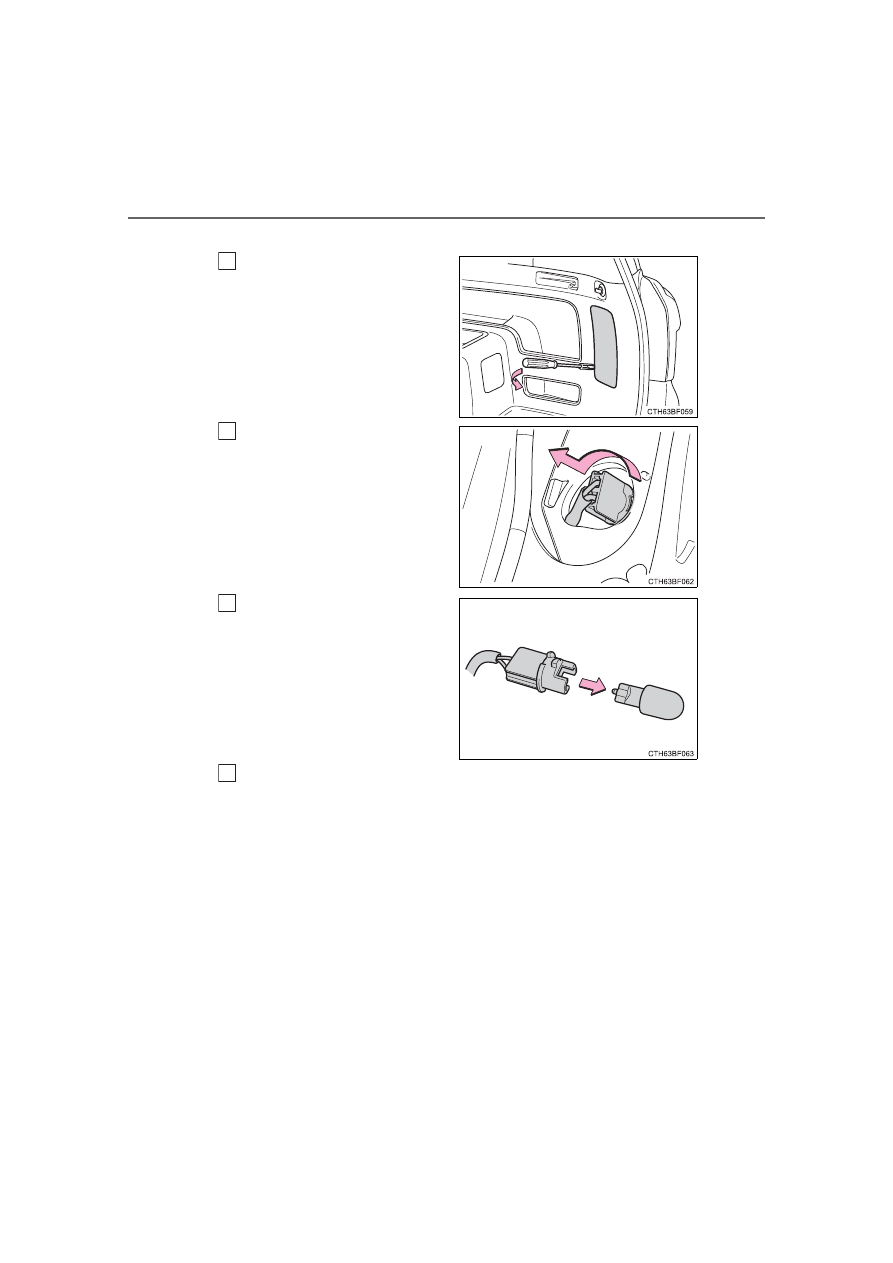

Back-up lights

Open  the  back  door  and
remove the cover.

To  prevent  damage  to  the vehi-
cle,  cover  the  tip  of  the  screw-
driver with a rag.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

461

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

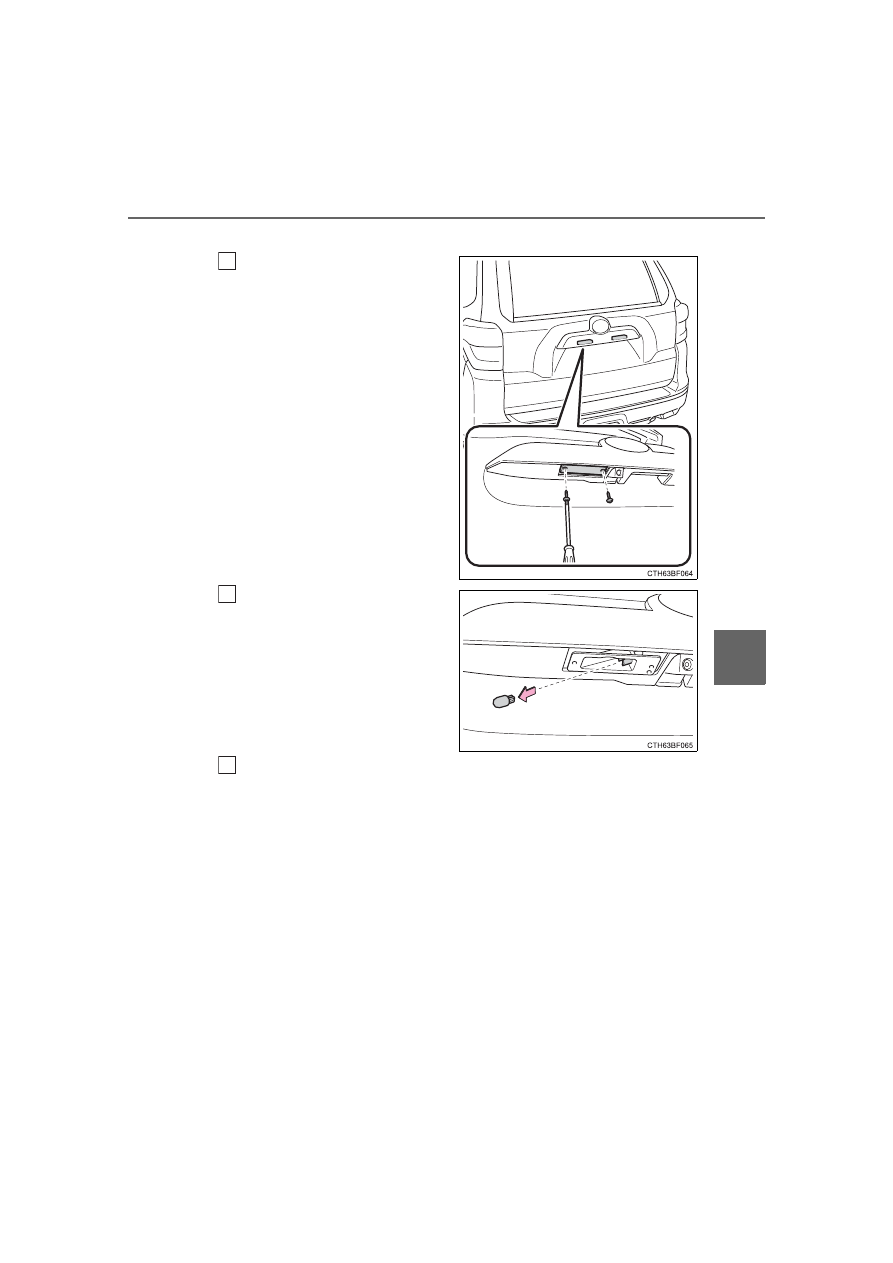

License plate lights

Remove  the  screws  and
lens.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

462

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.

●

Fog light (right side)

●

Side turn signal lights

●

Stop/tail lights

●

Rear side marker lights

●

High mounted stoplight

●

Outer foot lights (if equipped)

■

LED light bulbs

The  side  turn  signal  lights,  stop/tail  lights,  rear  side  marker  lights,  high
mounted stoplight and outer foot lights consist of a number of LEDs. If any
LEDs  burn  out,  take  your  vehicle  to  your  Toyota  dealer  to  have  the  light
replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the lens.

WARNING

■

Replacing light bulbs

●

Turn  off  the  lights.  Do  not  attempt  to  replace  the  bulb  immediately  after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

463

When trouble arises

7

4RUNNER (U)

7-1.  Essential information

Emergency flashers .......... 464
If your vehicle has

to be stopped in
an emergency ................. 465

If the vehicle is trapped

in rising water.................. 467

7-2.  Steps to take in

an emergency

If your vehicle needs

to be towed ..................... 468

If you think something

is wrong .......................... 475

Fuel pump shut off

system ............................ 476

If a warning light turns

on or a warning buzzer
sounds ............................ 477

If a warning message

is displayed ..................... 487

If you have a flat tire.......... 492
If the engine will not

start................................. 507

If you cannot operate

back door opener............ 509

If the electronic key does

not operate properly
(vehicles with a
smart key system)........... 510

If the vehicle battery

is discharged................... 513

If your vehicle

overheats ........................ 517

If the vehicle becomes

stuck ............................... 520

464

4RUNNER (U)

7-1. Essential information

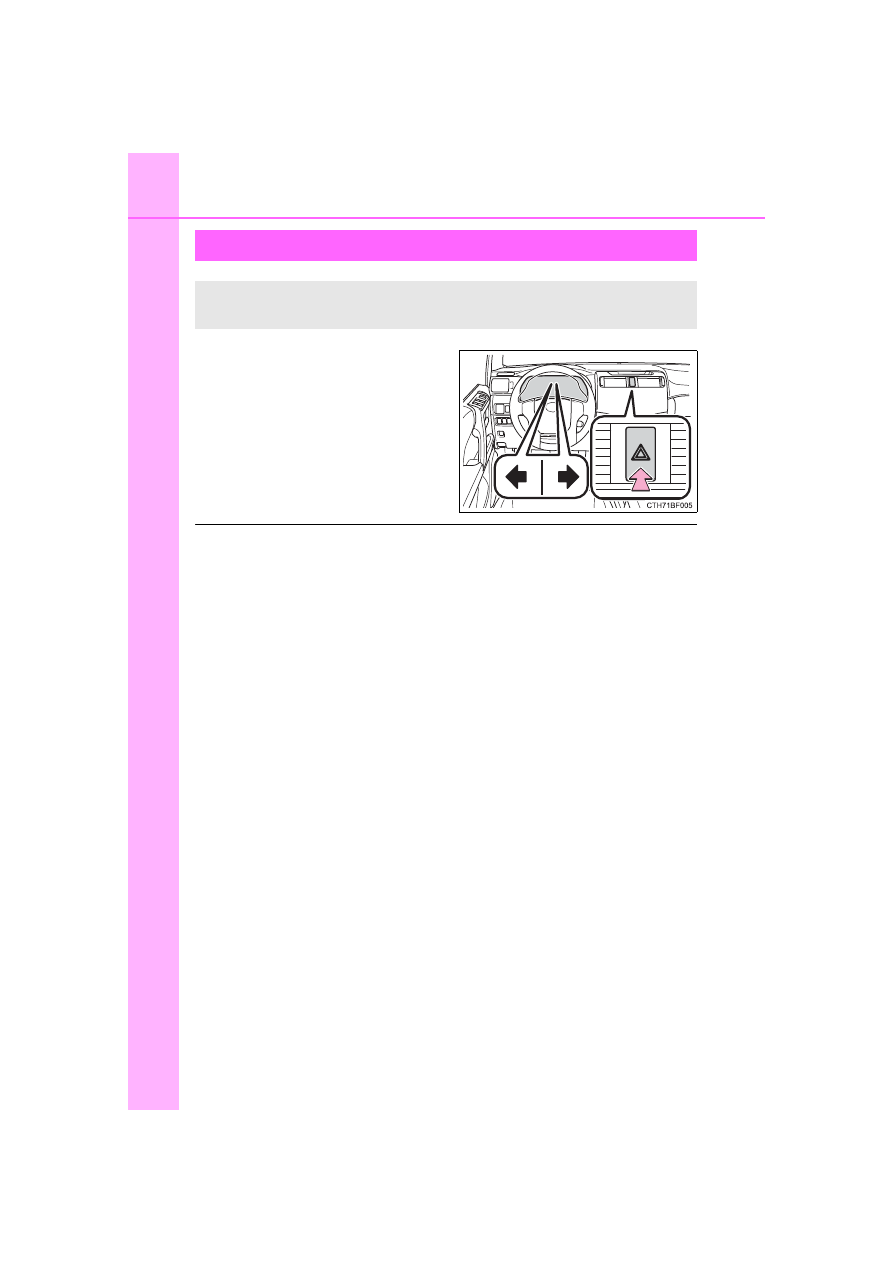

Press the switch.

All the turn signals will flash.
To  turn  them  off,  press  the  switch
once again.

■

Emergency flashers

If  the  emergency  flashers  are  used  for  a  long  time  while  the  engine  is  not
operating, the battery may discharge.

Emergency flashers

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

465

7-1. Essential information

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

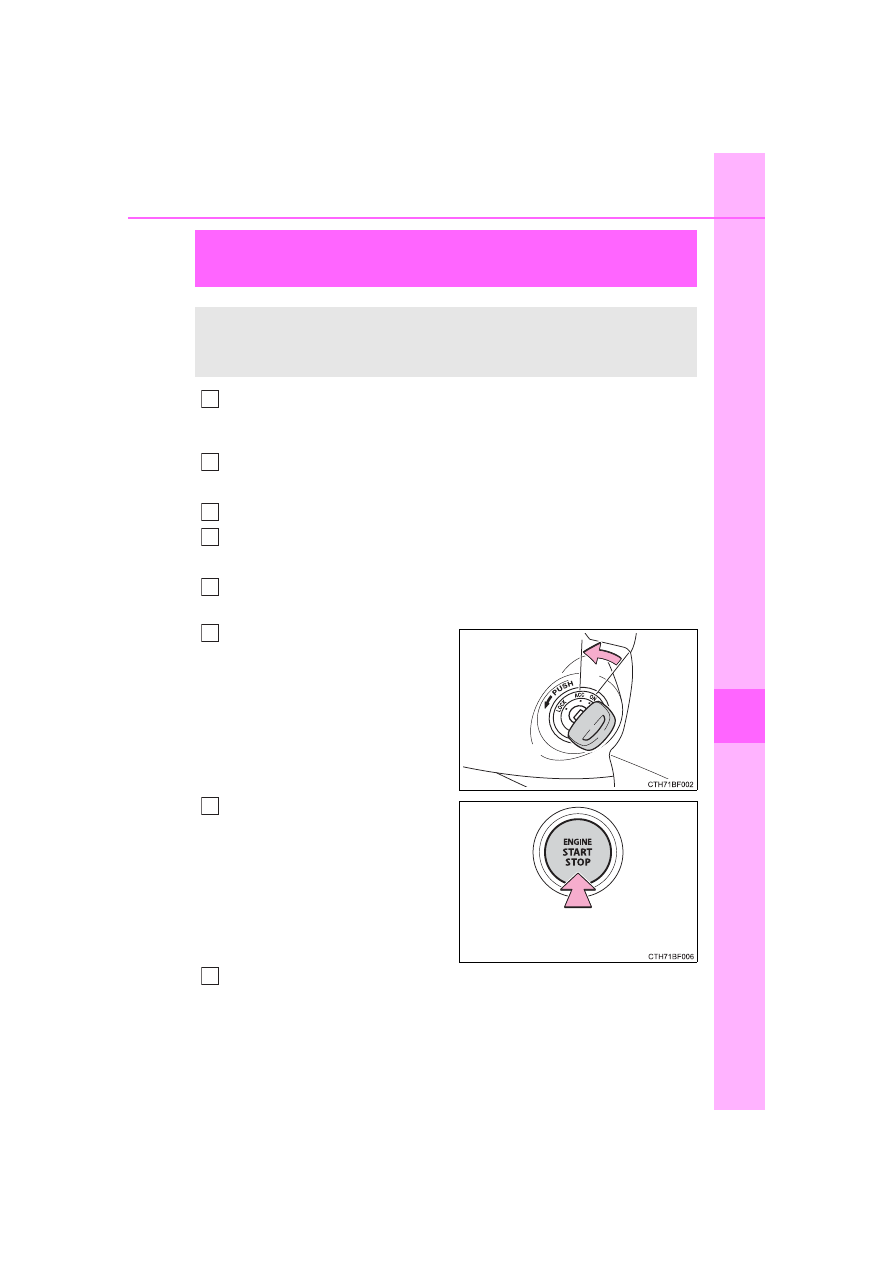

Steadily step on the brake pedal with both feet and firmly depress it.

Do  not  pump  the  brake  pedal  repeatedly  as  this  will  increase  the  effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles  without  a  smart  key
system:  Stop  the  engine  by
turning the engine switch to the
“ACC” position.

Vehicles  with  a  smart  key  sys-
tem: To  stop  the  engine,  press
and hold the engine switch for 2
consecutive  seconds  or  more,
or  press  it  briefly  3  times  or
more in succession.

Stop the vehicle in a safe place by the road.

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

1

2

3

4

3

4

Press and hold for 2 seconds or more
or press briefly 3 times or more

4

5

466

7-1. Essential information

4RUNNER (U)

WARNING

■

If the engine has to be turned off while driving

●

Power  assist  for  the  brakes  and  steering  wheel  will  be  lost,  making  the
brake  pedal  harder  to  depress  and  the  steering  wheel  heavier  to  turn.
Decelerate as much as possible before turning off the engine.

●

Vehicles without a smart key system:
Never attempt to remove the key, as doing so will lock the steering wheel.

467

7-1. Essential information

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

●

Remove the seat belt first.

●

If the door can be opened, open the door and exit the vehicle.

●

If the door can not be opened, open the window using the power
window switch and exit the vehicle through the window.

●

If the window can not be opened using the power window switch,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle, and then open the door and exit the
vehicle.

If the vehicle is trapped in rising water

In the event the vehicle is submerged in water, remain calm and
perform the following.

WARNING

■

Using an emergency hammer

*

 for emergency escape

The front side windows and rear side windows, as well as the rear window
can be shattered with an emergency hammer

*

 used for emergency escape.

However, an emergency hammer can not shatter the windshield as it is lam-
inated glass.

*

: Contact  your  Toyota  dealer  or  aftermarket  accessory  manufacturer  for

further information about an emergency hammer.

■

Escaping the vehicle from the window

There are cases where escaping the vehicle from the window is not possi-
ble due to seating position, passenger body type, etc.
When  using  an  emergency  hammer,  consider  your  seat  location  and  the
size  of  the  window  opening  to  ensure  that  the  opening  is  accessible  and
large enough to escape.

468

4RUNNER (U)

7-2. Steps to take in an emergency

The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

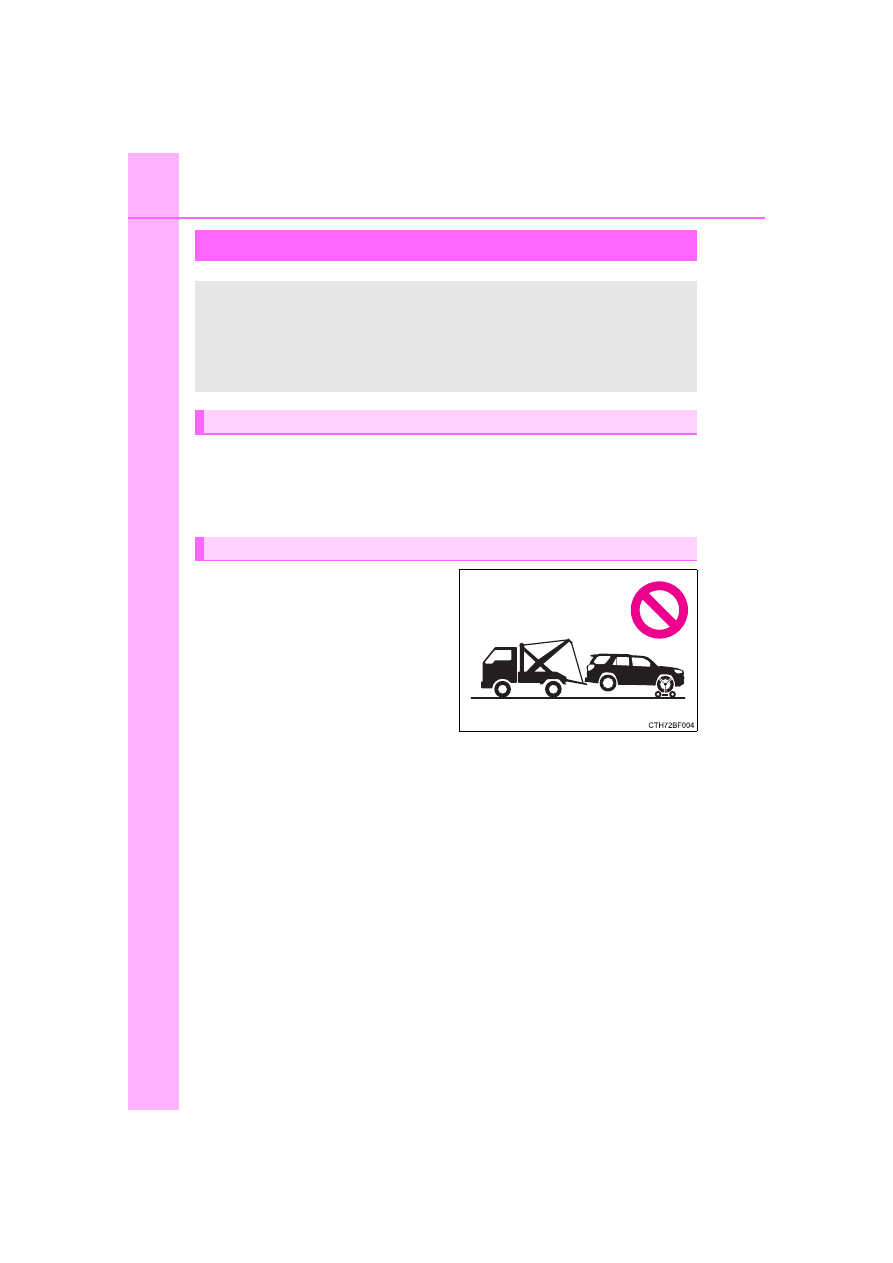

Do not tow with a sling-type truck
to prevent body damage.

If your vehicle needs to be towed

If  towing  is  necessary,  we  recommend  having  your  vehicle
towed  by  your  Toyota  dealer  or  commercial  towing  service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.

Situations when it is necessary to contact dealers before towing

Towing with a sling-type truck

469

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)



From the front

Use a towing dolly under the rear
wheels.



From the rear (2WD models)

Turn  the  engine  switch  to  the
“ACC” position (vehicles without a
smart  key  system)  or  ACCES-
SORY  mode  (vehicles  with  a
smart  key  system)  so  that  the
steering wheel is unlocked.



From the rear (4WD models)

Use a towing dolly under the front
wheels.

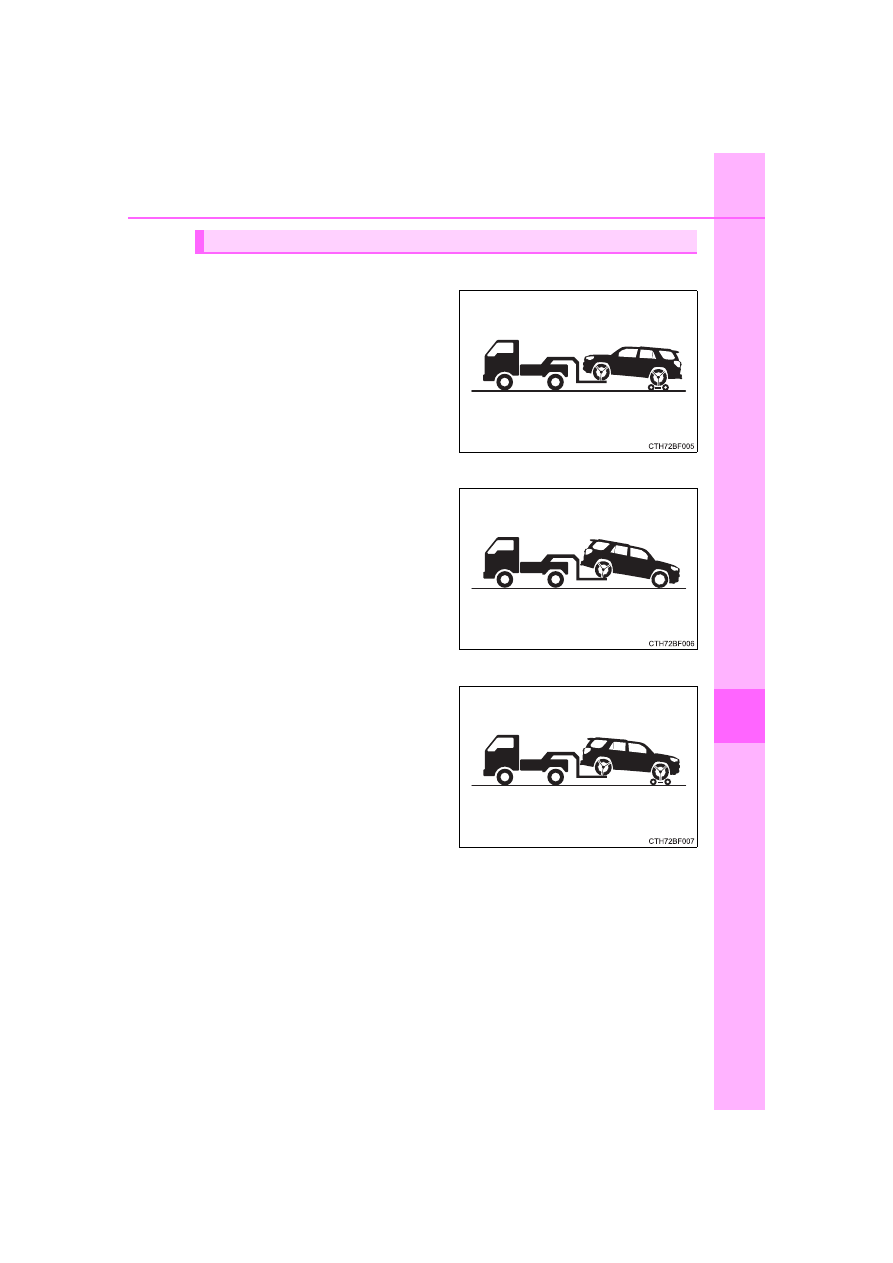

Towing with a wheel-lift type truck

470

7-2. Steps to take in an emergency

4RUNNER (U)

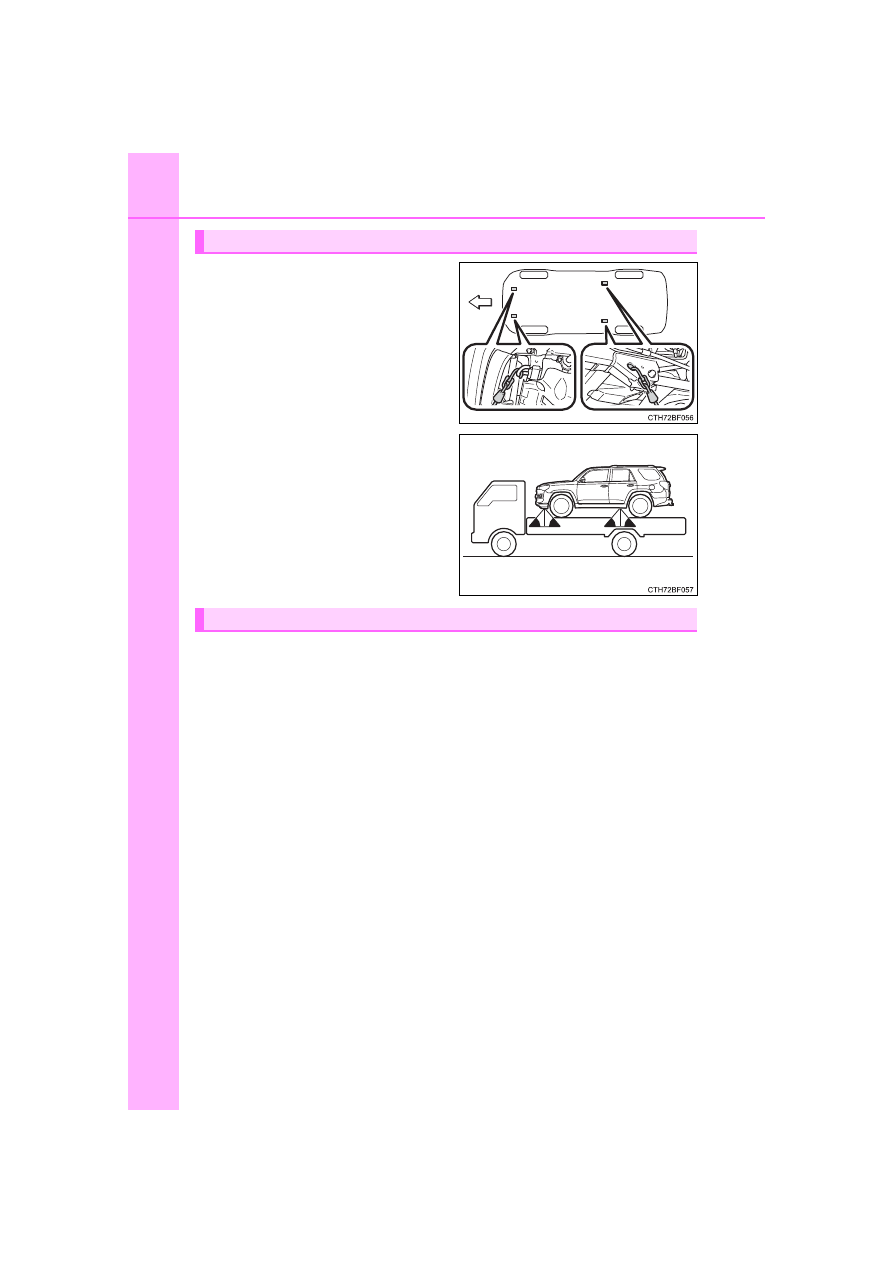

If your vehicle is transported by a
flatbed  truck,  it  should  be  tied
down at the locations shown in the
illustration.

If  you  use  chains  or  cables  to  tie
down  your  vehicle,  the  angles
shaded in black must be 45



.

Do  not  overly  tighten  the  tie
downs or the vehicle may be dam-
aged.

If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing  eyelet(s).  This  should  only  be  attempted  on  hard  surfaced
roads for at most 50 miles (80 km) at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s  wheels,  drive  train,  axles,  steering  and  brakes  must  be  in
good condition.

Using a flatbed truck

Emergency towing

471

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

4RUNNER (U)

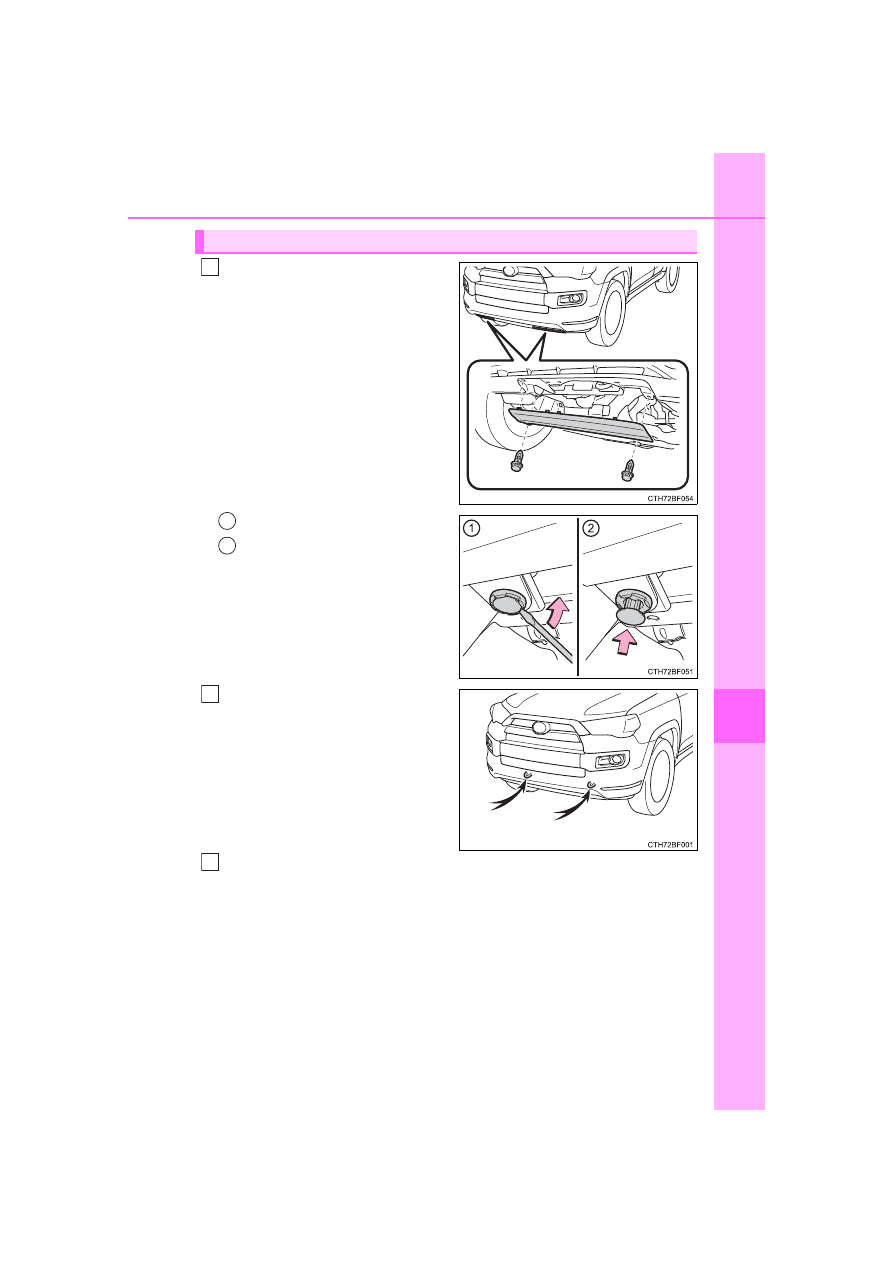

Vehicles with front covers only:
Before  using  the  front  emer-
gency towing eyelet(s), remove
the cover(s).

Removing the clips
Installing the clips

Securely  attach  cables  or
chains to the towing eyelet.

Take care not to damage the vehi-
cle body

Vehicles without a smart key system: Enter the vehicle being towed
and start the engine.
If the engine does not start, turn the engine switch to the “ON” posi-
tion.
Vehicles  with  a  smart  key  system:  Enter  the  vehicle  being  towed
and start the engine.
If the engine does not start, turn the engine switch to IGNITION ON
mode.

Emergency towing procedure

1

1

2

2

3
