466

8-1.Specifications

*

1

: Unladen vehicles

*

2

: Vehicles with 215/55R17 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

195.9 in. (4975 mm)

Overall width

72.8 in. (1850 mm)

Overall height

*

1

56.5 in. (1435 mm)

Wheelbase

113.0 in. (2870 mm)

Tread

Front

62.6 in. (1590 mm)
63.0 in. (1600 mm)

*

2

Rear

63.2 in. (1605 mm)
63.6 in. (1615 mm)

*

2

Vehicle capacity weight
(occupants + luggage)

940 lb. (425 kg)

467

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Vehicle identification number
The  vehicle  identification  number  (VIN)  is  the  legal  identifier  for
your  vehicle.  This  is  the  primary  identification  number  for  your
Toyota. It is used in registering the ownership of your vehicle.

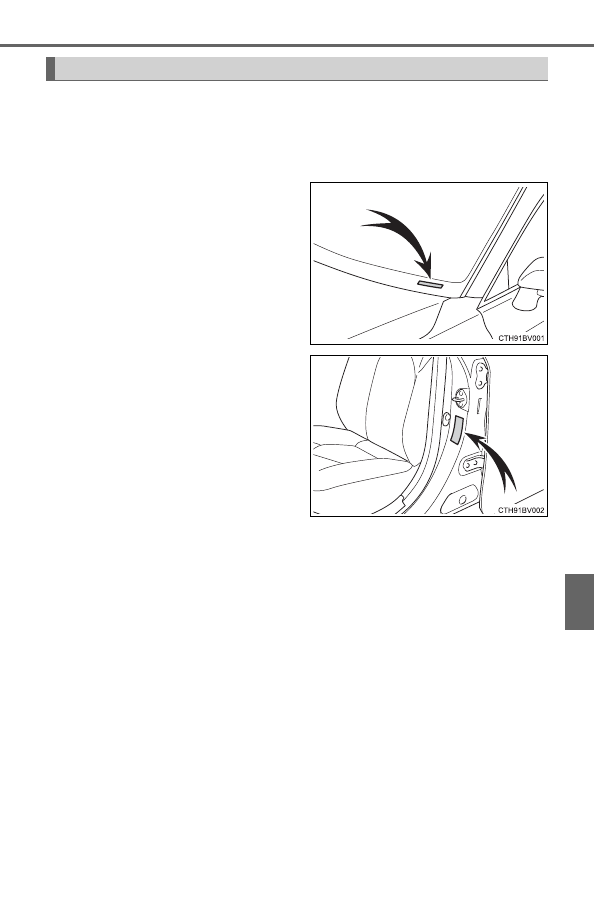

This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label.

Vehicle identification

468

8-1. Specifications

Engine number

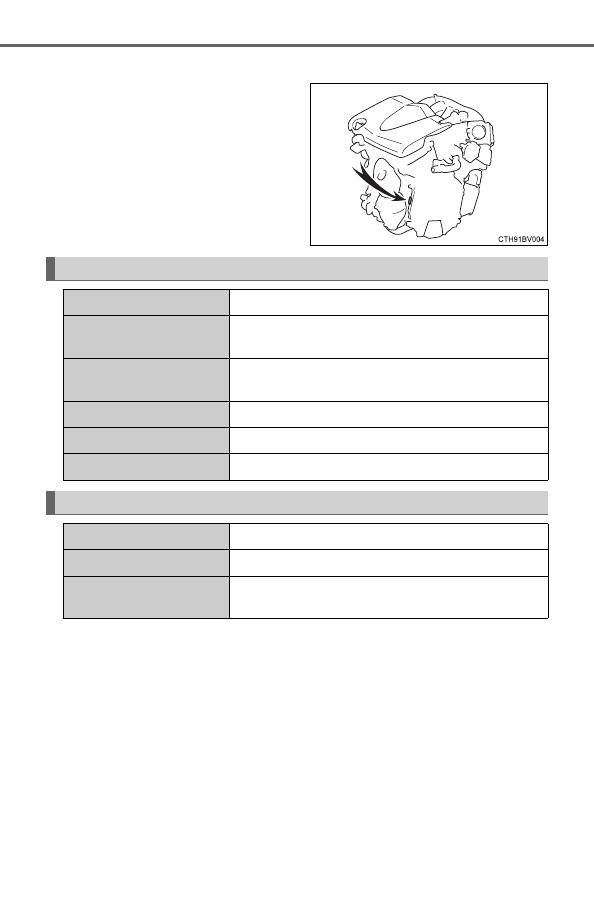

The engine number is stamped
on the engine block as shown.

*

: Vehicles with 215/55R17 tires

Engine

Model

2GR-FKS

Type

6-cylinder V type,
4-cycle, gasoline

Bore and stroke

3.70

 3.27 in.

(94.0

 83.0 mm)

Displacement

210.9 cu. in. (3456 cm

3

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

14.5 gal. (55 L, 12.0 Imp. gal.)

*

16.0 gal. (60.6 L, 13.3 Imp. gal.)

469

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

*

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

Engine oil selection
“Toyota  Genuine  Motor  Oil”  is  used  in  your  Toyota  vehicle.  Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20

SAE  0W-20  is  the  best  choice  for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20  oil  may  be  used.  However,
it  must  be  replaced  with SAE 0W-
20 at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

Lubrication system

Oil capacity
(Drain and refill ―
reference

*

)

With filter
Without filter

5.7 qt. (5.4 L, 4.8 Imp. qt.)
5.6 qt. (5.3 L, 4.7 Imp. qt.)

Outside temperature

470

8-1. Specifications

How to read oil container label:

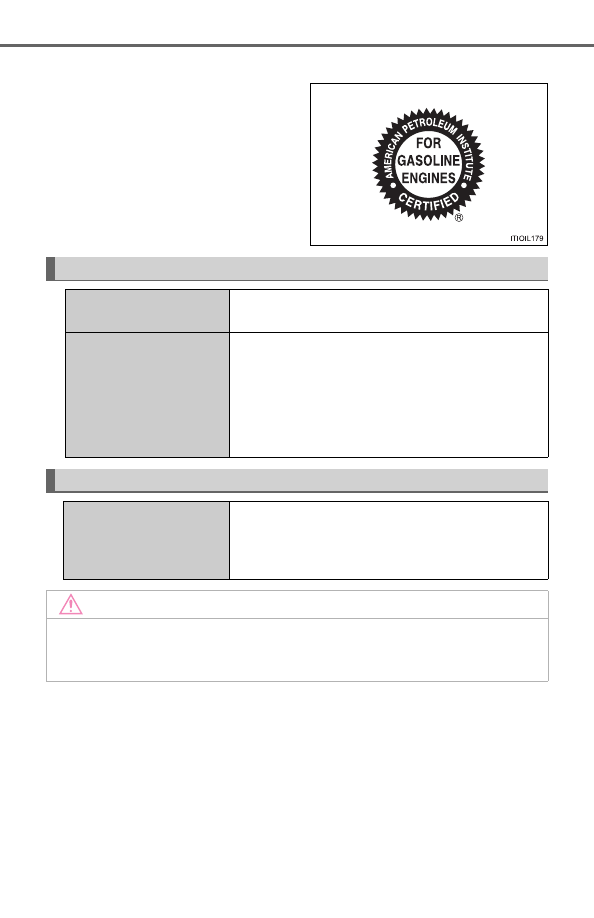

The  International  Lubricant
Specification Advisory  Commit-
tee  (ILSAC)  Certification  Mark
is added to some oil containers
to  help  you  select  the  oil  you
should use.

Cooling system

Capacity
(Reference)

9.1 qt. (8.6 L, 7.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar  high-quality  ethylene  glycol-based

non-silicate,  non-amine,  non-nitrite,  and
non-borate  coolant  with  long-life  hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

471

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

*

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Electrical system

Battery

Specific  voltage  reading  at
68

F (20C):

12.3 V or higher
If  the  voltage  is  lower  than  the  standard
value, charge the battery.
(When  checking  the  voltage,  after  turning
the engine switch off, wait for 30 seconds
with the high beam headlights illuminated,
then turn the high beam headlights off and
check the voltage.)

Charging rates

5 A max.

Automatic transaxle

Fluid capacity

*

7.9 qt. (7.5 L, 6.6 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of the transmission accompanied by
vibration and, ultimately, damage to the vehicle’s transmission.

472

8-1. Specifications

*

: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31

kgf) while the engine is running.

17-inch tires

Brakes

Pedal clearance

*

3.2 in. (81 mm)

Pedal free play

0.04

 0.24 in. (1  6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

SAE J1703 or FMVSS No.116 DOT 3
SAE J1704 or FMVSS No.116 DOT 4

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

17

 7 1/2 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

473

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

18-inch tires

19-inch tires

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

18

 8 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/40R19 92V, T155/70D17 110M

Tire inflation pressure

(Recommended  cold  tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

2

 or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

2

 or bar)

Driving  at  high  speeds  (above  100  mph

[160  km/h])  (in  countries  where  such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

2

 or bar) to

the  front  tires  and  rear  tires.  Never

exceed  the  maximum  cold  tire  inflation

pressure indicated on the tire sidewall.

Wheel size

19

 8 J, 17  4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

474

8-1. Specifications

*

: Light bulbs not listed in this table are LED bulbs.

Light bulbs

*

Light bulbs

Bulb No.

W

Type

Interior

Door courtesy lights

168

5

A

Vanity lights

7065

1.4

B

Trunk light

5

A

A: Wedge base bulbs

B: Double end bulbs

475

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

Recommendation of the use of gasoline containing detergent additives

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

All  gasoline  sold  in  the  U.S.A.  contains  minimum  detergent  additives  to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

Toyota  strongly  recommends  the  use  of Top Tier  Detergent  Gasoline.  For
more  information  on Top Tier  Detergent  Gasoline  and  a  list  of  marketers,
please go to the official website www.toptiergas.com.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use  of  unleaded  gasoline  with  an  octane  rating  lower  than  87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

476

8-1. Specifications

Recommendation of the use of low emissions gasoline
Gasolines  containing  oxygenates  such  as  ethers  and  ethanol,  as  well  as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota  recommends  these  fuels,  since  the  formulations  allow  for  reduced
vehicle emissions.

Non-recommendation of the use of blended gasoline

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

Toyota does not recommend the use of gasoline containing methanol.

Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota  does  not  recommend  the  use  of  gasoline  that  contains  MMT.  If  fuel
containing  MMT  is  used,  your  emission  control  system  may  be  adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

If your engine knocks

Consult your Toyota dealer.

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

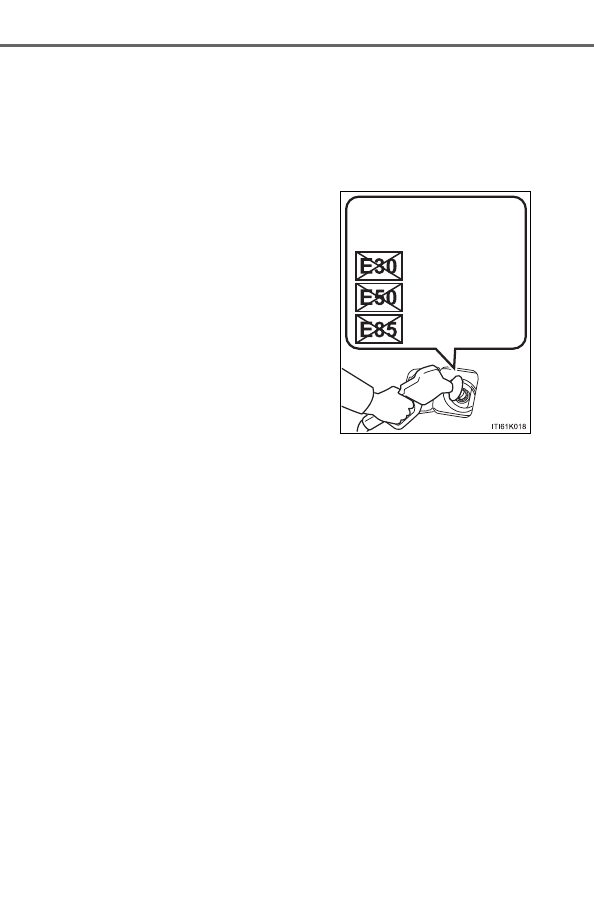

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

477

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

NOTICE

Notice on fuel quality

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

Do not use gasohol other than the type previously stated.
Other  gasohol  may  cause  fuel  system  damage  or  vehicle  performance
problems.

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.

478

8-1. Specifications

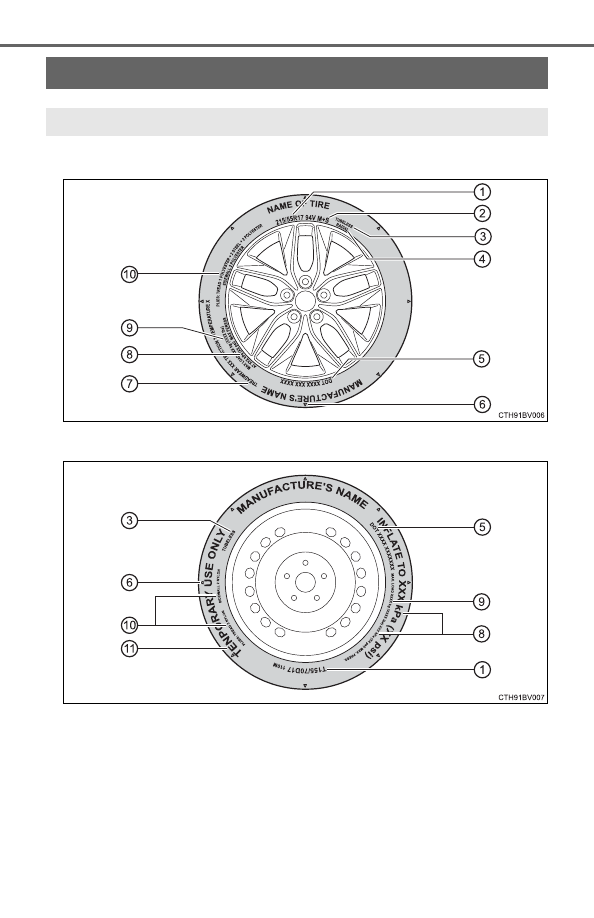

Full-size tire

Compact spare tire

Tire information

Typical tire symbols

479

8-1. Specifications

8

Ve
hicle

 spe
cifi

cations

Tire size (

P. 481)

Summer tires or all season tires (

P. 393)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

DOT and Tire Identification Number (TIN) (

P. 480)

Location of treadwear indicators (

P. 387)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Maximum cold tire inflation pressure (

P. 472)

This means the pressure to which a tire may be inflated.

Load limit at maximum cold tire inflation pressure (

P. 392)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

“TEMPORARY USE ONLY”

A  compact  spare  tire  is  identified  by  the  phrase  “TEMPORARY  USE

ONLY”  molded  on  its  sidewall.  This  tire  is  designed  for  temporary

emergency use only.

1
2

3

4

5
6
7

8

9

10

11

480

8-1. Specifications

DOT symbol

*

Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code

*

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

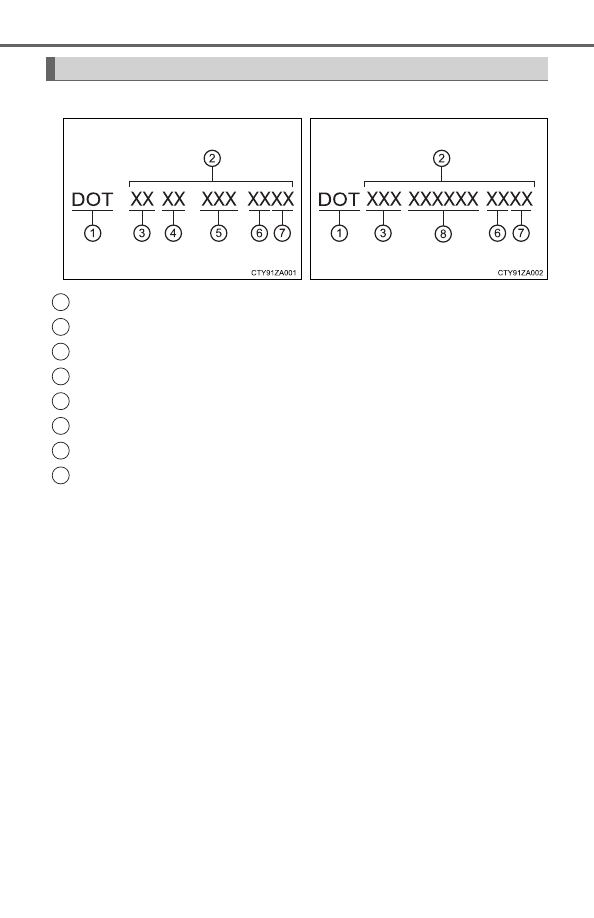

Typical DOT and Tire Identification Number (TIN)

Type A

Type B

1
2
3
4
5
6
7
8















Content   ..  28  29  30  31   ..
