449

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

NOTICE

Be  careful  when  driving  over  bumps  with  the  compact  spare  tire

installed on the vehicle.
The  vehicle  becomes  lower  when  driving  with  the  compact  spare  tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning

valve  and  transmitter,  contact  your  Toyota  dealer  as  the  tire  pressure

warning valve and transmitter may be damaged if not handled correctly.

To avoid damage to the tire pressure warning valve and transmit-

ters
When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 389)

450

7-2. Steps to take in an emergency

One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting procedures.
(

P. 174)

● There may be a malfunction in the engine immobilizer system.

(

P. 69)

One of the following may be the cause of the problem:
● The battery may be discharged. (P. 455)
● The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem  such  as  electronic  key  battery  depletion  or  a  blown  fuse.
However, an interim measure is available to start the engine.
(

P. 451)

If the engine will not start

If  the  engine  will  not  start  even  though  correct  starting  proce-
dures are being followed (

P. 174), consider each of the follow-

ing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights  are  dim,  or  the  horn  does  not  sound  or  sounds  at  a  low
volume.

The starter motor does not turn over

451

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 455)
● There may be a malfunction in the steering lock system.

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press  and  hold  the  engine  switch  for  about  15  seconds  while
depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system
may  be  malfunctioning.  Have  the  vehicle  inspected  by  your  Toyota
dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function

1
2
3
4

452

7-2. Steps to take in an emergency

Doors
Using the mechanical key (

P.

112) in order to perform the fol-
lowing operations (driver’s door
only):

Locks all doors
Closes  the  windows  and  the
moon roof

*

1

 (turn and hold)

*

2

Unlocks the door

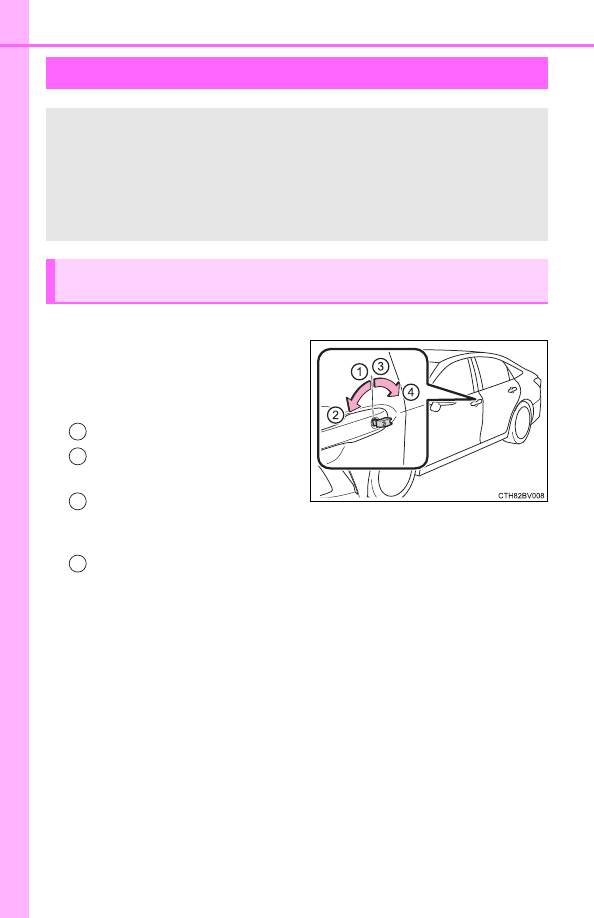

Turning the key rearward unlocks the driver's door. Turning the key once
again unlocks the other doors.

Opens the windows and the moon roof

*

1

 (turn and hold)

*

2

*

1

: If equipped

*

2

: This setting must be customized at your Toyota dealer.

If the electronic key does not operate properly

If  communication  between  the  electronic  key  and  vehicle  is
interrupted  (

P.  127)  or  the  electronic  key  cannot  be  used

because the battery is depleted, the smart key system and wire-
less  remote  control  cannot  be  used.  In  such  cases,  the  doors
and trunk can be opened and the engine can be started by fol-
lowing the procedure below.

Locking  and  unlocking  the  doors,  unlocking  the  trunk  and  key
linked functions

1
2

3

4

453

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

Trunk
Turn the mechanical key clock-
wise to open.

Ensure  that  the  shift  lever  is  in  P  and  firmly  depress  the  brake
pedal.

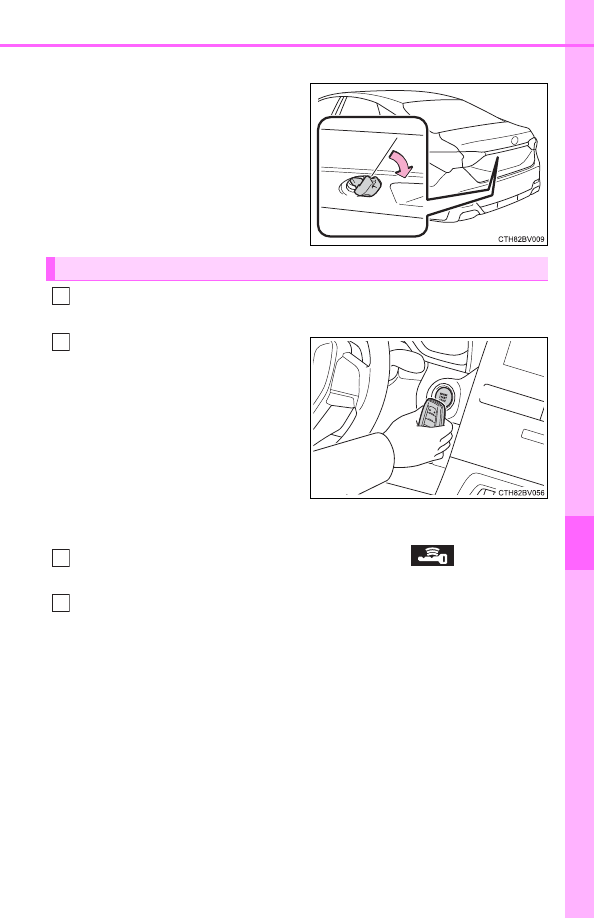

Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
engine switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  engine  switch  will  turn  to
ACCESSORY mode.

Firmly depress the brake pedal and check that

 is displayed

on the multi-information display.
Press the engine switch shortly and firmly.

In the event that the engine still cannot be started, contact your Toyota
dealer.

Starting the engine

1

2

3

4

454

7-2. Steps to take in an emergency

Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.

Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(

P. 408)

Changing engine switch modes
Release the brake pedal and press the engine switch in step

 above.

The engine does not start and modes will be changed each time the switch is
pressed. (

P. 175)

When the electronic key does not work properly

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features:

P. 491)

Check if battery-saving mode is set. If it is set, cancel the function.
(

P. 126)

WARNING

When using the mechanical key and operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that
there  is  no  possibility  of  any  passenger  having  any  of  their  body  parts
caught in the window or moon roof. Also, do not allow children to operate
the mechanical key. It is possible for children and other passengers to get
caught in the power window or moon roof.

3

455

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Confirm  that  the  electronic  key
is being carried.

When  connecting  the  jumper  (or
booster) cables, depending on the
situation,  the  alarm  may  activate
and doors locked. (

P. 74)

Open the hood. (

P. 375)

Remove the engine cover.

Make sure to pull the engine cover
straight up when removing it.

If the vehicle battery is discharged

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

1

2
3

456

7-2. Steps to take in an emergency

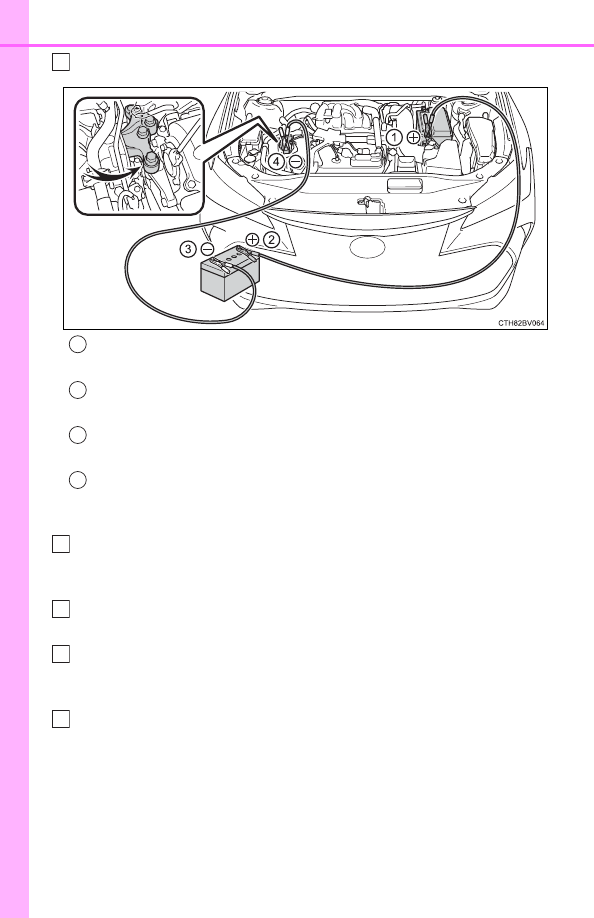

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect  the  clamp  at  the  other  end  of  the  negative  cable  to  a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the battery of your vehicle.
Open  and  close  any  of  the  doors  of  your  vehicle  with  the  engine
switch off.
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine  switch  to  IGNITION  ON  mode,  then  start  the  vehicle's
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.

Once  the  engine  starts,  have  the  vehicle  inspected  at  your  Toyota
dealer as soon as possible.

4

1

2

3

4

5

6

7

8

457

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

Starting the engine when the battery is discharged
The engine cannot be started by push-starting.

To prevent battery discharge

Turn off the headlights and the audio system while the engine is off.

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

When the battery is removed or discharged

Information stored in the ECU is cleared. When the battery is depleted, have
the vehicle inspected at your Toyota dealer.

Some systems may require initialization. (

P. 499)

When removing the battery terminals
When the battery terminals are removed, the information stored in the ECU is
cleared. Before removing the battery terminals, contact your Toyota dealer.

Charging the battery
The  electricity  stored  in  the  battery  will  discharge  gradually  even  when  the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge,  and  the  engine  may  be  unable  to  start.  (The  battery  recharges
automatically during driving.)

When recharging or replacing the battery

In some cases, it may not be possible to unlock the doors using the smart
key system when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.

The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.

The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

When replacing the battery

Use a battery that conforms to European regulations.

Use a battery that the case size is same as the previous one (LN3), 20 hour
rate capacity (20HR) is equivalent (70Ah) or greater, and performance rating
(CCA) is equivalent (603A) or greater.
• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-

cle is not used is a short time, the battery may discharge and the engine
may not be able to start.

For details, consult your Toyota dealer.

458

7-2. Steps to take in an emergency

WARNING

When removing the battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts  any  metal  in  the  surrounding  area  when  the  positive  (+)  terminal  is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.

Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:

Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.

Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.

Do not allow the + and - clamps of the jumper cables to come into contact
with each other.

Do  not smoke,  use matches, cigarette lighters  or  allow  open flame near
the battery.

Battery precautions
The  battery  contains  poisonous  and  corrosive  acidic  electrolyte,  while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:

When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.

Do not lean over the battery.

In  the  event  that  battery  fluid  comes  into  contact  with  the  skin  or  eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.

Always wash your hands after handling the battery support, terminals, and
other battery-related parts.

Do not allow children near the battery.

NOTICE

When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or engine drive belt.

459

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After  the  engine  has  cooled
down  sufficiently,  inspect  the
hoses and radiator core (radia-
tor) for any leaks.

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately  contact  your  Toyota
dealer.

If your vehicle overheats

The following may indicate that your vehicle is overheating.

● The  needle  of  the  engine  coolant  temperature  gauge  (P.  82)

enters the red zone or a loss of engine power is experienced. (For
example, the vehicle speed does not increase.)

● “Engine  Coolant Temp  High  Stop  in  a  Safe  Place  See  Owner’s

Manual” is shown on the multi-information display.

● Steam comes out from under the hood.

Correction procedures

1

2

3

1
2

460

7-2. Steps to take in an emergency

The coolant level is satisfactory if it is between the “F” and “L” lines
on the reservoir.

Reservoir
“F” line
“L” line
Radiator cap

Add coolant if necessary.

Water  can  be  used  in  an  emer-
gency if coolant is unavailable.

Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)

If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.

4

1
2
3
4

5

6

7

461

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

WARNING

To  prevent  an  accident  or  injury  when  inspecting  under  the  hood  of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.

Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.

Do  not  loosen  the  radiator  cap  and  the  coolant  reservoir  cap  while  the
engine and radiator are hot.
High temperature steam or coolant could spray out.

NOTICE

When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

To prevent damage to the cooling system
Observe the following precautions:

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

Do not use any coolant additives.

462

7-2. Steps to take in an emergency

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

1
2
3

4
5

463

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

When it is difficult to free the vehicle

Press

 to turn off TRAC.

WARNING

When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.

When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This  may  lead  to  unexpected  rapid  acceleration  of  the  vehicle  that  may
cause an accident resulting in death or serious injury.

NOTICE

To avoid damaging the transmission and other components

Avoid  spinning  the  front  wheels  and  depressing  the  accelerator  pedal
more than necessary.

If  the  vehicle  remains  stuck even  after  these procedures  are  performed,
the vehicle may require towing to be freed.

464

7-2. Steps to take in an emergency















Content   ..  27  28  29  30   ..
