8-2. Steps to take in an emergency
425
Vehicles with aluminum wheels

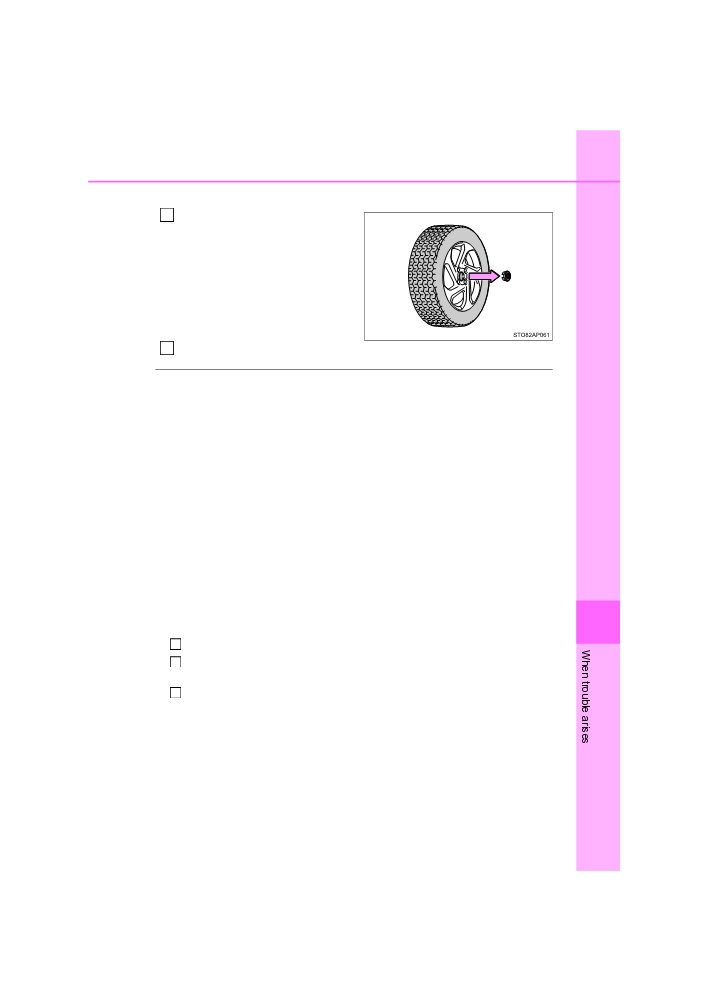

Remove the center wheel orna-
5
ment by pushing from the
reverse side.
Be careful not to lose the wheel
ornament.
Stow the flat tire, tire jack and all tools.
6
■ The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
(P. 471)
■ After completing the tire change (vehicles with a tire pressure warning
system)
The tire pressure warning system must be reset. (P. 350)
■ When using the spare tire (include compact spare tire) (vehicles with a
tire pressure warning system)
As the spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace a flat tire with the spare tire
after the tire pressure warning light comes on, the light remains on.
■ If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
8
form the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
1
2
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
3
Fit tire chains to the front tires.
YARIS_HV_OM_Europe_OM52G76E
426
8-2. Steps to take in an emergency

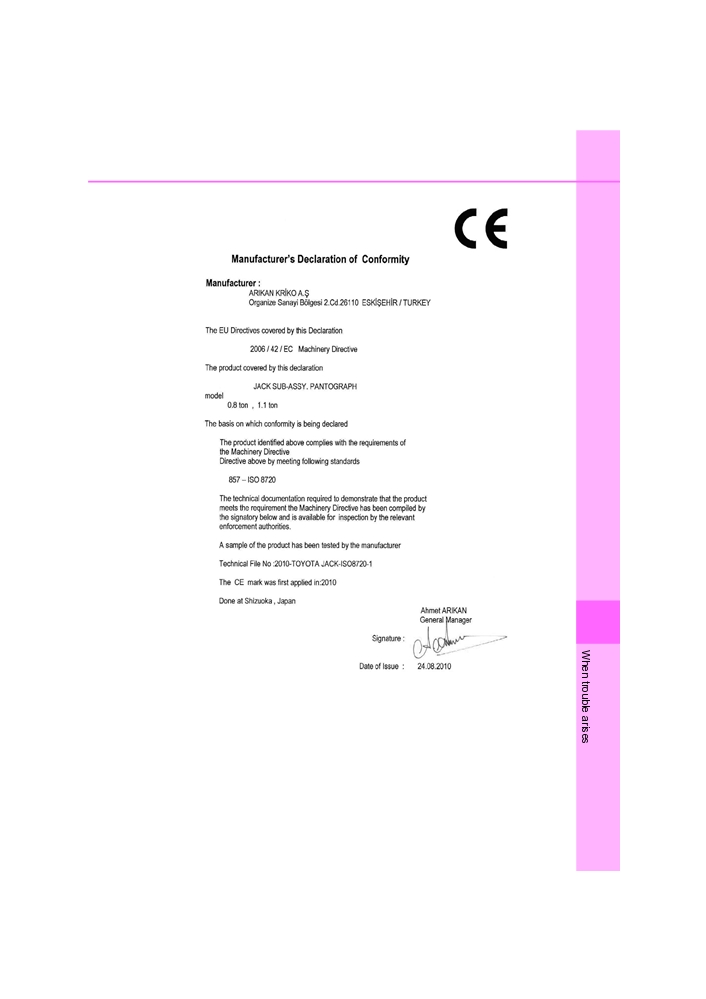

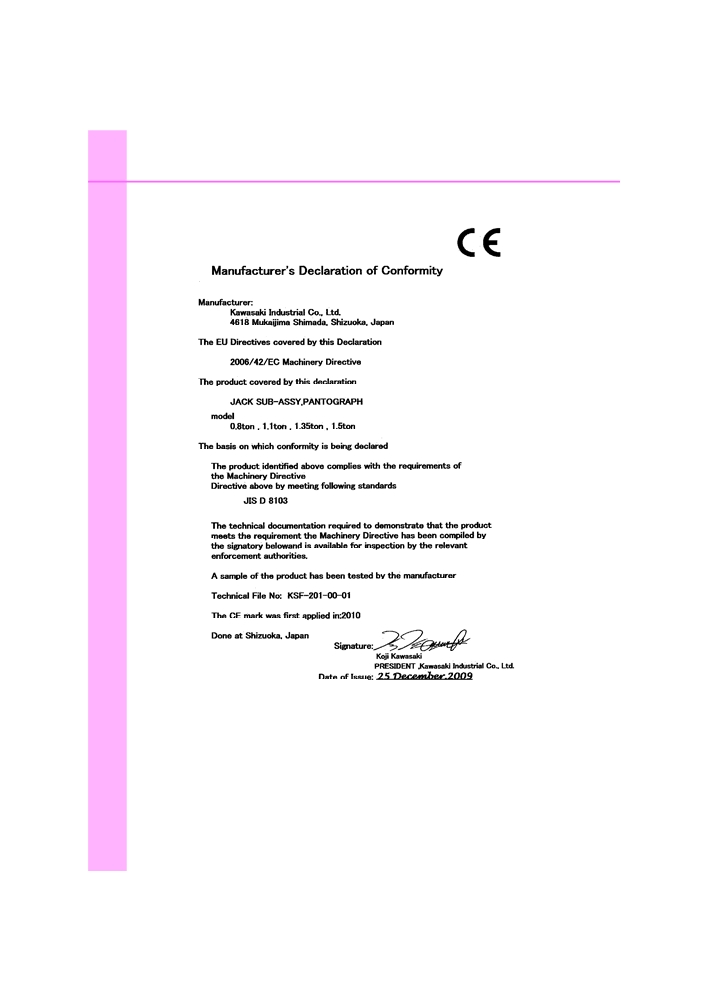

■ Certification for the jack
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
427
8
YARIS_HV_OM_Europe_OM52G76E
428
8-2. Steps to take in an emergency
WARNING
■ When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
■ When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
●ABS
●Brake assist
●VSC (if equipped)
●TRC (if equipped)
●Cruise control
● PCS (Pre-Crash Safety system) (if equipped)
● LDA (Lane Departure Alert) (if equipped)
●Automatic High Beam (if equipped)
●EPS (Electric Power Steering)
●Navigation system
■ Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
429
NOTICE
■ Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■ When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
8
YARIS_HV_OM_Europe_OM52G76E
430
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire
puncture repair kit. (The kit contains a bottle of sealant. The
sealant can be used only once to temporarily repair one tire
without removing the nail or screw from the tire.) Depending on
the damage, this kit cannot be used to repair the tire. (P. 431)
After temporarily repairing the tire with the kit, have the tire
repaired or replaced by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional. Repairs
conducted using the emergency tire puncture repair kit are only
a temporary measure. Have the tire repaired and replaced as
soon as possible.
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
431
Before repairing the tire
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 394)

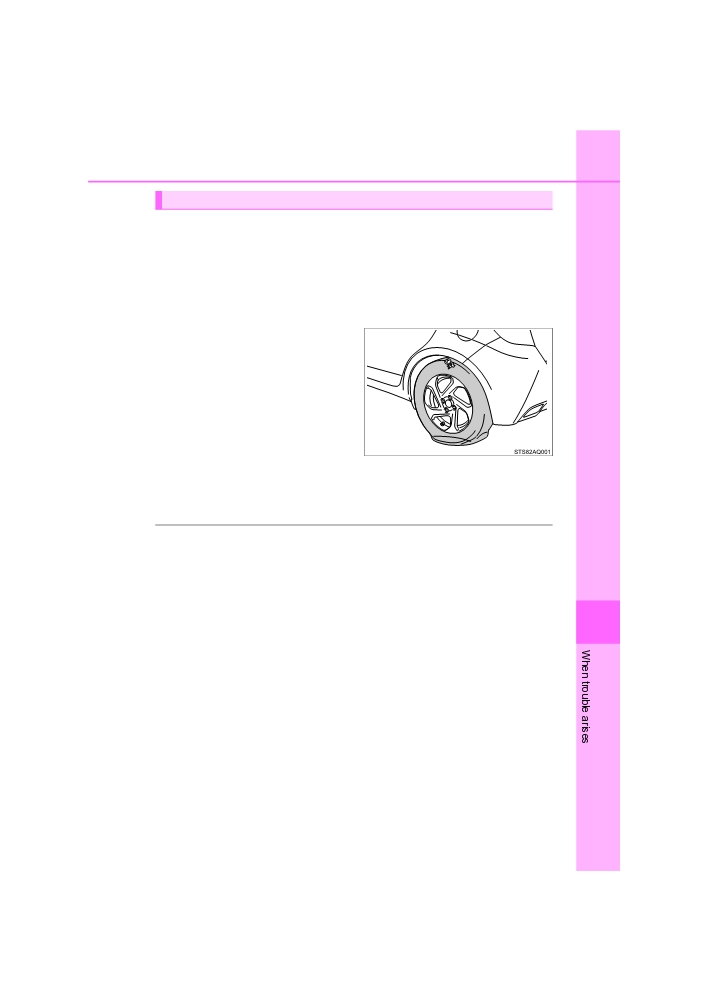

● Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing through
the tire tread.
• Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and disen-
able emergency repair with the kit.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is positioned at
the top of the tire.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
8
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired
YARIS_HV_OM_Europe_OM52G76E
432
8-2. Steps to take in an emergency

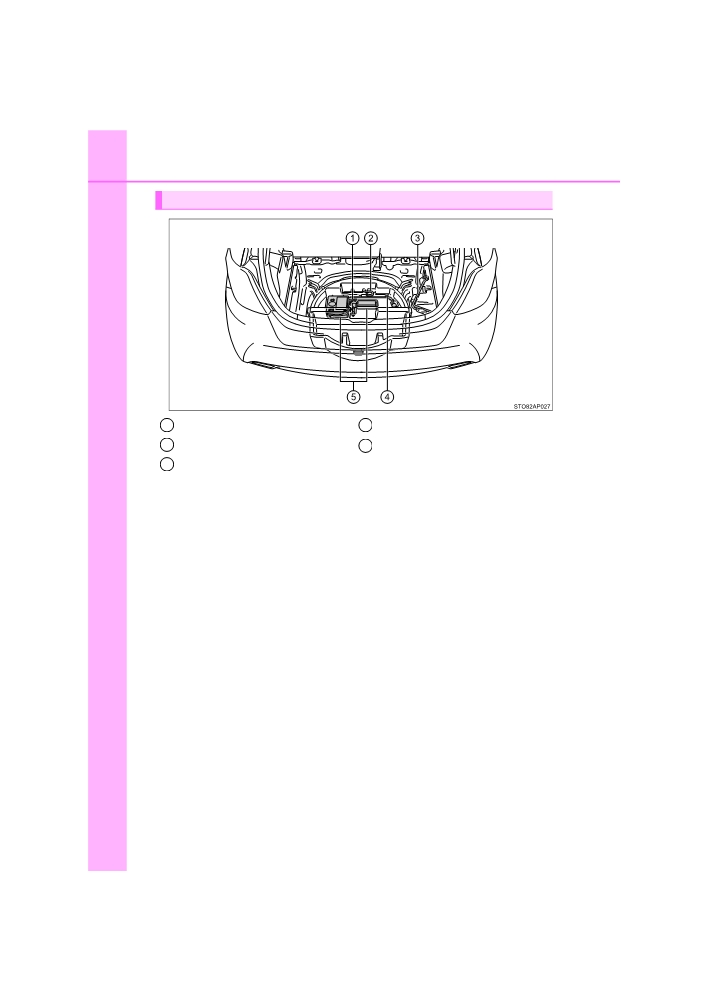

Location of the emergency tire puncture repair kit
1
Wheel cap clip (if equipped)
4
Wheel nut wrench*
2
Towing eyelet
5
Emergency tire puncture
3
Jack handle*
repair kit
*: Use of the jack, jack handle and wheel nut wrench. (if equipped) (P. 416)
A jack, jack handle and wheel nut wrench can be purchased at any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
433

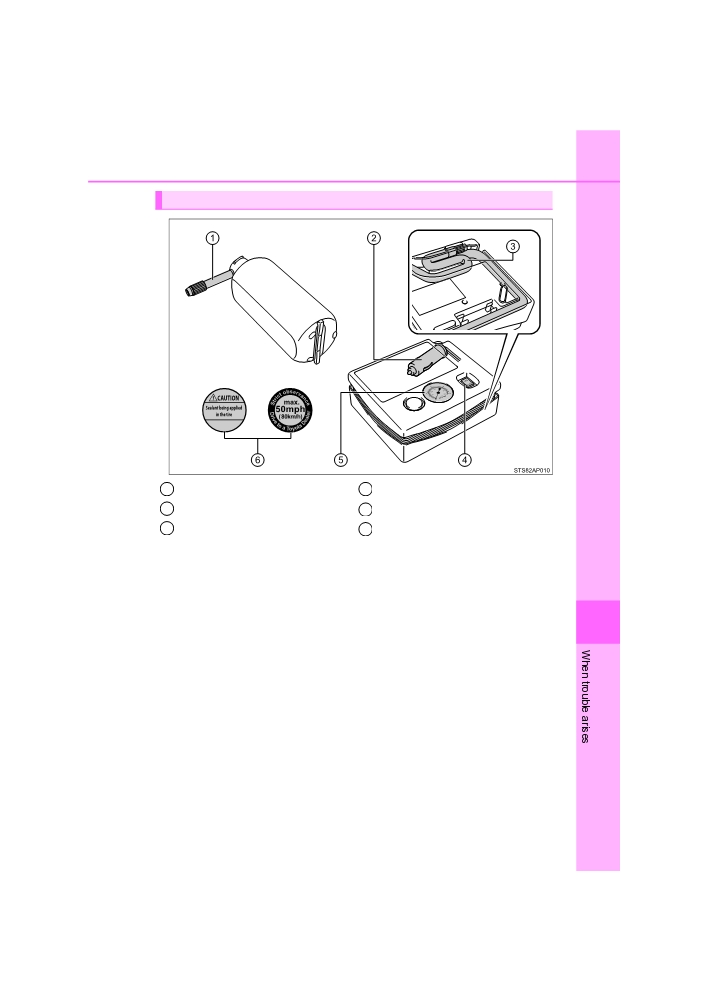

Emergency tire puncture repair kit components
1
Nozzle
4
Compressor switch
2
Power plug
5
Air pressure gauge
3
Hose
6
Stickers
8
YARIS_HV_OM_Europe_OM52G76E
434
8-2. Steps to take in an emergency
Taking out the emergency tire puncture repair kit
1

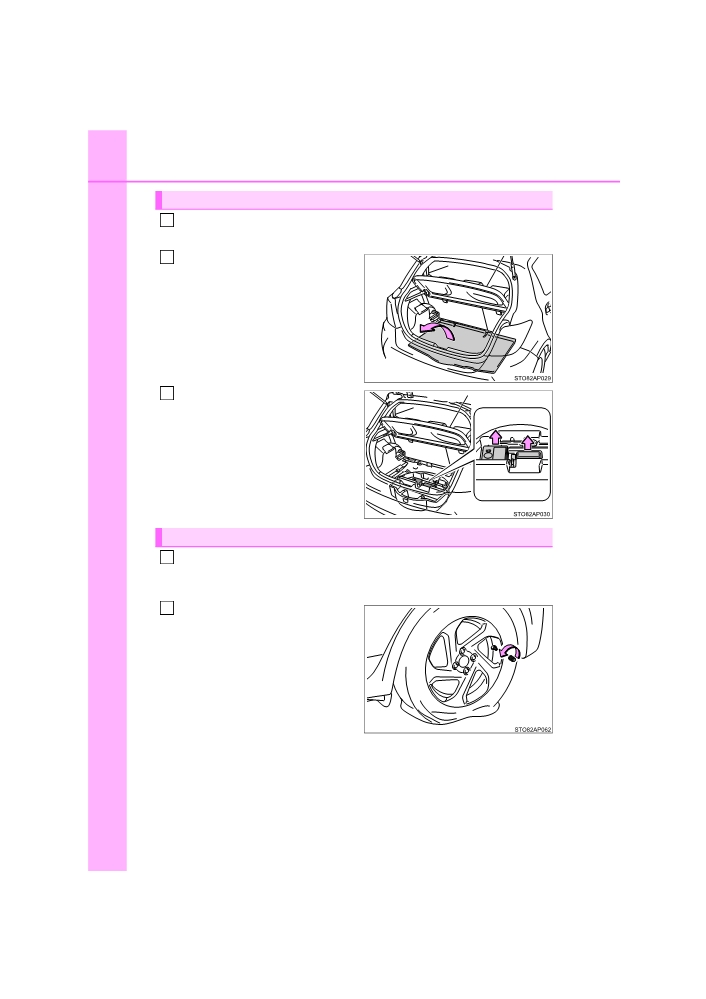

Vehicles with a deck board: Lift the deck board and pull it toward
you to remove it. (P. 310)
2
Remove the luggage floor
cover.
3
Take out the emergency tire
puncture repair kit.
Emergency repair method
Take out the repair kit from the tool box.
1
When taking out the bottle from the original bag, do not tear or discard the
bag.

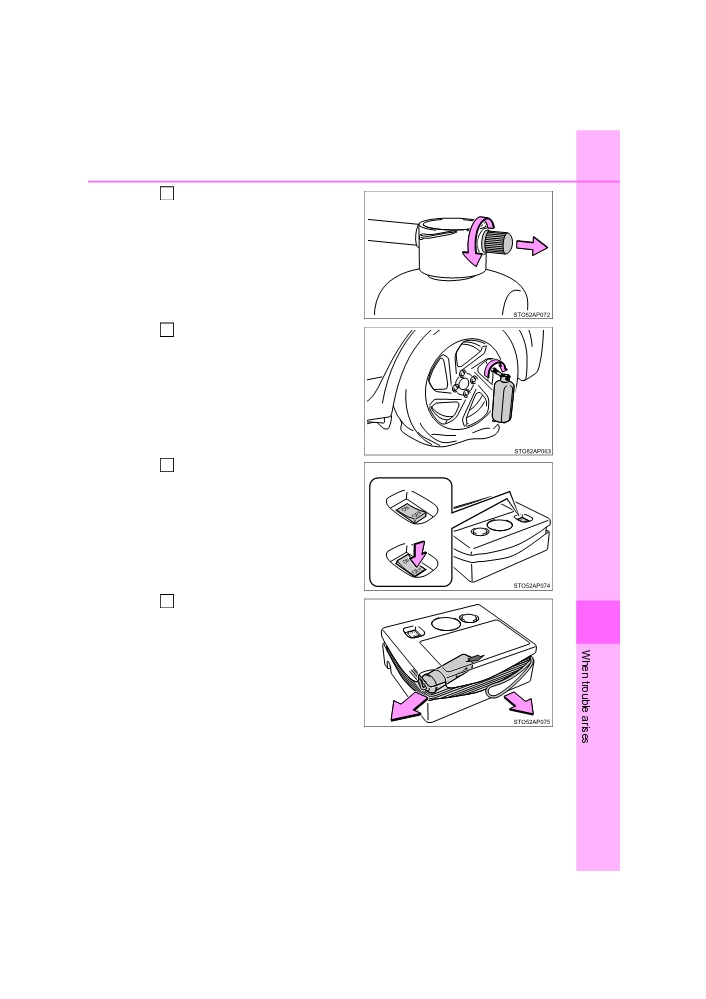

Remove the valve cap from the
2
valve of the punctured tire.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
435
3
Remove the cap from the bot-
tle.
4
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
5
Make sure that the compressor
switch is off.
6
Remove the power plug from
the compressor.
8
YARIS_HV_OM_Europe_OM52G76E
436
8-2. Steps to take in an emergency
7
Pull the hose out from the com-
pressor.

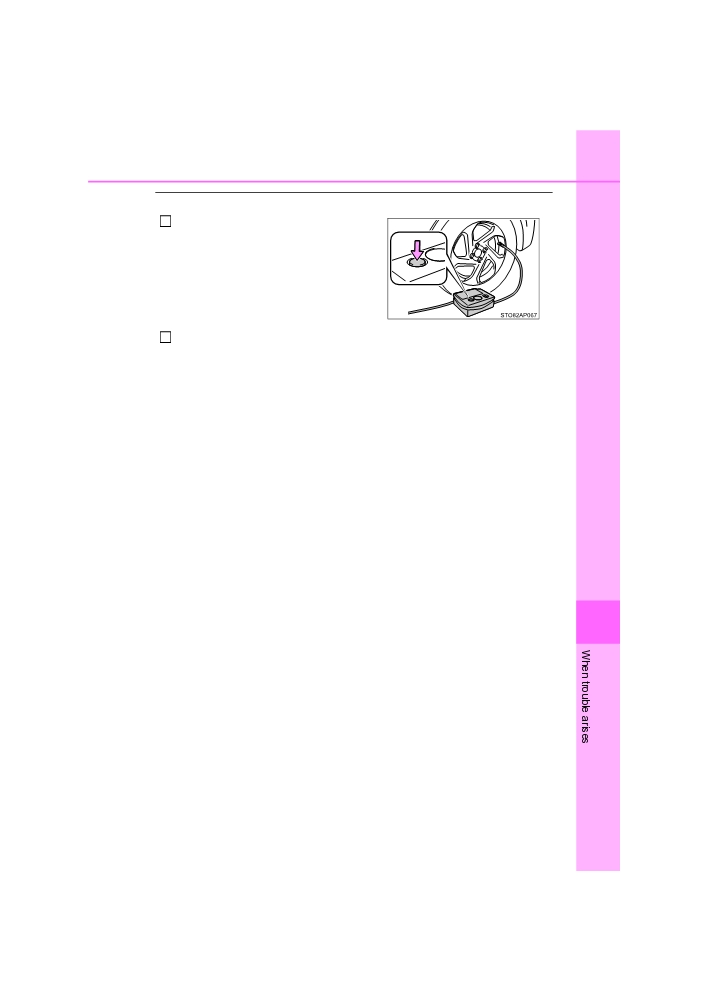

Connect the power plug to the
8
power outlet socket or cigarette
lighter socket. (P. 313, 314)

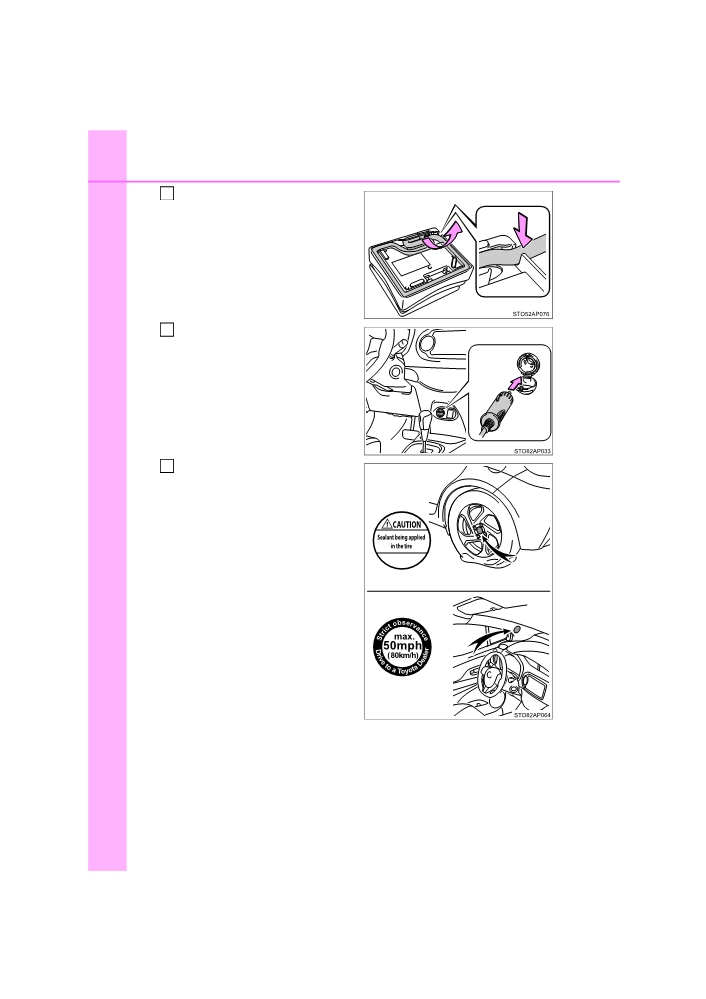

Attach the 2 stickers as shown.
9
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
437

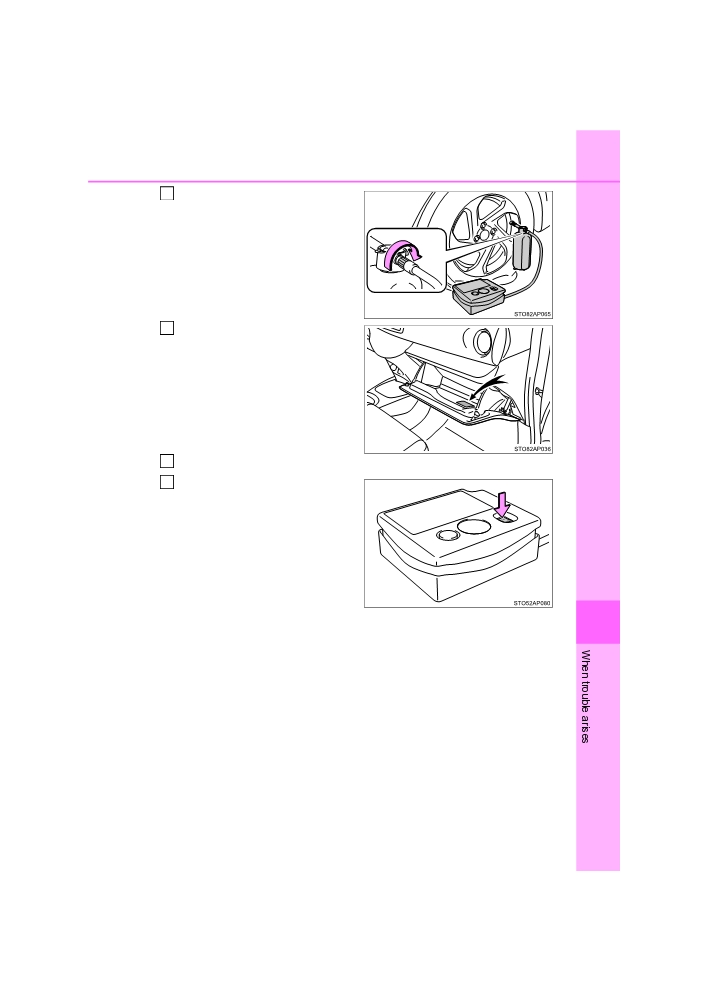

10
Connect the bottle to the com-
pressor.
Screw the end of the hose clock-
wise as far as possible.
11
Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label in the glove box.
(P. 471)
12
Start the hybrid system.
13
To inject the sealant and inflate
the tire, turn the compressor
switch on.
8
YARIS_HV_OM_Europe_OM52G76E
438
8-2. Steps to take in an emergency
14

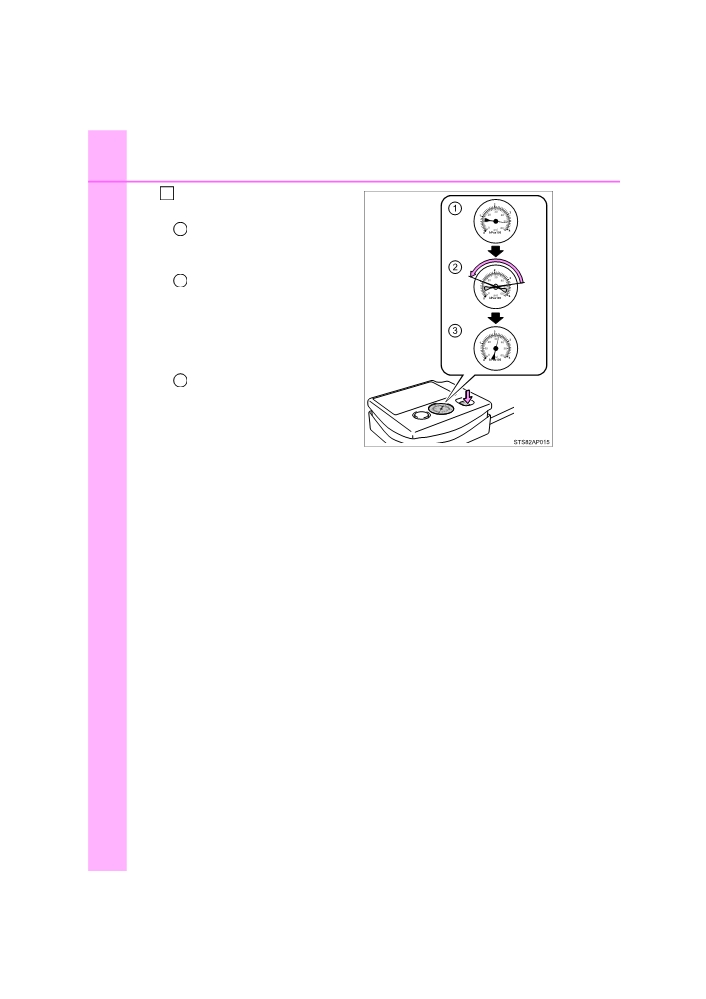

Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
1
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
2
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
3
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for
35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized Toy-
ota dealer or repairer, or another
duly qualified and equipped pro-
fessional.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. (P. 441,471)
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
439

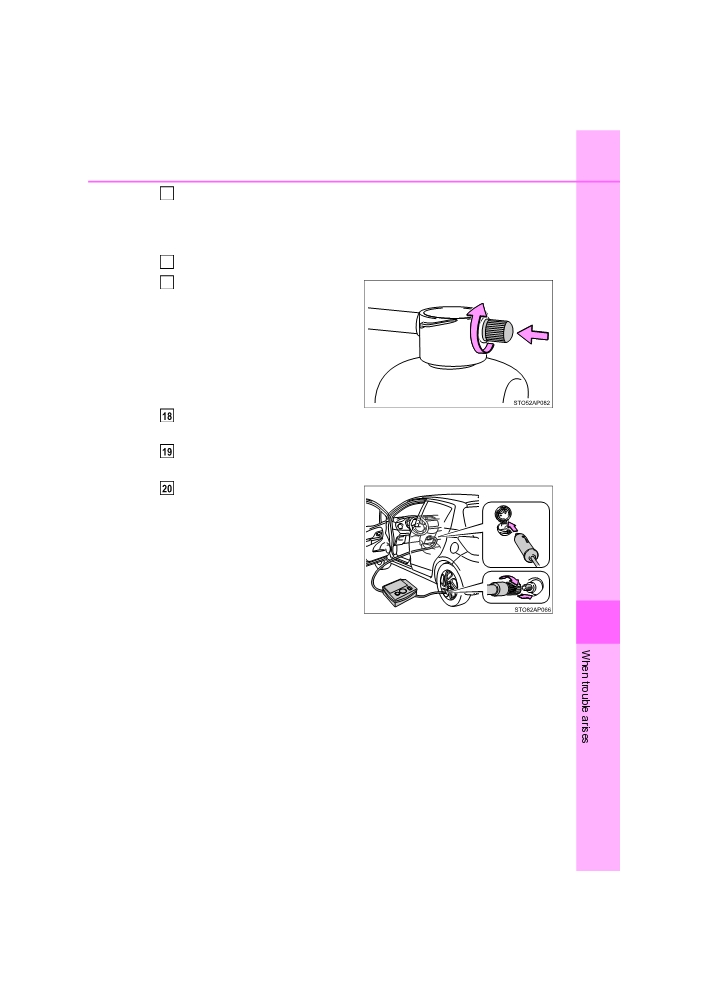

With the compressor switch off, disconnect the nozzle from the
15
valve on the tire and then pull out the power plug from the power
outlet socket or cigarette lighter.
Some sealant may leak when the hose is removed.
16
Install the valve cap onto the valve of the emergency repaired tire.
17
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in
a
safe place on a hard, flat sur-
face and connect the compres-
sor.
8
YARIS_HV_OM_Europe_OM52G76E
440
8-2. Steps to take in an emergency
Turn the compressor switch on
and wait for an approximately 5
seconds, and then turn it off.
Check the tire inflation pres-
sure.
If the tire inflation pressure is
1
under 130 kPa (1.3 kgf/cm2
or bar, 19 psi): The puncture
cannot be repaired. Contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
2
If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi)
or higher, but less than the specified air pressure: Proceed to
3
If the tire inflation pressure is the specified air pressure (P. 471):
Proceed to
Turn the compressor switch on to inflate the tire until the specified
air pressure is reached. Drive for about 5 km (3 miles) and then
perform
Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for tire repair or replacement.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
441

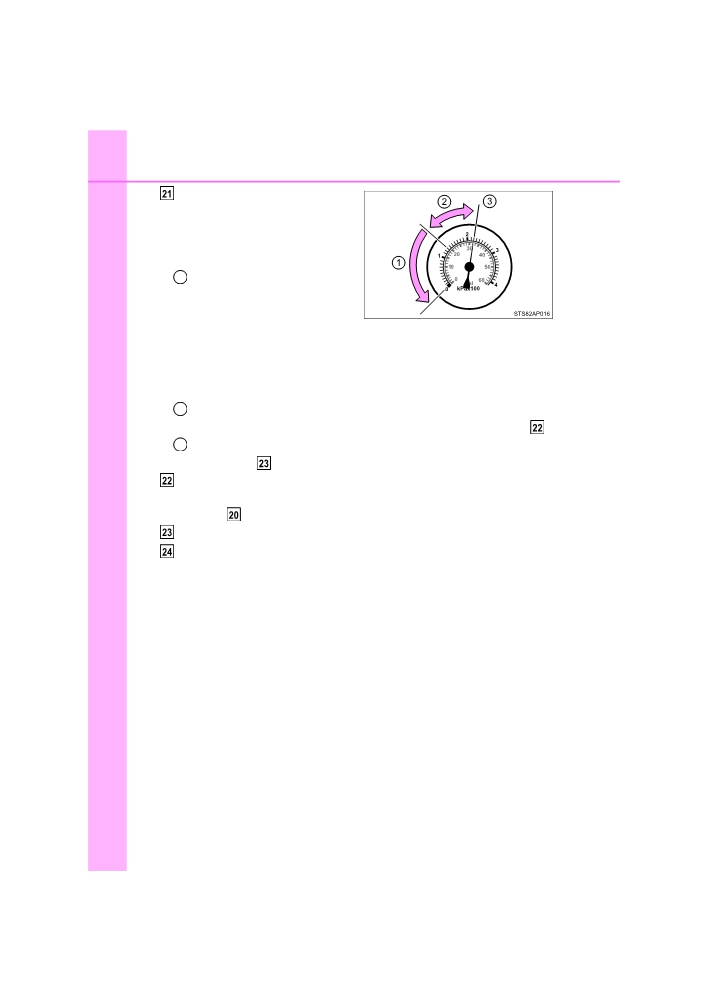

■ If the tire is inflated to more than the specified air pressure
1
Press the button to let some air out.
Check that the air pressure indicator shows the specified air pressure.
2
If the air pressure is under the designated pressure, turn the compressor
switch on again and repeat the inflation procedure until the specified air
pressure is reached.
■ The tire pressure warning valve and transmitter
● After a tire is repaired with the emergency tire puncture repair kit should be
replaced.
●Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.
■ Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date
has already passed. Otherwise, repairs conducted using the emergency tire
puncture repair kit may not be performed properly.
■ Emergency tire puncture repair kit
● The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional. The
compressor is reusable.
8
● The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
●The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than the
original ones, or for any other purposes.
YARIS_HV_OM_Europe_OM52G76E
