408
8-2. Steps to take in an emergency
Warning light
Warning light/Details/Actions
Rear passengers’ seat belt reminder lights
(warning buzzer)*4
Warns the rear passengers to fasten their seat belts.
(On the center panel)
Fasten the seat belt.
Tire pressure warning light*2
When the light comes on: Low tire inflation pressure such
as
• Natural causes (P. 410)
• Flat tire (P. 415, 430)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system. (P. 411)
Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
Hybrid system overheat warning light (warning buzzer)
Indicates that the hybrid system has overheated. This light
may come on when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
Stop and check. (P. 455)
P position request warning light
An attempt was made to start the hybrid system.
Shift the shift lever to P.
P position request warning light (warning buzzer)
• Indicates that the driver’s door was opened with the shift
lever in N, D or B.
Shift the shift lever to P.
• Indicates that the hybrid battery (traction battery) power
has dropped because a long period of time has elapsed
after shifting the shift lever to N.
Shift the shift lever to P and restart the hybrid system
when starting the vehicle.
*
1: Parking brake engaged warning buzzer:
A buzzer will sound if the vehicle is driven at a speed of approximately
5 km/h (3 mph) or more.
*2: If equipped
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
409
*3: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*4: Driver’s and passenger’s seat belt buzzer:
The driver’s and passenger’s seat belt buzzer sounds to alert the driver
and passenger that his or her seat belt is not fastened. The buzzer sounds
for
30 seconds after the vehicle reaches a speed of at least 20 km/h
(12 mph). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 90 more seconds.
Other warning light
Carrying out the corresponding action turns the warning light off.
Warning light
Warning light/Details/Actions
Go to service warning light
Indicates that maintenance of the hybrid battery (traction
battery) cooling component is required
The filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
(If equipped)
Have maintenance performed on the hybrid battery
(traction battery) cooling component at any autho-
rized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
■ Passenger detection sensor and passenger seat belt reminder
● If luggage is placed on a passenger seat, the passenger detection sensor
may cause the warning light to flash even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
8
■ If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Toy-
ota dealer or repairer, or another duly qualified and equipped professional as
soon as possible.
YARIS_HV_OM_Europe_OM52G76E
410
8-2. Steps to take in an emergency
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sounds.
■ When the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 415, 430
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■ The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire has been replaced with the spare tire. Replace the spare
tire with the repaired tire and adjust the tire inflation pressure. The tire pres-
sure warning light will go off after a few minutes.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
411
■ If the tire pressure warning system is not functioning (vehicles with a
tire pressure warning system)
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters are
used
● If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
● If the tire inflation pressure is 500 kPa (5.1 kgf/cm2 or bar, 73 psi) or higher
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If electronic devices or facilities using similar radio wave frequencies are
nearby
● If a radio set at a similar frequency is in use in the vehicle
● If a window tint that affects the radio wave signals is installed
● If there is a lot of snow or ice on the vehicle, particularly around the wheels
or wheel housings
● If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may not work properly with some types of
tires.)
● If tire chains are used
■ If the tire pressure warning light frequently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the power switch is turned on, have it checked by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
8
YARIS_HV_OM_Europe_OM52G76E
412
8-2. Steps to take in an emergency
WARNING
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■ If the tire pressure warning light comes on (vehicles with a tire pres-
sure warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
413
Interior
Exterior
Warning
Warning light/Details/Actions
buzzer
buzzer
light
Smart entry & start system indicator
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while any shift position other
Continuous
Continuous
than P was selected without turning off the
(Flashes in
power switch.
yellow)
Change the shift position to P.
Bring the electronic key back into the
vehicle.
Smart entry & start system indicator
The electronic key was carried outside the
vehicle and the driver’s door was opened
and closed while the shift position P was
Once
3 times
selected without turning off the power
(Flashes in
yellow)
switch.
Turn the power switch off or bring the
electronic key back into the vehicle.
Smart entry & start system indicator
Indicates that a door other than the driver’s
door has been opened and closed with the
power switch in any mode other than off
Once
3 times
and the electronic key outside of the detec-
(Flashes in
yellow)
tion area.
Confirm the location of the electronic
key.
Smart entry & start system indicator
An attempt was made to exit the vehicle
Continuous
with the electronic key and lock the doors
Once
8
(5 seconds)
without first turning the power switch off.
(Flashes in
yellow)
Turn the power switch off and lock the
doors again.
YARIS_HV_OM_Europe_OM52G76E
414
8-2. Steps to take in an emergency
Interior
Exterior
Warning
Warning light/Details/Actions
buzzer
buzzer
light
Smart entry & start system indicator
Indicates that the electronic key is not
present when attempting to start the hybrid
Once
(Flashes in
system.
yellow for
15 seconds.)
Confirm the location of the electronic
key.
Smart entry & start system indicator
An attempt was made to drive when the
9 times
regular key was not inside the vehicle.
(Flashes in
Confirm that the electronic key is inside
yellow)
the vehicle.
Smart entry & start system indicator
Indicates that the electronic key battery is
Once
(Flashes in
low.
yellow for
15 seconds.)
Replace the battery. (P. 369)
Smart entry & start system indicator
Indicates that the steering lock has not
Once
(Flashes quickly
been released.
in green for
15 seconds.)
Release the steering lock. (P. 185)
Smart entry & start system indicator
• When the doors were unlocked with the
mechanical key and then the power
switch was pressed, the electronic key
could not be detected in the vehicle.
Once
• The electronic key could not be detected
(Flashes in yellow
in the vehicle even after the power switch
for 30 seconds.)
was pressed two consecutive times.
Touch the electronic key to the power
switch while depressing the brake
pedal.
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
415
If you have a flat tire (vehicles with a spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 348
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 394)
8
YARIS_HV_OM_Europe_OM52G76E
416
8-2. Steps to take in an emergency

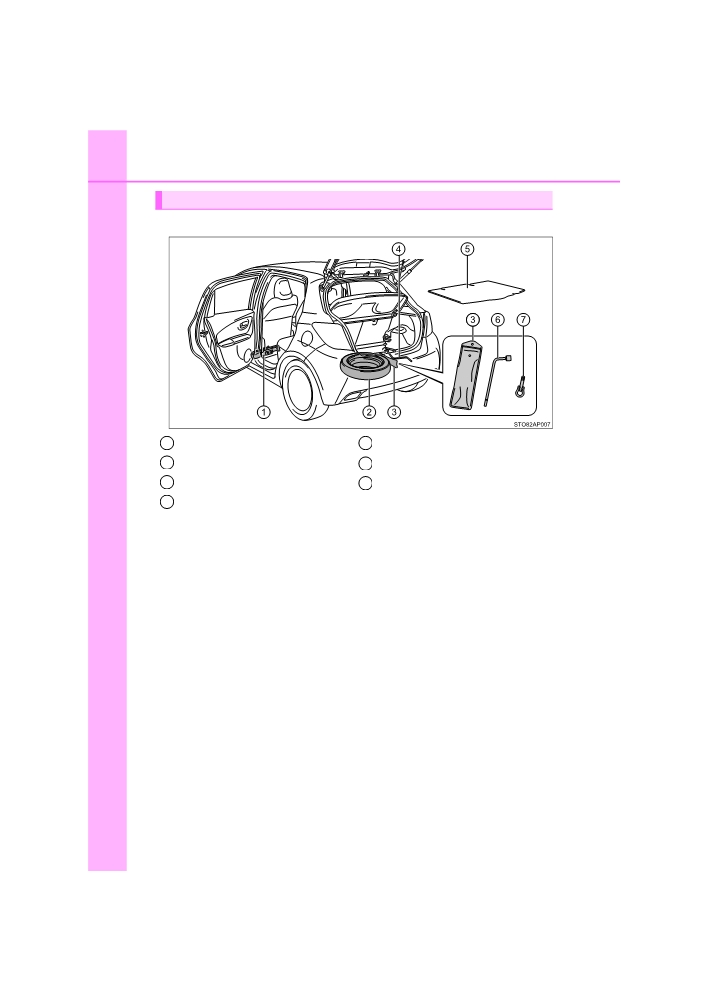

Location of the spare tire, jack and tool bag
■ Location
1
Jack
5
Luggage floor cover
2
Spare tire
6
Wheel nut wrench
3
Tool bag
7
Towing eyelet
4
Jack handle
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
417
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
8
YARIS_HV_OM_Europe_OM52G76E
418
8-2. Steps to take in an emergency

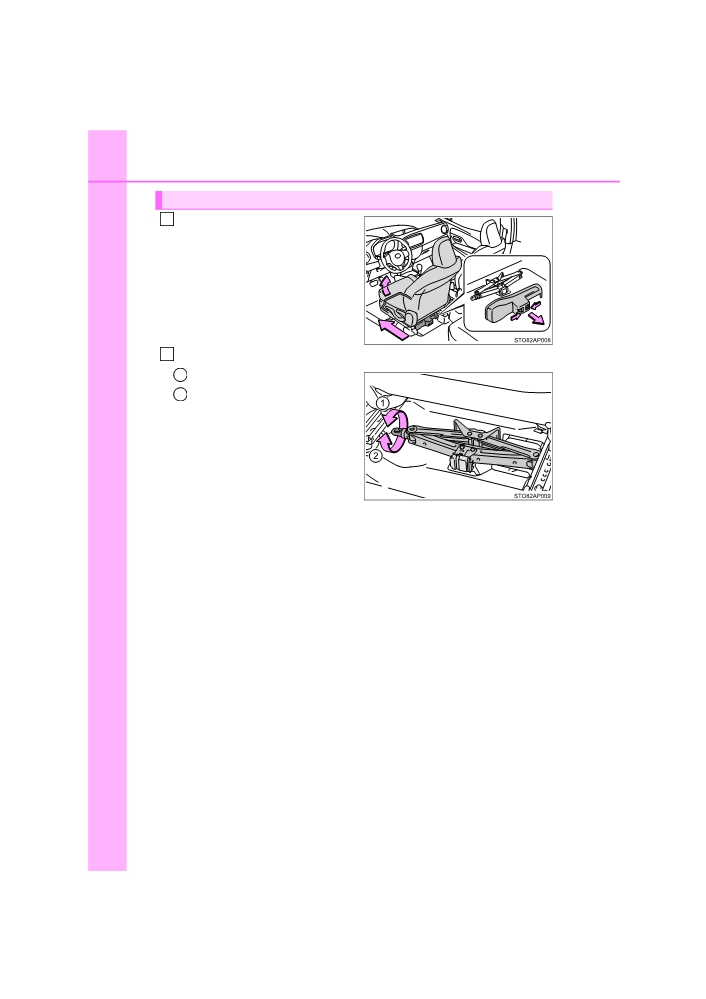

Taking out the jack
1
Move the front left seat to the
front most position and remove
the cover.
2
Take out the jack.
1
For tightening
2
For loosening
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
419

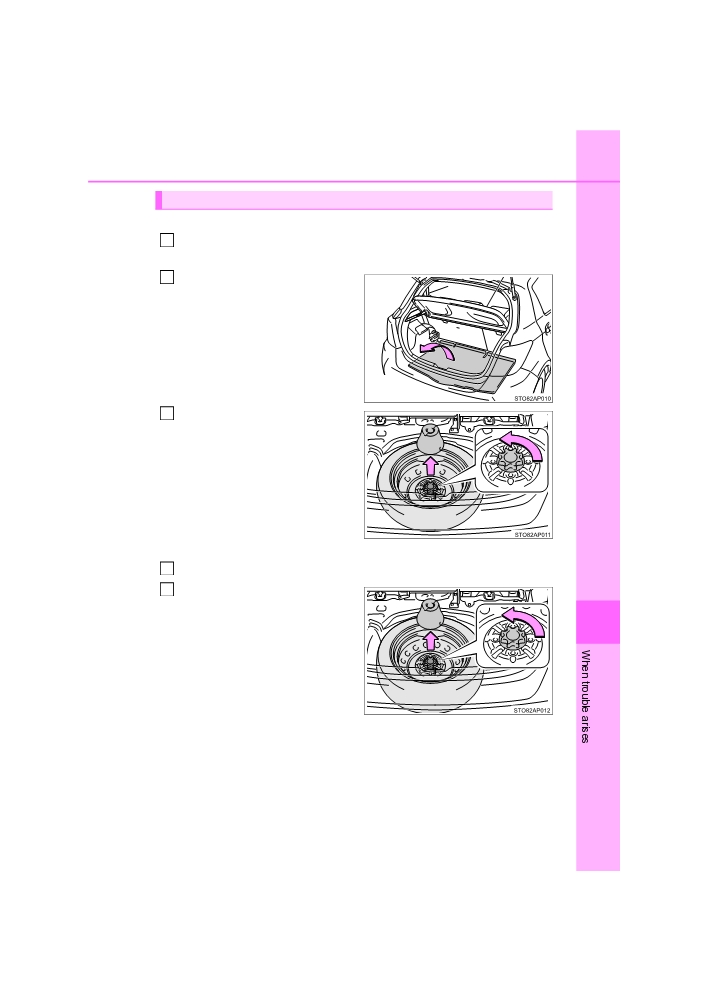

Taking out the spare tire
Vehicles with a compact spare tire
1
Vehicles with a deck board: Lift the deck board and pull it toward
you to remove it. (P. 310)
2
Remove the luggage floor
cover.
Remove the spare wheel cush-
3
ion, then loosen the center fas-
tener.
Vehicles with a full-size spare tire
1
Lift the deck board and pull it toward you to remove it. (P. 310)
2
Remove the spare wheel cush-
ion, then loosen the center fas-
8
tener.
YARIS_HV_OM_Europe_OM52G76E
420
8-2. Steps to take in an emergency

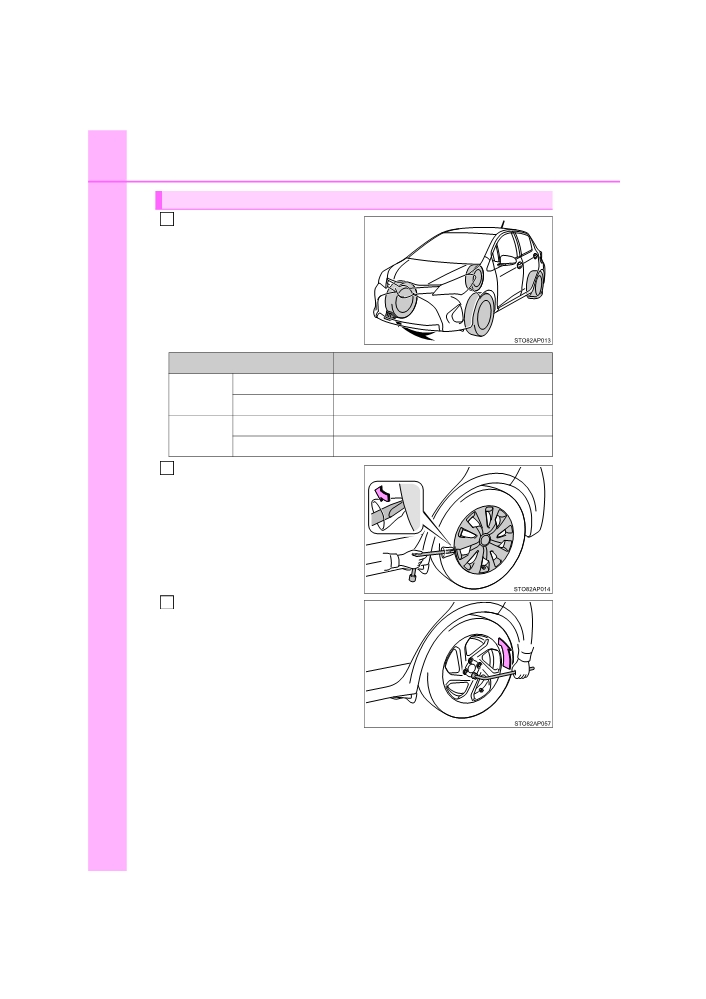

Replacing a flat tire
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
For vehicles with steel wheels,
remove the wheel ornament
using the wrench.
To protect the wheel ornament,
place a rag between the wrench
and the wheel ornament.
3
Slightly loosen the wheel nuts
(one turn).
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
421

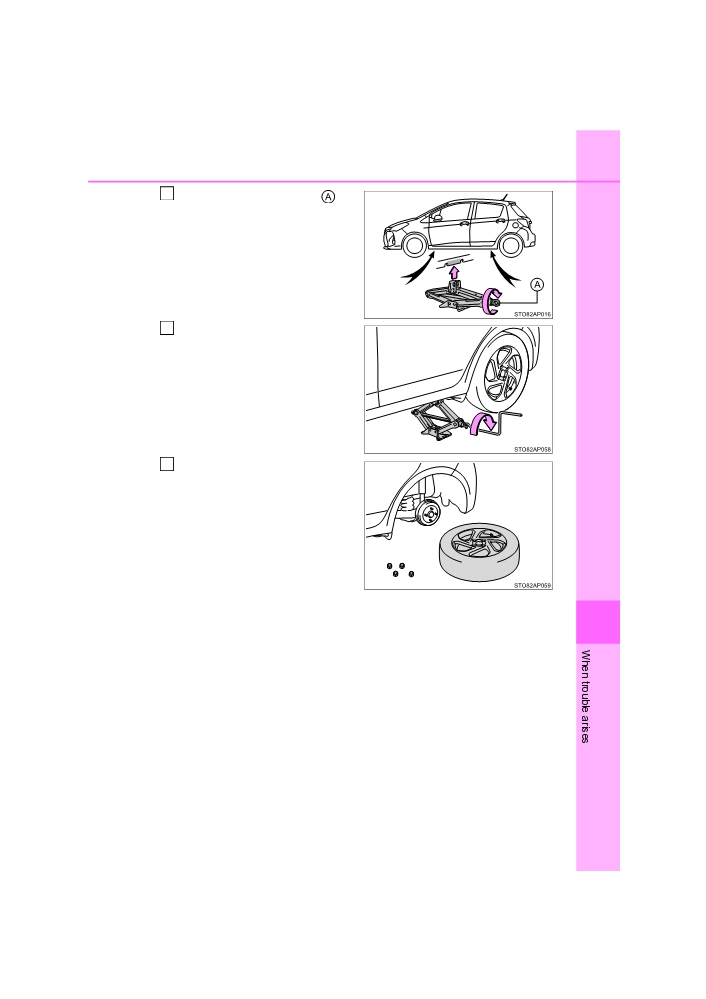

4
Turn the tire jack portion
by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
Raise the vehicle until the tire is
5
slightly raised off the ground.
6
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
8
YARIS_HV_OM_Europe_OM52G76E
422
8-2. Steps to take in an emergency
WARNING
■ Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (P. 365)
YARIS_HV_OM_Europe_OM52G76E
8-2. Steps to take in an emergency
423

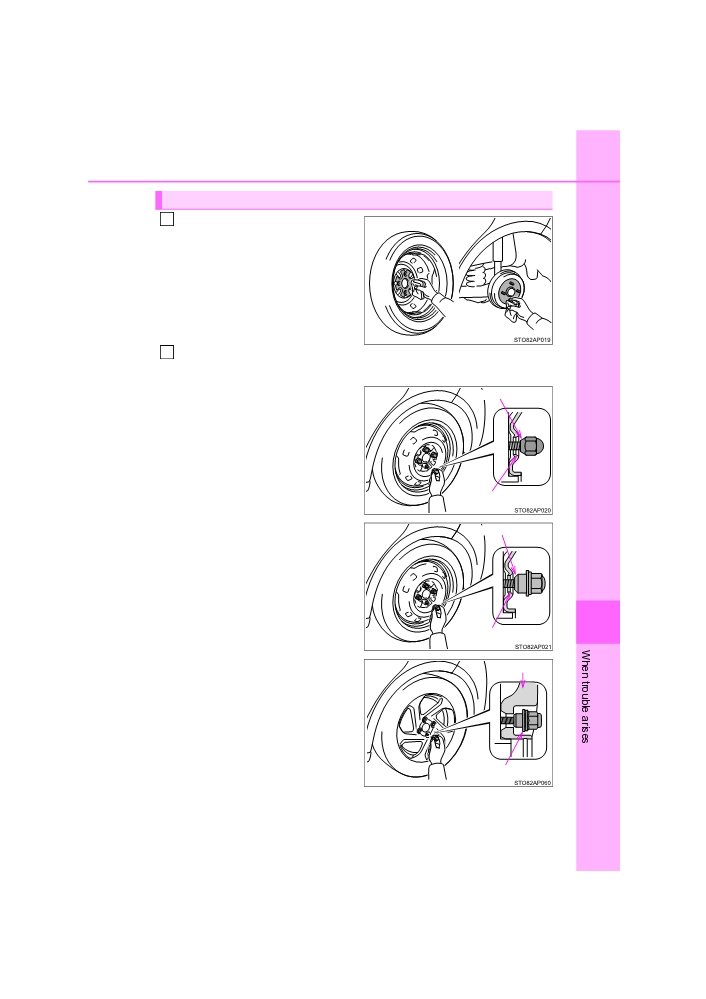

Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
Tapered portion
with a steel wheel (including a
compact spare tire), tighten the
wheel nuts until the tapered
portion comes into loose con-
tact with the disc wheel seat.
Disc wheel seat
When replacing an aluminum
Tapered portion
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
8
Disc wheel seat
When replacing an aluminum
Disc wheel
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Washer
YARIS_HV_OM_Europe_OM52G76E
424
8-2. Steps to take in an emergency

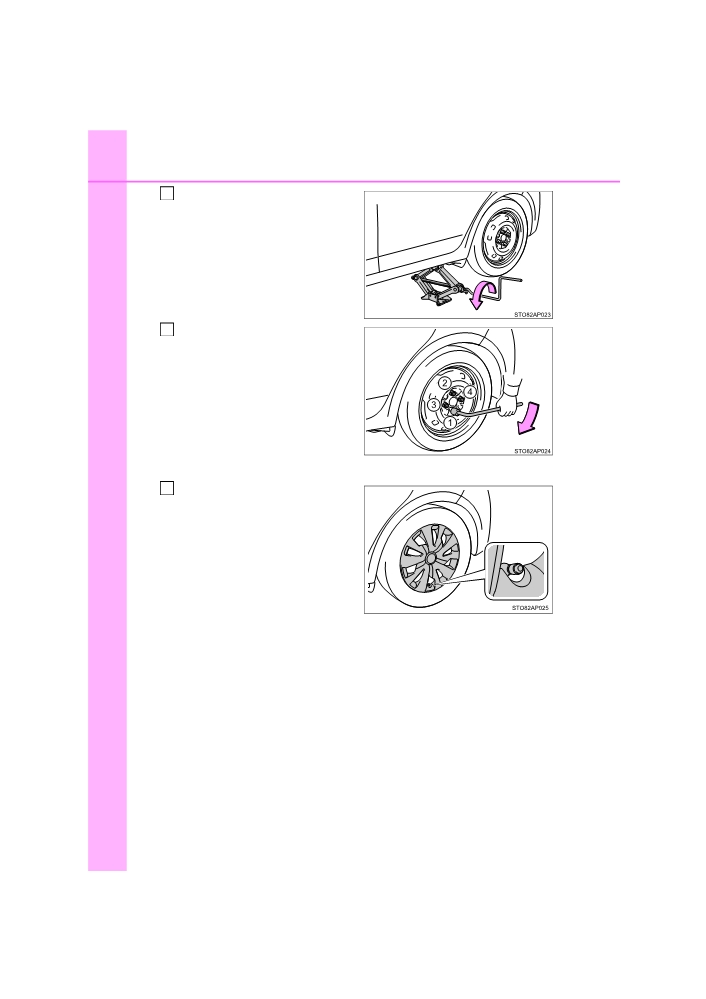

3
Lower the vehicle.
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
Do not use other tools or any addi-
tional leverage other than your
hands, such as a hammer, pipe or
your foot.
Vehicles with steel wheels (except compact
spare tire)
5
Reinstall the wheel ornament.
Align the cutout of the wheel orna-
ment with the valve stem as
shown.
YARIS_HV_OM_Europe_OM52G76E
