Toyota Yaris Hybrid (2017 year). Manual - part 24

7-3. Do-it-yourself maintenance

391

WARNING

■ Replacing light bulbs

● Turn off the lights. Do not attempt to replace the bulb immediately after

turning off the lights.

The bulbs become very hot and may cause burns.

●Do not touch the glass portion of the light bulb with bare hands. When it is

unavoidable to hold the glass portion, use and hold with a clean dry cloth

to avoid getting moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●Fully install light bulbs and any parts used to secure them. Failure to do so

may result in heat damage, fire, or water entering the headlight unit. This

may damage the headlights or cause condensation to build up on the lens.

■ To prevent damage or fire

● Make sure bulbs are fully seated and locked.

●Check the wattage of the bulb before installing to prevent heat damage.

7

YARIS_HV_OM_Europe_OM52G76E

394

8-1. Essential information

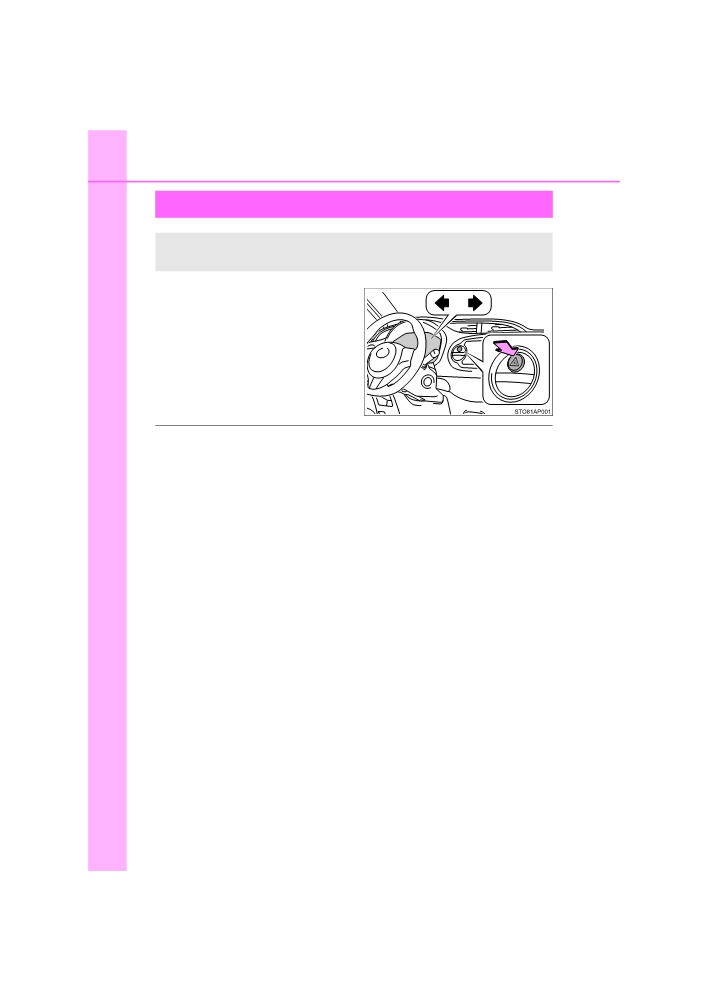

Emergency flashers

The emergency flashers are used to warn other drivers when the

vehicle has to be stopped in the road to a breakdown, etc.

Press the switch.

All the turn signal lights will flash.

To turn them off, press the switch

once again.

■ Emergency flashers

If the emergency flashers are used for a long time while the hybrid system is

not operating (while the “READY” indicator is not illuminated), the 12-volt bat-

tery may discharge.

YARIS_HV_OM_Europe_OM52G76E

8-1. Essential information

395

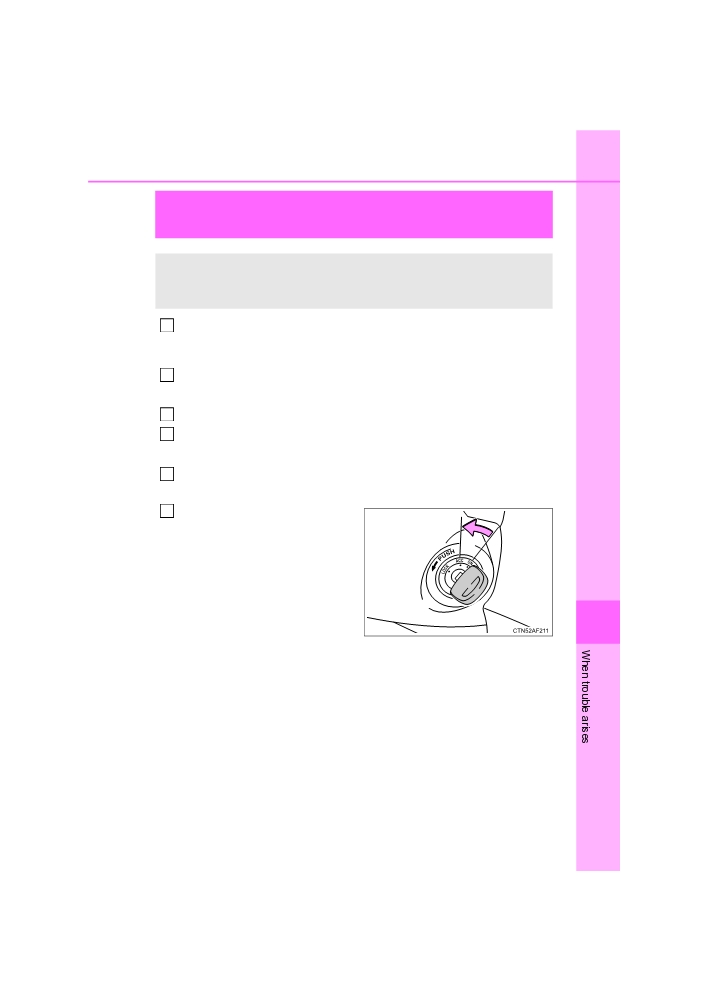

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop

the vehicle in the normal way, stop the vehicle using the follow-

ing procedure:

Steadily step on the brake pedal with both feet and firmly depress it.

1

Do not pump the brake pedal repeatedly as this will increase the effort

required to slow the vehicle.

Shift the shift lever to N.

2

 If the shift lever is shifted to N

3

After slowing down, stop the vehicle in a safe place by the road.

4

Stop the hybrid system.

 If the shift lever cannot be shifted to N

3

Keep depressing the brake pedal with both feet to reduce vehicle

speed as much as possible.

Vehicles without a smart entry

4

& start system: Stop the hybrid

system by turning the power

switch to the “ACC” position.

8

YARIS_HV_OM_Europe_OM52G76E

396

8-1. Essential information

4

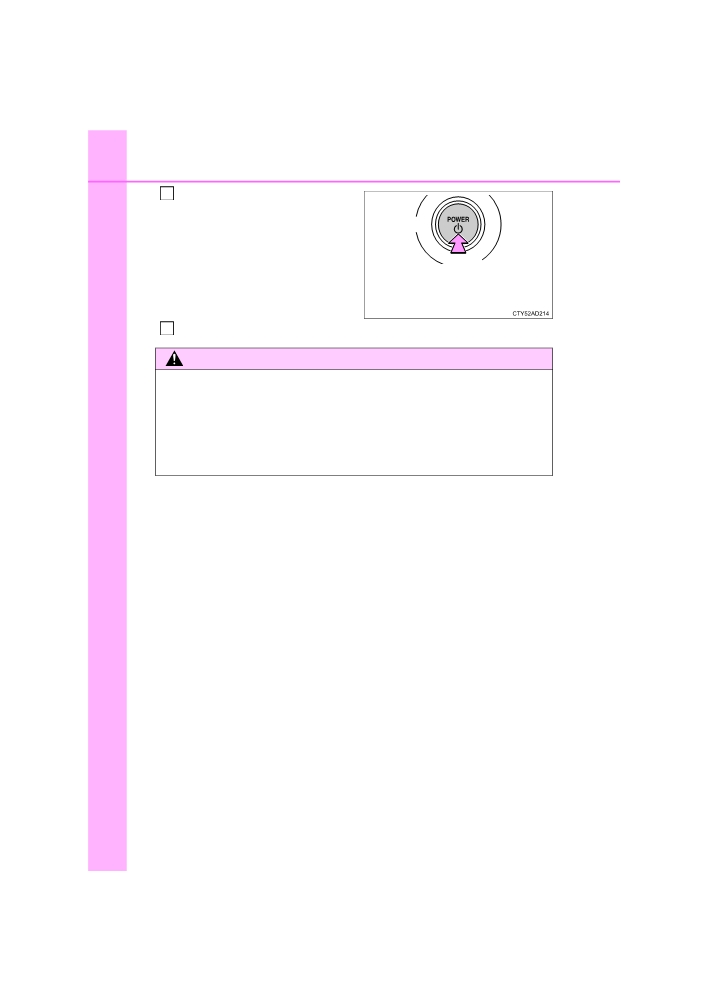

Vehicles with a smart entry &

start system: To stop the hybrid

system, press and hold the

power switch for 3 consecutive

seconds or more, or press it

briefly 3 times or more in suc-

Press and hold for 3 seconds or

cession.

more, or press briefly 3 times or more

5

Stop the vehicle in a safe place by the road.

WARNING

■ If the hybrid system has to be turned off while driving

● Power assist for the steering wheel will be lost, making the steering wheel

heavier to turn. Decelerate as much as possible before turning off the

hybrid system.

● Vehicles without a smart entry & start system: Never attempt to remove

the key, as doing so will lock the steering wheel.

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

397

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle

towed by any authorized Toyota dealer or repairer, or another

duly qualified and equipped professional or commercial towing

service, using a wheel-lift type truck or flatbed truck.

Use a safety chain system for all towing, and abide by all state/

provincial and local laws.

If towing your vehicle with a wheel-lift type truck from the front,

the vehicle’s rear wheels and axles must be in good conditions.

(P. 397, 401)

If they are damaged, use a towing dolly or flatbed truck.

Situations when it is necessary to contact dealers before towing

The following may indicate a problem with your transmission. Contact

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional or commercial towing service before towing.

● The hybrid system is operating but the vehicle does not move.

● The vehicle makes an abnormal sound.

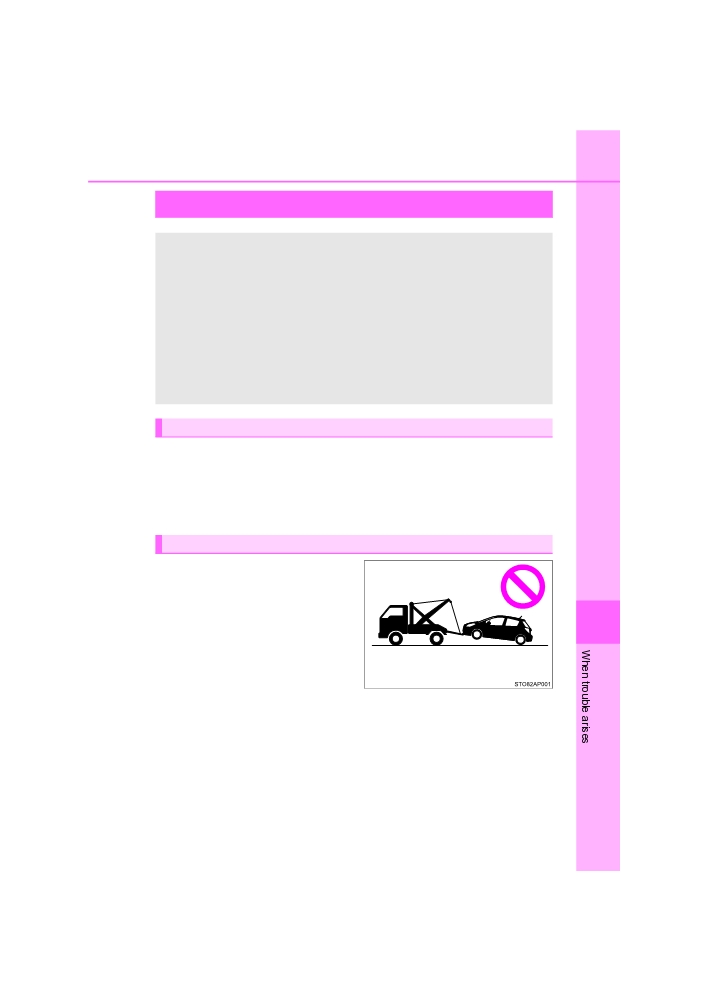

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

8

YARIS_HV_OM_Europe_OM52G76E

398

8-2. Steps to take in an emergency

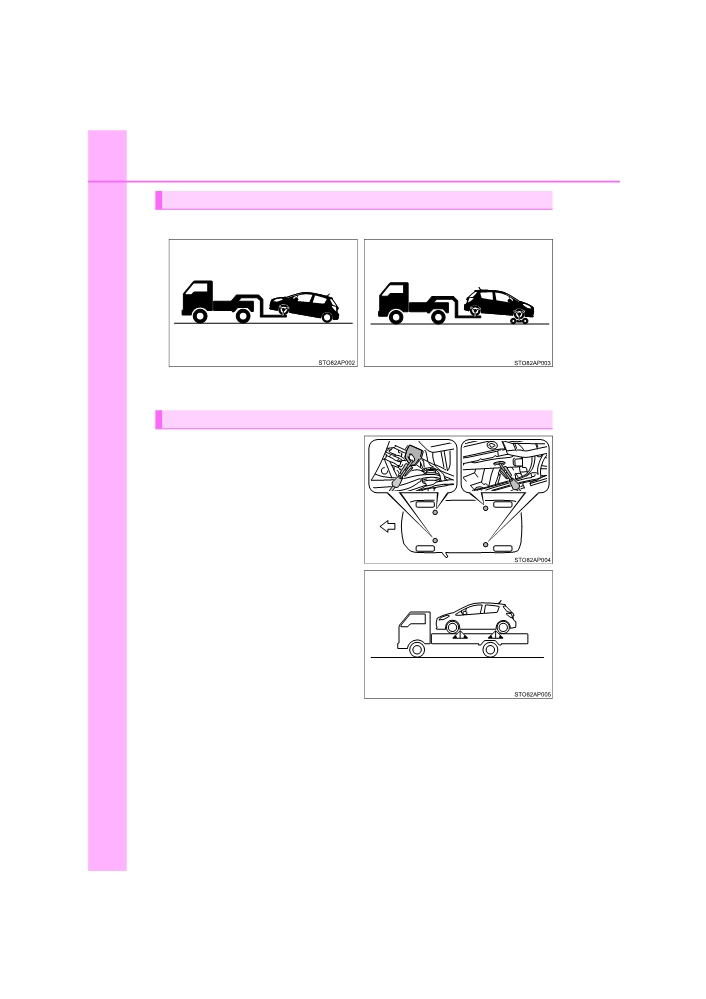

Towing with a wheel-lift type truck

 From the front

 From the rear

Release the parking brake.

Use a towing dolly under the

front wheels.

Using a flatbed truck

If your vehicle is transported by a

flatbed truck, it should be tied

down at the locations shown in the

illustration.

After transporting, return the cov-

ers that were attached to the rear

side.

Front

If you use chains or cables to tie

down your vehicle, the angles

shaded in black must be 45.

Do not overly tighten the tie

downs or the vehicle may be dam-

aged.

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

399

Emergency towing

If a tow truck is not available in an emergency, your vehicle may be

temporarily towed using cables or chains secured to the emergency

towing eyelets. This should only be attempted on hard surfaced roads

for short distances at under 5 km/h (3 mph).

A driver must be in the vehicle to steer and operate the brakes. The

vehicle’s wheels, drive train, axles, steering and brakes must be in

good condition.

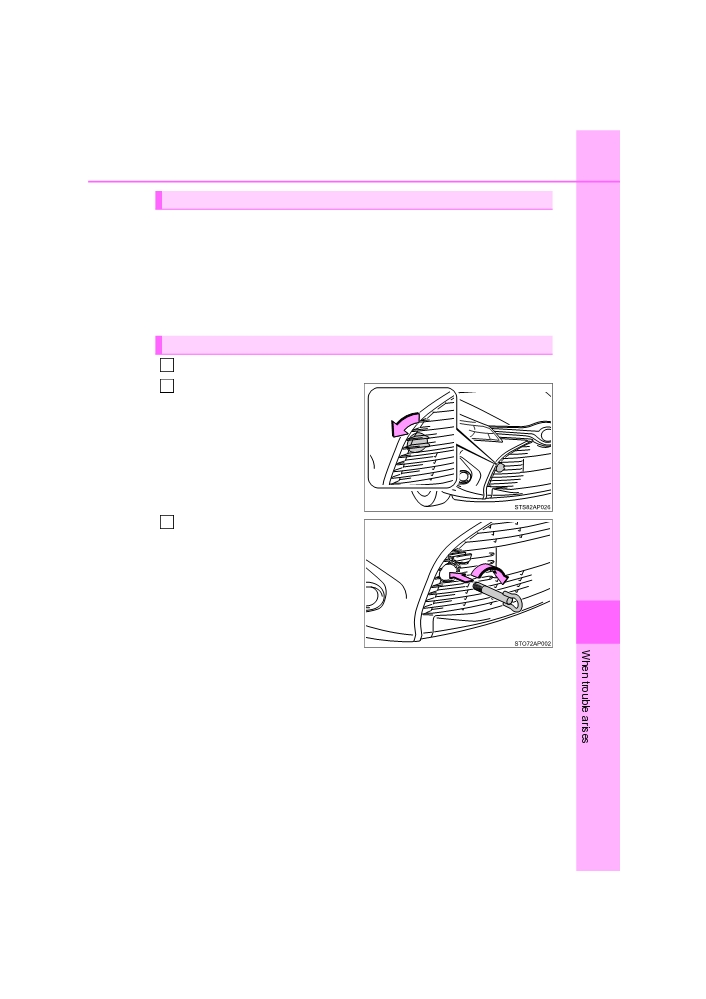

Emergency towing procedure

1

Take out the towing eyelet. (P. 416)

2

Remove the eyelet cover by

turning.

Insert the towing eyelet into the

3

hole and tighten partially by

hand.

8

YARIS_HV_OM_Europe_OM52G76E

400

8-2. Steps to take in an emergency

4

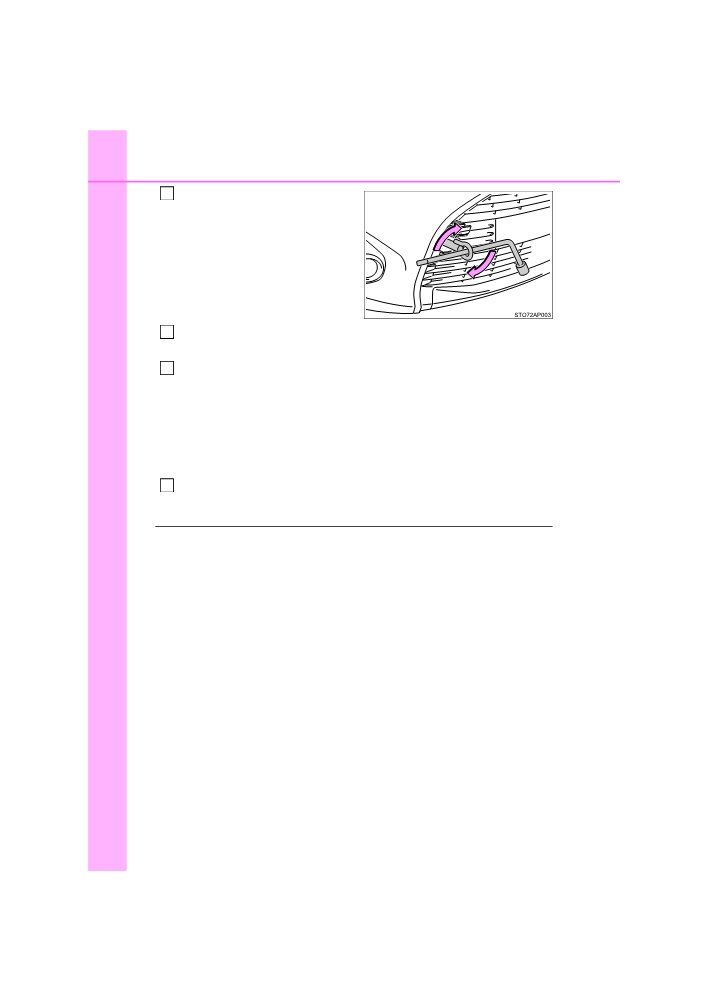

Tighten down the towing eyelet

securely using a wheel nut

wrench* or hard metal bar.

*: If a wheel nut wrench is not

equipped, a wheel nut wrench can

be purchased at any authorized

Toyota dealer or repairer, or

another duly qualified

and

equipped professional.

Securely attach cables or chains to the towing eyelet.

5

Take care not to damage the vehicle body.

Vehicles without a smart entry & start system: Enter the vehicle

6

being towed and start the hybrid system.

If the hybrid system does not start, turn the power switch to the “ON” posi-

tion.

Vehicles with a smart entry & start system: Enter the vehicle being

towed and start the hybrid system.

If the hybrid system does not start, turn the power switch to ON mode.

Shift the shift lever to N and release the parking brake.

7

When the shift lever cannot be shifted: P. 192

■While towing

If the hybrid system is off, the power assist for the brakes and steering will not

function, making steering and braking more difficult.

■ Wheel nut wrench

● Vehicles with a wheel nut wrench: Wheel nut wrench is installed in the lug-

gage. (P. 416, 432)

● Vehicles without a wheel nut wrench: Wheel nut wrench can be purchased

at any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

401

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

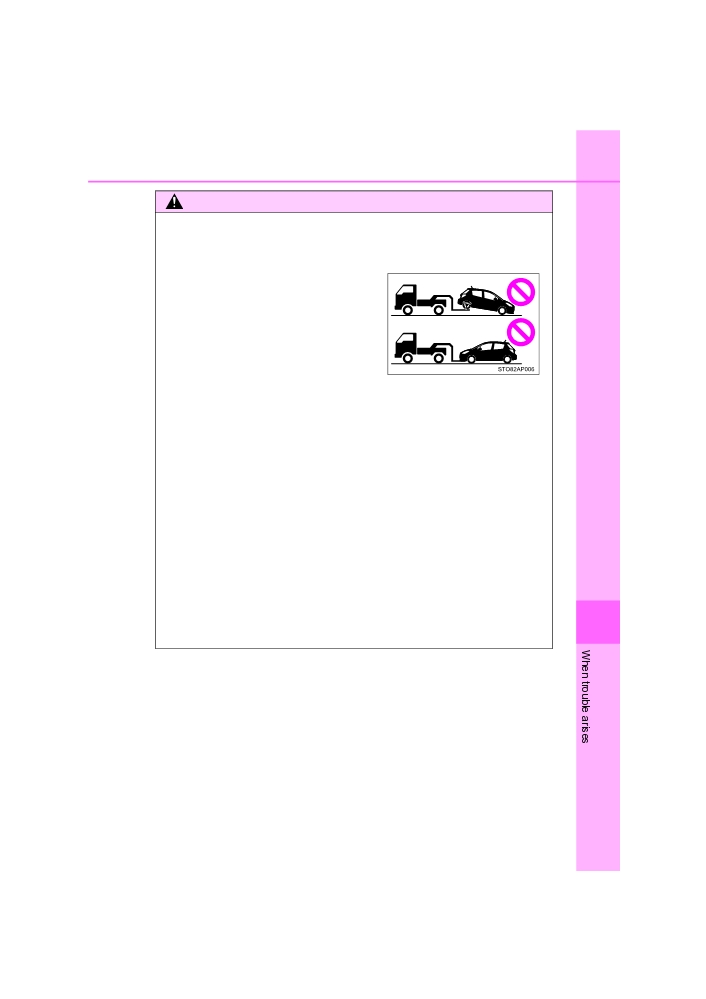

■ When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground.

If the vehicle is towed with the front

wheels contacting the ground, the driv-

etrain and related parts may be damaged

or electricity generated by the operation

of the motor may cause a fire to occur

depending on the nature of the damage

or malfunction.

■ While towing

● When towing using cables or chains, avoid sudden starts, etc. which place

excessive stress on the towing eyelets, cables or chains. The towing eye-

lets, cables or chains may become damaged, broken debris may hit peo-

ple, and cause serious damage.

● Vehicles without a smart entry & start system: Do not turn the power

switch to the “LOCK” position.

There is a possibility that the steering wheel is locked and cannot be oper-

ated.

● Vehicles with a smart entry & start system: Do not turn the power switch

off.

There is a possibility that the steering wheel is locked and cannot be oper-

ated.

■ Installing towing eyelet to the vehicle

Make sure that towing eyelet is installed securely.

8

If not securely installed, towing eyelet may come loose during towing.

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

403

If you think something is wrong

If you notice any of the following symptoms, your vehicle proba-

bly needs adjustment or repair. Contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped pro-

fessional as soon as possible.

Visible symptoms

● Fluid leaks under the vehicle

(Water dripping from the air conditioning after use is normal)

● Flat-looking tires or uneven tire wear

● High engine coolant temperature warning light flashes or comes on

Audible symptoms

● Changes in exhaust sound

● Excessive tire squeal when cornering

● Strange noises related to the suspension system

● Pinging or other noises related to the hybrid system

Operational symptoms

● Engine misfire, stumbling or running roughly

● Appreciable loss of power

● Vehicle pulls heavily to one side when braking

● Vehicle pulls heavily to one side when driving on a level road

8

● Loss of brake effectiveness, spongy feeling, pedal almost touches

the floor

YARIS_HV_OM_Europe_OM52G76E

404

8-2. Steps to take in an emergency

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights

comes on or flashes. If a light comes on or flashes, but then

goes off, this does not necessarily indicate a malfunction in the

system. However, if this continues to occur, have the vehicle

inspected by any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

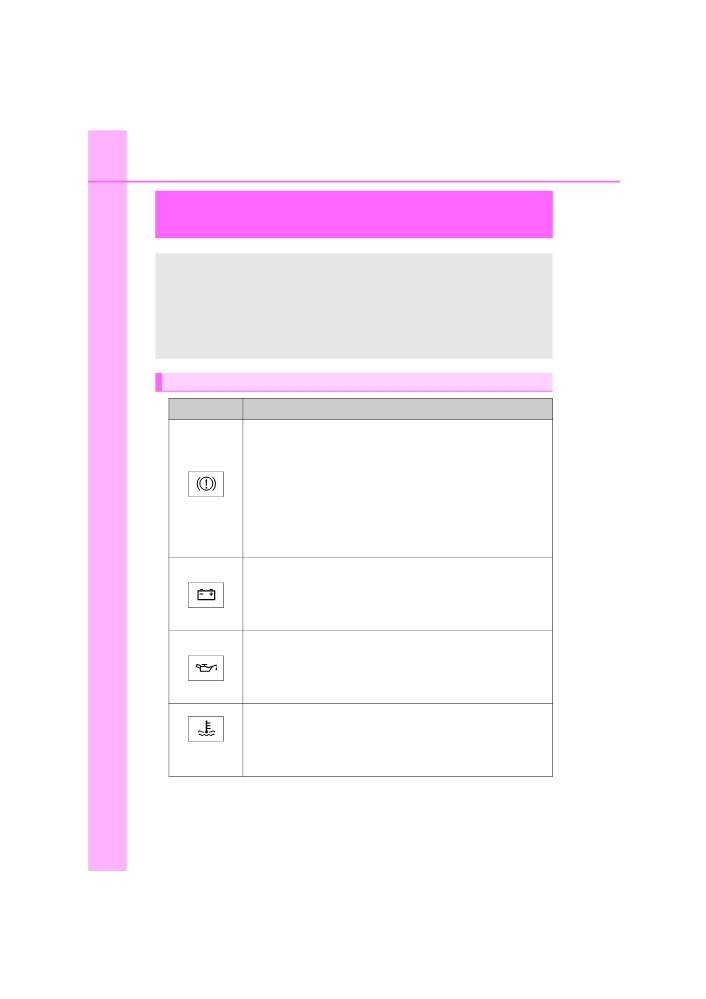

Warning light and warning buzzer list

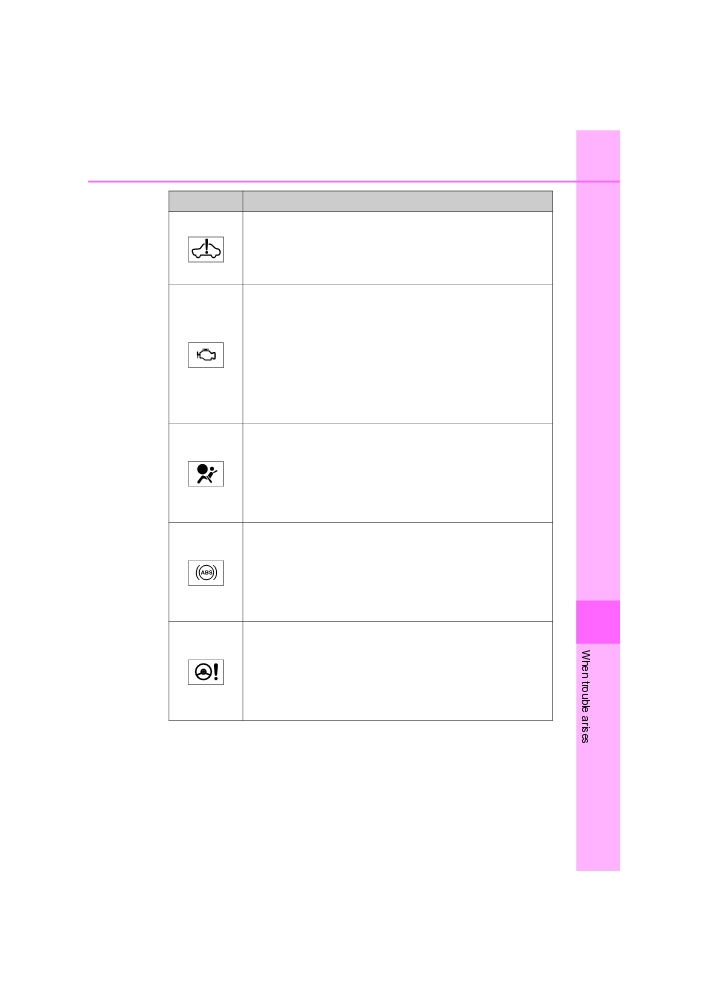

Warning light

Warning light/Details/Actions

Brake system warning light (warning buzzer)*1

• Low brake fluid

• Malfunction in the brake system

This light also comes on when the parking brake is not

released. If the light turns off after the parking brake is fully

released, the system is operating normally.

(Red)

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Continuing to drive the vehicle may be dangerous.

Charging system warning light

Indicates a malfunction in the vehicle’s charging system.

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low.

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

High engine coolant temperature warning light

Indicates that the engine is overheating.

As the coolant temperature rises, it changes from flashing

(Red warning light

flashers or comes

to steady on.

on)

 P. 455

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

405

Warning light

Warning light/Details/Actions

Hybrid system warning light (warning buzzer)

Indicates a malfunction in the hybrid system.

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Malfunction indicator lamp

Indicates a malfunction in:

• The hybrid system;

• The hybrid transmission control system;

• The electronic engine control system;

• The electronic throttle control system; or

• The emission control system.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

SRS warning light

Indicates a malfunction in:

• The SRS airbag system; or

• The seat belt pretensioner system.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

ABS warning light

Indicates a malfunction in:

• The ABS; or

• The brake assist system.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

8

Electric power steering system warning light

(warning buzzer)

Indicates a malfunction in the EPS (Electric Power Steer-

ing) system.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

YARIS_HV_OM_Europe_OM52G76E

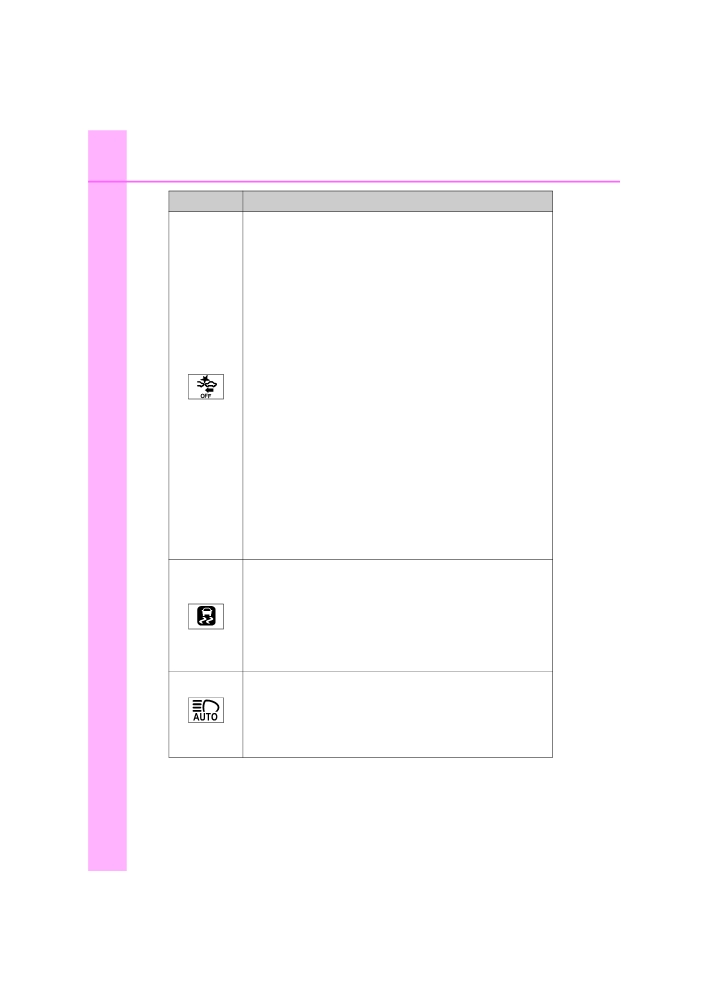

406

8-2. Steps to take in an emergency

Warning light

Warning light/Details/Actions

PCS warning light*2

When the warning light flashes (and a buzzer sounds):

Indicates a malfunction in the PCS (Pre-Crash Safety sys-

tem)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

When the warning light flashes or illuminates

(and a

buzzer does not sound):

Indicates that the PCS (Pre-Crash Safety system) is tem-

porarily unavailable, possibly due to either of the following:

• The part of the windshield around the front sensor being

dirty, fogged up or covered with condensation, ice, stick-

ers, etc.

 Clear the dirt, fog, condensation, ice, stickers, etc.

(P. 214)

• Front sensor temperature being outside of its opera-

tional range

 Wait for a while until the area around the front sensor

has cooled down sufficiently.

When the warning light is illuminated:

Either the VSC (Vehicle Stability Control) system or PCS

(Pre-Crash Safety system) is disabled or both are dis-

abled.

 To enable the PCS, enable both the VSC system and

PCS. (P. 221, 246)

Slip indicator*2

Indicates a malfunction in:

• The VSC system;

• The TRC system; or

• Hill-start assist control.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

Automatic High Beam indicator*2

Indicates a malfunction in the Automatic High Beam sys-

tem.

 Have the vehicle inspected by any authorized Toyota

(Yellow)

dealer or repairer, or another duly qualified and

equipped professional.

YARIS_HV_OM_Europe_OM52G76E

8-2. Steps to take in an emergency

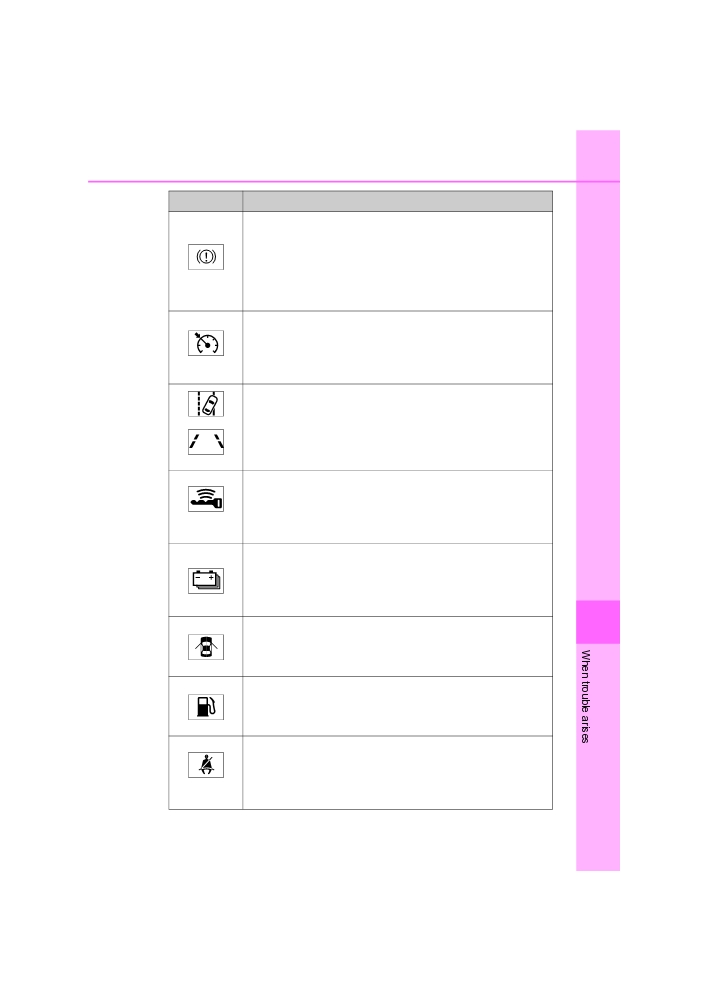

407

Warning light

Warning light/Details/Actions

Brake system warning light

Indicates a malfunction in:

• The regenerative brake system; or

• The electronically controlled brake system.

(Yellow)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

Cruise control indicator*2

Indicates a malfunction in the cruise control system.

 Have the vehicle inspected by any authorized Toyota

(Yellow)

dealer or repairer, or another duly qualified and

equipped professional immediately.

LDA indicator*2 and Lane marker indicators*2

Indicates a malfunction in the LDA system.

(Yellow)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

(Yellow)

Smart entry & start system indicator*2

Indicates a malfunction in the smart entry & start system.

 Have the vehicle inspected by any authorized Toyota

(Flashes in yellow

dealer or repairer, or another duly qualified and

for 15 seconds.)

equipped professional.

Low traction battery warning light

Indicates that the hybrid battery (traction battery) is low.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

8

Open door warning light (warning buzzer)*3

Indicates that one or more of the doors is not fully closed.

 Check that all the side doors and back door are

closed.

Low fuel level warning light

Indicates that remaining fuel is about

5.2 L (1.4 gal.,

1.1 lmp. gal.) or less.

 Refuel the vehicle.

Driver’s and front passenger’s seat belt reminder light

(warning buzzer)*4

Warns the driver and front passenger to fasten their seat

(On the instrument

belts.

cluster)

 Fasten the seat belt.

YARIS_HV_OM_Europe_OM52G76E

Content   ..  22  23  24  25   ..
