1-3. Theft deterrent system
85

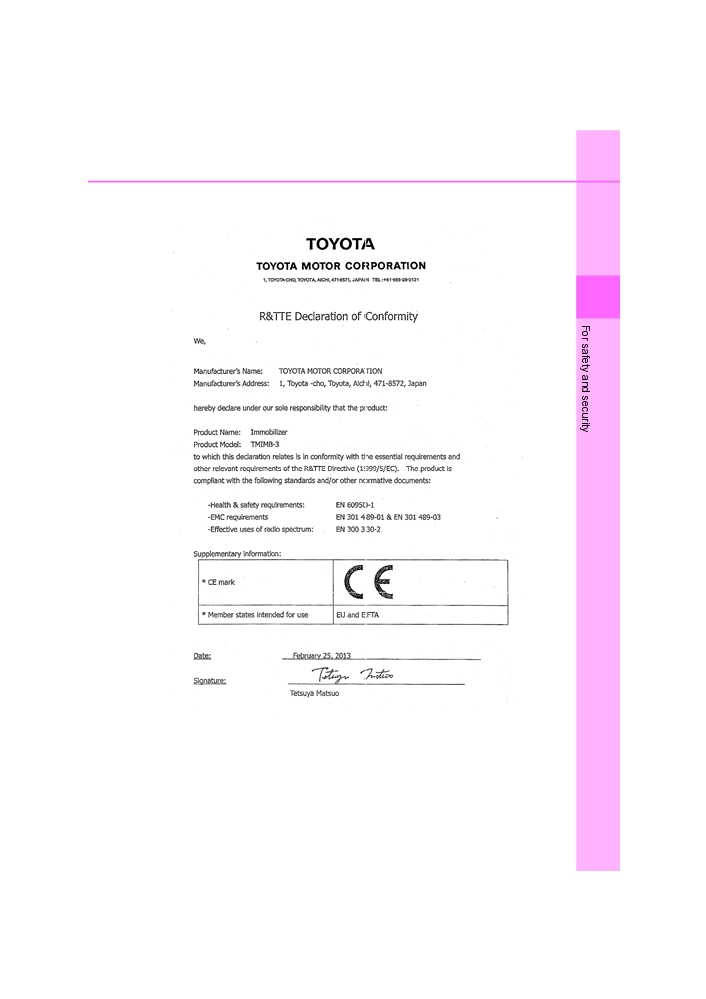

■ Certification for the immobilizer system (vehicles with a smart entry &
start system)
1
YARIS_HV_OM_Europe_OM52G76E
86
1-3. Theft deterrent system
YARIS_HV_OM_Europe_OM52G76E
1-3. Theft deterrent system
87

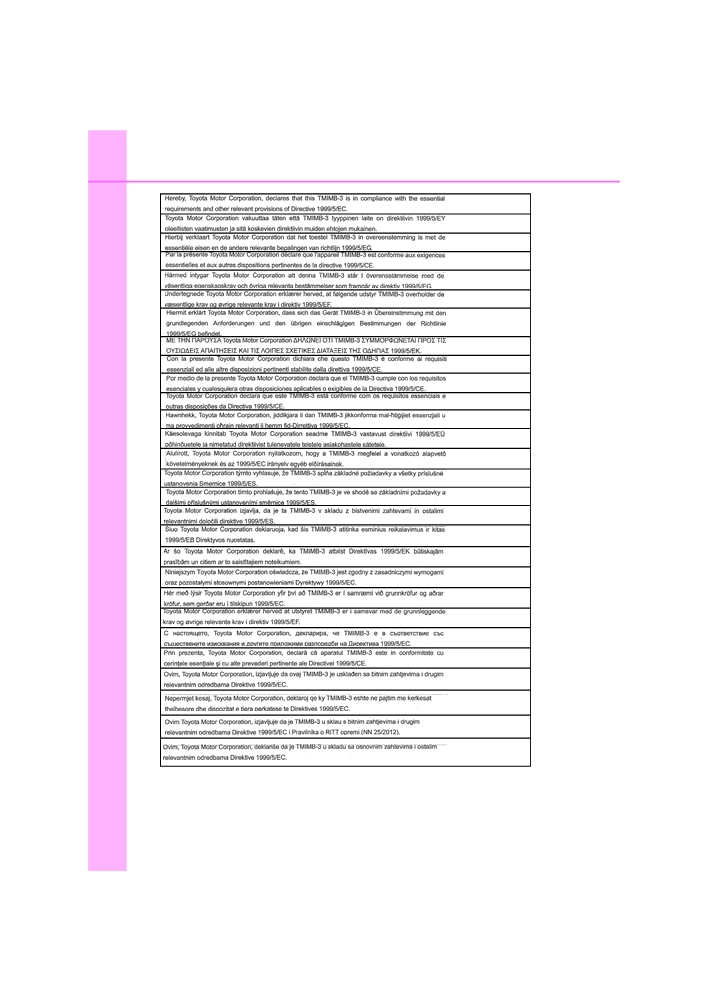

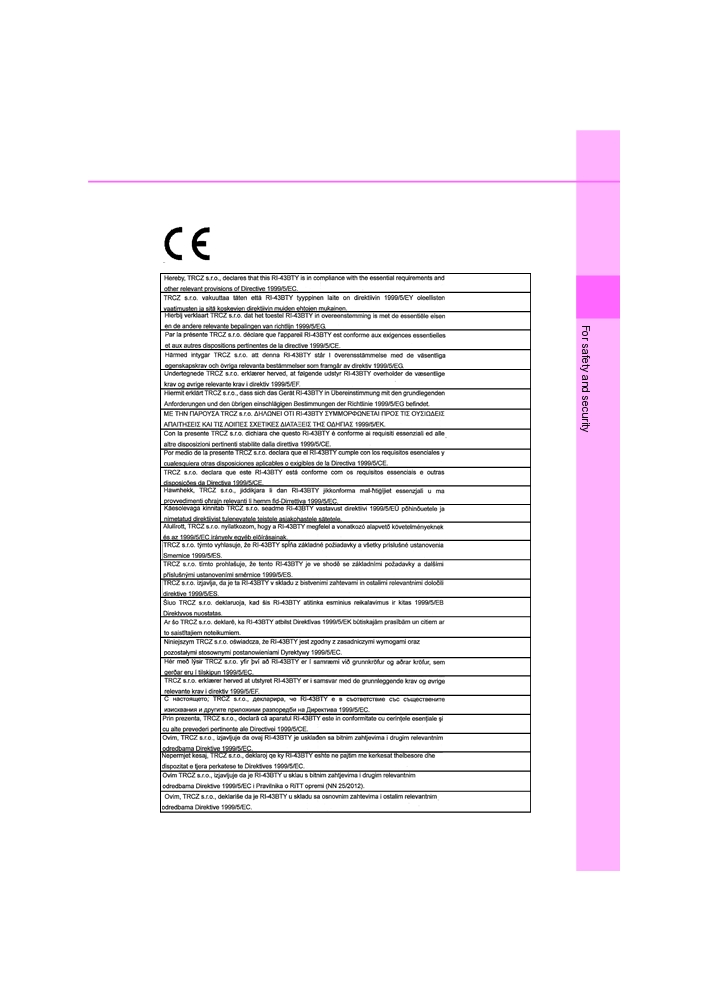

■ Certifications for the immobilizer system (vehicles without a smart entry
& start system)
The DECLARATION of CONFORMITY (DoC) is available at
the following address:
1
YARIS_HV_OM_Europe_OM52G76E
88
1-3. Theft deterrent system
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
YARIS_HV_OM_Europe_OM52G76E
1-3. Theft deterrent system
89

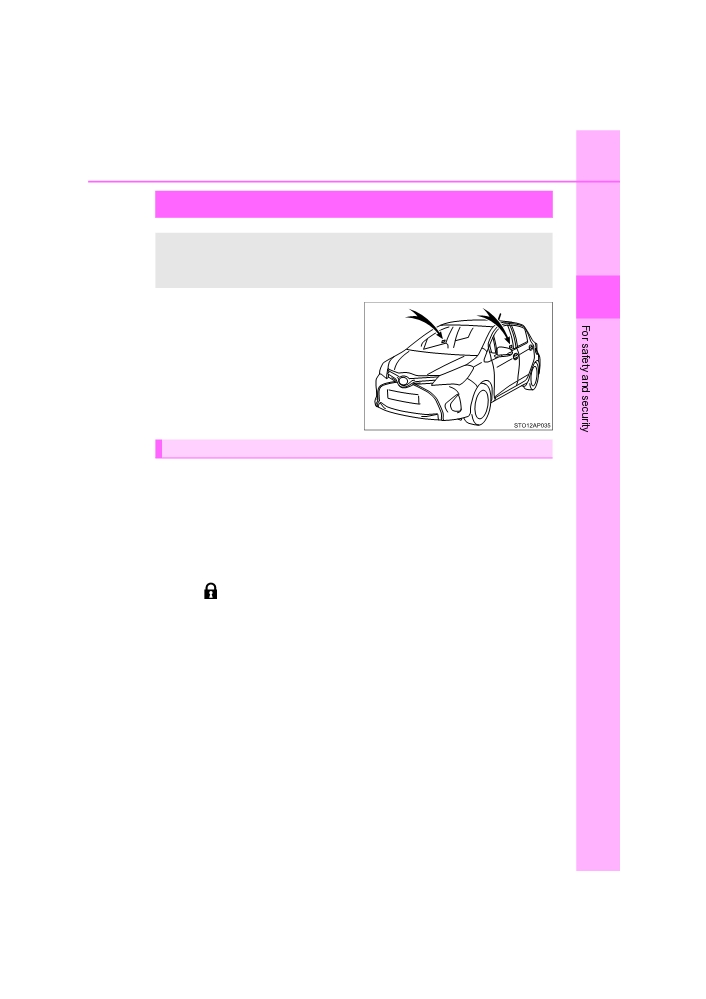

Double locking system
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of
the vehicle.
1
Vehicles employing this system
have labels on the window glass
of both front doors.
Setting the double locking system
Turn the power switch off, have all the passengers exit the vehicle and
ensure that all the doors are closed.
Using the entry function (vehicles with a smart entry & start system
equipped with entry function):
Touch the sensor area on the outside door handle twice within 5 sec-
onds.
Using the wireless remote control:
Press
twice within 5 seconds.
: If equipped
YARIS_HV_OM_Europe_OM52G76E
90
1-3. Theft deterrent system
Canceling the double locking system
Using the entry function (vehicles with a smart entry & start system
equipped with entry function):
Hold either front outside door handle or push up the back door opener
switch.
Using the wireless remote control:
Press
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.
YARIS_HV_OM_Europe_OM52G76E
91
Instrument cluster
2
2.
Instrument cluster
Warning lights and
indicators
92
Gauges and meters
97
Multi-information display
100
Energy monitor/
consumption screen
104
YARIS_HV_OM_Europe_OM52G76E
92
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

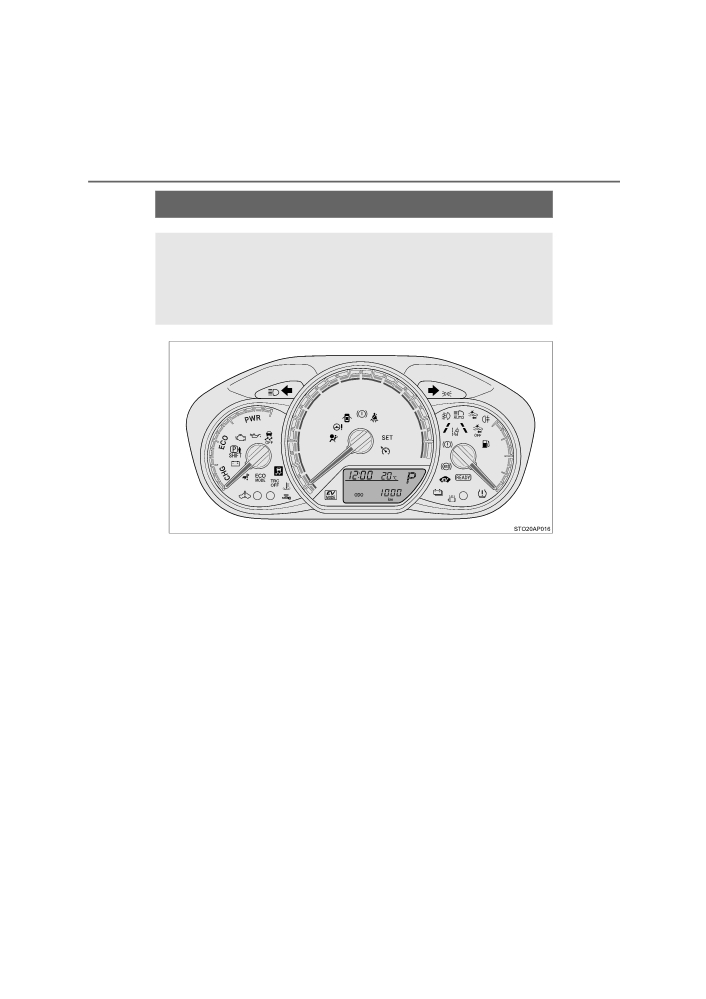

For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
YARIS_HV_OM_Europe_OM52G76E
2. Instrument cluster
93

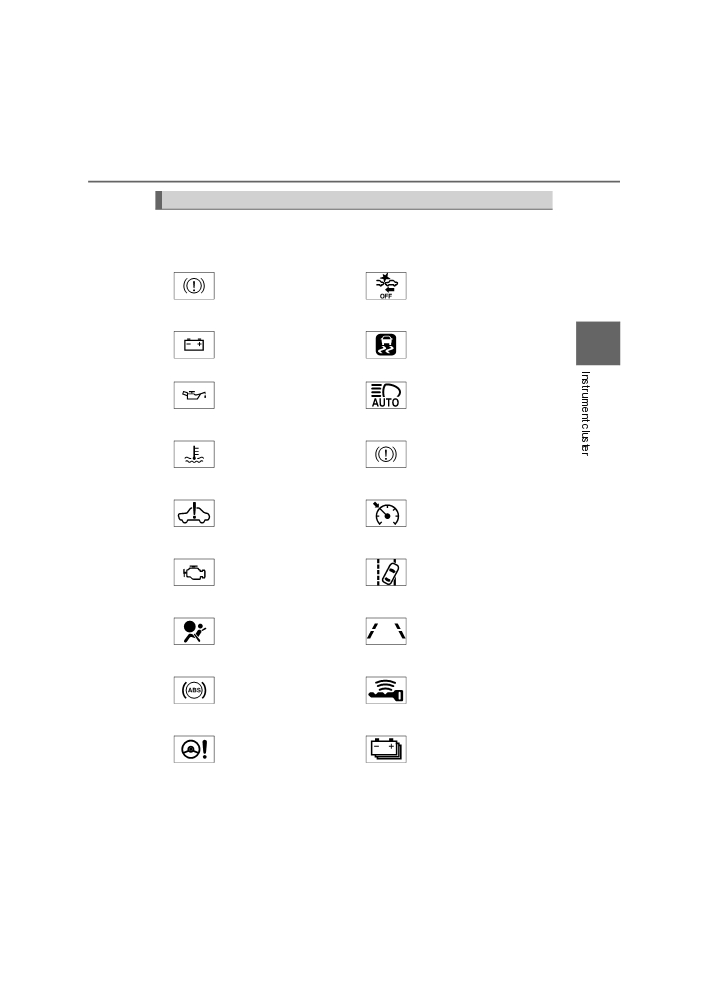

Warning lights
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
*1
*1, 2, 6
Brake system warning
PCS warning light
light (P. 404)
(P. 406)
(Red)
*1
*1, 3
Charging system
Slip indicator (P. 406)
2
warning light (P. 404)
*1
*2
Low engine oil pressure
Automatic High Beam
warning light (P. 404)
indicator (P. 406)
(Yellow)
*1
*1
High engine coolant
Brake system warning
temperature warning
light (P. 407)
light (P. 404)
(Red)
(Yellow)
*1
*2
Hybrid system warning
Cruise control indicator
light (P. 405)
(P. 407)
(Yellow)
*1
*2
Malfunction indicator
LDA indicator (P. 407)
lamp (P. 405)
(Yellow)
*1
*2, 7
SRS warning light
Lane marker indicators
(P. 405)
(P. 407)
(Yellow)
*1
*2, 4
Smart entry & start
ABS warning light
system indicator
(P. 405)
(P. 407, 413)
(Yellow)
*1
*1
Electric power steering
Low traction battery
system warning light
warning light (P. 407)
(P. 405)
YARIS_HV_OM_Europe_OM52G76E
94

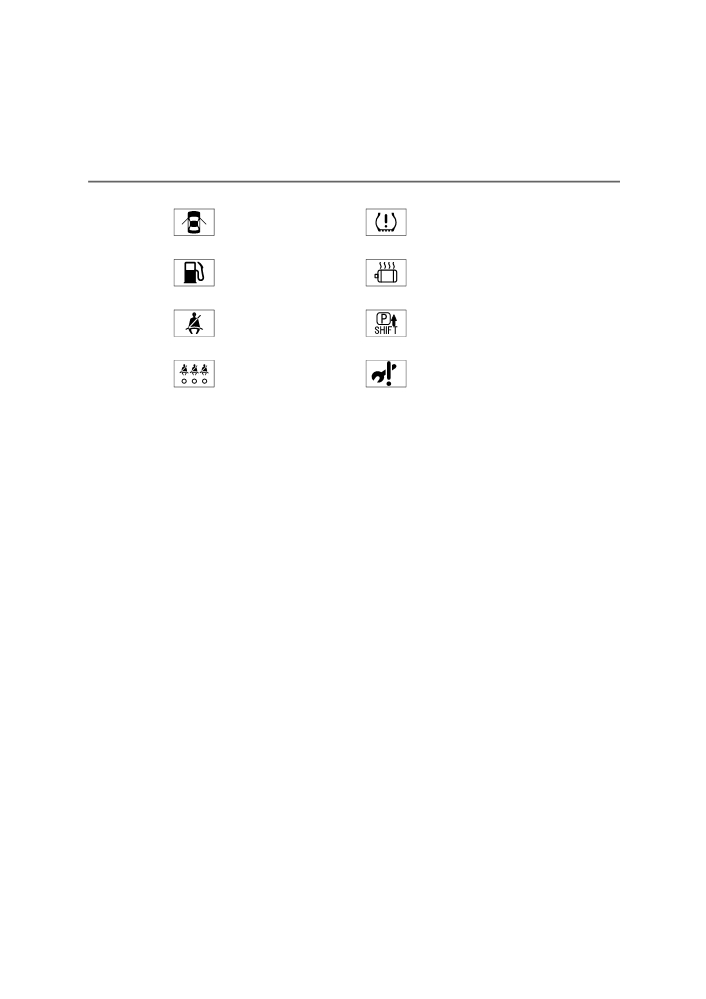

2. Instrument cluster
*2
Open door warning light
Tire pressure warning
(P. 407)
light (P. 408)
*1
Low fuel level warning
Hybrid system overheat
light (P. 407)
warning light (P. 408)
*1
Driver’s and front
P position request
passenger’s seat belt
warning light (P. 408)
reminder light (P. 407)
*5
*3
Rear passengers’ seat
Go to service warning
belt reminder lights
light (P. 409)
(P. 408)
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light turns on to indicate a malfunction.
*4: The light flashes in yellow to indicate a malfunction. The light flashes
quickly in green to indicate that the steering lock has not been released.
*5: The light illuminate on the center panel.
*6: The light flashes to indicate a malfunction.
*7: The lights turn on with LDA indicator to indicate a malfunction.
YARIS_HV_OM_Europe_OM52G76E
2. Instrument cluster
95

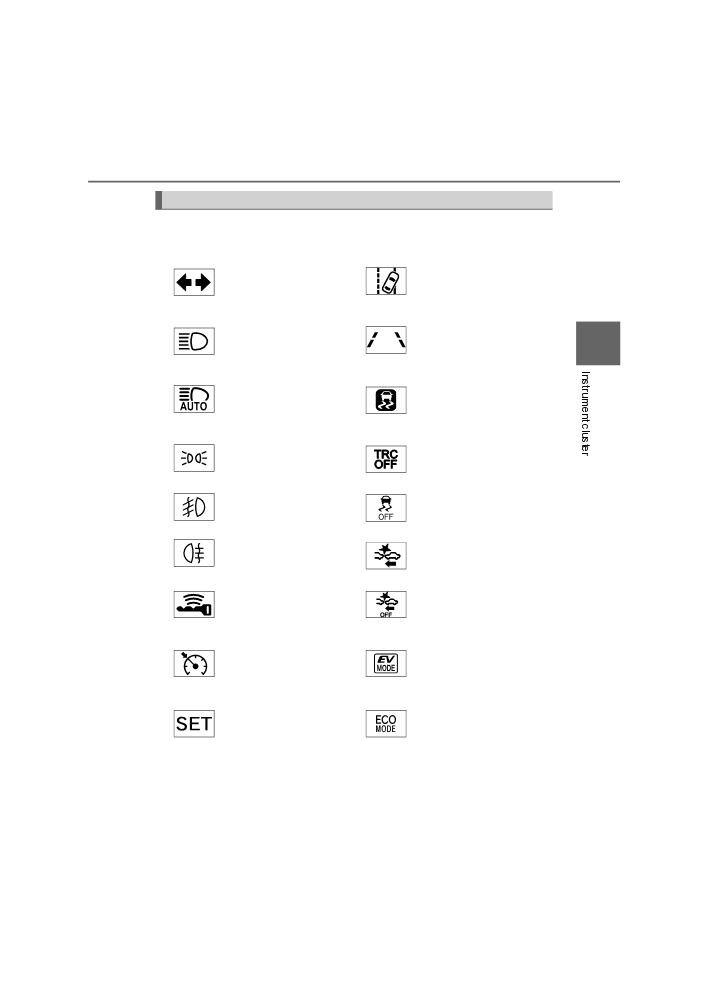

Indicators
The indicators inform the driver of the operating state of the vehicle’s
various systems.
*2
Turn signal indicator
LDA indicator (P. 231)
(P. 194)
(Green)
*2, 7
Lane marker indicators
Headlight high beam
2
(P. 232)
indicator (P. 197)
(Green)
*2
*1, 3
Automatic High Beam
Slip indicator (P. 245)
indicator (P. 236)
(Green)
*1
Tail light indicator
“TRC OFF” indicator
(P. 196)
(P. 245)
*2
*1
Front fog light indicator
VSC OFF indicator
(P. 201)
(P. 246)
*2, 3, 6
Rear fog light indicator
PCS activation indicator
(P. 201)
(P. 218, 221)
*2
*1, 2, 5
Smart entry & start
PCS warning light
system indicator
(P. 221)
(P. 182)
(Green)
*2
Cruise control indicator
EV drive mode indicator
(P. 240)
(P. 188)
(Green)
*2
*1
“SET” indicator
“ECO MODE” indicator
(P. 240)
(P. 191)
YARIS_HV_OM_Europe_OM52G76E
96

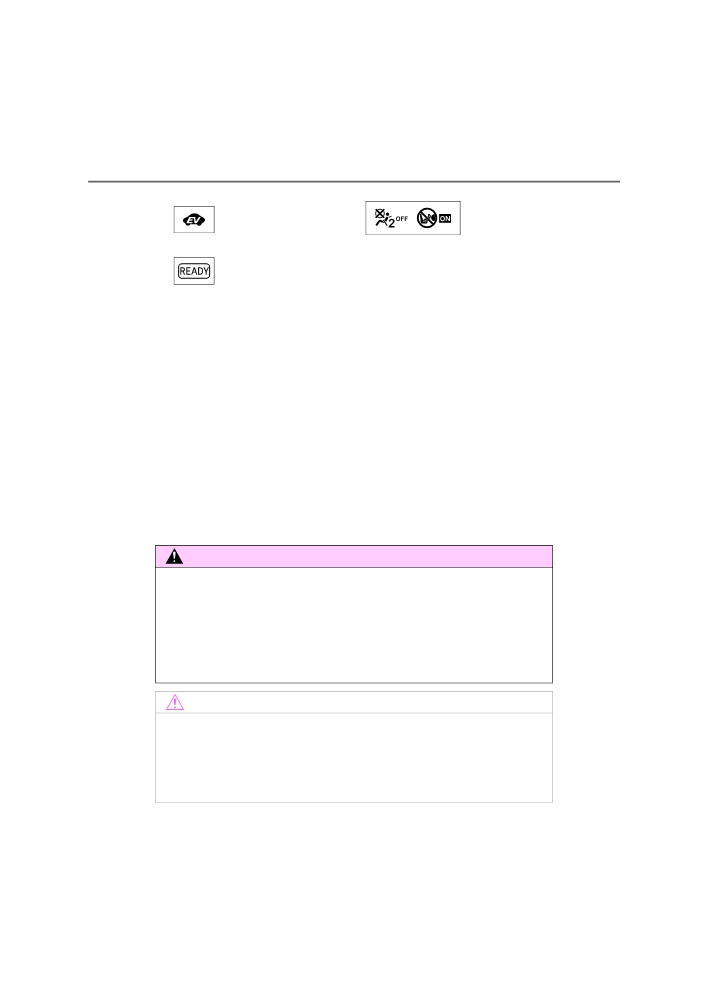

2. Instrument cluster
*4
EV indicator (P. 77)
“PASSENGER AIR BAG” indicator
(P. 52)
“READY” indicator
(P. 178, 182)
*1: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart entry & start system) or ON mode (vehicles with
a smart entry & start system) to indicate that a system check is being per-
formed. They will turn off after the hybrid system on, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: This light illuminates on the center panel.
*5: The light comes on when the system is turned off.
*6: The light comes on when system settings are changed.
*7: The light flashes in yellow to indicate that the vehicle is deviating from the
lane.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
NOTICE
■ To prevent damage to the engine and its components
The engine may be overheating if the high engine coolant temperature
warning light flashes or turns on. In this case, immediately stop the vehicle
in a safe place, and check the engine after it has cooled completely.
(P. 455)
YARIS_HV_OM_Europe_OM52G76E
2. Instrument cluster
97

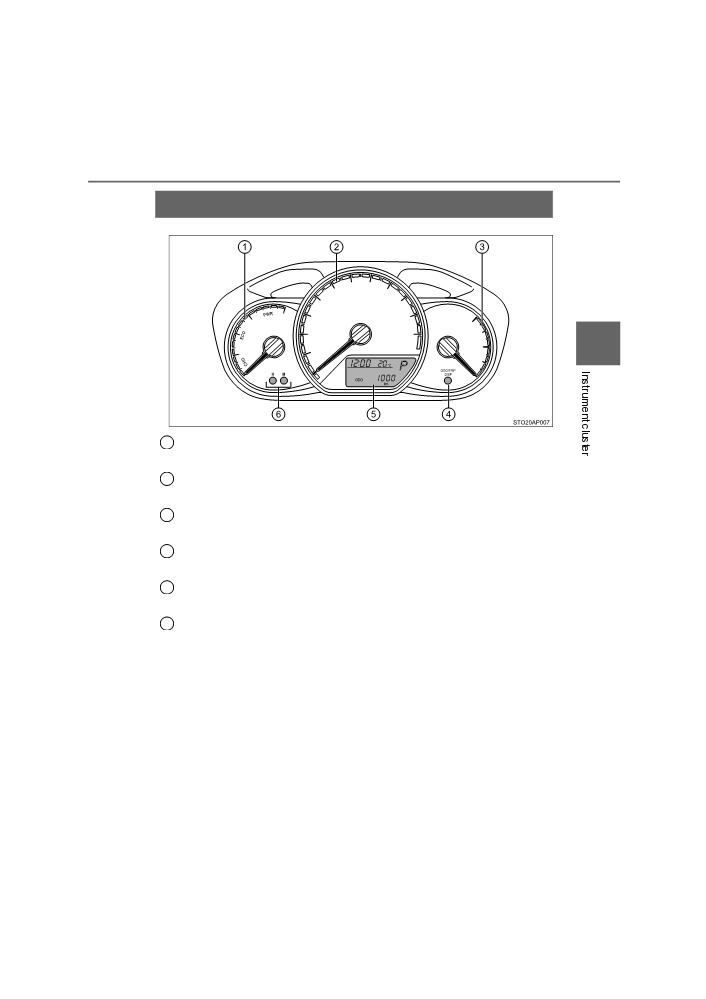

Gauges and meters
2
Hybrid System Indicator
1
Displays hybrid system power output and regenerative level
2
Speedometer
Displays the vehicle speed.
3
Fuel gauge
Displays the quantity of fuel remaining in the tank.
4
Display change button
P. 100
5
Multi-information display
P. 100
6
Clock adjusting buttons
P. 102
YARIS_HV_OM_Europe_OM52G76E
98
2. Instrument cluster

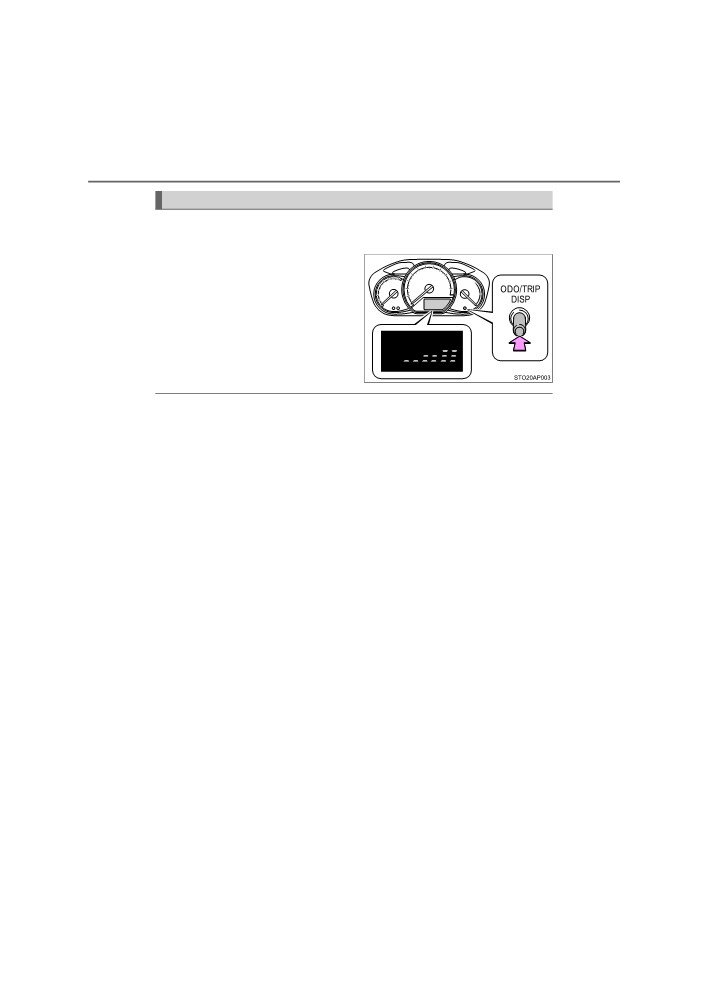

Instrument panel light control
The brightness of the instrument panel lights (when the headlight
switch is on) can be adjusted.
Display the instrument panel light
control by pressing the display
change button. (P. 100)
Then, press and hold the button.
Adjust the brightness to the
desired level by pressing the but-
ton.
■ The meters and display illuminate when
Vehicles without a smart entry & start system
The power switch is in the “ON” position.
Vehicles with a smart entry & start system
The power switch is in ON mode.
YARIS_HV_OM_Europe_OM52G76E
2. Instrument cluster
99

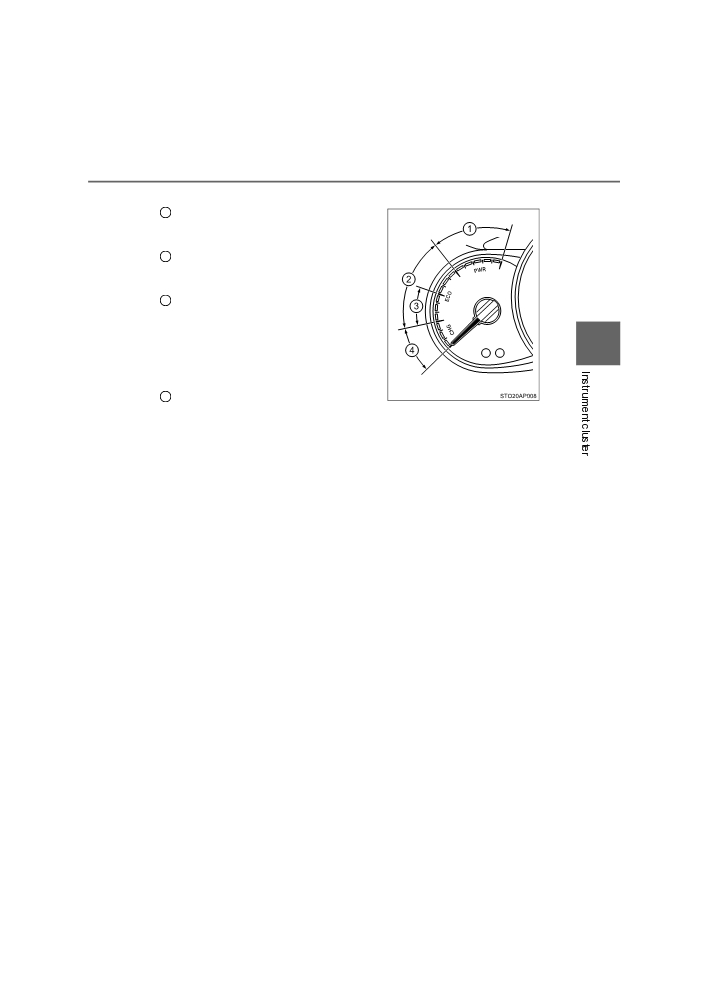

■ Hybrid System Indicator
1
Power area
Shows that the driving power is more
than the upper limit of Eco driving.
2
Eco area
Shows that the vehicle is driven Eco-
friendly.
Hybrid Eco area
3
Shows that the vehicle is driven in a
condition that promotes frequent motor-
only operation.
(When the vehicle is
2
operating with low driving load, such as
when driving slowly, using Hybrid Eco
area leads Eco-friendly driving.)
4
Charge area
Shows regenerative charging.
●By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
YARIS_HV_OM_Europe_OM52G76E
100
2. Instrument cluster

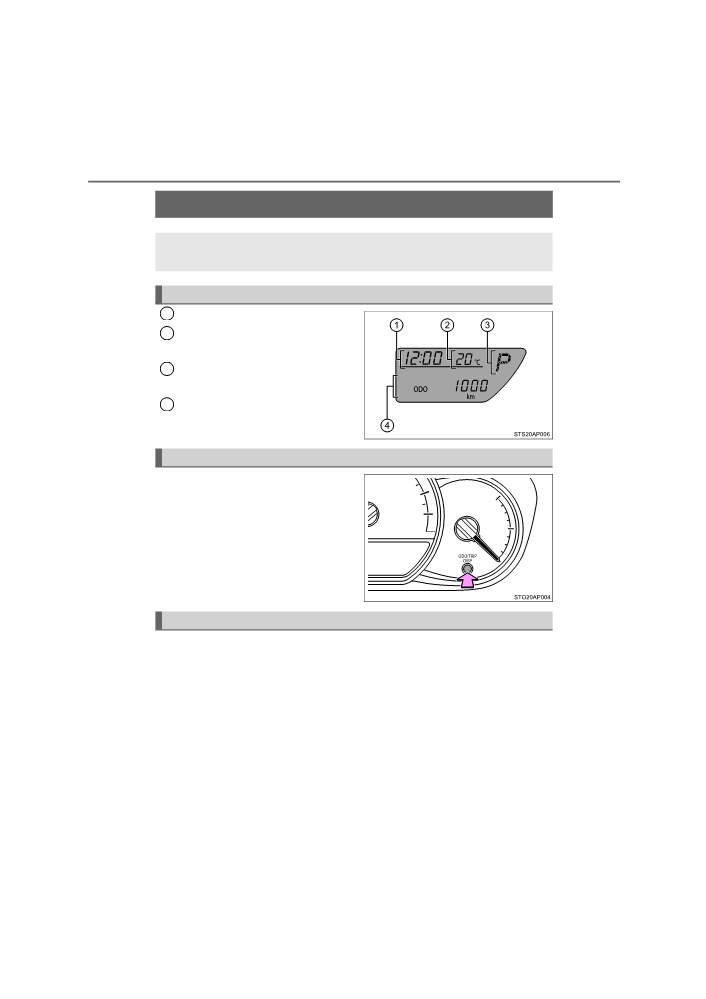

Multi-information display
The Multi-information display presents the driver with a variety
of driving-related data including the clock.
Display contents
1
Clock (P. 102)
2
Outside temperature display
(P. 102)
3
Shift position indicator
(P. 191)
4
Drive information (P. 100)
Changing the display
Items displayed can be switched
by pressing the display change
button.
Drive information
■ Odometer
Displays the total distance the vehicle has been driven.
YARIS_HV_OM_Europe_OM52G76E
2. Instrument cluster
101
■ Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Press and hold the button for longer than 1 second to reset. Pressing and
holding the button while the trip meter is displayed will reset the trip meter
to “0”.
■ Instantaneous fuel consumption
Displays the instantaneous of fuel consumption.
2
• The function can be reset by pressing the button for longer than 1 sec-
ond when the instantaneous fuel consumption is displayed.
• Use the displayed instantaneous fuel consumption as a reference.
■ Average fuel consumption
Displays the average rate of fuel consumption.
• The function can be reset by pressing the button for longer than 1 sec-
ond when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■ Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the power switch to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart entry &
start system). If the vehicle is refueled without turning the power switch to
the “LOCK” position or off, the display may not be updated.
■ Average vehicle speed
Displays the average vehicle speed since the hybrid system was
last started or the function was reset.
The function can be reset by pressing the button for longer than 1 second
when the average vehicle speed is displayed.
YARIS_HV_OM_Europe_OM52G76E
