1-1. For safe use
51

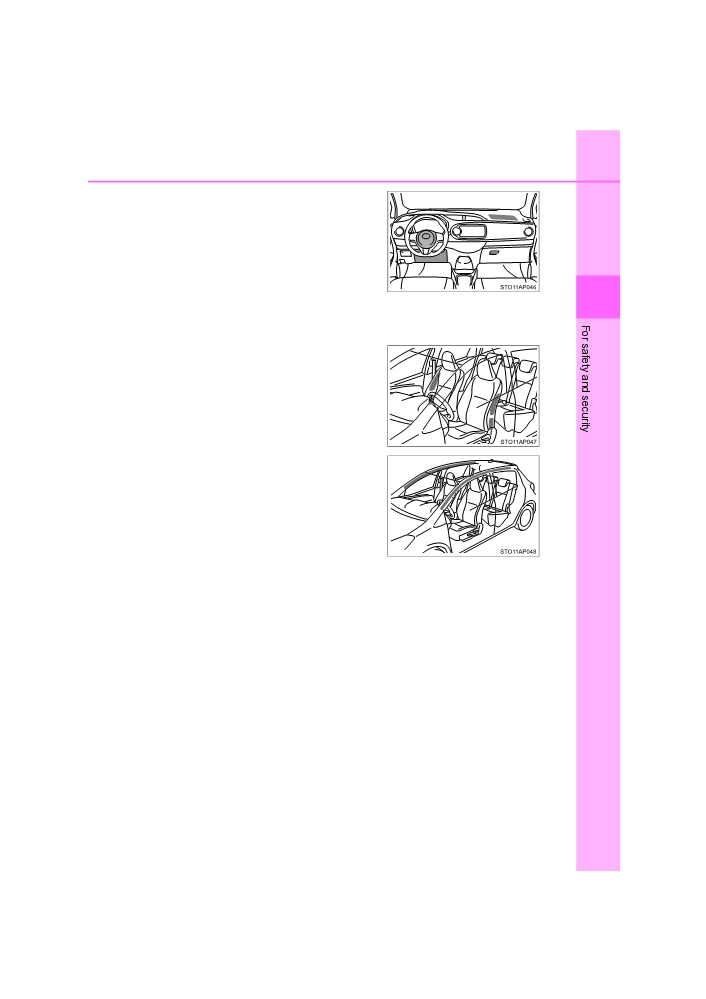

● Vehicles without an SRS driver knee
airbag: The pad section of the steering
wheel or dashboard near the front pas-
senger airbag is scratched, cracked, or
otherwise damaged.
● Vehicles with an SRS driver knee airbag:
The pad section of the steering wheel,
dashboard near the front passenger
1
airbag or lower portion of the instrument
panel is scratched, cracked, or other-
wise damaged.
● The surface of the seats with the side
airbag is scratched, cracked, or other-
wise damaged.
● Vehicles with SRS curtain shield
airbags: The portion of the front pillars,
rear pillars or roof side rail garnishes
(padding) containing the curtain shield
airbags is inside scratched, cracked, or
otherwise damaged.
YARIS_HV_OM_Europe_OM52G76E
52
1-1. For safe use
Airbag manual on-off system
This system deactivates the front passenger airbag.
Only deactivate the airbags when using a child restraint system
on the front passenger seat.
1

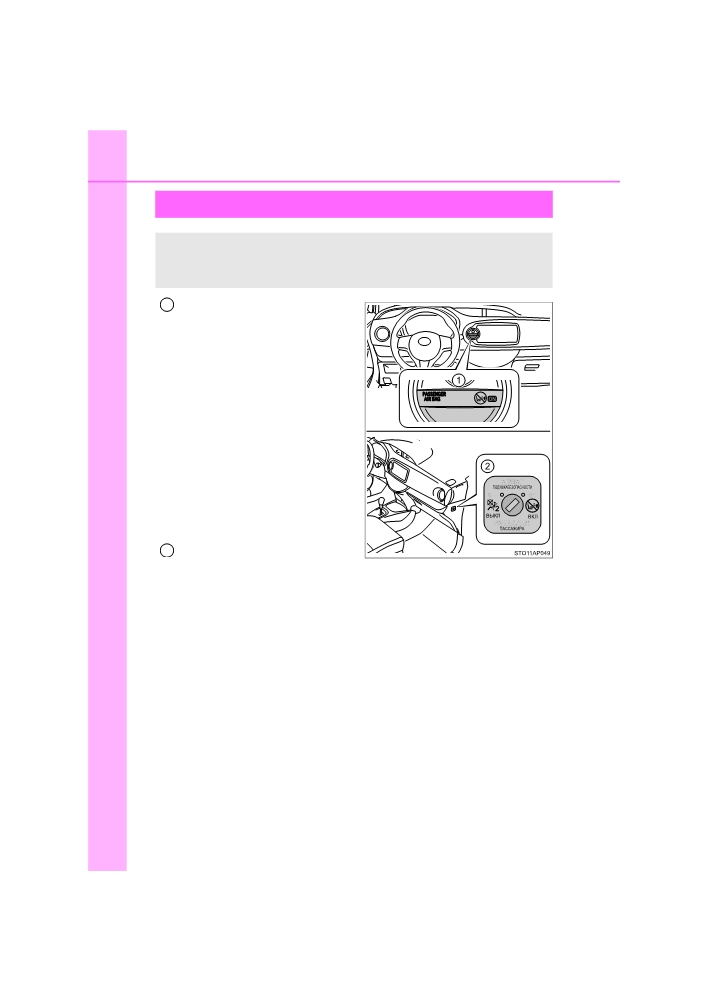

“PASSENGER AIR BAG” indi-
cator
Vehicles without a smart entry
& start system
This indicator light turns on
when the airbag system is on
(only when the power switch is
in the “ON” position).
Vehicles with a smart entry &
start system
This indicator light turns on
when the airbag system is on
(only when the power switch is
in ON mode).
Airbag manual on-off switch
2
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
53

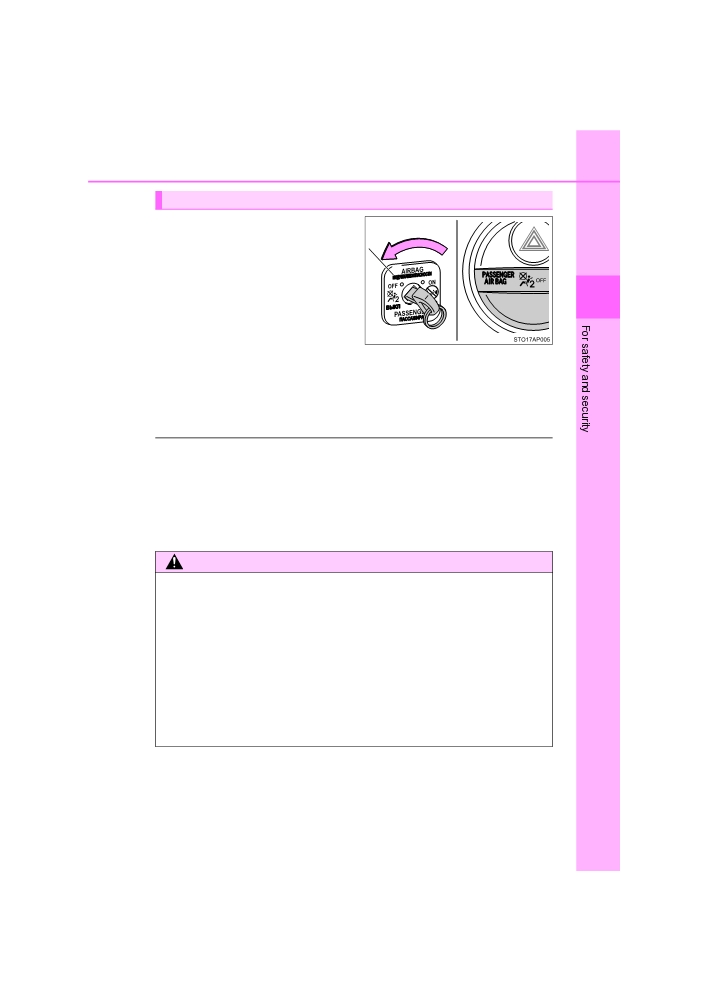

Deactivating the front seat passenger airbag
Vehicles without a smart entry
& start system
Insert the key into the cylinder
and turn to the “OFF” position.
The “OFF” indicator light turns on
1
(only when the power switch is in
the “ON” position).
Vehicles with a smart entry &
start system
Insert the mechanical key into the cylinder and turn to the “OFF”
position.
The “OFF” indicator light turns on (only when the power switch is in ON
mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
● Neither “ON” nor “OFF” comes on.
● The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
WARNING
■ When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat be used as long
as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left “ON”, the strong impact of the
airbag deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left
“OFF”, the airbag may not deploy in the event of an accident,
which may result in serious injury or even death.
YARIS_HV_OM_Europe_OM52G76E
54
1-1. For safe use
Safety information for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
● It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
55
Child restraint systems
Toyota strongly urges the use of child restraint systems.
Points to remember
1
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 65)
● If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
● Toyota recommends that you use a child restraint system which
conforms to the regulation ECE No.44.
YARIS_HV_OM_Europe_OM52G76E
56
1-1. For safe use
Types of child restraints
Child restraint systems are classified into the following
5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I:
9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II:
15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III:
22 to 36 kg (49 to 79 lb.) (6 years - 12 years)

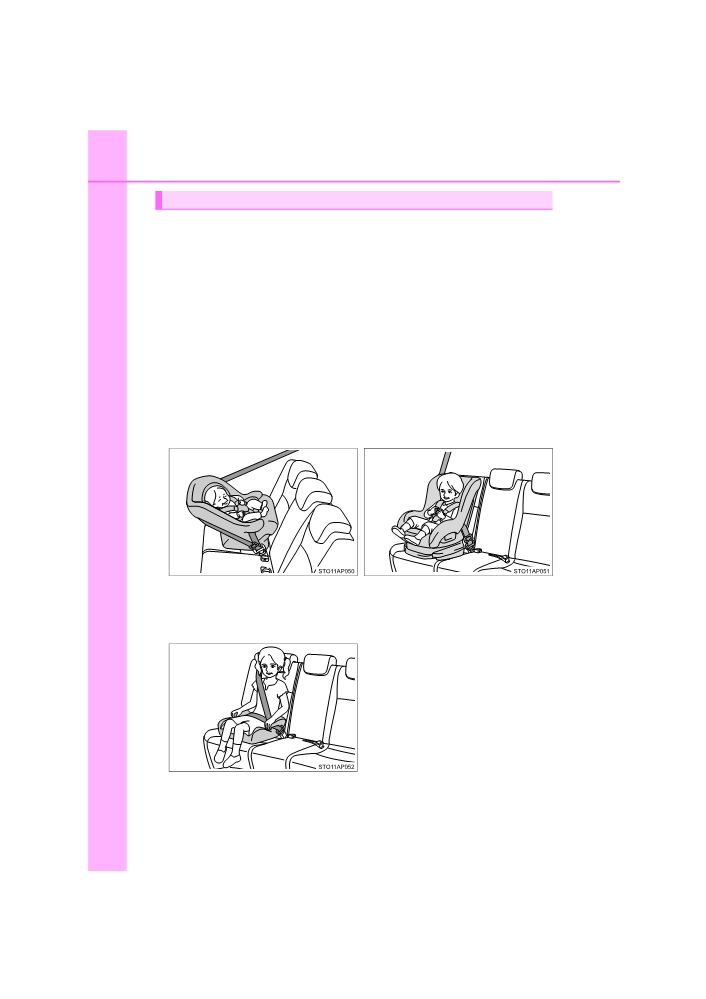

In this owner’s manual, the following 3 types of popular child restraint
systems that can be secured with the seat belts are explained:
Baby seat
Child seat
Equal to Group 0 and 0+ of ECE
Equal to Group 0+ and I of ECE
No.44
No.44
Junior seat
Equal
to Group II and III of ECE
No.44
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
57
Child restraint system suitability for various seating positions
Information provided in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
Seating
Front passenger seat
1
positions
Recommended child
Airbag manual on-off switch
restraint systems
Mass groups
ON
OFF
“TOYOTA G 0+,
BABYSAFE”
0
“TOYOTA G 0+,
Up to 10 kg
X
BABYSAFE PLUS”
L
(22 lb.)
Never put
“TOYOTA G 0+,
(0 - 9 months)
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
“TOYOTA G 0+,
BABYSAFE”
0+
“TOYOTA G 0+,
Up to 13 kg
X
BABYSAFE PLUS”
L
(28 lb.)
Never put
“TOYOTA G 0+,
(0 - 2 years)
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
Rear-facing —
I
X
9 to 18 kg
Never put
(20 to 39 lb.)
UF*1
“TOYOTA DUO+”
(9 months -
Forward-facing —
4 years)
UF*1
II, III
15 to 36 kg
“TOYOTA KID”
UF*1
UF*1
(34 to 79 lb.)
“TOYOTA KIDFIX”
(4 - 12 years)
NOTE:
Vehicles with a vertical height adjustment lever, must have the seat
cushion adjusted to the highest position.
YARIS_HV_OM_Europe_OM52G76E
58
1-1. For safe use
Rear outer seats
Seating positions
Recommended child
Right-hand
Left-hand
restraint systems
Mass groups
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
0
BABYSAFE PLUS”
Up to 10 kg (22 lb.)
U
U
“TOYOTA G 0+,
(0 - 9 months)
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
“TOYOTA G 0+,
BABYSAFE”
“TOYOTA G 0+,
0+
BABYSAFE PLUS”
Up to 13 kg (28 lb.)
U
U
“TOYOTA G 0+,
(0 - 2 years)
BABYSAFE PLUS with
SEAT BELT FIXATION,
BASE PLATFORM”
I
9 to 18 kg (20 to 39 lb.)
U
U
“TOYOTA DUO+”
(9 months - 4 years)
II, III
15 to 36 kg
“TOYOTA KID”
U
U
(34 to 79 lb.)
“TOYOTA KIDFIX”
(4 - 12 years)
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
59
Rear center seat
Seating positions
Recommended child restraint
Center
systems
Mass groups
0
“TOYOTA G 0+, BABYSAFE”
Up to 10 kg (22 lb.)
L
“TOYOTA G 0+, BABYSAFE PLUS”
(0 - 9 months)
1
0+
“TOYOTA G 0+, BABYSAFE”
Up to 13 kg (28 lb.)
L
“TOYOTA G 0+, BABYSAFE PLUS”
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
L*2
“TOYOTA DUO+”
(9 months - 4 years)
II, III
15 to 36 kg
“TOYOTA KID”
L*2
(34 to 79 lb.)
“TOYOTA KIDFIX”
(4 - 12 years)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L: Suitable for specific child seats. These child seats may be
intended for use in a special car model, limited or semi-universal
categories.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seat back to the most upright position. Move the
front seat cushion to the fully rearward.
*2: When you use a child restraint system in this position, remove
the head restraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems which are
different from the systems mentioned in the table can be used, but the
suitability of the systems must be carefully checked with the child
restraint system manufacturer concerned and the seller of those
seats.
YARIS_HV_OM_Europe_OM52G76E
60
1-1. For safe use
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Information provided in the table shows your child restraint system
suitability for various seating positions.
Vehicle ISOFIX
positions
Mass
Size
Recommended child
Fixture
groups
class
restraint systems
Right-
Left-
hand
hand
F
ISO/L1
X
X
—
Carrycot
G
ISO/L2
X
X
—
(1)
X
X
—
“TOYOTA G 0+,
Group 0
BABYSAFE PLUS with
E
ISO/R1
IL*1
IL*1
ISO-FIX FIXATION,
Up to 10 kg
(22 lb.)
BASE PLATFORM”
(1)
X
X
—
“TOYOTA G 0+,
BABYSAFE PLUS with
E
ISO/R1
IL*1
IL*1
ISO-FIX FIXATION,
Group 0+
BASE PLATFORM”
Up to 13 kg
D
ISO/R2
X
X
—
(28 lb.)
C
ISO/R3
X
X
—
(1)
X
X
—
D
ISO/R2
X
X
—
C
ISO/R3
X
X
—
Group I
B
ISO/F2
IUF*2
IUF*2
9 to 18 kg
2
B1
ISO/F2X
IUF*
IUF*2
“TOYOTA DUO+”
(20 to 39 lb.)
A
ISO/F3
IUF*2
IUF*2
(1)
X
X
—
Group II
15 to 25 kg
(1)
X
X
—
(34 to 55 lb.)
Group III
22 to 36 kg
(1)
X
X
—
(49 to 79 lb.)
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
61
(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufacturer
shall indicate the vehicle specific ISOFIX child restraint system(s)
recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of uni-
1
versal category approved for the use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for
“specific vehicles”, “restricted”, or “semiuniversal”, approved for
this type of vehicle.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*1: If the child seat is installed behind a front seat equipped with
height adjuster and the front seat is adjusted below middle height
position, then adjust the front seat head restraint to the highest
position.
*2: When you use a child restraint system in this position, remove
the head restraint.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area. Other child restraint systems different
from the systems mentioned in the table can be used, but the suitabil-
ity of the systems must be carefully checked with the child restraint
system manufacturer and retailer.
YARIS_HV_OM_Europe_OM52G76E
62
1-1. For safe use

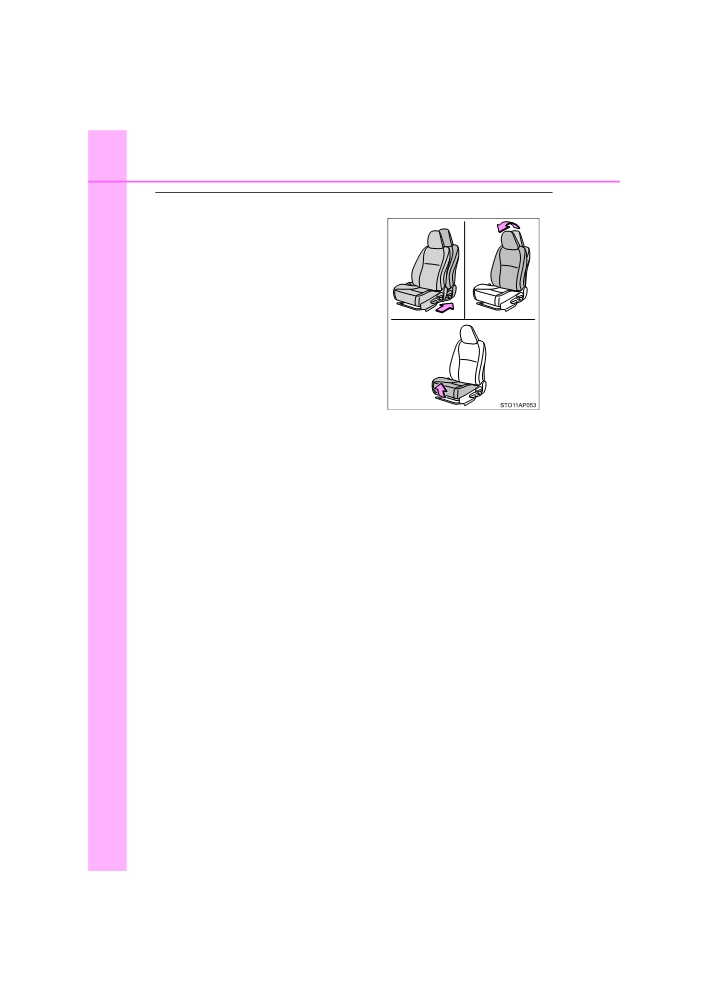

■ When installing a child restraint system on the front passenger seat
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
● The seatback to the most upright posi-
tion
● The seat as far back as possible
● The seat cushion to the highest position
(if equipped)
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 34)
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
63
WARNING
■ Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
■ Child restraint precautions
1
●For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
●Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 52)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top strap should not be used in the front passenger seat since
there is no top strap anchor for the front passenger seat. Adjust the seat-
back as upright as possible and always move the seat as far back as pos-
sible because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Vehicles without SRS curtain shield airbags: Do not allow the child to lean
his/her head or any part of his/her body against the door or the area of the
seat from which the SRS side airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags inflate,
and the impact could cause death or serious injury to the child.
YARIS_HV_OM_Europe_OM52G76E
64
1-1. For safe use
WARNING
■ Child restraint precautions
● Vehicles with SRS curtain shield airbags: Do not allow the child to lean his/
her head or any part of his/her body against the door or the area of the
seat, front and rear pillars or roof side rails from which the SRS side
airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and cur-
tain shield airbags inflate, and the impact could cause death or serious
injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
65

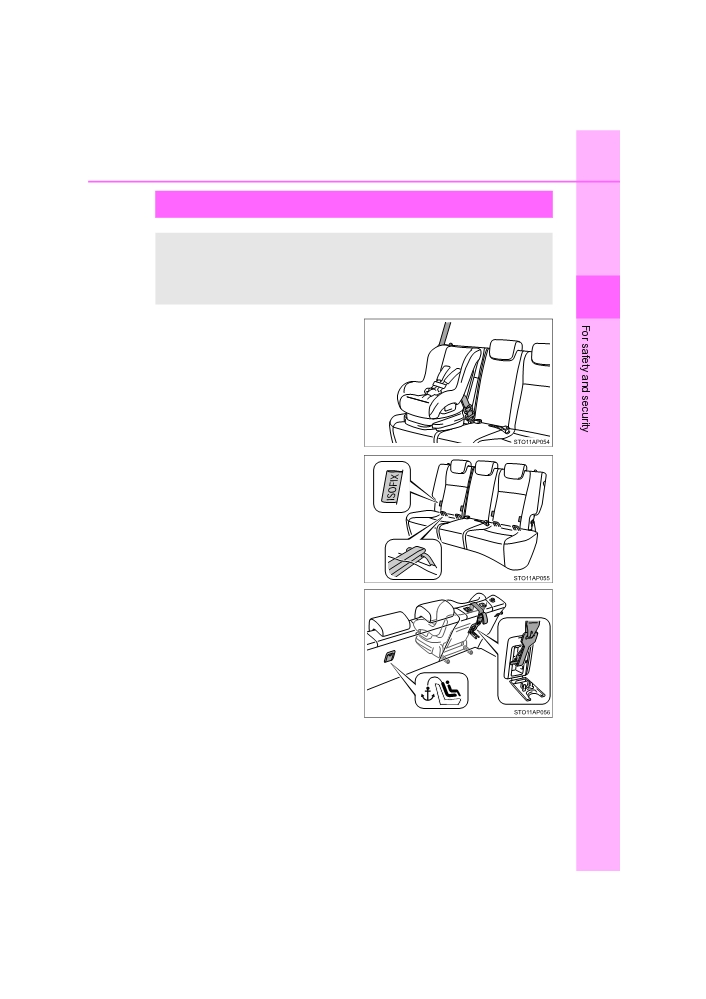

Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.
1
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors
(ISOFIX
child restraint system)
Lower anchors are provided for the
rear outer seats. (Tags displaying
the location of the anchors are
attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
the rear outer seats.
YARIS_HV_OM_Europe_OM52G76E
66
1-1. For safe use
Installing child restraints using a seat belt

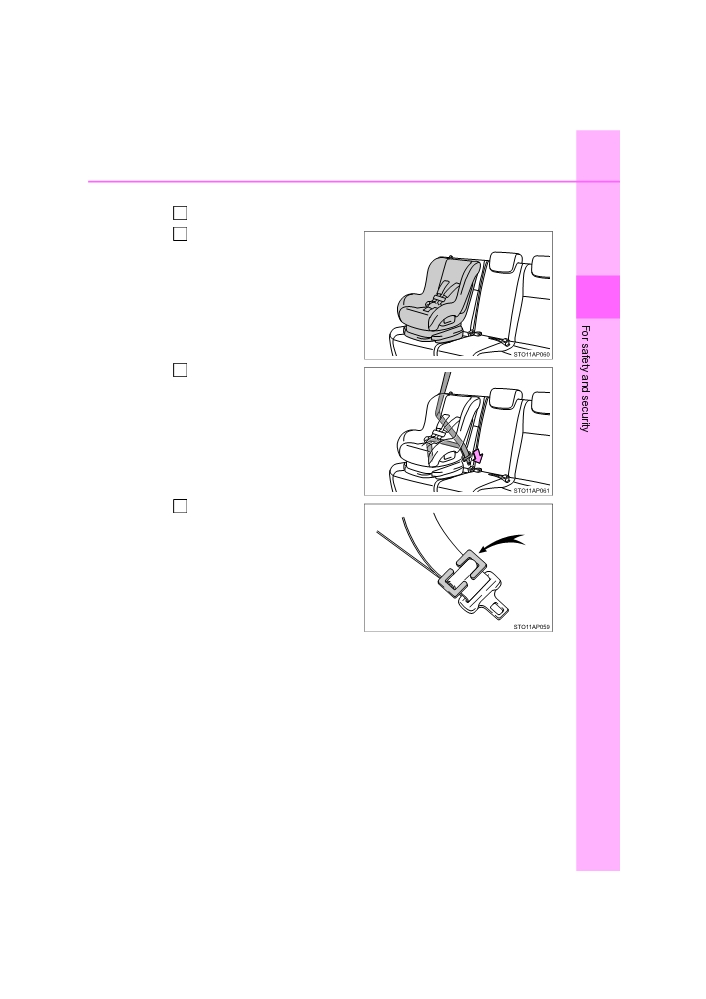

■ Rear-facing Baby seat/child seat
Place the child restraint sys-
1
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
2
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
3
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
YARIS_HV_OM_Europe_OM52G76E
1-1. For safe use
67

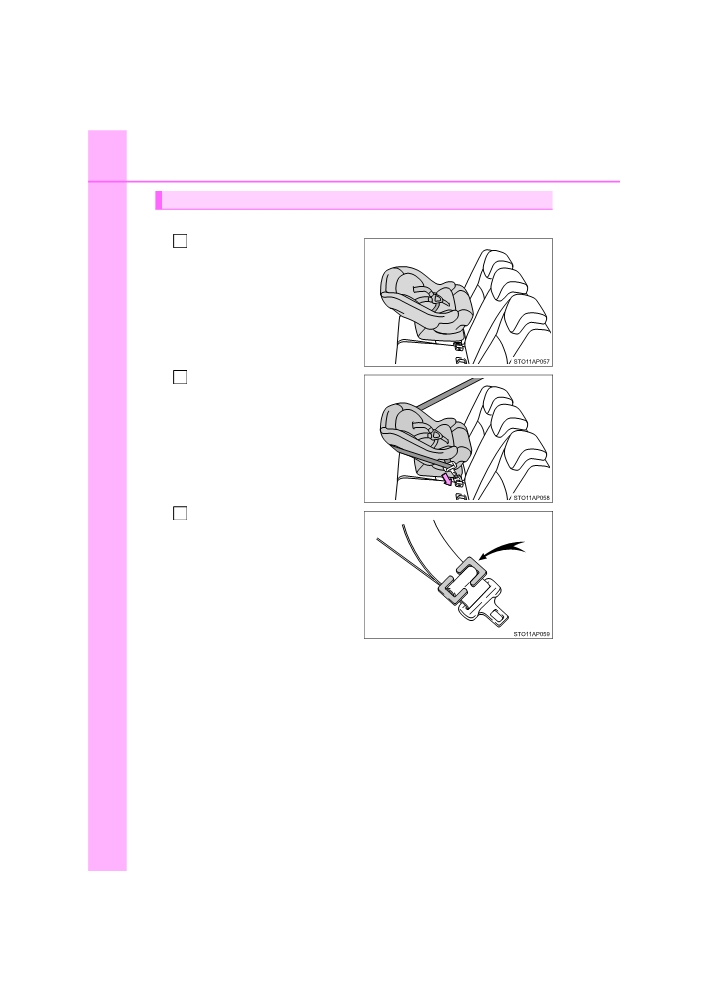

■ Forward-facing Child seat
1
Remove the head restraint. (P. 153)
2
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
1
Run the seat belt through the
3
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Install a locking clip near the
4
tab of the lap and shoulder
belt by inserting the lap and
shoulder webbing through
the recesses of the locking
clip. Buckle the belt again. If
the belt has any slack,
release the buckle and rein-
stall the locking clip.
YARIS_HV_OM_Europe_OM52G76E
