8-2. Steps to take in an emergency
663
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
8
C-HR_HV_OM_Europe_OM10538E
664
8-2. Steps to take in an emergency
C-HR_HV_OM_Europe_OM10538E
665
Vehicle specifications
9
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)
666
Fuel information
677
9-2. Customization
Customizable features
679
9-3. Initialization
Items to initialize
689
C-HR_HV_OM_Europe_OM10538E
666
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
4360 mm (171.7 in.)
Overall width
1795 mm (70.7 in.)
Overall height*1
1555 mm (61.2 in.)
Wheelbase
2640 mm (103.9 in.)
Front
1550 mm (61.0 in.)
Tread
Rear
1560 mm (61.4 in.)
Gross vehicle mass
1860 kg (4101 lb.)
Front
1050 kg (2315 lb.)
Maximum permissi-
ble axle capacity
Rear
1080 kg (2381 lb.)
Drawbar load*2
75 kg (165 lb.)
Without brake
Towing capacity*2
725 kg (1598 lb.)
With brake
*1: Unladen vehicle
*2: Except for Guadeloupe and Martinique
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
667
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.

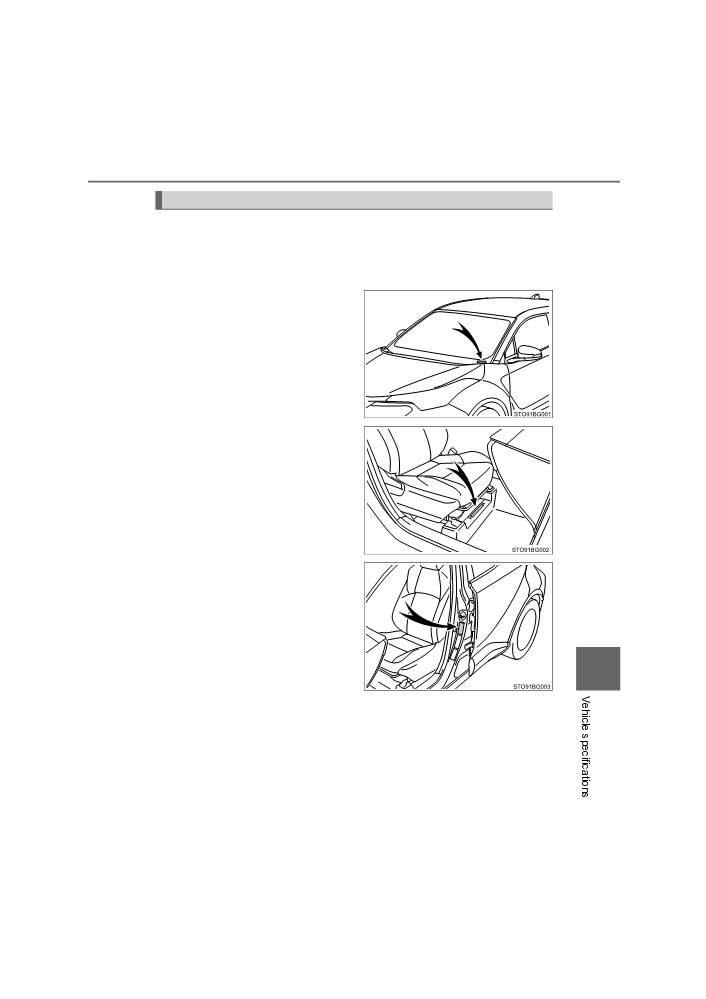

This number is stamped on the
top left of the instrument panel.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
9
C-HR_HV_OM_Europe_OM10538E
668
9-1. Specifications
■ Engine number

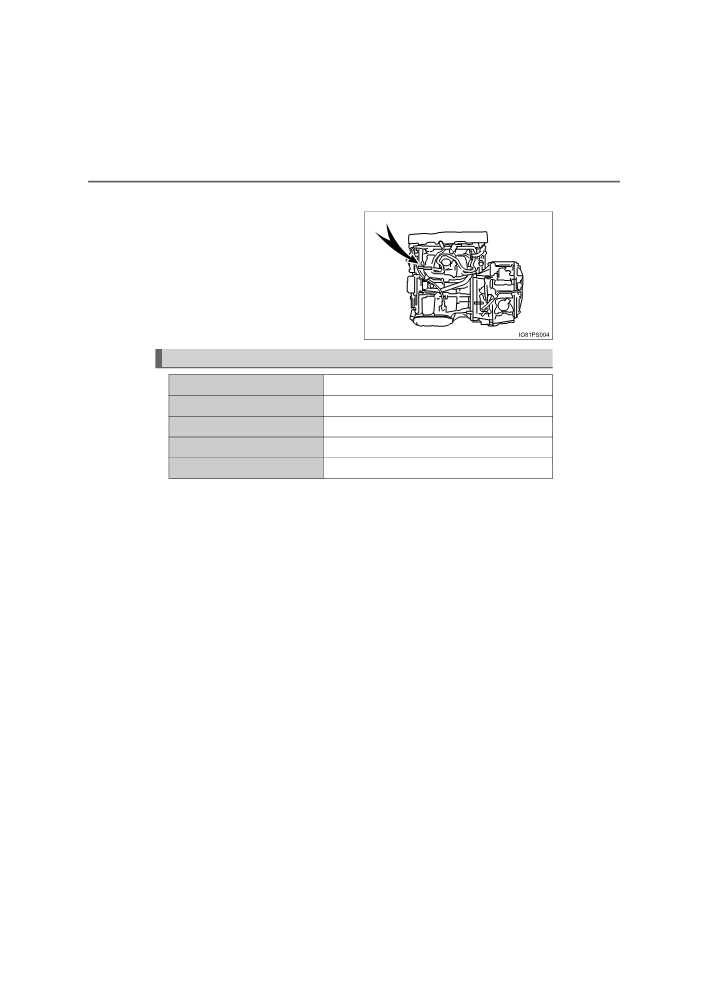

The engine number is stamped
on the engine block as shown.
Engine
Model
2ZR-FXE
Type
4-cylinder in line, 4-cycle, gasoline
Bore and stroke
80.5 88.3 mm (3.17 3.48 in.)
Displacement
1798 cm3 (109.7 cu.in.)
Valve clearance
Automatic adjustment
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
669
Fuel
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Fuel type
Except EU area:
Unleaded gasoline only
Research Octane Number
95 or higher
Fuel tank capacity
43 L (11.4 gal., 9.5 lmp.gal.)
(Reference)
Electric motor (traction motor)
Type
Permanent magnet synchronous motor
Maximum output
53 kW
Maximum torque
163 N·m (16.6 kgf·m, 120.2 ft·lbf)
Hybrid battery (traction battery)
Type
Nickel-Metal hydride battery
Voltage
7.2 V/module
Capacity
6.5 Ah (3HR)
Quantity
28 modules
Overall voltage
201.6 V
9
C-HR_HV_OM_Europe_OM10538E
670
9-1. Specifications
Lubrication system
Oil capacity
(Drain and refill reference*)
With filter
4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter
3.9 L (4.1 qt., 3.4 Imp.qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
Preferred
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.

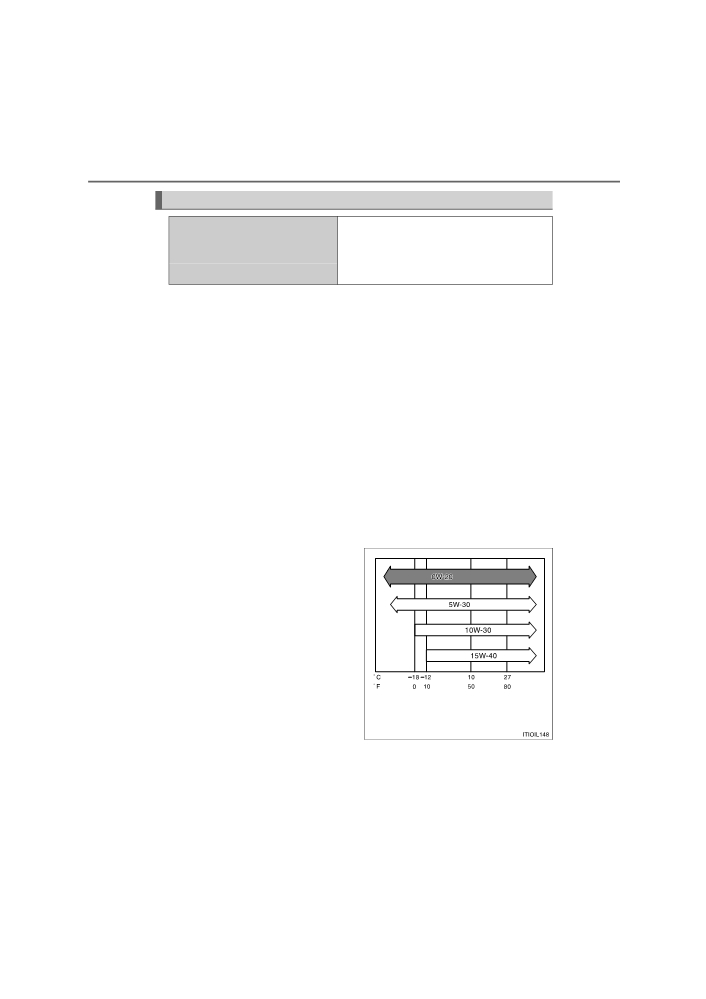

Temperature range anticipated
If you use SAE 10W-30 or a
before next oil change
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
671
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

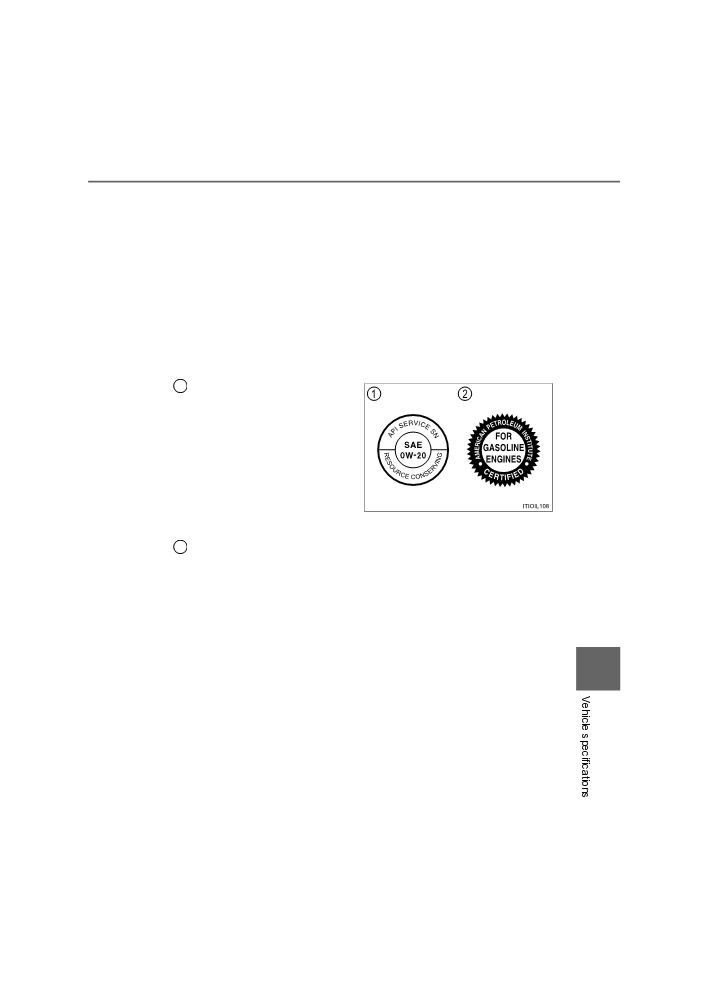

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
1
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion:
“SAE
0W-20”
means the SAE viscosity grade.
Lower portion:
“Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
2
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
9
C-HR_HV_OM_Europe_OM10538E
672
9-1. Specifications
Cooling system
Gasoline
5.4 L (5.7 qt., 4.7 Imp.qt.)
engine
Capacity*
Power
1.4 L (1.5 qt., 1.3 Imp.qt.)
control unit
Use either of the following:
•
“Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
Coolant type
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.
Ignition system (spark plug)
Make
DENSO FC16HR-C9
Gap
0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
673
Electrical system (12-volt battery)
Battery
Specific voltage reading at
12.0 V or higher
20C (68F):
If the specific voltage is lower than the
standard value, charge the battery.
Charging rates
5 A max.
Transmission
Fluid capacity*
3.6 L (3.8 qt., 3.2 Imp.qt.)
Fluid type
Toyota Genuine ATF WS
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer.
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
9
C-HR_HV_OM_Europe_OM10538E
674
9-1. Specifications
Brakes
Pedal clearance*
119 mm (4.9 in.)
Pedal free play
1 5 mm (0.04 0.20 in.)
SAE J1703 or FMVSS No.116 DOT 3 or
Fluid type
SAE J1704 or FMVSS No.116 DOT 4
*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.
Steering
Free play
Less than 30 mm (1.2 in.)
Tires and wheels
16-inch tires
Tire size
215/65R16 98H
Tire inflation pressure
Front
(Recommended cold tire
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
inflation pressure)
Rear
Wheel size
16 6 1/2J
Wheel nut torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
675
17-inch tires
Tire size
215/60R17 96H
Front
Tire inflation pressure
(Recommended cold tire
Rear
230 kPa (2.3 kgf/cm2
or bar, 33 psi)
inflation pressure)
Spare
Wheel size
17 6 1/2J
Wheel nut torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
18-inch tires
Tire size
225/50R18 95V
Tire inflation pressure
Front
(Recommended cold tire
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
inflation pressure)
Rear
Wheel size
18 7J
Wheel nut torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
Compact spare tire (if equipped)
T145/90D16 106M,
Tire size
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
inflation pressure)
Wheel size
16 4T, 18 4T
Wheel nut torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
9
■ When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
C-HR_HV_OM_Europe_OM10538E
676
9-1. Specifications
Light bulbs
Light bulbs
W
Type
Headlights (halogen bulbs)
55
A
Front fog lights (bulb type)*
19
B
Front turn signal lights (bulb type)
21
C
Side turn signal lights
5
D
Exterior
Rear turn signal lights (bulb type)
21
D
Rear fog light
21
E
Back-up lights (bulb type)
16
E
Licence plate lights
5
E
Vanity lights*
8
E
Front interior lights/personal lights
5
E
Interior
Rear interior light
8
F
Luggage compartment light
5
E
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (amber)
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
*: If equipped
C-HR_HV_OM_Europe_OM10538E
9-1. Specifications
677
Fuel information
EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
■ Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
9
C-HR_HV_OM_Europe_OM10538E
678
9-1. Specifications
NOTICE
■ Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
C-HR_HV_OM_Europe_OM10538E
9-2. Customization
679
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Customizing vehicle features
■ Changing using the multi-information display
Press “” or “” of the meter control switches, select
1
2
Press “” or “” of the meter control switches, select “Meter
Settings”, and then press
3
Press “” or “” of the meter control switches, select the item,
and then press
4
Press “” or “” of the meter control switches, select the desired
setting, and then press
To go back to the previous screen or exit the customize mode,
press
9
C-HR_HV_OM_Europe_OM10538E
