8-2. Steps to take in an emergency
629
WARNING
■ When fixing the flat tire
●Stop your vehicle in a safe and flat area.
●Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.
● To avoid risk of burst or severe leakage, do not drop or damage the bottle.
Visually inspect the bottle before use. Do not use a bottle with shock,
crack, scratch, leakage or any other damage. In such case, immediately
replace.
●Connect the valve and hose securely with the wheel installed to the vehi-
cle. If the hose is not properly connected to the valve, air leakage may
occur and sealant may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
● After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
● Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
●The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.
● Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
8
around the connecting area between the bottle and the compressor. It will
be extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.
C-HR_HV_OM_Europe_OM10538E
630
8-2. Steps to take in an emergency
WARNING
■ Driving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
● If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3 kgf/cm2
or bar, 19 psi) or less, the tire may be severely damaged.
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
631
NOTICE
■ When performing an emergency repair
● A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
●The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust, etc., a malfunction may
occur.
●Do not turn the bottle upside down when using it, as doing so may cause
damage to the compressor.
■ Precautions for the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
● If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
● Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
● Store the repair kit in the tool tray under the deck mat out of reach of chil-
dren.
●Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
8
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer or other qualified service shop as soon as possible. After use of liq-
uid sealant, make sure to replace the tire pressure warning valve and trans-
mitter when repairing or replacing the tire. (P. 543)
C-HR_HV_OM_Europe_OM10538E
632
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 541
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 586)
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
633

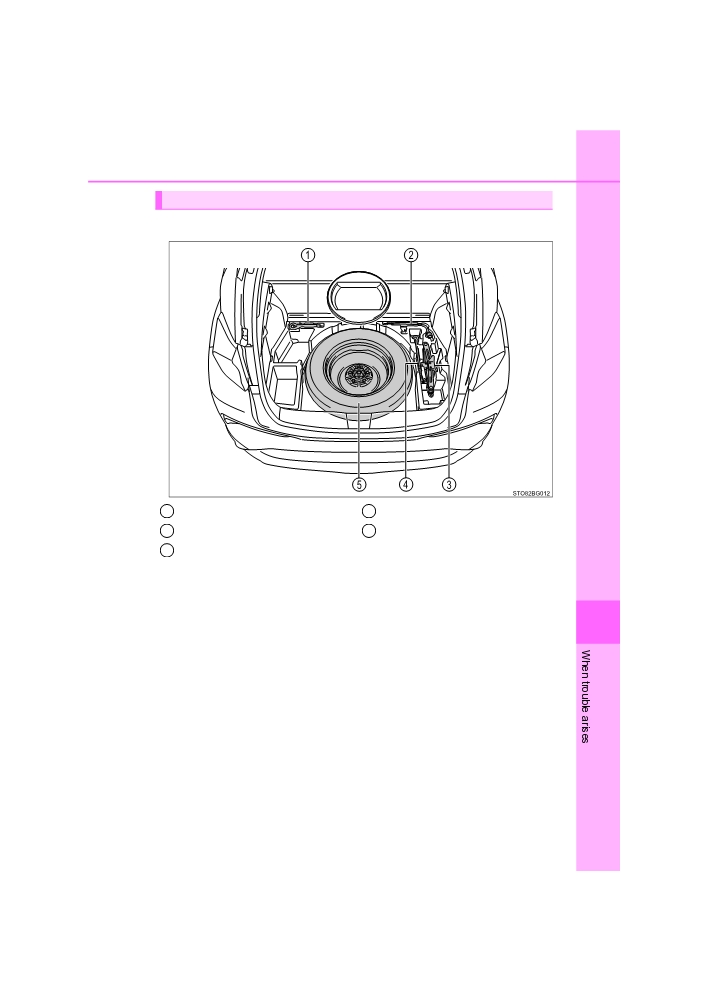

Location of the spare tire, jack and tools
Vehicles with compact spare tire
1
Towing eyelet
4
Jack handle
2
Wheel nut wrench
5
Spare tire
3
Jack
8
C-HR_HV_OM_Europe_OM10538E
634
8-2. Steps to take in an emergency

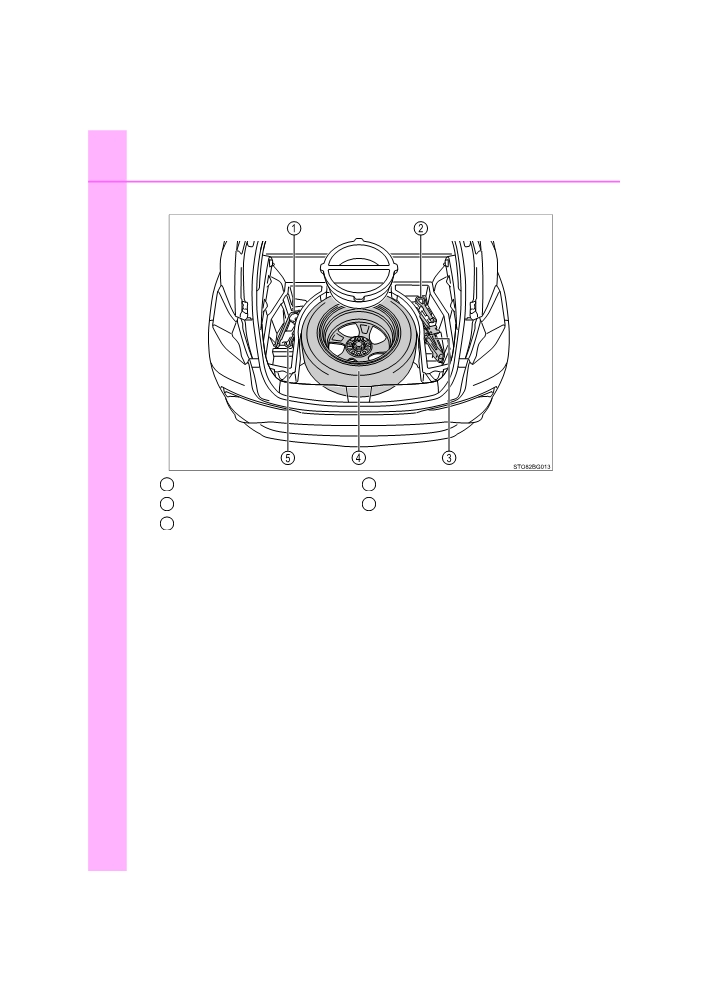

Vehicles with full-size spare tire
1
Wheel nut wrench
4
Spare tire
2
Towing eyelet
5
Jack handle
3
Jack
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
635
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Put the jack properly in its jack point. (P. 638)
●Do not put any part of your body under the vehicle while it is supported by
the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
●Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
8
C-HR_HV_OM_Europe_OM10538E
636
8-2. Steps to take in an emergency

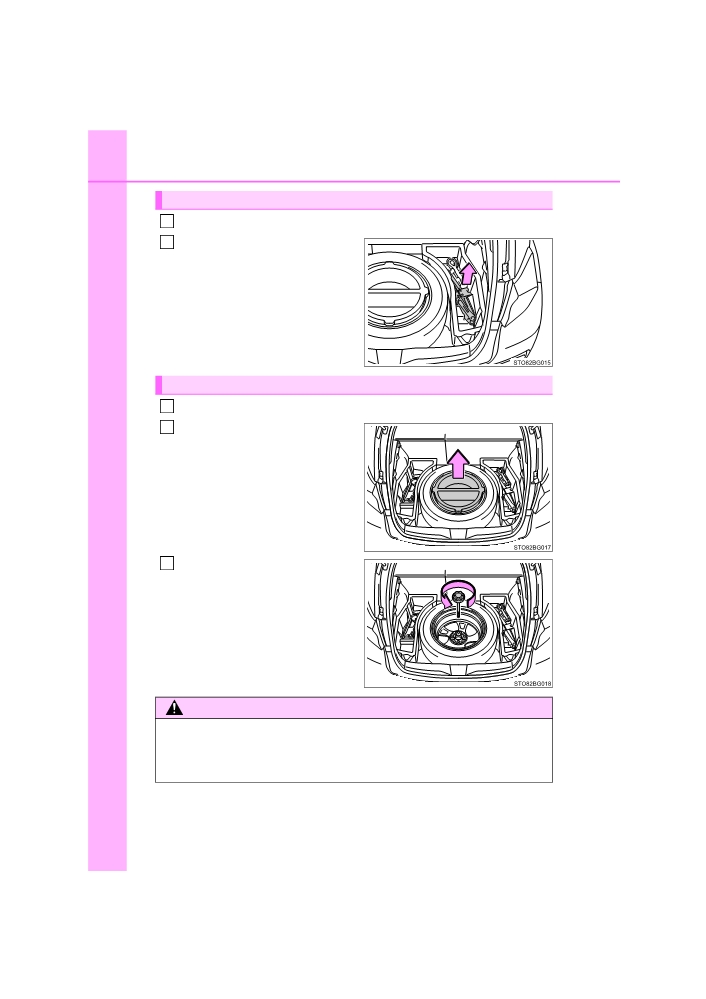

Taking out the jack
1
Remove the deck board. (P. 498)
2
Take out the jack.
Taking out the spare tire
1
Remove the deck board. (P. 498)
2
Remove the cushion.
Loosen the center fastener that
3
secures the spare tire.
WARNING
■ When storing the spare tire
Be careful not to get fingers or other body parts caught between the spare
tire and the body of the vehicle.
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
637

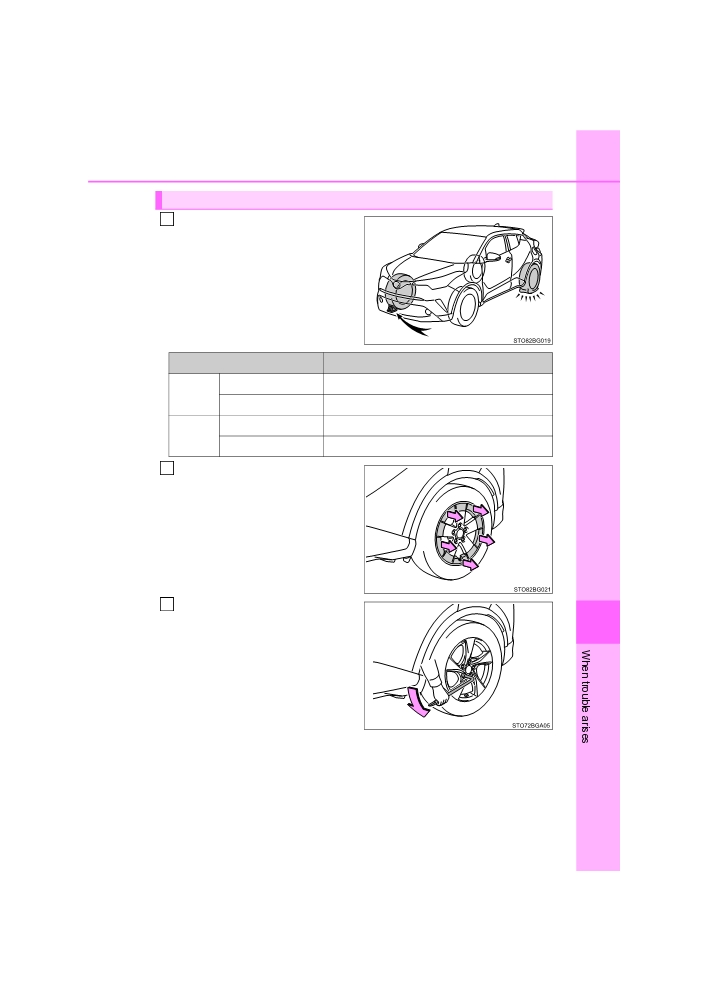

Replacing a flat tire
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
2
For vehicles with a
16-inch
wheels, remove each catch of
the wheel ornament around the
perimeter by hand.
3
Slightly loosen the wheel nuts
8
(one turn).
C-HR_HV_OM_Europe_OM10538E
638
8-2. Steps to take in an emergency

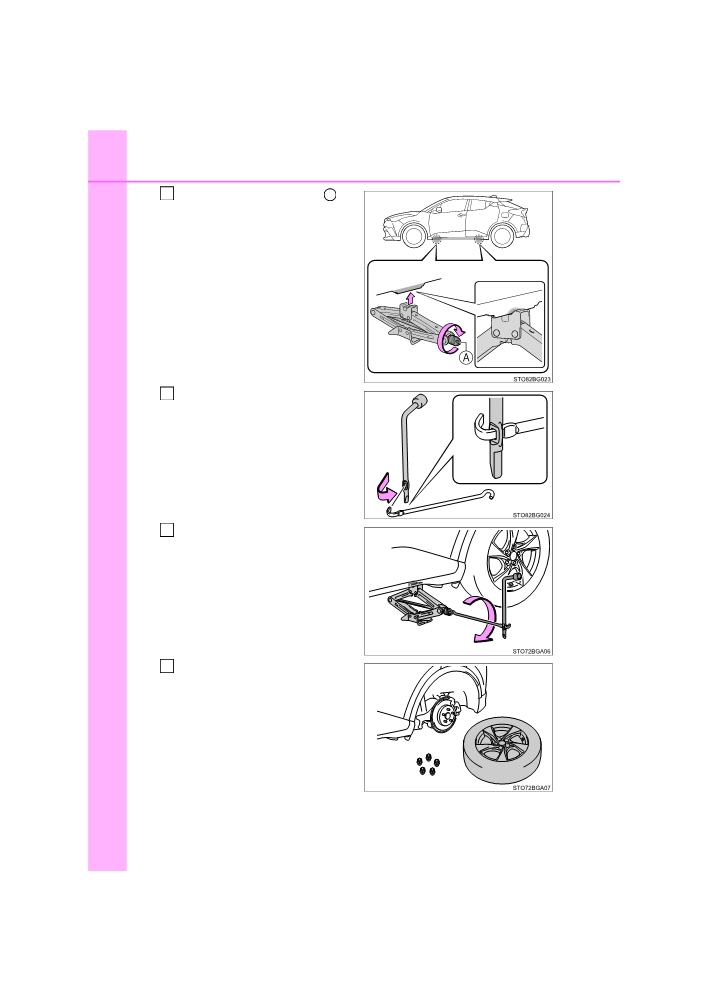

4
Turn the tire jack portion
A
by
hand until the center of the
recessed portion of the jack is
in contact with the center of the
jack point.
Assemble the jack handle and
5
the wheel nut wrench as shown
in the illustration.
Raise the vehicle until the tire is
6
slightly raised off the ground.
7
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
639
WARNING
■ Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Except for vehicles with 16-inch wheels: Do not try to remove the wheel
ornament by hand. Take due care in handling the ornament to avoid
unexpected personal injury.
• Vehicles with 16-inch wheels: If the wheel cap is grasped when holding
the wheel, it may suddenly disconnect and the wheel may be dropped.
(P. 557)
• Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven, the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc., may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
• When installing the wheel nuts, be sure to install the wheel nuts with the
tapered ends facing inward. (P. 556)
8
C-HR_HV_OM_Europe_OM10538E
640

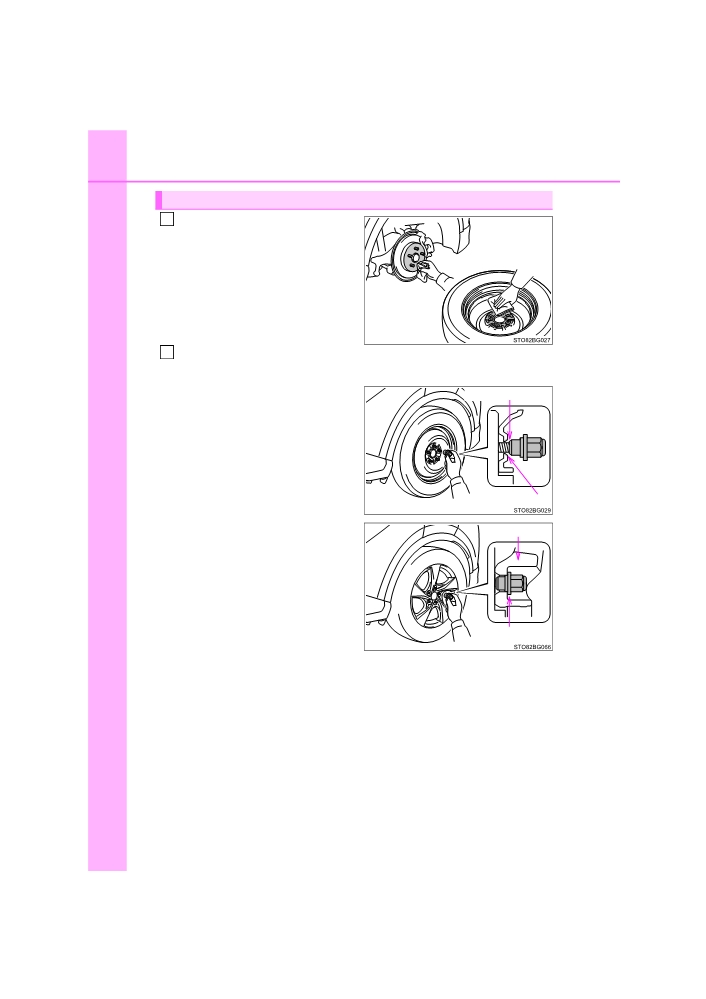

8-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing an aluminum
Tapered portion
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Disc wheel seat
When replacing an aluminum
Disc wheel
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Washer
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
641
3

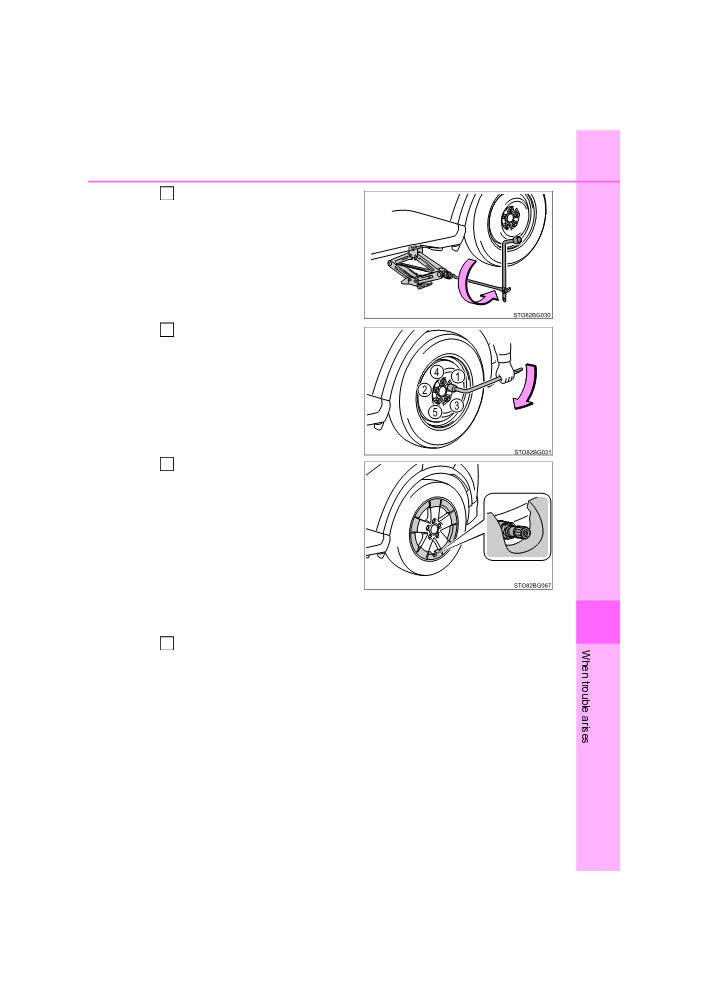

Lower the vehicle.
Firmly tighten each wheel nut
4
two or three times in the order
shown in the illustration.
Tightening torque:
103 N·m (10.5 kgf·m, 76 ft·lbf)
5
For vehicles with a
16inch
wheels: When reinstalling an
original wheel, reinstall the
wheel ornament.
Before installing, make sure that
there is no dirt or damage to the
mounting surface claws or hook-
and- loop fastener. It may not
attach properly if there is dirt or
damage.
Align the cutout of the wheel ornament with the valve stem as shown, and
8
securely attach by pressing your hands over the entire perimeter.
Stow the flat tire, tire jack and all tools.
6
C-HR_HV_OM_Europe_OM10538E
642
8-2. Steps to take in an emergency
■ The compact spare tire (if equipped)
● The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
(P. 674)
■ When using the compact spare tire (if equipped)
As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the compact spare tire
after the tire pressure warning light comes on, the light remains on.
■ When the compact spare tire is equipped (if equipped)
The vehicle height may become lower when driving with the compact spare
tire compared to when driving with standard tires.
■ If you have a flat front tire on a road covered with snow or ice (vehicles
with compact spare tire)
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
1
2
Replace the flat front tire with the tire removed from the rear of the vehicle.
3
Fit tire chains to the front tires.
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
643

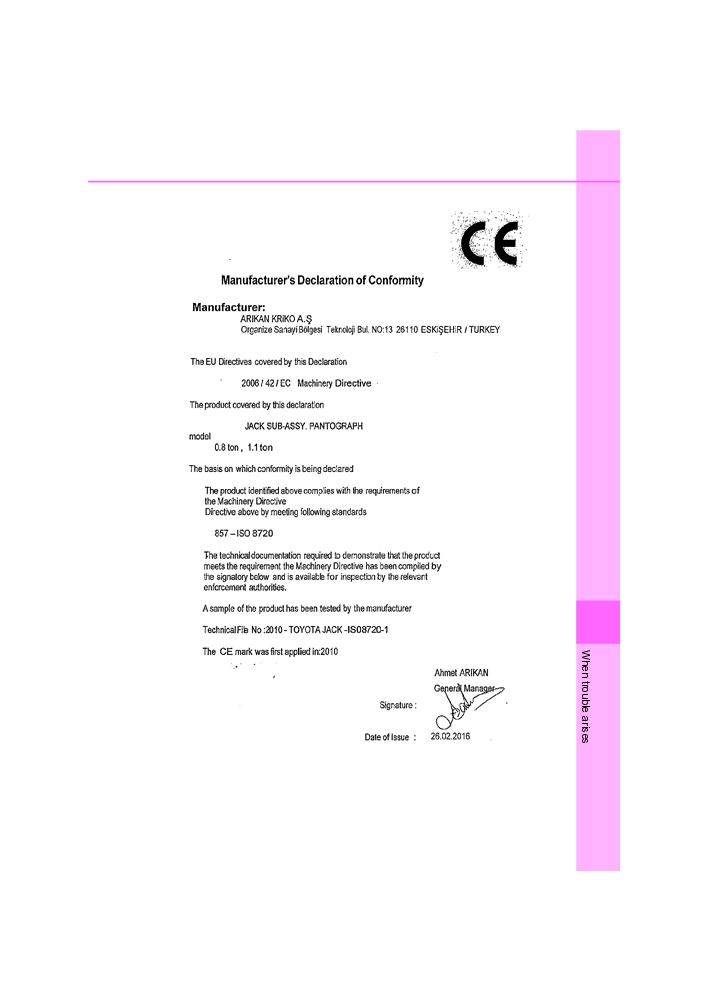

■ Certification for the jack
8
C-HR_HV_OM_Europe_OM10538E
644
8-2. Steps to take in an emergency
WARNING
■ When using the compact spare tire (if equipped)
●Remember that the spare tire provided is specifically designed for use with
your vehicle. Do not use your spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
■ When the compact spare tire is attached (if equipped)
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
• ABS & Brake assist
• Cruise control*
• VSC
• BSM (Blind Spot Monitor)*
• TRC
• Toyota parking assist-sensor*
• EPS
• S-IPA (Simple Intelligent Parking
• Automatic High Beam*
Assist System)*
• PCS (Pre-Collision System)*
• Rear view monitor system*
• LDA (Lane Departure Alert with
• Navigation system*
steering control)*
• Dynamic radar cruise control with
full-speed range*
*: If equipped
■ Speed limit when using the compact spare tire (if equipped)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
C-HR_HV_OM_Europe_OM10538E
8-2. Steps to take in an emergency
645
NOTICE
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle. (if equipped)
The vehicle height may become lower when driving with the compact spare
tire, compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■ Driving with tire chains and the compact spare tire (if equipped)
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■ When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 543)
8
C-HR_HV_OM_Europe_OM10538E
