Toyota Corolla (2004+). Manual - part 104

55-9

HEATER & AIR CONDITIONER

- REFRIGERANT

(7)

Air present in refrigeration system

Condition: Cooling system does not function.

NOTE : These gauge indica-

tions are shown when the

refrigerating system has

been opens and the refriger-

ant charged without vacuum

purging.

I22122

Symptom

Probable cause

Diagnosis

Corrective Actions

(1) Check compressor oil to see if

F Pressure too high on both low

F Air present in refrigerating sys-

it is see if it is dirty or insufficient

and high pressure sides

Air entered in refrigerating system

tem

(2) Evacuate air and supply new

F The low pressure piping too hot

F Insufficient vacuum purging

refrigerant

to the touch

(8)

Expansion valve improperly

Condition: Refrigerant functions insufficient.

I22123

Symptom

Probable cause

Diagnosis

Corrective Actions

F Pressure too high on both low

F Excessive refrigerant in low

and high pressure sides

pressure piping

Trouble in expansion valve

Check expansion valve

F Frost or large amount of dew on

F Expansion valve opened too

piping on low pressure side

wide

55-10

HEATER & AIR CONDITIONER

- REFRIGERANT

(9)

Defective compression compressor

Condition : Refrigerant is not effective.

I22124

Symptom

Probable cause

Diagnosis

Corrective Actions

F Pressure too high on low high

F Compression failure

pressure sides

Internal leak in compressor

F Leakage from valve damaged or

Repair or replace compressor

F Pressure too low to on high pres-

broken sliding parts

sure side

Gauge readings (Reference)

Pressure on low pressure side

MPa (kgf/cm2)

0.5

(5.0)

Blower HI Zone

0.4

(4.0)

1.06

(10.9)

0.3

(3.0)

0.27

(2.85)

1.2

(12.3)

0.22

(2.25)

Blower LO Zone

0.2

(2.0)

0.2

(2.1)

1.25

(12.8)

0.14

(1.5)

1.32

(13.5)

Pressure on HI

0.5

(5.0)

1.0

(10.0)

1.5

(15.0)

2.0

(20.0)

pressure side

MPa (kgf/cm2)

I30081

55-11

HEATER & AIR CONDITIONER

- REFRIGERANT

550IR-01

REPLACEMENT

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM

(a) Turn the A/C switch ON.

(b) Operating the cooler compressor at the engine rpm of approx. 1000 for 5 to 6 min., circulate the refriger-

ant and collect compressor oil remaining in each component into the cooler compressor as much as

possible.

(c)

Stop the engine.

(d) Let the refrigerant gas out.

SST

07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070,

07117-88080)

CHARGE REFRIGERANT

(a) Using a vacuum pump, perform a vacuum pumping.

(b) Supply refrigerant, HFC-134a (R134a).

Standard: 490

30 g (17.28

1.06 oz.)

SST

07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050,

07117-88060, 07117-88070, 07117-88080), 07117-48130, 07117-48140

WARM UP ENGINE

INSPECT LEAKAGE OF REFRIGERANT

(a) Using a gas leak detector, check for leakage of refrigerant.

55-40

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

550IX-01

COMPONENTS

9.8 (100, 87 in. lbf)

F O-Ring

5.4 (54, 48 in. lbf)

W/receiver Condenser Assy

Cooler Dryer

F O-Ring

Cap

2.9 (29, 25 in. lbf)

Nm (kgfcm, ftlbf)

: Specified torque

Compressor Oil ND-OIL 8 or equivalent

F Non-reusable part

I32505

55-39

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

W/RECEIVER CONDENSER ASSY

550IW-01

ON-VEHICLE INSPECTION

INSPECT W/RECEIVER CONDENSER ASSY

(a) If a fin of the w/receiver condenser assy is dirty, clean it with water and dry it with compressor air.

NOTICE:

Do not damage the fin of the w/receiver condenser assy.

(b) If a fin of the w/receiver condenser assy is bent, make it straight using a screwdriver or pliers.

INSPECT W/RECEIVER CONDENSER ASSY FOR LEAKAGE OF REFRIGERANT

(a) Using a halogen leak detector, check pipe joints for gas leakage.

(b) If gas leakage is detected in a joint, check the torque of the joint.

55-41

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

550IY-01

OVERHAUL

HINT:

COMPONENTS: See page 55-40

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See page 55-11)

SST

07110-58060 (07117-58080, 07117-58090, 07117-78050, 07117-88060, 07117-88070,

07117-88080)

DISCONNECT COOLER REFRIGERANT LIQUID PIPE

(a) Remove the bolt and disconnect the cooler refrigerant liq-

uid pipe A from the w/receiver condenser assy.

(b) Remove the O-ring from the cooler refrigerant liquid pipe

NOTICE:

Seal the opening of the disconnected parts using vinyl tape

I31967

to prevent moisture and foreign matter from entering.

DISCONNECT DISCHARGE HOSE SUB-ASSY

(a) Remove the bolt and discharge hose sub-assy from the

w/receiver condenser assy.

(b) Remove the O-ring from the discharge hose sub-assy.

NOTICE:

Seal the opening of the disconnected parts using vinyl tape

to prevent moisture and foreign matter from entering.

I32450

REMOVE W/RECEIVER CONDENSER ASSY

(a) Remove the 2 bolts and 2 radiator upper supports.

I32451

(b) Remove the 2 bolts.

(c)

Slide the upper part of the radiator assy rearward to re-

move the w/receiver condenser assy.

I32452

55-42

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

REMOVE COOLER DRYER

(a) Using a socket hexagon wrench 14 mm (0.55 in.), remove

the cap from the modulator.

14 mm

(0.55 in.)

Hexagon

Wrench

Modulator

I30086

(b) Remove the O-ring from the cap.

E55408

I32475

(c)

Using pliers, remove the cooler dryer.

INSTALL COOLER DRYER

(a) Using pliers, install the cooler dryer.

E50386

(b) Install the new O-ring to the cap.

(c)

Sufficiently apply compressor oil to the fit surfaces of the

O-ring and the cap.

Compressor oil: ND-OIL 8 or equivalent

E55408

(d) Using a socket hexagon wrench 14 mm (0.55 in.), install

the cap to the modulator.

Torque: 2.9 N m (29 kgf cm, 25 in. lbf)

14 mm

(0.55 in.)

Hexagon

Wrench

Modulator

I30086

55-43

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

INSTALL W/RECEIVER CONDENSER ASSY

(a) Install the w/receiver condenser assy with the 2 bolts.

Torque: 9.8 N m (100 kgf cm, 87 in. lbf)

I32453

(b) Install the 2 radiator upper supports with the 2 bolts.

INSTALL DISCHARGE HOSE SUB-ASSY

(a) Remove the attached vinyl tape from the hose and con-

necting part of the w/receiver condenser assy.

I32451

(b) Sufficiently apple compressor oil to the new O-ring and

hose joint.

Compressor oil: ND-OIL 8 or equivalent

(c)

Install a O-ring to the discharge hose sub-assy.

(d) Install the discharge hose sub-assy to the w/receiver

condenser assy with the bolt.

Torque: 5.4 N m (54 kgf cm, 48 in. lbf)

INSTALL COOLER REFRIGERANT LIQUID PIPE A

(a) Remove the attached vinyl tape from the pipe and w/re-

ceiver condenser assy.

I32450

(b) Sufficiently apple compressor oil to the new O-ring and

pipe joint.

Compressor oil: ND-OIL 8 or equivalent

(c)

Install a O-rings to the cooler refrigerant liquid pipe A.

(d) Install the cooler refrigerant liquid pipe A to the w/receiver

condenser assy with the bolt.

Torque: 5.4 N m (54 kgf cm, 48 in. lbf)

I31967

55-44

HEATER & AIR CONDITIONER

- W/RECEIVER CONDENSER ASSY

10. CHARGE REFRIGERANT (See page 55-11)

SST

07110-58060 (07117-58060, 07117-58070, 07117-58080, 07117-58090, 07117-78050,

07117-88060, 07117-88070, 07117-88080), 07117-48130, 07117-48140

Specified amount: 490

30 g (17.28

1.06 oz.)

11. WARM UP ENGINE

12. INSPECT LEAKAGE OF REFRIGERANT (See page 55-11)

60-37

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG SENSOR ASSY CENTER

AIR BAG SENSOR ASSY CENTER

6007Q-02

COMPONENTS

Console Panel Upper

A/T Only:

Console Box Carpet

Parking Brake

Hole Cover Sub-Assy

M/T:

RR Console Box

Floor Shift

Shift Lever Knob

17.5 (178, 13)

Sub-Assy

Shifting Hole Cover

Sub-Assy

Airbag Sensor Assy Center

Nm (kgfcm, ftlbf)

: Specified torque

H42051

60-38

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG SENSOR ASSY CENTER

6007R-03

REPLACEMENT

HINT:

COMPONENTS: See page 60-37

PRECAUTION (See page 60-1)

DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60-1)

REMOVE PARKING BRAKE HOLE COVER SUB-ASSY (See page

71-10)

REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE)

(See page 71-10)

REMOVE SHIFTING HOLE COVER SUB-ASSY (M/T TRANSAXLE) (See page 71-10)

REMOVE CONSOLE PANEL UPPER (See page 71-10)

REMOVE CONSOLE BOX CARPET (See page 71-10)

REMOVE RR CONSOLE BOX (See page 71-10)

REMOVE AIR BAG SENSOR ASSY CENTER

(a) Disconnect the 3 connectors from the airbag sensor assy

center.

(b) Remove the 3 bolts and airbag sensor assy center.

C91457

10. INSPECT AIR BAG SENSOR ASSY CENTER (See page 60-8)

11. INSTALL AIR BAG SENSOR ASSY CENTER

(a) Check that the ignition switch is turned to OFF.

(b) Check that the battery negative terminal is disconnected.

NOTICE:

Do not start the operation for 90 seconds after removing the terminal.

(c)

Temporarily install the airbag sensor assy center with the 3 bolts.

(d) Tighten the 3 bolts to the specified torque.

Torque: 17.5 N m (178 kgf cm, 13 ft lbf)

(e) Connect the connector to the airbag sensor assy center.

(f)

Check that no play is identified.

12. INSPECT SRS WARNING LIGHT (See page 05-424)

60-39

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG FRONT RH SENSOR

AIR BAG FRONT RH SENSOR

6007S-02

COMPONENTS

8.0 (82, 71 in. lbf)

Airbag Front RH Sensor

8.0 (82, 71 in. lbf)

Airbag Sensor Front LH

Nm (kgfcm, ftlbf)

: Specified torque

H42052

60-40

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG FRONT RH SENSOR

600C3-02

REPLACEMENT

HINT:

COMPONENTS: See page 60-39

PRECAUTION (See page 60-1)

DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60-1)

REMOVE AIR BAG FRONT RH SENSOR

(a) Disconnect the connector from the airbag front RH sen-

sor.

(b) Remove the 2 bolts and airbag front RH sensor.

H42056

INSPECT AIR BAG FRONT RH SENSOR (See page 60-8)

INSTALL AIR BAG FRONT RH SENSOR

(a) Check that the ignition switch is turned to OFF.

(b) Check that the battery negative terminal is disconnected.

NOTICE:

Do not start the operation for 90 seconds after removing the terminal.

(c)

Install the airbag front RH sensor with the 2 bolts.

Torque: 8.0 N m (82 kgf cm, 71 in lbf)

(d) Connect the connector to the airbag front RH sensor.

(e) Check that no play is identified.

INSPECT SRS WARNING LIGHT (See page 05-424)

60-41

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG SENSOR FRONT LH

AIR BAG SENSOR FRONT LH

6007U-02

COMPONENTS

(See page 60-39)

60-42

SUPPLEMENTAL RESTRAINT SYSTEM

- AIR BAG SENSOR FRONT LH

600C4-02

REPLACEMENT

HINT:

COMPONENTS: See page 60-39

PRECAUTION (See page 60-1)

DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60-1)

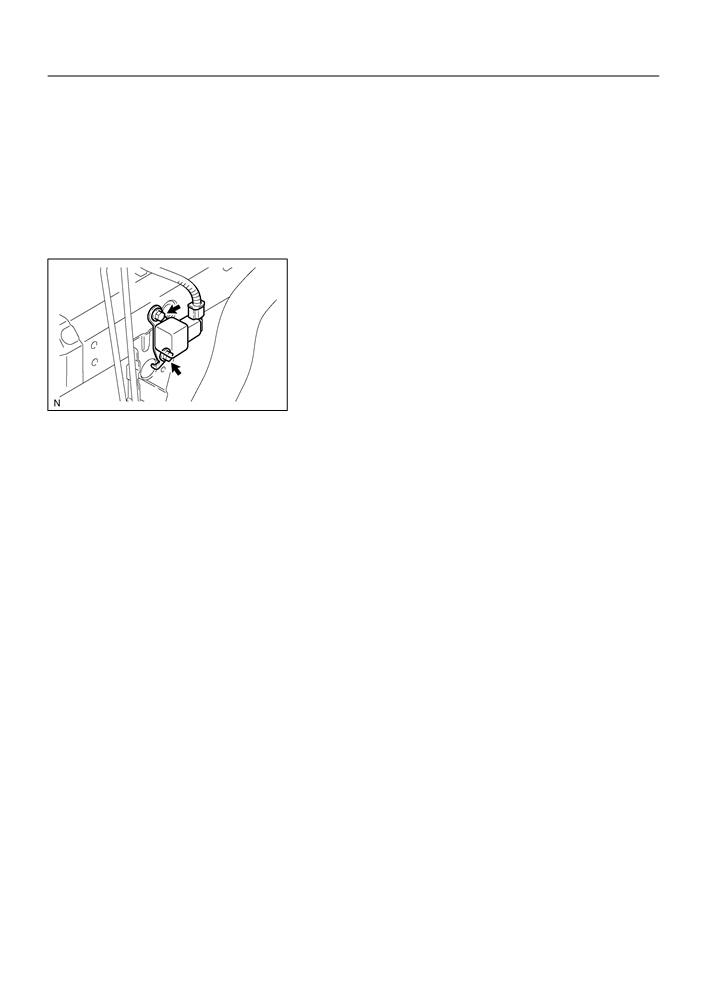

REMOVE AIR BAG SENSOR FRONT LH

(a) Disconnect the connector from the airbag sensor front

LH.

(b) Remove the 2 bolts and airbag sensor front LH.

H42057

INSPECT AIR BAG SENSOR FRONT LH (See page 60-8)

INSTALL AIR BAG SENSOR FRONT LH

(a) Check that the ignition switch is turned to OFF.

(b) Check that the battery negative terminal is disconnected.

NOTICE:

Do not start the operation for 90 seconds after removing the terminal.

(c)

Install the airbag sensor front LH with the 2 bolts.

Torque: 8.0 N m (82 kgf cm, 71 in lbf)

(d) Connect the connector to the airbag sensor front LH.

(e) Check that no play is identified.

INSPECT SRS WARNING LIGHT (See page 05-424)

Content .. 102 103 104 105 ..
