02-13
PREPARATION
- STARTING & CHARGING
STARTING & CHARGING
022UA-01
PREPARATION

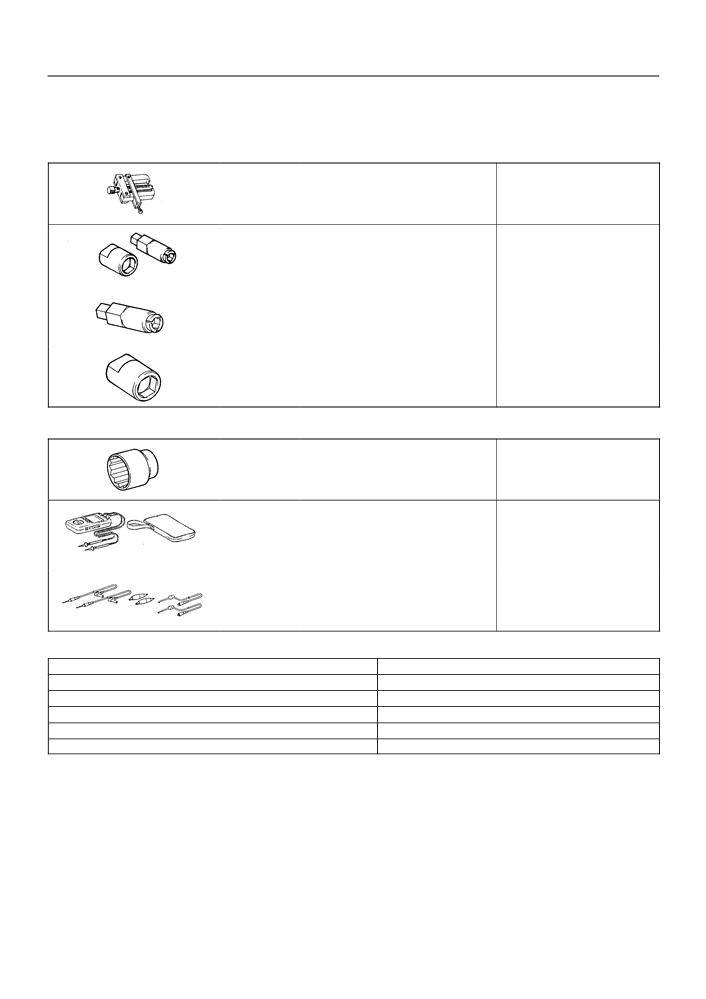

SST
09286-46011
Injection Pump Spline Shaft
GENERATOR ASSY
Puller
09820-63010
Alternator Pulley Set Nut Wrench
GENERATOR ASSY
Set
(09820-06010) Alternator Rotor Shaft Wrench
GENERATOR ASSY
(09820-06020) Alternator Pulley Set Nut 22 mm
GENERATOR ASSY
Wrench
Recomended Tools
09011-12291
Socket Wrench for 29 mm .
GENERATOR ASSY
09082-00040
TOYOTA Electrical Tester
STARTING SYSTEM
STARTER ASSY
GENERATOR ASSY
STARTING SYSTEM(April, 2003)
STARTER ASSY(April, 2003)
(09083-00150) Test Lead Set
STARTING SYSTEM
GENERATOR ASSY
STARTING SYSTEM(April, 2003)
STARTER ASSY(April, 2003)
Equipment
Service wire harness
Ohmmeter
Torque wrench
Vernier calipers
Slide calipers
Wooden block
02-4
PREPARATION
- EMISSION CONTROL
EMISSION CONTROL
021BN-01
PREPARATION
SST
09992-00242
Turbocharger Pressure Gauge
EMISSION CONTROL SYSTEM
Equipment
Service Wire Harness
Ohmmeter
Vacuum gauge
02-15
PREPARATION
- REAR SUSPENSION
REAR SUSPENSION
021BV-01
PREPARATION
SST
09710-04101
Base
REAR AXLE BEAM ASSY
09727-30021
Coil Spring Compressor
REAR SHOCK ABSORBER WITH
COIL SPRING
09950-40011
Puller B Set
REAR AXLE BEAM ASSY
(09951-04020) Hanger 200
REAR AXLE BEAM ASSY
(09952-04010) Slide Arm
REAR AXLE BEAM ASSY
(09953-04030) Center Bolt 200
REAR AXLE BEAM ASSY
(09954-04020) Arm 100
REAR AXLE BEAM ASSY
(09955-04051) Claw No.5
REAR AXLE BEAM ASSY
(09957-04010) Attachment
REAR AXLE BEAM ASSY
(09958-04011) Holder
REAR AXLE BEAM ASSY
09950-60010
Replacer Set
REAR AXLE BEAM ASSY
(09951-00620) Replacer 62
REAR AXLE BEAM ASSY
02-16
PREPARATION
- REAR SUSPENSION
(09951-00630) Replacer 63
REAR AXLE BEAM ASSY
Recomended Tools
09040-00011
Hexagon Wrench Set
REAR SHOCK ABSORBER WITH
COIL SPRING
(09043-20060) Socket Hexagon Wrench 6
REAR SHOCK ABSORBER WITH
COIL SPRING
Equipment
Torque wrench
Dial indicator with magnetic base
Wheel balancer
Tire pressure gauge
Alignment tester
Toe-in gauge
Camber-caster-kingpin gauge
Drill
02-45
PREPARATION
- SEAT BELT
SEAT BELT
021C3-02
PREPARATION

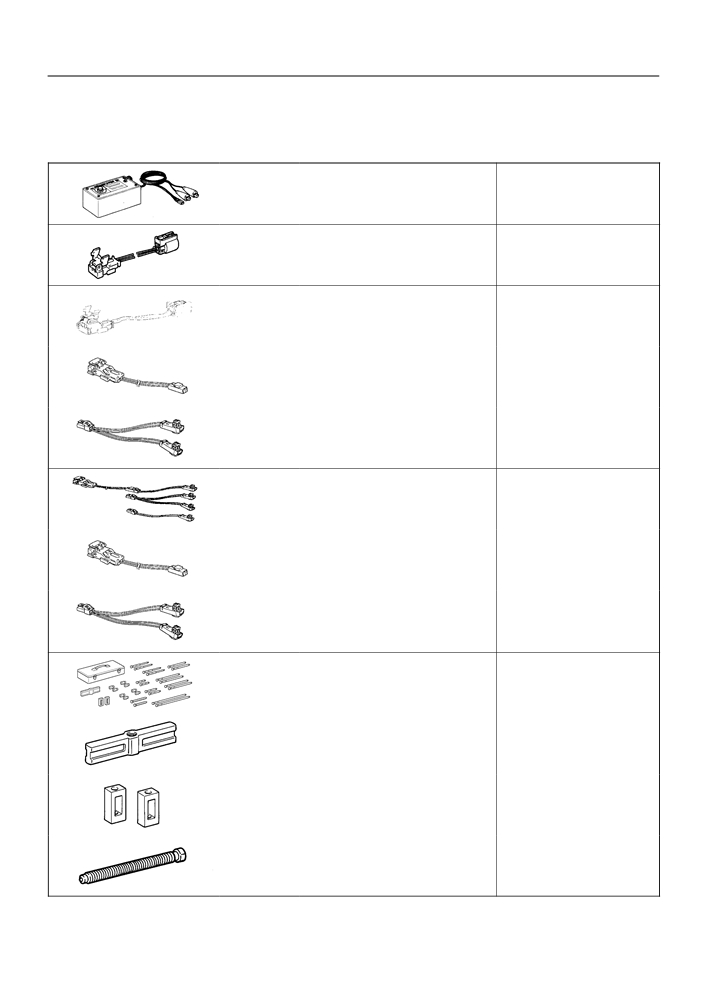

SST
09082-00700
SRS Airbag Deployment Tool
FRONT SEAT BELT
09082-00770
Airbag Deployment Wire
FRONT SEAT BELT
Sub-harness No.5
Equipment
Torque wrench
02-53
PREPARATION
- SEAT
SEAT
021BX-01
PREPARATION
Equipment
Hog ring pliers
Hog ring
Torque wrench
Tape
To avoid surface damage
02-55
PREPARATION
- SLIDING ROOF/CONVERTIBLE
SLIDING ROOF/CONVERTIBLE
021C9-02
PREPARATION
Recomended Tools
09041-00020
Torx Driver T25
SLIDING
ROOF
HOUSING
SUB-ASSY
09082-00040
TOYOTA Electrical Tester
SLIDING ROOF SYSTEM
Equipment
Torque wrench
02-43
PREPARATION
- SUPPLEMENTAL RESTRAINT SYSTEM
SUPPLEMENTAL RESTRAINT SYSTEM
022XY-01
PREPARATION
SST
09082-00700
SRS Airbag Deployment Tool
FRONT SEAT AIRBAG ASSY RH
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
HORN BUTTON ASSY(April, 2003)
09082-00750
Airbag Deployment Wire
FRONT SEAT AIRBAG ASSY RH
Sub-harness No.3
09082-00780
Airbag Deployment Wire
HORN BUTTON ASSY(April, 2003)
Sub-harness No.6
(09082-10801) Wire A
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
HORN BUTTON ASSY(April, 2003)
(09082-30801) Wire C
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
HORN BUTTON ASSY(April, 2003)
09082-00802
Airbag Deployment Wire
HORN BUTTON ASSY(April, 2003)
Sub-Harness No. 8
(09082-10801) Wire A
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
HORN BUTTON ASSY(April, 2003)
(09082-30801) Wire C
INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
HORN BUTTON ASSY(April, 2003)
09950-50013
Puller C Set
SPIRAL CABLE SUB-ASSY
(09951-05010) Hanger 150
SPIRAL CABLE SUB-ASSY
(09952-05010) Slide Arm
SPIRAL CABLE SUB-ASSY
(09953-05020) Center Bolt 150
SPIRAL CABLE SUB-ASSY
02-44
PREPARATION
- SUPPLEMENTAL RESTRAINT SYSTEM
(09954-05021) Claw No.2
SPIRAL CABLE SUB-ASSY
Recomended Tools
09042-00010
Torx Socket T30
SPIRAL CABLE SUB-ASSY
Equipment
Torque wrench
Bolt Length: 35.0 mm (1.387 in.) Pitch: 1.0 mm (0.039 in.)
Airbag disposal
Diam.: 6.0 mm (0.236 in.)
Tire
Width: 185 mm (7.28 in.) Inner diam.: 360 mm (14.17 in.)
Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.)
Airbag disposal
Inner diam.: 360 mm (14.17 in.)
Vinyl bag
Airbag disposal
02-35
PREPARATION
- STEERING COLUMN
STEERING COLUMN
021CA-01
PREPARATION

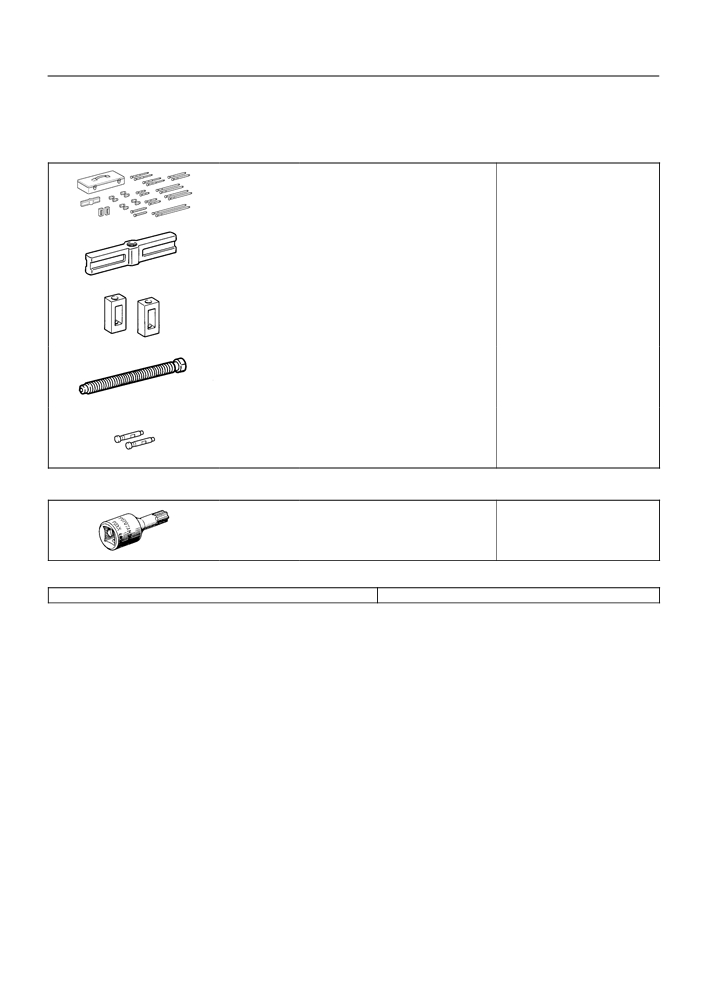

SST
09950-50013
Puller C Set
STEERING COLUMN ASSY
(09951-05010) Hanger 150
STEERING COLUMN ASSY
(09952-05010) Slide Arm
STEERING COLUMN ASSY
(09953-05020) Center Bolt 150
STEERING COLUMN ASSY
(09954-05021) Claw No.2
STEERING COLUMN ASSY
Recomended Tools
09042-00010
Torx Socket T30
STEERING COLUMN ASSY
Equipment
Torque wrench
02-54
PREPARATION
- THEFT DETERRENT & DOOR LOCK
THEFT DETERRENT & DOOR LOCK
021CN-01
PREPARATION
Recomended Tools
09082-00040
TOYOTA Electrical Tester
POWER DOOR LOCK CONTROL
SYSTEM
02-17
PREPARATION
- TIRE & WHEEL
TIRE&WHEEL
021C4-01
PREPARATION
Equipment
Tire pressure gauge
Dial indicator with magnetic base
Wheel balancer
02-58
PREPARATION
- VEHICLE CONTROL SYSTEM
VEHICLE CONTROL SYSTEM
021CP-01
PREPARATION
Recomended Tools
09082-00040
TOYOTA Electrical Tester
IGNITION OR STARTER SWITCH
ASSY
02-51
PREPARATION
- WINDSHIELD/WINDOWGLASS/MIRROR
WINDSHIELD/WINDOWGLASS/MIRROR
021CG-01
PREPARATION

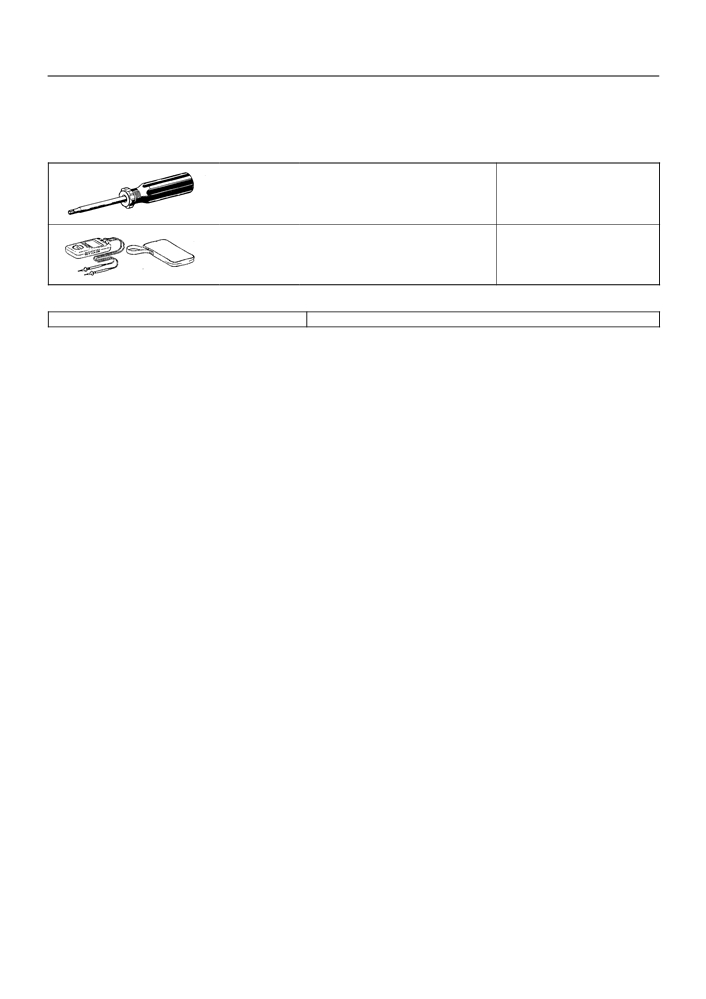

Recomended Tools
09070-20010
Moulding Remover
WINDSHIELD GLASS
09082-00040
TOYOTA Electrical Tester
WINDOW DEFOGGER SYSTEM
POWER MIRROR CONTROL
SYSTEM
POWER WINDOW CONTROL
SYSTEM
(09083-00150) Test Lead Set
POWER WINDOW CONTROL
SYSTEM
Equipment
Adhesive
Knife
Piano wire
Windshield
Plastic sheet
To avoid surface damage.
Sealer gun
Torque wrench
Tape
To avoid surface damage.
Wooden block or similar object
For tying both piano wire ends
SSM
08833-00030
Three cement black or equivalent
WINDSHIELD GLASS
BACK WINDOW GLASS
08850-00801
Windshield Glass Adhesive Set
WINDSHIELD GLASS
or equivalent
BACK WINDOW GLASS
02-47
PREPARATION
- WIPER & WASHER
WIPER & WASHER
021C7-01
PREPARATION
SST
09843-18040
Diagnosis Check Wire No.2
WIPER AND WASHER SYSTEM
Recomended Tools
09042-00010
Torx Socket T30
WINDSHIELD WIPER MOTOR ASSY
09082-00040
TOYOTA Electrical Tester
WIPER AND WASHER SYSTEM
(09083-00150) Test Lead Set
WIPER AND WASHER SYSTEM
Equipment
Torque wrench
