INSPECTION AND MAINTENANCE
6) Replace the bulb, then follow the above
steps in reverse to restore the original
state.
Front turn signal lights
(3)
1) Start the engine. To facilitate bulb
replacement, turn the steering wheel
away from the front turn signal light
(2)
whose bulb is to be replaced, then turn
off the engine.
(1)
57L70041
57L70045

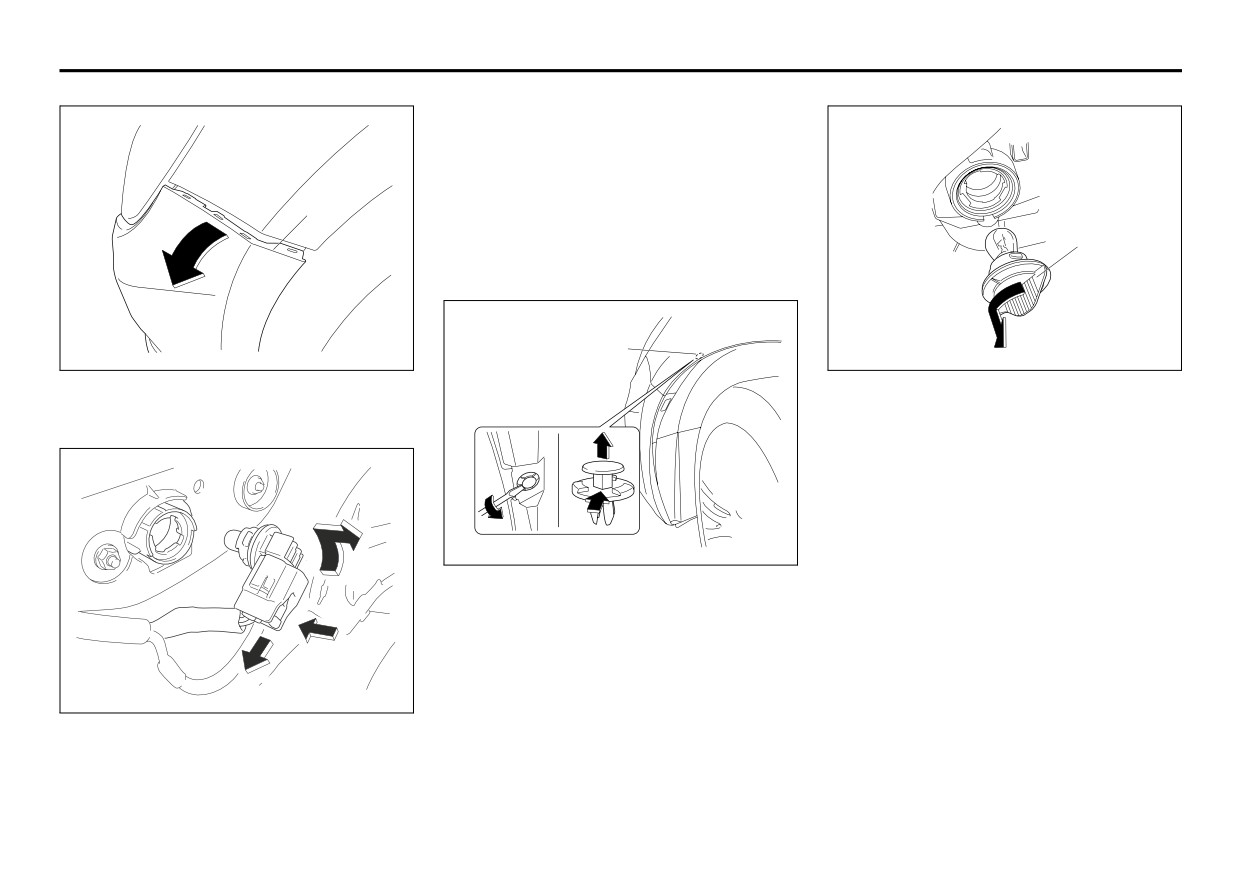

4) Remove the part of the bumper (3) indi-
3) Open the indicated end of the cover on
cated in the illustration.
the inside of the fender and remove the
bulb socket (2) by turning it counter-
clockwise.
4) Replace the bulb, then follow the above
steps in reverse to restore the original
state.
57L70044
2) Insert a flat blade screwdriver into the
hole and remove the clip (1) by twisting
the screwdriver as shown in the illustra-
tion.
57L71030
5) Disconnect the coupler with pushing
the lock release. Turn the bulb holder
counterclockwise and remove it.
7-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
Rear combination lights
License plate light
(reversing/turn signal/brake/tail lights)
(5)
(2)
(1)
(3)
(1)
(2)
(3)
(3)
57L71036
57L70022
(3) Reversing light
57L70019

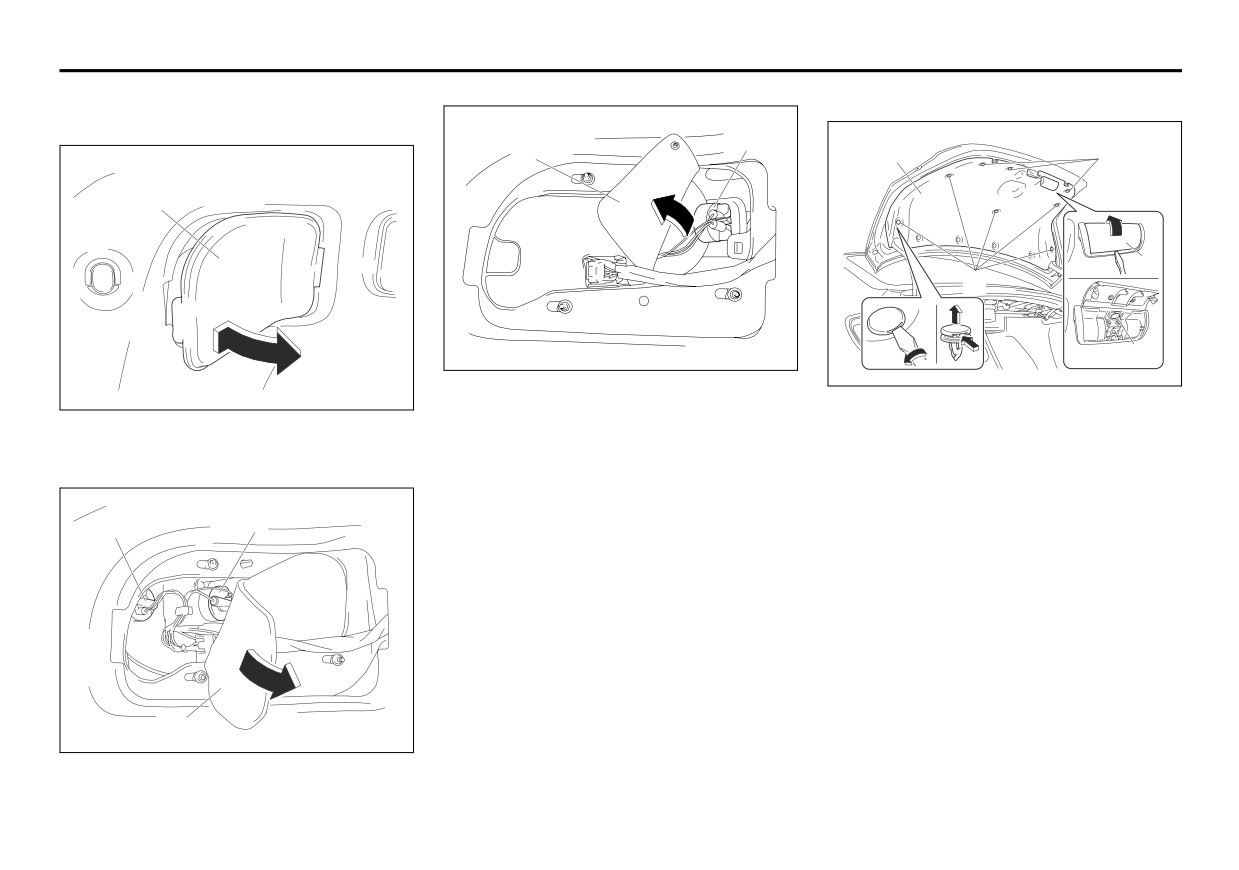

1) Open the trunk lid and open the indi-
(4) Rear turn signal light
1) Remove the side trim (1) inside the
(5) Brake/tail light
cated end of the trim (1) on the inner
trunk.
side of the lid.
2) Open the indicated end of the rubber
- When opening the trim, remove the
foam cover (2) to access the lights and
cover (2) and clips (3) by prying them
(4)
replace the blown bulb(s).
off with a flat blade screwdriver.
(3)
3) Replace the blown bulb(s), then follow
the above steps in reverse to restore
the original state.
(2)
57L70020
7-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
4) Replace the bulb (6), then perform the
Wiper Blades
operations in 1) in the reverse order to
restore the original state.
NOTE:
• Make sure that the bulb is fitted correctly
in the holder.
• The right-side cover is marked “R” while
the left-side cover is marked “L”.
(4)
Trunk room light
(5)
80G083

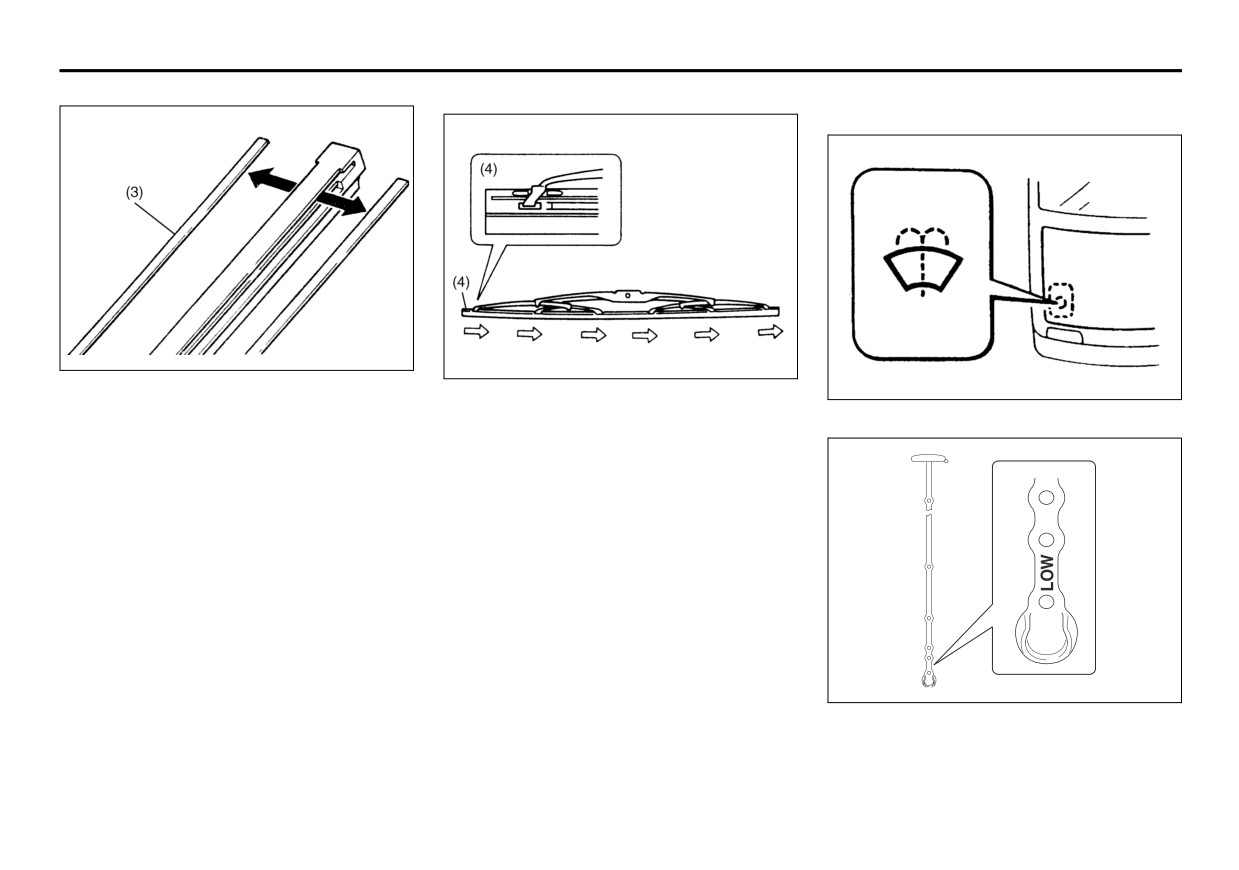

If the wiper blades become brittle or dam-
aged, or make streaks when wiping,
replace the wiper blades.
To install new wiper blades, follow the pro-
cedures below.
CAUTION
(6)
57L71033
To avoid scratching or breaking the
1)
Open the trunk lid and remove the lens
window, do not let the wiper arm
strike the window while replacing the
by turning it counterclockwise.
2)
Replace the bulb, then perform the
wiper blade.
operations in 1) in the reverse order to
restore the original state.
NOTE:
57L70035
Some wiper blades may be different from
2)
Disconnect the coupler (4) with pushing
the ones described here depending on
the lock release.
vehicle specifications. If so, consult your
3)
Remove the cover (5).
SUZUKI dealer for proper replacement
method.
7-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
For windshield wipers
EXAMPLE
(1)
(2)
57L71038
60A260
70G119

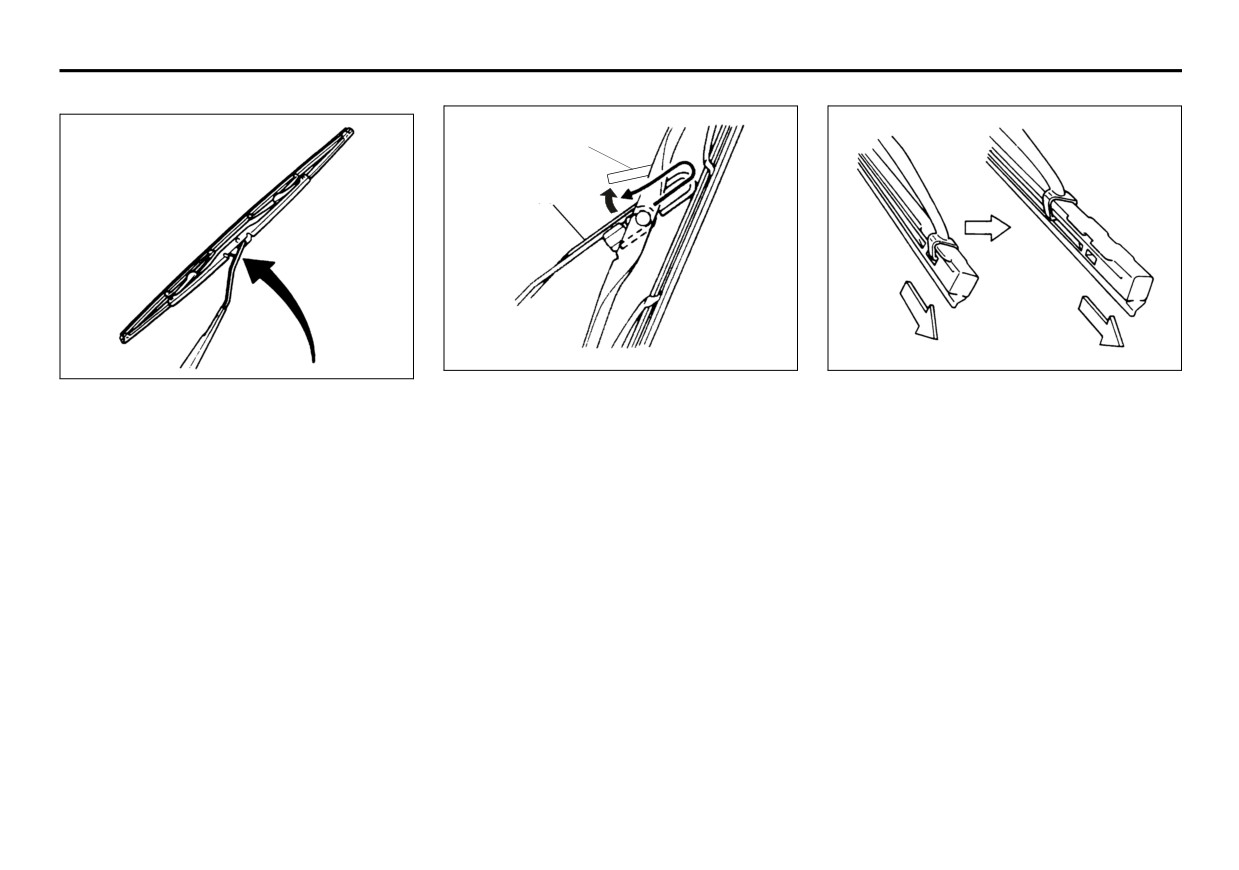

2) Squeeze lock lever (1) towards wiper
3) Pull the locked end of the wiper blade
1) Hold the wiper arm away from the win-
arm (2) and remove the wiper frame
firmly to unlock the blade and slide the
dow.
from the arm as shown.
blade out as shown.
NOTE:
When raising both of the front wiper arms,
pull the driver’s side wiper arm up first.
When returning the wiper arms, lower the
passenger’s side wiper arm first. Other-
wise, the wiper arms may interfere with
each other.
7-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
Installation
Windshield Washer Fluid
52D124
(or opposite side)
52D125
(3) Retainer
80JM078
(4) Locked end
4) If the new blade is provided without the
5) Install the new blade in the reverse
two metal retainers, move them from
order of removal, with the locked end
the old blade to the new one.
positioned toward the wiper arm. Make
sure the blade is properly retained by
all the hooks. Grasp the blade near the
locked end and pull in the direction of
the arrows to lock the end into place.
6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely into the arm.
57L71034
7-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSPECTION AND MAINTENANCE
Check that there is washer fluid in the tank
Air Conditioning System
by looking at the washer fluid level gauge
If you do not use the air conditioner for a
which is attached to the cap of the washer
long period, such as during winter, it may
fluid tank. If the fluid level is near “LOW”
not give the best performance when you
mark, refill it.
start using it again. To help maintain opti-
Use a good quality windshield washer
mum performance and durability of your air
fluid, diluted with water as necessary.
conditioner, it needs to be run periodically.
Operate the air conditioner at least once a
WARNING
month for one minute with the engine
Do not use “anti-freeze” solution in
idling. This circulates the refrigerant and oil
the windshield washer reservoir. This
and helps protect the internal components.
can severely impair visibility when
sprayed on the windshield, and also
damage your vehicle’s paint.
CAUTION
Damage may result if the washer
motor is operated with no fluid in the
washer tank.
7-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
EMERGENCY SERVICE
Tire Changing Tool
8-1
Jacking Instructions
8-2
Changing Wheels
8-5
Jump Starting Instructions
8-6
Towing a Disabled Vehicle
8-7
If the Starter Does Not Operate
8-7
If the Engine is Flooded
8-8
If the Engine Overheats
8-8
8
60G411

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
Tire Changing Tool
CAUTION
Do not remove the spacer (5) under
(4)
the spare tire. The spare tire cannot
be held firmly without the spacer in
(1)
position.
(3)
(5)
57L81002
To remove the spare tire, remove the lug-
gage under-box (2) and turn the bolt (4)
counterclockwise.
WARNING
(2)
The jack should be used only to
57L81003
change wheels. It is important to read
the jacking instructions in this sec-
tion before attempting to use the
57L81001
jack.
The jack wheel brace and jack handle are
stowed in the luggage under-box (2) under
the trunk floorboard
(1). The floorboard
WARNING
can be kept raised using the hook (3).
After using the jack, jack handle and
wheel brace, be sure to stow them
securely or they can cause injury if
an accident occurs.
8-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
Jacking Instructions
4) Block the front and rear of the wheel
diagonally opposite of the wheel being
lifted.
5) Place the spare wheel near the wheel
being lifted as shown in the illustration
in case that the jack slips.
(1)
79K058
75F062
(1) Jacking point
1)
Place the vehicle on level, hard ground.
(1)
(1)
6)
Position the jack as shown in the illus-
2)
Set the parking brake firmly and shift
tration and raise the jack by turning the
into “P” (Park) if your vehicle has a CVT,
jack-head groove fits around the jacking
or shift into “R” (Reverse) if your vehicle
point beneath the vehicle body.
has a instruction transaxle.
WARNING
Be sure to shift into “P” (Park) for a
57L70047
CVT vehicle, or into “R” (Reverse)
for a instruction transaxle vehicle
when you jack up the vehicle.
Never jack up the vehicle with the
transaxle in
“N” (Neutral). Other-
wise, an unstable jack may cause
an accident.
3)
Turn on the hazard warning flasher if
your vehicle is near traffic.
8-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
To Raise the Vehicle with a Garage
WARNING
Jack
Apply the garage jack to one of the
Use the jack only to change wheels
points indicated below.
(3)
on level, hard ground.
Always support the raised vehicle with
Never jack up the vehicle on an
jack stands (commercially available) at
inclined surface.
the points indicated below.
Never raise the vehicle with the
jack in a location other than the
specified jacking point (shown in
the illustration) near the wheel to
be changed.
(2)
Make sure that the jack is raised at
least
51 mm (2 inches) before it
contacts the flange. Use of the jack
57L70032
when it is within 51 mm (2 inches)
(2) Jack handle
of being fully collapsed may result
(3) Wheel brace
in failure of the jack.
7) Continue to raise the jack slowly and
Never get under the vehicle when it
is supported by the jack.
smoothly until the tire clears the
ground. Do not raise the vehicle more
Never run the engine when the
vehicle is supported by the jack
than necessary.
and never allow passengers to
remain in the vehicle.
8-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
(1) Front
(1)
(4)
(2) Jack stand
(3) Jacking point for onboard jack (Do not
use this point for a jack stand.)
(4) Rear
(5) Jacking point for onboard jack
(6) Front suspension frame
(5)
(7) Rear suspension frame
(3)
(2)
(8) Differential carrier
(9) Jacking point for garage jack
(10) Application point for two-column lift
and jack stand
(7)
(6)
CAUTION
Never apply a garage jack to the
(1)
exhaust pipe or engine undercover.
NOTE:
For more details, please contact an autho-
rized SUZUKI dealer.
(1)
(4)
2WD
i-AWD
(8)
(9)
(10)
57L70048
8-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
Changing Wheels
Full Wheel Cover (if equipped)
To change a wheel, use the following pro-
cedure:
EXAMPLE
1)
Remove the jack, tools and spare wheel
from the vehicle.
2)
Loosen, but do not remove the wheel
nuts.
3)
Jack up the vehicle (follow the jacking
instructions in this section).
WARNING
Be sure to shift into “P” (Park) in
CVT, or shift into “R” (Reverse) in
instruction transaxle when you jack up
81A057
the vehicle.
60G309
Never jack up the vehicle with the
Wheel tightening torque
(1) or (2) Flat end tool
transaxle in
“N” (Neutral). Other-
wise, unstable jack may cause an
140 Nm (103.3 lb-ft, 14.3 kg-m)
Your vehicle includes two tools, a wheel
accident.
brace and a jack crank, one of which has a
7) Lower the jack and fully tighten the nuts
flat end.
4)
Remove the wheel nuts and wheel.
in a crisscross fashion with a wrench as
Use the tool with the flat end to remove the
5)
Before installing the new wheel, clean
shown in the illustration.
full wheel cap, as shown above.
any mud or dirt off from the surface of
the nuts wheel and hub with a clean
WARNING
EXAMPLE
cloth. Clean the hub carefully; it may be
Use genuine wheel nuts and tighten
hot from driving.
them to the specified torque as soon
6)
Install the new wheel and replace the
as possible after changing wheels.
wheel nuts with their cone shaped end
Incorrect wheel nuts or improperly
facing the wheel. Tighten each nut
tightened wheel nuts may come
snugly by hand until the wheel is
loose or fall off, which can result in
54G117
securely seated on the hub.
an accident. If you do not have a
When installing the cover, make sure that it
torque wrench, have the wheel nut
is positioned so that it does not cover or
torque checked by an authorized
foul the air valve.
SUZUKI dealer.
8-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
Jump Starting Instructions
2) Turn off all vehicle accessories, except
CAUTION
those necessary for safety reasons (for
example, headlights or hazard lights).
WARNING
Your vehicle should not be started by
pushing or towing. This starting
Never attempt to jump start your
method could result in permanent
vehicle if the battery appears to be
damage to the catalytic converter.
frozen. Batteries in this condition
2
3
Use jumper cables to start a vehicle
may explode or rupture if jump
with a weak or run-down battery.
starting is attempted.
When making jumper cable con-
(2)
When jump starting your vehicle, use
nections, be certain that your
the following procedure:
hands and the jumper cables
1
remain clear from pulleys, belts or
12V BATTERY
fans.
Batteries
produce flammable
hydrogen gas. Keep flames and
sparks away from the battery or an
(1)
explosion may occur. Never smoke
4
when working near the battery.
(3)
If the booster battery you use for
jump starting is installed in another
vehicle, make sure the two vehicles
EXAMPLE
are not touching each other.
57L81004
If your battery discharges repeat-
3) Make jumper cable connections as fol-
edly, for no apparent reason, have
lows:
your vehicle inspected by an autho-
60A269
1. Connect one end of the first jumper
rized SUZUKI dealer.
1)
Use only a 12-volt battery to jump start
cable to the positive (+) terminal of
To avoid harm to yourself or dam-
your vehicle. Position the good 12-volt
the discharged battery (1).
age to your vehicle or battery, fol-
battery close to your vehicle so that the
2. Connect the other end to the positive
low the jump starting instructions
jumper cables will reach both batteries.
(+) terminal of the booster battery
below precisely and in order. If you
When using a battery installed on
(2).
are in doubt, call for qualified road
another vehicle, DO NOT LET THE
3. Connect one end of the second
service.
VEHICLES TOUCH. Set the parking
jumper cable to the negative (-) ter-
brakes fully on both vehicles.
minal of the booster battery (2).
8-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
4. Make the final connection to an
Towing a Disabled Vehicle
If the Starter Does Not
unpainted, heavy metal part
(i.e.
Operate
engine hook (3)) of the engine of the
Emergency Towing
vehicle with the discharged battery
If your vehicle is disabled, it may be towed
1)
While bringing the remote controller
(1).
by a tow truck using one of the following
with you, place the gearshift lever in the
methods:
“P” position and depress the brake
WARNING
1) Tow the vehicle with two wheels lifted
pedal.
by the tow truck and the other two
2)
Try pressing the engine switch to
Never connect the jumper cable
wheels on a towing dolly.
change the ignition mode to “START”
directly to the negative (-) terminal of
2) Use the appropriate towing method
with the headlights turned on to deter-
the discharged battery, or an explo-
specified for your vehicle in the “Towing
mine the battery condition. If the head-
sion may occur.
Your Vehicle (recreational towing)” sec-
lights go excessively dim or go off, it
tion, but with the wheels lifted by the
usually means that either the battery
4)
If the booster battery you are using is
tow truck instead of on a towing dolly.
has run down or battery terminal con-
installed on another vehicle, start the
Be sure to carefully follow the specific
tact is poor. Recharge the battery or
engine of the vehicle with the booster
instructions provided in the
“Towing
correct battery terminal contact if nec-
battery. Run the engine at moderate
Your Vehicle (recreational towing)” sec-
essary.
speed.
tion.
3)
If the headlights remain bright, check
5)
Start the engine of the vehicle with the
the fuses. If the reason for failure of the
discharged battery.
CAUTION
starter is not obvious, there may be a
6)
Remove the jumper cables in the exact
major electrical problem. Have the vehi-
reverse order in which you connected
If vehicle damage (such as steering
cle inspected by your authorized
them.
or drivetrain damage, etc.) prevents
SUZUKI dealer.
normal use of the towing procedures
for your vehicle described in the
“Towing Your Vehicle
(recreational
towing)” section, have your vehicle
towed with two wheels lifted by the
tow truck and the other two wheels
on a towing dolly.
8-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
If the Engine is Flooded
If the Engine Overheats
If the temperature indication does not
come down to within the normal, accept-
If the engine is flooded with gasoline, it
The engine could overheat temporarily
able range:
may be hard to start. If this happens, press
under severe driving conditions. If the
the accelerator pedal all the way to the
engine coolant temperature gauge indi-
1)
Turn off the engine and check that the
floor and hold it there while cranking the
cates overheating during driving:
water pump belt and pulleys are not
engine. (Do not operate the starter motor
damaged or slipping. If any abnormality
1) Turn off the air conditioner, if equipped.
for more than 12 seconds).
is found, correct it.
2) Take the vehicle to a safe place and
2)
Check the coolant level in the reservoir.
NOTE:
park.
If it is found to be lower than the “LOW”
If the engine refuses to start, the starter
3) Let the engine run at normal idle speed
line, look for leaks at the radiator, water
motor automatically stops after a certain
for a few minutes until the indicator is
pump and radiator and heater hoses. If
period of time. After the starter motor has
within the normal, acceptable tempera-
you locate any leaks that may have
automatically stopped or there is anything
ture range shown by the white band
caused the overheating, do not run the
abnormal in the engine starting system,
between “H” and “C”.
engine until these problems have been
the starter motor runs only while the
corrected.
engine switch is held pressed.
WARNING
3)
If you do not find a leak, carefully add
If you see or hear escaping steam,
coolant to the reservoir and then the
stop the vehicle in a safe place and
radiator, if necessary. (Refer to “Engine
immediately turn off the engine to let
Coolant” in the
“INSPECTION AND
it cool. Do not open the hood when
MAINTENANCE” section.)
steam is present. When the steam
can no longer be seen or heard, open
the hood to see if the coolant is still
boiling. If it is, you must wait until it
stops boiling before you proceed.
Also, be careful not to touch hot
engine parts (radiator, water hoses,
engine etc.).
8-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EMERGENCY SERVICE
65D614
WARNING
• It is hazardous to remove the radia-
tor cap when the water temperature
is high, because scalding fluid and
steam may be blown out under
pressure. The cap should only be
taken off when the coolant temper-
ature has lowered.
• To prevent personal injury, keep
hands, tools and clothing away
from the engine cooling fan and air-
conditioner fan (if equipped). These
electric fans can automatically turn
on without warning.
8-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

APPEARANCE CARE
APPEARANCE CARE
Corrosion Prevention
9-1
Vehicle Cleaning
9-3
60G412
9















Content      ..     18      19      20      21     ..
