Monitor

To clean the audio/navigation/multi func-
tion display monitor, wipe it with a silicone
cloth or with a soft cloth. If the monitor is
extremely dirty, clean it with a soft cloth
moistened with neutral detergent then
carefully wipe off any remaining detergent.

CAUTION

.

Do not spray neutral detergent

directly onto the monitor. Doing
so could damage the monitor’s
components.

.

Do not wipe the monitor with a

hard cloth. Doing so could
scratch the monitor.

.

Do not use cleaning fluid that

contains thinner, fuel, or any
other volatile substance. Such
cleaning fluid could erase the
lettering on the switches at the
bottom of the monitor.

Cleaning the interior

439

10

Appearance

care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(445,1)

11-1. Maintenance schedule

U.S. models
The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Mainte-
nance Booklet”. For details, read the
separate “Warranty and Maintenance
Booklet”.

Canada models
The scheduled maintenance items re-
quired to be serviced at regular intervals
are shown in the “Warranty and Service
Booklet”. For details, read the separate
“Warranty and Service Booklet”.

Except for U.S. and Canada models
Some items of your vehicle are required to
be serviced at scheduled intervals. For
details about your maintenance schedule,
read the separate “Warranty and Main-
tenance Booklet”.

NOTE

For models with a multi-function dis-
play (color LCD), you can set a remin-
der to be displayed when a scheduled
maintenance item is almost due. For
details, refer to “Maintenance settings”
FP222.

11-2. Maintenance precau-
tions

When maintenance and service are re-
quired, it is recommended that all work be
done by an authorized SUBARU dealer.

If you perform maintenance and service by
yourself, you should familiarize yourself
with the information provided in this sec-
tion on general maintenance and service
for your SUBARU.

Incorrect or incomplete service could
cause improper or unsafe vehicle opera-
tion. Any problems caused by improper
maintenance and service performed by
you are not eligible for warranty coverage.

WARNING

.

Always select a safe area when

performing maintenance on your
vehicle.

.

Always be very careful to avoid

injury when working on the vehi-
cle. Remember that some of the
materials in the vehicle may be
hazardous if improperly used or
handled, for example, battery
acid.

.

Your vehicle should only be ser-

viced by persons fully competent
to do so. Serious personal injury
may result to persons not experi-
enced in servicing vehicles.

.

Always use the proper tools and

make certain that they are well
maintained.

.

Never get under the vehicle sup-

ported only by a jack. Always use
safety stands to support the
vehicle.

.

Never keep the engine running in

a poorly ventilated area, such as
a garage or other closed areas.

.

Do not smoke or allow open

flames around the fuel or battery.
This will cause a fire.

.

Because the fuel system is under

pressure, replacement of the fuel
filter should be performed only
by your SUBARU dealer.

.

Wear adequate eye protection to

guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly
wash them out with clean water.

.

Do not tamper with the wiring of

the SRS airbag system or seat-
belt pretensioner system, or at-
tempt to take its connectors

– CONTINUED –

Maintenance schedule

443

11

Maintenance

and

service

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(446,1)

apart, as this may activate the
system or render it inoperative.
NEVER use a circuit tester for
this wiring. If your SRS airbag or
seatbelt pretensioner needs ser-
vice, consult your nearest
SUBARU dealer.

NOTE

SUBARU does not endorse the use of
non-SUBARU approved flushing sys-
tems and strongly advises against
performing these services on a
SUBARU vehicle. Non-SUBARU ap-
proved flushing systems use chemi-
cals and/or solvents which have not
been tested or approved by SUBARU.
SUBARU warranties do not cover any
part of the vehicle which is damaged by
adding or applying chemicals and/or
solvents other than those approved or
recommended by SUBARU.

&

Before checking or servicing
in the engine compartment

WARNING

.

Always stop the engine and apply

the parking brake firmly to pre-
vent the vehicle from moving.

.

Always let the engine cool down.

Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine has stopped.

.

Do not spill engine oil, engine

coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.

.

When the ignition switch is in the

“ON” position, the cooling fan
may operate suddenly even when
the engine is stopped. If your
body or clothes come into con-
tact with a rotating fan, that could
result in serious injury. To avoid
risk of injury, perform the follow-
ing precautions.

– Models with push-button start

system:
Always turn the push-button
ignition switch to the “OFF”
position and confirm that the
operation indicator on the
switch is turned off. Then take
the access key fob out from
the vehicle.

– Models without push-button

start system:
Always remove the key from
the ignition switch.

.

Before performing any servicing

on a vehicle equipped with a
remote engine start system (a
dealer option), temporarily place
the remote engine start system in
service mode to prevent it from
unexpectedly starting the engine.

&

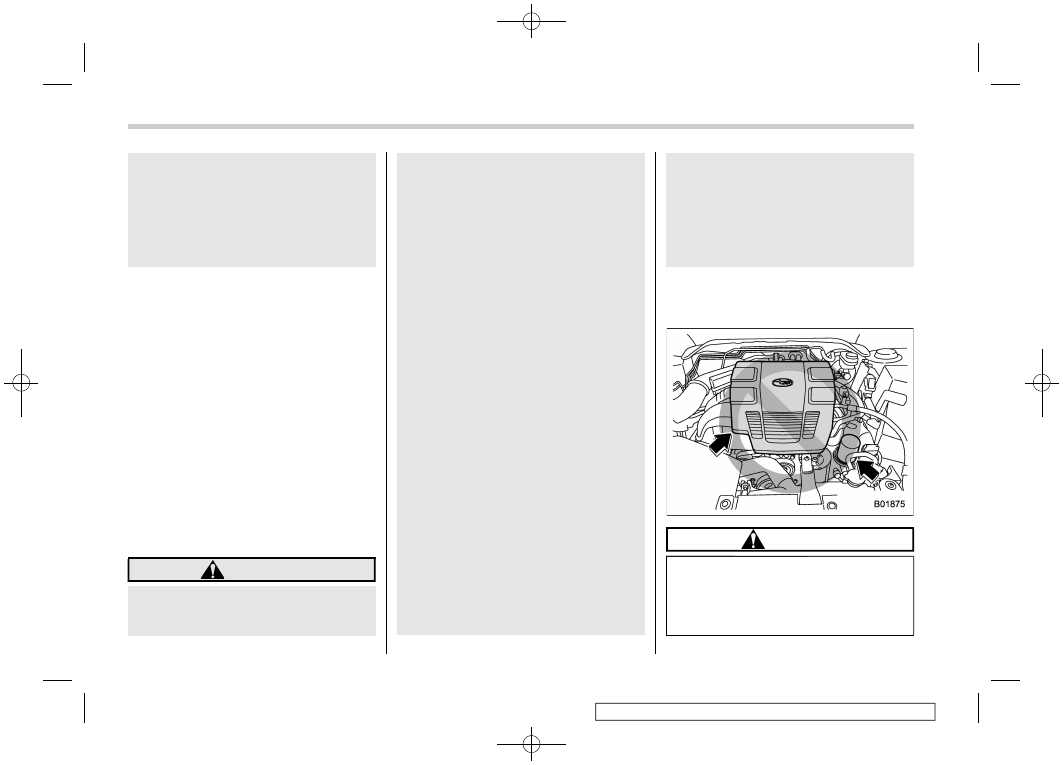

When checking or servicing
in the engine compartment

CAUTION

.

Do not touch the engine cover

while checking the components
in the engine compartment.
Doing so may cause your hand
to slip off the cover and result in

Maintenance precautions

444

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(447,1)

an unexpected injury.

.

Do not touch the oil filter until the

engine has cooled down comple-
tely. Doing so may result in a burn
or other injury. Note that the oil
filter becomes very hot when the
engine is running and remains
hot for some time after the engine
has stopped.

&

When checking or servicing
in the engine compartment
while the engine is running

WARNING

A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, drive belt and any other moving
engine parts. Removing rings,
watches and ties is advisable.

11-3. Maintenance tips

Some clips and fender linings must be
removed before replacing the air cleaner
elements or specific bulbs.

&

Removing and reinstalling
clips

!

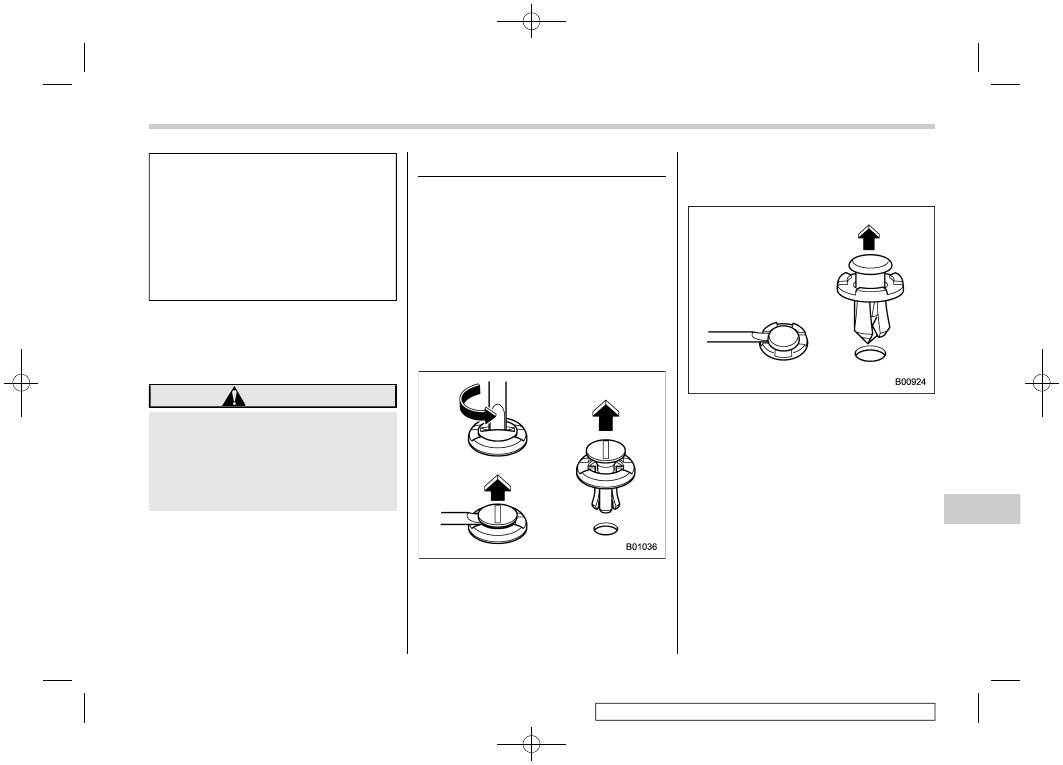

Removing clips

There are several types of clips used for
your vehicle.

!

Type A clips

1. Turn the clips counterclockwise using
a flat-head screwdriver until the center
portion of the clip is raised.
2. Remove the clips with a flat-head
screwdriver using leverage.

3. Remove the entire clip by pulling it up.

!

Type B clips

1. Pull out the center portion of the clip
using a flat-head screwdriver as shown in
the illustration.
2. Pull the protruded center portion to
remove the entire body of the clip.

– CONTINUED –

Maintenance tips

445

11

Maintenance

and

service

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(448,1)

!

Type C clips

1. Turn the clip counterclockwise using a
Phillips screwdriver until the center portion
of the clip is raised.
2. Remove the entire clip by pulling it up.

!

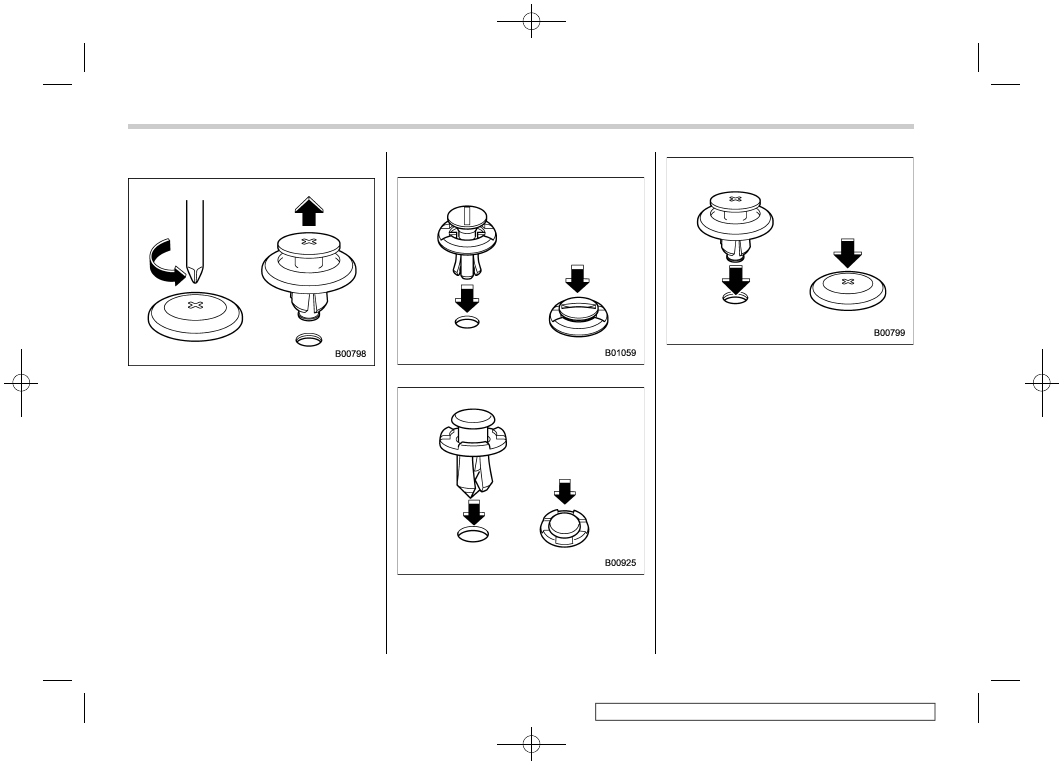

Reinstalling clips

Type A clips

Type B clips

Type C clips

Insert the clip without the center portion
first and then push the center portion of the
clip into the hole.

Maintenance tips

446

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(449,1)

11-4. Engine hood

CAUTION

.

Be extremely careful not to catch

fingers or other objects when
closing the engine hood.

.

Do not push the hood forcibly to

close it. It could deform the metal.

.

Be extremely careful opening the

engine hood when the wind is
strong. The engine hood could
close suddenly, possibly causing
injuries from slamming.

.

Do not install accessories other

than genuine SUBARU parts to
the engine hood. If the engine
hood becomes too heavy, the
stay may not be able to support
holding it open.

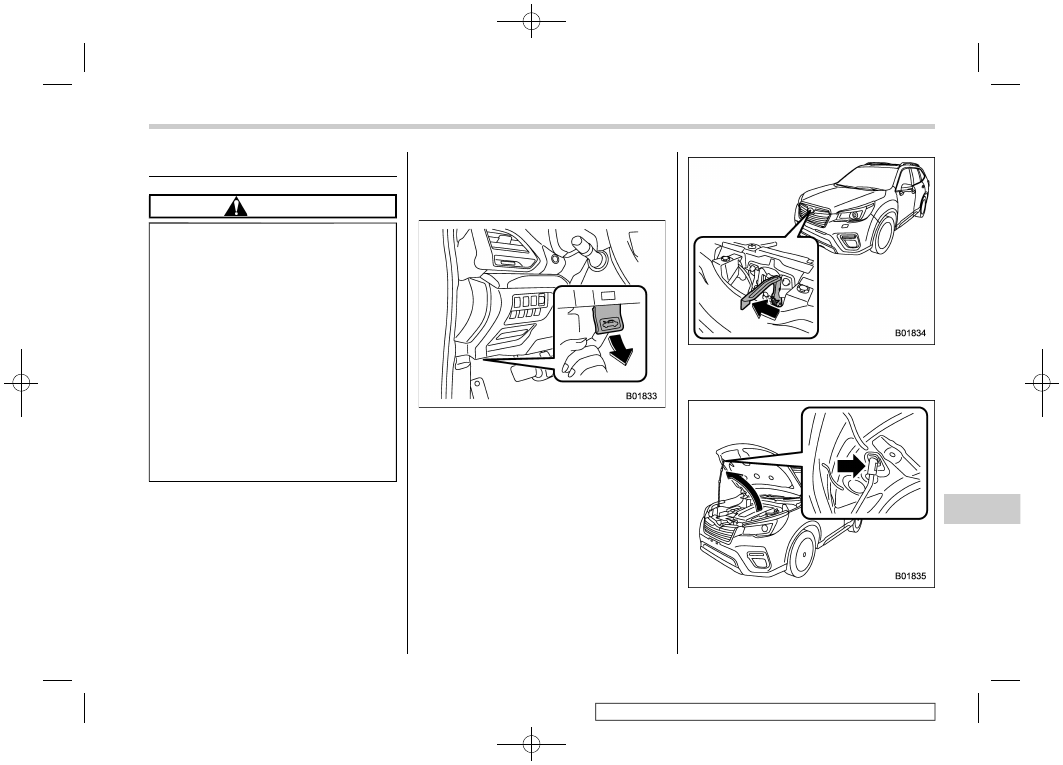

To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
position.

2. Pull the hood release knob under the
instrument panel.

3. Release the secondary hood release
by moving the lever between the front grille
and the hood toward the left.

4. Lift up the hood, release the hood prop
from its retainer and put the end of the
hood prop into the slot in the hood.

– CONTINUED –

Engine hood

447

11

Maintenance

and

service

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(450,1)

To close the hood:
1. Lift the hood slightly and remove the
hood prop from the slot in the hood and
return the prop to its retainer.
2. Lower the hood to a height of approxi-
mately 5.9 in (15 cm) above its closed
position and then let it drop.
3. After closing the hood, be sure the
hood is securely locked.

If this does not close the hood, release it
from a slightly higher position.

WARNING

Always check that the hood is
properly locked before you start
driving. If it is not, it might fly open
while the vehicle is moving and
block your view, which may cause
an accident and serious bodily in-
jury.

Engine hood

448

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(451,1)

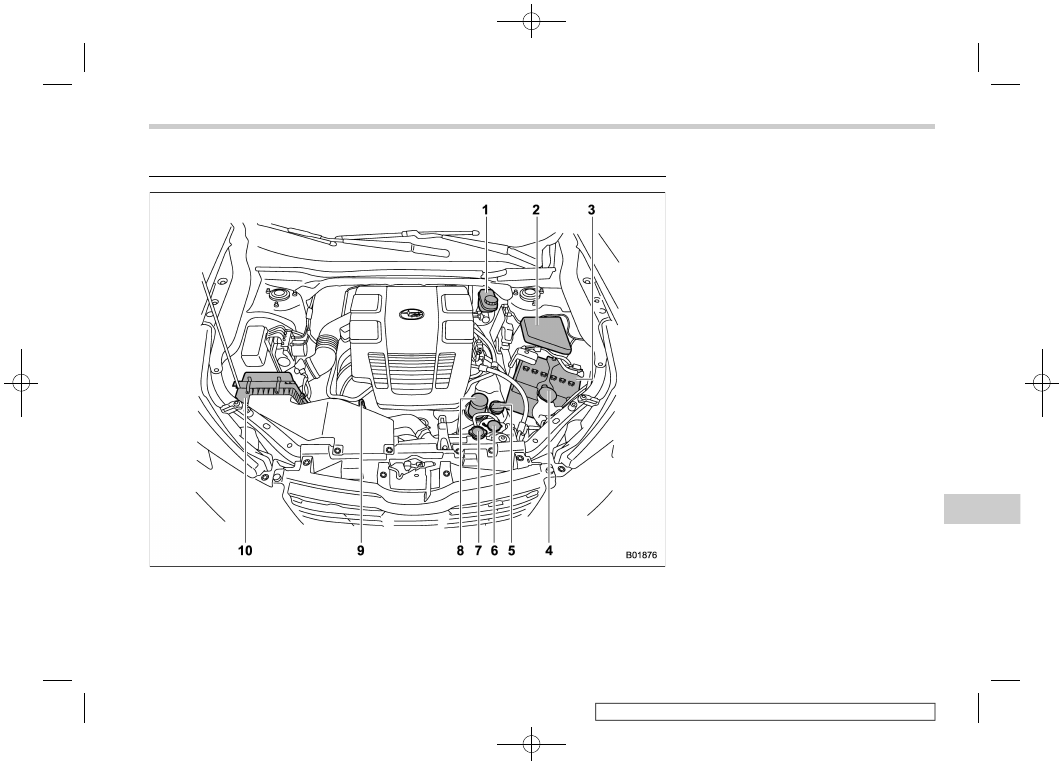

11-5. Engine compartment overview

1)

Brake fluid reservoir (page 457)

2)

Fuse box (page 474)

3)

Battery (page 473)

4)

Windshield washer tank (page 467)

5)

Engine oil filler cap (page 450)

6)

Engine coolant reservoir (page 453)

7)

Radiator cap (page 453)

8)

Engine oil filter (page 451)

9)

Engine oil level gauge (page 450)

10) Air cleaner case (page 454)

Engine compartment overview

449

11

Maintenance

and

service

-------------------------------------------------------------------------------------------------------------------------------------------------------------
