SsangYong Rexton. Service manual - part 654

SSANGYONG  Y200

9B-10  BODY INTERIOR

YAD9B200

YAD9B210

YAD9B220

YAD9B230

4. Separate cigar lighter, connectors of seat warmer

(right/ light).

5. Remove console assembly.

GROOVE BOX

Removal / Installation

1. Remove hook of left/right side in the groove box

from instrument.

Notice:  If excessive force is put on hook, hook
may be broken.

2. While the groove box is opened completely,

release fixing bolt of bracket, and then remove
groove box assembly.

TRIM AND ROOF

Removal / Installation

Notice: Installation proceed reverse order of removal.

A-pillar

1. Remove trim of A-pillar

•

Pull key of A-pillar trim out of key home.

BODY INTERIOR  9B-11

SSANGYONG  Y200

YAD9B240

YAD9B250

YAD9B260

YAD9B270

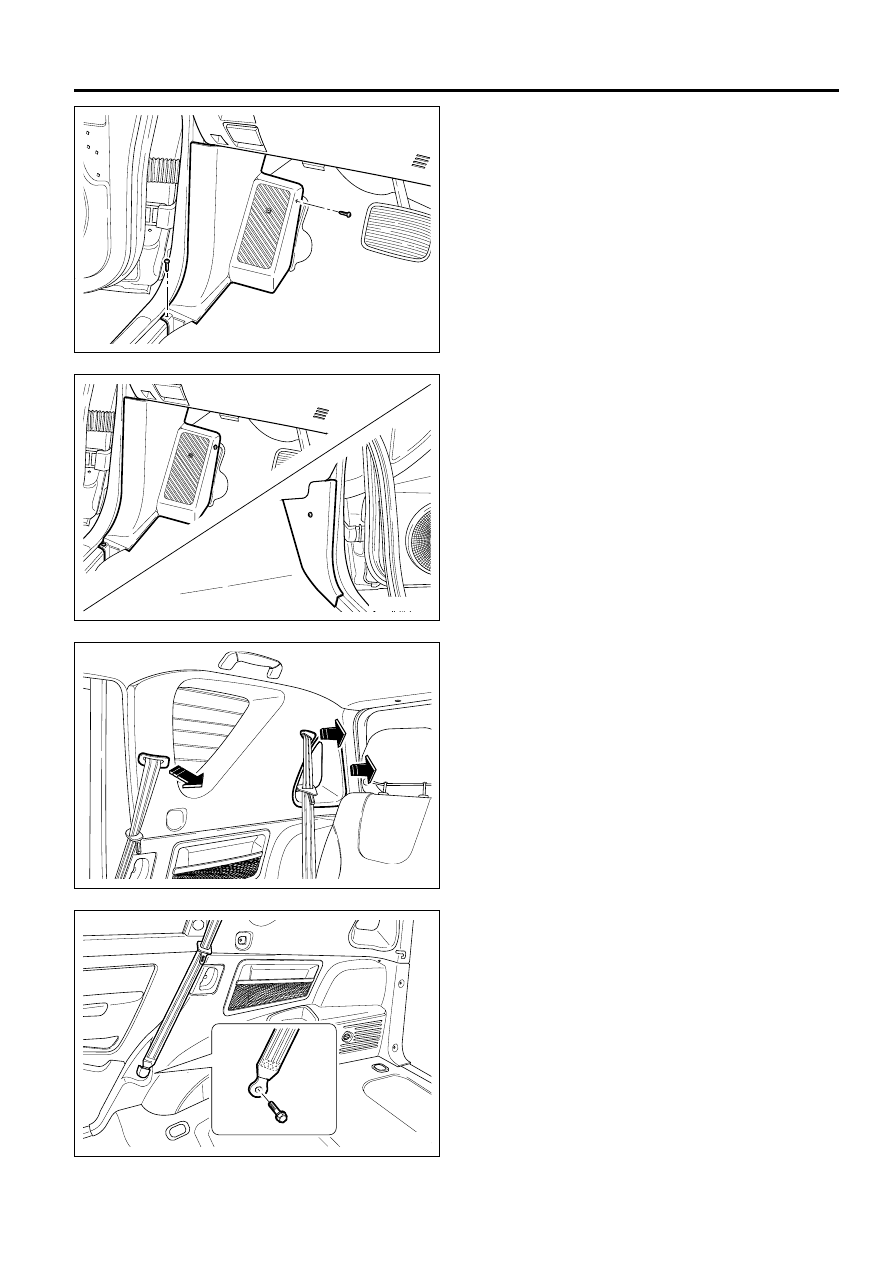

Side cowl trim

1. Separate fixing screw of door side and fixing screw

of foot board of side cowl-trim in the driver seat.

2. Remove trim of side cowl ( right/left ).

Upper / lower quarter

1. Remove rear window cover ,seat belt cover of

upper quarter trim.

2. Release fixing bolt of rear seat belt lower.

SSANGYONG  Y200

9B-12  BODY INTERIOR

YAD9B280

YAD9B290

YAD9B300

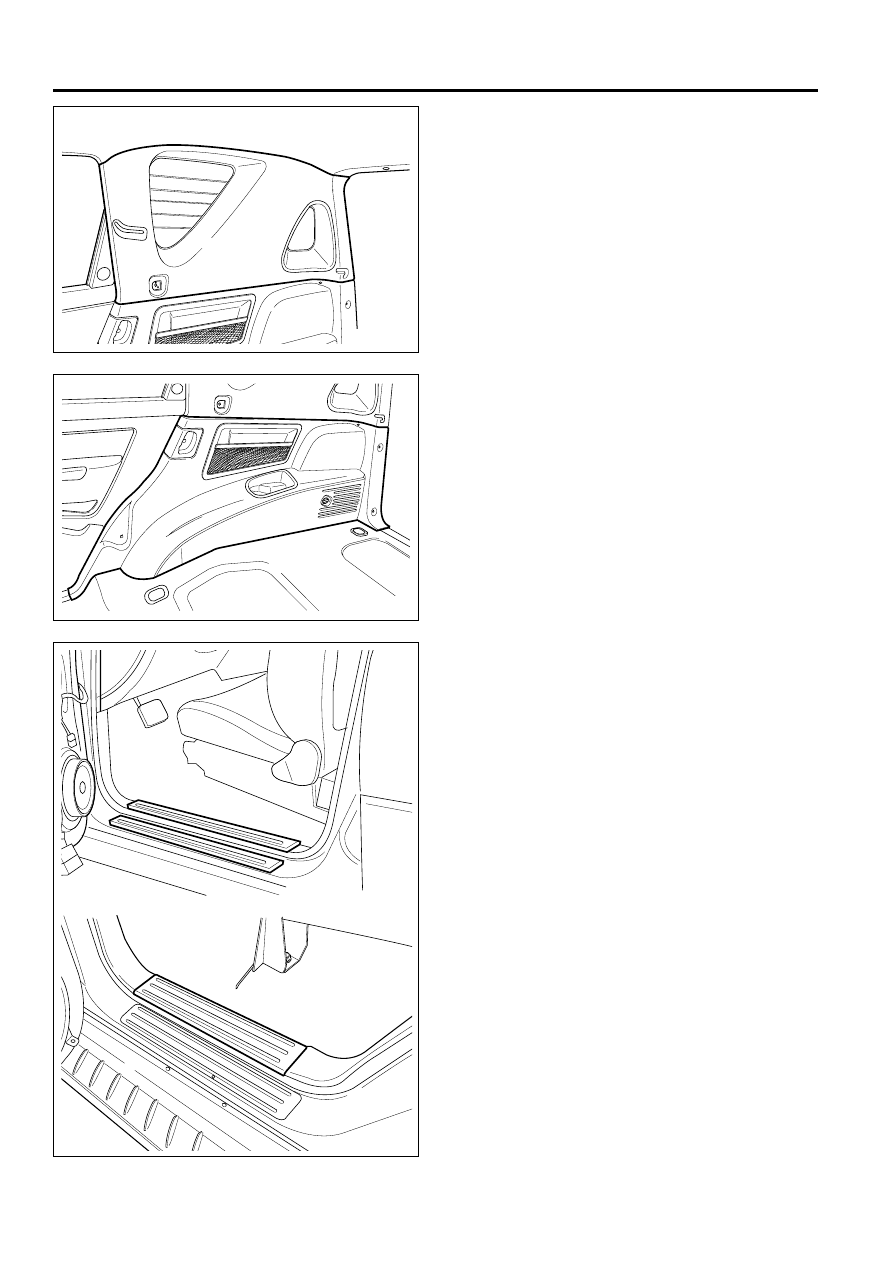

3. After releasing fixing screw, separate upper

quarter trim.

4. Separate lower quarter trim, in order to make easy

repair, cover of lower quarter trim ( right/left ) is
separated in advance.

Door scuff trim

1. Using special tool, separate door scuff trim of front

and rear.

Notice: First of all, remove door scuff trim of front
and rear in advance while door scuff trim of front
and rear is installed finally.

BODY INTERIOR  9B-13

SSANGYONG  Y200

YAD9B310

YAD9B320

YAD9B330

YAD9B340

Multi-purpose  luggage box

1. Opening the cover of tool box, separate bolt and

screw in the multi-purpose,box.

2. Separate multi-purpose box from luggage

compartment.

Rear transverse trim of tail gate

1. After opening the tail gate, release fixing screw of

rear transverse trim.

2. Separate rear transverse.

B - pillar trim

1. Release fixing bolt upper and lower of seat belt.

2. After pulling trim of upper B-pillar trim by the hand,

pick up key of trim from panel, and then separate
trim.
