SSANGYONG  Y200

9B-6  BODY INTERIOR

YAD9B050

YAD9B060

YAD9B070

INSTRUMENT

Removal / Installation

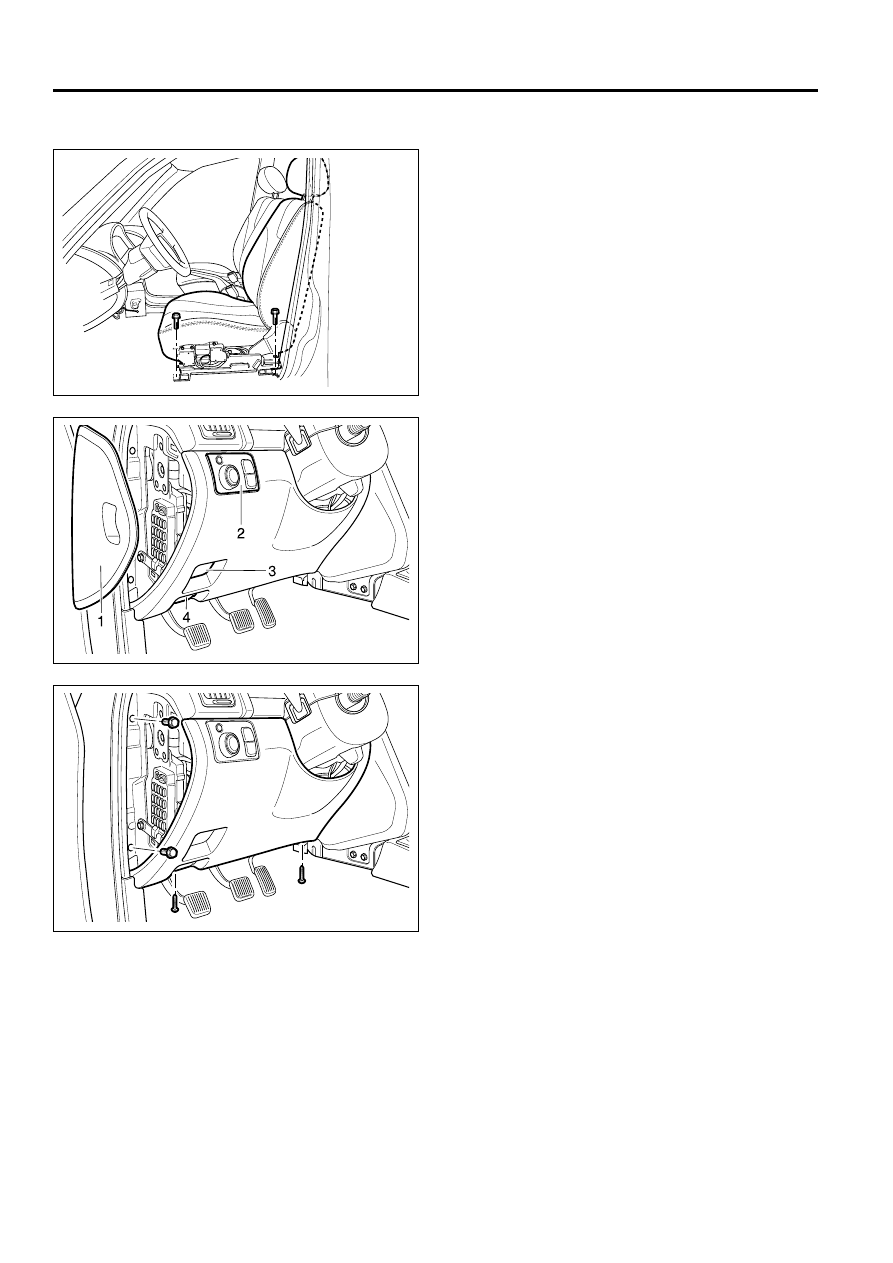

1. Remove negative terminal(-) from battery.

2. Remove seat of passenger to remove easily panel

of instrument.

REMOVAL AND INSTALLATION

4. Remove lower panel of driver seat in the instrument

panel.

3. Remove cover(1) of fuse box, switch panel(2) of

side mirror, release lever(3) of fuel tank cover.

BODY INTERIOR  9B-7

SSANGYONG  Y200

YAD9B080

YAD9B090

YAD9B100

YAD9B110

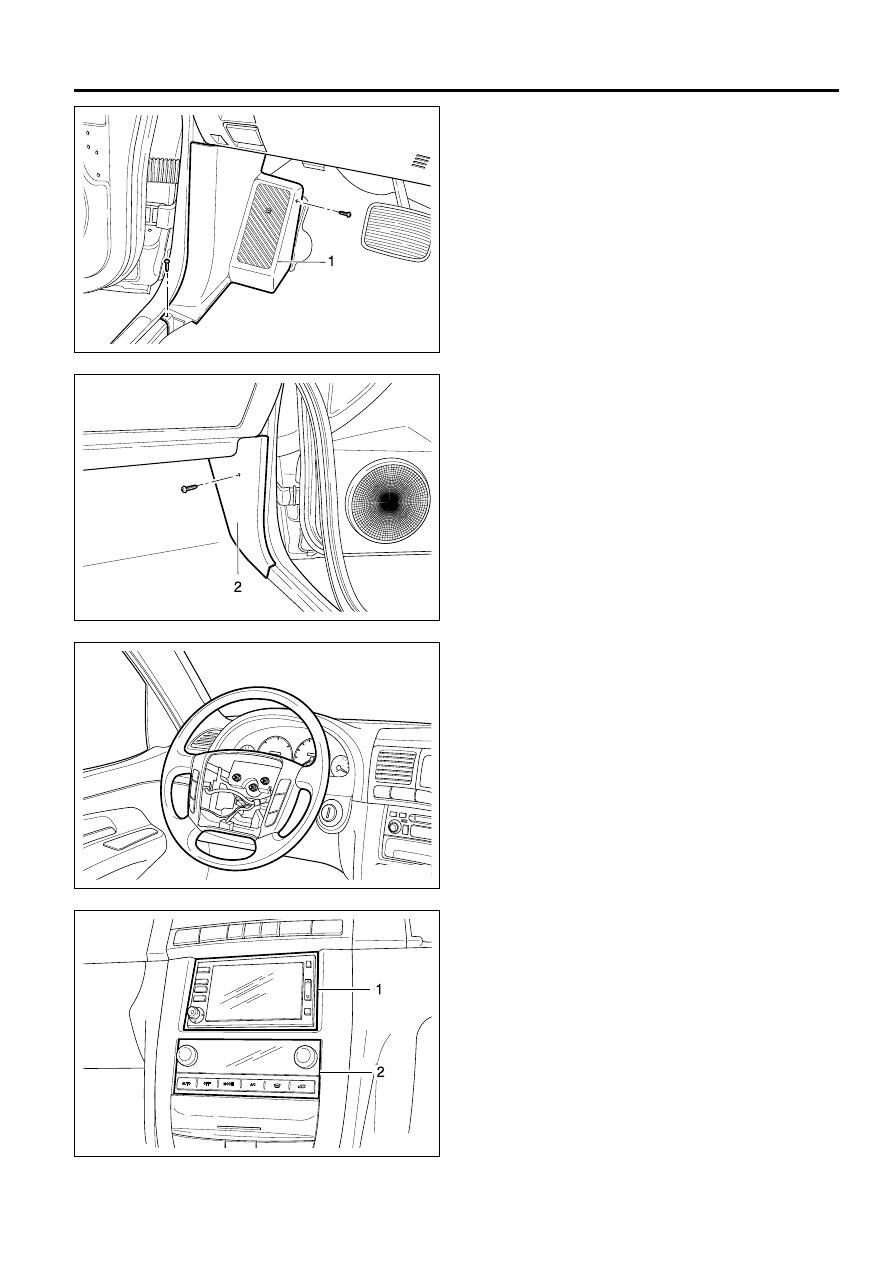

5. Remove side cowl in the left side/ right side.

1) Remove front trim of door scuff in the left side /

right side.

2) Removing screw of side of foot-board, side of

door in the side cowl and then come to removal
of side cowl.

7. Removing center facia panel , remove Audio(1),

Aircon controller  Assembly(2).

6. Separating connector and vacuum hose from

steering column assembly,  remove steering
column shaft assembly.

3) After driver put clearance between pillar and

panel, remove side cowl.

SSANGYONG  Y200

9B-8  BODY INTERIOR

YAD9B120

YAD9B130

YAD9B140

YAD9B150

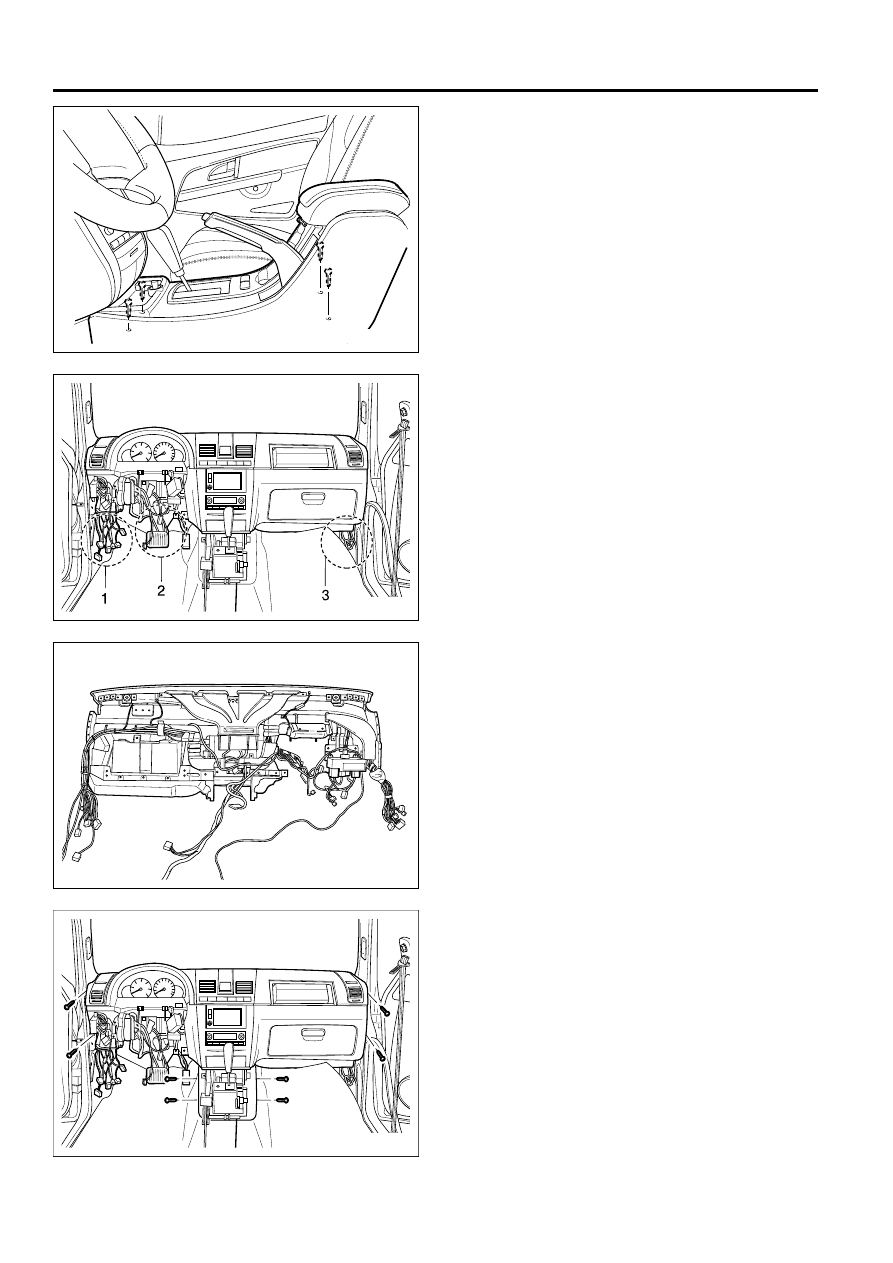

8. Remove the console box.

10. After releasing fixing bolt and nut in the instrument

panel, remove panel assembly.

9. Remove connector of main harness linking to

center and right side /left in the instrument panel.

1) Connector linking to left side

2) Connector linking to right side

3) Connector linking to center

BODY INTERIOR  9B-9

SSANGYONG  Y200

YAD9B160

YAD9B170

YAD9B180

YAD9B190

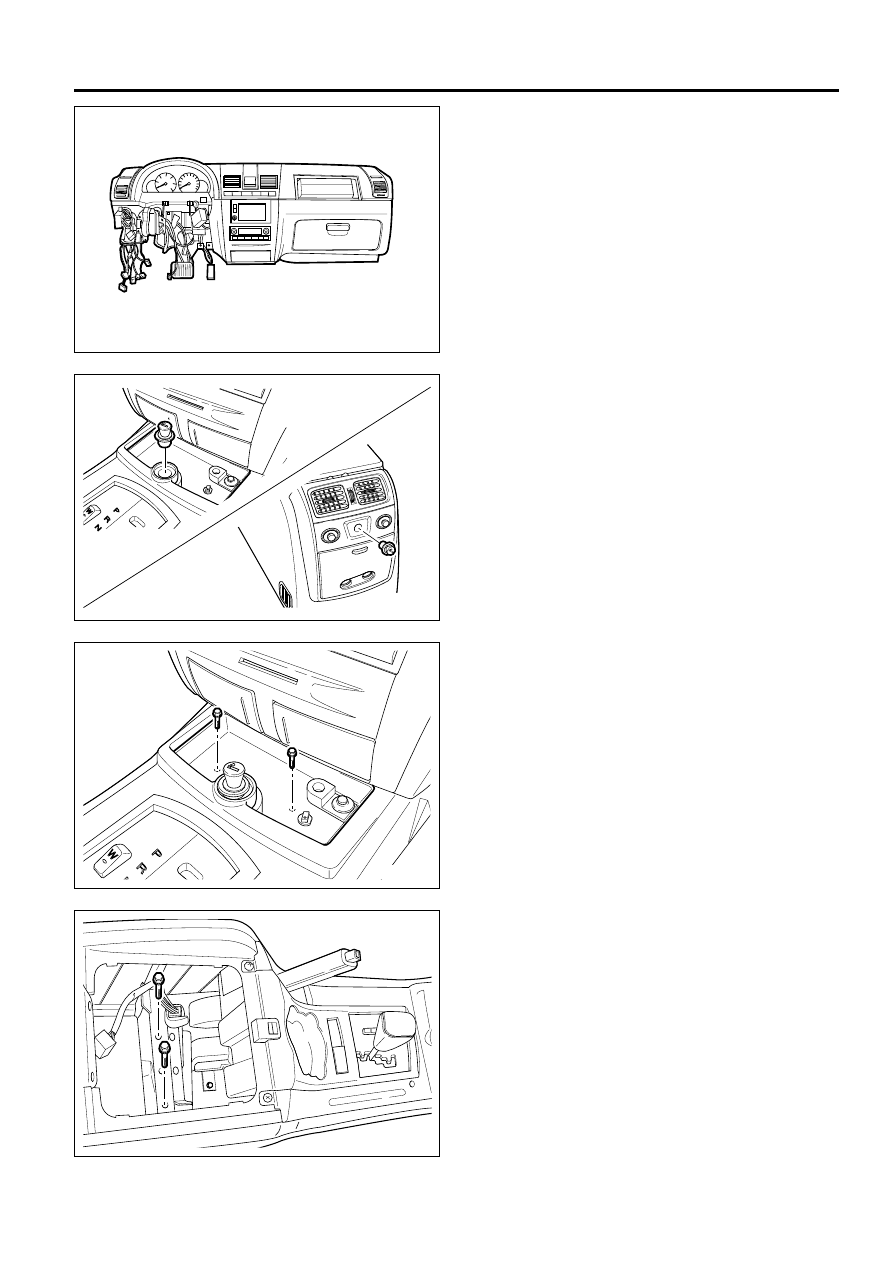

11. Installing the reverse of removal, insert each

connectors tightly.

COSOLE BOX

Removal / Installation

1. Separate front console  cover and console tray.

3. Separate fixing bolts from console tray internal in

the console box of rear side.

2. After removing front console cover , separate fixing

bolts( 2).
