SsangYong Rexton. Service manual - part 651

GENERAL BODY 9A-7

SSANGYONG Y200

;;;;;;;;;;;;;

REPAIR

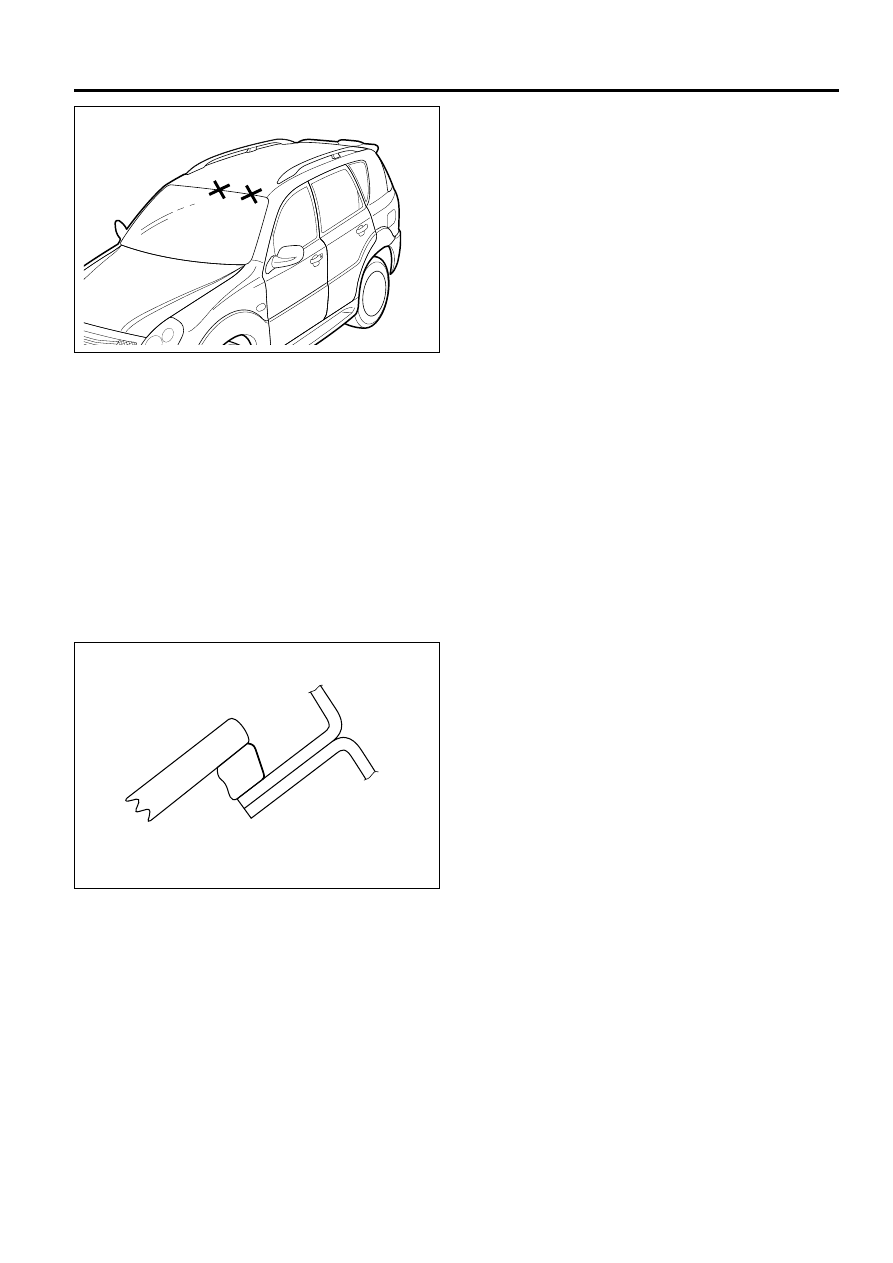

Repair Leaking Water

Leaking water on the section of glass can be repaired
without removal of glass.

Notice: Method to repair of following description is
applied on the equipped glass of urethane sealing.

1. Remove leaking moulding and section of trim, to

detect position of leaking water it is necessary for
technician to remove trim and garnish moulding

2. During injecting water on the leaking section, to

detect quantity of leaking water, carefully push
the glass external area.

3. Mark accurate position of leaking water.

4. Wash section of leaking water and dry up air hose.

YAD9A090

YAD9A100

5. Remove ununiform section of cohesive material

on the distance of 75 - 100 mm to leaking section

6. Spread prima on the uniform section leaking

SSANGYONG Y200

9A-8 GENERAL BODY

YAD9A110

Method to Repair Wind Noise

Method to repair wind noise is similar to method to
repair leaking water.

Wind noise of around door opening weather strip is
not proper installed.

Weather but depends on adjusting door and window.

Method to Repair Body Noise

Due to not properly installed parts of body, body noise
is occurred, in order not to make a noise, proceed the
following description.

•

Install completely relative moving parts under
vehicle’s moving.

•

Repair clearance of moving parts under vehicle’s
moving.

•

In order not to cause body noise about moving
parts, separate, moving parts, treat soundproof.

•

Uniform surface of friction can prevent harding
state.

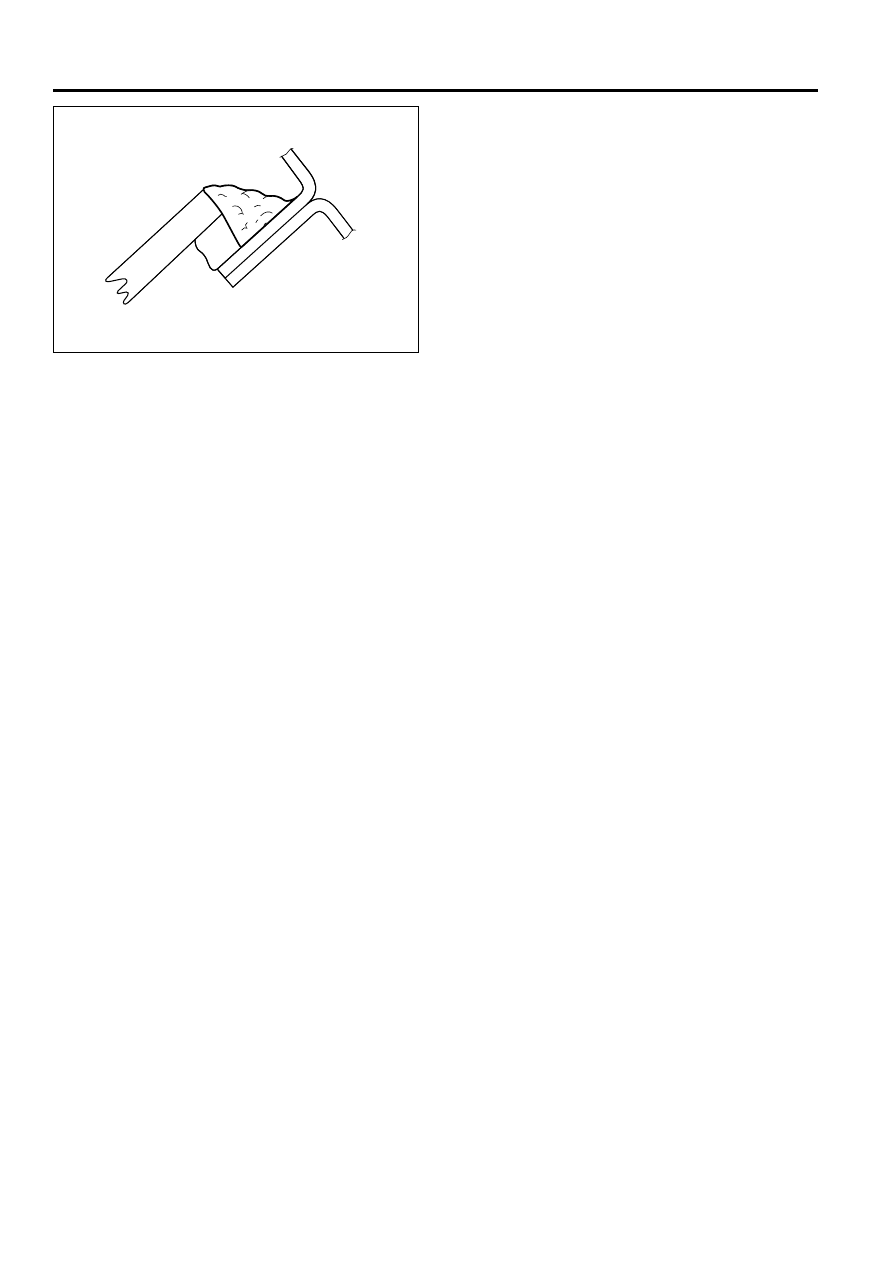

7. Wait approximately 5 minutes, until drying up

prima.

8. Spread cohisive material on the distance of 75 -

100 mm to leaking section.

9. After spreading cohisive material, using the flat

stick and similar equipment, keep body and
cohisive material uniform in order not to leak water.

10. To make sure to finish repairing leaking water,

inject warm water or, hot water on the section of
leaking water.

11. Install parts removed to repair leaking section.

Notice: After repairing section of leaking water
completely, using stand for leaking. test, check
the section of leaking water again, if abnormal
pressure is checked, repaired cohesive material
may get out of position itself. So leaking water
test should not check on local section of leaking .

GENERAL BODY 9A-9

SSANGYONG Y200

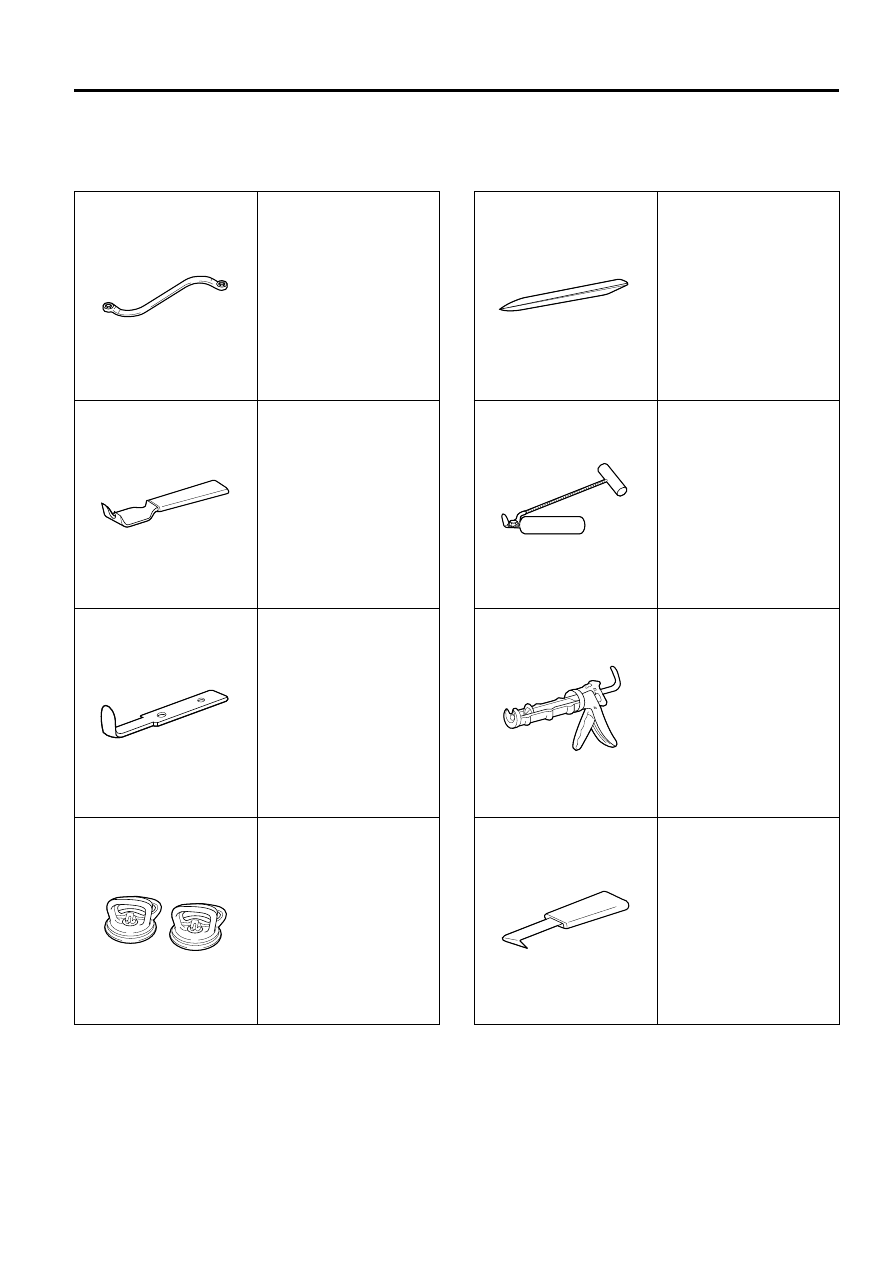

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

09861- 31200

Cuttibg Knife of Sealant

09861-31400

Glass Holder

09793-21000

Adjusting Wrench of

Door Wrench

09853-31000

Remover of Headlning

Clip

09861-31300

Sealant Gun

09861-31000

Remover of Wind Shield

Molding

09800-21000

Ornament Remover

09861-31100

Cutting Tool of Sealant

YAD9A120

YAD9A130

YAD9A140

YAD9A150

YAD9A160

YAD9A170

YAD9A180

YAD9A190

SECTION 9B

BODY INTERIOR

TABLE OF CONTENTS

Components Location ......................................... 9B-2

Instrument Assembly ........................................... 9B-2

Side Trim and Roof Assembly .............................. 9B-3

Seat .................................................................... 9B-4

Console ............................................................... 9B-5

Removal and Installation ..................................... 9B-6

Instrument ........................................................... 9B-6

Console Box ........................................................ 9B-9

Groove Box ....................................................... 9B-10

Trim and Roof .................................................... 9B-10

Handler ............................................................. 9B-15

Sunvisor ............................................................ 9B-15

Room Miror ........................................................ 9B-15

Seat .................................................................. 9B-16

Removal and Installation ................................... 9B-18

Front Seat .......................................................... 9B-18

Two Row Seat .................................................... 9B-19

Seat of Three Row .............................................. 9B-20
