DIGNOSIS AND ACTION TAKEN
DIAGNOSIS FOR LEAKING
WATER
It is required for technician to inspect and diagnose
accurately problems of leaking water.
Problem of leaking water is repaired by adjusting of
misaligned parts by using proper equipment, first of
all check condition of leaking water.
For example, condition caused leaking water to occur
should be checked if vehicle is parked on the sloping
road or spare tire in the trunk.

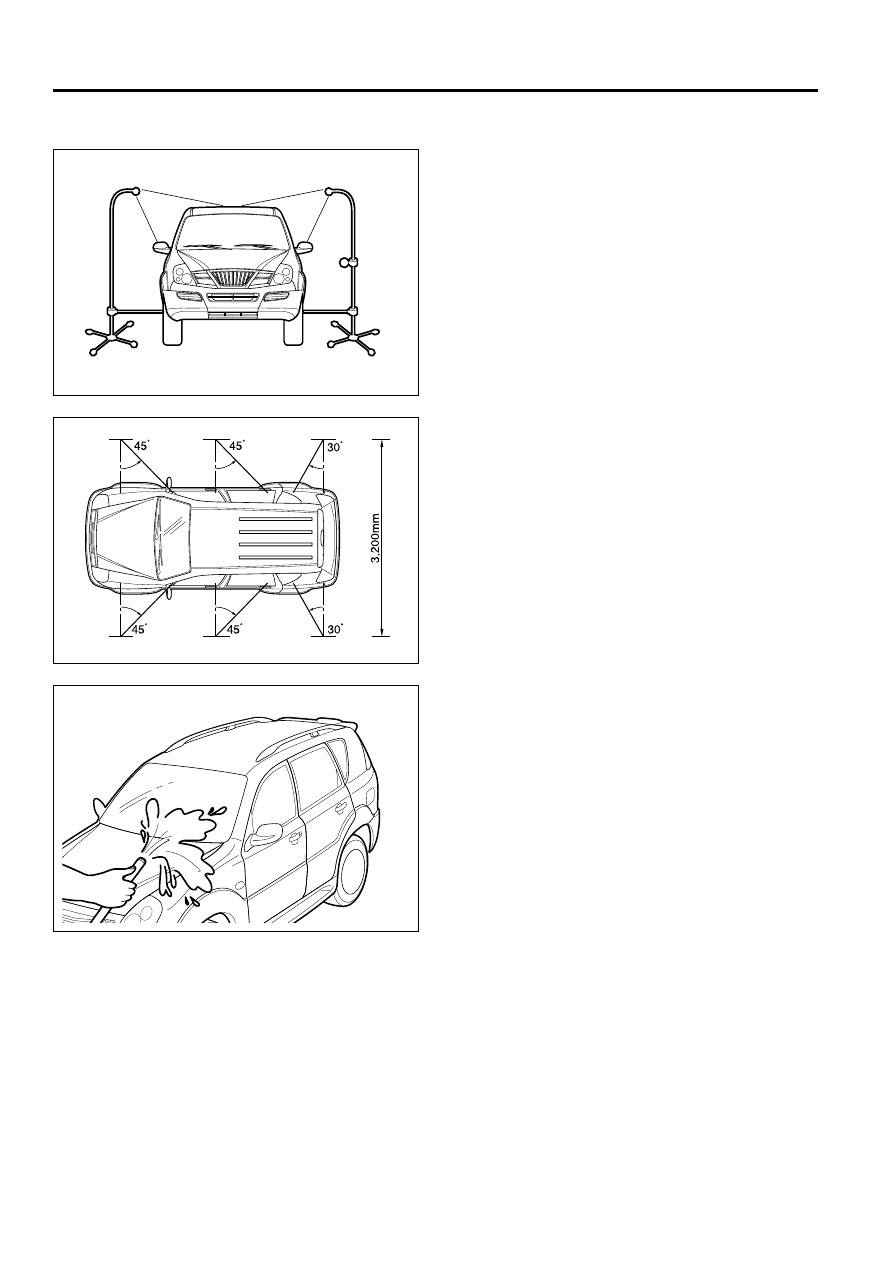

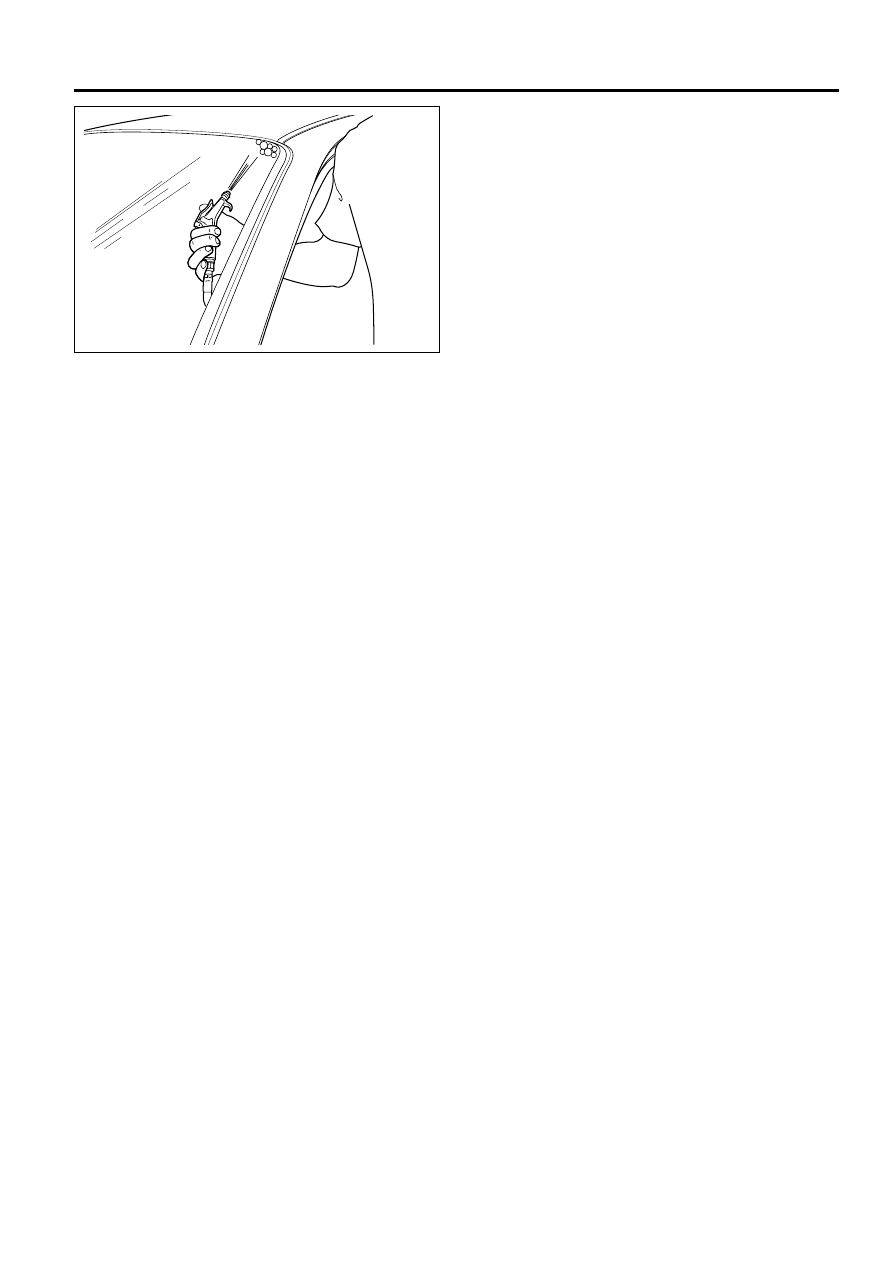

Next step of checking leaking section of water is
following as belows. If general leaking section of water
is detected, check accurate leaking section of water,
by using water hose or air hose. If general leaking
section of water is not detected, check leaking section
of water, by using the stand of tester of leaking water.
It is required for technician to check accurate leaking
section of water such as, removal of internal trim panel
or component parts .

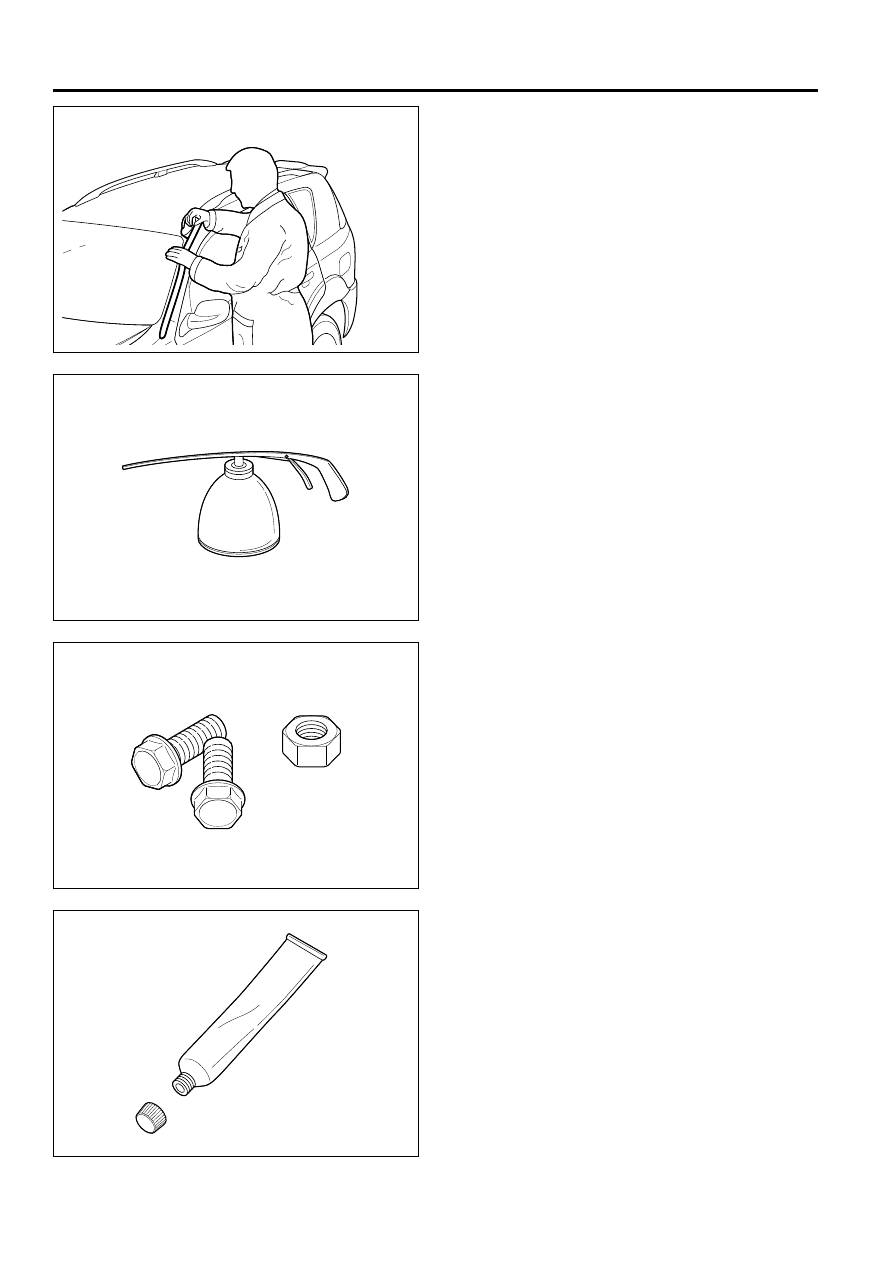

Notice: Technician should detect cause of leaking
water before leaking section of water is repaired.
It is difficult for technician to do temporary solution of
leaking water, but also this one will cause more difficult
situation to solve problem of leaking water.
To ensure detecting leaking section of water, keep test
for leaking section of water.
Adjust weather strip
Adjust and replace weather strip
Adjust
Adjust
Adjust
Repair or replace
1) Remove abnormal material from drain hose or pipe
2) Abnormal material is removed from drain hose or
pipe by compressor
3) Check the state of installing and connecting section
in the drain hose or pipe
4) Replace
5) Adjust
1) Retighten or replace
1) Adjust the position
2) Replace
3) Replace
1) Adjust position
2) Replace
3) Repair or replace
4) Grease
1) Adjust
2) Adjust
3) Adjust
Spread sealant
Repair
1) Not installed weather strip tightly
2) Misinstalled of weather strip
3) Not closed door accurately
4) Misinstalled or door
5) Not keep constant clearance
between door glass and moulding
6) Deformed of door
1) Abnormal material build up on drain
hose and pipe
2) Drain hose or pipe is clogged up
3) Misinstalled of drain hose or pipe,
deformed or broken clip
4) Deformed weather strip of roof-lid
5) Not keep clearance constant
between roof-lid and body or mis
Installed weather strip
1) Loose or deformed deflector
1) Misinstall of wind glass
2) Failure of motor
3) Failure of power window switch
1) Misinstalled of door
2) Misoperated of door lock
3) Deformed of door checker
4) Lack of grease at door hinge
1) Not fitted the position between
striker and latch
2) Misinstalled of hood
3) Inproper height of hood bumper
Lack of sealing
Damaged flange
