RESTRAINTS  8B-15

SSANGYONG  Y200

Check

Check the connection of the driver side airbag sensor connector.

Check the wiring condition of the driver side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the driver side airbag sensor connector.

Check the wiring condition of the driver side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the driver side airbag sensor connector.

Check the wiring condition of the driver side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the passenger side airbag sensor

connector.

Check the wiring condition of the passenger side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the passenger side airbag sensor

connector.

Check the wiring condition of the passenger side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the passenger side airbag sensor

connector.

Check the wiring condition of the passenger side airbag sensor.

Check the bending of the airbag terminal.

Check the connection of the passenger side airbag sensor

connector.

Check the wiring condition of the passenger side airbag sensor.

Check the bending of the airbag terminal.

Check generator output voltage.

Check the battery voltage.

Check the bending of the airbag terminal.

Check generator output voltage.

Check the battery voltage.

Check the bending of the airbag terminal.

Replace the SDM.

Replace the SDM.

Code

51h

52h

53h

54h

55h

56h

57h

17h

18h

1Eh

1Fh

Fault Contents

Passenger side airbag circuit,

short to ground

Communication malfunction of

the driver side airbag

Internal fault of the driver side

airbag sensor

Passenger side airbag sensor,

open/short to battery voltage

Passenger side airbag sensor,

short to ground

Communication malfunction of

the passenger side airbag

Internal fault of the passenger

side airbag sensor

Battery voltage too high

Battery voltage too low

SDM internal fault

(Initialization fault)

SDM internal fault

Caution:

•

Use only the scan tool to check the airbag
module and the sensing and diagnostic module
(SDM). Never measure the resistance of an airbag
module with an ohmmeter. An ohmmeter’s
battery can deploy the airbag and cause injury.

•

Before testing, disconnect the negative battery
cable. Wait 1 minute for the SDM capacitor to
discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is

disconnected. Unintentional deployment of the
airbags can cause injury.

•

Do not attempt to repair the supplemental
inflatable restraints (SIR) wiring harness. An SIR
repair can create a high-resistance connection
which can keep the airbags from deploying when
needed, resulting in injury.

SSANGYONG  Y200

8B-16  RESTRAINTS

ON-VEHICLE SERVICE

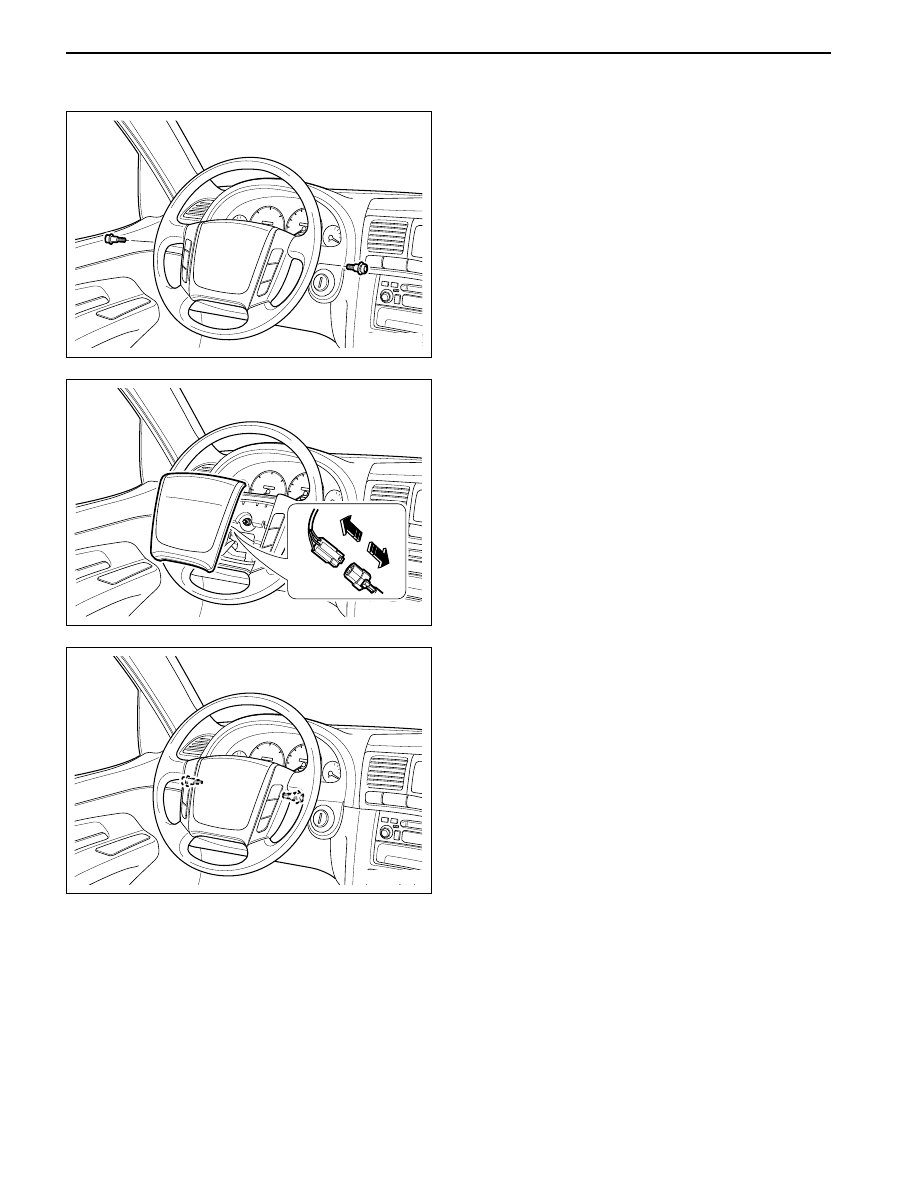

AIRBAG MODULE (DRIVER)

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Place the steering wheel at the straight driving

direction.

3. Remove the screw of the airbag module.

YAD8B110

YAD8B120

YAD8B130

4. Disconnect the airbag module connector, the horn

connector and then remove the airbag module.

5. Verify to tighten all of the module and each

connector.

Installation should follow the removal procedure
in the reverse order.

MAINTENANCE AND REPAIR

RESTRAINTS  8B-17

SSANGYONG  Y200

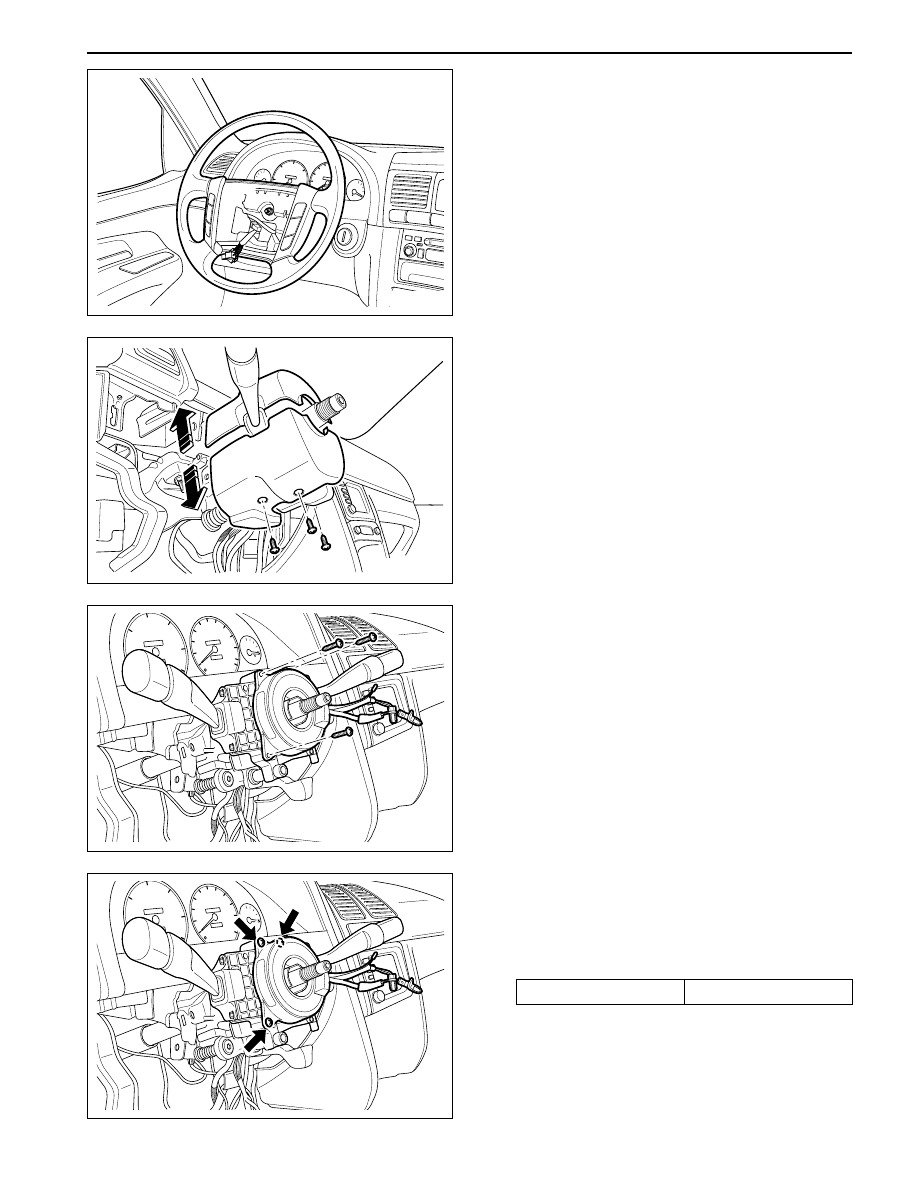

2. Remove the upper and lower cover of the steering

column.

YAD8B150

YAD8B160

3. Disconnect the contact coil connector and remove

the contact coil mounting screw. Remove the
contact coil assembly.

CONTACT COIL

Removal and Installation Procedure

1. Remove the steering wheel, the lower panel at the

driver side.

YAD8B140

YAD8B170

4. Tighten the contact coil mounting screw as the

specified torque.

Installation should follow the removal procedure
in the reverse order.

Installation Notice

Tightening Torque

3 N•m (27 lb-in)

SSANGYONG  Y200

8B-18  RESTRAINTS

;;;;

yyyy

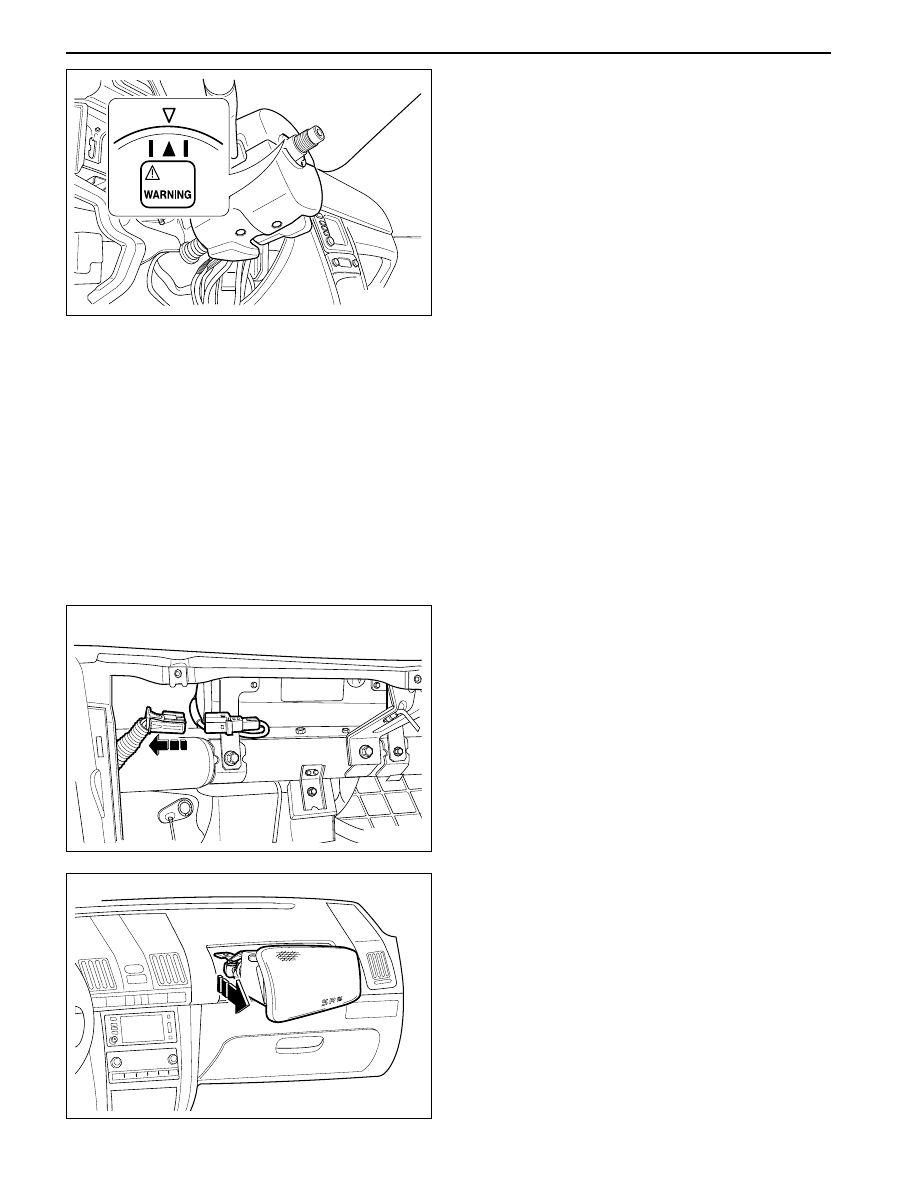

5. Fix the contact coil to the center position.

Notice: If the clock spring is not properly aligned,
the steering wheel may not be able to rotate
completely during a turn. Restricted turning ability
can cause the vehicle to crash. Improper alignment
o f   t h e   c l o c k   s p r i n g   a l s o   m a y   m a k e   t h e
supplemental inflatable restraints (SIR) system
inoperative, preventing the airbags from deploying
during a crash. Both of these outcomes can result
in injury.

Notice: Turn the label of the clock spring clockwise
to lock and turn the label of the clock spring
counterclockwise approximately 2.9 ¡¾ 0.2 turns
to the neutral positions with the front wheels ahead.
And also Align the pointed marks “

"!

” .

YAD8B180

YAD8B190

AIRBAG MODULE (PASSENGER)

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the glove box.

3. Disconnect the airbag module connector.

YAD8B200

4. Remove the airbag module.

5. Installation should follow the removal procedure

in the reverse order.
