SSANGYONG  Y200

8A-4  SEAT BELTS

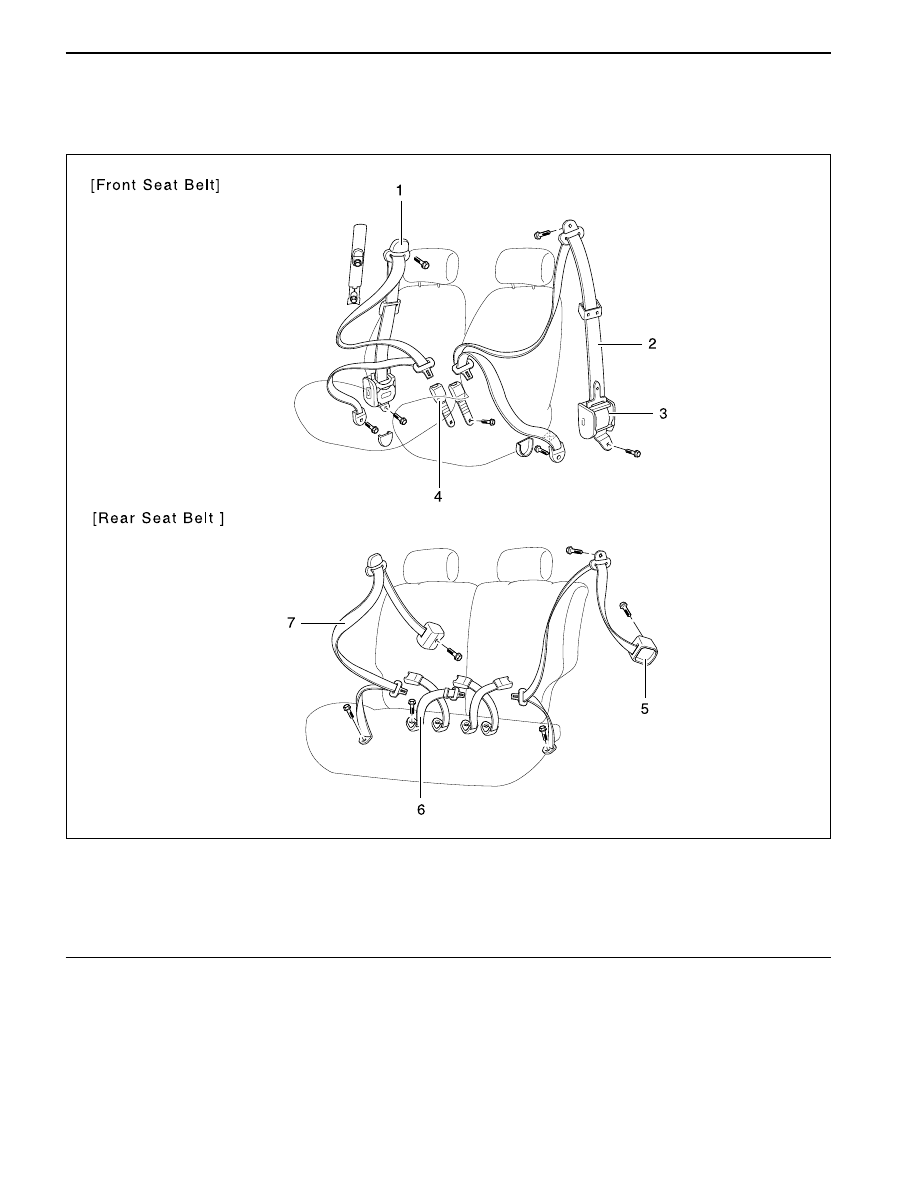

COMPONENT LOCATOR

SEAT BELT ASSEMBLY

1 Upper anchor plate
2 Seat Belt
3 Retractor
4 Buckle

5 Retractor
6 Rear Seat Belt
7 Seat Belt

YAD8A010

SEAT BELTS  8A-5

SSANGYONG  Y200

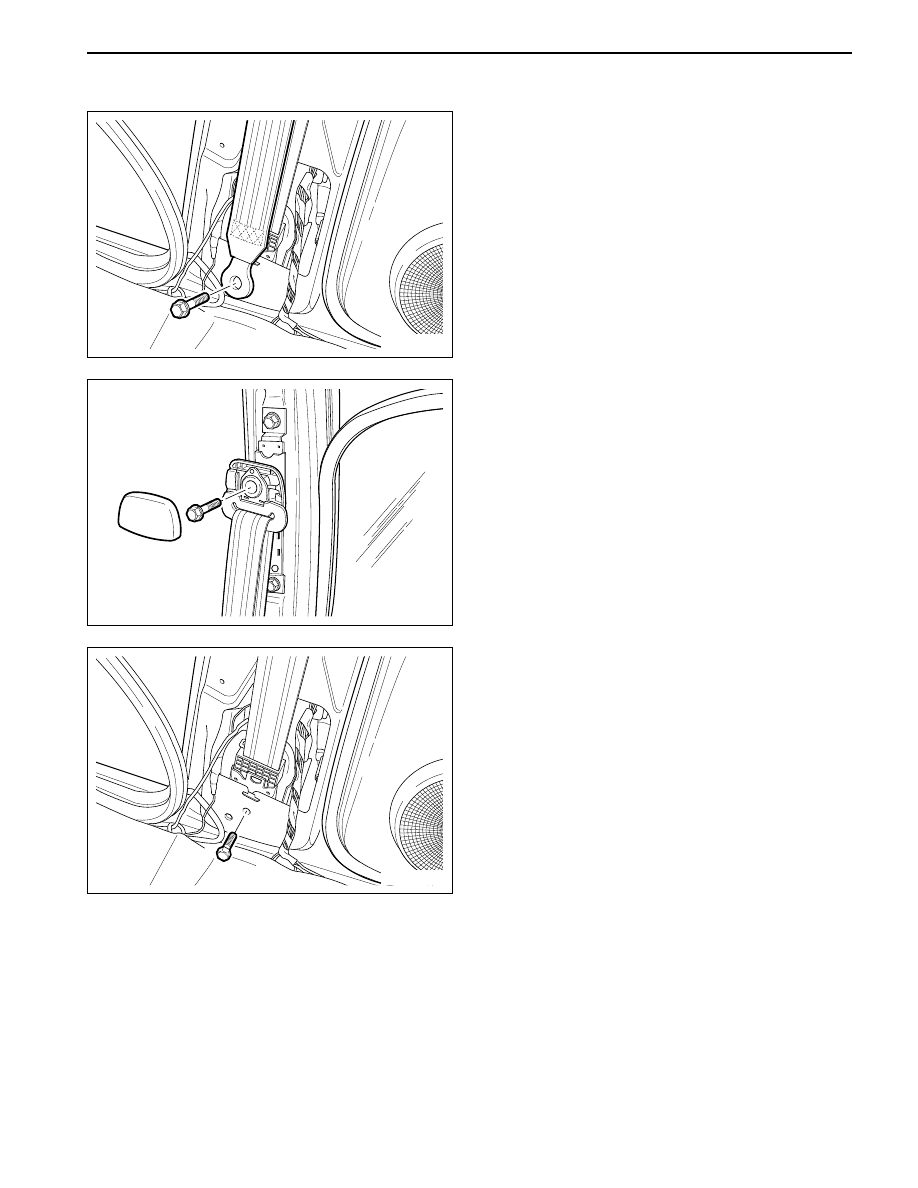

ON-VEHICLE SERVICE

FRONT SEAT BELT

Removal Procedure

1. Push to slide the front seat toward and push down

the seatback.

2. Pry off the bolt cap of the seat belt and remove

the lower bolt.

YAD8A020

YAD8A030

YAD8A040

3. Pry off the upper bolt cap using the special tool

and remove the upper bolt.

4. Pry off the lower B-pillar trim.

5. Disconnect the connector in the front seat belt

retractor and remove the mounting bolt.

6. Separate the front seat belt and the retractor

assembly.

MAINTENANCE AND REPAIR

SSANGYONG  Y200

8A-6  SEAT BELTS

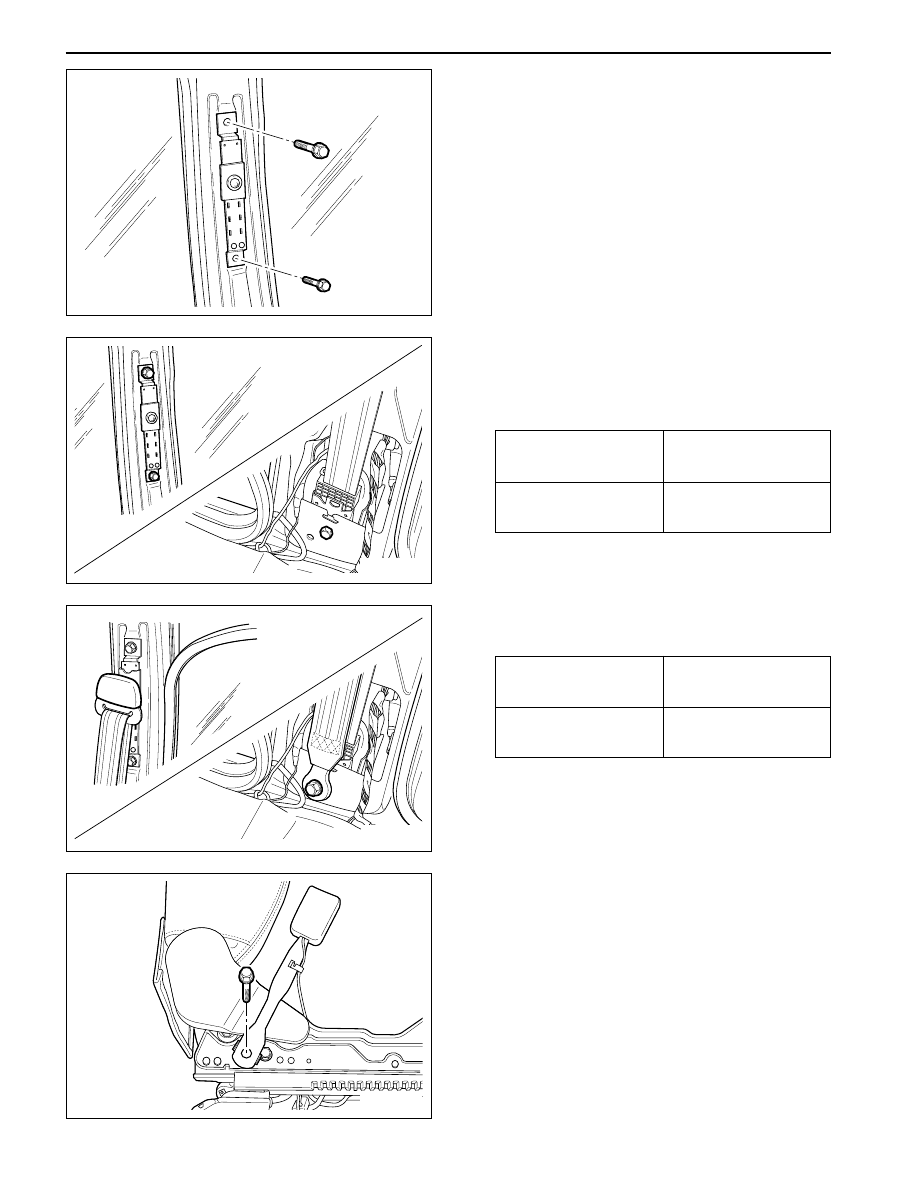

2. Tighten the upper/lower bolt as specified torque.

Installation Notice

YAD8A070

YAD8A080

FRONT SEAT BELT BUCKLE

Removal and Installation Procedure

1. Remove the seat and seat belt buckle mounting

bolt to remove the buckle assembly.

Installation Procedure

1. Tighten the adjuster and the seat belt retractor

bolt as specified torque.

Installation Notice

YAD8A060

Adjuster Mounting

Bolt (1)

30 - 40 N•m

 (22 - 30 lb-ft)

30 - 45 N•m

 (22 - 33 lb-ft)

Retractor Mounting

Bolt (2)

Upper Bolt (1)

30 - 45 N•m

 (22 - 33 lb-ft)

30 - 45 N•m

 (22 - 33 lb-ft)

Lower Bolt (2)

YAD8A050

7. Remove the upper B-pillar trim and remove the

bracket mounting bolt of the height adjuster to
remove the adjuster assembly.

SEAT BELTS  8A-7

SSANGYONG  Y200

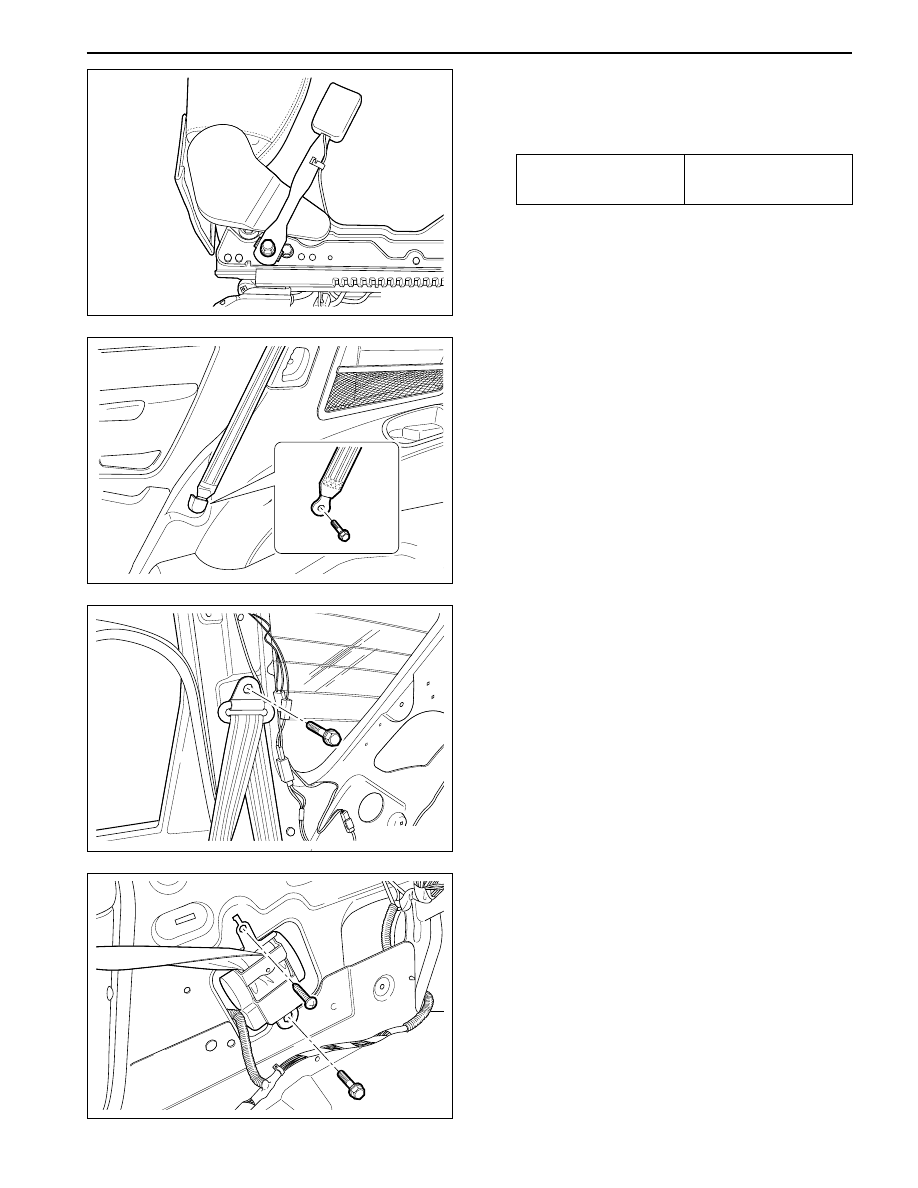

2ND-ROW SEAT BELT

Removal and Installation Procedure

1. Pry off the lower bolt cap of the seat belt and

remove the lower bolt.

YAD8A100

YAD8A110

YAD8A120

2. Remove the lower quarter trim.

3. Remove the upper quarter trim.

4. Remove the seat belt upper bolt.

5. Remove the retractor bolt and screw. Remove the

seat belt assembly.

YAD8A090

2. Installation should follow the removal procedure

in the reverse order. Tighten the mounting bolt as
specified torque.

Installation Notice

Tightening Torque

30 - 45 N•m

(22 - 33 lb-ft)
