7D-30  AUTOMATIC CONTROL HVAC SYSTEM

4. Installation should follow the removal procedure

in the reverse order.

Notice: Insert the connectors to the switch and
then assemble the control switch completely.

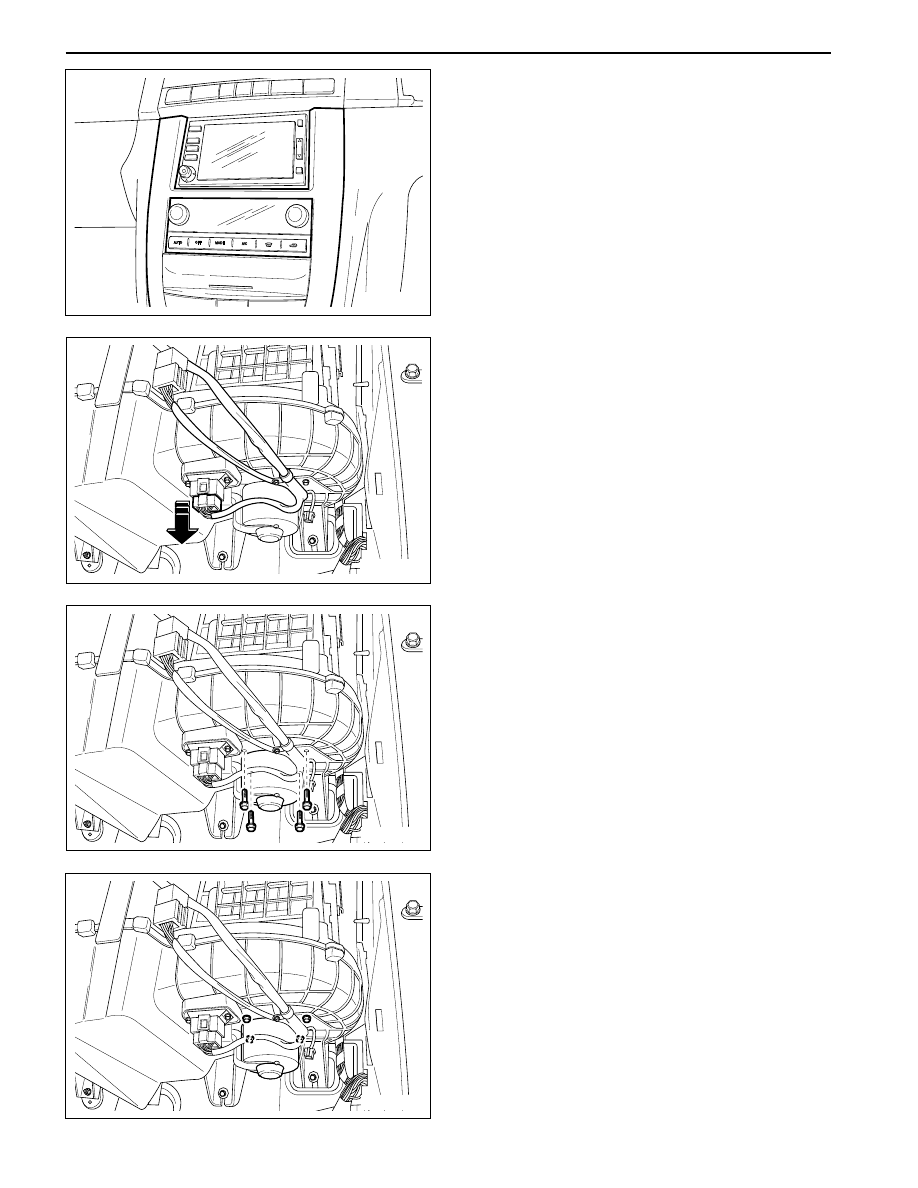

BLOWER MOTOR

1. Remove the glove box and put the floor mat aside.

2. Disconnect the connectors connecting the blower

motor.

3. Remove four bolts securing the blower motor and

remove the motor assembly.

4. Installation should follow the removal procedure

in the reverse order.

YAD7D190

YAD7D200

YAD7D210

YAD7D220

AUTOMATIC CONTROL HVAC SYSTEM  7D-31

SSANGYONG  Y200

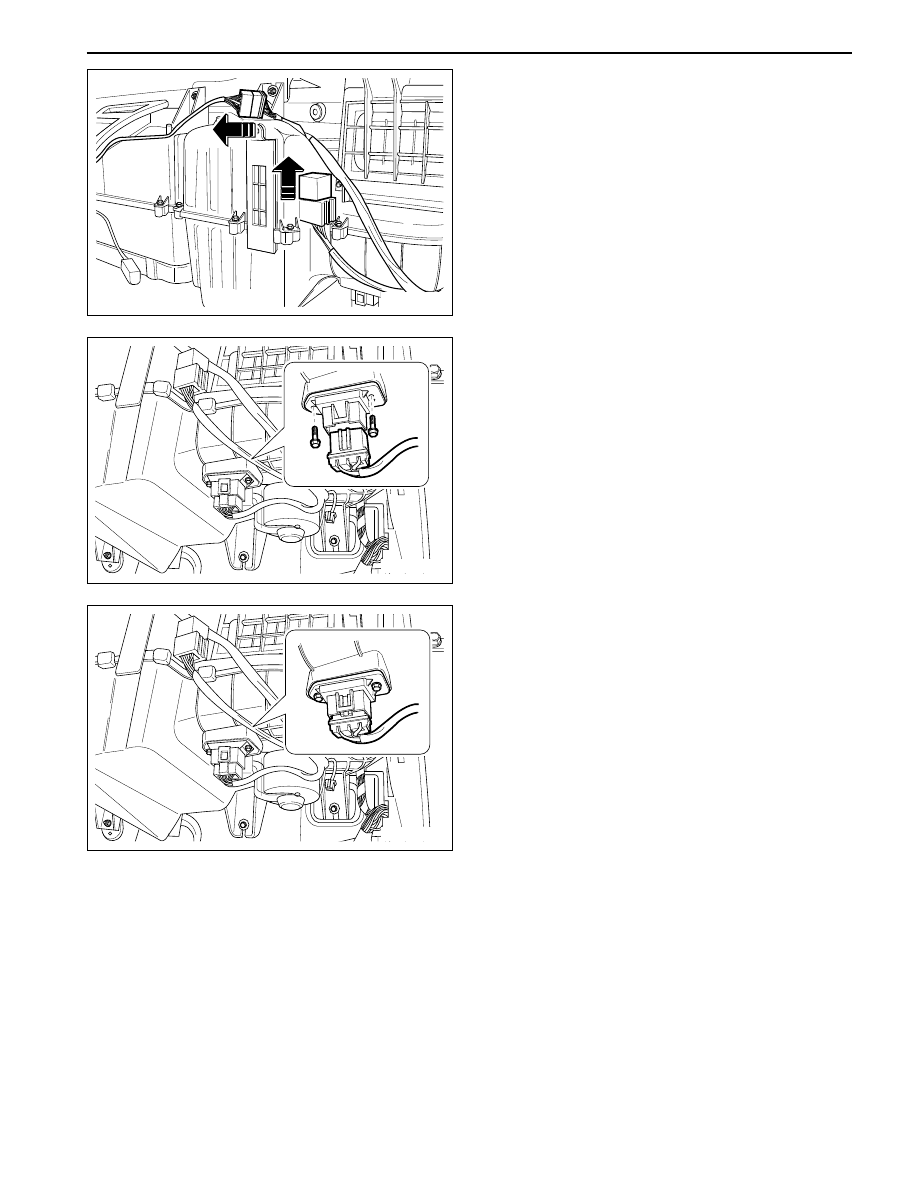

HIGH BLOWER RELAY

1. Remove the high relay connector of the blower

motor.

2. Remove the bolt securing the high relay.

3. Installation should follow the removal procedure

in the reverse order.

BLOWER MOTOR RESISTANCE
(POWER TRANSISTOR)

1. Remove the connector of the power transistor.

2. Remove two bolts securing the power transistor.

3. Remove the power transistor assembly.

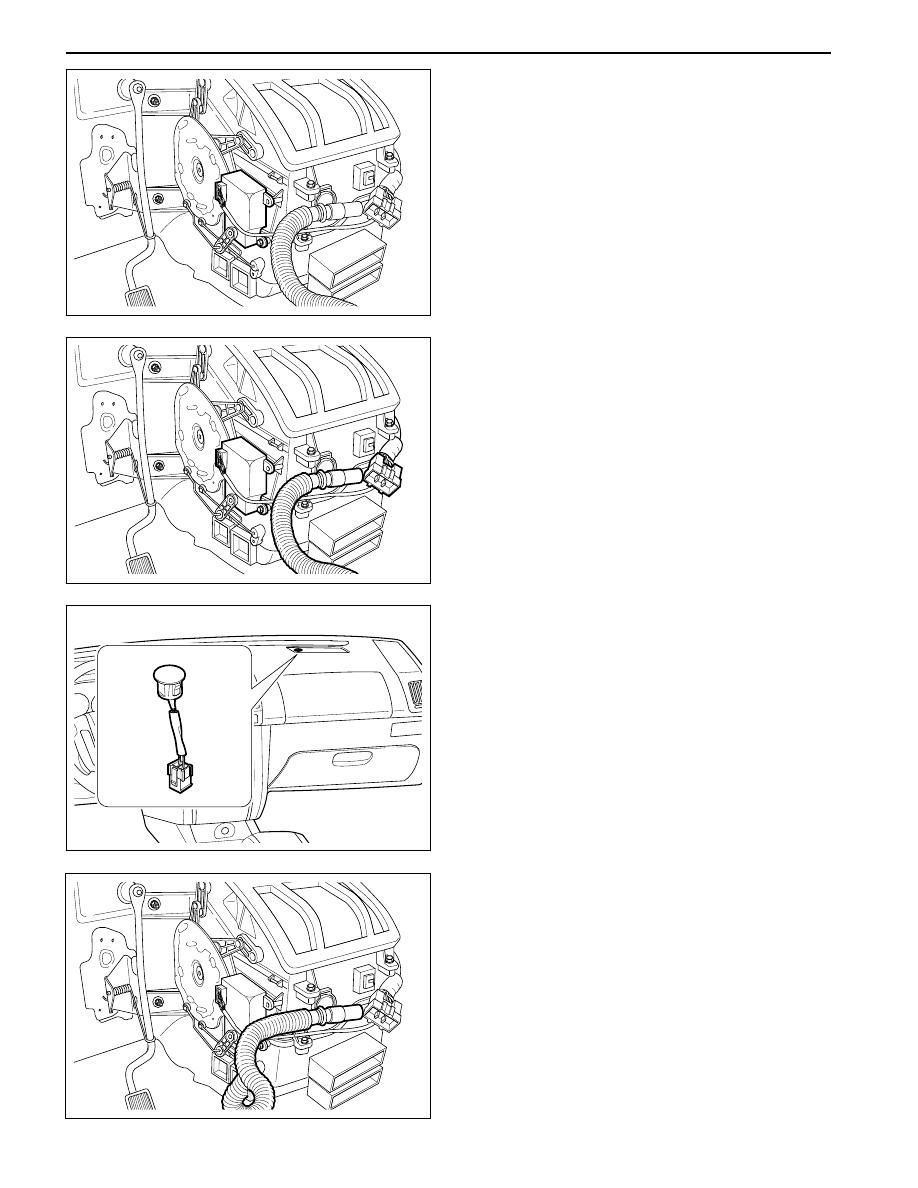

AIR MIX DOOR ACTUATOR

1. Disconnect the negative battery cable.

2. Remove the glove box.

3. Disconnect the connectors of the air mix door

actuator.

4. Remove three screws securing the mode control

door actuator and heater/air distributor case.

5. Remove the mode control actuator slowly and then

remove the air mix door actuator.

6. Installation should follow the removal procedure

in the reverse order.

4. Installation should follow the removal procedure

in the reverse order.

YAD7D230

YAD7D240

YAD7D250

SSANGYONG  Y200

7D-32  AUTOMATIC CONTROL HVAC SYSTEM

MODE CONTROL DOOR
ACTUATOR

1. Disconnect the negative battery cable.

2. Remove the driver’s knee bolster or lower cover.

3. Disconnect the connector to mode control door

actuator.

4. Remove three screws securing the mode control

door actuator and heater/air distributor case.

5. Remove the mode control actuator slowly and then

remove the mode control door actuator.

6. Installation should follow the removal procedure

in the reverse order.

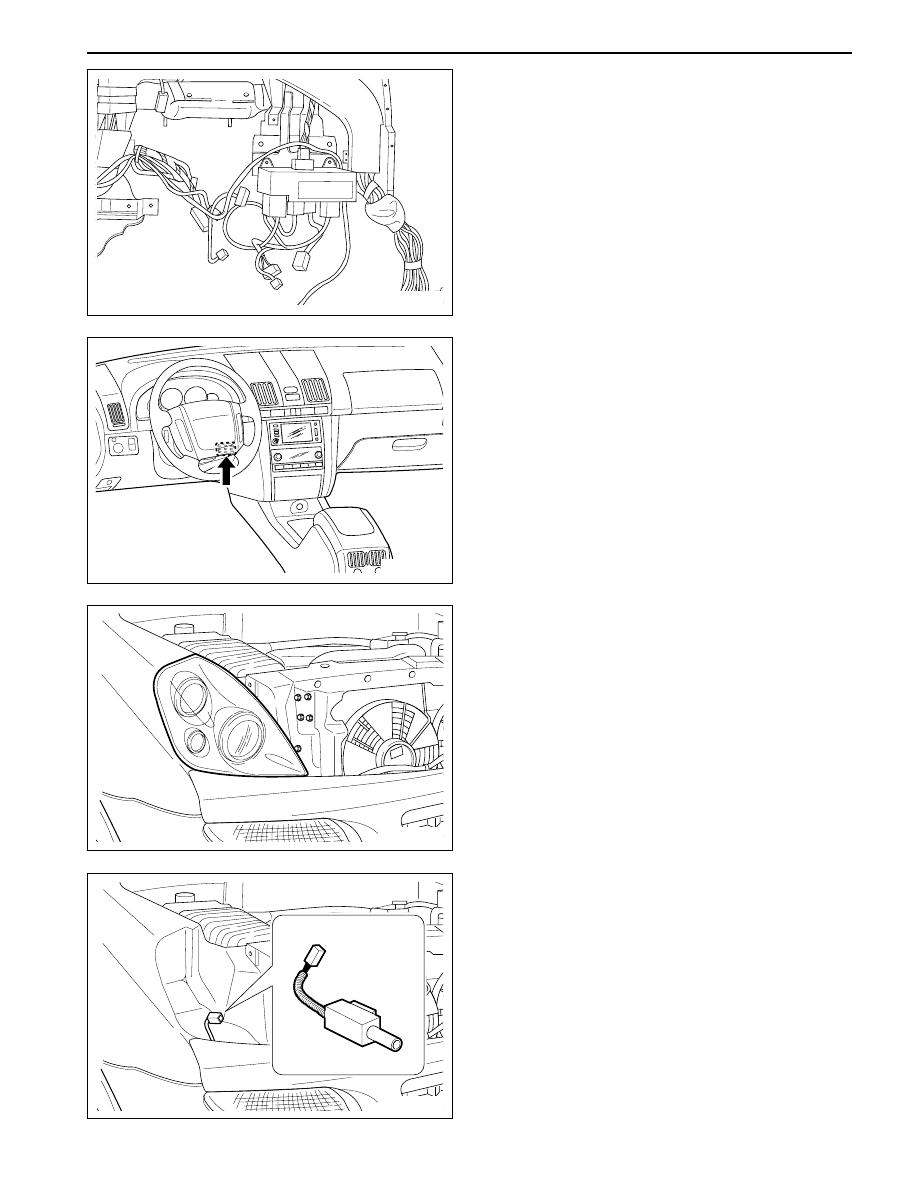

SUN SENSOR

1. Remove the sun sensor from the instrument panel.

2. Disconnect the sensor connector and remove the

sun sensor.

3. Installation should follow the removal procedure

in the reverse order.

Notice: For disconnecting the connector from the
sun sensor, be careful that the wiring must not
come into the instrument panel.

INSIDE AIR  TEMPERATURE
SENSOR

1. Remove the instrument panel.

2. Disconnect the sensor connector, remove the

inside air temperature sensor with the tube.

YAD7D260

YAD7D270

YAD7D280

YAD7D290

AUTOMATIC CONTROL HVAC SYSTEM  7D-33

SSANGYONG  Y200

3. Remove the inside air temperature sensor sub from

the instrument panel.

4. Installation should follow the removal procedure

in the reverse order.

AMBIENT AIR  TEMPERATURE
SENSOR

1. Remove the left headlamp assembly.

2. Disconnect the ambient air temperature sensor at

the clip hole of the headlamp support outer panel
and then disconnect the connector.

YAD7D300

YAD7D310

YAD7D320

YAD7D330
