SSANGYONG  Y200

7D-34  AUTOMATIC CONTROL HVAC SYSTEM

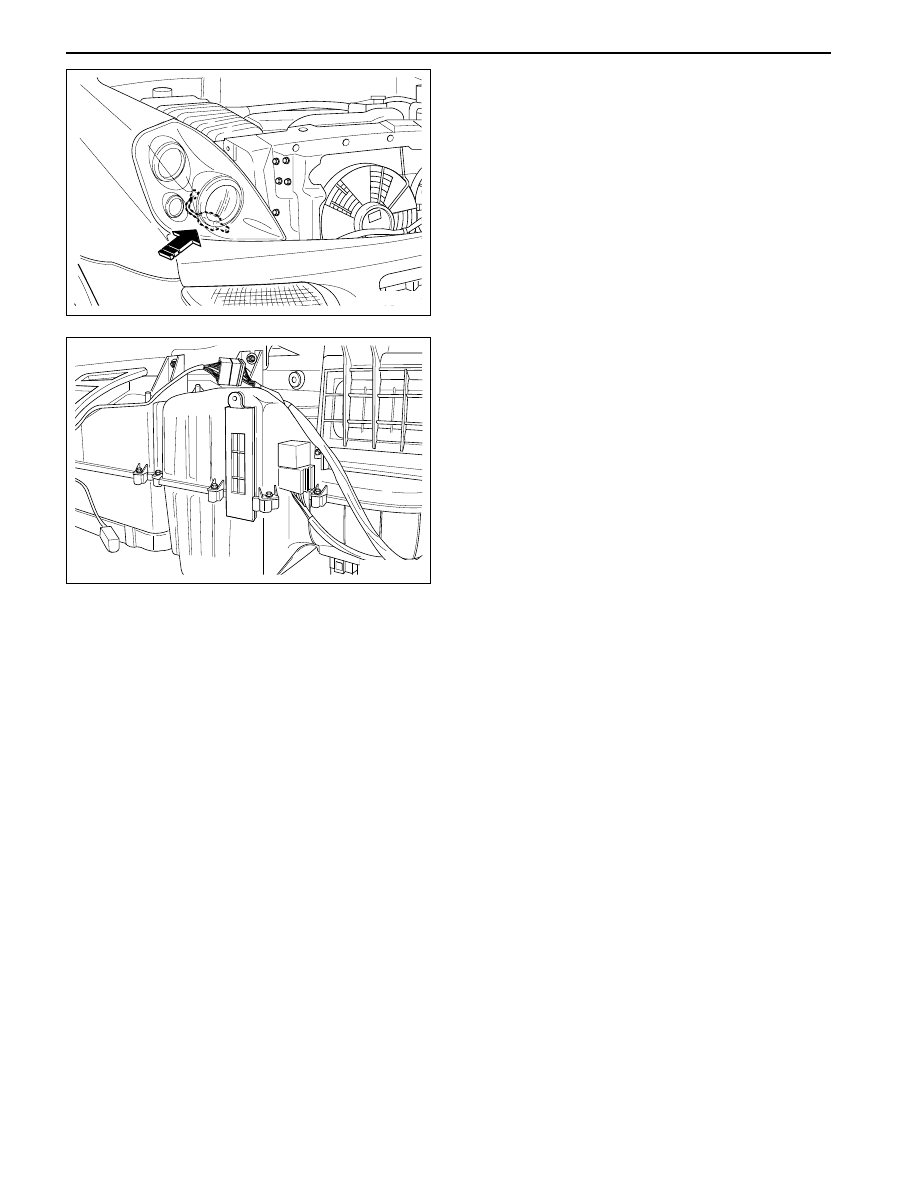

COOLANT  TEMPERATURE
SENSOR

1. Disconnect the coolant temperature sensor at the

side of the heater core (at left bottom of the glove
box).

2. Installation should follow the removal procedure

in the reverse order.

3. Installation should follow the removal procedure

in the reverse order.

YAD7D340

YAD7D350

SECTION 8A

SEAT BELTS

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must be in B unless otherwise
noted.

TABLE OF CONTENTS

Specifications ....................................................... 8A-2

Fastener Tightening Specifications ....................... 8A-2

Diagnosis .............................................................. 8A-3

Seat Belt Warning Lamp is Inoperative ................. 8A-3

Component Locator ............................................. 8A-4

Seat Belt Assembly ............................................. 8A-4

Maintenance and Repair ..................................... 8A-5

On-Vehicle Service ............................................... 8A-5

Front Seat Belt ..................................................... 8A-5

Front Seat Belt Buckle ......................................... 8A-6

2nd-Row Seat Belt ............................................... 8A-7

3rd-Row Seat Belt ................................................ 8A-8

SSANGYONG  Y200

8A-2  SEAT BELTS

N • m

30 - 40

30 - 45

30 - 45

30 - 45

30 - 45

30 - 45

30 - 45

30 - 45

30 - 45

30 - 45

Lb-Ft

22 - 30

22 - 33

22 - 33

22 - 33

22 - 33

22 - 33

22 - 33

22 - 33

22 - 33

22 - 33

Front Seat Belt

2nd-Row Seat

Belt

3rd-Row Seat

Belt

Adjuster Mounting Bolt

Retractor Mounting Bolt

Upper Bolt

Lower Bolt

Belt Buckle Bolt

Retractor Mounting Bolt

Upper Bolt

Upper Bolt

Lower Bolt

Retractor Bolt

SPECIFICATIONS

FASTENER  TIGHTENING SPECIFICATIONS

Lb-In

-

-

-

-

-

-

-

-

-

-

Application

SEAT BELTS  8A-3

SSANGYONG  Y200

Correction

Repair the wiring harness.

Replace the seat belt switch.

Repair the open ground.

Replace the warning lamp bulb.

DIAGNOSIS

SEAT BELT  WARNING LAMP IS INOPERATIVE

Condition

Seat belt warning lamp

is inoperative

Probable Cause

Seat belt warning lamp wiring harness is

open circuit or a short circuit.

The continuity between the two terminals

at the switch side of the connector is fail.

The continuity between the terminal for

the BLK wire and ground is fail.

The warning lamp bulb in the instrument

cluster is blown.
