PROPELLER SHAFT   3C-5

SSANGYONG  Y200

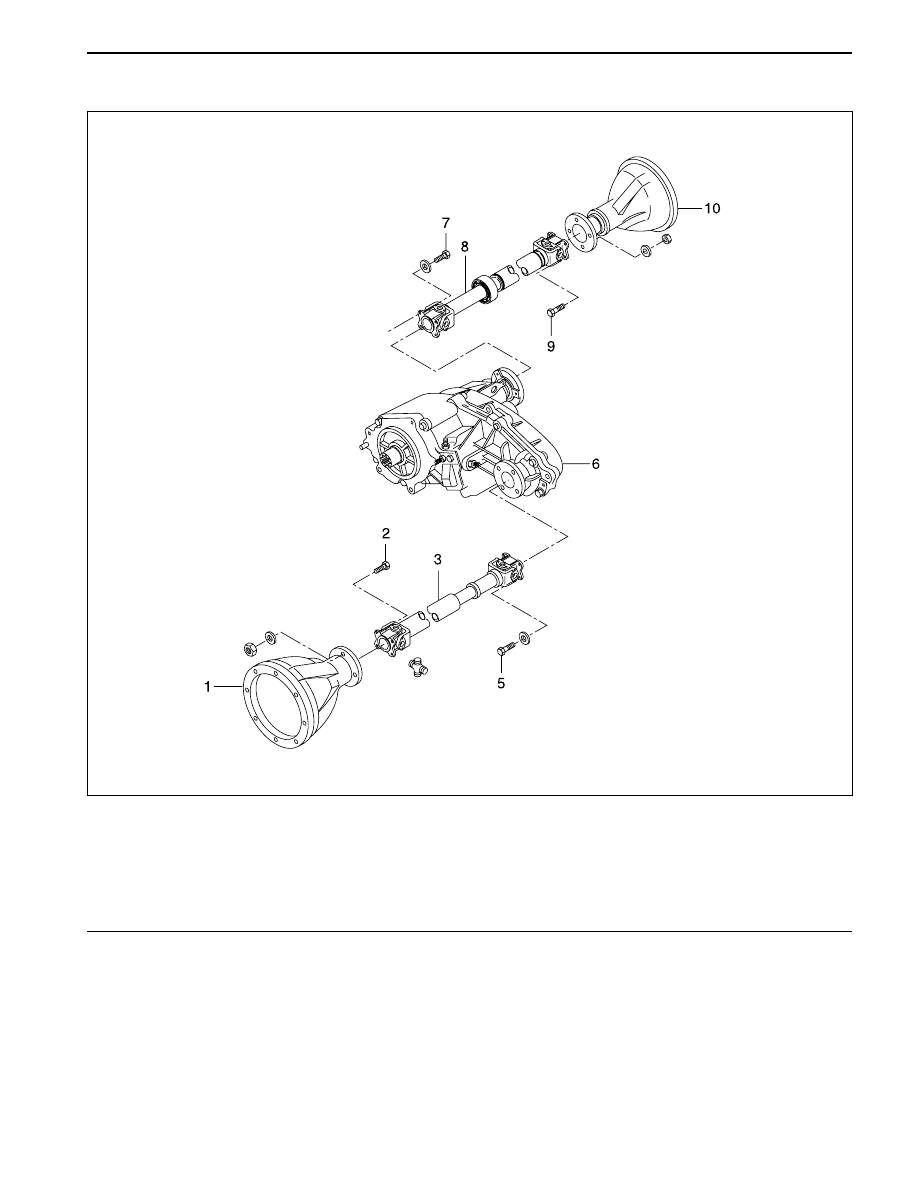

PROPELLER SHAFT ASSEMBLY

YAD3C030

1 Front Axle
2 Bolt
3 Front Propeller Shaft
4 Bolt
5 Transfer Case

6 Bolt
7 Rear Propeller Shaft
8 Bolt
9 Rear Axle

SSANGYONG  Y200

3C-6  PROPELLER SHAFT

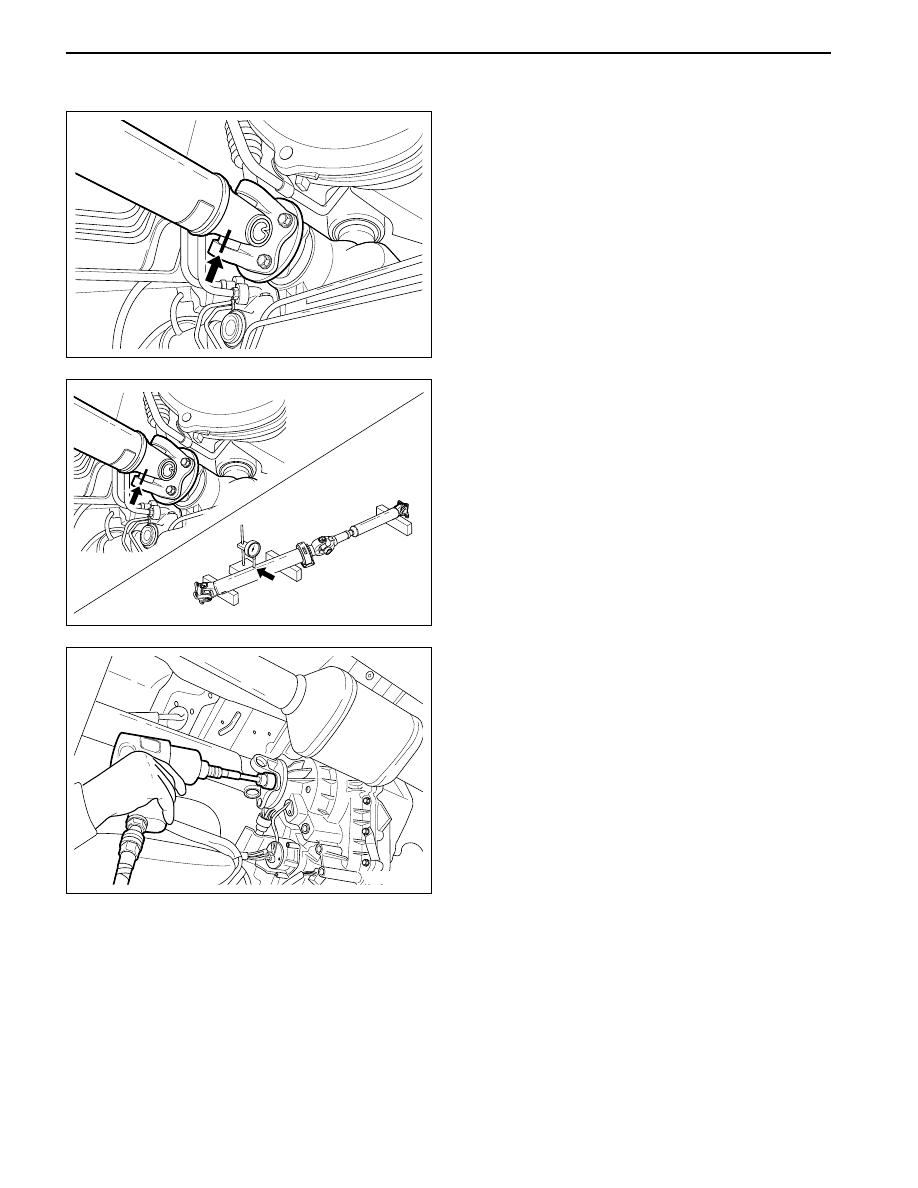

ON-VEHICLE SERVICE

PROPELLER SHAFT ASSEMBLY

Removal

1. Do alignment marks before removing the propeller

shaft.

YAD3C040

YAD3C060

YAD3C050

2. Remove the flange yoke fixing bolt/nut that

connects the front propeller shaft axle side with
transfer case.

Pull out the front propeller shaft assembly.

3. Remove the flange yoke bolt/nut of transfer case

side in rear propeller shaft.

MAINTENANCE AND REPAIR

PROPELLER SHAFT   3C-7

SSANGYONG  Y200

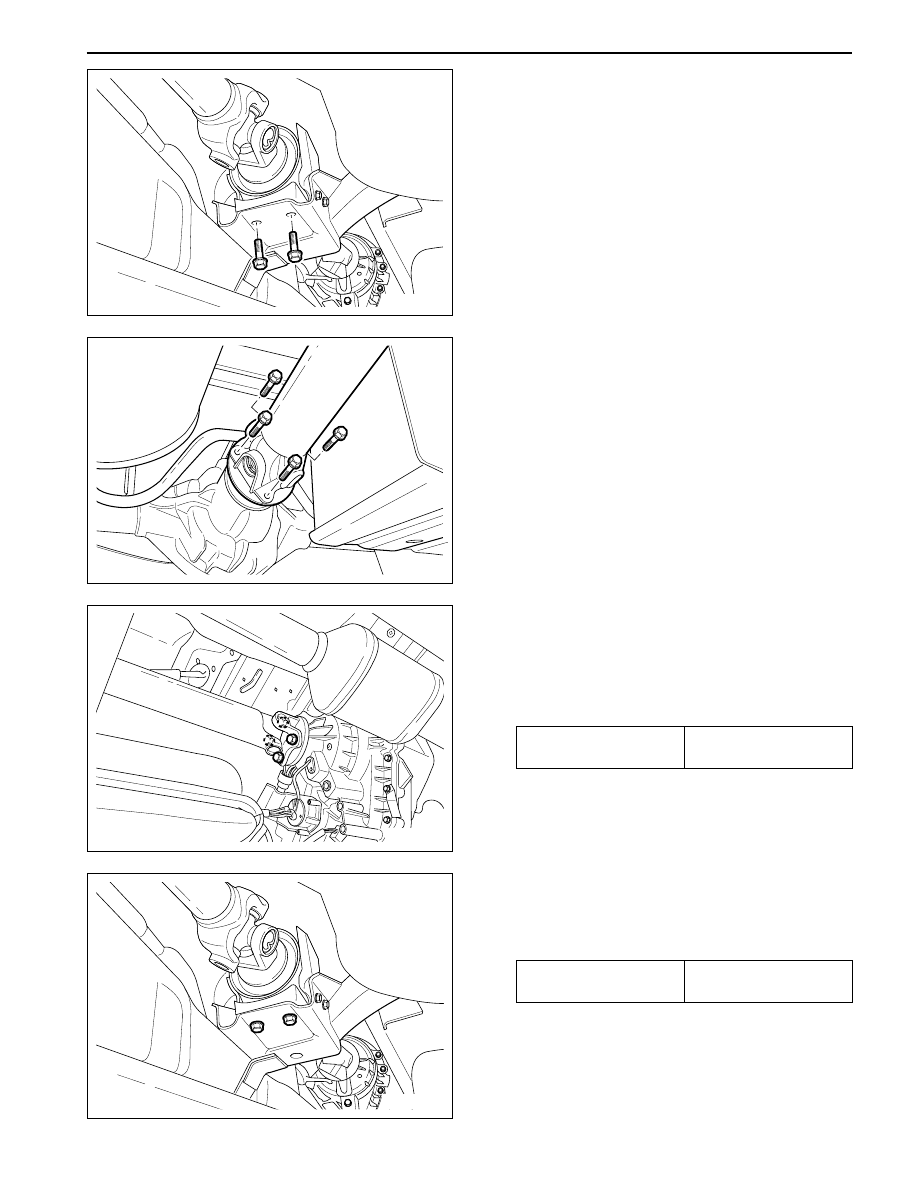

5. Remove the rear axle housing flange yoke bolts/

nuts of rear propeller shaft.

Pull out the rear propeller shaft assembly.

YAD3C090

YAD3C100

YAD3C080

Installation

1. Check the disassembled parts visually.

2. Align the assembly mark of each propeller shaft.

3. Install the front propeller shaft.

Installation Notice

Tightening Torque

81 - 89 N•m

(60 - 66 lb-ft)

4. Set up the rear propeller shaft between the

transmission and axle housing. Tighten the center
bearing manually.

Installation Notice

Tightening Torque

80 - 95 N•m

(59 - 70 lb-ft)

YAD3C070

4. Remove the fixing bolt of middle bearing (center).

SSANGYONG  Y200

3C-8  PROPELLER SHAFT

YAD3C110

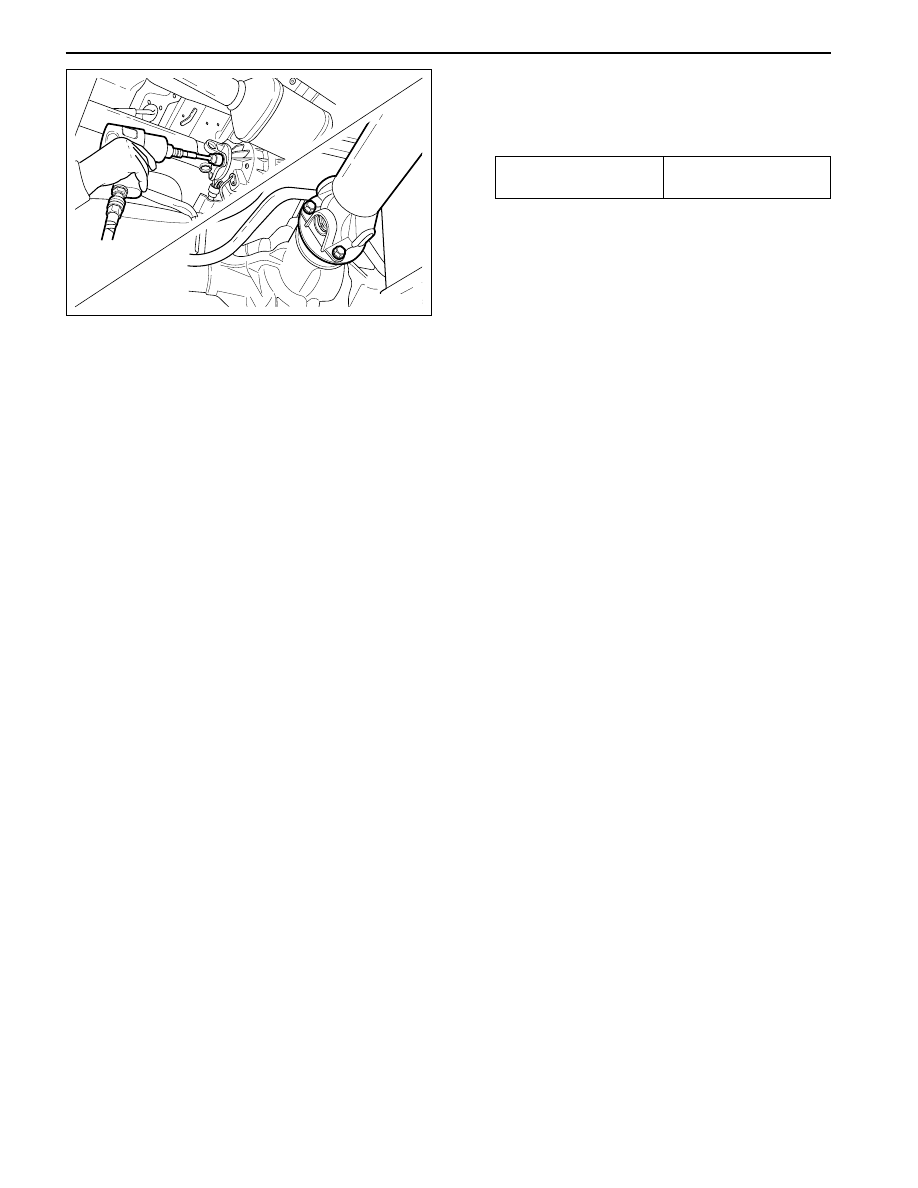

5. Align the rear propeller shaft to the assembly mark.

Tighten the bolts/nuts and then the center bearing
bolts.

Installation Notice

Tightening Torque

70 - 80 N•m

(52 - 59 lb-ft)
