FRONT AXLE  3A-27

SSANGYONG  Y200

YAD3A700

YAD3A690

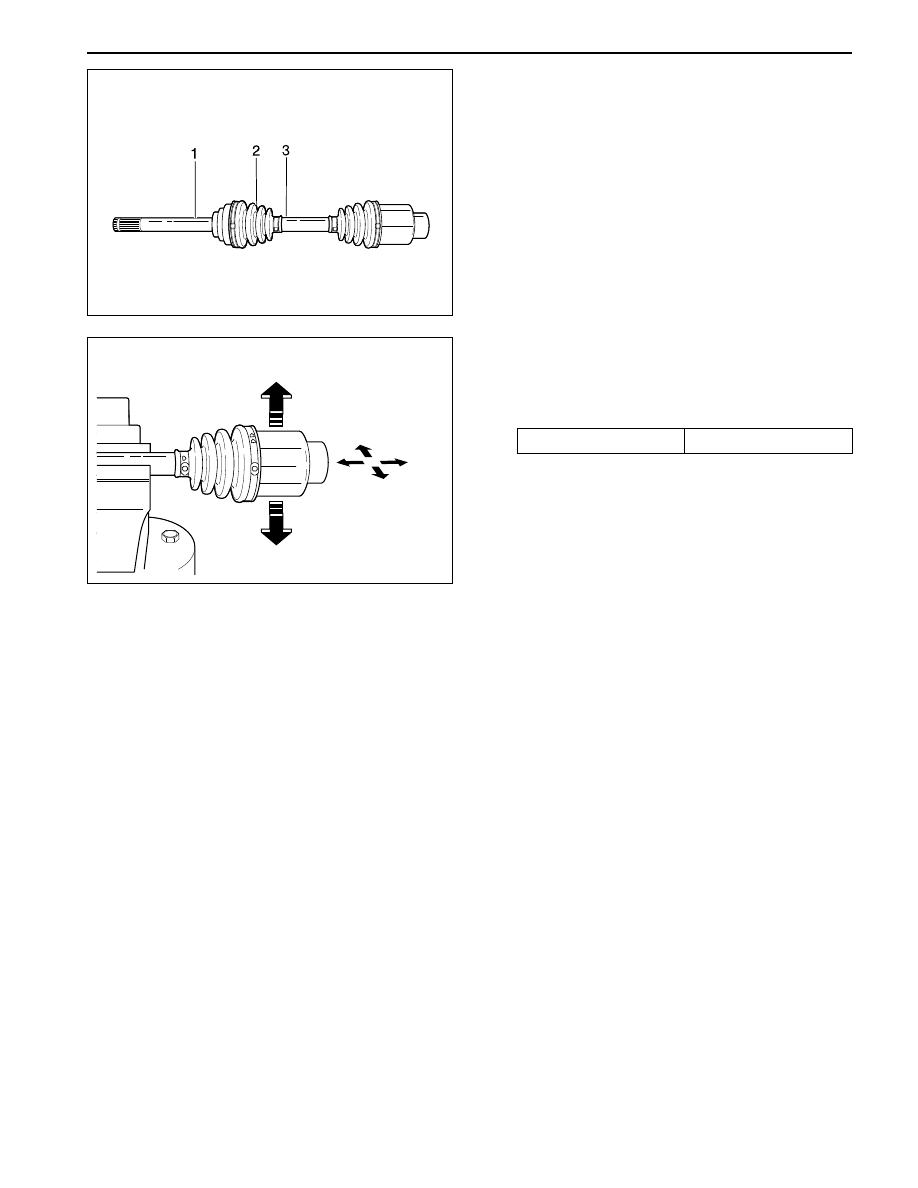

Inspection

1. Check the shaft spline for the wear and damage.

2. Check the leakage by the boot crack, tears.

3. Check the bending of shaft.

Notice: if the defect happens in one shaft, because
the other is damaged, exchange the both.

Assembly

1. Assembly should follow the dismantlement in the

reverse order.

2. Apply the specified grease to the joint housing.

Notice: If not use the specified grease, the joint
and boot may be damaged.

Notice: For assembly, replace the boot clamp with
the new one.

3. Check the followings after completing the

assembly.

•

Check whether the joint move to up/down, left/
right, forward freely.

•

Check whether the grease leak in the clamp part
after checking the operation.

Injection quantity

90 - 100 g

SSANGYONG  Y200

3A-28  FRONT AXLE

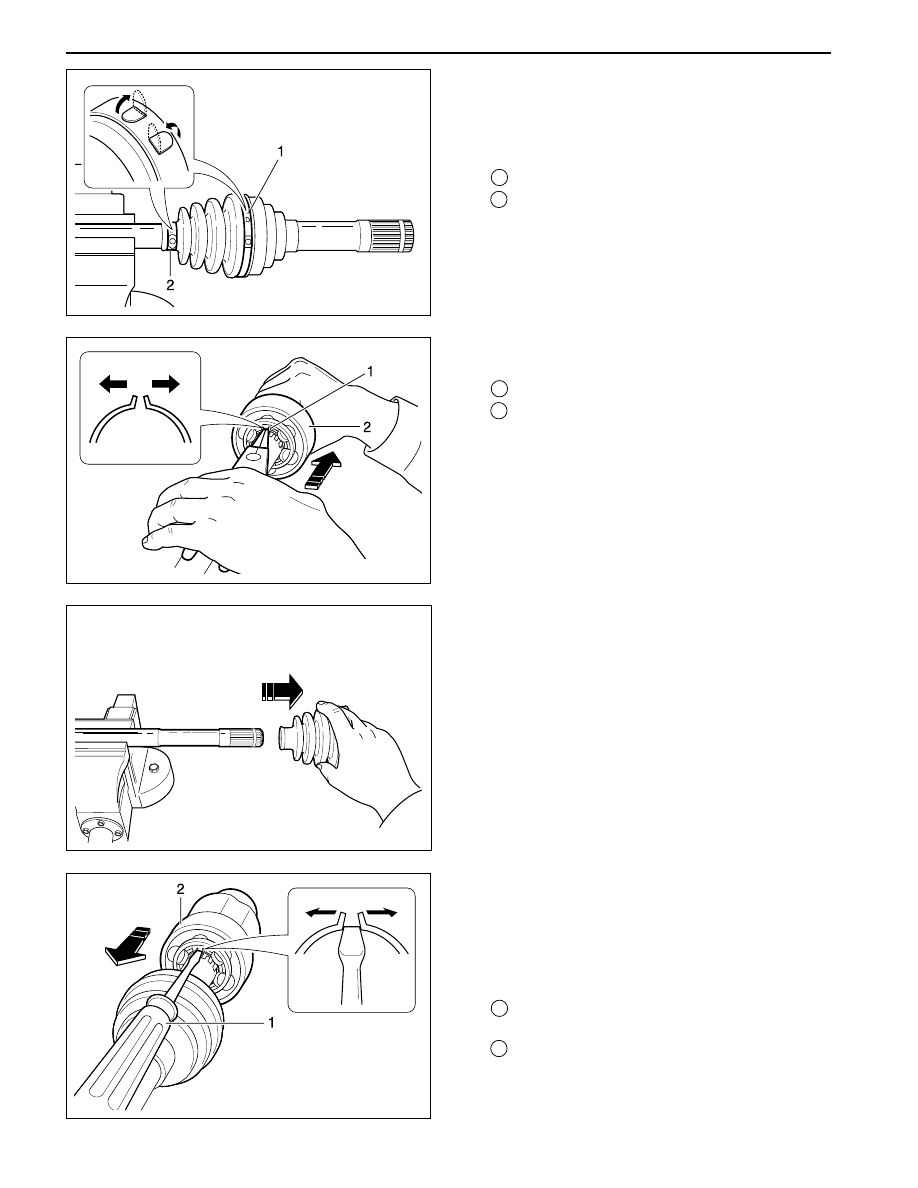

WHEEL JOINT ASSEMBLY

Disassembly

1. Remove the drive axle.

2. Detach the joint boot clamp.

1 Detach the boot clamp (large)

2 Detach the boot clamp (Small)

•

After unfolding the clamp holding part by using
the driver/hammer, detach the clamp.

YAD3A710

YAD3A720

YAD3A740

YAD3A730

3. Get rid of the grease in the joint assembly.

4. Remove the joint assembly.

1 Spread out the circlip.

2 Pull out the joint assembly to the wheel side

with the circlip spread out.

5. Remove the drive axle shaft.

Assembly

1. A s s e m b l y   s h o u l d   f o l l o w   t h e   d i s a s s e m b l y

procedure in the reverse order.

2. Install the joint assembly.

•

Put the joint assembly in drive axle shaft to
spread out the circlip opening slightly.

1 Inser t (-) driver into the circlip opening to spread

out the circlip.

2 Put the joint assembly in circlip home with the

circlip spread out.

FRONT AXLE  3A-29

SSANGYONG  Y200

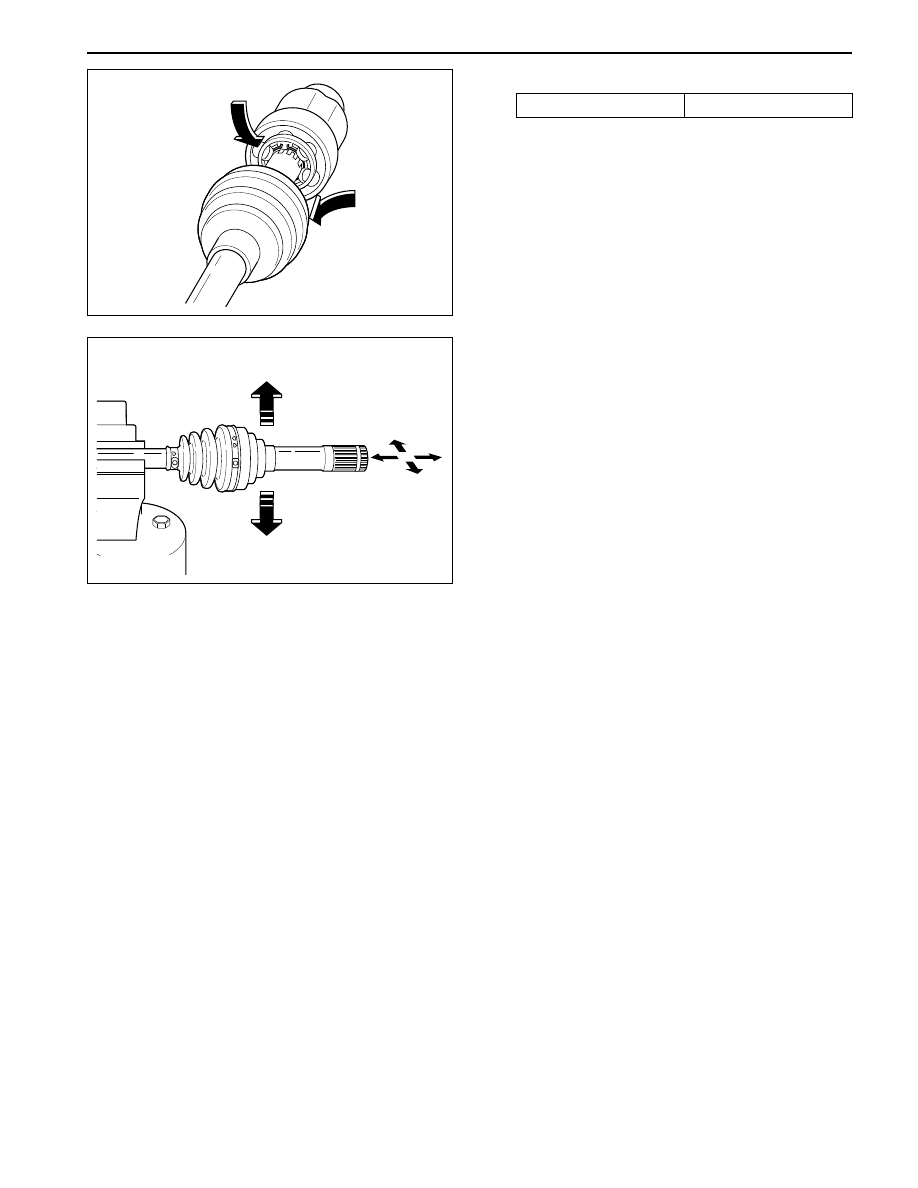

3. Apply the specified grease to the joint housing.

Notice: If not use the specified grease, the joint
and boot may be damaged.

Notice: For assembly, replace the boot clamp with
the new one.

YAD3A750

YAD3A760

Injection quantity

80 - 90 g

4. Check the followings after completing the

assembly.

•

Check whether the joint move to up/down, left/
right, forward freely.

•

Check whether the grease leak in the clamp part
after checking the operation.

Notice: Because the wheel joint cannot be repaired
in single par t, if there is defect, replace it whit the
new assembly.

SSANGYONG  Y200

3A-30  FRONT AXLE

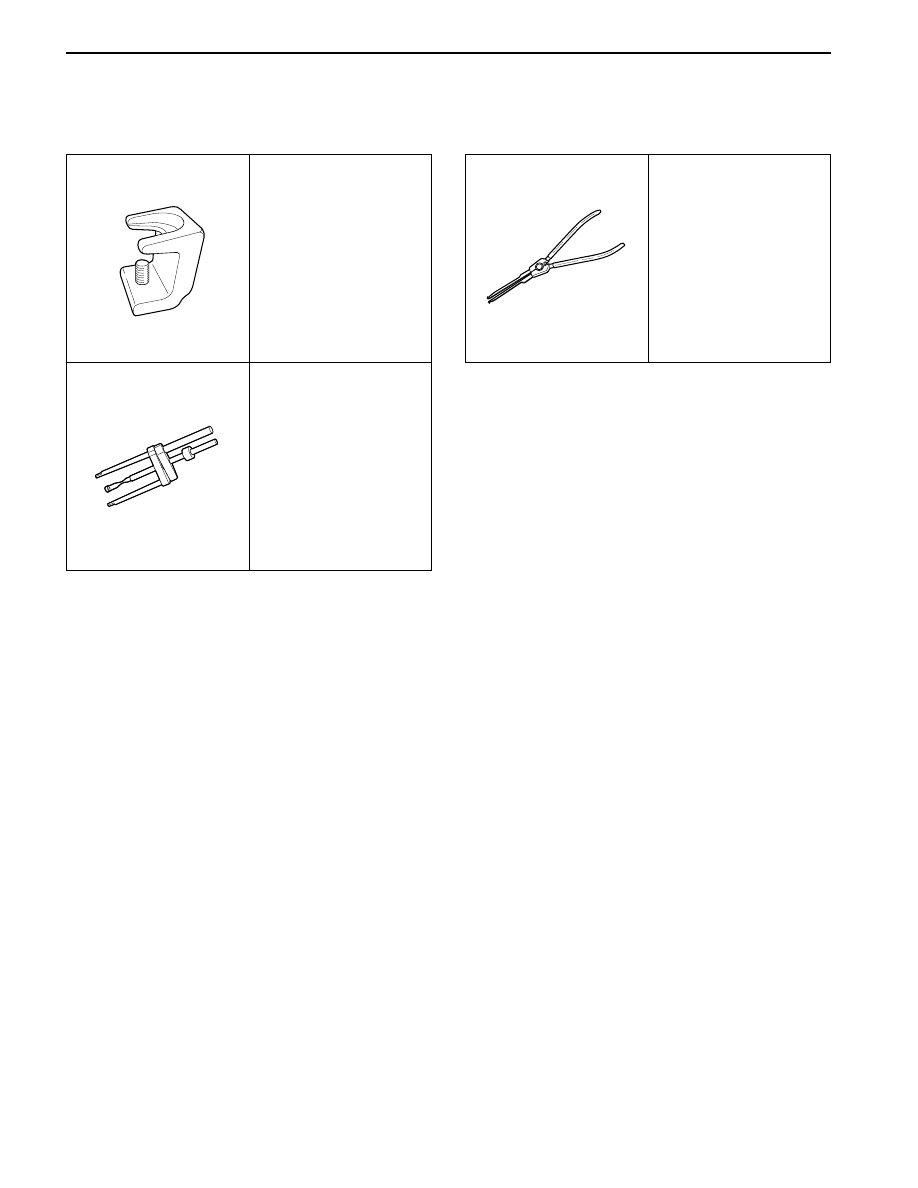

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

661 589 13 33 00

Ball Joint Remover

Part Time Snap Ring

Remover / Installer

Snap Ring Plier

YAD3A770

YAD3A780

YAD3A790
