PROPELLER SHAFT   3C-9

SSANGYONG  Y200

YAD3C130

YAD3C140

YAD3C120

UNIT REPAIR

PROPELLER SHAFT

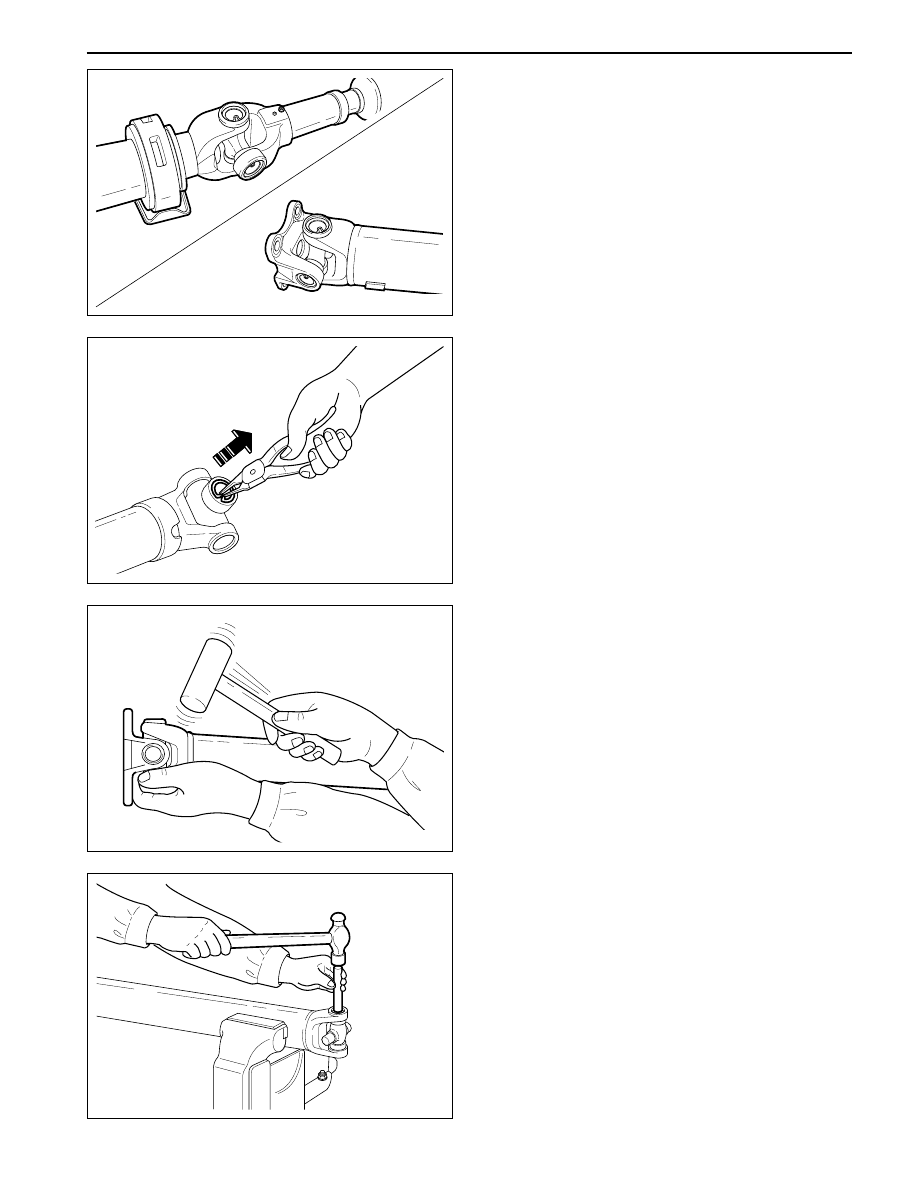

Disassembly

1. Mark the assembly mark and remove the propeller

shaft.

2. Do alignment mark before separating the spider.

3. Remove the snap ring using the snap ring plier.

4. Slightly tapping the yoke shoulder using a brass

hammer, remove the bearing.

Remove the remaining bearing in the same way.

YAD3C150

5. If it is not removed, clamp the welding part of

yoke in the vise.

SSANGYONG  Y200

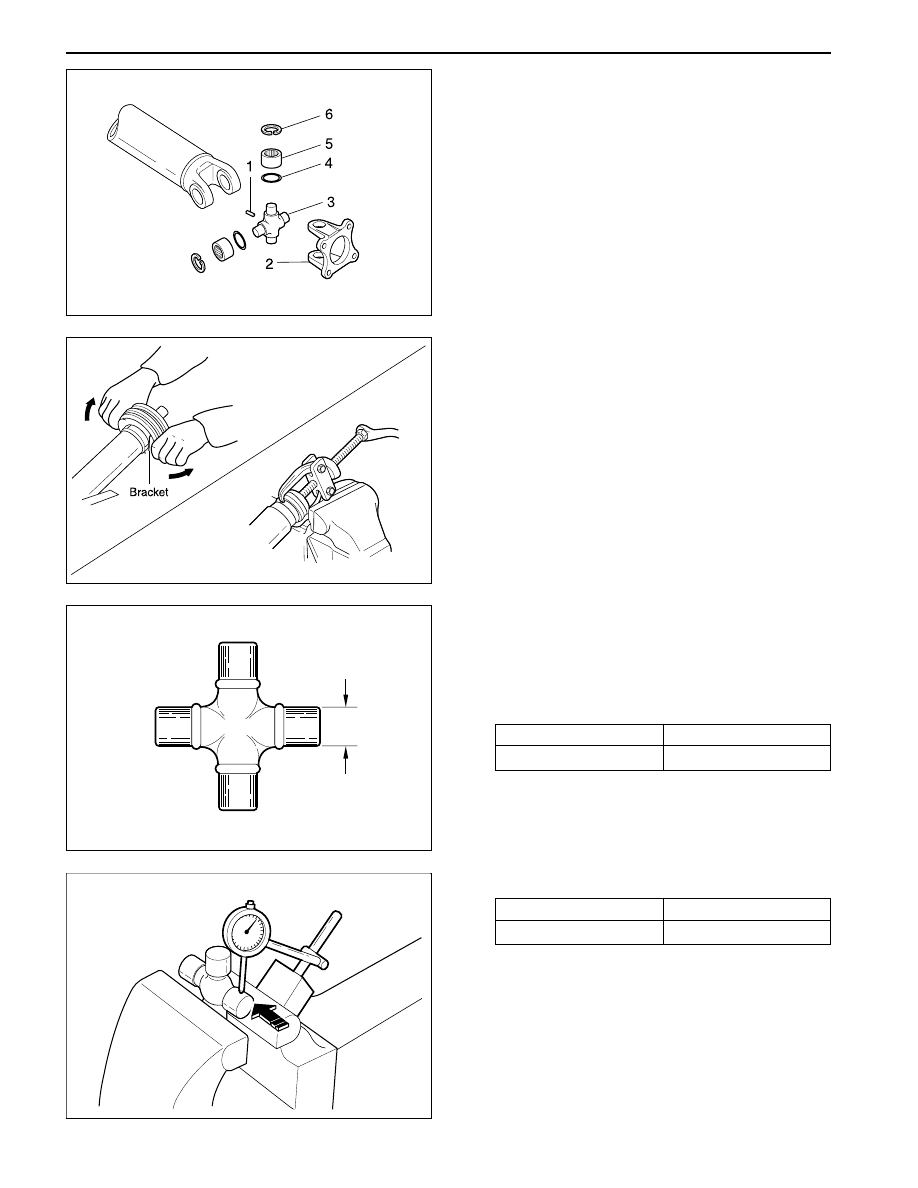

3C-10  PROPELLER SHAFT

YAD3C190

3. Clearance between the spider and bearing

Inspection

1. Visual Check

Check the disassembled parts for wear and crack.

Replace them if necessary.

2. Spider outer diameter

YAD3C160

YAD3C170

YAD3C180

6. Disassemble the universal joint parts.

As axles move up and down, universal joints allow
drive angle to change without bending of propeller
shaft.

7. Remove the center bearing bracket and center

bearing using the special tool.

standard

Limit

16.647 mm

16.668 mm

standard

Limit

0.03 ~ 0.098 mm

0.25 mm

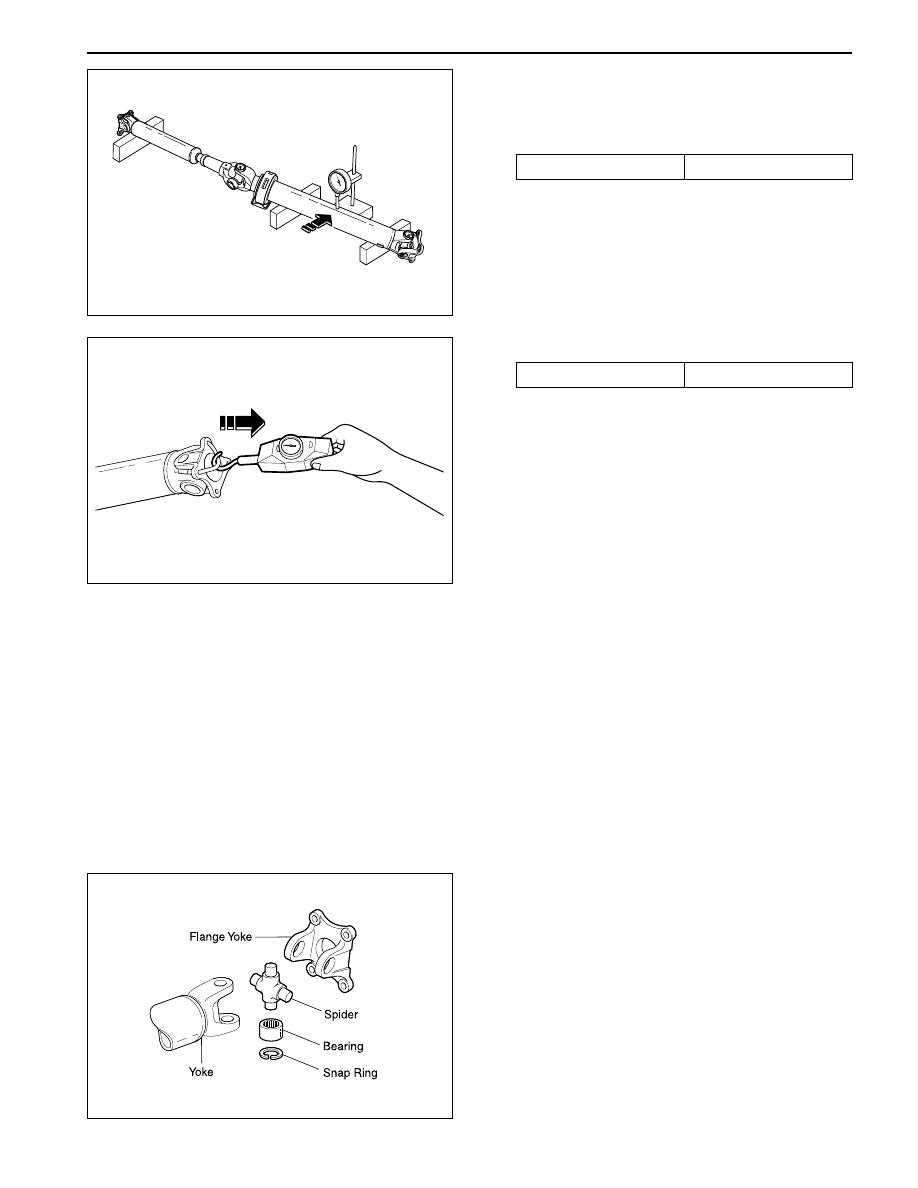

PROPELLER SHAFT   3C-11

SSANGYONG  Y200

YAD3C200

YAD3C210

4. Propeller Shaft runout

Using a dial gauge, measure propeller shaft runout
by turning the shaft. If runout exceeds limit, adjust
the propeller shaft using a press or replace it.

Limit

0.4 mm

5. Universal joint starting torque

6. Major cause of vibration

•

Separation of balance weights

•

Excessive runout of the propeller shaft

•

Using the general bolts

•

Excessive wear of universal joint

•

Sticks in sleeve joint

•

Vibration is caused by front & rear universal
joint, pinion angle change and is generally broke
out when the vehicle speed is around 60 ~
100km/h.

Specified Value

3 ~ 8 kg•cm

YAD3C220

Assembly

Clean the disassembled parts and replace then if
damaged.

1. Align the alignment marks of the yoke and

assemble the spider, bearing and snap ring.

SSANGYONG  Y200

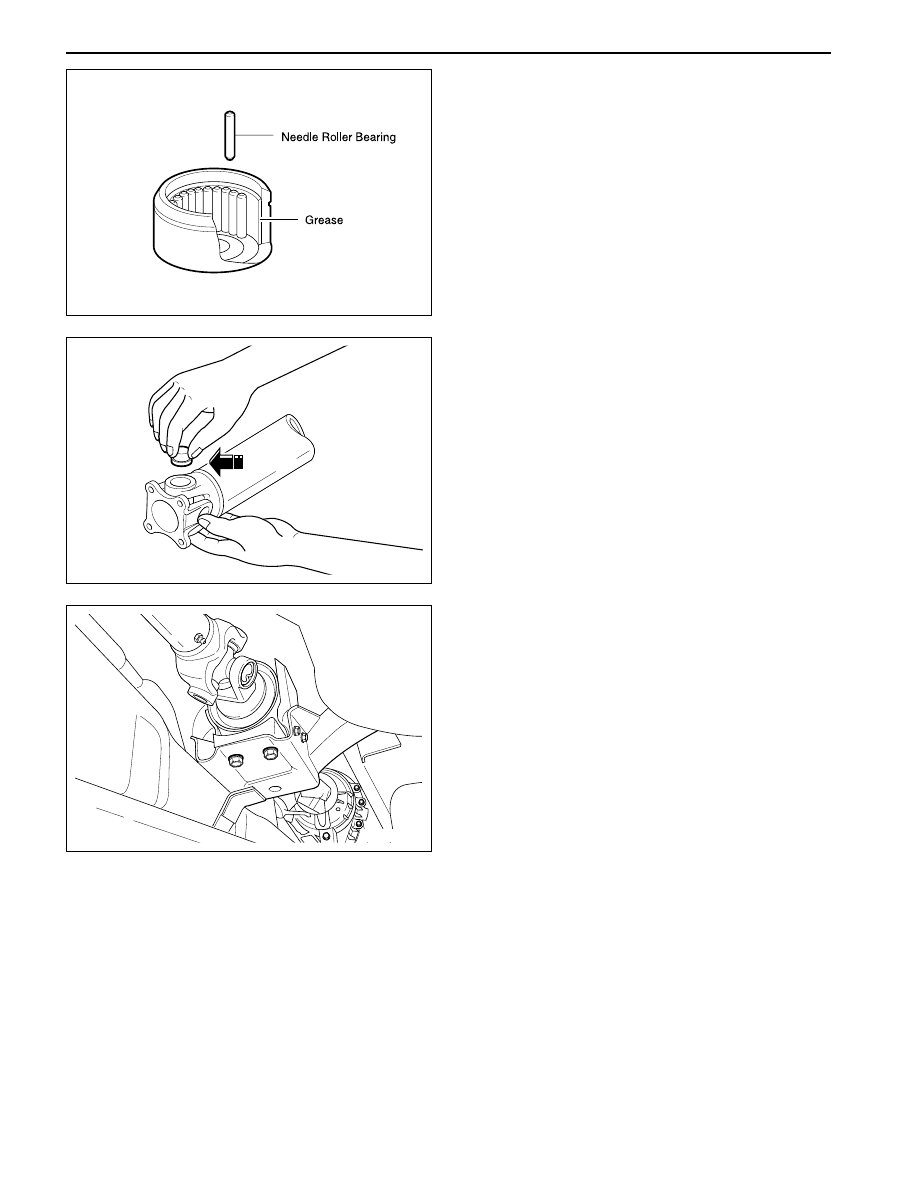

3C-12  PROPELLER SHAFT

YAD3C240

YAD3C250

3. Install the bearing cap to the yoke and insert the

spider. Install the opposite cap by tapping with a
plastic hammer.

4. Assembly the center bearing to the rear propeller

shaft.

YAD3C230

2. Apply the grease to the inner of bearing cap of

needle roller bearing and assemble the needle
roller.
