SSANGYONG  Y200

1F2-98  M161 ENGINE CONTROLS

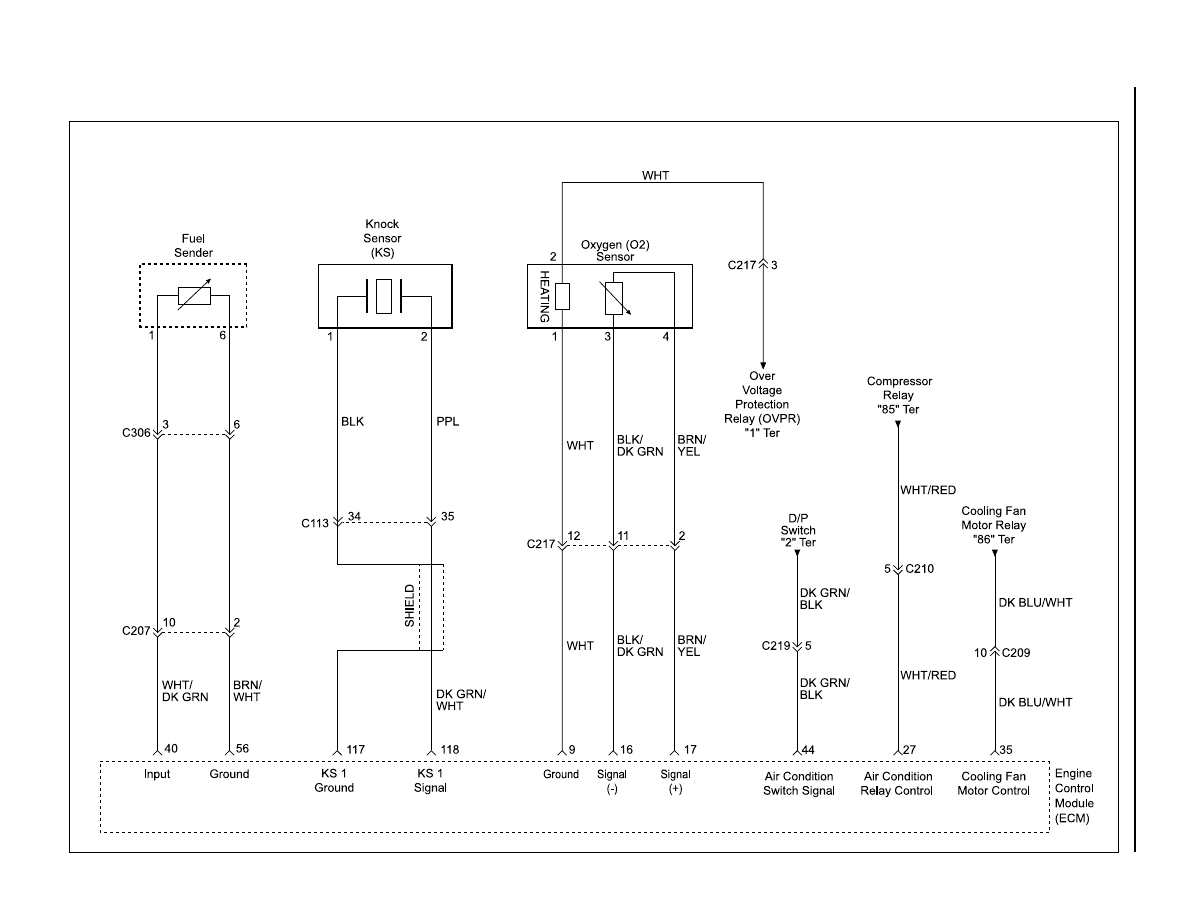

ECM WIRING DIAGRAM (2.3L DOHC - 3 OF 7) (MSE 3. 53D)

Y

A

D1F030

M161 ENGINE CONTROLS  1F2-99

SSANGYONG  Y200

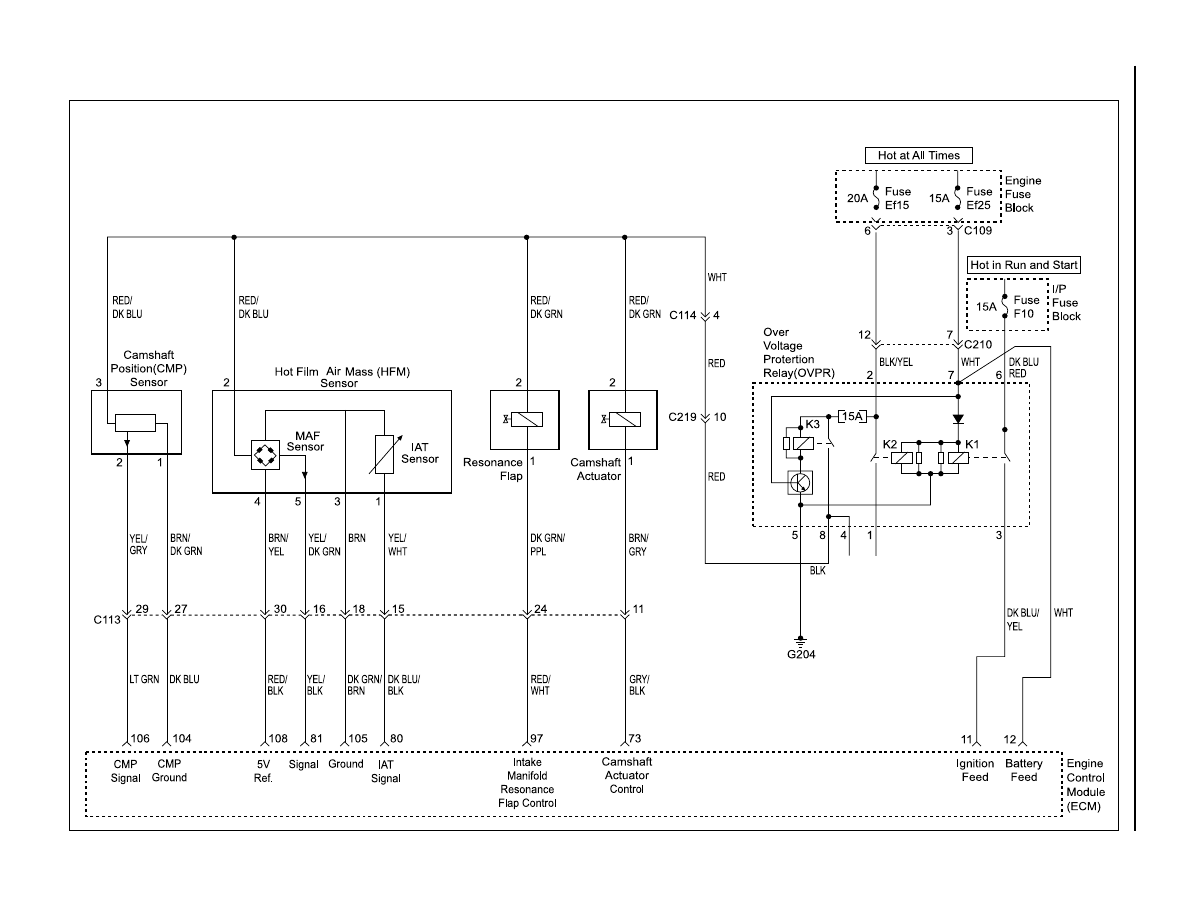

ECM WIRING DIAGRAM (2.3L DOHC - 4 OF 7) (MSE 3.53D)

Y

AD1F040

SSANGYONG  Y200

1F2-100  M161 ENGINE CONTROLS

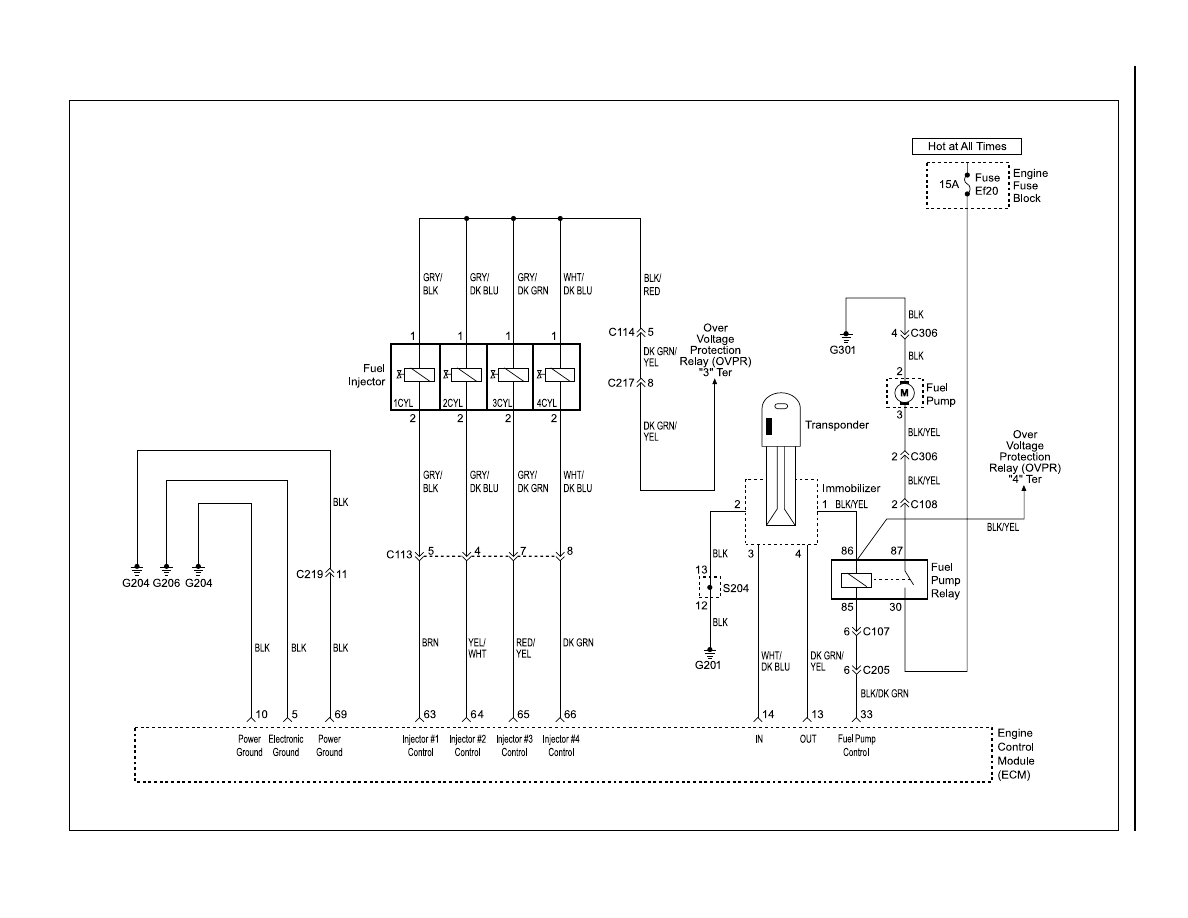

ECM WIRING DIAGRAM (2.3L DOHC - 5 OF 7) (MSE 3.53D)

Y

AD1F0B0

M161 ENGINE CONTROLS  1F2-101

SSANGYONG  Y200

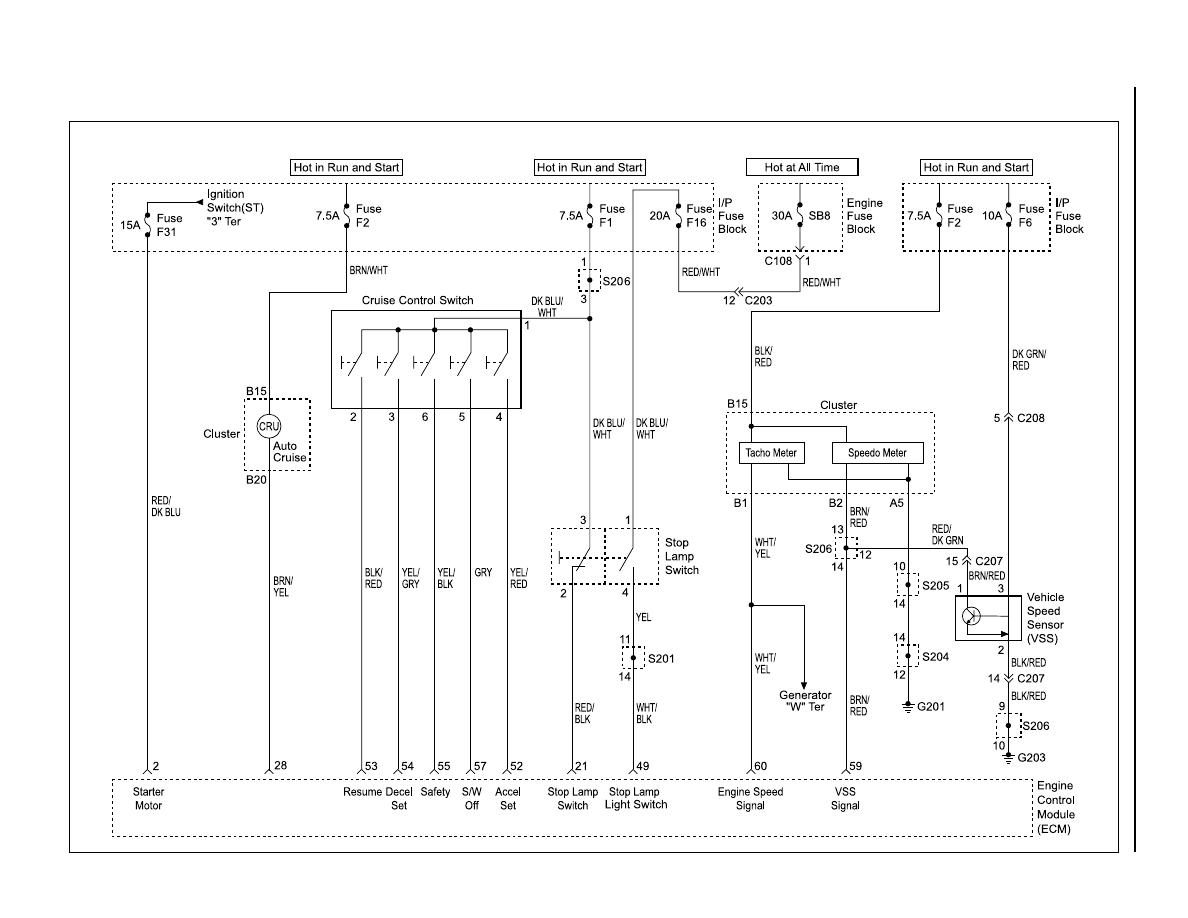

ECM WIRING DIAGRAM (2.3L DOHC - 6 OF 7) (MSE 3.53D)

Y

AD1F0C0
