SSANGYONG  Y200

1B3-16  DIESEL ENGINE MECHANICAL

YAD1BAT0

YAD1BAU0

YAD1BAV0

YAD1BAW0

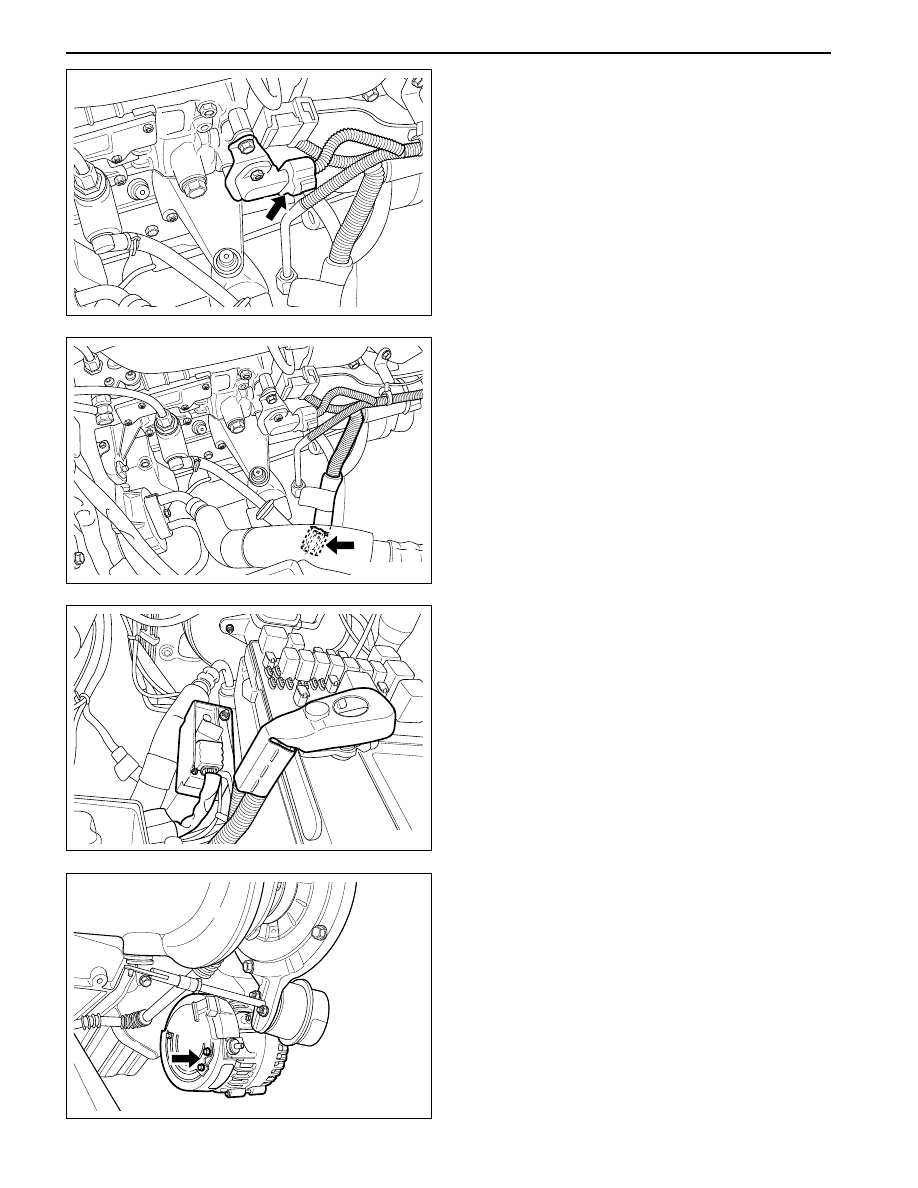

22. Disconnect the injection timing relay connector

from injection pump.

23. Disconnect the starter motor wires and necessary

connectors.

24. Disconnect the preheating time relay cable and

glow plug cable.

25. Disconnect the ground cable.

26. Disconnect the generator wires.

DIESEL ENGINE MECHANICAL  1B3-17

SSANGYONG  Y200

YAD1BAX0

YAD1BAY0

YAD1BAZ0

YAD1BB00

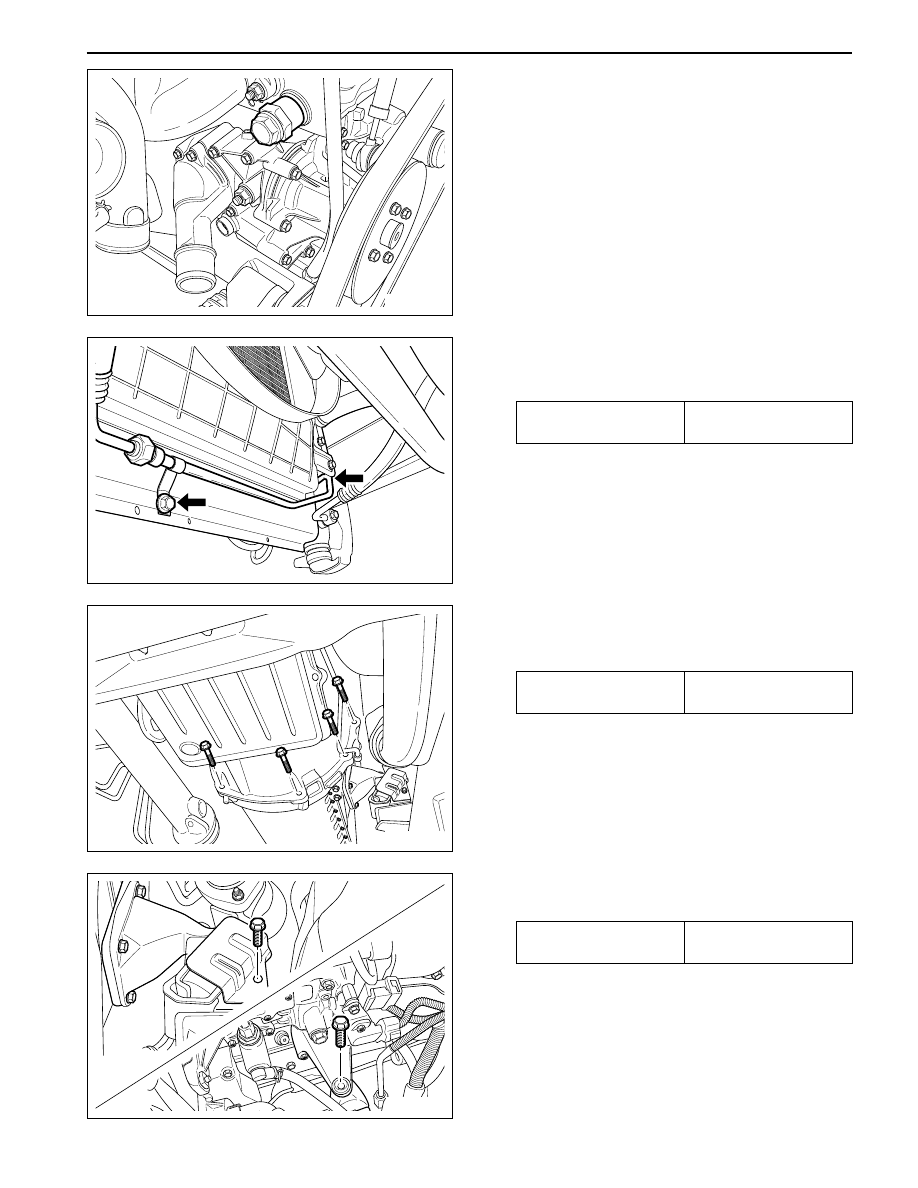

27. Disconnect the engine coolant temperature sensor

connector.

28. Remove the automatic transmission oil cooler

lines.

Installation Notice

Use the new washer before installation of oil cooler
lines.

29. Remove the transmission mounting bolts and

separate the transmission from the engine.

Installation Notice

30. Remove the engine mounting bracket bolts.

Installation Notice

Tightening Torque

54 - 68 N•m

(40 - 50 lb-ft)

Tightening Torque

50 - 75 N•m

(37 - 55 lb-ft)

Tightening Torque

25 - 35 N•m

(18 - 26 lb-ft)

SSANGYONG  Y200

1B3-18  DIESEL ENGINE MECHANICAL

YAD1BB10

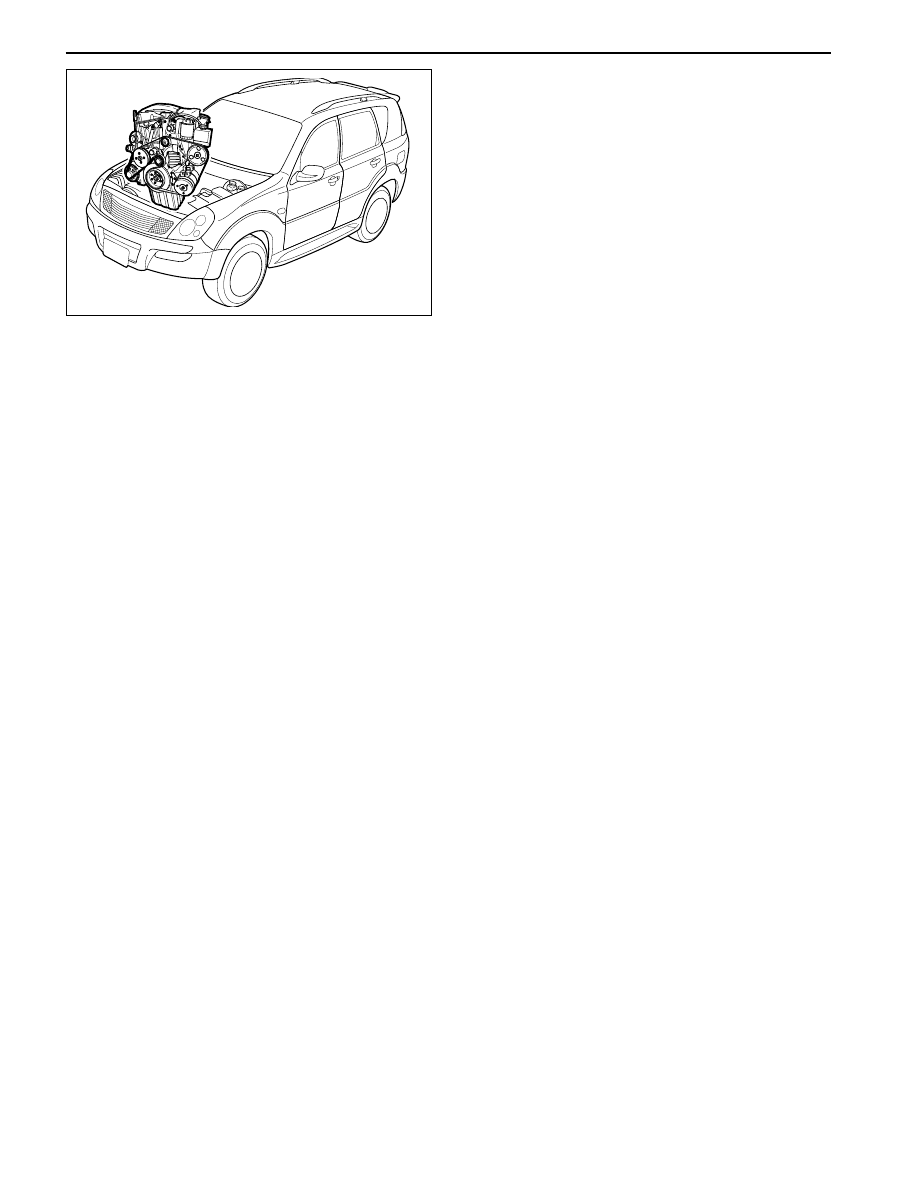

31. Remove the engine assembly from the vehicle by

using a hoistor crane.

32. Installation should follow the removal procedure

in the reverse order.

DIESEL ENGINE MECHANICAL  1B3-19

SSANGYONG  Y200

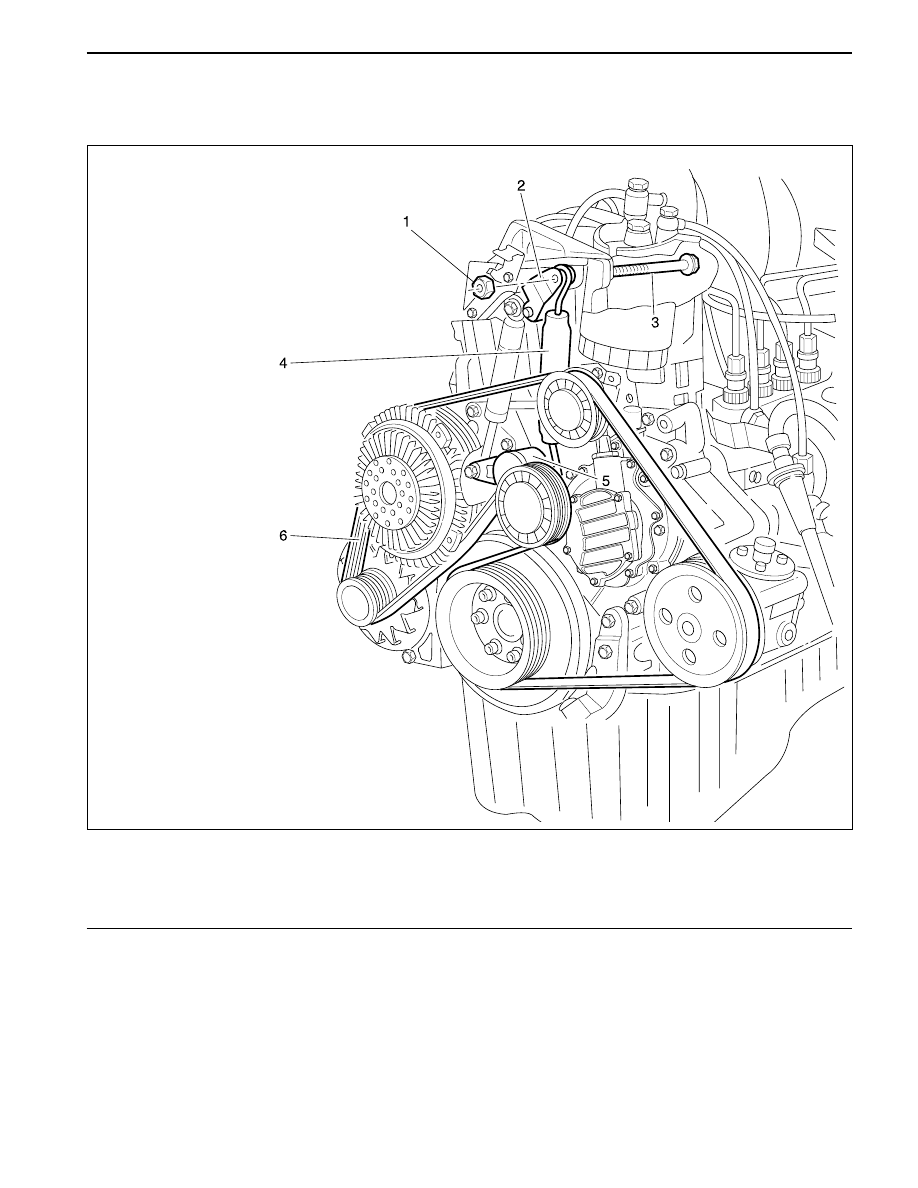

POLY V-BELT AND TENSIONING DEVICE

POLY V-BELT

1 Nut ........................................... 21 N•m (15 lb-ft)
2 Tensioning Lever
3 Bolt

4 Spring
5 Tensioning Lever
6 Poly V-Belt

YAD1BB20
