M162 ENGINE MECHANICAL  1B1-95

SSANGYONG  Y200

YAD1B2Z0

YAD1B3A0

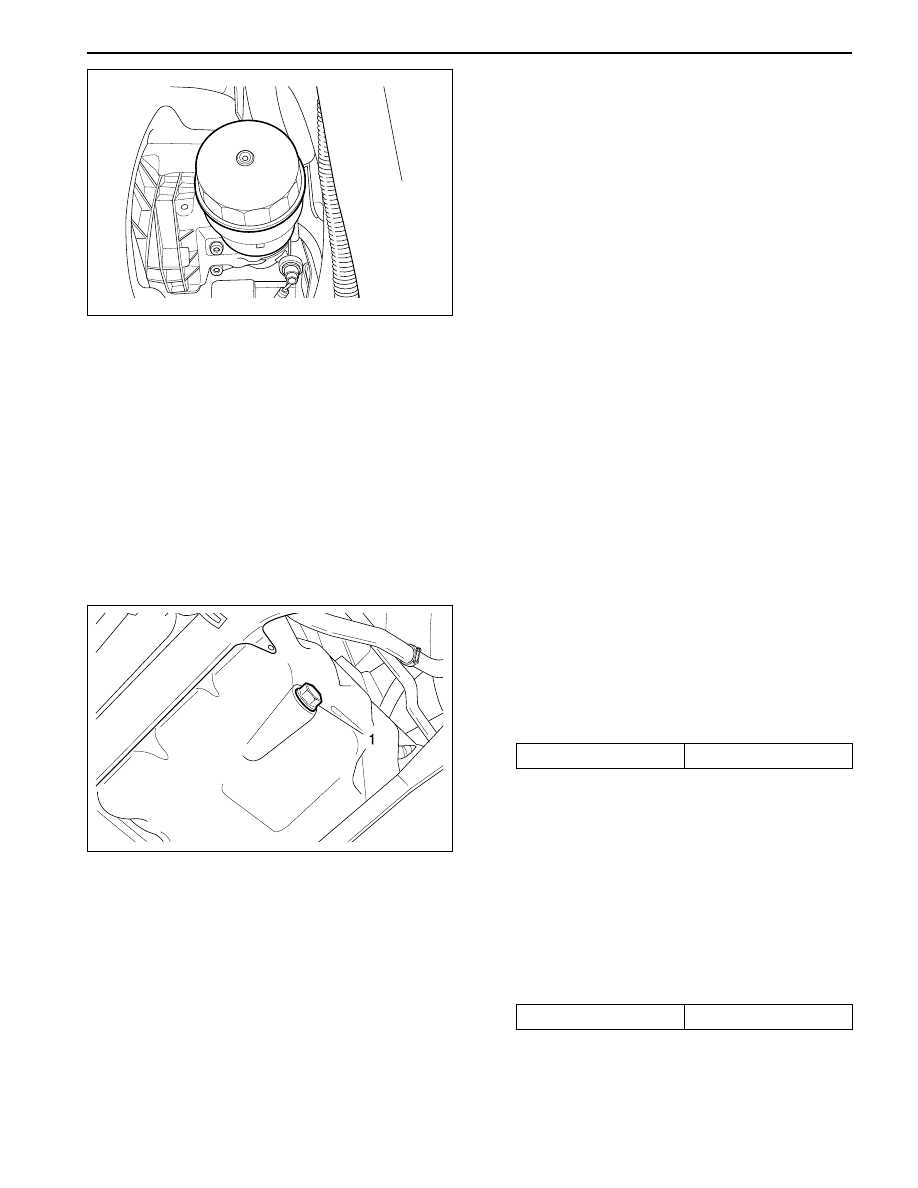

4. Remove the drain plug (1) and drain the engine

oil.

Notice: Leave the oil filler cap open to ease the
engine oil discharge.

5. Tighten the engine oil drain plug after cleaning it.

Installation Notice

ENGINE OIL AND OIL FILTER
ELEMENT

Tools Required

103 589 02 09 00 Oil Filter Remover

Replacement Procedure

1. Install the oil filter remover 103 589 02 09 00 on

the oil filter cover.

Notice:  Make the screw cover removable by
tightening the bolt at the side of the oil filter
remover 103 589 02 09 00.

2. Install the wrench to the upper bolt in the oil filter

remover 103 589 02 09 00 and remove the oil cover
by turning it.

3. Remove the oil filter element.

Notice: Work with a cloth under the vehicle when
removing the oil filter element to not drain the oil.

Tightening Torque

25 N•m (18 lb-ft)

Replace the seal washer with new one.

6. Replace the O-ring in the oil filter cover with new

one.

Notice: Apply the engine oil to the O-ring.

7. Insert new oil filter element into the oil filter

housing.

8. Temporarily tighten the oil filter cover. Install the

oil filter remover 103 589 02 09 00, and then
completely tighten it.

Installation Notice

Tightening Torque

25 N•m (18 lb-ft)

SSANGYONG  Y200

1B1-96  M162 ENGINE MECHANICAL

YAD1B3B0

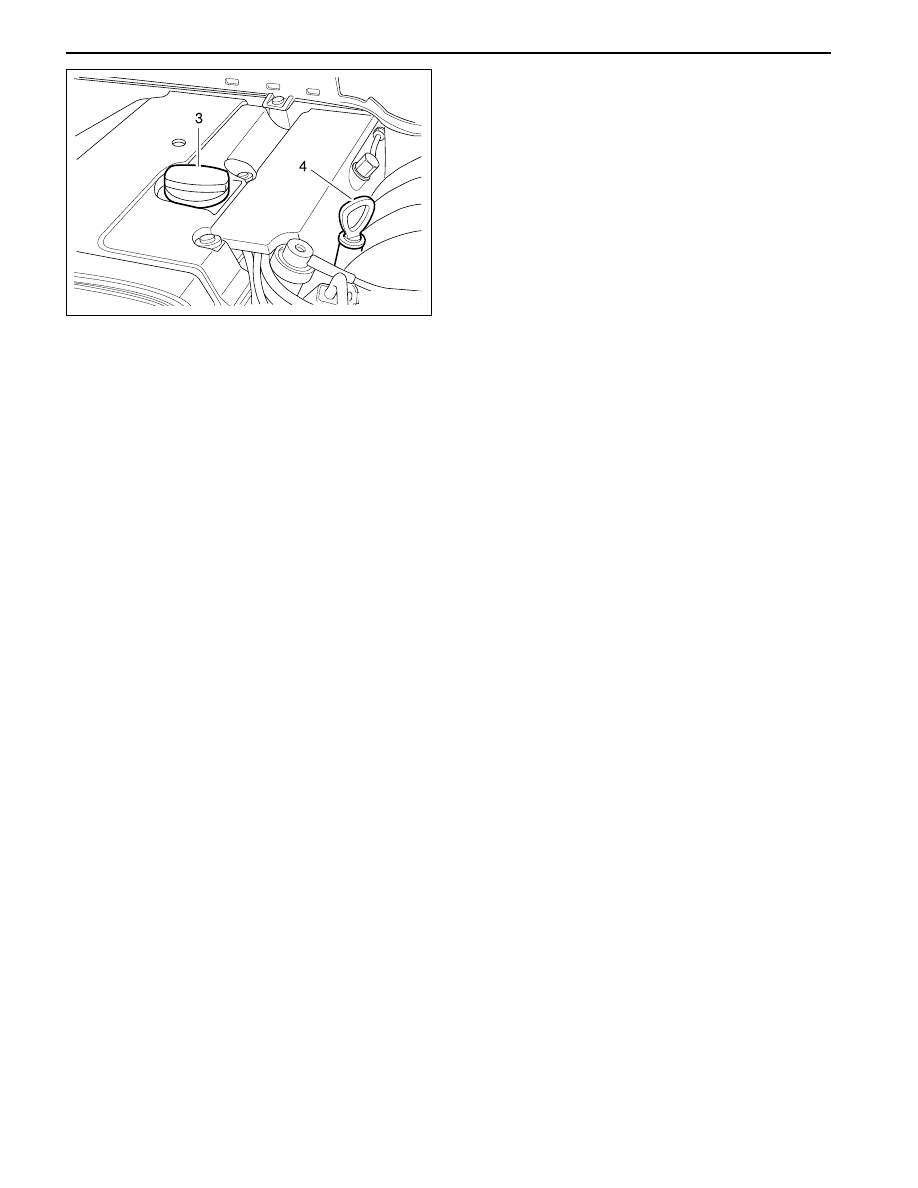

9. Fill up engine oil through the engine oil filler

opening (3).

10. Check for oil leaks at normal engine temperature

after starting the engine.

11. Stop the engine and wait 5 minutes.

Check the oil level and fill up as specified if
necessary.

M162 ENGINE MECHANICAL  1B1-97

SSANGYONG  Y200

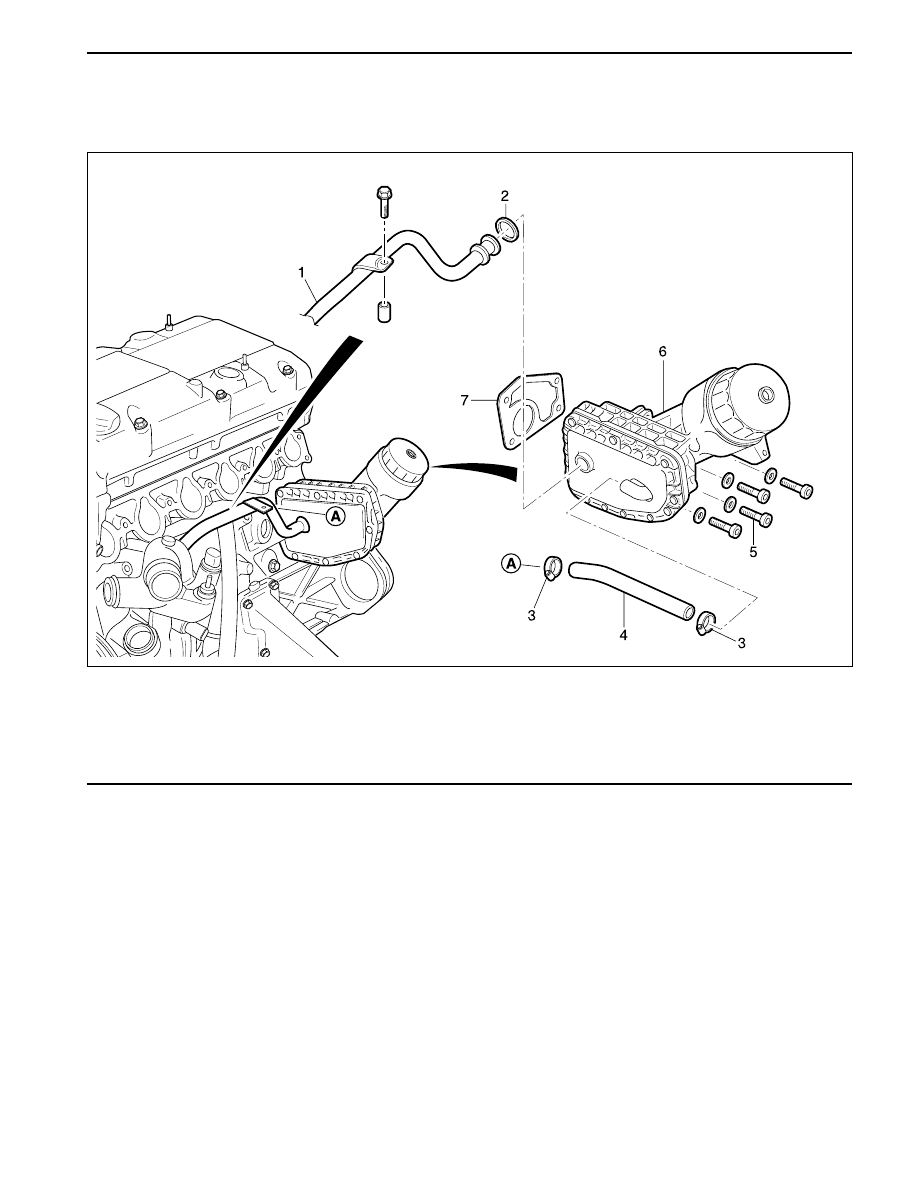

OIL FILTER

Preceding Work : Removal of starter motor

Removal of upper intake manifold

1 Coolant Line
2 O-ring ..................................................... Replace
3 Clip
4 Hose

5 Bolt .................... 22.5-27.5 N•m (16.6-20.3 lb-ft)
6 Oil Filter
7 Gasket ................................................... Replace

YAD1B3C0

SSANGYONG  Y200

1B1-98  M162 ENGINE MECHANICAL

YAD1B3D0

Replace the oil filter gasket.

4. Installation should follow the removal procedure

in the reverse order.

5. Check engine oil level.

6. Run the engine at idle and check the engine for

leaks.

3. Remove the oil filter bolt and then remove the oil

filter.

Installation Notice

Removal & Installation Procedure

1. Drain the coolant from the crankcase.

2. Remove the each coolant line and hose.

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)
