M162 ENGINE MECHANICAL  1B1-99

SSANGYONG  Y200

1 Bolt (M8 x 20, 1 piece)

..................................... 29-35 N•m (21-26 lb-ft)

2 Sprocket (Oil Pump Drive)

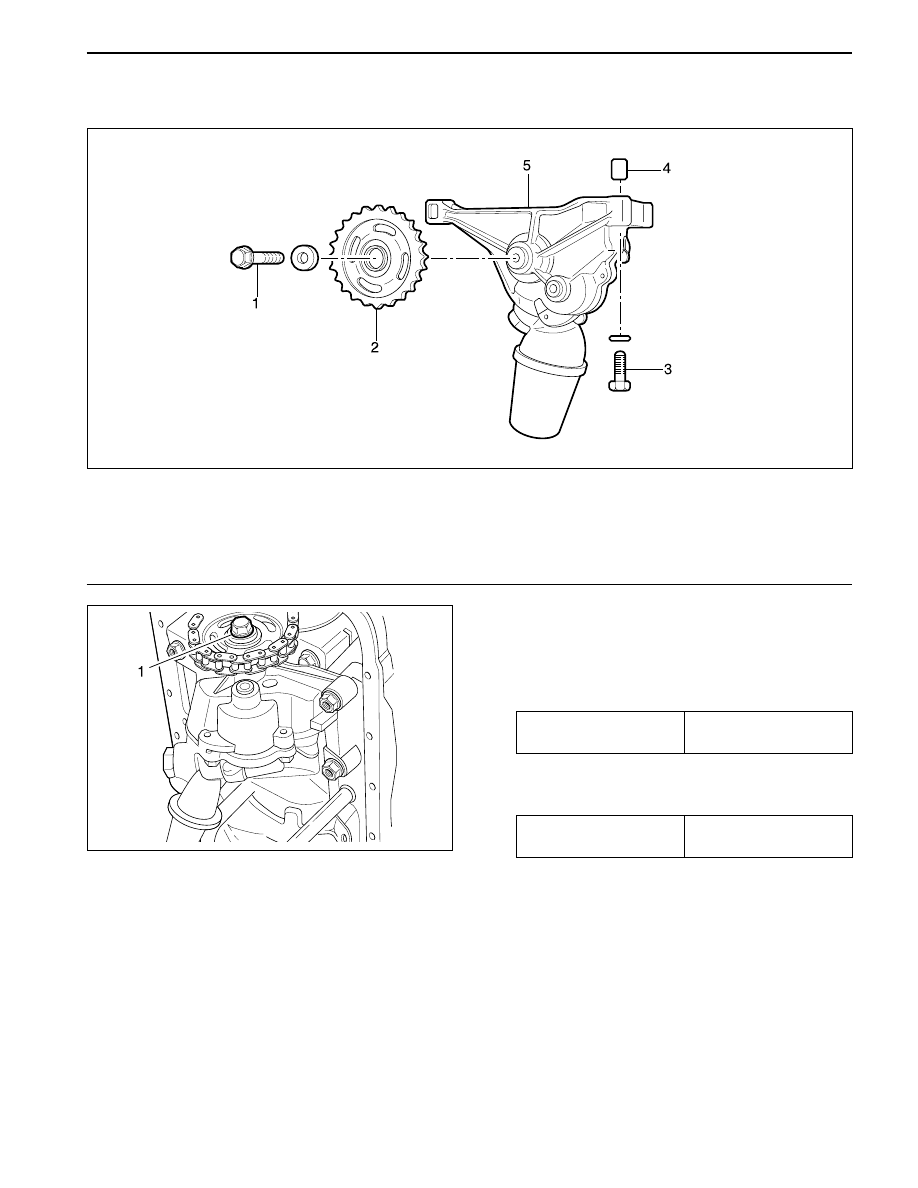

OIL PUMP

Preceding Work : Removal of oil pan

3 Bolt (M8 x 35, 3 pieces)

.......................... 22.5-27.5 N•m(16.6-20.3 lb-ft)

4 Spring Pin
5 Oil Pump

YAD1B3E0

YAD1B3F0

Removal & Installation Procedure

1. Remove the bolt (1) from the oil pump drive

sprocket (2) and separate the gear and the oil
pump drive chain.

Installation Notice

Tighten the baffle plate and the oil pump with the
two bolts in right side first, and then tighten the
other bolt.

3. Remove the oil pump and oil strainer assembly.

4. Replace the strainer in oil pump if necessary.

5. Installation should follow the removal procedure

in the reverse order.

2. Unscrew the oil pump mounting bolts (3).

Installation Notice

Tightening Torque

29 - 35 N•m

(21 - 26 lb-ft)

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)

SSANGYONG  Y200

1B1-100  M162 ENGINE MECHANICAL

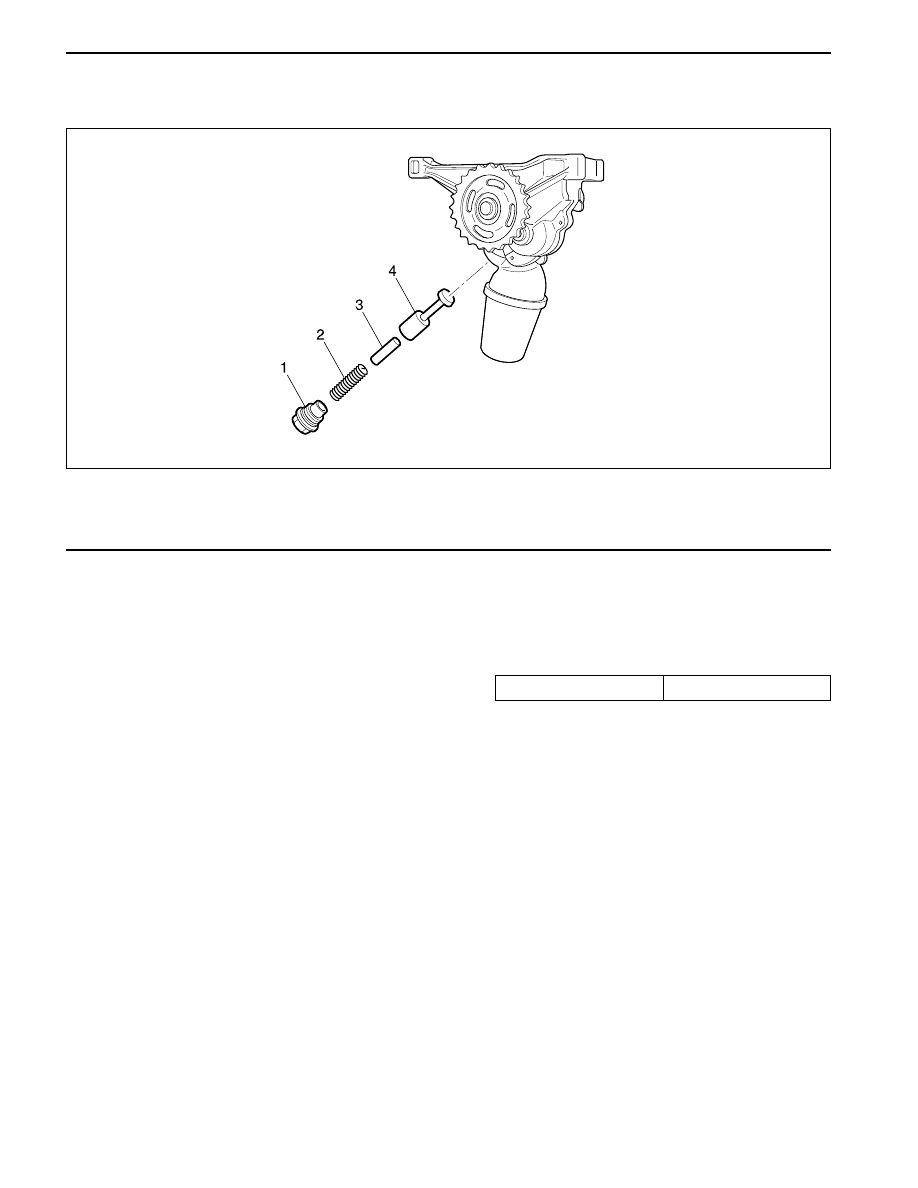

OIL PRESSURE RELIEF  VALVE

Preceding Work : Removal of oil pan

1 Screw Plug ............................... 50 N•m (37 lb-ft)
2 Compression Spring

Removal & Installation Procedure

1. Remove the screw plug (1).

Installation Notice

2. Remove the spring (2), guide pin (3) and the piston

(4).

3. Installation should follow the removal procedure

in the reverse order.

Notice: Don’t use the seal for the screw plug.

3 Guide Pin
4 Piston

Tightening Torque

50 N•m (37 lb-ft)

YAD1B3G0

M162 ENGINE MECHANICAL  1B1-101

SSANGYONG  Y200

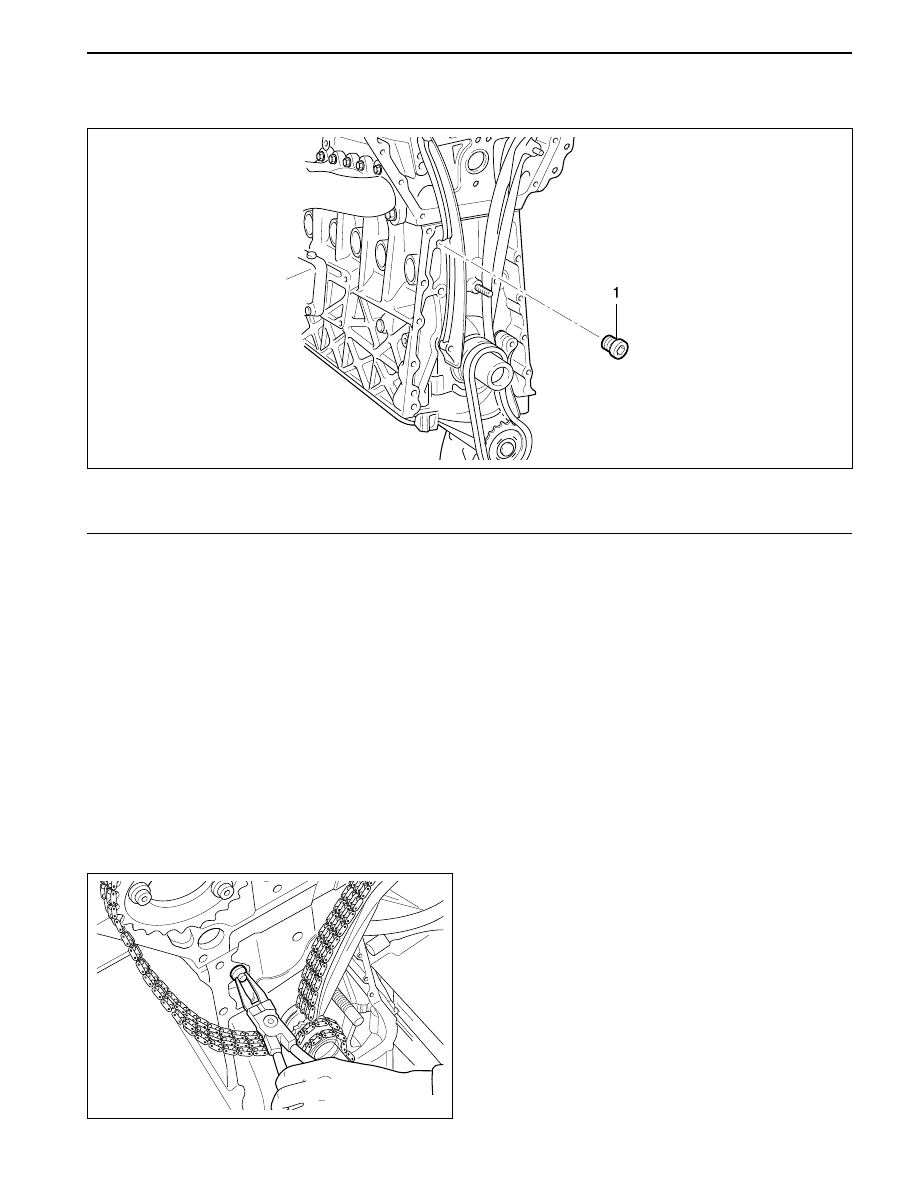

OIL NON-RETURN  VALVE

Preceding Work : Removal of timing gear case cover

1 Oil Non-return Valve

Functions

The non-return valve prevents the oil in the chain
tensioner from drying up. In other words, it stops oil-
returning in order to prevent the oil in the chain tensioner
from getting dry. As a result, the chain tensioner can
be activated with oil in itself.

Replacement Procedure

1. Remove the non-return valve using a pliers.

2. Insert new non-return valve with hand.

YAD1B3J0

YAD1B3H0

SSANGYONG  Y200

1B1-102  M162 ENGINE MECHANICAL

YAD1B3L0

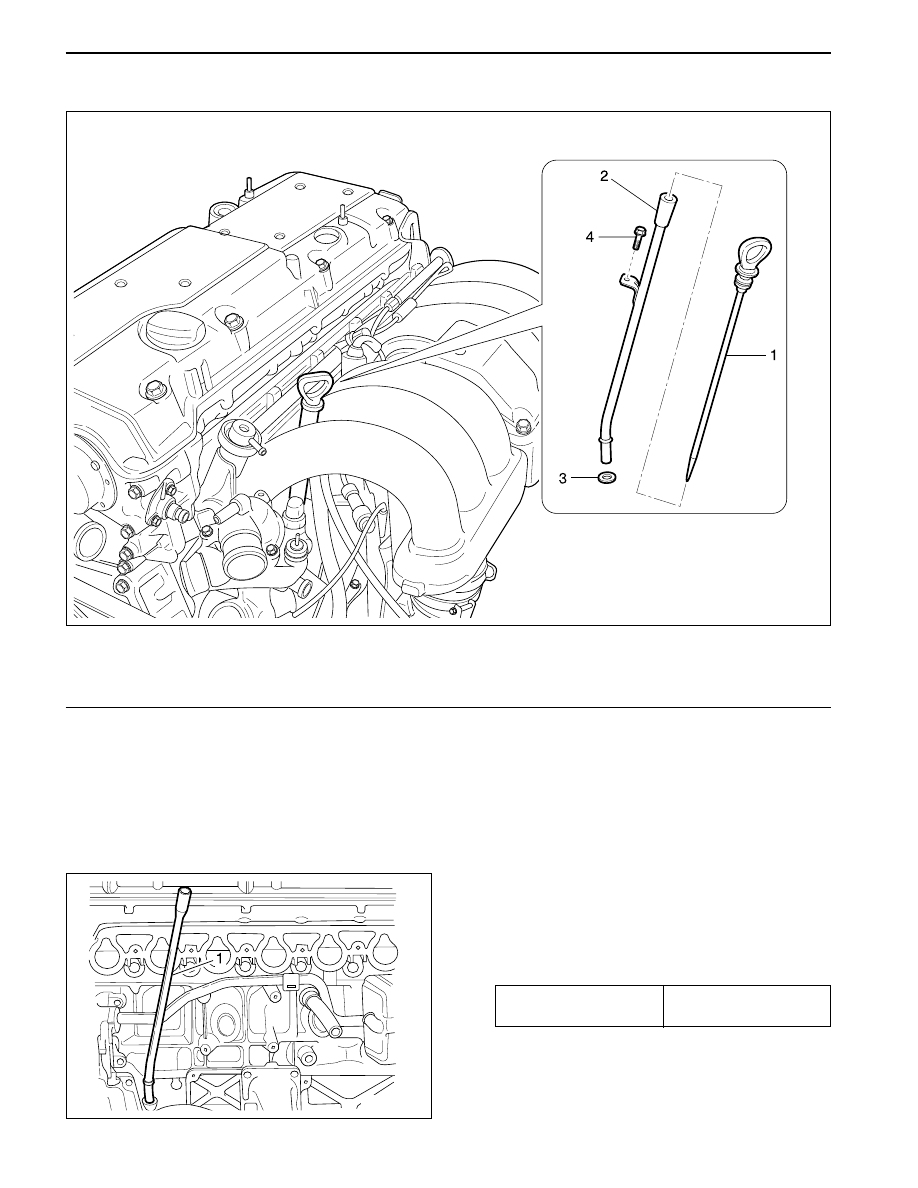

OIL DIPSTICK GUIDE TUBE

1 Oil Dipstick Level Gauge
2 Oil Dipstick Guide Tube

Removal & Installation Procedure

1. Pull out the oil dipstick level gauge (1).

2. Remove the bolt (4) in the upper intake manifold

and remove the oil dipstick guide tube.

Installation Notice

3. Install new O-ring to the dipstick guide tube.

4. Installation should follow the removal procedure

in the reverse order.

5. Check for leaks by starting the engine.

3 O-ring
4 Bolt (M6 x 12, 1 piece) .... 9-11 N•m (80-97 lb-in)

Tightening Torque

9 - 11 N•m

(80 - 97 lb-in)

YAD1B3K0
