M162 ENGINE MECHANICAL  1B1-87

SSANGYONG  Y200

YAD1B2G0

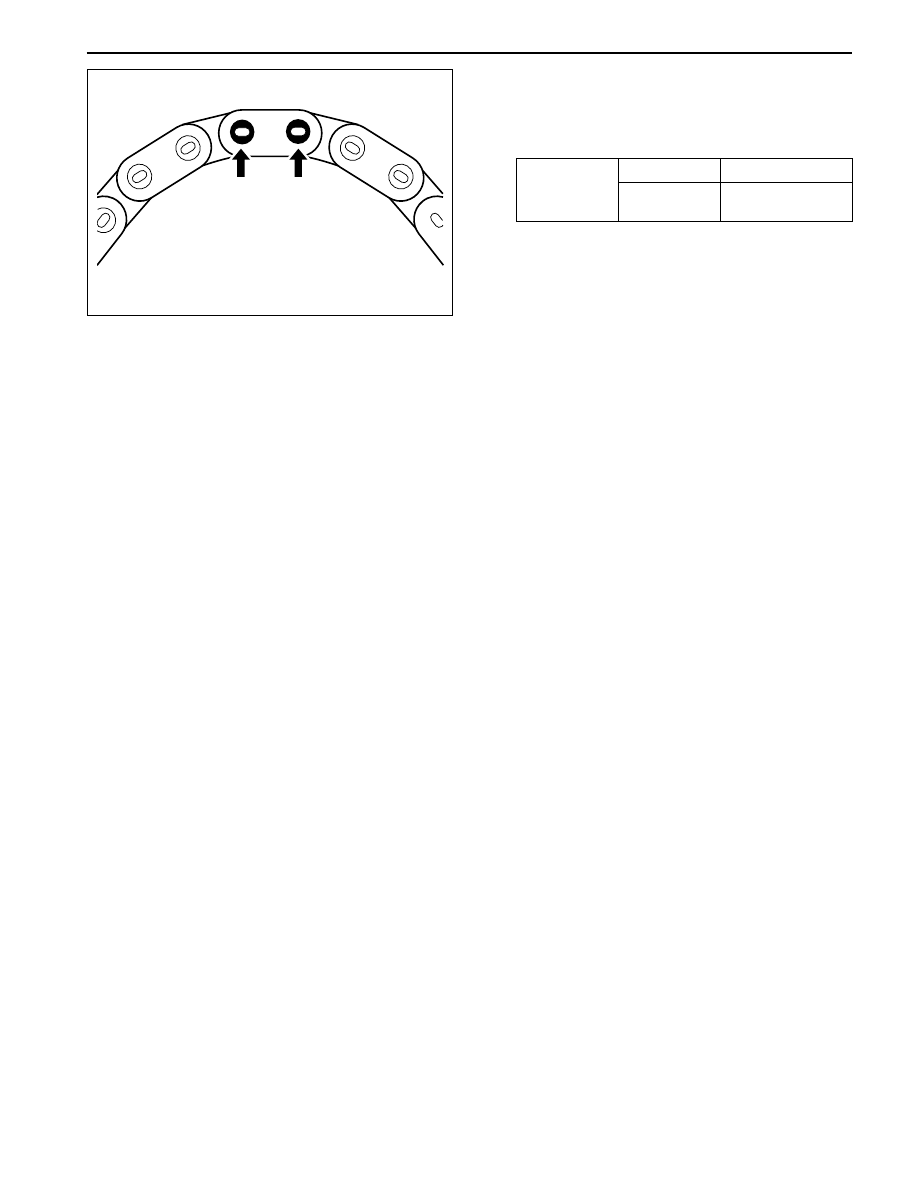

17. Rivet the link pin.

Check the condition and it again if necessary.

18. Install the chain tensioner.

Installation Notice

19. Check the camshaft timing position.

Screw Plug

Tensioner

Assembly

Tightening

Torque

40 N•m (30 lb-ft)

72 - 88 N•m

(53 - 65 lb-ft)

SSANGYONG  Y200

1B1-88  M162 ENGINE MECHANICAL

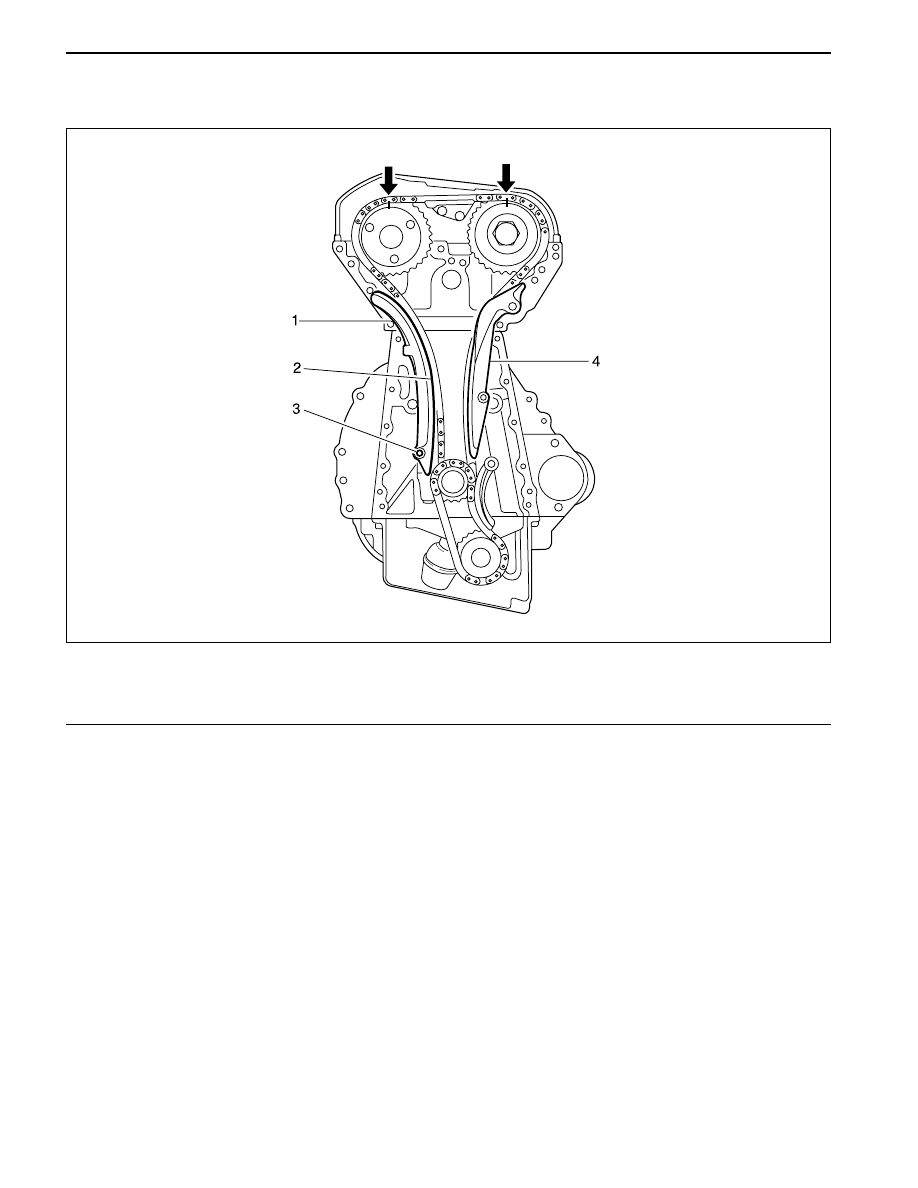

TENSIONING RAIL

Preceding Work : Removal of timing gear case cover

1 Tensioning Rail
2 Plastic Guide

Removal & Installation Procedure

1. Put the assembly mark at the camshaft sprocket

and the timing chain with the paint (arrow).

2. Remove the exhaust camshaft sprocket.

3. Remove the tensioning rail (1) from the tensioning

rail pin (3).

Notice:

•

Replace the plastic guide (2) if it is damaged.

•

For installation, exactly align the plastic guide
(2) with the tensioning rail (1).

4. Installation should follow the removal procedure

in the reverse order.

5. Check the camshaft timing position.

YAD1B2H0

3 Tensioning Rail Pin
4 Guide Rail

M162 ENGINE MECHANICAL  1B1-89

SSANGYONG  Y200

YAD1B2J0

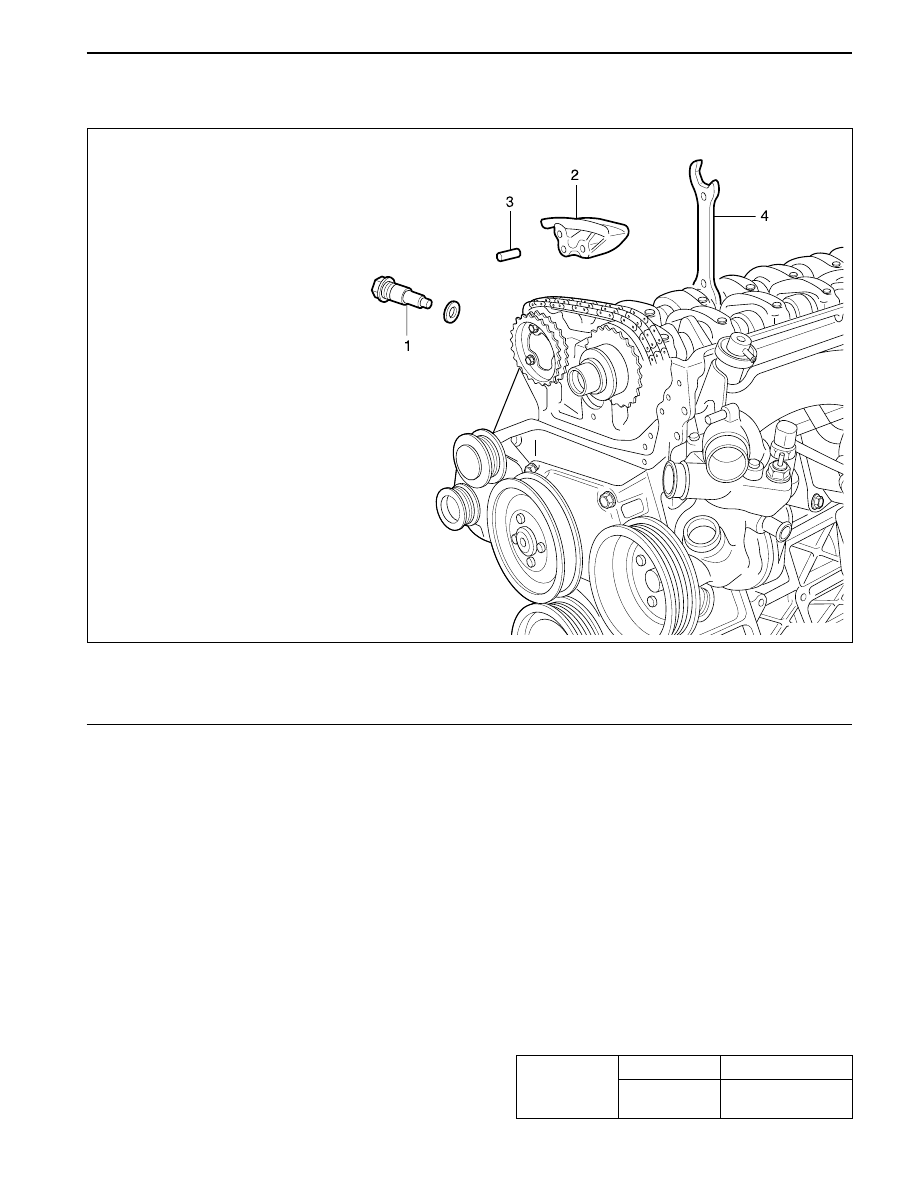

CYLINDER HEAD GUIDE RAIL

Preceding Work : Removal of cylinder head cover

Removal & Installation Procedure

1. Remove the chain tensioner (1).

2. Turn the exhaust camshaft to the camshaft rotating

direction using the wrench (4) and loosen the
timing chain at upper guide rail (2).

3. Pull out the upper guide rail pin from the guide

rail (2).

4. Turn the exhaust camshaft to the opposite direction

of rotation using the wrench.

5. Check for damages at the upper sliding rail and

replace it if necessary. Install the upper guide rail
pin.

6. Install the chain tensioner.

Installation Notice

1 Chain Tensioner
2 Upper Guide Rail

3 Upper Guide Rail Pin
4 Wrench (Special Tool)

Screw Plug

Tensioner

Assembly

Tightening

Torque

40 N•m (30 lb-ft)

72 - 88 N•m

(53 - 65 lb-ft)

SSANGYONG  Y200

1B1-90  M162 ENGINE MECHANICAL

YAD1B2K0

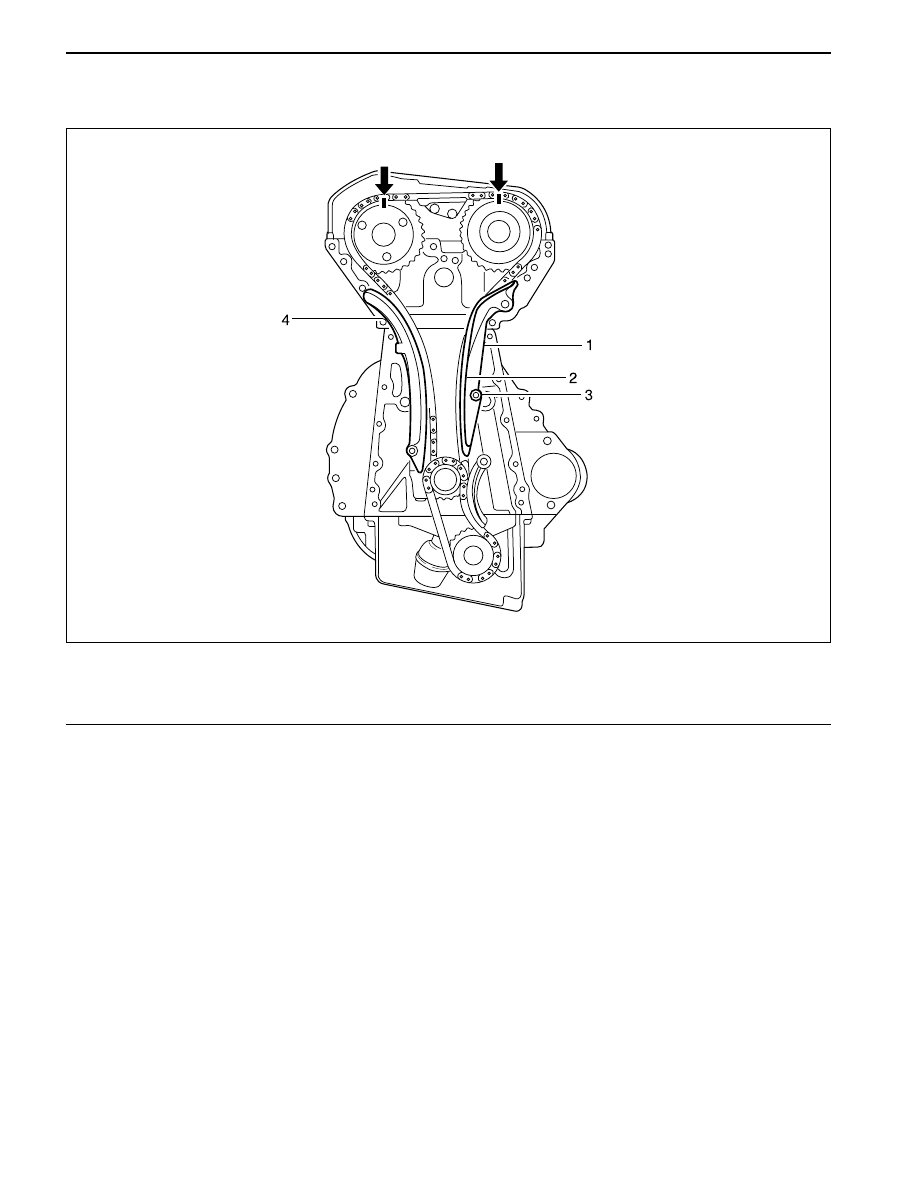

CRANKCASE GUIDE RAIL

Preceding Work : Removal of timing gear case cover

1 Guide Rail
2 Plastic Guide

Removal & Installation Procedure

1. Put the assembly mark at the camshaft sprocket

and the timing chain with the paint (arrow).

2. Remove the exhaust camshaft sprocket.

3. Remove the guide rail (1) from the guide rail pin

(3).

Notice:

•

Replace the plastic guide (2) if damaged.

•

Connect the plastic guide (2) and the guide rail
(1) by aligning them accurately when installing.

4. Installation should follow the removal procedure

in the reverse order.

5. Check the camshaft timing position.

3 Guide Rail Pin
4 Tensioning Rail
