SSANGYONG  REXTON XDi(RHD)

5-68  ELECTRICAL WIRING DIAGRAMS

13. TEVES ABS & ABS/ESP SYSTEM

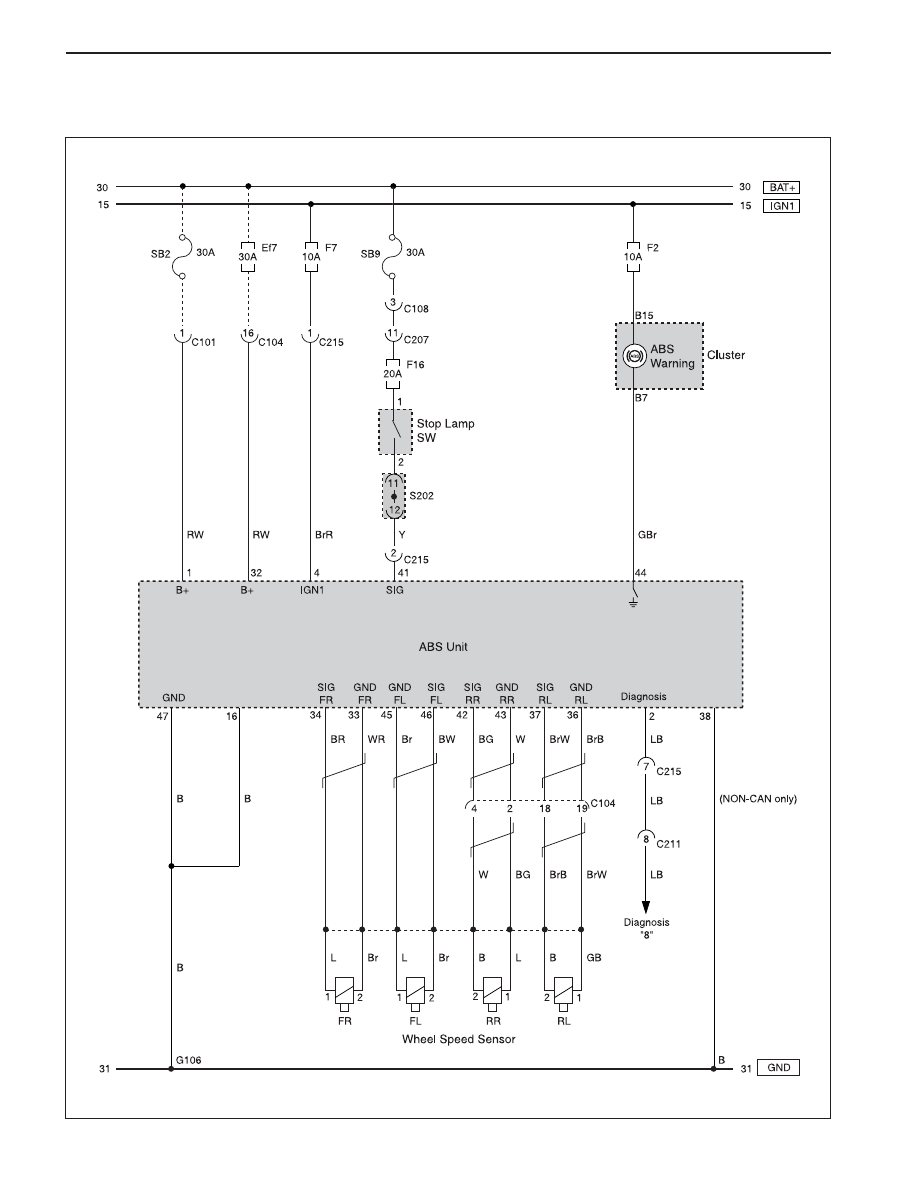

1) ABS

ELECTRICAL WIRING DIAGRAMS  5-69

SSANGYONG  REXTON XDi(RHD)

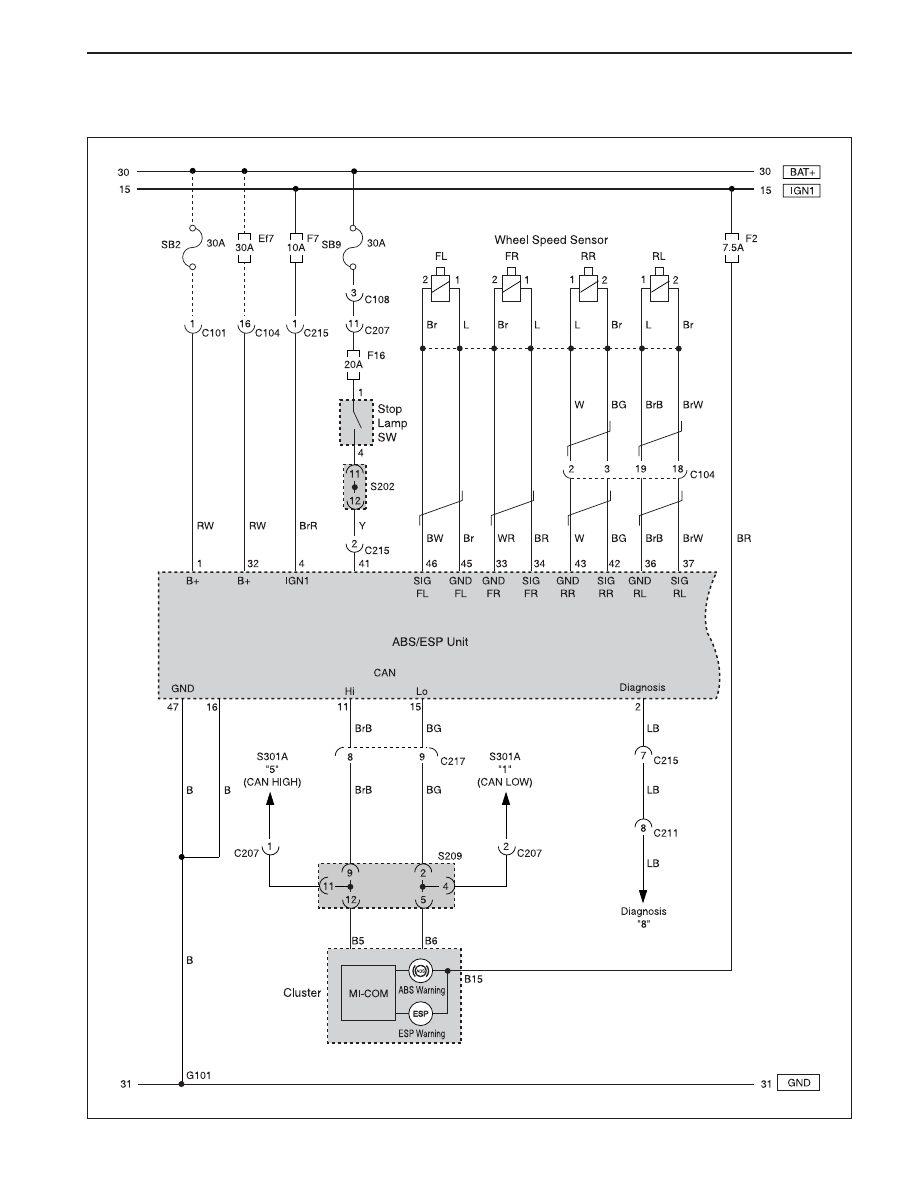

2) ABS/ESP

(1) WHEEL SPEED SENSOR, STOP LAMP SW, DIAGNOSIS, WARNING LAMP

SSANGYONG  REXTON XDi(RHD)

5-70  ELECTRICAL WIRING DIAGRAMS

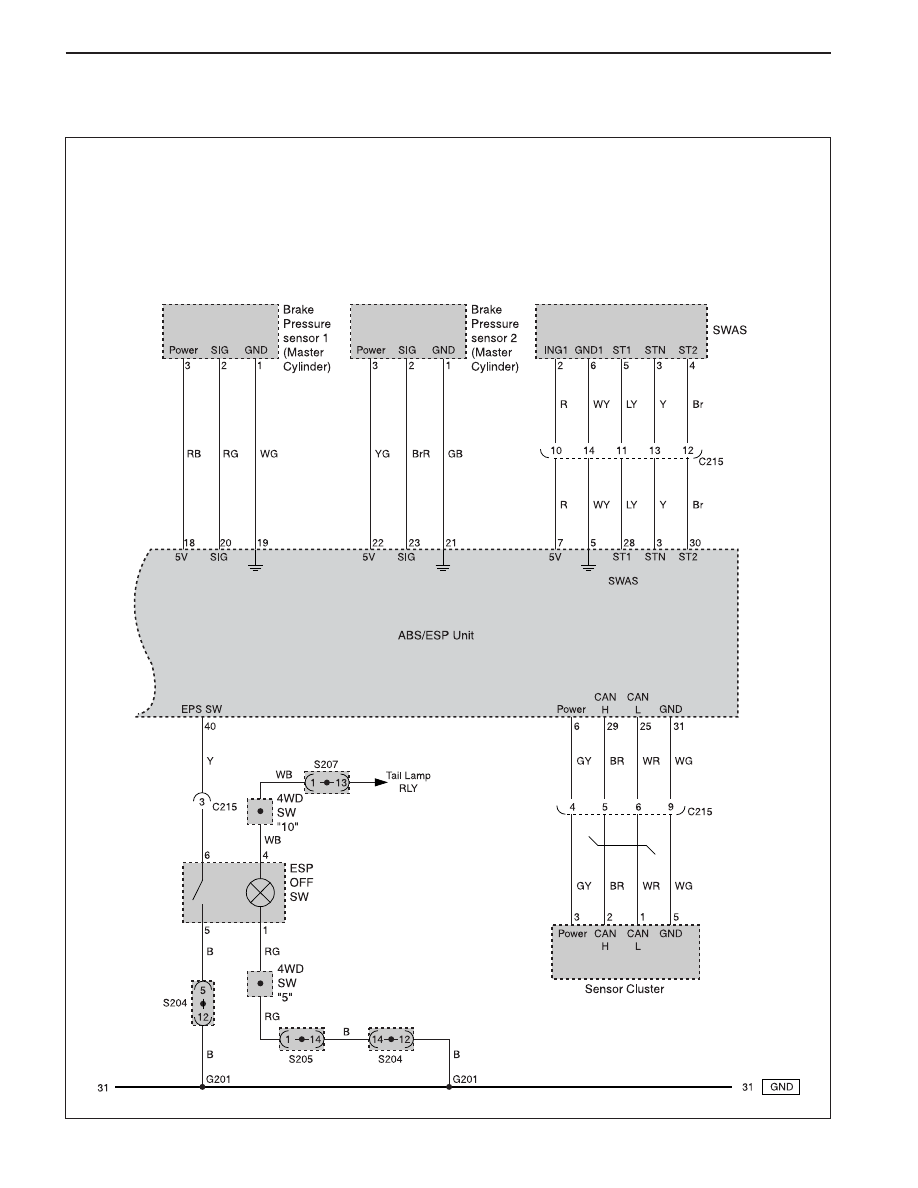

(2) BRAKE PRESSURE SENSOR, SWAS, SENSOR CLUSTER, ESP OFF SW

ELECTRICAL WIRING DIAGRAMS  5-71

SSANGYONG  REXTON XDi(RHD)

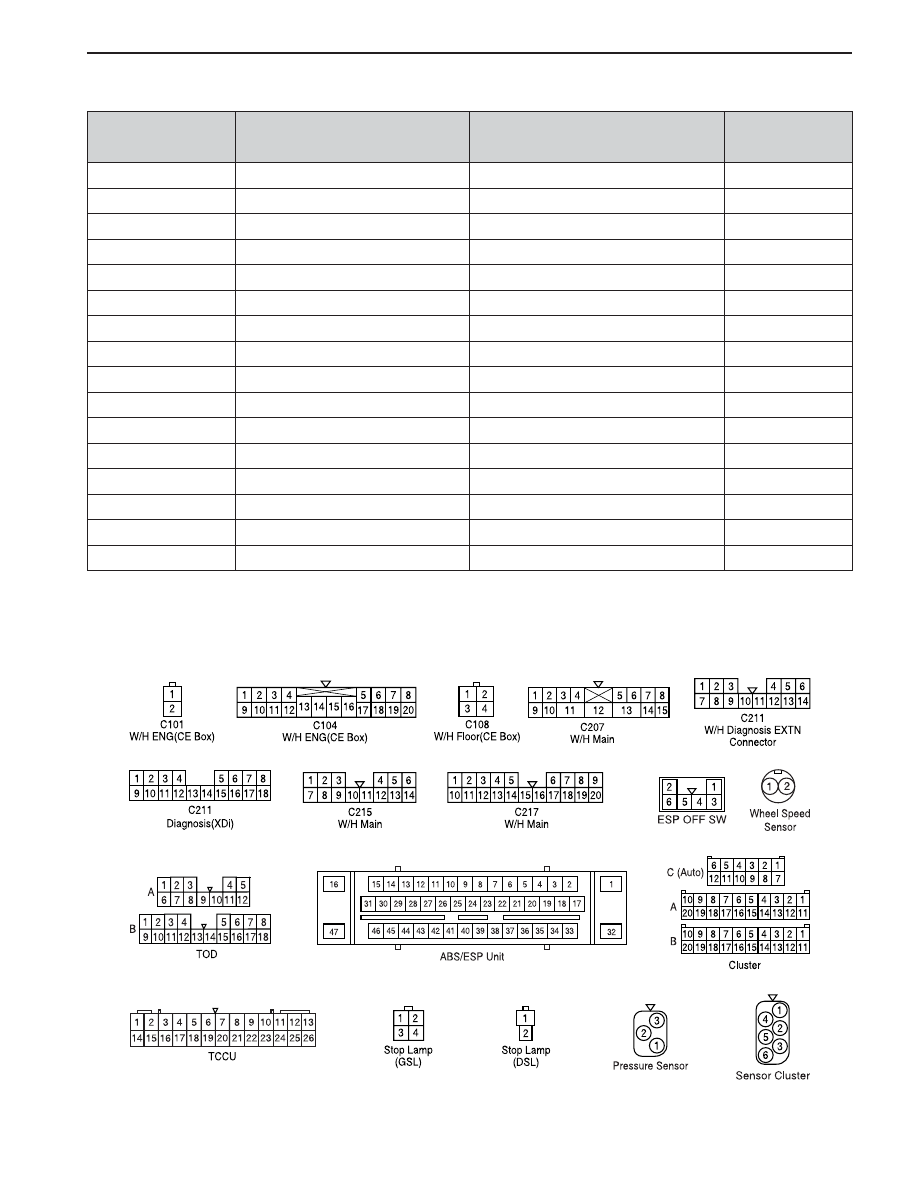

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(A) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Engine - Main(RH)

Engine - Main(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Engine

W/H Main

C101(2Pin, Colorless)

C104(20Pin, White)

C108(4Pin, Colorless)

C207(15Pin, Blue)

C211(14Pin, White)

C211(18Pin, White)

C215(14Pin, White)

C217(20Pin, Black)

S202(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S209(14Pin, Black)

S301A(8Pin, Black)

G101

G201

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left FATC

Behind the Left FATC

Behind the Right FATC

Behind the Left FATC

Under Driver Seat

Center the Engine Room Fuse Box

Inside Driver Side Cowl PNL

XDi

ABS, ABD

GND

GND

Tail Lamp

XDi

XDi

Remark

Connector Position

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
