SsangYong Rexton. Service manual - part 190

SSANGYONG  REXTON XDi(RHD)

5-64  ELECTRICAL WIRING DIAGRAMS

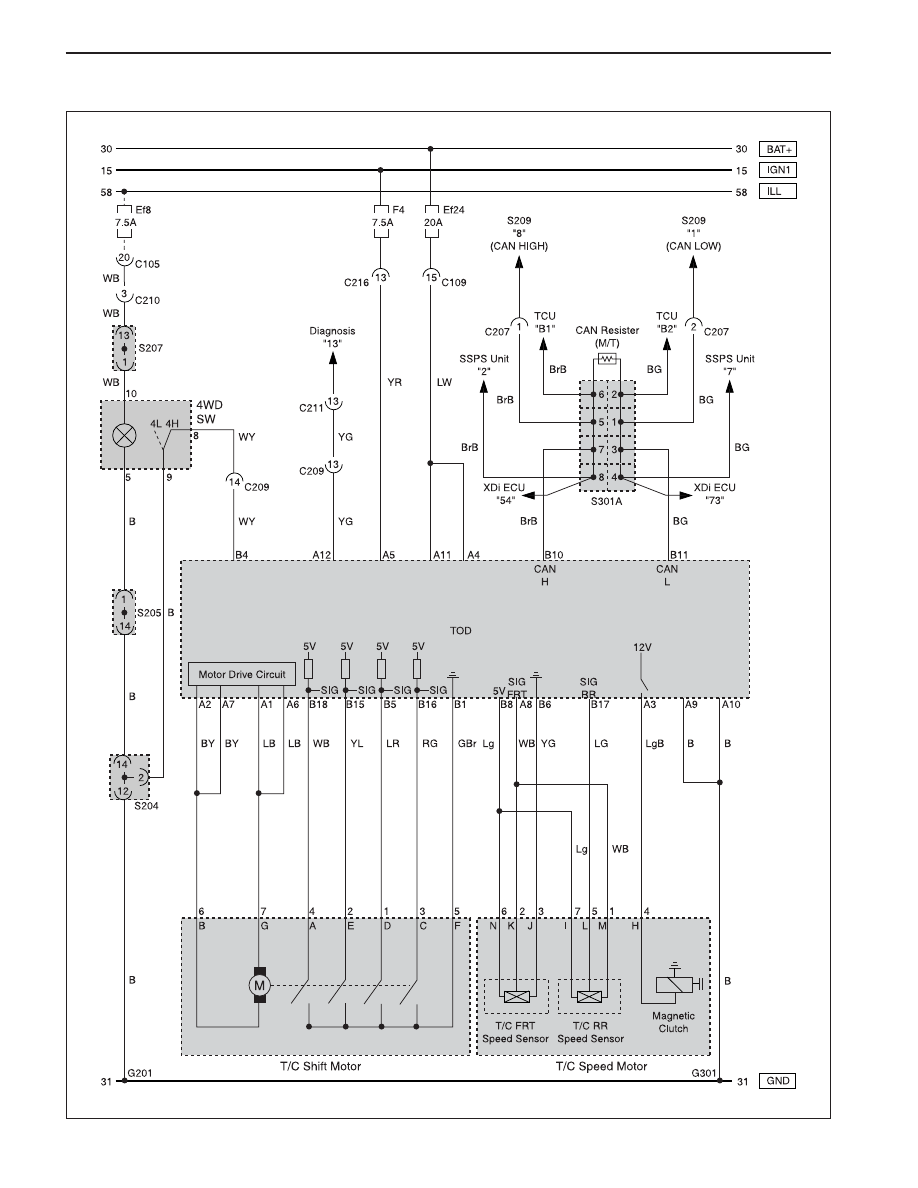

2) 2003 MODEL ~

ELECTRICAL WIRING DIAGRAMS  5-65

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(J) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Main

W/H Floor

C105(22Pin, White)

C107(14Pin, White)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, White)

C211(18Pin, White)

C216(18Pin, White)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S301A(8Pin, Black)

G201

G203

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Inside Driver Side Cowl PNL

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Under Driver Seat

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

A/T

XDi

GND

GND

Tail Lamp

XDi

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-66  ELECTRICAL WIRING DIAGRAMS

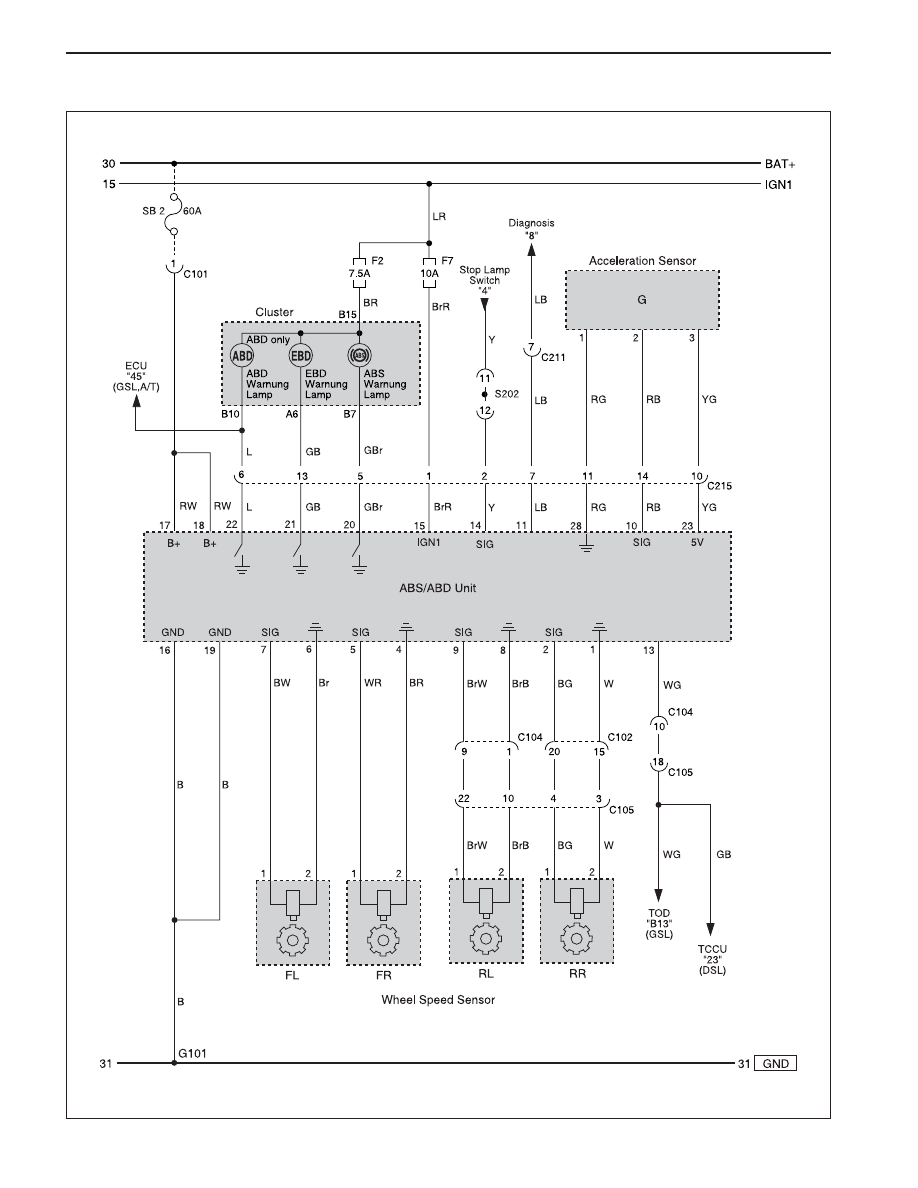

12. ABS & ABS/ABD(AUTOMATIC BRAKE DIFFERENTIAL LOCK) 5.3 II

ELECTRICAL WIRING DIAGRAMS  5-67

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(A) - Engine

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Main - Diagnosis Connector

Engine - Main(RH)

W/H Main

W/H Engine

C101(2Pin, Colorless)

C102(20Pin, White)

C104(20Pin, White)

C105(22Pin, White)

C211(14Pin, White)

C215(14Pin, White)

S202(14Pin, Black)

G101

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Upper the Diagnosis

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Center the Engine Room Fuse Box

ABS, ABD

Remark

Connector Position
