SsangYong Rexton. Service manual - part 189

SSANGYONG  REXTON XDi(RHD)

5-60  ELECTRICAL WIRING DIAGRAMS

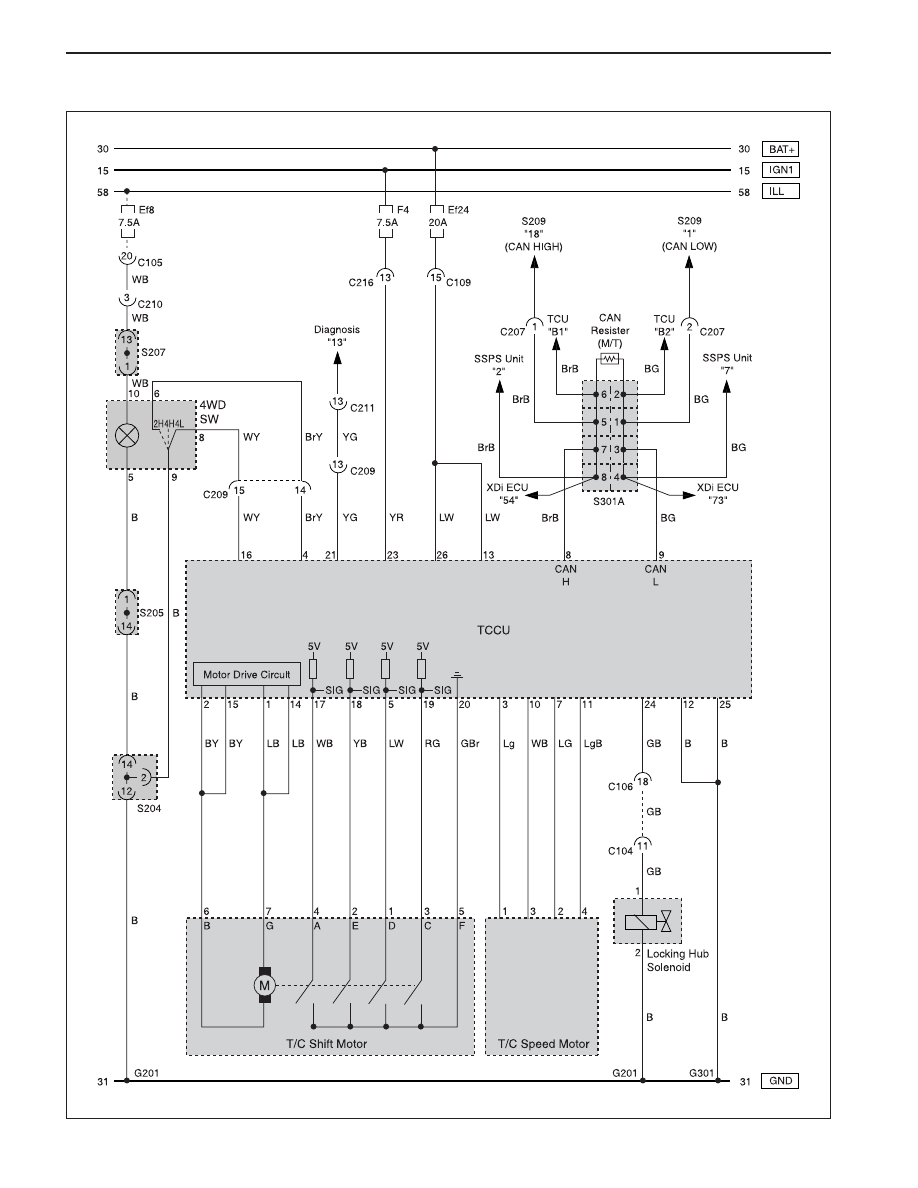

3) XDi, GSL(E32) (5-Speed TCU)

ELECTRICAL WIRING DIAGRAMS  5-61

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

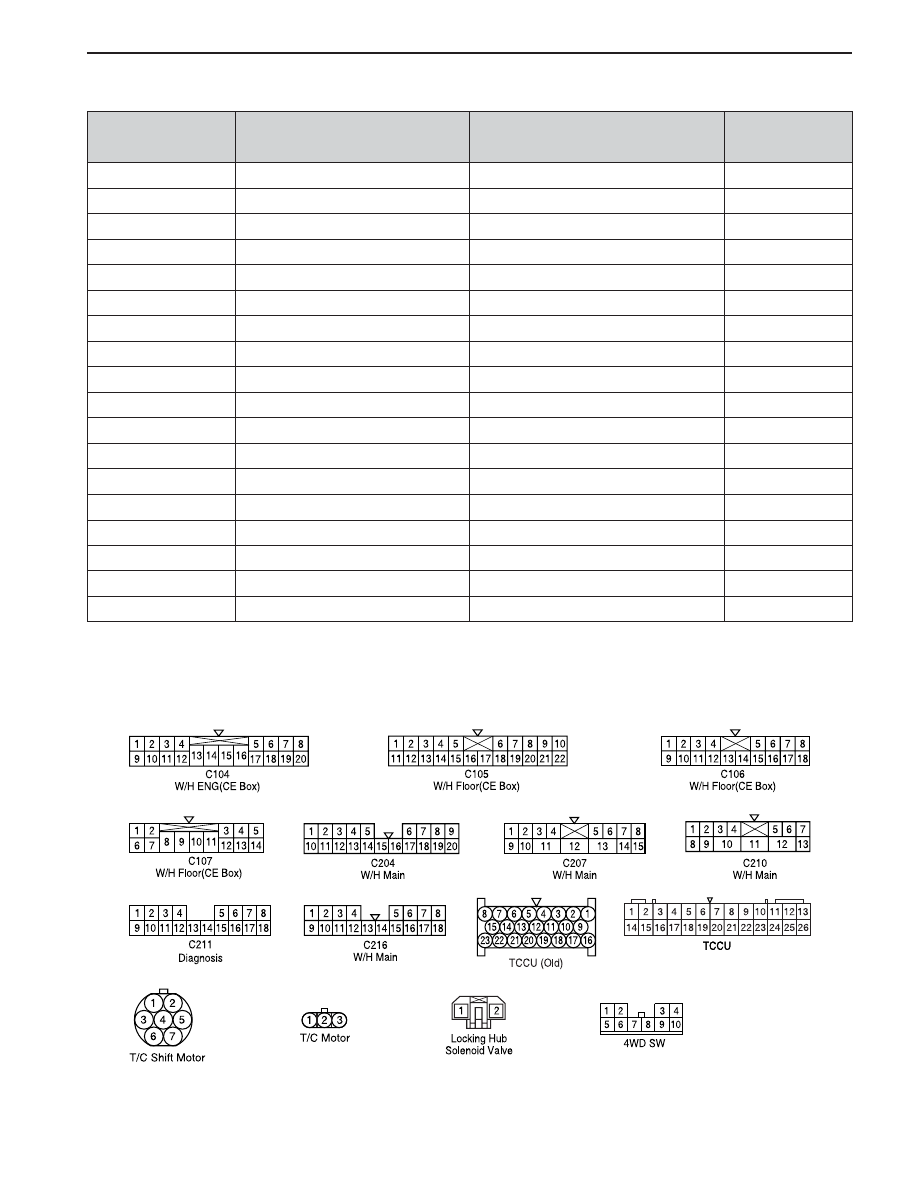

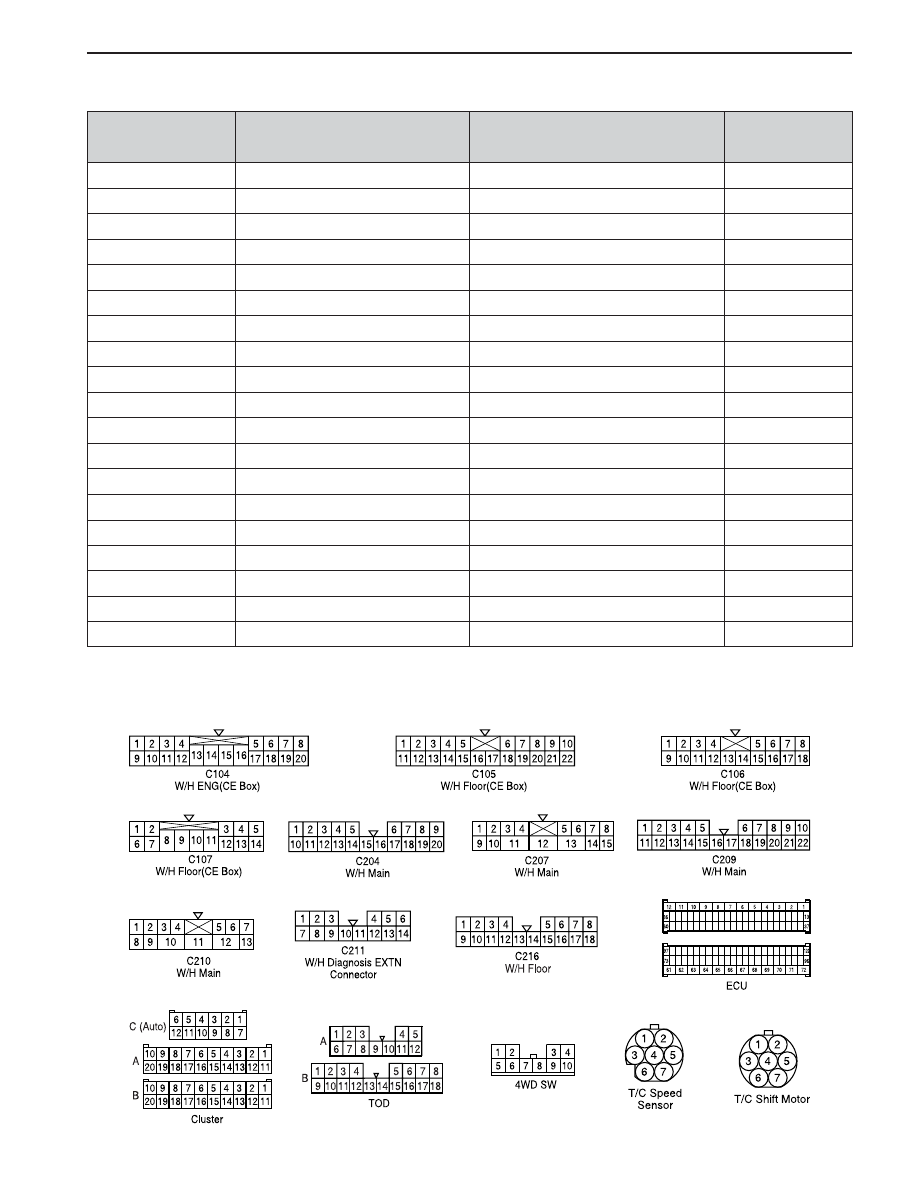

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Main

W/H Floor

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C204(20Pin, Black)

C207(15Pin, Blue)

C210(13Pin, Green)

C211(14Pin, White)

C211(18Pin, White)

C216(18Pin, White)

S202(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S302(14Pin, Black)

G201

G203

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Under Driver Seat

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

XDi

GND

GND

Tail Lamp

W/H Air Bag

ECU GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-62  ELECTRICAL WIRING DIAGRAMS

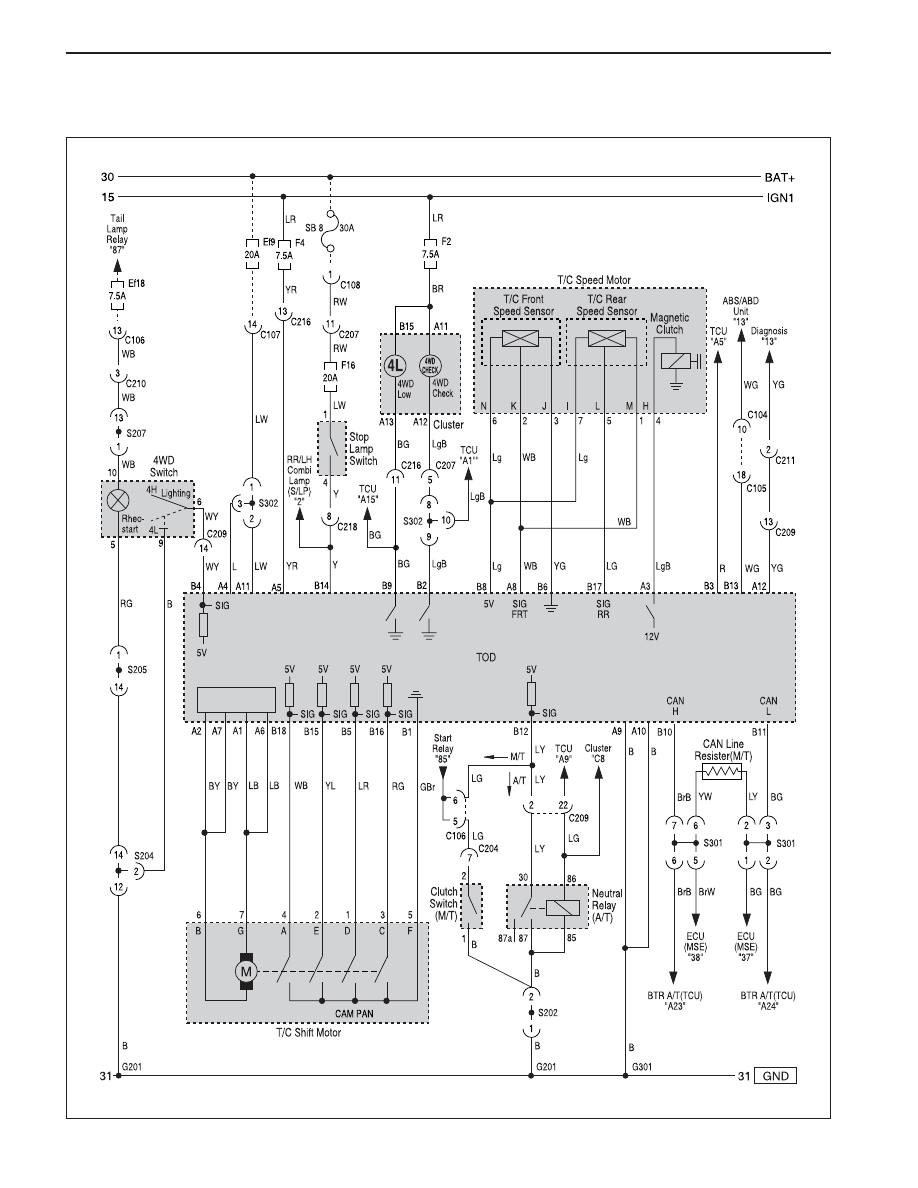

11. TOD(TORQUE ON DEMAND)

1)  ~ 2002 MODEL

ELECTRICAL WIRING DIAGRAMS  5-63

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(J) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Diagnosis Connector

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Main

W/H Main

W/H Floor

C104(20Pin, White)

C105(22Pin, White)

C106(18Pin, White)

C107(14Pin, White)

C204(20Pin, Black)

C207(15Pin, Blue)

C209(22Pin, Yellow)

C210(13Pin, Green)

C211(14Pin, White)

C216(18Pin, White)

S202(14Pin, Black)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

S301(8Pin, Black)

S302(14Pin, Black)

G201

G203

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Under Driver Seat

Under Driver Seat

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

GND

GND

Tail Lamp

CAN(GSL)

W/H Air Bag

ECU GND

Remark

Connector Position
