80

80 - 8

BATTERY - FRONT HEADLIGHTS

FOG PROJECTOR DISMOUNTING – REMOUNTING

Disconnect the battery.
Detach the projector supply wires from the front wiring.
Dismount the attachment screws of the projector from front bumper.
Mounting is done by performing in the reverse order the dismounting operations.

FOG PROJECTOR

80

BATTERY - FRONT HEADLIGHTS

80 - 9

The DACIA pick ups are equipped  with two rectangular headlights.

The headlights adjustment is performed observing the following conditions :

- the vehicle shall be placed on a horizontal surface;
- the vehicle shall be empty (without load or passengers on board);
- the tires shall be inflated at the prescribed pressure;
- the dynamic adjustment switch  in position “ empty “ (without load – rotate it  to

the right).

The adjustment is performed with a special headlights adjustment device.

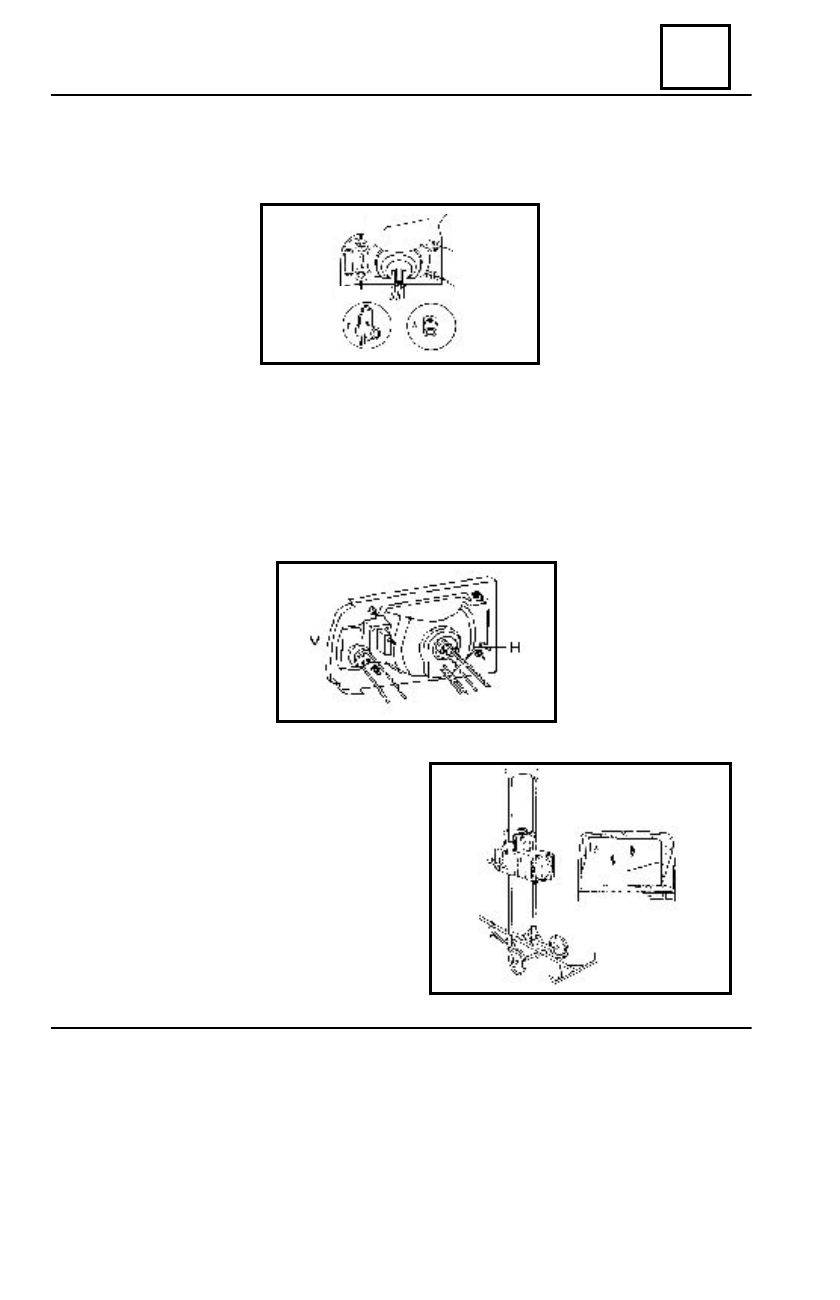

ADJUSTMENT OF MEETING BEAM ( LOW BEAM )

This is performed by actuating the

screw (C) or (V) ( adjustment in the vertical
plan .By screwing up the light beam
“descends” and by unscrewing it, the beam
“goes up”.

Check if the lighted area is centered on

the vertical axe and if the optical mark at
15° is the same with the light of headlamps.
It is admissible 1 cm error.

C

A

B

A

HEADLIGHTS ADJUSTMENT

80

80 - 10

BATTERY - FRONT HEADLIGHTS

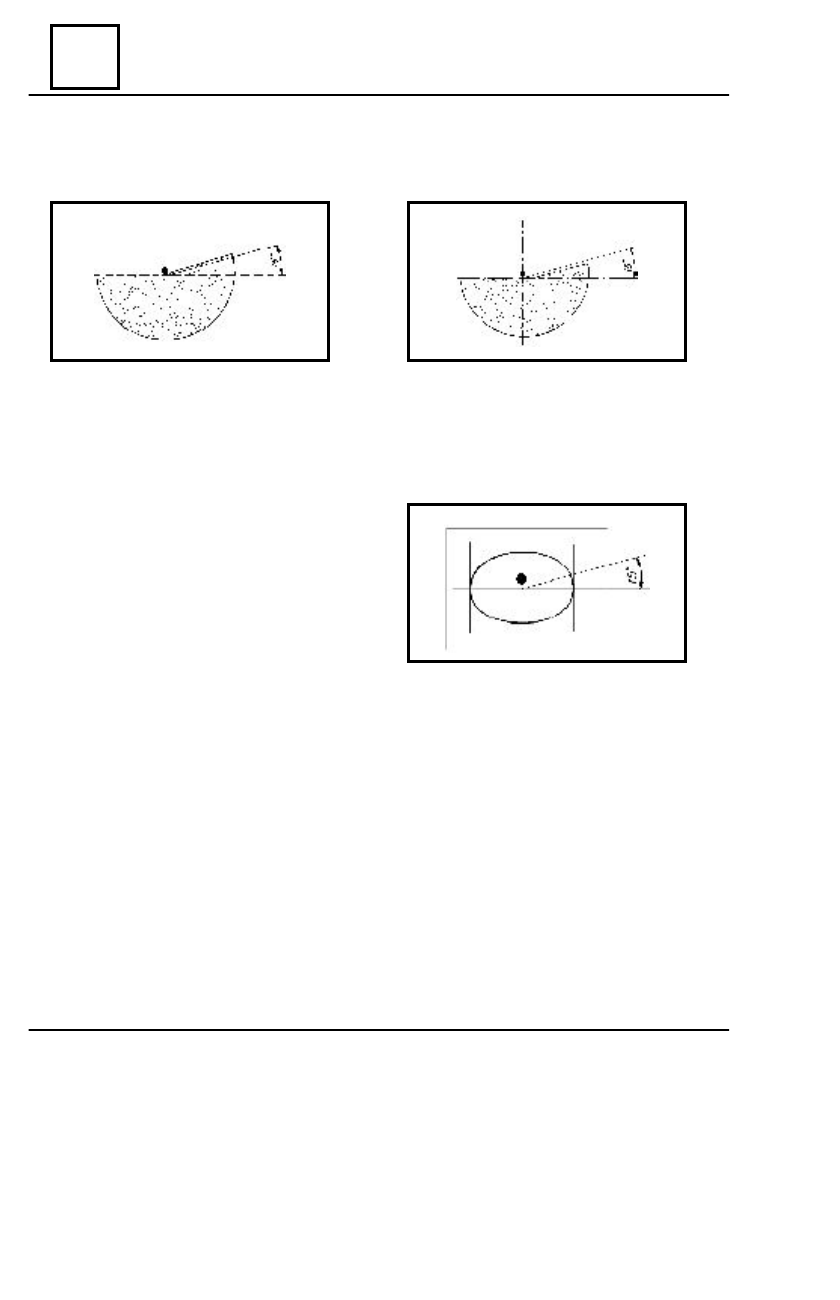

HEADLIGHTS ADJUSTMENT

A lightening fascicle deviated to the left side is shown as in ( figure a ), and a lightening

fascicle deviated to the right is shown as in ( figure b ).

( fig a )

( fig a )

HIGH BEAM ADJUSTMENT ( LONG BEAM )

Check  that the position to coincide  with

the adjustment made for the low beam, and
the lightening fascicle shall be uniform
distributed between  the two vertically lines
on the panel.

When checking the high beam, the lightening center of the ellipse must be situated on

the cross sign marking the screen center.

If a major deviation compared to the short beam is noticed, it is recommended the

replacement of the bulb, this one being in most of the cases responsible for this defect.

81

REAR AND INTERIOR LIGHTING

MOUNTING – REMOUNTING LICENCE PLATE LAMP.

Dismount the protector of the license plate lamp, then the attachment screws of the

lamp on the body.

Disconnect the lamp from the vehicle wiring.
Mounting is done by performing the dismounting operations in the reverse order.

REAR LAMP DISMOUNTING – REMOUNTING

Dismount the screws that attach the protector ( DACIA 1304 Pick – up ).
Dismount the screws that attach the lamp body on the vehicle body (DACIA 1304 Pick – up).
Dismount the nuts that attach the lamp body on the vehicle body ( DACIA 1304 Drop-

Side )

Disconnect the lamp from the vehicle wiring.
Perform the dismounting operations in the reverse order.

80 - 1

REAR AND INTERIOR LIGHTING
