Dacia Pick-Up 1304/1305/1307. Service manual - part 109

48

NON SIDE OPENING ELEMENTS

D

ISMO UNTING

Dismount :

- the attachment screws (1) of the

hinges;

- the front bonnet.

R

EMO UNTING

Perform the dismounting operations in

the reverse order.

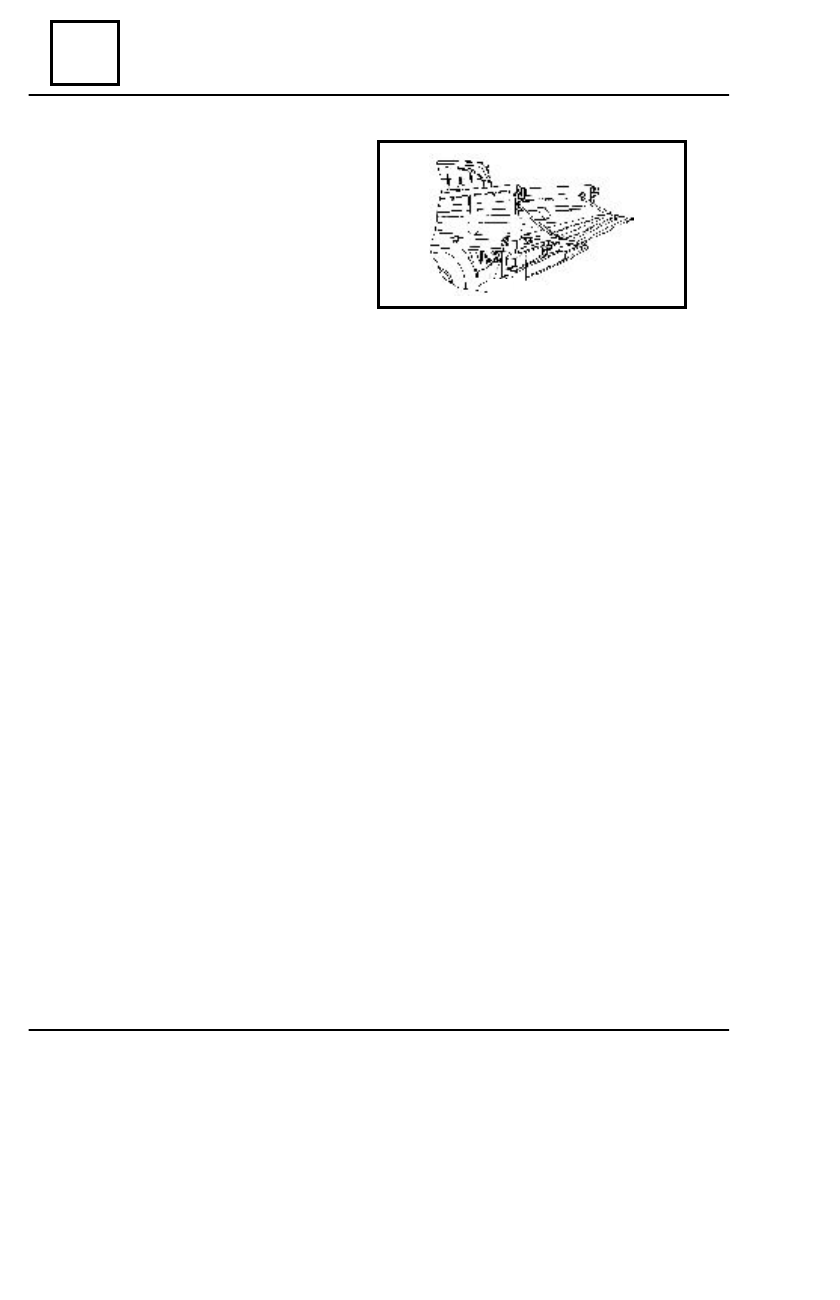

FRONT BONNET

 48 - 1

1

NON SIDE OPENING ELEMENTS

48

D

ISMO UNTING

Dismount :

- the attachment screws (1) of the

hinges (2);

- the rear drop side (the drop side).

R

EMO UNTING

Perform the dismounting operations in

the reverse order.

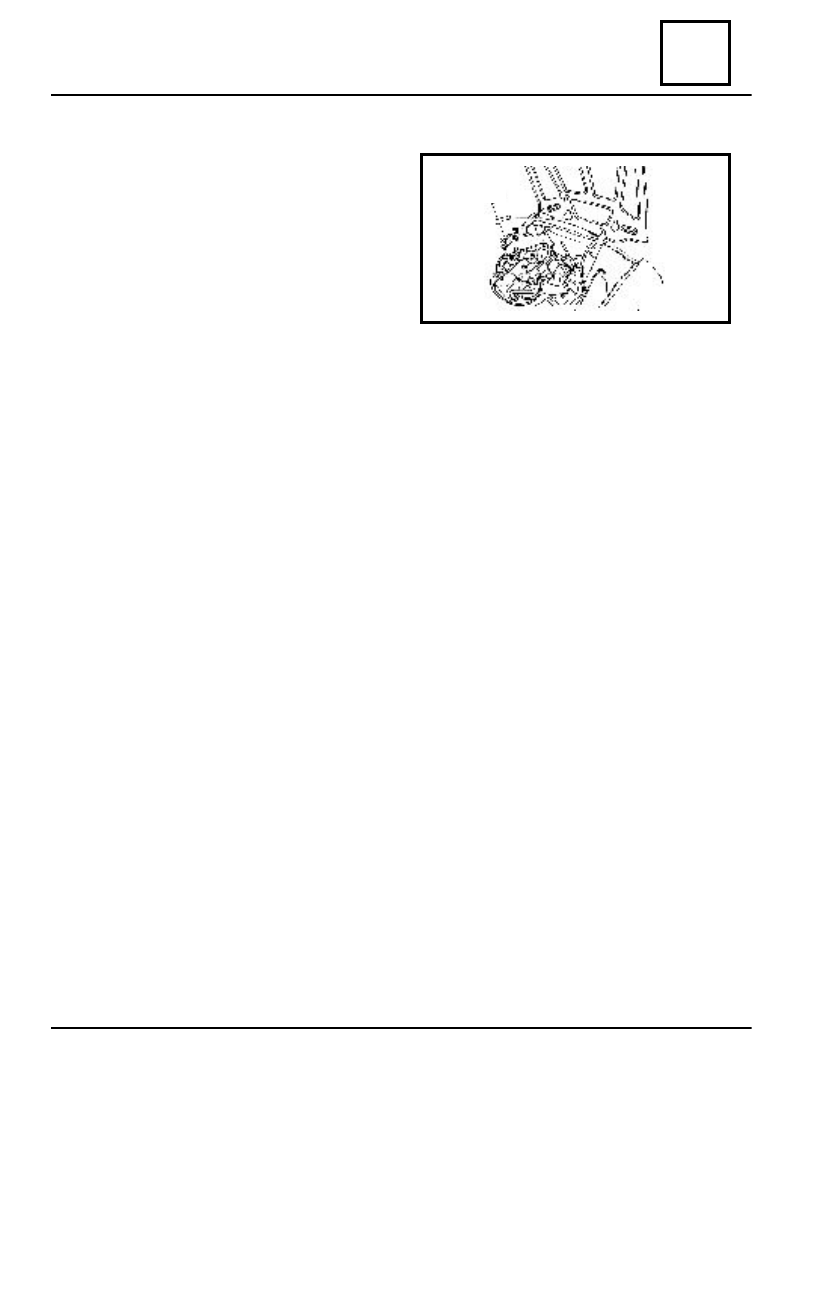

DROP SIDE DACIA 1304 PLATFORM

 48 - 2

1

2

48

NON SIDE OPENING ELEMENTS

D

ISMO UNTING

Dismount :

- the screws (1) from the end of the

limiting mechanism (6).

Then, the rear drop side dismounting

may be performed in two different ways:

a) extract the safety ring (2) and the

hinge shaft (3).

b) unscrew the screws (4) of the hinges

(5).

Dismount the rear drop side.

R

EMO UNTING

Perform the dismounting operations in

the  reverse order.

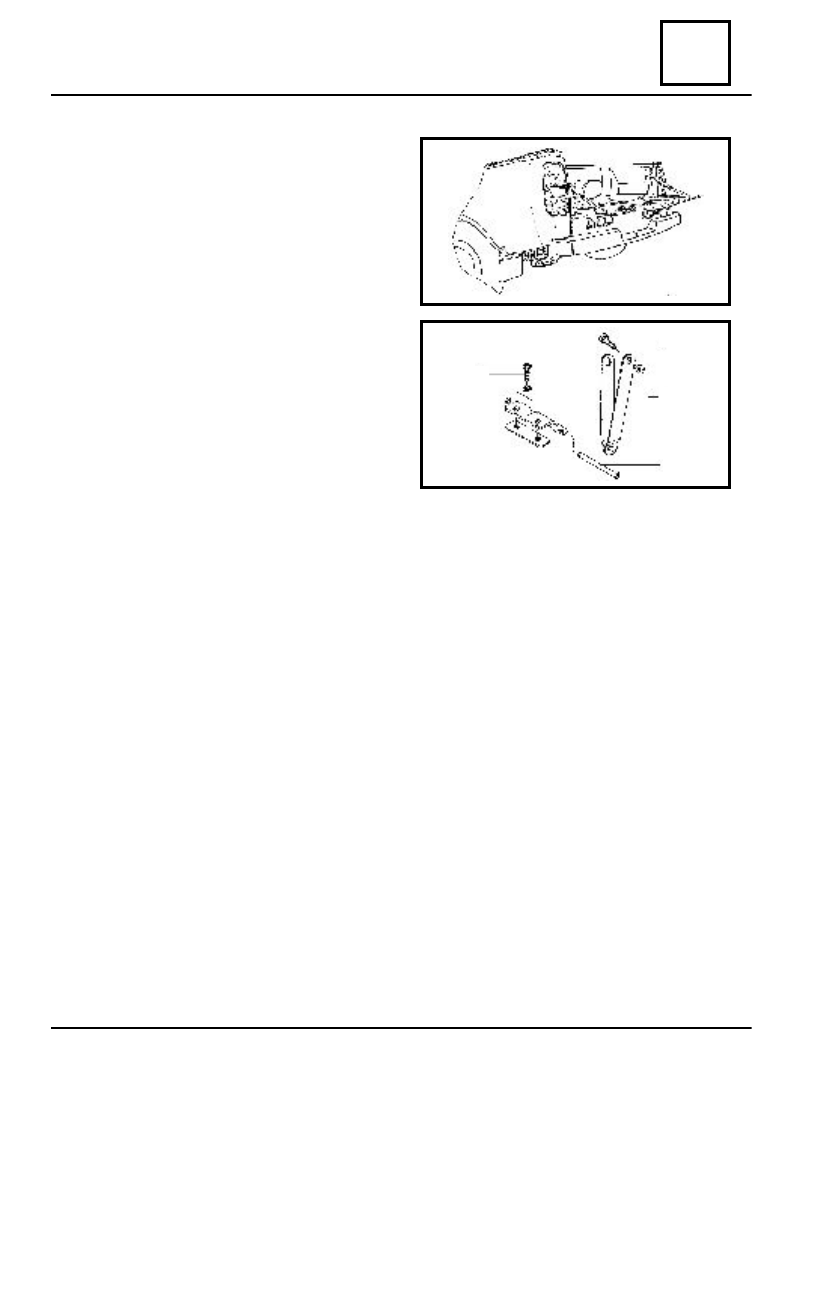

DROP SIDE DACIA 1304 Pick - Up, 1307

 48 - 3

1

6

3

4
2
5

51

SIDE OPENING ELEMENTS MECHANISMS

51 - 1

D

ISMO UNTING

Dismount the arm rest, the window regulator , the locking knob and the front/rear door

panel.

Detach the door panel from the door frame.
Dismount the lock control of the front/rear door (1).
Dismount the attachment screws (3) of the front/rear door lock.
Release the control lever (2)of the outside opening flap.
Release the distance control lever (4) by taking out the clips bracket (5).
Dismount the attachment screws (6) of outside opening flap, releasing the flap.
Dismount the front/rear door lock from the door frame.

R

EMO UNTING

Perform in reverse order the mounting operations.

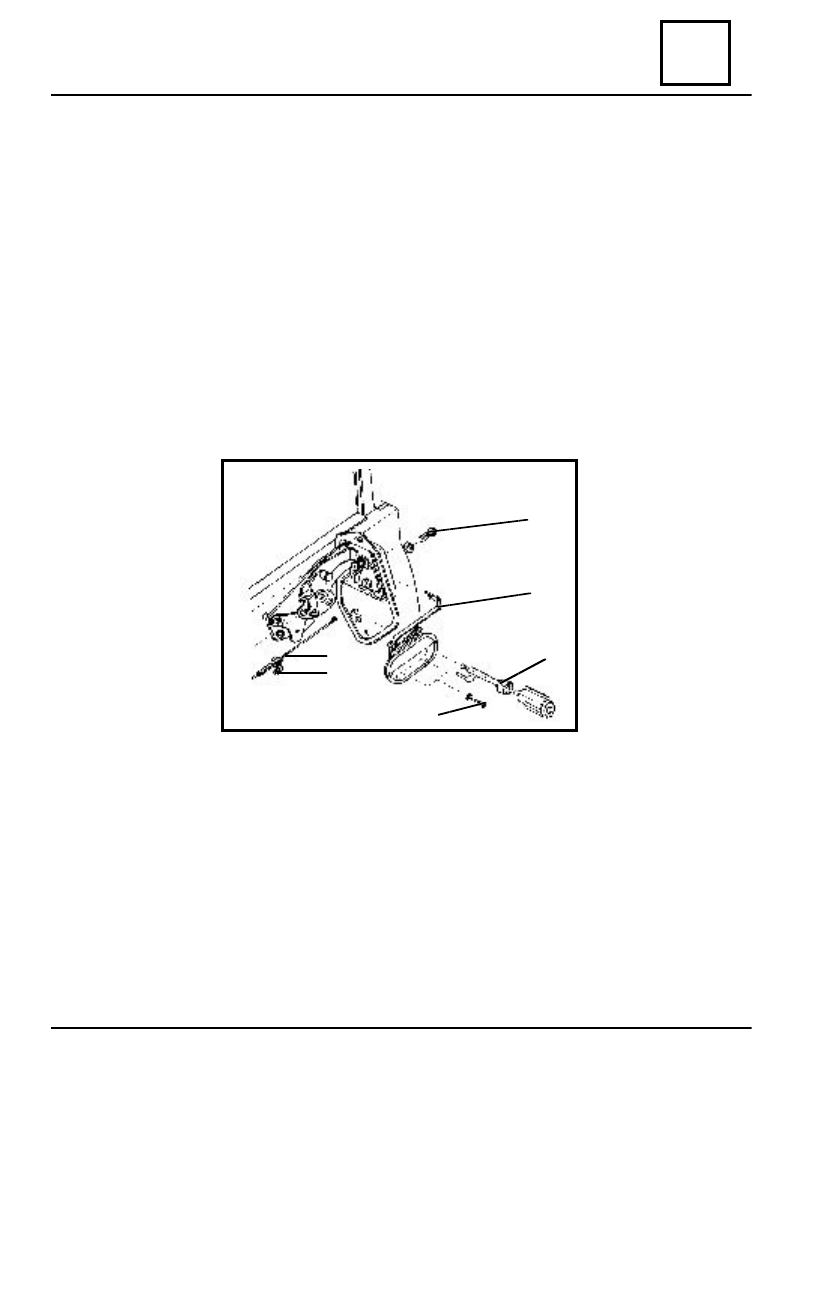

DOOR LOCK FRONT / REAR

1

2

3

6

4

5
