SIDE OPENING ELEMENTS MECHANISMS

51

51 - 2

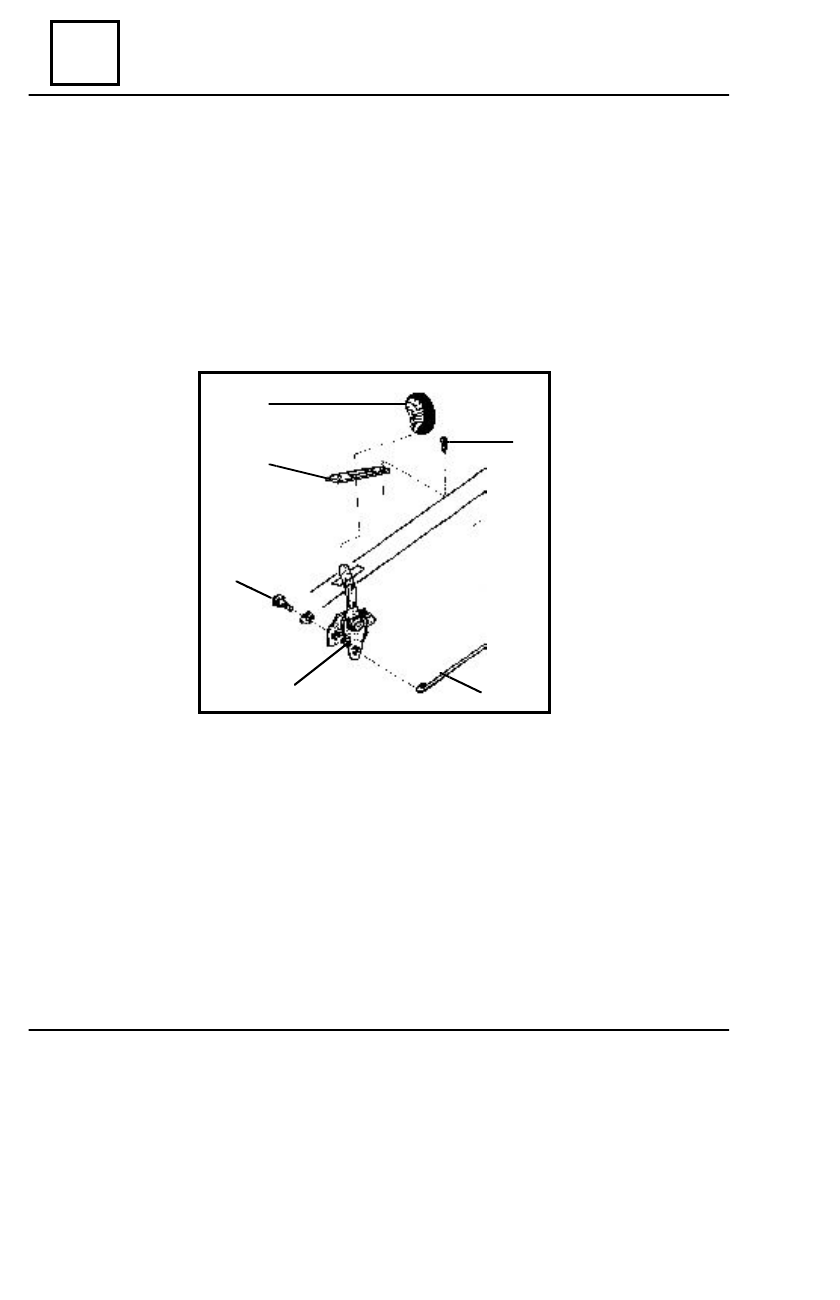

FRONT/REAR DOOR OPENING MECHANISM

D

ISMO UNTING

Before dismounting the door lock control , remove the door panel and leave the window

in the lift position.

Dismount:

- opening knob (1);
- ornament (3) attachment screws (2);
- the attachment screw (4) of opening mechanism (5);
- control lever (6)off the hinge, releasing the opening mechanism.

R

EMO UNTING

Perform the dismounting operations in reverse order.

1

3

4

2

5

6

51

SIDE OPENING ELEMENTS MECHANISMS

51 - 3

D

ISMO UNTING

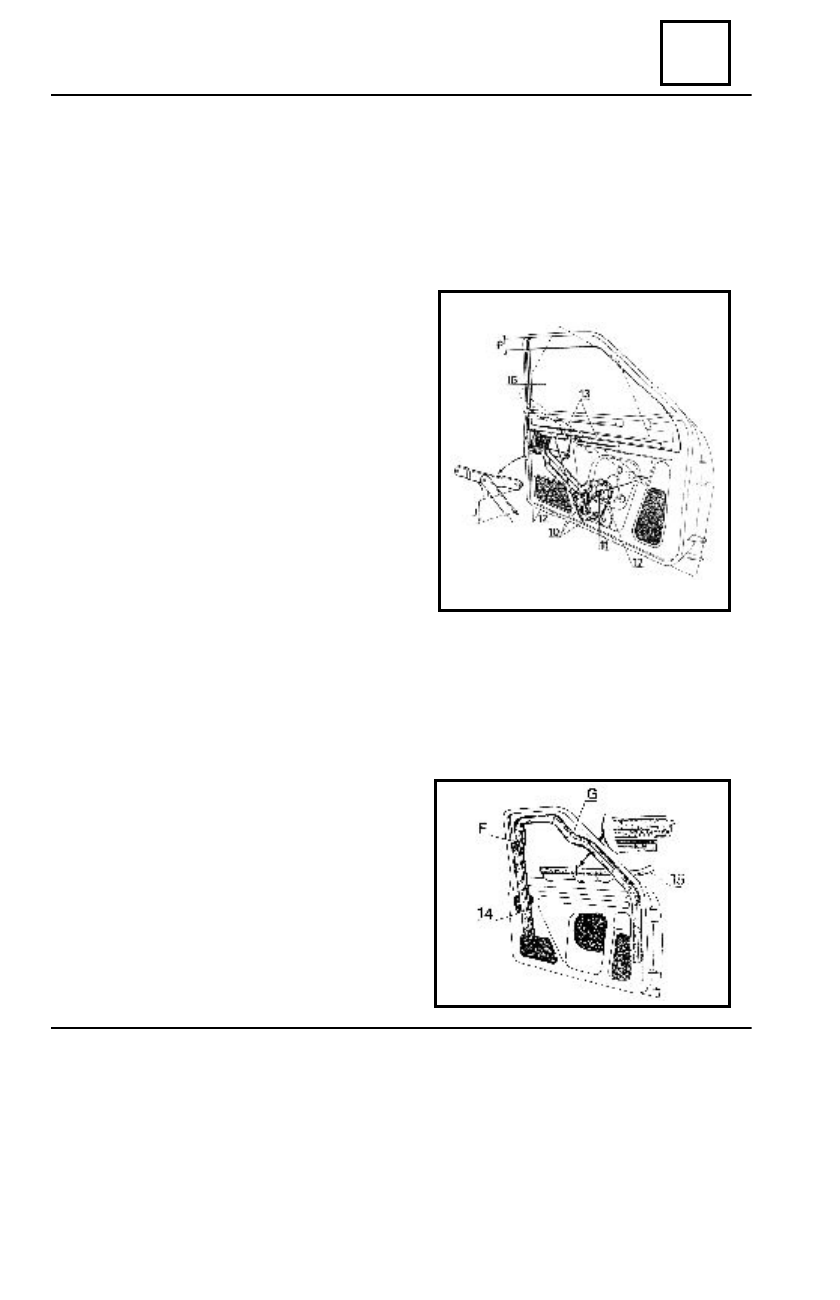

To dismount the door window regulator assembly, perform the following operations:
Bring the window in the position P = 85 mm.
Unscrew the attachment nuts (10), press the shaft (11) for releasing the window regulator

towards the inner side.

R

EMO UNTING

For remounting perform the following operations:
Place in it housing the outside wiper (15) assembled with bracket (15’).

Easy bend the “ window regulator-

window “ assembly, take out the supports
(12), the slides from the window base (13)
and the glass slide (14).

In order to re mount the glass slide, easy

curve it in (F) and (G) ensuring a correct
attachment in the door frame.

Lift  the window regulator in the

position J = 40mm,introducing the glass
through the door frame, with the top down
(16) center it in its slide and bring it in
position P = 85mm.

FRONT DOOR WINDOW REGULATOR

SIDE OPENING ELEMENTS MECHANISMS

51

51 - 4

Put in its place the window regulator , introducing the shaft (11) in the frame than the

attachment washer (17) and attachment nuts (10).

Place the supports (12) at the glass bottom and perform a first sliding test.
Grease the window regulator hinges and supports and perform the others operations in

reverse order.

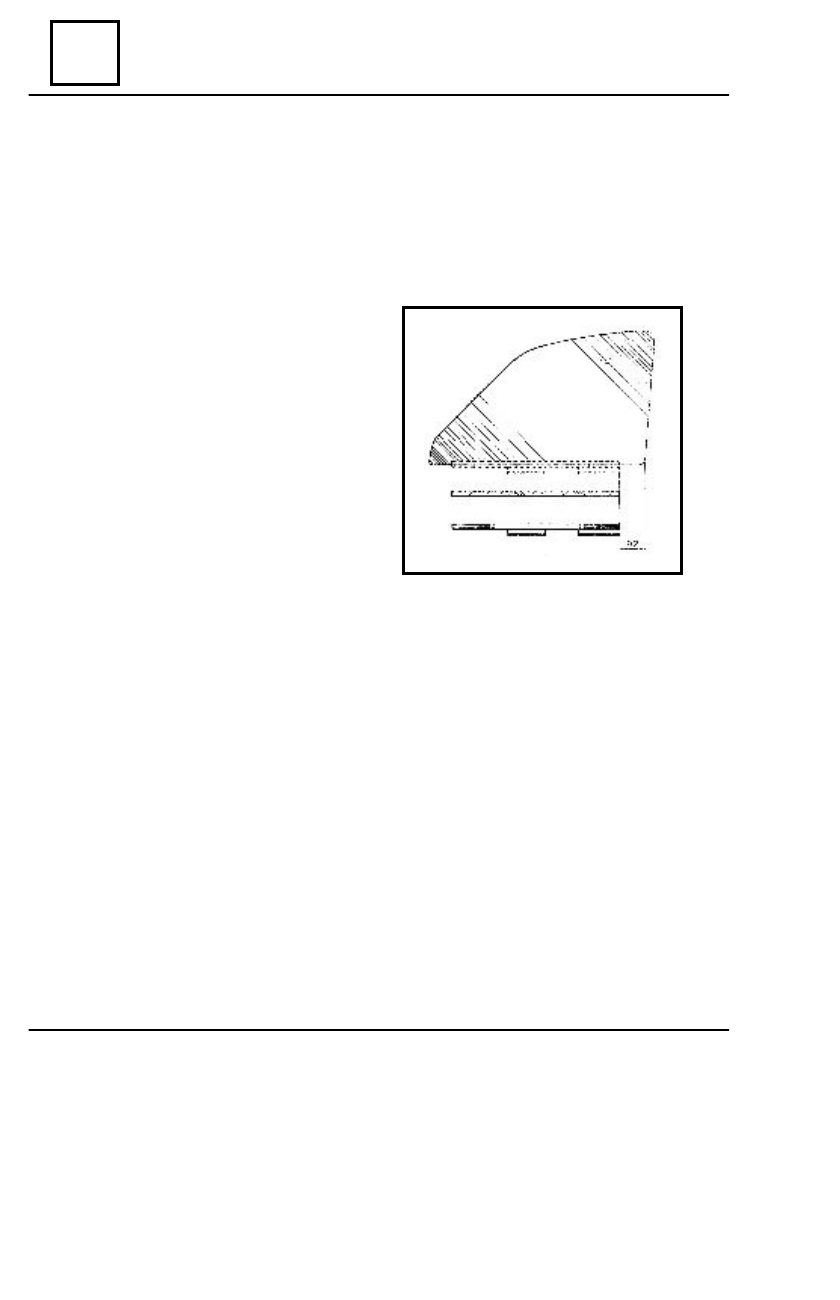

                       PREPARING THE GLASS BASE

When fitting the bottom edge and  at the

glass positioning in the slide-bars, observe the
value of 92 mm.

FRONT DOOR WINDOW REGULATOR

51

SIDE OPENING ELEMENTS MECHANISMS

51 - 5

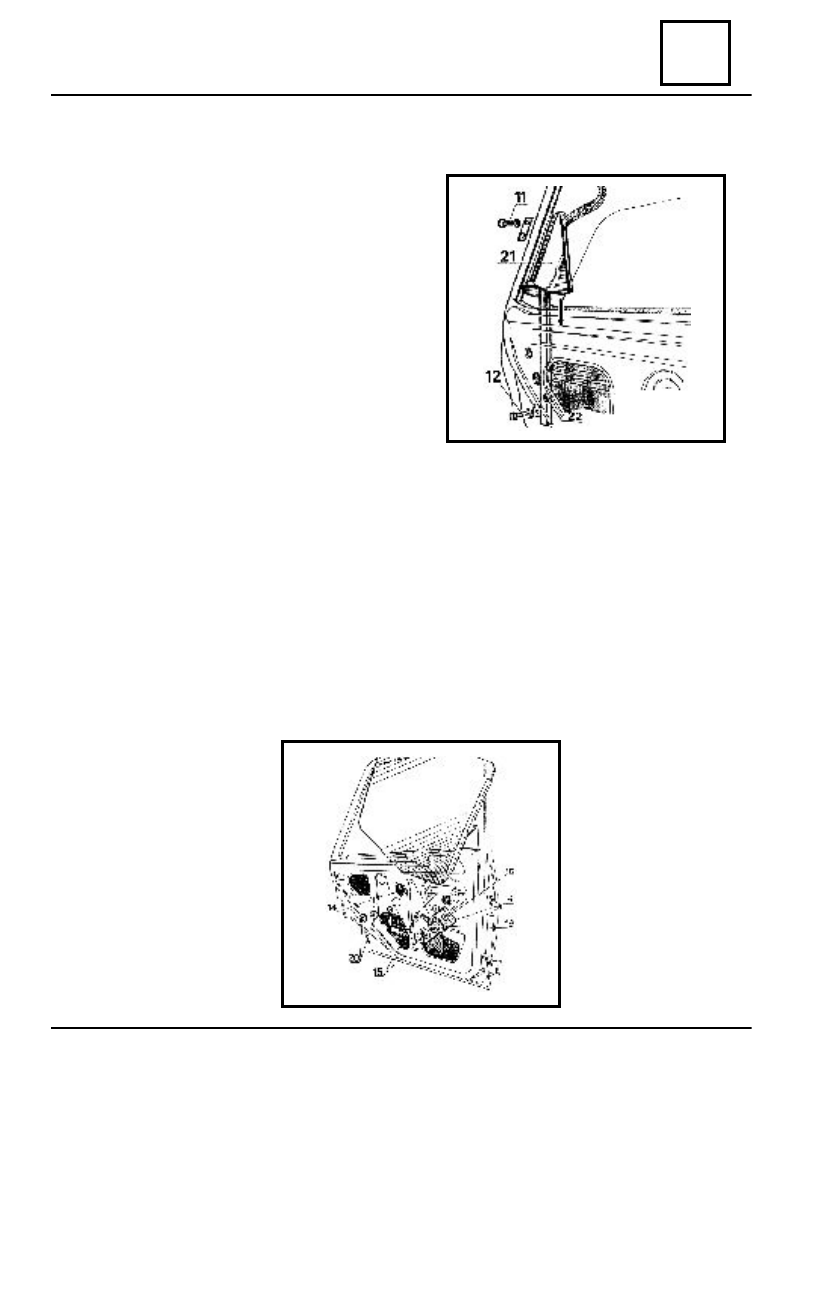

In order to dismount a door window and the

window regulator of the back door
window, perform the following operations:

Remove the screws (11) and (12).
Using the technological opening (14) in the

inner side of the door , remove the elastic
washer and the safety washer (20), which
make the connection with the window slide-bar,
by slightly sliding it to the lower part.

Remove the three  screws (15),releasing the

back window regulator (19) and remove it
from the inner  door.

D

ISMO UNTING

REAR DOOR WINDOW REGULATOR

R

EMOUNTING

For  remounting , the operations shall be performed in the reverse order :
Replace the channel support in the rear inner side of the door , place the assembly

inside the door frame, then remove again the frame , to allow the placing of the window in
the channel support.



Replace the window regulator mechanism (19) and temporally attach its sealing washer

(R).

The window placed in the channel support shall be secured by means of the safety

gasket and the washer (20) and the lateral frame from the window attachment (21) shall be
temporally attached by means of the screws (11) and (12), using the technological opening
(22) ; test rolling up the window several times , after which completely tighten the screws.
