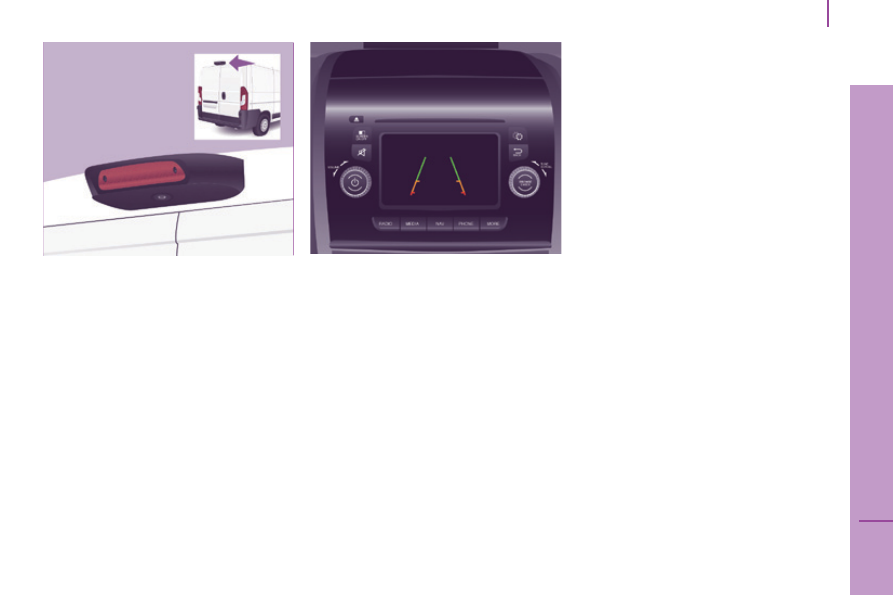

rEVErSInG cAMErA

If your vehicle is fitted with this camera, it is
located at the rear, next to the third brake
lamp.

It sends images to the screen installed
in the cab. this rear vision is an aid to
manoeuvring.

the reversing camera may be coupled with
rear parking sensors.

Screen

the camera sends the images to a 5 inch
LCD colour screen. this screen is also
the one used by the touch screen audio-
telematic system.

Activation and deactivation of the system
is done in the settings menu of the touch
screen audio-telematic system.

operation

the camera comes into operation when
reverse gear is engaged and remains active
up to approximately 9 mph (15 km/h). It is
deactivated above 11 mph (18 km/h).

the camera also comes on, with the vehicle
stationary, when the rear doors are opened.

Switching off

When a forward gear is engaged, the last
image remains displayed for approximately
5 seconds then switches off.

In the same way, the last image also
remains displayed, with the vehicle
stationary, when the rear doors are closed.

Good practice

With optimum vehicle conditions (position
on the road, loading level) the maximum
area of visibility covered by the camera has
a field depth approximately 3 m long and
5.5 m wide.

the area of visibility may vary depending on
the external weather conditions (brightness,
rain, snow, fog, ...), the load in the vehicle
and the position of the vehicle on the road.

When cleaning the camera and the screen,
avoid using a detergent or a tool which may
scratch the glass.

use a non-abrasive cloth or a small brush.

Loading assistance

boxer_en_Chap04_technologie-a-bord_ed01-2015

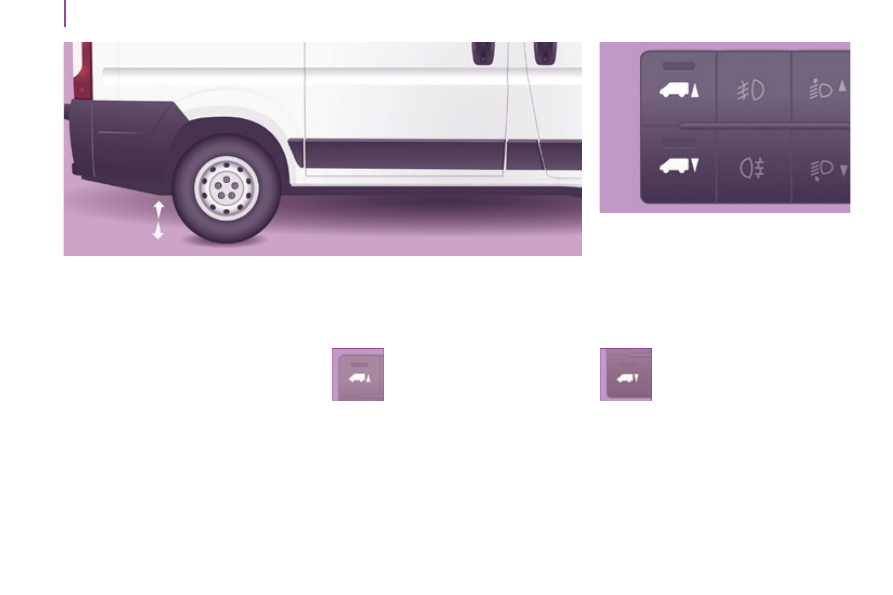

PnEuMAtIc SuSPEnSIon

If your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.

the controls are located alongside the
steering wheel in a ModE control panel.

there is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3)
or lowering (from -1 to -3). the levels are
indicated in the instrument panel screen.

Manual adjustment of the loading
height

raise: upwards adjustment of the load
floor

Lower: downwards adjustment of the
load floor

Make a quick press on the control
to select the next level up. each
press (LeD on) raises the floor by
one level: +1 to +3.

A long press selects the highest level (+3).

Make a quick press on the control
to select the next level down.

each press (LeD on) lowers the
floor by one level: -1 to -3.

A long press selects the lowest level (-3).

Loading assistance

TECHNOLOGY

BOARD

boxer_en_Chap04_technologie-a-bord_ed01-2015

deactivation

Make a long press on both controls
simultaneously to deactivate the system.
the LeDs remain on.

return to the nominal floor height

Press the same number of times in reverse
as the level of the position displayed.

reactivation

A second long press on both controls
simultaneously reactivates the system.
the LeDs go off.

Automatic correction of loading
floor height

Above 12 mph (20 km/h), the system
automatically returns the rear height to its
nominal value.

operating fault

If a fault occurs with the system,
this warning lamp comes on.

Good practice

Driving with the suspension set too high or
too low risks damaging components under
the body.

the height may be adjusted automatically to
take account of changes of temperature or
loading.

You must avoid using this control in the
following circumstances:

when working underneath the vehicle,

when changing a wheel,

when the vehicle is being transported by
lorry, train, ferry, boat, ...

to avoid damaging the vehicle or injuring
anyone, check that there is nothing or no
person that might be close to or come into
contact with the vehicle, before raising or
lowering the suspension.

Above 3 mph (5 km/h), the system
reactivates automatically.

Have the system checked by a
PeugeOt dealer or a qualified workshop.

Driving safely

boxer_en_Chap05_Securite_ed01-2015

PArKInG BrAKE

HAzArd WArnInG LAMPS

Press this button, the direction indicators
flash.

they can operate with the ignition off.

Applying

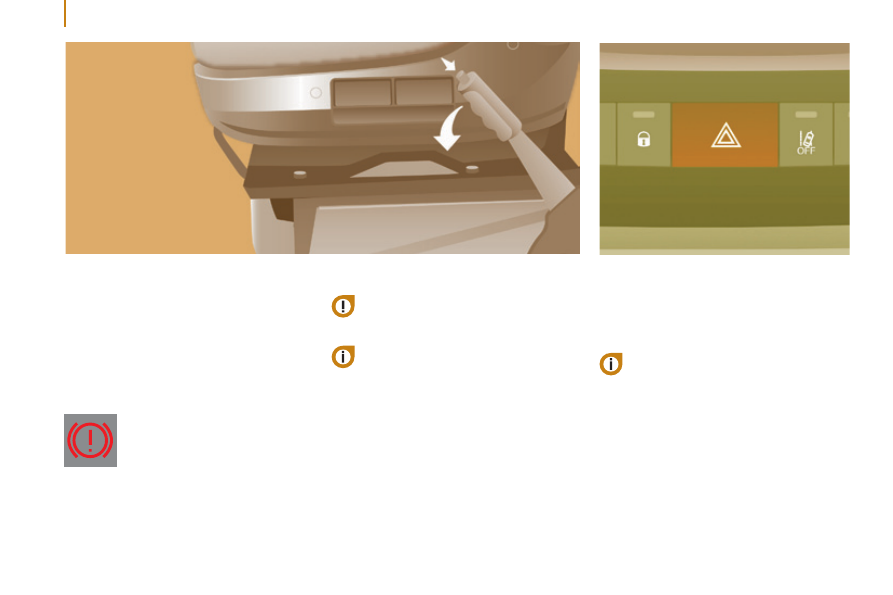

Pull the parking brake lever up to immobilise
your vehicle.

Check that the parking brake is applied
firmly before leaving the vehicle.

Pull on the parking brake lever, only
with the vehicle stationary.

releasing

Pull the lever up slightly and press the
button to lower the parking brake lever.

In the exceptional case of use of the
parking brake when the vehicle is

moving, apply the brake by pulling gently
to avoid locking the rear wheels (risk of
skidding).

If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on in the instrument panel.

When parking on a slope, direct your wheels towards
the pavement and pull the parking brake lever up.

there is no advantage in engaging a gear after
parking the vehicle, particularly if the vehicle is loaded.

the hazard warning lamps should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.

Driving safely

SAFETY

boxer_en_Chap05_Securite_ed01-2015

Horn

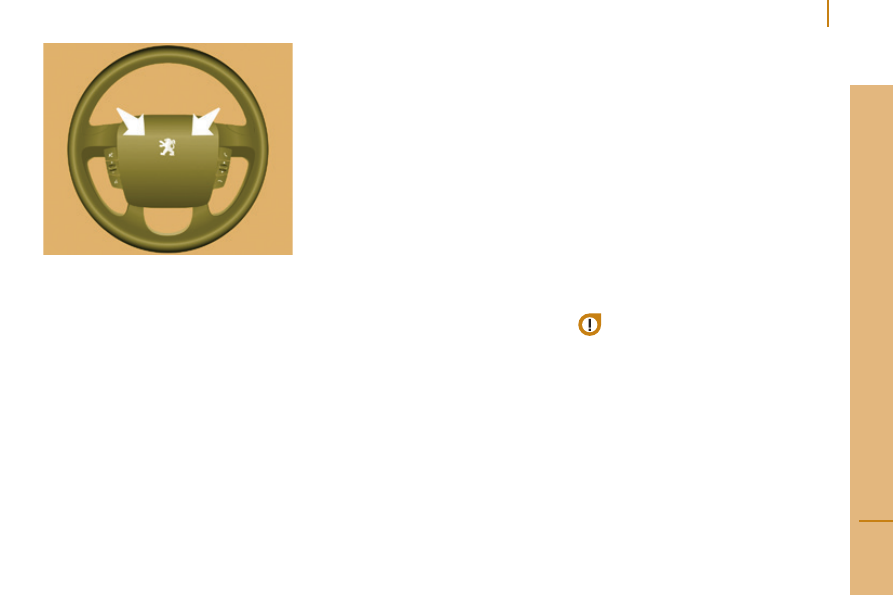

Press the centre of the steering wheel.

Anti-lock braking system and
electronic brake force distribution

Linked systems which improve the stability
and manoeuvrability of your vehicle when
braking, in particular on poor or slippery
surfaces.

operation

the anti-lock braking system comes into
operation automatically when there is a risk
of wheel lock.

Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal accompanied by some noise.

When braking in an emergency, press
very firmly without releasing the
pressure.

Switching off

these systems cannot be deactivated by the
driver.

BrAKInG ASSIStAncE
SYStEMS

group of supplementary systems which help
you to obtain optimum braking in complete
safety in emergency situations:

anti-lock braking system (ABS),

electronic brake force distribution
(eBFD),

emergency braking assistance (eBA).

100

Driving safely

boxer_en_Chap05_Securite_ed01-2015

Good practice

the ABS system does not provide shorter
braking distances. On very slippery surfaces
(black ice, oil...) the ABS can extend braking
distances. For emergency braking, press the
brake pedal hard and do not release it, even
on a slipper surface; you will then be able to
steer the vehicle and avoid an obstacle.

When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

Emergency braking assistance

System which, in an emergency, enables
you to obtain the optimum braking pressure
more quickly, thus reducing the stopping
distance.

operation

It is triggered by the speed at which the
brake pedal is pressed.

the effect of this is a reduction in the
resistance of the pedal and an increase in
braking efficiency.

Switching off

this system cannot be deactivated by the
driver.

operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, it indicates a fault with

the anti-lock braking system which could result
in loss of control of the vehicle when braking.

For maximum braking efficiency, a
bedding-in period of around 300 miles

(500 kilometres) is needed. During this
period it is recommended that you avoid
harsh, repeated or prolonged braking.

If this warning lamp comes on,
together with the ABS warning
lamp, accompanied by a message
in the instrument panel screen,

it indicates a fault with the electronic brake
force distribution which could result in loss
of control of the vehicle when braking.

When braking in an emergency, press
firmly without releasing the pressure.

You must stop as soon as it is safe
to do so.

In either case, contact a PeugeOt dealer
or a qualified workshop.

101

Driving safely

SAFETY

boxer_en_Chap05_Securite_ed01-2015

trAjEctorY controL SYStEMS

Switching off

this system cannot be deactivated by the
driver.

dynamic stability control
(dSc)

the electronic stability programme acts on
the brake of one or more wheels and on the
engine to keep the vehicle on the trajectory
required by the driver, within the limits of the
laws of physics.

With the DSC system, maintain course
without trying to countersteer.

operation

the DSC system is activated automatically
each time the vehicle is started.

operating fault

Illumination of this warning lamp,
accompanied by an audible signal
and confirmed by a message
in the instrument panel screen,

indicates a fault with the DSC system.

Have it checked by a PeugeOt dealer or a
qualified workshop.

operation

this system is activated automatically every
time the vehicle is started.

In the event of a problem of adhesion or
trajectory, this system comes into play.

Switching off

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow,
on soft ground...), it may be advisable to
deactivate the ASR system, so that the
wheels can spin freely and regain grip.

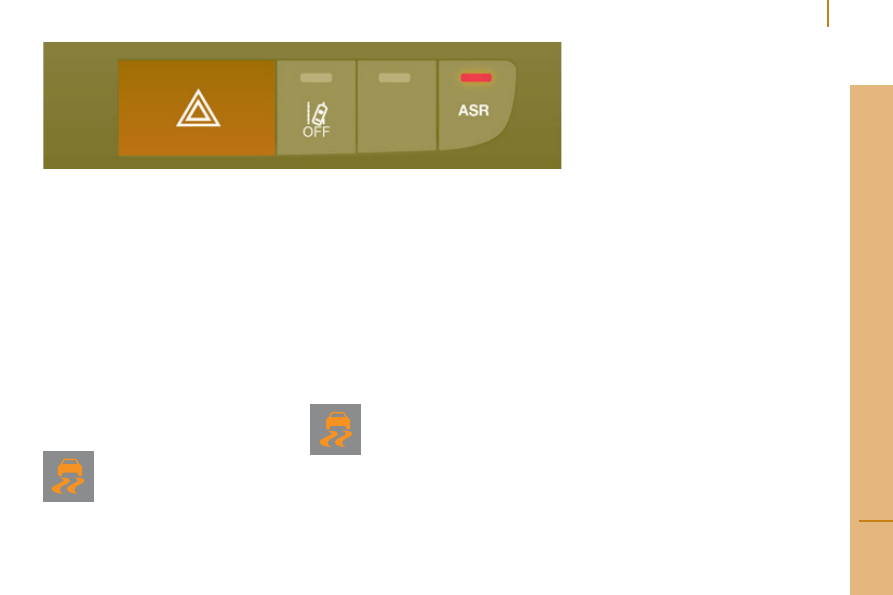

Press this button, located in the
middle of the dashboard, to deactivate
the system.

Anti-slip regulation (ASr)

Anti-slip regulation (also known as traction
control) optimises traction, avoiding wheel
spin by acting on the brakes of the driving
wheels and the engine.

If the button's warning lamp comes
on, accompanied by a message in the
instrument panel screen, this indicates that
the ASR system is deactivated.

It comes into operation in the
event of a grip or trajectory
problem.

this is indicated by flashing of this warning
lamp in the instrument panel.

102

Driving safely

boxer_en_Chap05_Securite_ed01-2015

reactivation

the ASR system is reactivated automatically
every time the ignition is switched back on.

Press this button again to reactivate it
manually.

operating fault

If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, this indicates a fault
with the ASR system.

Have it checked by a PeugeOt dealer or a
qualified workshop.

Good practice

the DSC and ASR systems offer exceptional
safety in normal driving, but this should not
encourage the driver to take extra risks or
drive at high speed.

the correct operation of these systems
depend on observation of the manufacturer's
recommendations regarding the wheels
(tyres and rims), the braking components,
the electronic components and assembly
and repair procedures.

After an impact, have these systems
checked by a PeugeOt dealer or a
qualified workshop.

Load inertia control

the true total weight of a commercial vehicle
can vary considerably depending on the load
carried. As a result, the centre of gravity of
the vehicle can move, both longitudinally
and in height.

All such variations have an effect on braking,
traction, the behaviour of the vehicle when
cornering and the tendency to overturn.

Load inertia control estimates the true
total weight of the vehicle by analysing its
behaviour under acceleration and braking.

this system then adapts the operation of
the DSC and ASR systems according to the
weight distribution in the vehicle. In critical
situations, your vehicle than remains more
securely on its intended trajectory.

103

Driving safely

SAFETY

boxer_en_Chap05_Securite_ed01-2015

Intelligent traction control

System to improve traction on slippery
surfaces (snow, black ice, mud...)

this system checks for situations of difficult
surface adhesion that could make it difficult
to move off or make progress.

In these situations, Intelligent traction
control takes over from the ASr system,
by transferring drive to the wheel with the
best grip on the ground to provide the best
traction and trajectory control.

Switching on

On starting the vehicle, this system is
deactivated.

Press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.

this system is active up to about 18 mph
(30 km/h).

Once the speed exceed 18 mph (30 km/h),
the system is deactivated automatically, but
the indicator lamp in the button stays on.

the system is reactivated automatically
as soon as the speed drops below 18 mph
(30 km/h).

Switching off

Press this button, located in the middle of
the dashboard, to deactivate the system; the
indicator lamp in the button goes off and the
ASr system is active again.

operating fault

If a fault occurs with the intelligent
traction control system, this
warning lamp comes on.

Have the system checked by a PeugeOt
dealer or a qualified workshop.

104

Driving safely

boxer_en_Chap05_Securite_ed01-2015

Hill descent control

System that provides assistance when
descending on surfaces with poor grip (mud,
gravel...) or on a steep gradient.

this system reduces the risk of slip or loss
of control of the vehicle while descending
a hill.

It keeps the vehicle at a steady speed during
a descent by acting independently and with
varying force on each of the brakes.

Switching off

Press this button, located in the middle of the
dashboard, to deactivate the system; the indicator
lamp in the button goes off.

Above 30 mph (50 km/h), the system is completely
deactivated; the indicator lamp in the button goes off.

operating fault

If a fault occurs with the hill
descent control system, this
warning lamp comes on.

Have the system checked by a PeugeOt
dealer or a qualified workshop.

Switching on

On starting the vehicle, the system is
deactivated.

With the speed below 18 mph (30 km/h)
press this button, located in the middle of
the dashboard, to activate the system; the
indicator lamp in the button comes on.

Once the vehicle starts its descent, you can
release the accelerator and brake pedals;
the indicator lamp in the button flashes.

the brake lamps come on automatically
when the system is brought into operation.

If the speed of the vehicle exceeds 18 mph
(30 km/h), the system is automatically
deactivated, but the indicator lamp in the
button stays on.

the system reactivates automatically as
soon as the speed of the vehicle drops
below 18 mph (30 km/h).

For the system to operate, the slope
must be steeper than 8%.

Do not use the system with the gearbox in
neutral.

engage an appropriate gear for the speed of
the vehicle, to avoid the engine stalling.

You can press the accelerator or brake
pedal at any time.

the system may not be available if the
brakes overheat. Wait a few minutes

for them to cool down before trying again.

105

Driving safely

SAFETY

boxer_en_Chap05_Securite_ed01-2015

LAnE dEPArturE WArnInG
SYStEM

System which detects the involuntary
crossing of longitudinal traffic lane markings
on the ground (continuous or discontinuous
line).

A camera, fitted at the top centre of the
windscreen monitors the road

With the vehicle running at a speed higher
than 35 mph (60 km/h), it triggers a warning
if the vehicle steers off line.

this system operates to its full potential
above all when used on motorways and
main roads.

Switching off

Press this button to switch off the
system, the indicator lamp in the button
comes on.

the status of the system remains in the
memory when the ignition is switched off.

Switching on

Press this button to switch the system
on, the indicator lamp in the button goes
off.

the two indicators in the instrument panel
remain on up to 36 mph (60 km/h).

detection

If a change of direction is detected, you are
alerted by a warning lamp in the instrument
panel and an audible signal:

operating fault

If a fault occurs with the system,
this warning lamp comes on,
accompanied by an audible
message and confirmed by a
message in the screen.

Have the system checked by a PeugeOt
dealer or a qualified workshop.

the lane departure warning system
cannot, in any circumstances, replace
the need for vigilance on the part of the
driver.

flashing of the left hand
warning lamp, if drifting to the
left,

No warning is transmitted while the direction
indicator is active and for approximately 20 seconds
after the direction indicator is switched off.

A warning may be transmitted if a direction
marking (arrow) or non-standard marking (graffiti)
is crossed.

the detection may be disrupted:

if the markings on the ground are worn,

if there is little contrast between the markings
on the ground and the road surface.

flashing of the right hand
warning lamp, if drifting to the
right.

Seat belts

106

boxer_en_Chap05_Securite_ed01-2015

cAB SEAt BELtS

If you install a front bench seat as
an accessory, it it must be fitted with
approved seat belts.

Fastening

Pull the strap in front of you with an even
movement, ensuring that it does not twist.

engage the tongue in its buckle.

Check that the seat belt is fastened securely
and that the automatic locking system is
operating correctly by pulling the strap
rapidly.

unfastening

Press the red button on the buckle, the
seat belt reels in automatically but you are
advised to guide it.

As a safety measure, these operations
should not be carried out while the
vehicle is moving.

driver's seat belt not
fastened warning lamp

If the driver's seat belt is unfastened,
StARt mode of Stop & Start will not be

invoked. engine restarting is only possible
with the ignition key.

When the vehicle is started, this warning
lamp comes on, accompanied by an
increasing audible signal, if the driver has
not fastened their seat belt.

the driver's seat is fitted with a pyrotechnic
pretensioner and a force limiter.

On versions with a passenger's front airbag,
the passenger's seat is also fitted with a
pyrotechnic pretensioner and a force limiter.

the front bench seat is fitted with two seat
belts.

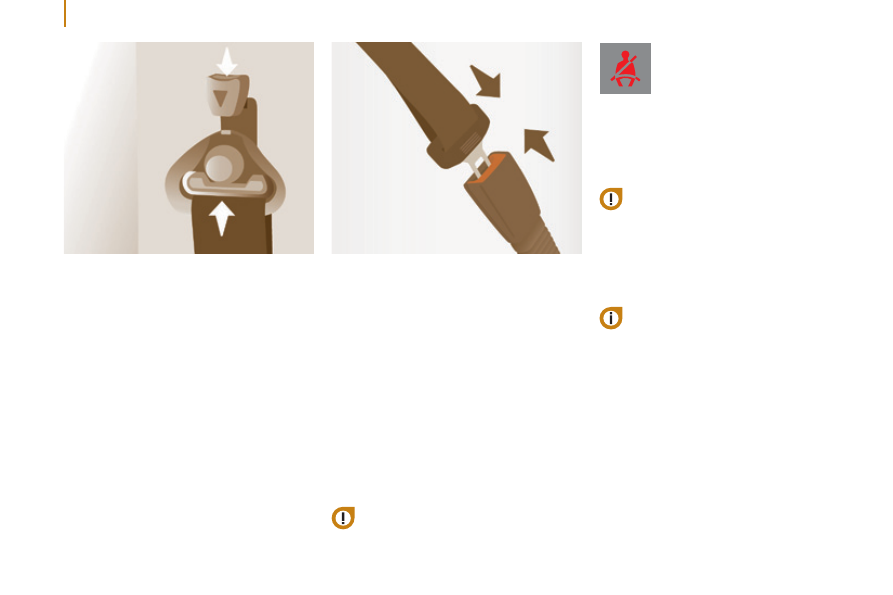

Height adjustment

For the driver or outer passenger seat,
squeeze the control at the adjustable top
mounting, slide the assembly, then release
at the desired position to lock it.

the height of the seat belt for the centre
seat cannot be adjusted.

Seat belts

107

SAFETY

boxer_en_Chap05_Securite_ed01-2015

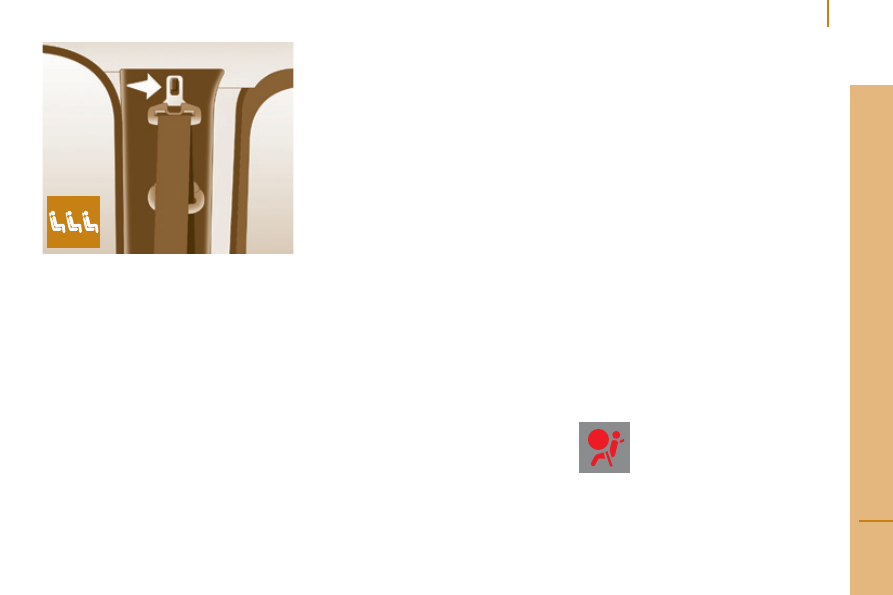

rEAr SEAt BELtS

the rear seats/bench seats are fitted with
three-point seat belts and inertia reels.

the centre seat has a seat belt guide and
inertia reel, solid with the seat back.

A carrier is provided at each outer seat to
allow the seat belt buckle to be secured
when not in use.

Good practice

the driver must ensure that passengers use
the seat belts correctly and that they are all
strapped in securely before moving off.

Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.

the seat belts are fitted with an inertia reel
which automatically adjusts the length of the
strap to your size.

Do not use accessories (clothes pegs, clips,
safety pins, etc.) which allow the seat belt
straps to fit loosely.

You can unfasten the seat belt by pressing
the red button on the buckle. guide the seat
belt after unfastening.

ensure that the seat belt has reeled in
correctly after use.

After folding or moving a seat or a rear
bench seat, ensure that the seat belt has
reeled in correctly and that the buckle is
ready to accommodate the tongue.

the airbag warning lamp also
comes on if the pretensioners are
deployed. Contact a PeugeOt
dealer or a qualified workshop.

In the event of an impact

Only for the front seats, and depending on
the nature and seriousness of the impact,
the pretensioning device may be deployed
before and independently of inflation of the
airbags. It instantly tightens the seat belts
against the body of the occupants.

Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.

the force limiter reduces the pressure of the
seat belt against the body of the occupants.

the pyrotechnic pretensioners are active
when the ignition is switched on and the
seat belt fastened.

the inertia reels are fitted with a device
which automatically locks the strap in the
event of a collision or emergency braking or
if the vehicle rolls over.

Seat belts

108

boxer_en_Chap05_Securite_ed01-2015

In order to be effective, a seat belt:

must restrain one person only,

must not be twisted, check by pulling in
front of you with an even movement,

must be tightened as close to the body
as possible.

the upper part of the seat belt should be
positioned in the hollow of the shoulder.

the lap part should be placed as low as
possible on the pelvis.

Do not invert the seat belt buckles as they
will not fulfil their role completely. If the
seats are fitted with armrests, the lap part of
the seat belt should always pass under the
armrest.

Check that the seat belt is fastened correctly
by pulling the strap firmly.

recommendations for children

use an appropriate child seat if the
passenger is under 10 years or less than
one and a half metres tall.

Never carry a child on your knees, even with
the seat belt fastened.

For more information on child seats,
refer to the "Safety - Children on board"
section.

In accordance with current safety
regulations, your PeugeOt dealer can
guarantee all work or any checks, from
testing to maintenance, on your seat belt
equipment.

Have the seat belts checked regularly (even
after a minor impact) by a PeugeOt dealer
or a qualified workshop: they must not show
any signs of wear, cutting or fraying and they
must not be converted or modified.

Clean the seat belt straps with soapy
water or a textile cleaning product, sold
by PeugeOt dealers.

Improved safety and security

109

SAFETY

boxer_en_Chap05_Securite_ed01-2015

Impact resistance

Your vehicle has been designed to limit
the forces on the passenger compartment
as much as possible in the event of a
collision, the engine compartment adopts
a progressive deformation structure and
the front doors have been reinforced to
contribute to the rigidity of the whole.

Anti-theft protection

Your vehicle, in the van version, comprises
two zones with separate locking: the cab
and the load space.

Depending on the way in which it is used,
this function provides increased protection
both for your personal belongings and for
your merchandise.

An exterior protection alarm with anti-tilt
detection is available (as standard or as an
option) in certain countries.

Details of these functions are given in
the "Ready to set off - Front and rear
doors" section.

Airbags

boxer_en_Chap05_Securite_ed01-2015

GEnErAL PoIntS on AIrBAGS

the airbags have been designed to optimise
the safety of the occupants in the event of
a serious collision; they work in conjunction
with the force limiting seat belts.

In the event of a serious collision, electronic
detectors record and analyse any abrupt
deceleration of the vehicle:

in the event of a serious collision, the
airbags are deployed instantly and
contribute towards better protection of
occupants of the vehicle; immediately
after the impact, the airbags rapidly
deflate so as to not hinder visibility or
the possible exit by the occupants,

in the event of a less serious impact,
an impact to the rear and in certain
conditions of rollover, the airbags are not

deployed; the seat belts alone contribute
towards providing protection in these
situations.

Airbags only operate when the ignition is
switched on.

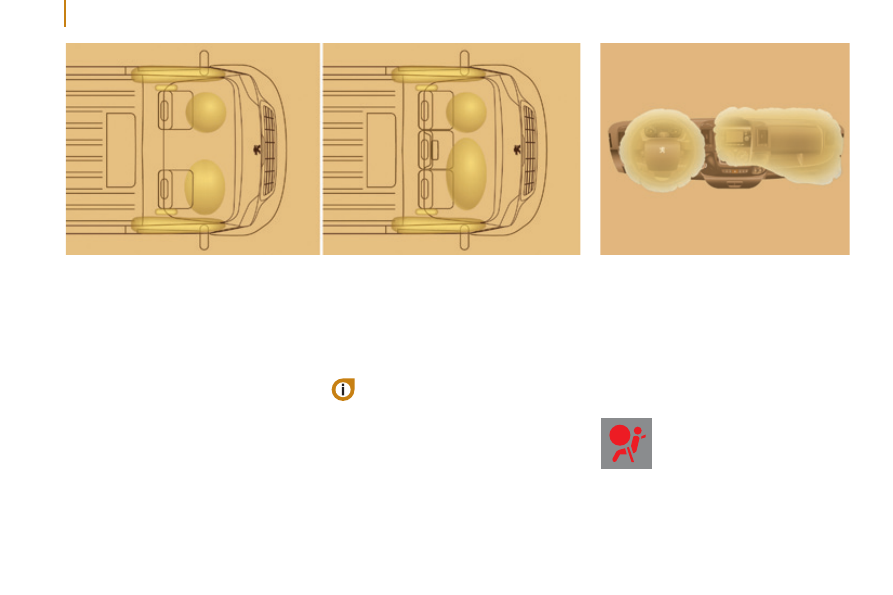

Front airbags

these are fitted in the centre of the steering
wheel for the driver and in the dashboard for
the front passengers. they are deployed,
except the passenger's airbag if it has been
deactivated.

Deployment of the airbags is
accompanied by a slight discharge

of smoke and a noise, resulting from the
activation of the pyrotechnic charge included
in the system.

this smoke is not harmful but may be an
irritant to sensitive persons.

the noise of the detonation may result in a
slight loss of hearing for a short time.

operating fault

If this warning lamp comes on,
contact a PeugeOt dealer to
have the system checked.

Peugeot Boxer (2016 year). Manual - part 7
