Peugeot Boxer (2016 year). Manual - part 5

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

dIGItAL AIr condItIonInG -
Mono-zonE

If your vehicle is fitted with this system,
the controls are located in the middle of
the dashboard.

Auto mode

Switching on FuLL Auto mode:
pressing the Auto control switches
on the system's functions, confirmed
by the display of FuLL Auto. this

is the normal operating mode for the digital air
conditioning system.

using the moving ring surrounding the AutO
control, set the comfort temperature to be reached
according to a setting between:

HI (High to ≈ 32) and,

LO (Low to ≈ 16).

The system controls the distribution, flow and
intake of air to ensure comfort equivalent to the
setting displayed and sufficient recirculation of air
in the passenger compartment.

No further adjustments are required.

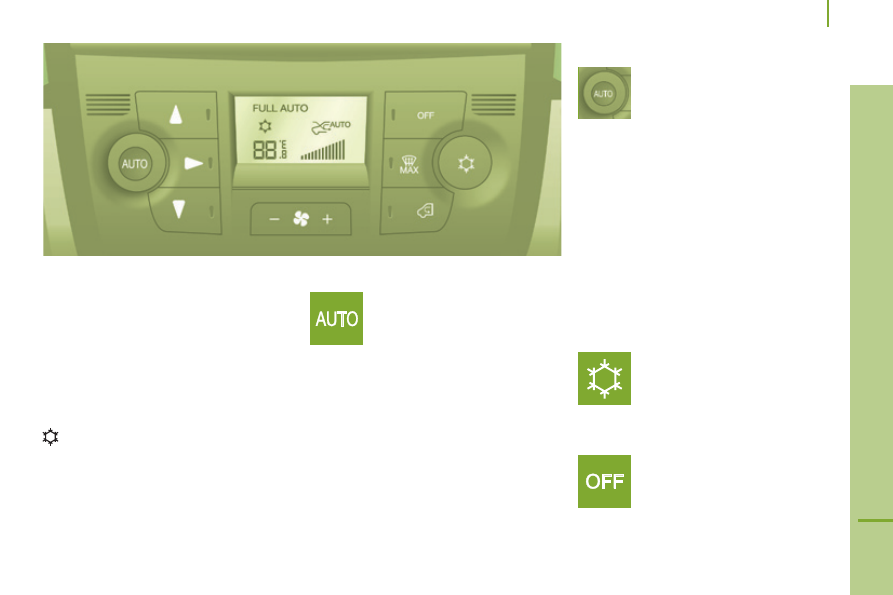

Control screen for your digital air
conditioning system.

Auto mode with personalisation

Switch on in Auto mode, certain
settings can be modified: the
distribution, the air flow, the air
conditioning and the air intake/
recirculation.

the display changes from FuLL Auto to
Auto.

to return to fully automatic operation, press
this button again. the display on the control
panel changes from Auto to FuLL Auto.

If the system is not able to maintain
the setting selected following manual
adjustments, the setting flashes then Auto
is cleared. Press the Auto control to return
to the automatic settings.

Switching off the air conditioning

Pressing this control switches
off the air conditioning functions.
the snowflake is cleared from the
screen.

complete switch-off

Pressing this control switches
the system off. the LeD and the
screen switch off.

When the engine is running and the air
conditioning is on, this symbol and the
message FuLL Auto are displayed.

the other components are displayed according
to the settings selected by the user.

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

comfort value adjustment ring

the settings range between:

increasing the interior ambient air
temperature HI (High) which goes up to
to a maximum setting of 32,

cooling the interior ambient air
temperature LO (Low) which goes down
to a setting of 16.

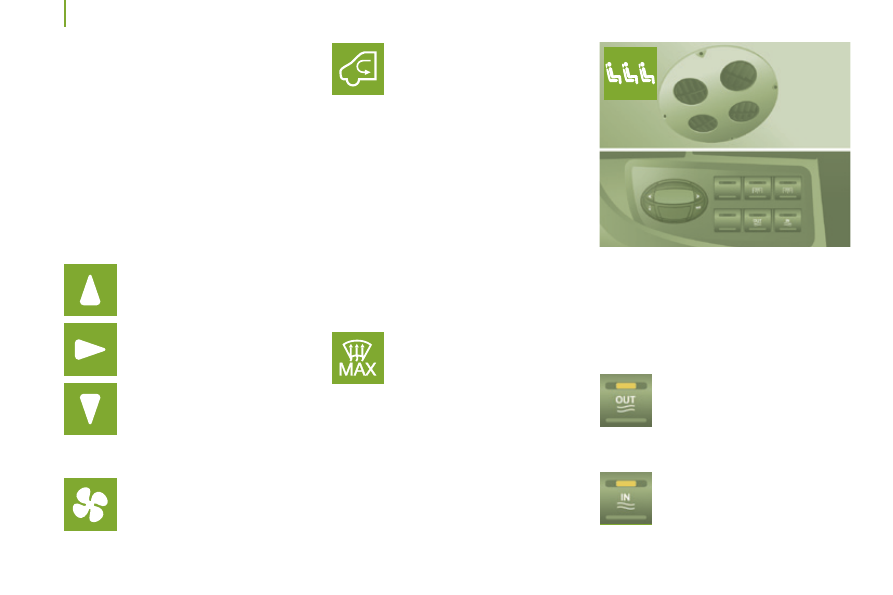

Air distribution

A press illuminates the LeD on the buttons
which distribute the air flow towards:

the windscreen and front side
window vents (demisting/
defrosting the windows),

the central and side vents (chest
and face),

the vents in the front and rear
areas (feet).

the combination of buttons permits
improvement of air distribution.

Air flow

Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.

Intake of exterior air /
recirculation of interior air

When the LeD is on, the air
recirculates inside the passenger

compartment to prevent the entry of exterior
odours and smoke. this position should be
temporary.

When the ambient air comfort level has been
reached, pressing the button switches the
LeD off and reopens the exterior air intake.

Pressing the Auto button also restores
the intake of exterior air. Returning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the Auto button again restores
the FuLL Auto function.

rapid demisting /
defrosting

Pressing this control permits
rapid clearing of the windows.

the LeD is on.

the system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.

If your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.

AddItIonAL rEAr VEntILAtIon

the controls for this system, additional to
the standard cabin ventilation system, are
on the lower dashboard, to the left of the
steering wheel.

Air outlet

A press on this control activates
the extraction of air to the
outside; the LeD comes on.
Press again to switch off.

Air inlet

A press on this control activates
the entry of air into the cabin; the
LeD comes on. Press again to
switch off.

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

AddItIonAL HEAtInG SYStEMS

Supplementary heating

On the 2-3 seats version, this is located
under the seat on the driver's side with air
diffusion directed forwards.

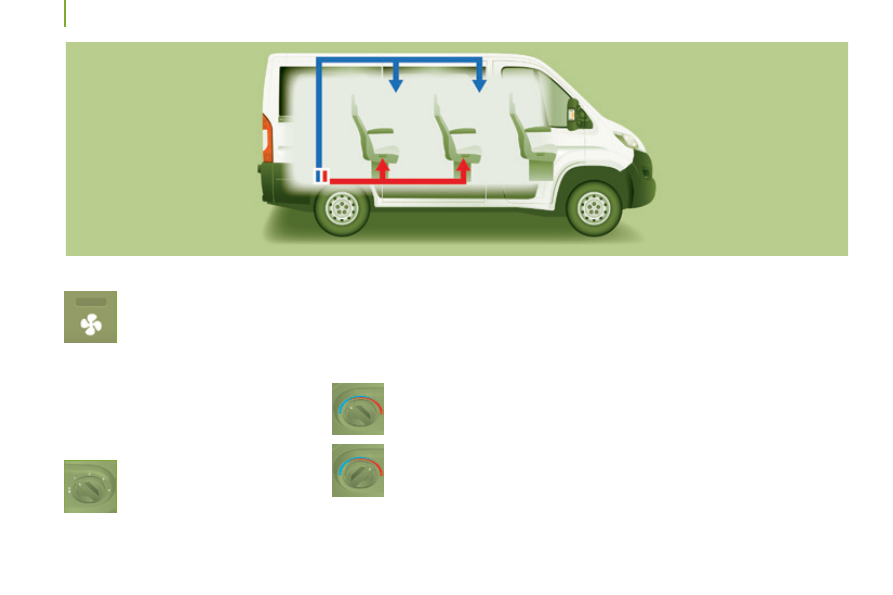

rEAr HEAtInG And / or AIr
condItIonInG

If your vehicle is fitted with an additional
air conditioning unit, located in the rear of
the vehicle: the distribution rail located in
the roof and the individual diffusion vents
provide a perfect diffusion of cold air.

the warm air diffused at the floor, from the
front air conditioning unit, is distributed at
the feet of the rear passengers of rows 2
and 3.

A warm air diffusion vent, located on the rear
left wheelarch, may complete the assembly
for the feet of the rear passengers of row 3.

Additional heating

this is passenger compartment heating,
additional to the standard equipment.

It can operate independently of the engine.

Additional heater or programmable
additional heating

this is an additional, programmable and
separate system which heats the Diesel
engine hot coolant loop to make starting
easier.

It improves the demisting and defrosting
performance and that of the heated seats, if
fitted to the vehicle.

the passenger compartment heating is
brought up to temperature more rapidly.

this system must be programmed to start up
before you enter the vehicle.

On the 5-9 seats version, it is
located at the rear. Depending
on the model version, the air
diffusion is either direct from the

rear or comes from the rail located under
each of the two rows of seats.

Press this control to activate/
deactivate the heating. the LeD
is on if the heating is activated.

When rapid demisting and

defrosting is required, switch off the control.

Automatic additional heating

this is an additional system which starts
automatically when the ignition is switched
on. Its activation depends on the ambient
temperature and the temperature inside the
vehicle.

It switches off automatically once the
heating system is started manually.

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

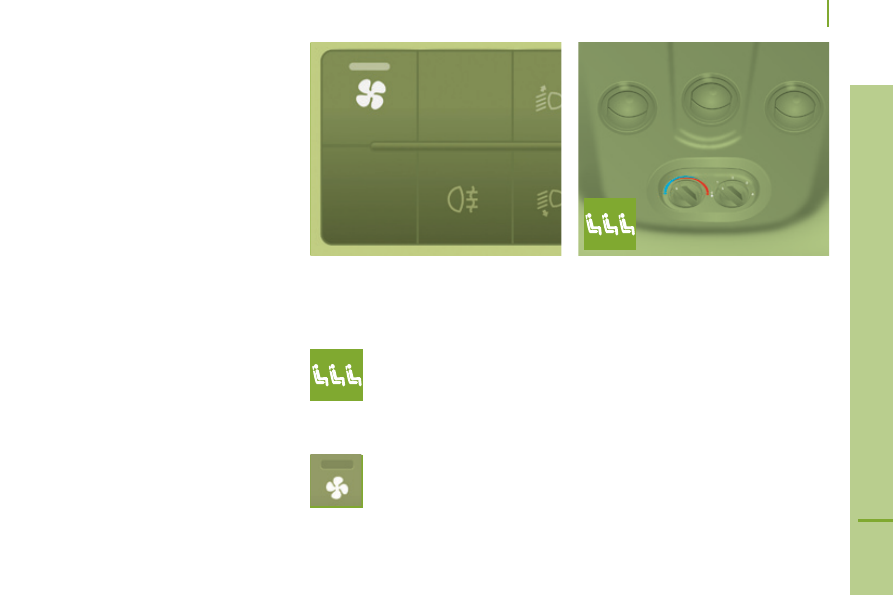

Activation/deactivation

this control, located on the
control panel at the left-hand end
of the dashboard, enables you to
activate/deactivate the operation

of the rear controls from the driver's seat.

the first press activates (LeD on).

A second press deactivates (LeD off).

to deactivate the fan, place the control in
position 0.

However, a safety device will ventilate the
rear circuit automatically, even if the control
is in position 0, to prevent the formation of
condensation.

Air flow

comfort value adjustment

- on the blue, delivers cool air,

- on the red, delivers heating of

the ambient air.

the OFF control on the "Mono-zone" central
control panel switches the function off.

Control positioned:

the force of the fan blown air,
via the vents, varies from 1 to the
strongest 4.

to obtain a comfortable level of
ambient air, remember to adjust
this control.

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

Setting the time of the internal clock

Set the clock on the control panel before
programming the deferred switching on of
the heating.

Press and hold the "set" button.

the time setting screen and
indicator come on.

Within ten seconds, press one of the two
setting buttons until the correct time is
displayed:

">" to increase the time,

"<" reduce the time.

reading the time

ProGrAMMABLE AddItIonAL
HEAtInG

If your vehicle is fitted with separate
programmable heating, it gradually brings
the engine up to a good temperature to
facilitate starting.

An integrated clock permits programming of
its start time. the passenger compartment
will be heated more quickly.

time display

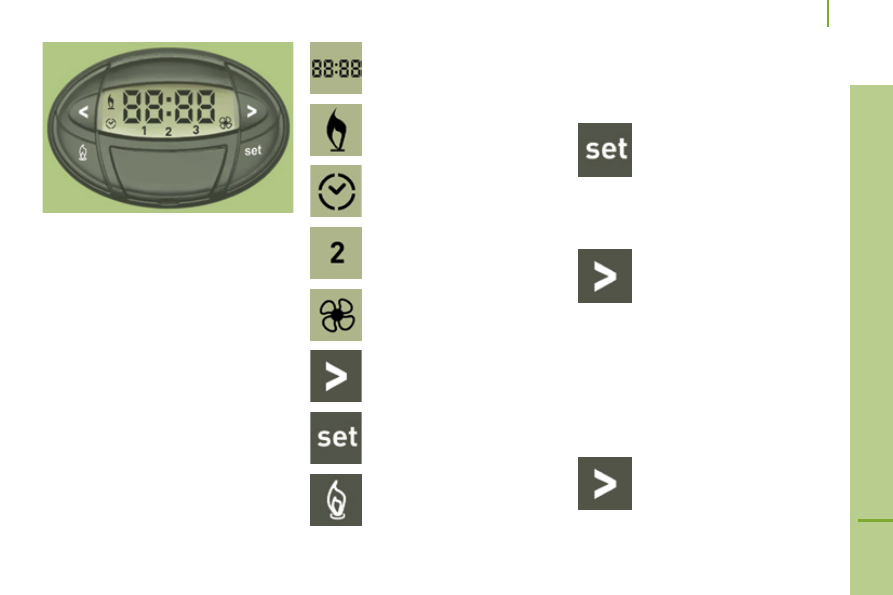

digital programming control

the programmable heating control panel
is located to the side of the steering wheel
below the ModE switch panel.

Heating cycle indicator

time setting and reading indicator

Display of the programme number
selected

Ventilation indicator

time setting buttons

Programme selection button

Button for immediate switching on
of the heating

Press and hold the button for more rapid
scrolling of the digits.

Release the"set" button.

When the screen is off, the time is
memorised.

Press the "<" or ">" button.

this time reading indicator comes
on and the time is displayed for
approximately ten seconds.

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

Immediate heating

Before switching on the heating, check that:

the temperature setting control is in the
"Hot air" position (red),

the air flow setting control is in
position "2".

the "- -:- -" symbol or the
previous stored time and the
number (1, 2 or 3) corresponding
to the recalled pre-selection are

displayed for ten seconds.

note: if you wish to recall the other pre-
selected times, press the "set" button
repeatedly before the ten seconds have
elapsed.

Press this button.

the screen and the heating cycle
indicator come on and remain
on throughout the duration of
operation.

deferred heating

Switching on can be programmed between
one minute and twenty-four hours in
advance.

You can store up to three different start
times, but programme one deferred start
only.

note: if you wish to start the heating at a
fixed time each day, simply reprogramme
the stored time each day.

Press the "set" button, the screen
comes on.

Within ten seconds, press the "<"
or ">" setting button to select the
required start time.

Setting of the stored time is confirmed by
clearing of the start time, displaying of
the pre-selection number (1, 2 or 3) and
illumination of the screen.

By default, pre-selected times are
already memorised in the system

(1 = 6 hours; 2 = 16 hours; 3 = 22 hours).
Any modification cancels and replaces the
previous pre-selected time.

If the battery is disconnected, the default
pre-selected times are restored.

cancelling the programming

Press the "set" button briefly
to clear the programmed start
time.

the screen illumination and the

pre-selection number (1, 2 or 3) go off.

recalling one of the pre-selected
start times

Press the "set" button as many
times as necessary until the
number corresponding to the
required pre-selected start time

(1, 2 or 3) appears.

After ten seconds, the time disappears but
remains stored while the corresponding
number (1, 2 or 3) and the screen
remain on.

Ventilation

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

Have the additional heating checked at
least once a year at the beginning of

winter. Maintenance and repairs should only
be carried out by a PeugeOt dealer or a
qualified workshop.

use only genuine replacement parts.

Switching off the heating

In the case of deferred operation, the
heating stops at the end of the programmed
period.

Good practice

to avoid any risk of poisoning or
asphyxiation, the additional heating must
not be used, even for short periods, in
an enclosed space such as a garage or
workshop which is not fitted with an exhaust
gas extraction system.

the additional heating switches off when the
battery voltage is low, so as to allow engine
starting.

the additional heating is supplied by the
vehicle's fuel tank. ensure that the low fuel
warning lamp is not on.

Always switch off the additional heating
when filling with fuel to avoid any risk of fire
or explosion.

the temperature near the heater must not
exceed 120 °C. A temperature higher than
this (for example in the case of painting in
an oven) could damage the components of
the electronic circuits.

the additional heating is fitted with
a temperature limiter which cuts off
the combustion in the event of engine
overheating due to a lack of coolant. Check
the level and if necessary top-up following
the advice given in the "Checks - Levels"
section. then press the programme
selection button before switching the heating
on again.

Setting the operating period

the period of operation can be set to
between 10 and 60 minutes.

Press and hold the "set" button.

At the same time press the "<"
or ">" button.

the time and the time setting
indicator come on.

Press and hold the "set" button again.

At the same time press the "<" or ">" button
again.

the programmed operating period is
displayed and the heating or ventilation
cycle indicator flashes.

Adjust the period by pressing the "<" or
">" button.

the setting is confirmed by the period
disappearing from the screen or by pressing
the "set" button again

In the case of immediate
operation, press this button again
to switch off manually.

the heating cycle indicator and

the screen go off.

Ventilation

boxer_en_Chap03_ergo-et-confort_ed01-2015

two additional uses

the additional heating is separate and
programmable. Before you enter the vehicle,
it gradually increases the temperature of the
engine to make starting easier. this also
facilitates passenger compartment heating,
demisting and defrosting.

Also, the additional passenger compartment
heating system supplements the standard
system. Its operation may be independent of
the engine. Switching on of the heating may
be programmable.

Seats

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

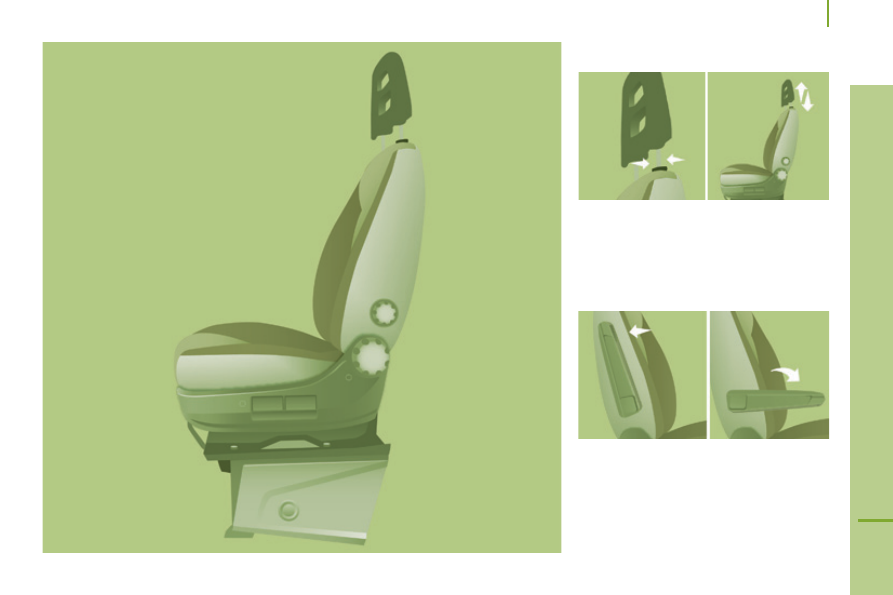

drIVEr'S SEAt

Head restraint

Press the tab to adjust the height of the
head restraint.

to remove the head restraint, press the tabs
and raise the head restraint.

Adjustable armrest

Raise or, lower the armrest.

turn the wheel located under the end of the
armrest to lock it in the desired position.

Seats

boxer_en_Chap03_ergo-et-confort_ed01-2015

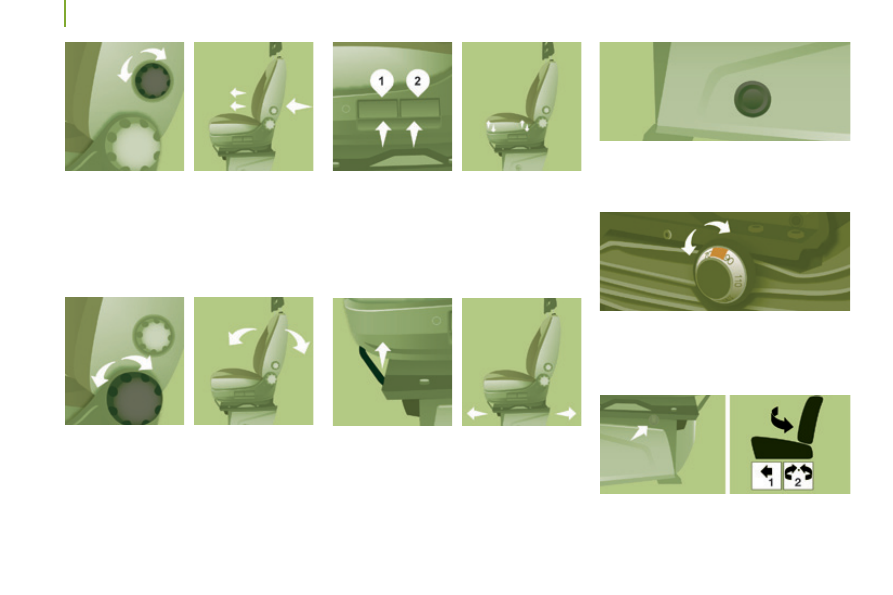

Lumbar support

turn the control.

Seat cushion height

Lift the handle 1 to raise or lower the front of
the seat.

Lift the handle 2 to raise or lower the rear of
the seat.

Heated seat

use this control to switch the heating of the
seat on or off.

Seat with variable damping

If your seat is fitted with this system, turn the
control to adjust the level of damping to suit
the driver's weight.

Seat backrest angle

turn the control to adjust the angle of the
seat backrest.

Forwards-backwards

Lift the control bar, located under the seat,
and adjust to the required position.

rotating seat

If fitted on your seat, press the control to
rotate the seat by 180°.

Seats

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

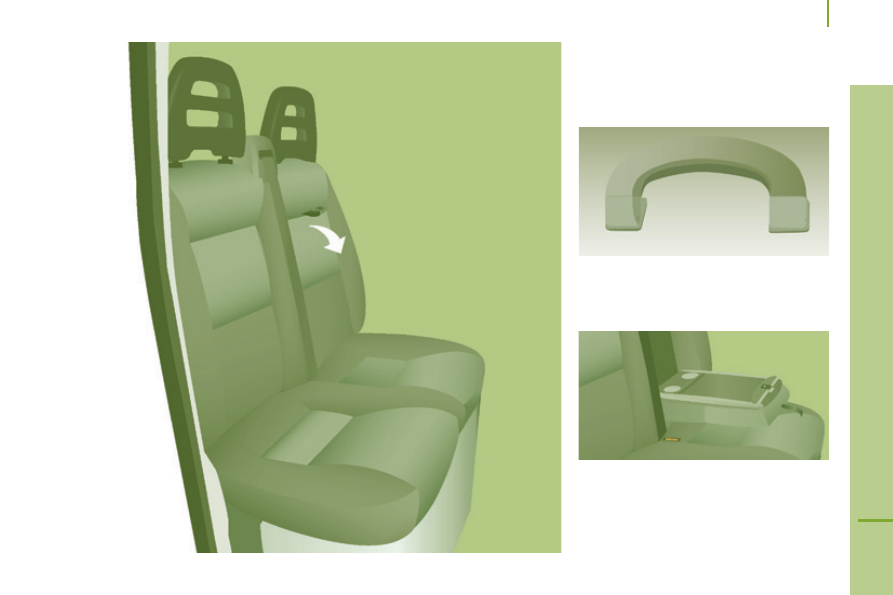

2-SEAt Front BEncH

this is equipped with two seat belts.

Grab handle

this is located above the centre passenger.

Writing table

the back of the centre seat folds to form a
writing table.

Pull the strap located at the top of the seat
backrest.

Seats

boxer_en_Chap03_ergo-et-confort_ed01-2015

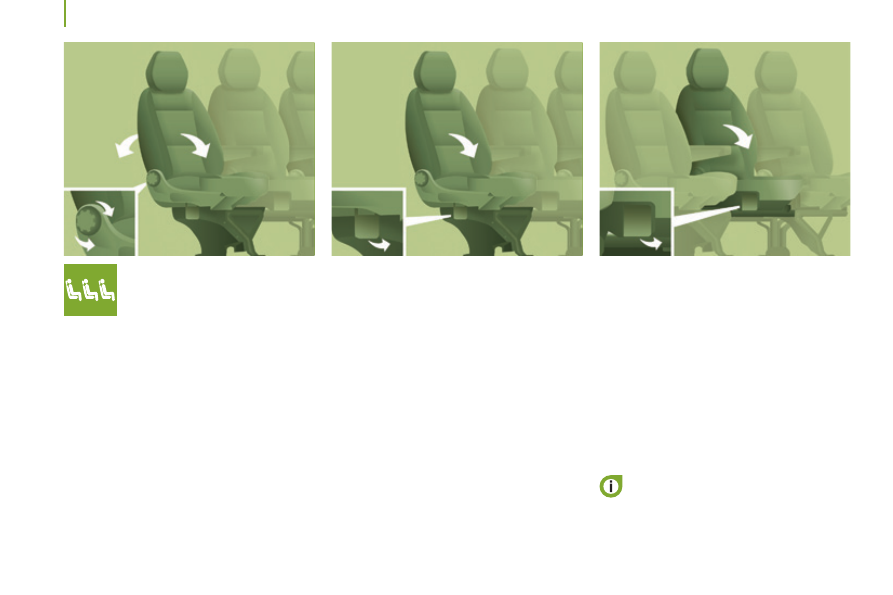

rEAr SEAtS

Seat backrest angle

turn the control to adjust the angle of the
seat backrest.

Access to the rear seats

to gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.

to return the seat backrest to its initial
position, bring it to the vertical position
without touching the control.

Seat backrest folded position of the
central seat (rows 2 and 3)

the backrest of the central seat can be
folded fully onto the cushion and used as a
cup holder table.

Lower the head restraint then raise the
control and fold the seat backrest forwards.

to return the seat backrest to its initial
position, raise the control again.

to understand the significance of the
precautions mentioned on the labels,

refer to the "Quick help - glossary of labels"
section.

Seats

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

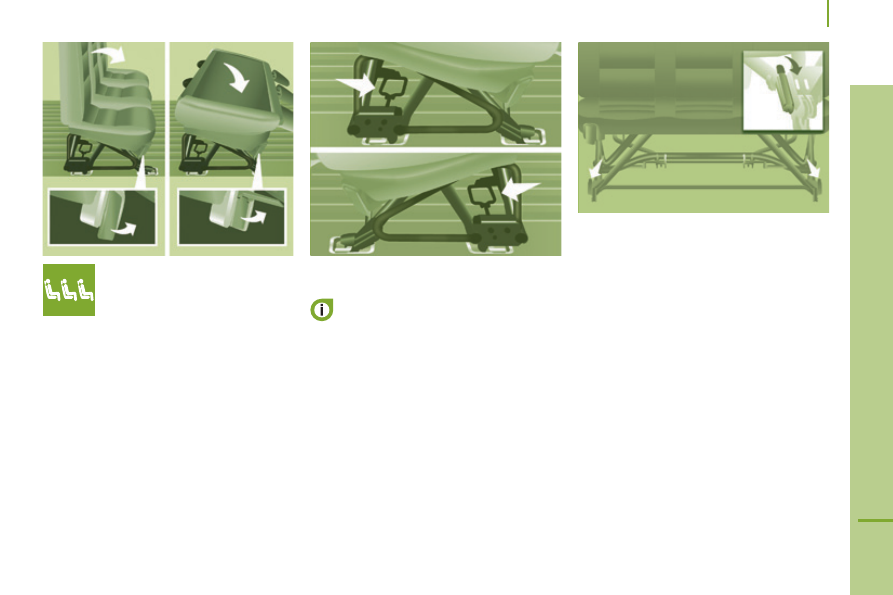

rEAr BEncH SEAtS

removing the bench seat

Good practice

ensure that the seat belts are always
accessible and easy for the passenger to
fasten.

Passengers must correctly adjust the head
restraint of their seat, before adjusting and
fastening their seat belt.

Access to the rear seats

Lower the head restraints then raise the first
lever and tilt the seat back forwards.

Seat backrest folded position

Remove the head restraints then tilt the seat
backrest as described above.

With your right hand, raise the second lever
then tilt the seat backrest 5° towards the
rear.

With your left hand, tilt the seat backrest
fully forwards onto the cushion.

turn the two levers upwards to release the
front anchorages.

Raise the bench seat and remove it.

At least two people are required to
remove the bench seat.

Fold the seat backrest onto the cushion as
described above.

turn the two grips forward to release the
rear anchorages.

tilt the base of the bench seat forwards to
place the assembly in the vertical position.

Removed head restraints must be stowed
securely.

Do not travel in row 3 with the row 2 bench
in the vertical position.

Do not leave objects on the folded row 2
backrest.

Practical information

boxer_en_Chap03_ergo-et-confort_ed01-2015

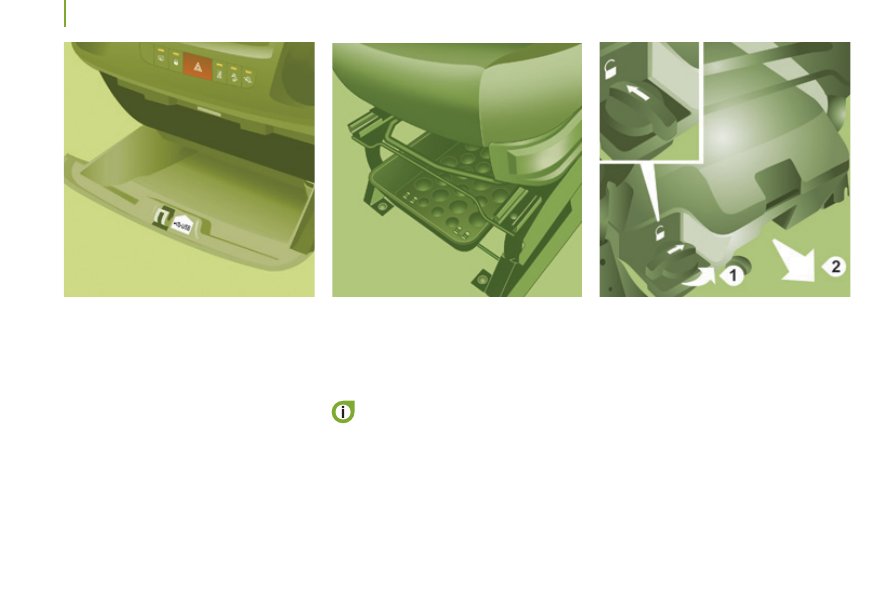

cABIn FIttInGS

Front seat storage

there is a fixed storage tray under the
driver's seat.

central glove box

If fitted with a lock, you can lock it using
the key.

It gives access to the auxiliary sockets (Jack
and uSB) intended for the transfer of data to
the audio system.

If your vehicle is fitted with a seat with
variable damping, it does not have any
storage compartments.

the space under the passenger's seat is
used to store the tool box containing the
tools required to change a wheel or bulb or
to tow the vehicle.

to take out the box, turn the control a
quarter turn to unlock it, then pull the box
forward.

When putting it back, don't forget to turn the
control a quarter turn in the other direction to
lock the box in its housing.

Practical information

EASE OF USE

and

COMFORT

boxer_en_Chap03_ergo-et-confort_ed01-2015

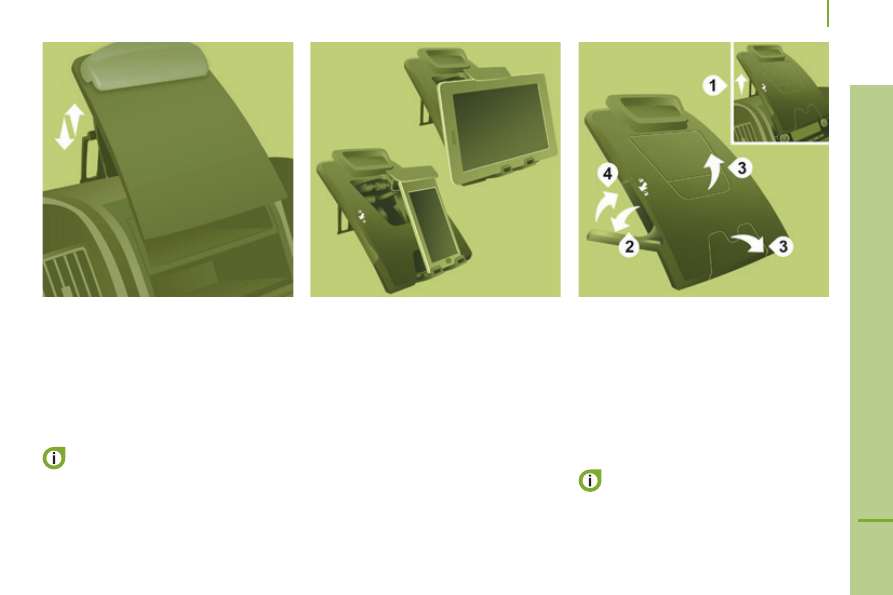

Folding writing table

this is located in the centre of the
dashboard.

the clip can be used to secure documents,
slips, ...

Pull or push the top of the table to unfold or
fold it.

to insert or extract a CD, you must first
fold the table.

If your vehicle is fitted with a two-seat front
bench and a passenger front airbag, the
table cannot be raised.

Multifunction carrier

this can be used to support a portable
device, such as a smartphone in a vertical
position or a touch screen tablet in a
horizontal position.

Pull the top of the carrier to unfold it.

turn the side lever to release the upper and
lower clamps.

Spread the clamps to fit the portable device.

Raise the side lever to lock the clamps.

Before folding the carrier, remove the
portable device by repeating the same

operations.

Push the top of the carrier to fold it.

Practical information

boxer_en_Chap03_ergo-et-confort_ed01-2015

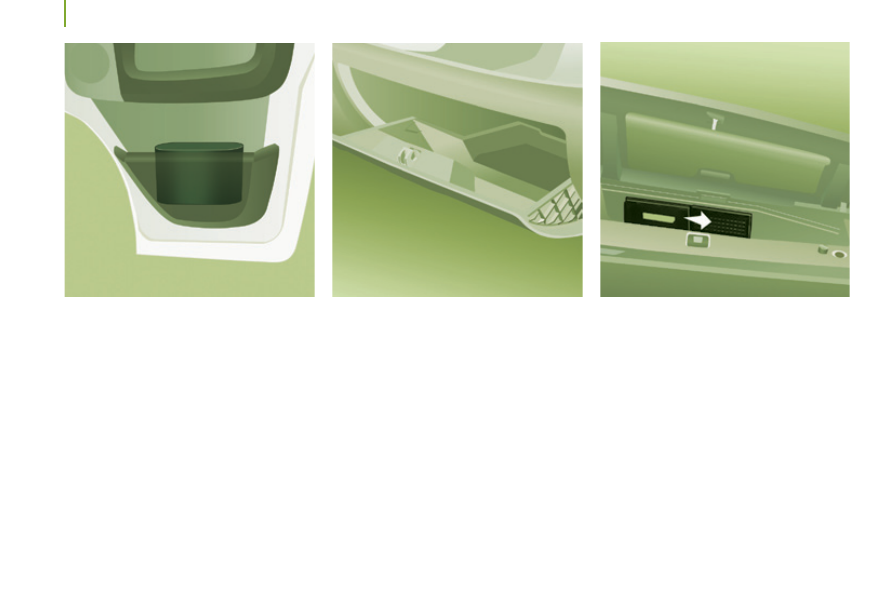

cooled glove box

this is located in the top right of the
dashboard, passenger side.

the air delivered to the glove box is the
same as that from the vents.

Passenger glove box

Front door pockets

Depending on the country of sale, one of
the door pockets may house the temporary
puncture repair kit.

Content .. 3 4 5 6 ..
