Peugeot Boxer (2016 year). Manual

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Screen

displays

indicates

Solution - action

gear shift
indicator

an up arrow.

the possibility of changing up.

"Ready to set off - gearbox and steering wheel" section.

Speed limiter

on with "OFF".

that the limiter selected is not
active.

Manual selection.

"ease of use and comfort - Steering mounted controls"
section.

on.

that the limiter is on.

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

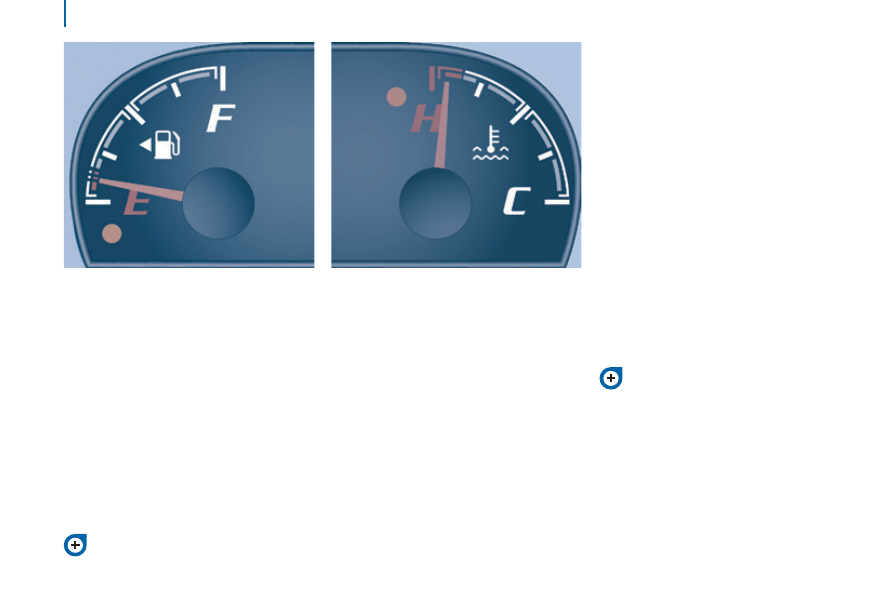

FuEL GAuGE

the fuel level is tested every time the
ignition is turned on.

the gauge is positioned on:

F (Full): the fuel tank is full.

E (Empty): the reserve is now being
used, the low fuel warning lamp comes
on continuously.

the reserve when the warning first comes
on is approximately:

10 litres for 60 and 90 litre tanks,

12 litres for 120 litre tanks.

Fuel tanks of different capacities (60 and
120 litres) are available as an option.

cooLAnt tEMPErAturE

the needle is positioned between
c (cold) and H (Hot): normal operation.

In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.

If the needle enters the red zone or if the
warning lamp comes on:

stop immediately, switch off the ignition.
the fan may continue to operate for
a certain time up to approximately
10 minutes.

wait for the engine to cool down in
order to check the level and top it up if
necessary. Follow this advice:

the cooling system is pressurised. In order
to avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.

When the pressure has dropped, check the
level and remove the cap to top-up.

If the needle remains in the red zone,
contact a PeugeOt dealer or a qualified
workshop.

Refer to the "Checks - Fuel" section.

Refer to the "Checks - Levels and
checks" section.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

EMISSIonS controLS

eOBD (european On Board Diagnosis)
is a diagnostics system which complies
with, among others, the standards on the
authorised emissions of:

CO (carbon monoxide),

HC (unburnt hydrocarbons),

NOx (nitrous oxides) or particles,
detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.

tYrE undEr-InFLAtIon dEtEctIon

System which automatically checks the
pressures of the tyres while driving.

the tyre under-inflation detection
system is an aid to driving which does
not replace the need for vigilance on
the part of the driver.

this system does not avoid the need
to check the tyre pressures regularly

(including the spare wheel) and before a
long journey.

Driving with under-inflated tyres increases
fuel consumption.

the system continuously monitors the
pressures of the four tyres, as soon as the
vehicle is moving.

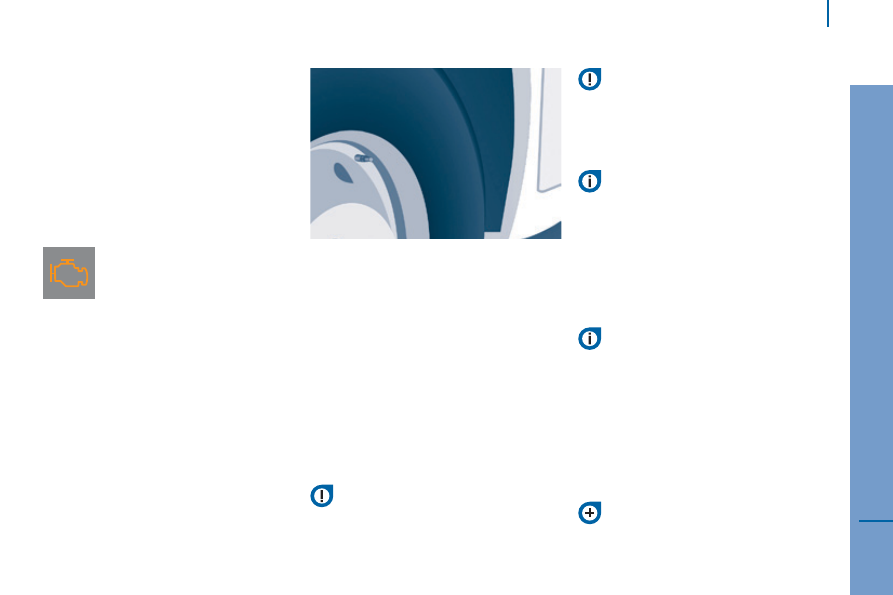

A pressure sensor is located in the valve of
each tyre.

the system triggers an alert if a drop in
pressure is detected in one or more tyres.

the tyre pressures must be checked
when the tyres cold (vehicle stopped

for 1 hour or after driving for less then
6 miles (10 km) at moderate speed).
Otherwise, add 0.3 bar to the values
indicated on the label.

the tyre pressures for your vehicle can be
found on the tyre pressure label.

the driver is warned of any
malfunction of this emission
control system by the illumination
of this specific warning lamp in
the instrument panel.

there is a risk of damage to the catalytic
converter. Have it checked by a PeugeOt
dealer or a qualified workshop.

to locate it, refer to the "technical
data - Identification markings" section.

Driving with under-inflated tyres
adversely affects road holding, extends

braking distances and causes premature
tyre wear, particularly under arduous
conditions (vehicle loaded, high speed, long
journey).

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

under-inflation alert

The alert is given by the fixed
illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.

In the event of a problem on one of the
tyres, the symbol or the message appears,
according to equipment, to identify it.

Reduce speed, avoid sudden steering
movements or harsh brake applications.

Stop as soon as it is safe to do so.

In the event of a puncture, use the
temporary puncture repair kit or the
spare wheel (according to equipment).

In the event of under-inflation:

● if you have a compressor, the one

in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,

or
● if it is not possible to check the

tyre pressures at the time, drive
carefully at reduced speed and go to
the nearest PeugeOt dealer or a
qualified workshop.

the loss of pressure detected does not
always lead to visible deformation of

the tyre.

Do not rely on just a visual check.

the alert is maintained until the tyre or
tyres concerned is reinflated, repaired

or replaced.

operating fault

the flashing and then fixed
illumination of this warning lamp
accompanied by the illumination
of the service warning lamp, and

depending on equipment, the display of a
message indicates a fault with the system.

In this case, monitoring of the tyre pressures
is not assured.

this alert is also displayed when one or
more wheels is not fitted with a sensor.

go to a PeugeOt dealer or a qualified
workshop to have the system checked or,
following the repair of a puncture, to have
the original wheel, equipped with a sensor,
refitted.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

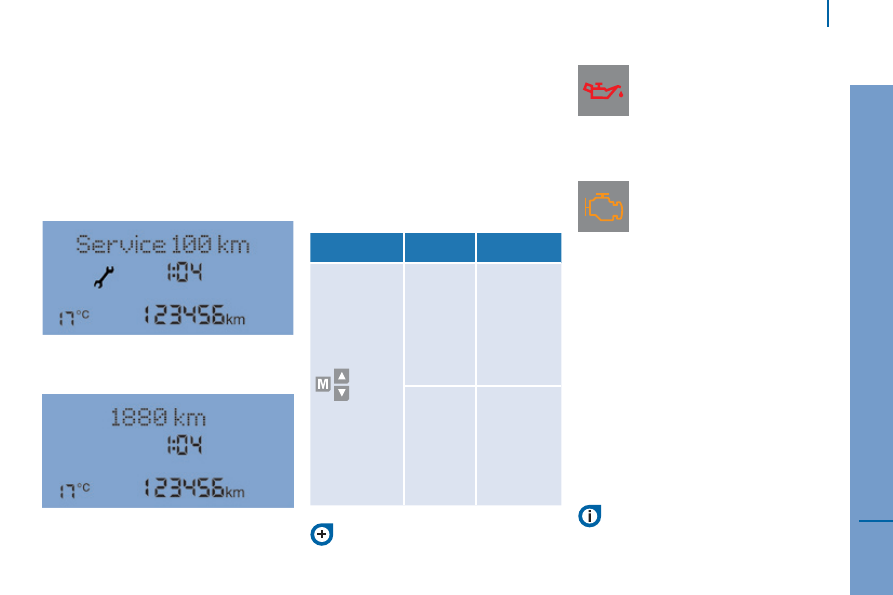

SErVIcE IndIcAtor

For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the servicing schedule
indicated in the warranty and maintenance
record. this information is determined in
relation to the distance travelled since the
previous service.

After a few seconds, the display returns to
its usual functions.

A long press returns you to the main menu.

Refer to the "technology on board -
Vehicle configuration" section.

deterioration of the engine oil

Refer to the list of checks in the
warranty and maintenance record
which was given to you on handover of
the vehicle.

reminder of servicing information

At any time, to access the service indicator,
press briefly on the ModE button.

use the up/down arrows to see the
scheduling and engine oil wear information.

Pressing the ModE button again allows you
to return to the various display menus.

Menu...

choose...

Allows you to...

11
Service

Service
(miles/
km before
service)

Display the
distance
remaining
before the
next service.

Oil (miles/
km before
oil change)

Display
the miles/
kilometres to
the next oil
change.

resetting to zero

the continuous flashing of the indicator is
stopped by a qualified workshop using a
diagnostic tool.

this 2

warning lamp, coupled

with the 1

, comes on in the

instrument panel when the oil
has not been changed and the

deterioration of the oil has reached another
threshold. to avoid the risk of damage, have
the oil changed without waiting for this level.

the warning lamp flashing and,
if your vehicle has the function,
a message displayed at every
engine start: the system has

detected deterioration of the engine oil.
Have the oil changed as soon as possible.

For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.

Gearbox and steering wheel

boxer_en_Chap02_Pret-a-Partir_ed01-2015

to change gear easily, always depress the
clutch pedal fully.

to prevent the mat from becoming caught
under the pedal:

ensure that the mat is positioned
correctly,

never fit one mat on top of another.

Avoid leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.

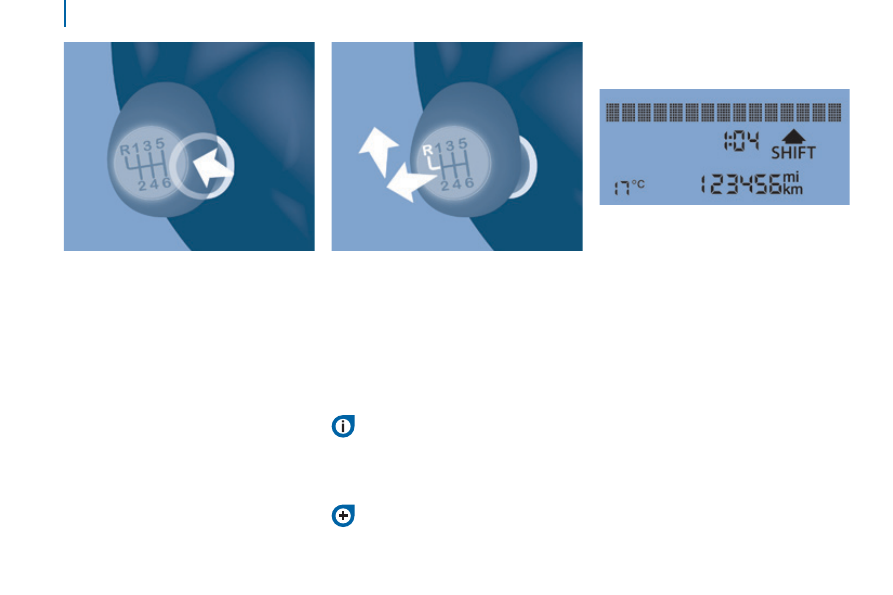

MAnuAL GEArBox

reverse gear

Raise the collar under the gear knob to
engage reverse gear.

Never engage reverse gear before the
vehicle is completely stationary.

the lever should be moved slowly to reduce
the noise on engaging reverse gear.

If your vehicle is fitted with parking
sensors, the system comes into

operation when reverse gear is engaged; an
audible signal is heard.

Refer to the "technology on board -
Parking sensors" section.

GEAr SHIFt IndIcAtor

Depending on the engine or version, this
system allows fuel consumption to be
reduced by suggesting when to change up.

the gear engagement recommendations
should not be considered to be compulsory.
this because the configuration of the
road, the traffic density and safety remain
determining factors when choosing the
best gear. therefore, the driver remains
responsible for deciding whether or not to
follow the advice given by the system.

the system never recommends engaging
first gear or reverse, or changing down.

Gearbox and steering wheel

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

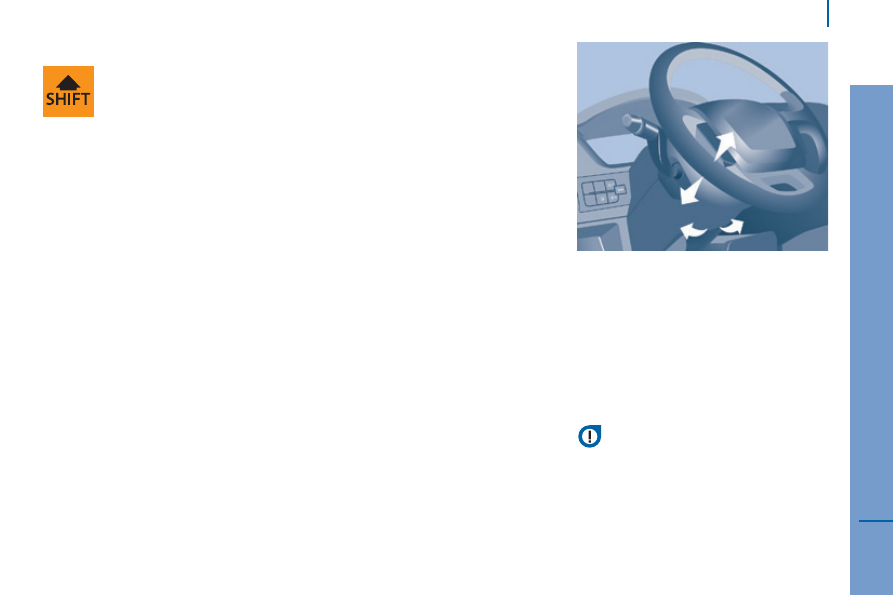

StEErInG WHEEL AdjuStMEnt

With the vehicle stationary, first adjust your
seat to the most suitable position.

Release the steering wheel adjustment
mechanism by pulling the lever towards you.

Adjust the reach of the steering wheel, then
lock the mechanism by pushing the lever
fully forwards.

operation

the information appears in the
instrument panel screen in the
form of the SHIFt indicator,
accompanied by an upward arrow

to signal to the driver that they can change up.

the system adapts its gear change
recommendations according to the driving
conditions (slope, load, ...) and demands
from the driver (for power, acceleration,
braking, ...).

Switching off

this system cannot be deactivated by the
driver.

As a safety measure, these operations
must not be carried out while driving.

Starting and switching off

boxer_en_Chap02_Pret-a-Partir_ed01-2015

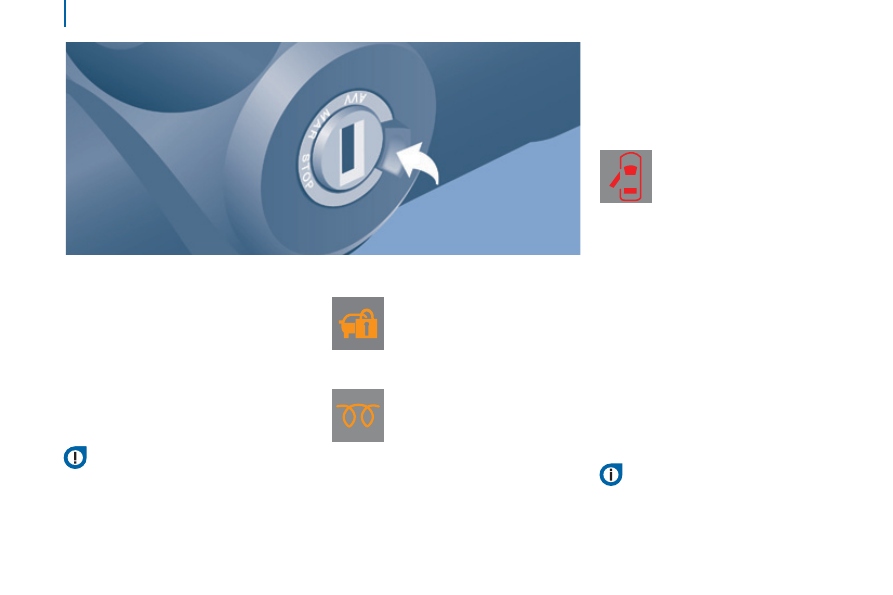

IGnItIon SWItcH

StoP position: steering lock.

the ignition is off.

MAr position: ignition on.

Certain accessories can be used.

AVV position: starter.

the starter is operated.

Starting the engine

Engine immobiliser warning lamp

If this warning lamp comes
on, use another key and have
the faulty key checked by a
PeugeOt dealer.

diesel pre-heating warning lamp

With the parking brake applied
and the gearbox in neutral, turn
the key to the MAr position.

Wait for this warning lamp to go off then
operate the starter (AVV position) until the
engine starts.

the period of illumination of the warning
lamp depends on the climatic conditions.

door or bonnet open warning
lamp

If this warning lamp comes on,
check that the doors and bonnet
are closed correctly.

Switching off the engine

Stop the vehicle and apply the parking
brake, then, with the engine at idle, return
the key to the StoP position.

In low temperatures

In mountainous and/or cold areas, it is

advisable to use a "winter" type fuel suited
to low or minus temperatures.

Avoid attaching heavy objects to the
key or the remote control, which would

weigh down on its blade in the ignition
switch and could cause a malfunction.

It could adversely affect the deployment of
the front airbag.

With the engine hot, the warning lamp comes
on for a few moments, you can start the engine
without waiting.

As soon as the engine is running, release the key.

Starting and switching off

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

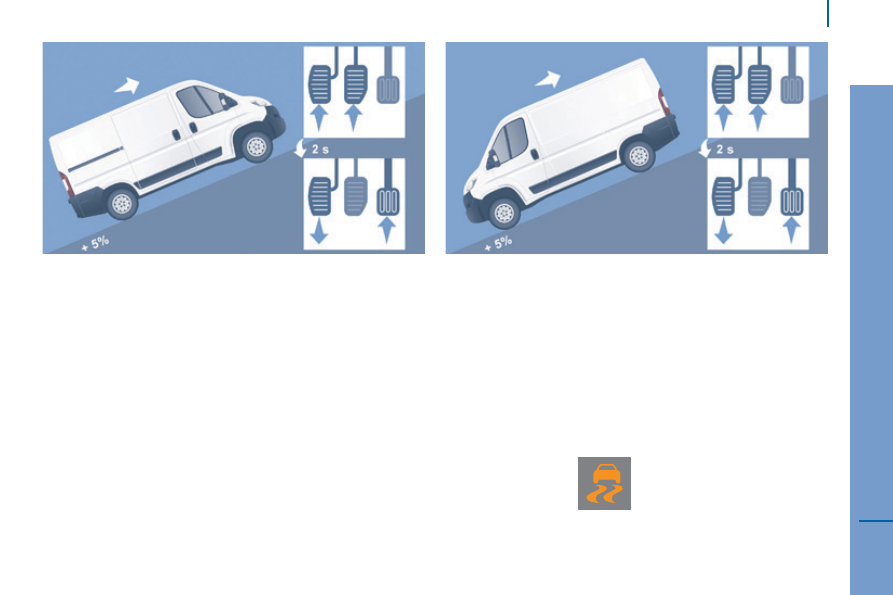

HILL StArt ASSISt

this system (also called HHC - Hill Holder
Control), linked to the dynamic stability
control system, makes hill starts easier and
is activated in the following conditions:

the vehicle must be stationary, engine
running, foot on the brake,

the gradient of the road must be steeper
than 5%,

uphill, the gearbox must be in neutral or
in a gear other than reverse,

downhill, reverse gear must be engaged.

the Hill Start Assist system is a driving
aid. It is not an automatic vehicle parking
function or an automatic parking brake.

operation

With the brake pedal and clutch pedal
pressed, from the time you release the brake
pedal, without using the parking brake, you
have approximately 2 seconds to move off
before the vehicle starts to roll back.

During the moving off phase, the function
is deactivated automatically, gradually
releasing the braking pressure. During
this phase, the characteristic noise of
mechanical release of the brakes may be
heard, indicating the imminent movement of
the vehicle.

operating fault

If a malfunction of the system
occurs, this warning lamp comes
on accompanied by an audible
signal and confirmed by a message

in the screen. Have the system checked by at
a PEUGEOT dealer or a qualified workshop.

Hill start assist is deactivated in the following
situations:

when the clutch pedal is released,

when the parking brake is applied,

when the engine is switched off,

when the engine stalls.

Starting and switching off

boxer_en_Chap02_Pret-a-Partir_ed01-2015

the Stop & Start system puts the engine
temporarily into standby - StOP mode -
during stops in the traffic (red lights, traffic
jams, or other...). the engine restarts
automatically - StARt mode - as soon as
you want to move off. the restart takes
place instantly, quickly and silently.

Perfect for urban use, the Stop & Start
system reduces fuel consumption and
exhaust emissions and offers the comfort of
complete silence when stationary.

StoP & StArt

operation

Going into engine StoP mode

With the vehicle stationary, put the gear
lever into neutral, then release the clutch
pedal.

this indicator lamp comes on
in the instrument panel and
the engine goes into standby.

Automatic stopping of the engine is
only possible after the vehicle has

exceed a speed of about 6 mph (10 km/h),
to avoid repeated stopping of the engine
when driving slowly.

Never leave your vehicle with out first
turning off the ignition with the key.

Never refuel with the engine in
StOP mode; you must switch off the

ignition with the key.

Special cases: StoP mode unavailable

the StOP mode is not invoked when:

the system is initialising,

the driver's door is open,

the driver's seat belt is not fastened,

the air conditioning is running,

the heated rear screen is on,

the windscreen wiper is on fast wipe,

reverse gear is engaged, for a parking
manoeuvre,

some special conditions (battery
charge, engine temperature, particle
filter regeneration, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.

this indicator lamp in the
instrument panel flashes for a
few seconds, then goes off.

this operation is perfectly normal.

Starting and switching off

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Going into engine StArt mode

this indicator lamp goes off
and the engine restarts.

If following an automatic restart in StARt
mode, the driver takes no action on the
the vehicle during the next 3 minutes, the
system stops the engine definitively. the
engine can then only be restarted using
the key.

Special cases: StArt invoked
automatically

the StARt mode is invoked automatically
when:

the vehicle's is free wheeling on a slope,

the windscreen wiper is on fast wipe,

the air conditioning is running,

the engine has been stopped for around
3 minutes with Stop & Start,

some special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the
engine is needed to assure control of a
system.

In this case, a message appears
in the instrument panel screen,
accompanied by this indicator
lamp, which flashes for a few
seconds, then goes off.

Good practice

With a manual gearbox in StOP mode, if a
gear is engaged without fully depressing the
clutch pedal, restarting may not take place.

An indicator lamp and/or message is
displayed in the instrument panel asking
you to fully depress the clutch pedal to allow
restarting.

this operation is perfectly normal.

With the vehicle in gear, automatic engine
restarting is only allowed by fully depressing
the clutch pedal.

With the engine stopped in StOP
mode, if the driver unfasten's
their seat belt and opens a front
door, the engine can only be

restarted using the ignition key. there is
an audible signal, accompanied by flashing
of this indicator lamp and the display of a
message.

Starting and switching off

boxer_en_Chap02_Pret-a-Partir_ed01-2015

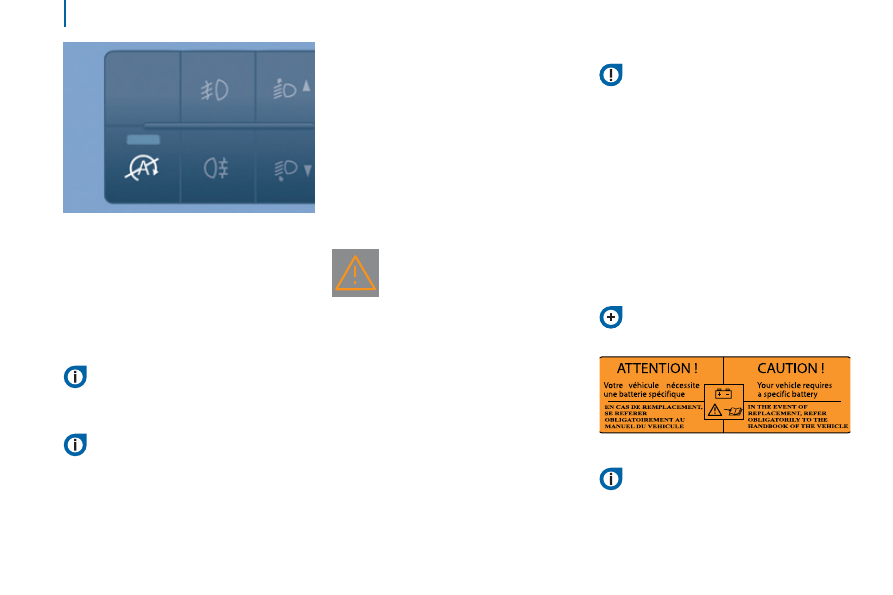

deactivation

At any time, press the "A - oFF" switch to
deactivate the system.

Illumination of the switch indicator lamp,
accompanied by a message in the
instrument panel screen, confirms the the
instruction has been registered.

If the system has been deactivated
in StOP mode, the engine restarts
immediately.

It is necessary to deactivate the
Stop & Start system if you want

to allow continuous operation of the air
conditioning.

the switch indicator lamp stays on.

reactivation

Press the "A - oFF" switch again.

the system is active again; the switch
indicator lamp going off and a message
in the instrument panel screen confirm
reactivation.

operating fault

In the event of a fault with the system,
the Stop & Start system is deactivated
and this warning lamp comes on,
accompanied by a message in the
instrument panel screen.

Have it checked by a PeugeOt dealer or
a qualified workshop.

In the event of an operating fault with StOP
mode, it is possible to restart the engine by
depressing the clutch pedal fully and putting
the gear lever into neutral.

Maintenance

Before working under the bonnet, you
must switch off the ignition with the

key to avoid any risk of injury resulting from
automatic operation of StARt mode.

this system requires a specific battery
with a special specification and technology
(reference numbers available from a
PeugeOt dealer or a qualified workshop).

Fitting a battery not listed by
PeugeOt introduces the risk of malfunction
of the system.

the Stop & Start system makes use
of advanced technology. Specialist

knowledge is needed for any work on the
system, which can only be assured by
PeugeOt dealers.

Refer to the "Quick help - Flat battery"
section.

Starting and switching off

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

drIVInG rEcoMMEndAtIonS

Observe the driving regulations and remain
vigilant whatever the traffic conditions.

Pay close attention to the traffic and keep
your hands on the wheel so that you are
ready to react at any time to any eventuality.

On a long journey, a break every two hours
is strongly recommended.

In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.

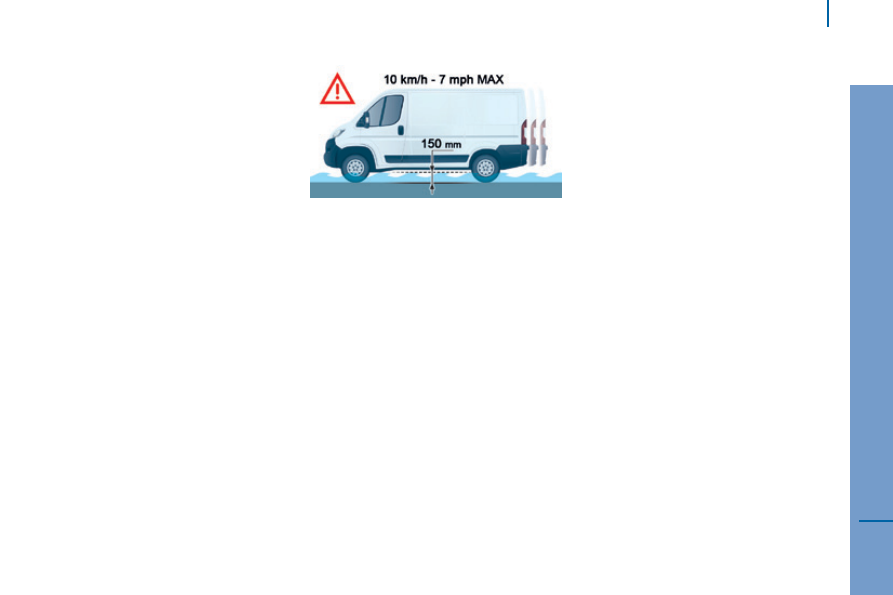

driving on flooded roads

We strongly advise against driving on
flooded roads, as this could cause serious
damage to the engine or gearbox, as well as
to the electrical systems of your vehicle.

If you are obliged to drive through water:

check that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,

deactivate the Stop & Start system,

drive as slowly as possible without
stalling. In all cases, do not exceed
6 mph (10 km/h),

do not stop and do not switch off the
engine.

On leaving the flooded road, as soon as
circumstances allow, make several light
brake applications to dry the brake discs and
pads.

If in doubt on the state of your vehicle,
contact a PeugeOt dealer or a qualified
workshop.

Important!

Never drive with the parking brake applied -
Risk of overheating and damage to the
braking system!

Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass, dead
leaves...) might come into contact with the
hot exhaust system - Risk of fire!

Never leave a vehicle unsupervised with
the engine running. If you have to leave
your vehicle with the engine running, apply
the parking brake and put the gearbox into
neutral.

Improved comfort

boxer_en_Chap03_ergo-et-confort_ed01-2015

Sound control

Your vehicle benefits from technical
suspension choices which contributes to
improving general comfort.

these developments also contribute to
reducing noise disturbance.

Acoustic comfort

the underseal under the body, on the body
sills and on the wheel arches considerably
reduces noise and protects the body from
external wear.

EASE OF USE

and

COMFORT

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

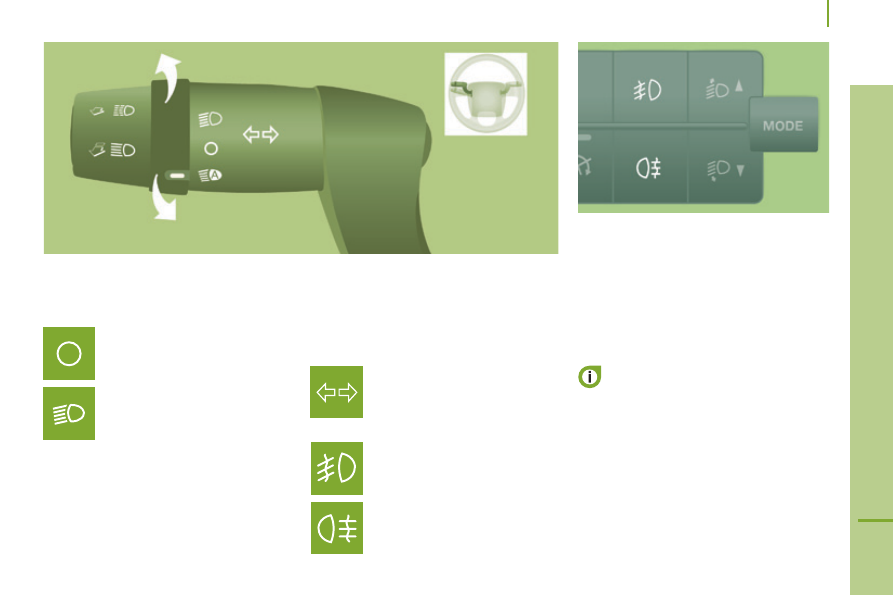

LIGHtInG controL StALK

Selection is by rotation of the white mark on
the ring.

direction indicators (green
flashing)

Left: downwards.

Right: upwards.

Sidelamps on

dipped/main beam
headlamps on

Switching between dipped and main
beam

Pull the control stalk fully towards you.

Headlamp flash

Pull the control stalk towards you,
regardless of the position of the ring.

Front foglamps

rear foglamps

If your vehicle is fitted with foglamps, these
operate with the dipped or main beam
headlamps.

Press one of these controls to switch on the
lamps.

the foglamps should only be used in
fog or when snow is falling.

In clear weather or in rain, both day and
night, rear foglamps dazzle and their use is
prohibited.

Do not forget to switch them off when they
are no longer necessary.

"Motorway" function

Pull the lever towards the steering wheel with
a press, without passing the point of resistance
of the lighting stalk; the corresponding direction
indicators will flash five times.

Steering mounted controls

boxer_en_Chap03_ergo-et-confort_ed01-2015

AutoMAtIc ILLuMInAtIon

Activation

turn the ring to this position.

Do not cover the sunshine sensor at
the top centre of the windscreen.

GuIdE-ME-HoME LIGHtInG

Ignition off or key in the StoP position.

Within 2 minutes after switching off the
engine, position the ignition key in the StOP
position or remove it.

Pull the lighting stalk towards the steering
wheel.

the indicator lamp comes on in
the instrument panel.

each action on the lighting stalk,
pulled towards the steering

wheel, prolongs the guide me home
lighting by 30 seconds up to approximately
3 minutes. When this time has elapsed, the
lamps are switched off automatically.

Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 seconds.

If your vehicle is fitted with this function:
when you leave your vehicle, the dipped
beam headlamps remain on for the selected
duration (when leaving a car park for
example).

You can adjust the sensitivity of the
sunshine sensor.

Refer to the "technology on board -
Vehicle configuration" section.

If your vehicle is fitted with this function, the
dipped beam headlamps are switched on
automatically if the light is poor.

In fog or snow, the sunshine sensor may
detect sufficient light. therefore, the lamps
will not be switched on automatically. If
necessary, you must switch on the dipped
beam headlamps manually.

they are switched off when the light returns
to a sufficient level.

LEd dAYtIME runnInG LAMPS

On starting the vehicle, in daylight the LeD
daytime running lamps come on automatically.

If the sidelamps and headlamps are switched
on manually or automatically, the daytime
running lamps go off.

Programming

For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via the
configuration menu.

the lamps are switched off automatically
when the ignition is switched off.

Peugeot Boxer (2016 year). Manual - part 3
